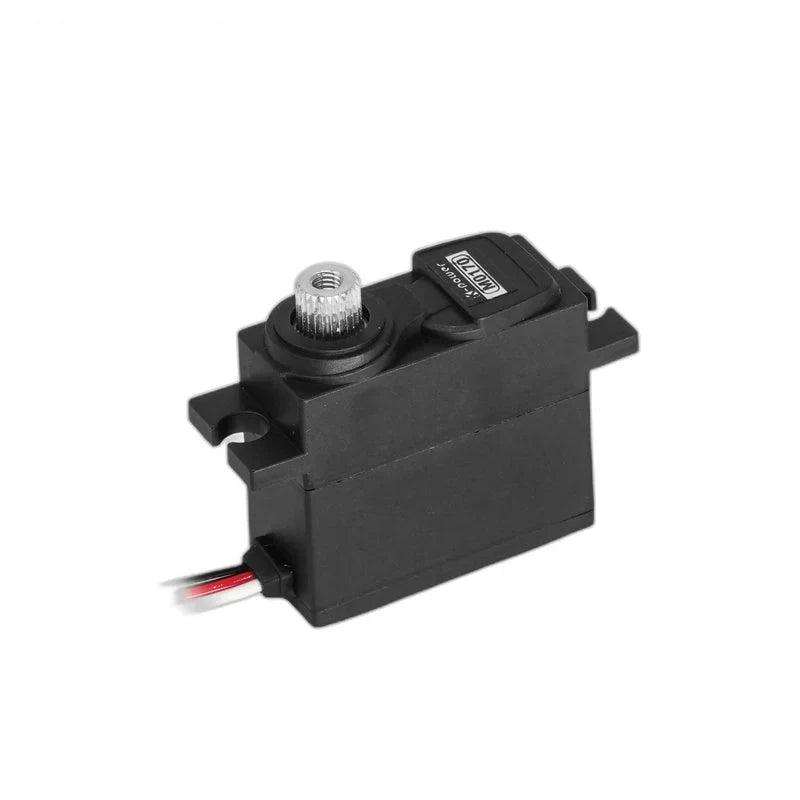

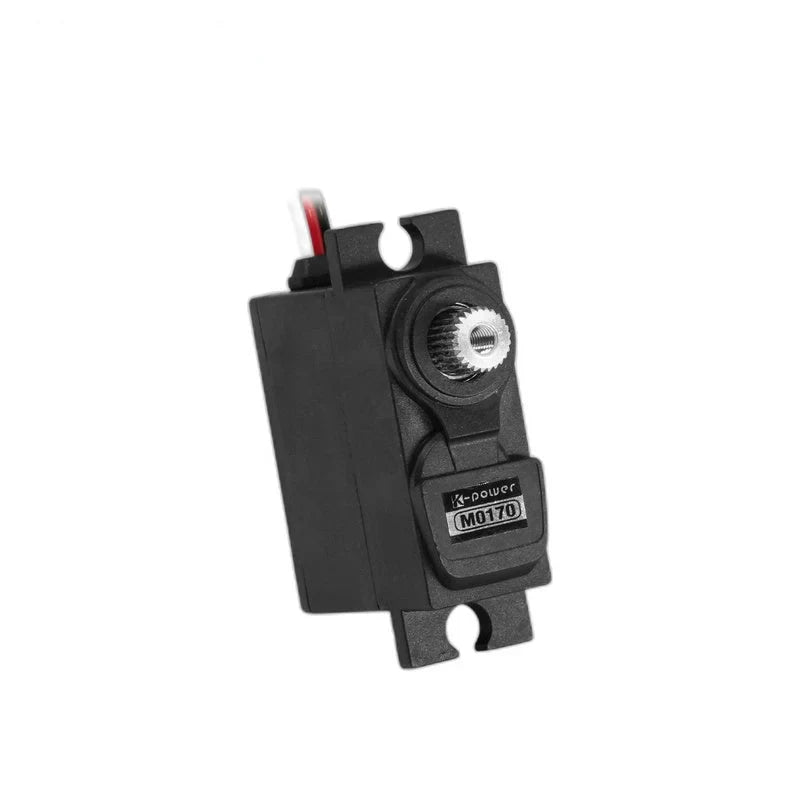

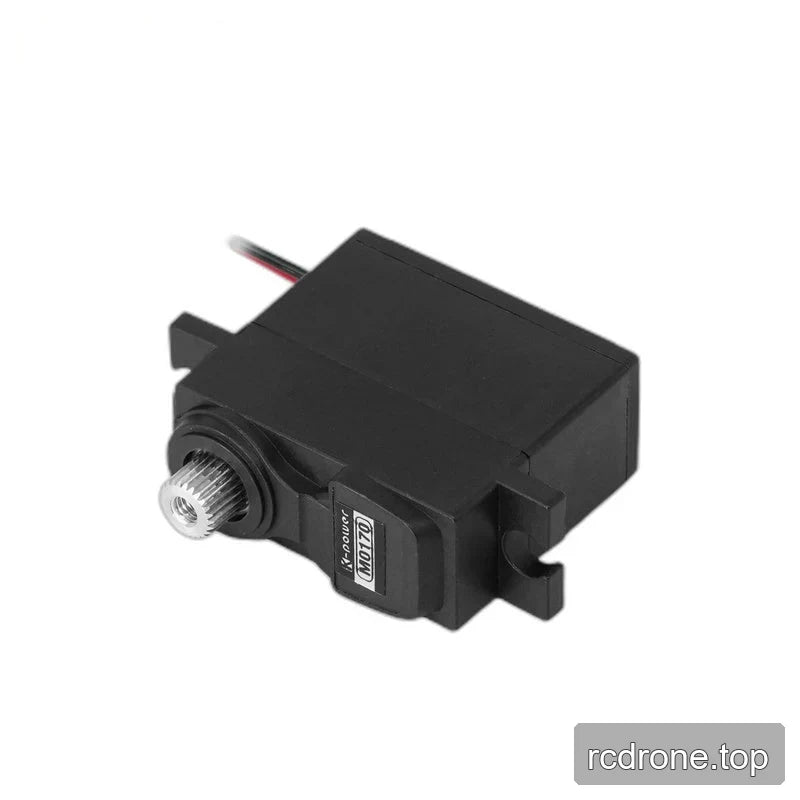

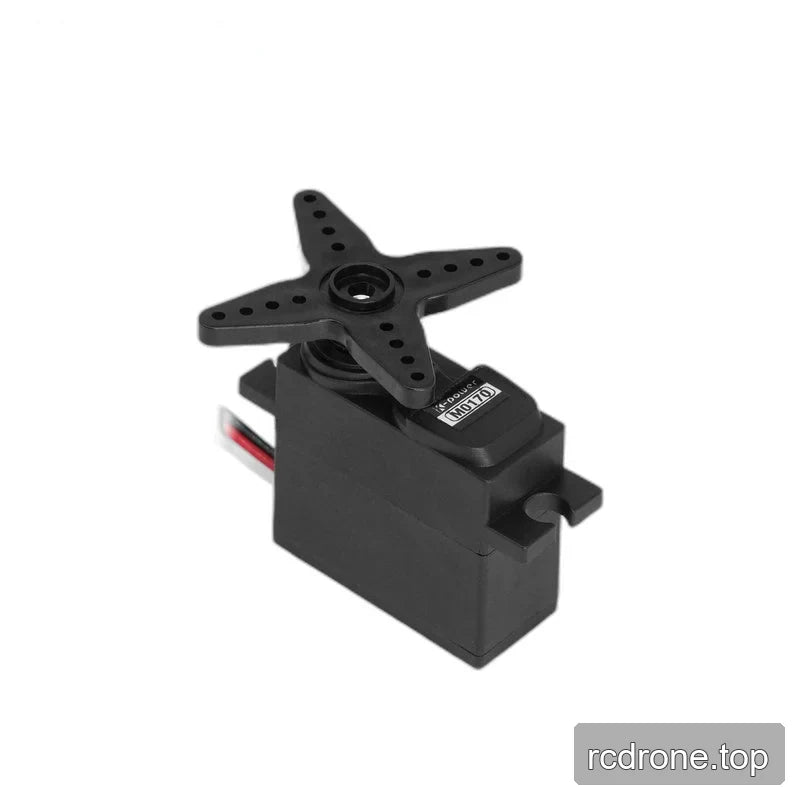

Kpower M0170 Servo Motor, 4.8–6.0 V, 120° Travel for Robotic Arm Linkage Positioning

Kpower

$35.00 USD

Vente Épuisé

Taxes incluses. Expédition calculé lors du paiement.

Version M0170

Quantité

Afficher tous les détails

Overview

The Kpower M0170 servo motor provides controlled angular movement for compact robotic arm linkages and positioning mechanisms. It operates at 4.8–6.0 V with 120° ± 8° travel, a 900–2100 μs signal range and a 50–333 Hz refresh frequency. Its copper gears, plastic housing and 20 g weight support compact installations, while speed and stall torque depend on the supply voltage.

Features

Heat-dissipating plastic housing with heat-resistant construction.
Hobbed copper gears described as high-strength, with good gear meshing.
High-precision potentiometer for accurate positioning and long service life.
Conformal coating and waterproof construction. No numerical waterproof rating is specified; the waterproof rating is customizable.
Stall protection, voltage protection and over-temperature protection.

Specifications

Parameter	M0170 specification
Gear material	Copper
Signal range	900–2100 μs
Case material	Plastic
Motor type	Core
Operating temperature	−10 to +50 °C
Dead band	7 μs
Travel angle	120° ± 8°
Refresh frequency	50–333 Hz
Operating voltage range	4.8–6.0 V
Dimensions	30.4 × 13.5 × 29.5 mm
Weight	20 g
Wire gauge and insulation	22 AWG PVC
No-load speed at 4.8 V	0.13 ± 0.01 s/60°
No-load speed at 6.0 V	0.11 ± 0.01 s/60°
Stall torque at 4.8 V	1.8 ± 0.20 kg·cm
Stall torque at 6.0 V	2.2 ± 0.20 kg·cm

Applications

Compact robotic arm linkage positioning: Use the 120° ± 8° travel to move a linkage through a limited angular range, with a 20 g servo and compact housing to limit installation size and added mass.
Adjustable positioning mechanisms: Control angular movement using the 900–2100 μs signal range and 50–333 Hz refresh frequency, within the specified operating voltage and temperature ranges.
