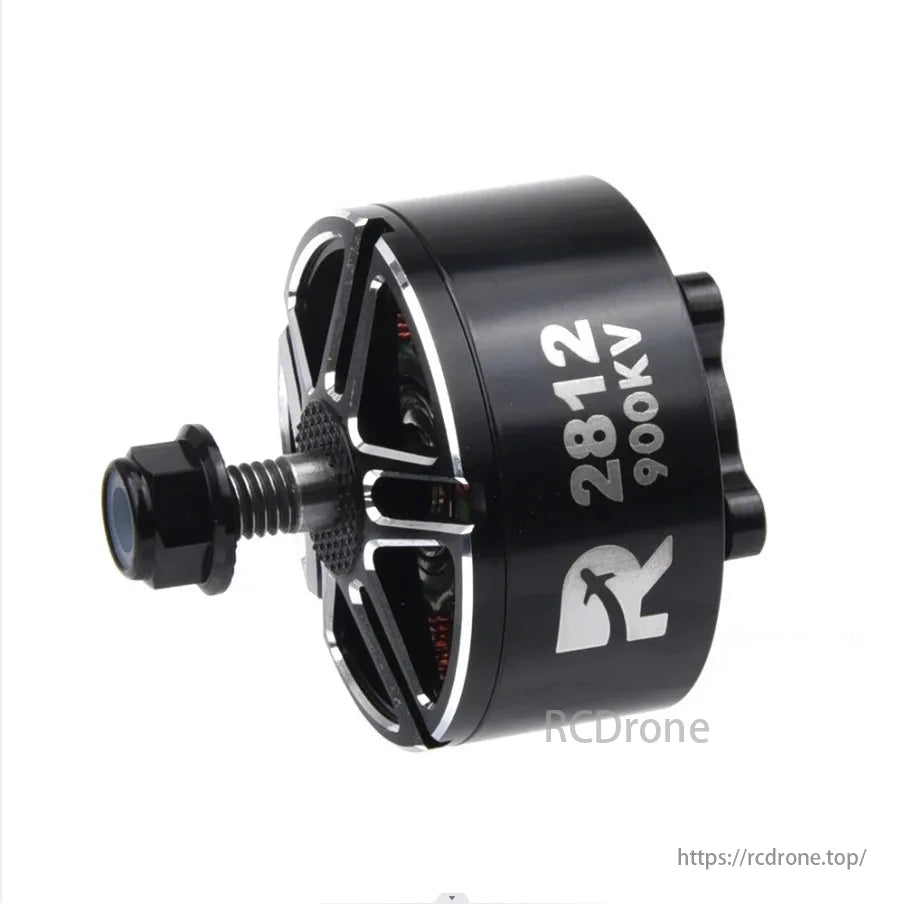

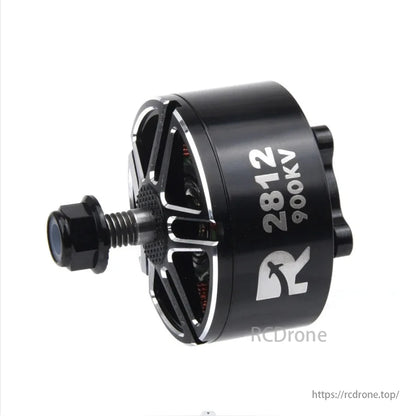

  • RCD 2812 900KV 3–6S Brushless Motor, RCD 2812 900KV brushless motor, ideal for 7-9 inch long-range FPV multirotor drones.

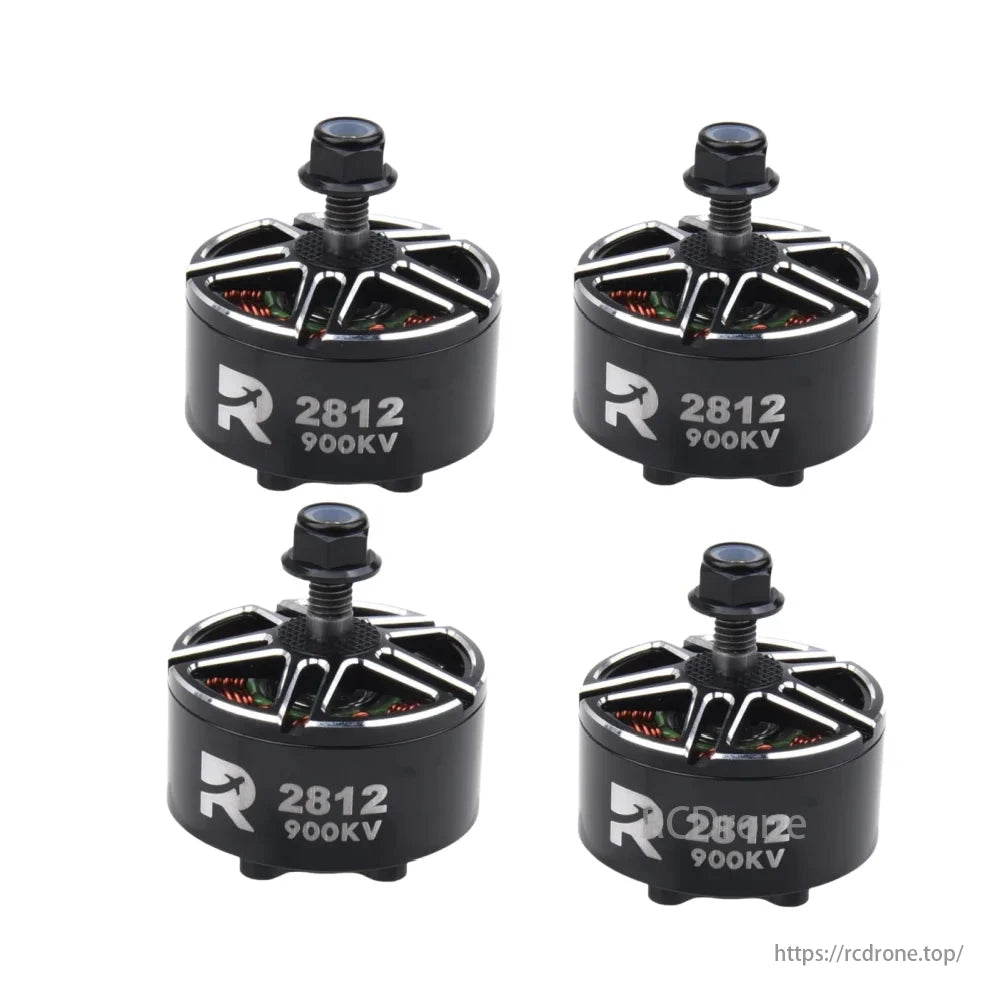

  • RCD 2812 900KV 3–6S Brushless Motor, RCD 2812 900KV brushless motor, suitable for 7-9 inch FPV multirotor drones, offers high performance and efficiency.

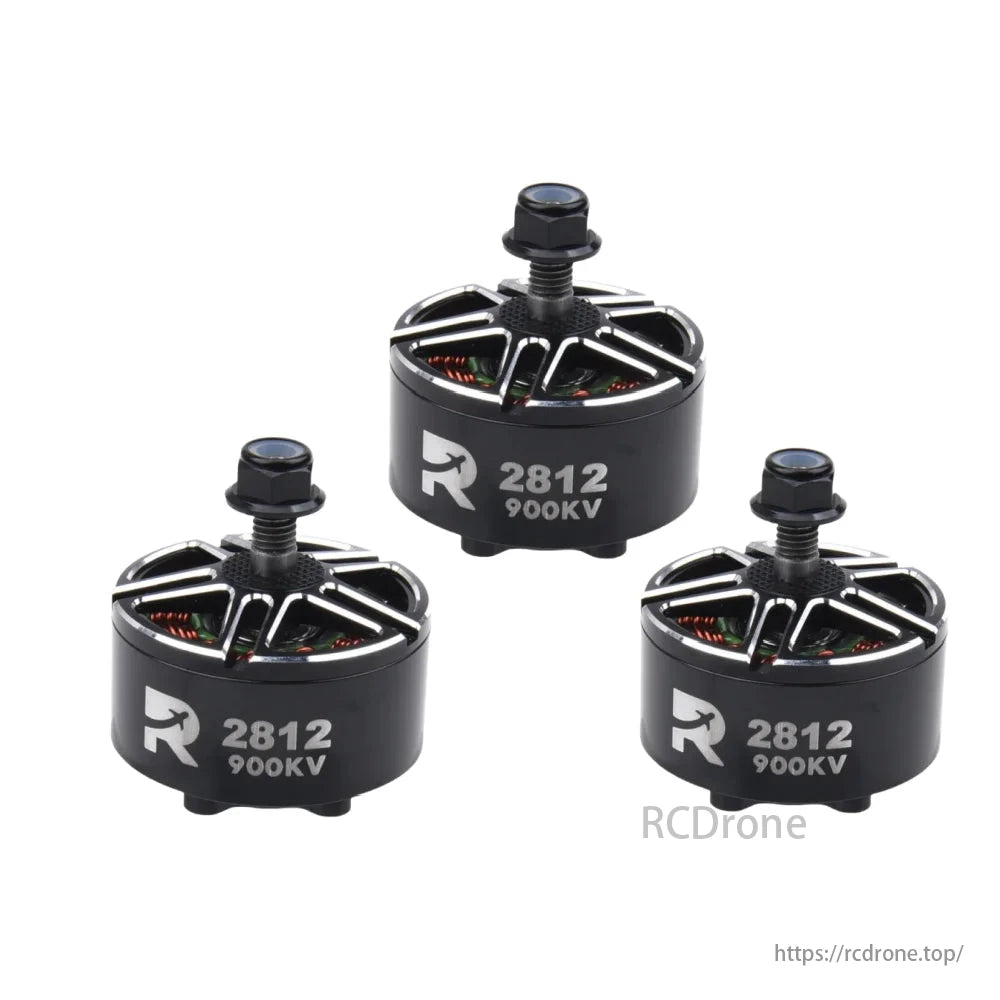

  • RCD 2812 900KV 3–6S Brushless Motor, RCD 2812 900KV brushless motor for FPV drones.
  • RCD 2812 900KV 3–6S Brushless Motor, RCD 2812 900KV brushless motor, ideal for long-range FPV multirotor drones with high efficiency and power.

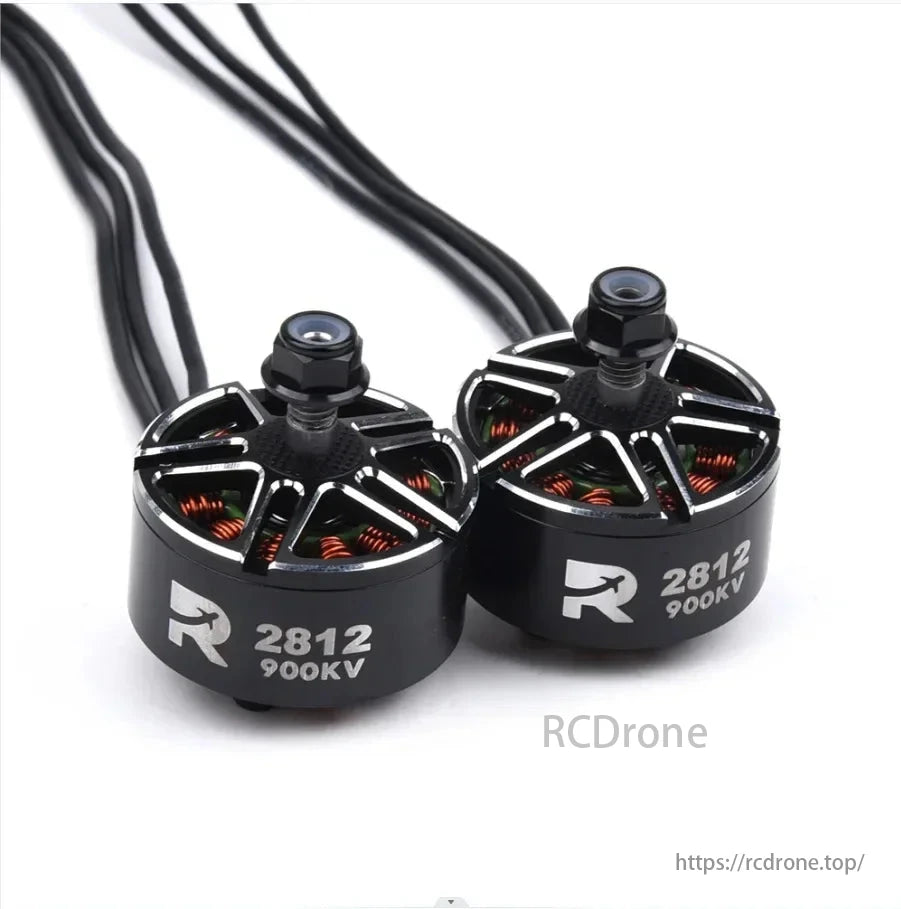

  • RCD 2812 900KV 3–6S Brushless Motor, RCD 2812 900KV motor for 7"-9" FPV drones, with robust design and high performance, supports 3-6S batteries.
  • RCD 2812 900KV 3–6S Brushless Motor, RCD 2812 900KV brushless motor for 7"-9" FPV drones, 3-6S, black with silver.
1 9

RCD 2812 900kV 3-6S Motor Berus untuk 7 "-9" Jarak Jauh FPV Multirotor Drone

RCD 2812 900kV 3-6S Motor Berus untuk 7 "-9" Jarak Jauh FPV Multirotor Drone

RCDrone

$56.50 USD
$56.50 USD
Jualan Habis dijual
Taxes included. Penghantaran dikira semasa pembayaran.
Warna
  • PayPal
  • Visa
  • Mastercard
  • American Express
  • JCB
  • Discover
  • Diners Club
  • Google Pay
  • Apple Pay
Lihat butiran penuh

Gambaran keseluruhan

RCD 2812 900KV motor tanpa berus menggabungkan stator 28 mm × 12 mm dengan penggulungan 12N14P untuk memberikan kuasa yang licin dan boleh dipercayai untuk multirotor dipacu kipas 7″–9″. Dinilai untuk operasi LiPo 3–6S, ia menawarkan tujahan tinggi dan kecekapan yang sangat baik, menjadikannya ideal untuk penerbangan FPV jarak jauh, fotografi udara dan binaan dron DIY. Perumahan aluminium bermesin ketepatan dan rintangan dalaman yang rendah memastikan pelesapan haba optimum dan ketahanan dalam keadaan yang mencabar.

Ciri-ciri Utama

  • Reka Bentuk Tork Tinggi: 12 slot stator × 14 kutub untuk tujahan dan rpm seimbang.

  • Julat Voltan Lebar: Menyokong bateri LiPo 3–6S untuk profil penerbangan yang fleksibel.

  • Kerugian yang rendah: Rintangan motor 78 mΩ dan 1.2 Arus tanpa beban (10 V) meminimumkan kuasa terbuang.

  • Ringan & Padat: 81 g ± 2 g jumlah berat; 34.5 mm diameter × 25.8 mm panjang.

  • Pembinaan Tahan Lama: Cangkerang aluminium mesin CNC dengan aci keluli dikeraskan 4 mm.

Spesifikasi Teknikal

Spesifikasi Nilai
Diameter Stator 28 mm
Ketebalan Stator 12 mm
Slot Pemegun 12
Tiang Pemegun 14
Penilaian KV 900 KV
Arus Tanpa Beban (10 V) 1.2 A Maks
Rintangan Motor 78 mΩ (Rujukan)
Berat badan 81 g ± 2 g
Diameter Luar 34.5 mm ± 0.2 mm
Panjang Badan 25.8 mm ± 0.5 mm
Diameter Aci 4 mm
Sel LiPo yang Disokong 3 – 6 S

Data Prestasi (6S, 9045 Propeller)

Pendikit Voltan (V) Semasa (A) Teras (g) Tork (N·m) RPM Kuasa (W) Kecekapan (%)
50 % 24.82 13.86 1 421 0.225 10 064 344 68.9
100% 23.03 49.96 3 034 0.480 14 724 1 150.6 64.3

Gabungan tujahan tinggi, sokongan voltan luas dan kecekapan yang kuat menjadikan RCD 2812 900KV pilihan yang sangat baik untuk FPV dan aplikasi udara jarak jauh.

RCD 2812 900KV 3–6S Brushless Motor, RCD2812-900KV motor: 28mm stator diameter, 12mm thickness, 14 poles, 900KV, 1.2A no-load current, 78mΩ resistance, 81g weight. Diagrams show dimensions.

Spesifikasi motor RCD2812-900KV: diameter stator 28mm, ketebalan 12mm, 14 tiang, 900KV, arus tanpa beban maks 1.2A, rintangan 78mΩ, berat 81g, diameter luar 34.5mm, panjang badan 25.8mm. Rajah menggambarkan dimensi.

RCD 2812 900KV 3–6S Brushless Motor, 2812-800KV motor with 9045 propeller data includes PWM, voltage, current, thrust, torque, RPM, temperature, power, efficiency, varying by throttle percentage (10%-100%).

Data motor 2812-800KV dengan kipas 9045: PWM, voltan, arus, tujahan, tork, RPM, suhu, kuasa, kecekapan. Metrik prestasi berbeza mengikut peratusan pendikit daripada 10% hingga 100%.

RCD 2812 900KV 3–6S Brushless Motor, Rated for LiPo operation, it provides high thrust and efficiency, suitable for long-range FPV flights and other applications.RCD 2812 900KV 3–6S Brushless Motor, Ideal for long-range FPV flights, aerial photography, and DIY drone builds with high thrust and excellent efficiency.RCD 2812 900KV 3–6S Brushless Motor, Rated for 3-6S LiPo operation, offering high thrust and efficiency for long-range FPV flights and DIY drone builds.RCD 2812 900KV 3–6S Brushless Motor, Supports 3-6S LiPo batteries for flexible flight profiles.RCD 2812 900KV 3–6S Brushless Motor, Supports 3-6S LiPo batteries for various flight profiles.RCD 2812 900KV 3–6S Brushless Motor, The RCD 2812 900KV motor has high thrust, broad voltage support, and strong efficiency, making it suitable for long-range FPV and aerial applications.
