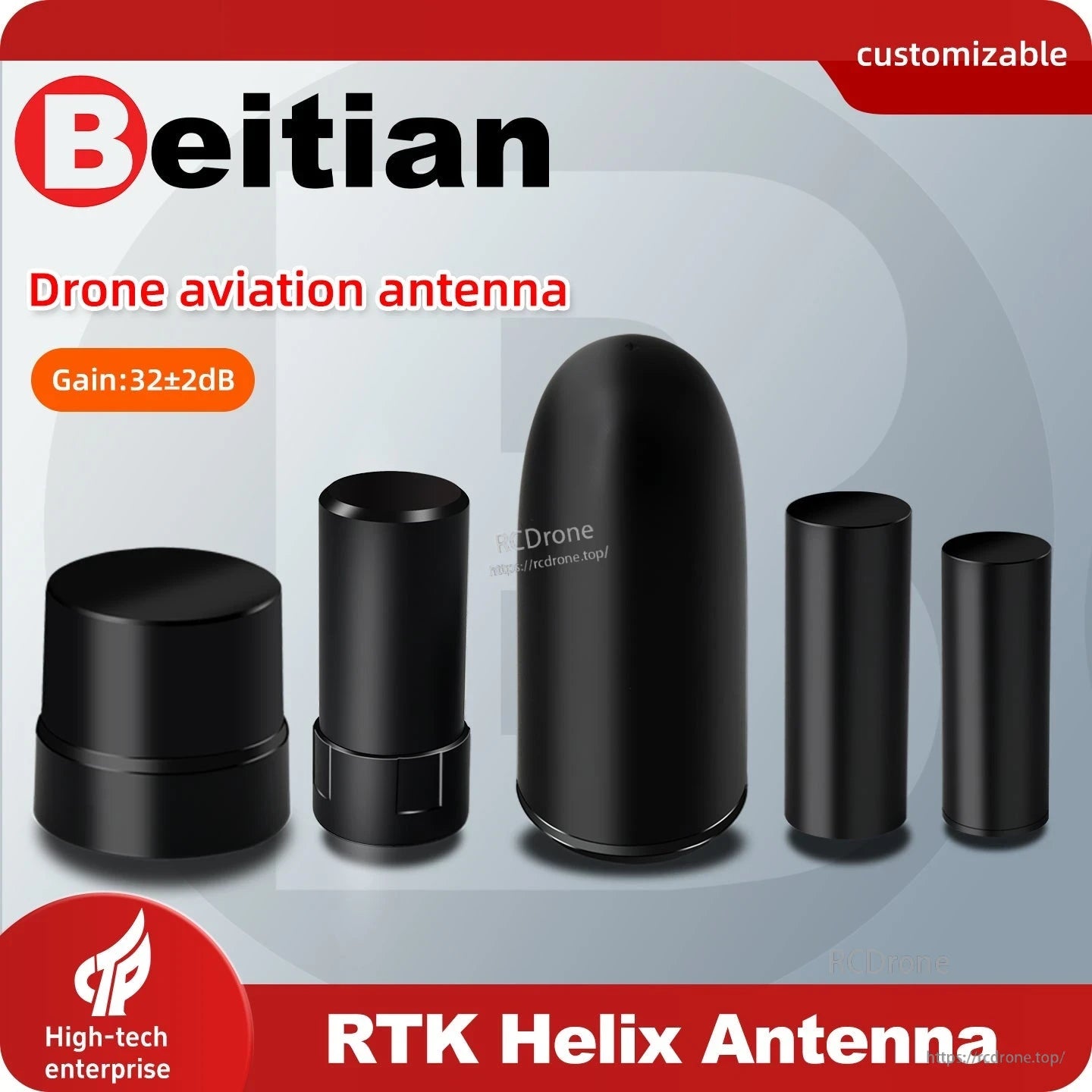

Overview

The BEITIAN BT series GNSS helical antenna is a compact, IP67-rated, SMA-J active antenna family for multi-constellation GNSS reception (GPS, BDS, GLONASS, GALILEO; model-dependent). Multiple models are available for different frequency combinations such as L1, L1/L2, and multi-band L1/L2/L5, including options that list SBAS, QZSS, and IRNSS support (model-dependent).

Key Features

  • Multi-constellation / multi-frequency working modes (varies by model): GPS, BDS, GLONASS, GALILEO; some models also list SBAS, QZSS, IRNSS, ABAS, and/or L-Band.
  • Helical/spiral antenna structure with SMA interface (SMA-J).
  • IP67 waterproof grade (listed across the series).
  • Small size and light weight (varies by model; weights listed in Specifications).
  • Customization statements provided: can be debugged according to requirements; antennas can be customized according to samples; antennas can be customized according to the concept.
  • Stated performance text: “High precision at the sub meter or centimeter level (Testing in open environments)”.

Specifications

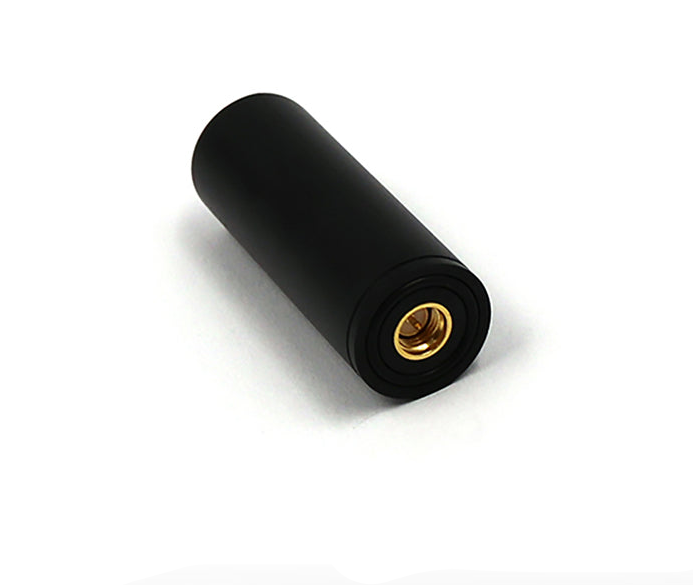

BT-104

Working mode GPS L1; GLONASS G1; BDS B1; GALILEO E1
Gain 28 ± 2 dB
Noise figure < 2 dB
Output VSWR < 2.0:1
Output impedance Not specified
In-band flatness ± 2.0 dB
Supply voltage 3.3 V
Supply current ≤ 30 mA
Connector type SMA-J
Size Dia. 18.5 mm * 50.0 mm
Weight < 11 g
Waterproof grade IP67

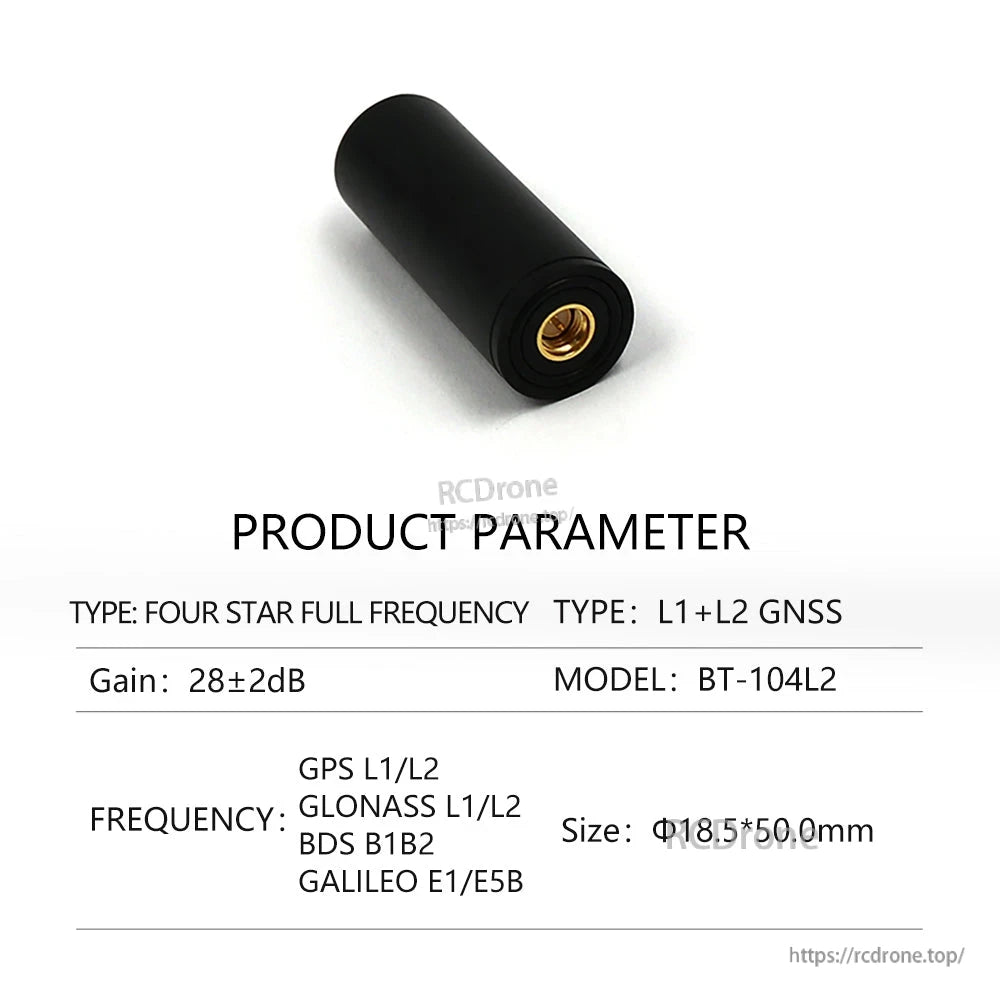

BT-104L2

Working mode GPS L1/L2; GLONASS L1/L2; BDS B1/B2; GALILEO E1/E5b
Gain 28 ± 2 dB
Noise figure < 2 dB
Output VSWR < 2.0:1
Output impedance Not specified
In-band flatness ± 2.0 dB
Supply voltage 3.3 V
Supply current ≤ 30 mA
Connector type SMA-J
Size Dia. 18.5 mm * 50.0 mm
Weight < 11 g
Waterproof grade IP67

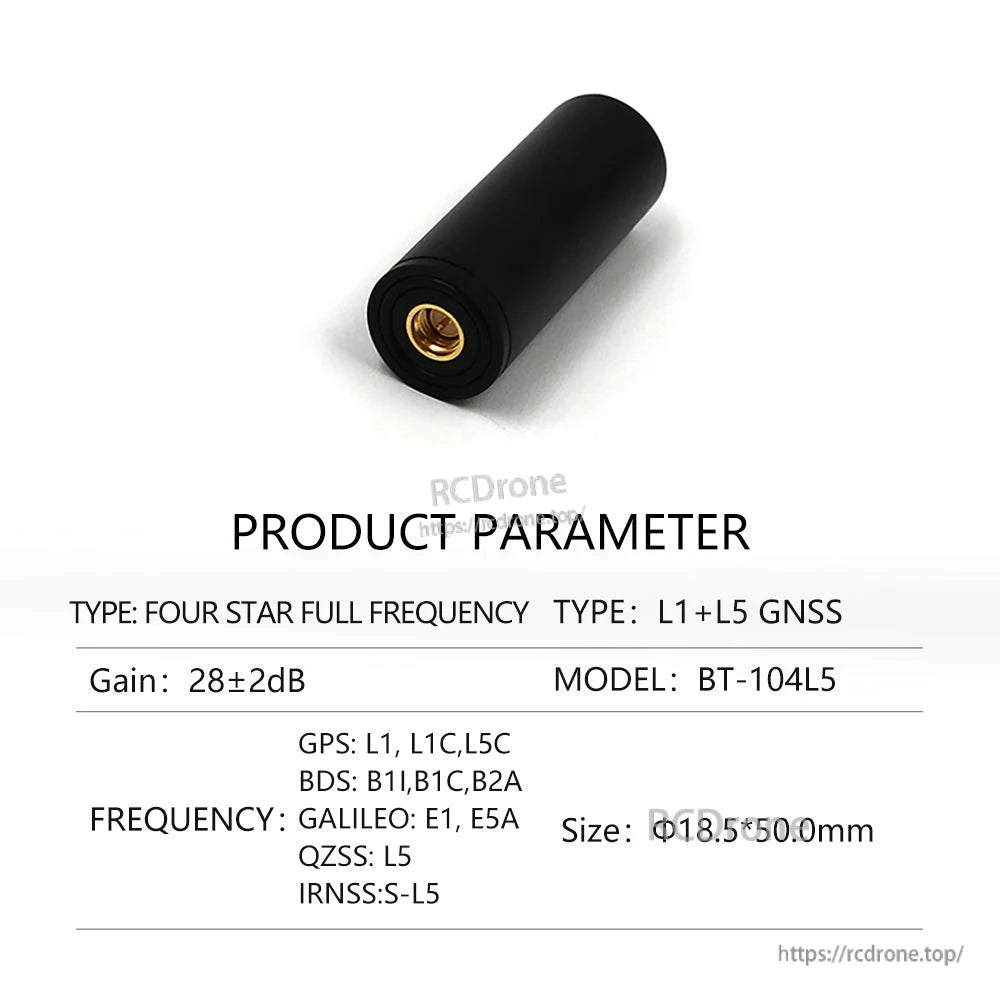

BT-104L5

Working mode GPS: L1, L1C, L5C; BDS: B1I, B1C, B2a; Galileo: E1, E5a; QZSS: L5; IRNSS: L5
Gain 28 ± 2 dB
Noise figure < 2 dB
Output VSWR < 2.0:1
Output impedance Not specified
In-band flatness ± 2.0 dB
Supply voltage 3.3 V
Supply current ≤ 30 mA
Connector type SMA-J
Size Dia. 18.5 mm * 50.0 mm
Weight < 11 g
Waterproof grade IP67

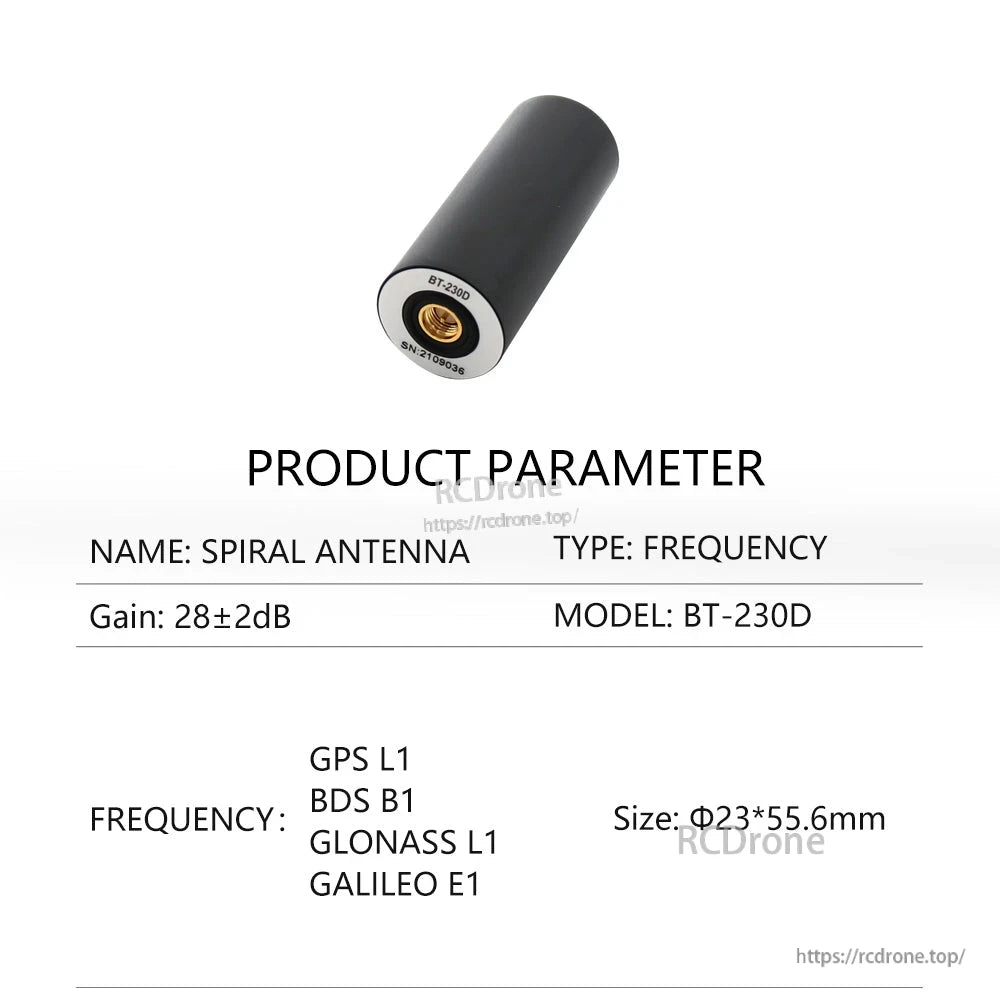

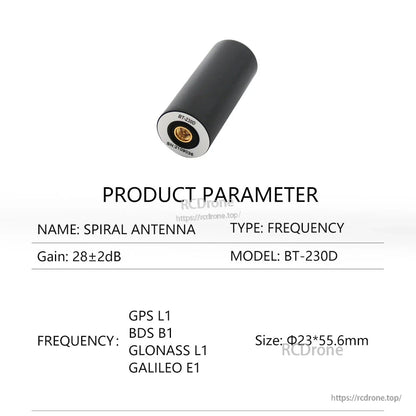

BT-230D

Working mode GPS L1; GLONASS L1; BDS B1; GALILEO E1
Gain 28 ± 2 dB
Noise figure < 2 dB
Output VSWR < 1.5:1 typ; 1.8:1 max
Output impedance 50 ohm
In-band flatness Not specified
Supply voltage 3.3–12.0 V
Supply current ≤ 45 mA
Connector type SMA-J
Size Dia. 23 mm * 55.6 mm
Weight < 16 g
Waterproof grade IP67

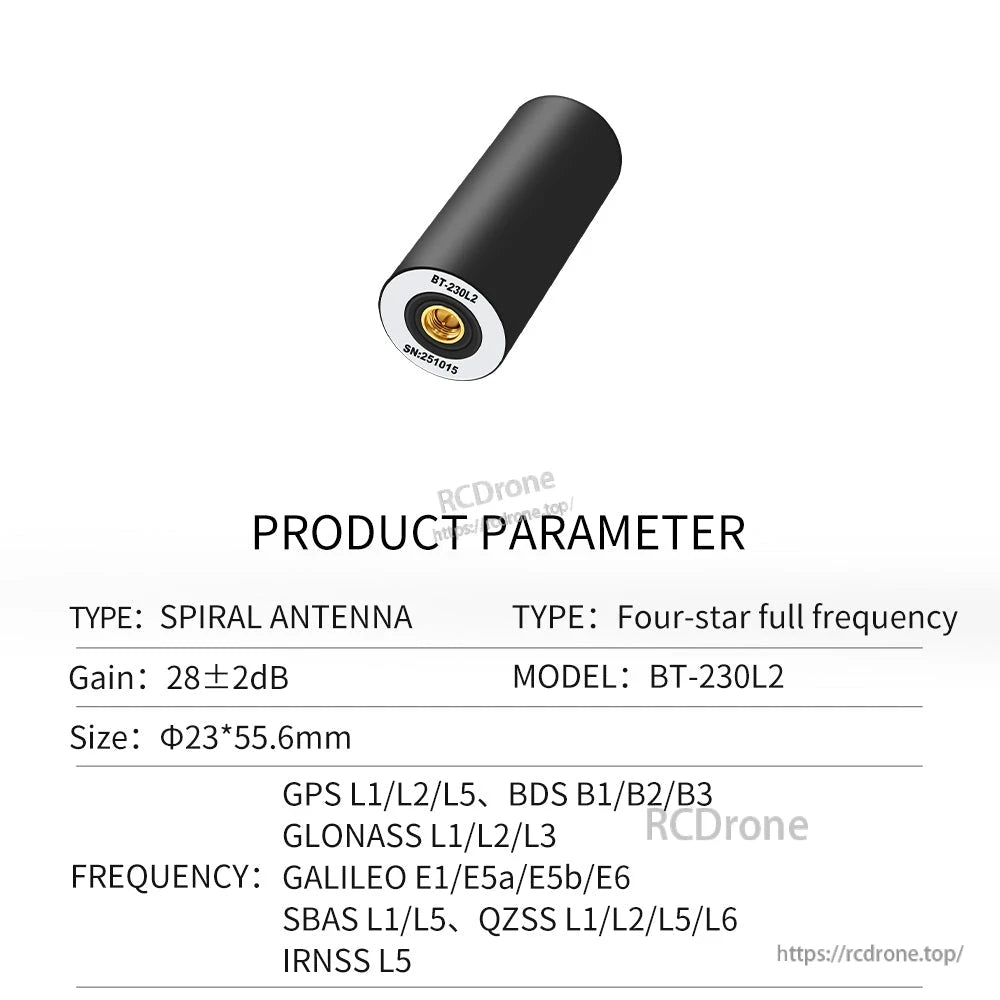

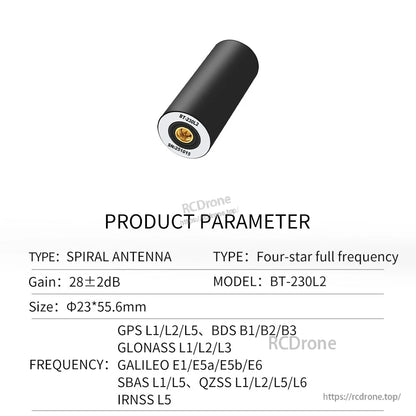

BT-230L2

Working mode GPS L1/L2/L5; BDS B1/B2/B3; GLONASS L1/L2/L3; GALILEO E1/E5a/E5b/E6; SBAS L1/L5; QZSS L1/L2/L5/L6; IRNSS L5
Gain 28 ± 2 dB
Noise figure < 2 dB
Output VSWR < 1.5:1 typ; 1.8:1 max
Output impedance 50 ohm
In-band flatness Not specified
Supply voltage 3.3–12.0 V
Supply current ≤ 45 mA
Connector type SMA-J
Size Dia. 23 mm * 55.6 mm
Weight < 16 g
Waterproof grade IP67

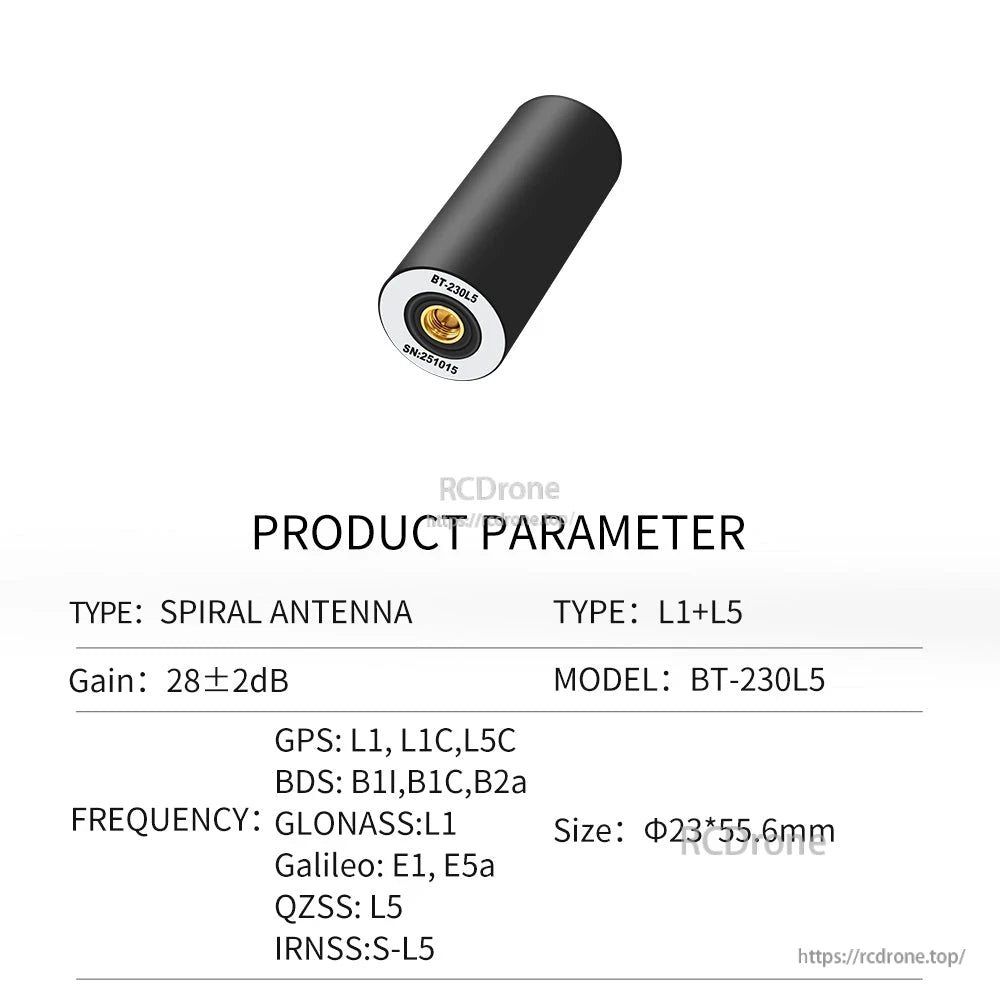

BT-230L5

Working mode GPS: L1, L1C, L5C; BDS: B1I, B1C, B2a; Galileo: E1, E5a; QZSS: L5; IRNSS: L5
LNA gain 28 ± 2 dB
Noise figure < 2 dB
Output VSWR < 2.0:1
Output impedance 50 ohm
In-band flatness ± 2.0 dB
Supply voltage 3.3–12.0 V
Supply current ≤ 45 mA
Connector type SMA-J
Size Dia. 23 mm * 55.6 mm
Weight < 16 g
Waterproof grade IP67

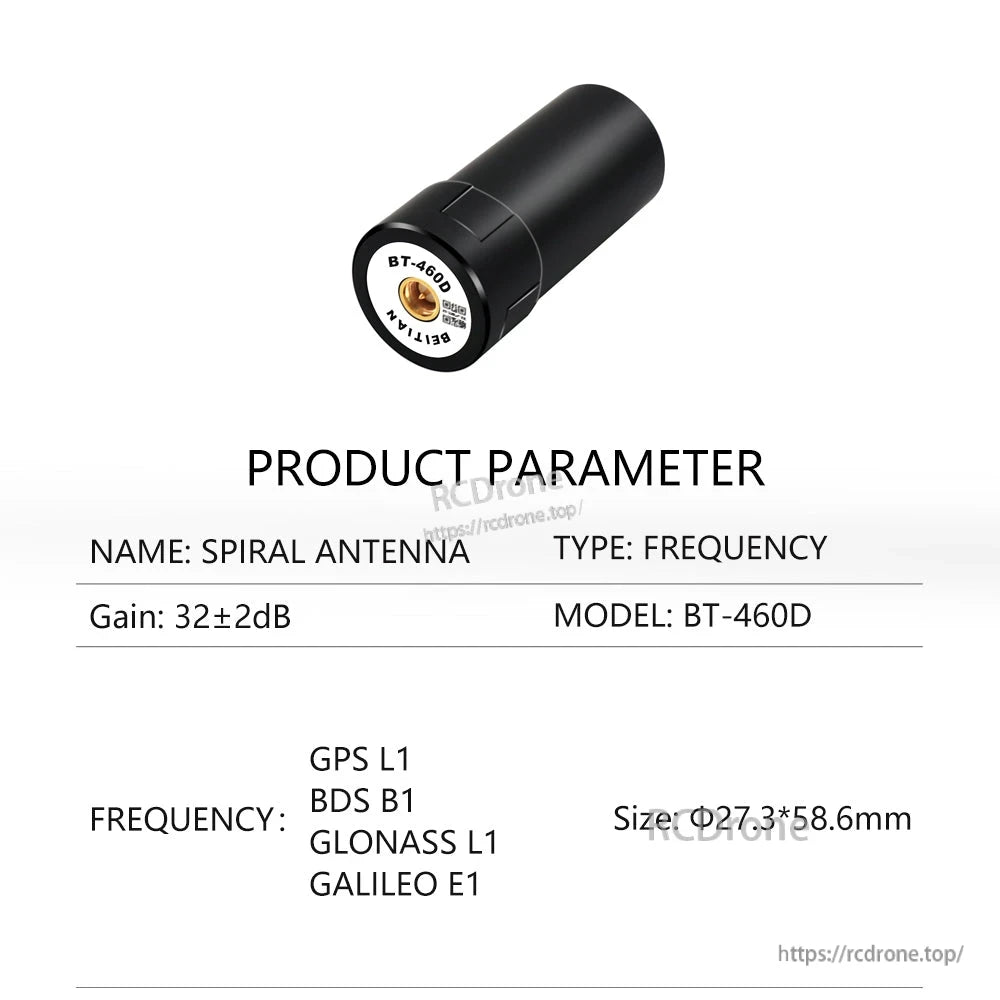

BT-460D

Working mode GPS L1; BDS B1; GLONASS L1; GALILEO E1
LNA gain 32 ± 2 dB
Noise figure < 2 dB
Output VSWR < 2.0
Output impedance 50 ohm
In-band flatness ± 2.0 dB
Supply voltage 3.0–12.0 V
Supply current ≤ 50 mA
Connector type SMA-J
Size Dia. 27.3 mm * 58.6 mm
Weight < 20 g
Waterproof grade IP67

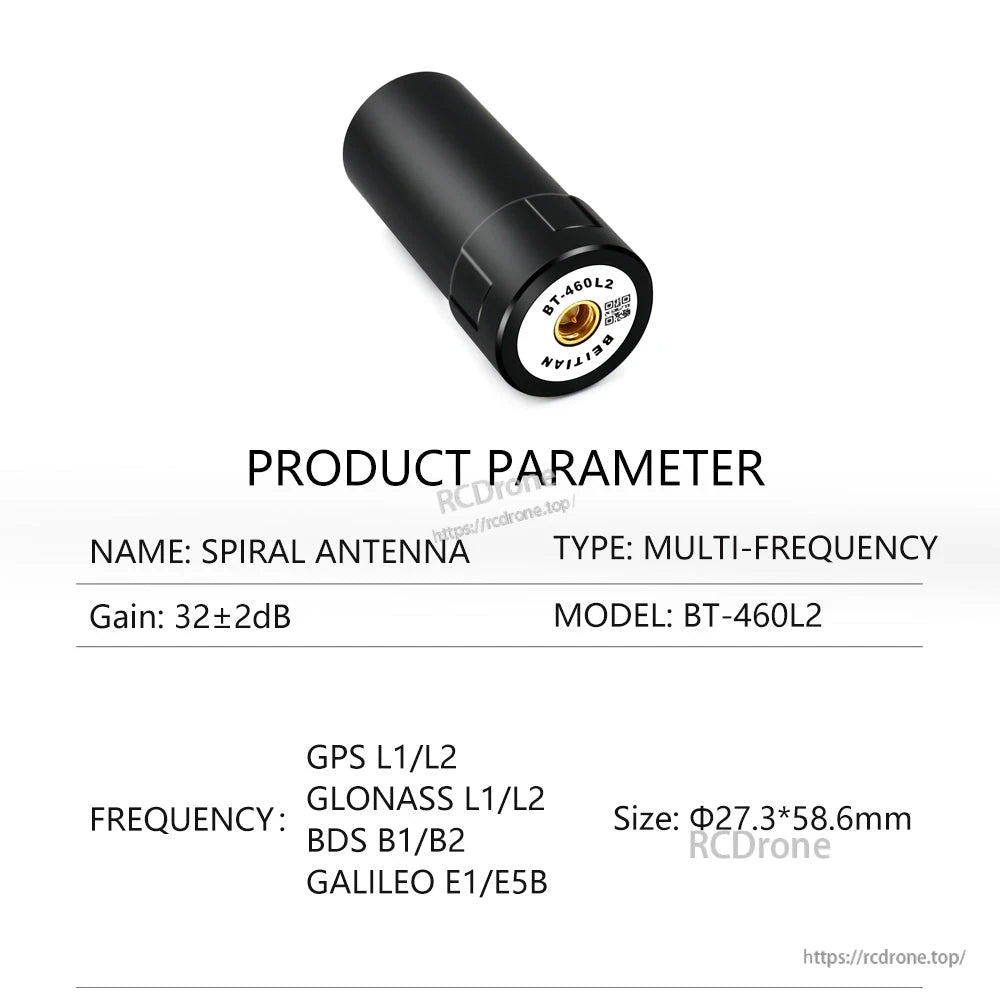

BT-460L2

Working mode GPS L1/L2; GLONASS L1/L2; BDS B1/B2; GALILEO E1/E5b
LNA gain 32 ± 2 dB
Noise figure < 2 dB
Output VSWR < 2.0
Output impedance 50 ohm
In-band flatness ± 2.0 dB
Supply voltage 3.3–12.0 V
Supply current ≤ 50 mA
Connector type SMA-J
Size Dia. 27.3 mm * 58.6 mm
Weight < 20 g
Waterproof grade IP67

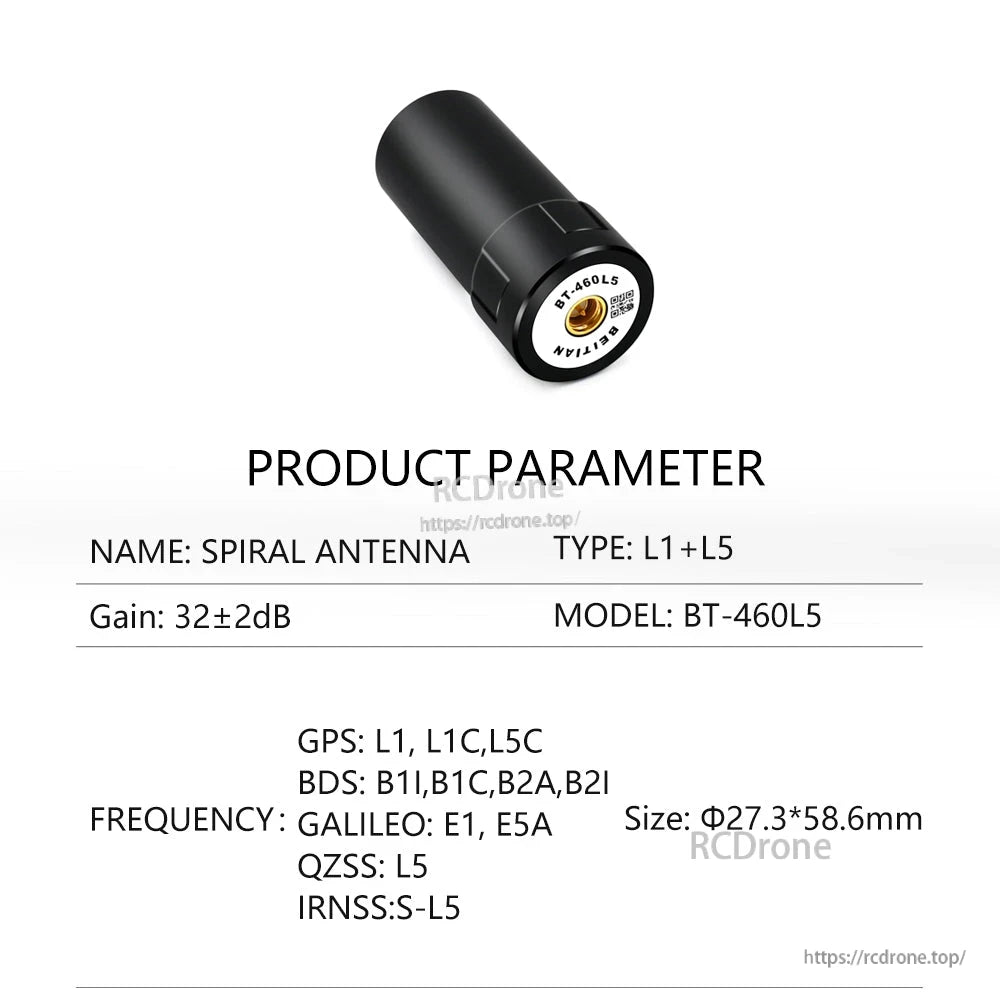

BT-460L5

Working mode GPS: L1, L1C, L5C; BDS: B1I, B1C, B2a, B2I; Galileo: E1, E5a; QZSS: L5; IRNSS: L5
LNA gain 32 ± 2 dB
Noise figure < 2 dB
Output VSWR < 2.0
Output impedance 50 ohm
In-band flatness ± 2.0 dB
Supply voltage 3.3–12.0 V
Supply current ≤ 50 mA
Connector type SMA-J
Size Dia. 27.3 mm * 58.6 mm
Weight < 20 g
Waterproof grade IP67

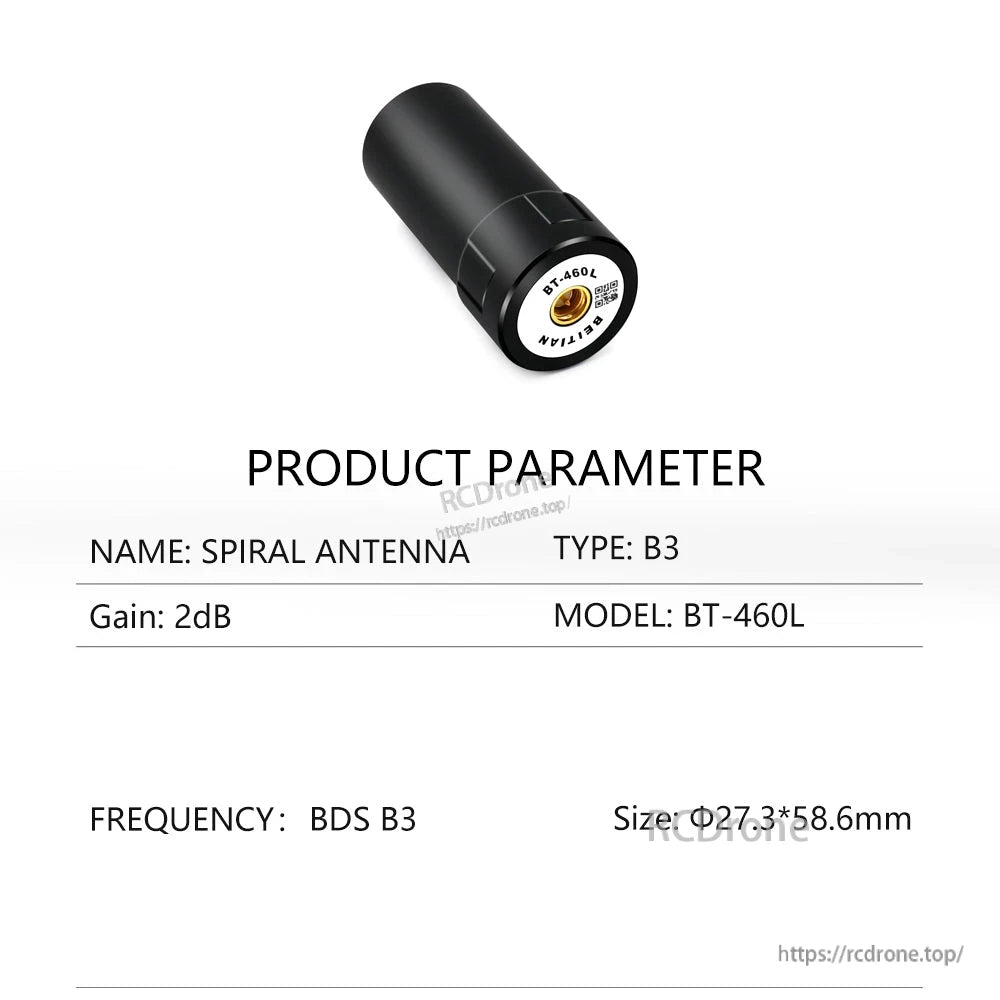

BT-460L

Working mode BDS B3
LNA gain 2 dB
Noise figure < 2 dB
Output VSWR < 2.0
Output impedance 50 ohm
In-band flatness Not specified
Supply voltage Not specified
Supply current Not specified
Connector type SMA-J
Size Dia. 27.3 mm * 58.6 mm
Weight < 20 g
Waterproof grade IP67

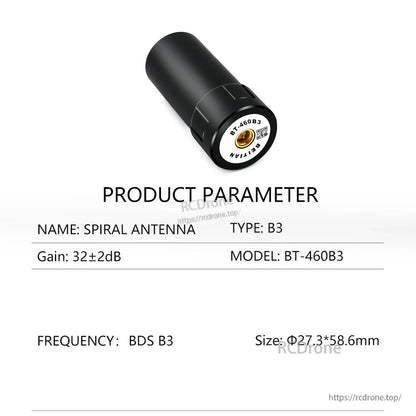

BT-460B3

Working mode Not specified
LNA gain 32 ± 2 dB
Noise figure < 2 dB
Output VSWR < 2.0
Output impedance 50 ohm
In-band flatness Not specified
Supply voltage 3.0–12.0 V
Supply current ≤ 50 mA
Connector type SMA-J
Size Dia. 27.3 mm * 58.6 mm
Weight < 20 g
Waterproof grade IP67

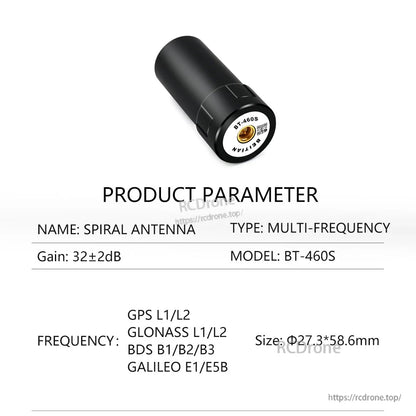

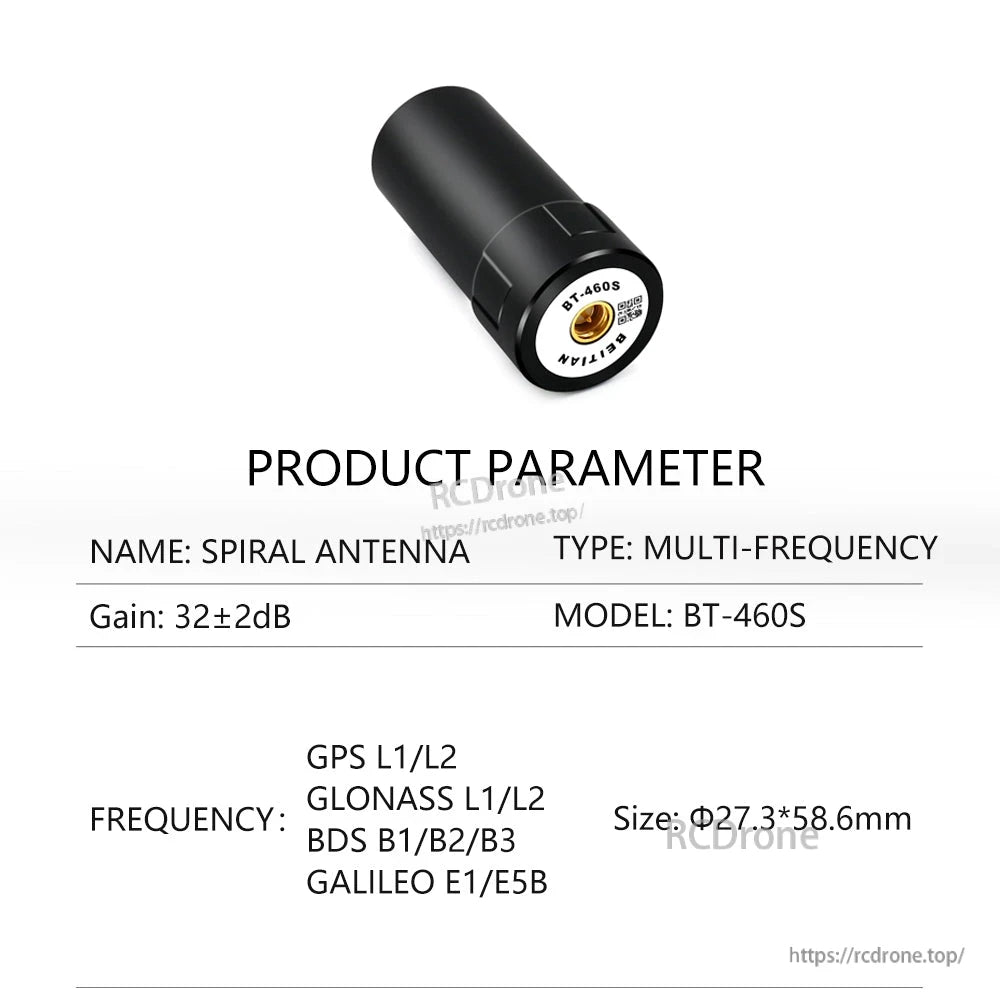

BT-460S

Working mode GPS L1/L2; BDS B1/B2/B3; GLONASS L1/L2/L3; GALILEO E1/E5b
LNA gain 32 ± 2 dB
Noise figure < 2 dB
Output VSWR < 2.0
Output impedance 50 ohm
In-band flatness ± 2.0 dB
Supply voltage 3.3–12.0 V
Supply current ≤ 50 mA
Connector type SMA-J
Size Dia. 27.3 mm * 58.6 mm
Weight < 20 g
Waterproof grade IP67

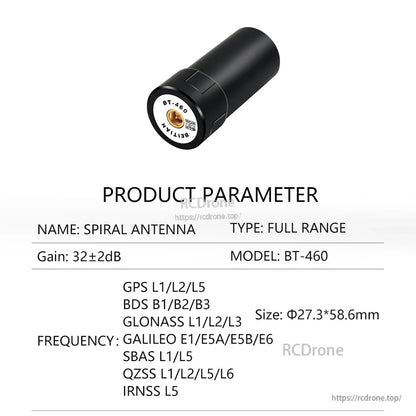

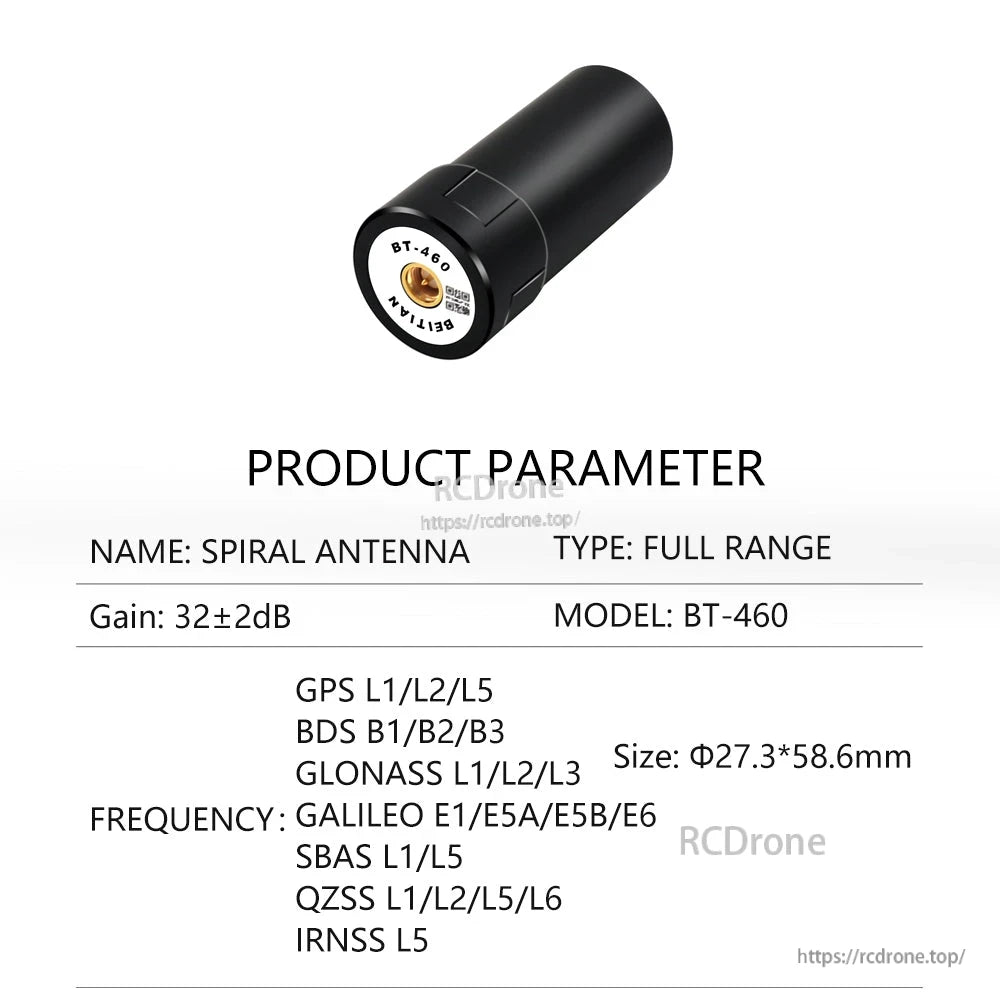

BT-460

Working mode GPS L1/L2/L5; BDS B1/B2/B3; GLONASS L1/L2/L3; GALILEO E1/E5a/E5b/E6; SBAS L1/L5; QZSS L1/L2/L5/L6; IRNSS L5
LNA gain 32 ± 2 dB
Noise figure < 2 dB
Output VSWR < 2.0
Output impedance 50 ohm
In-band flatness ± 2.0 dB
Supply voltage 3.3–12.0 V
Supply current ≤ 50 mA
Connector type SMA-J
Size Dia. 27.3 mm * 58.6 mm
Weight < 20 g
Waterproof grade IP67

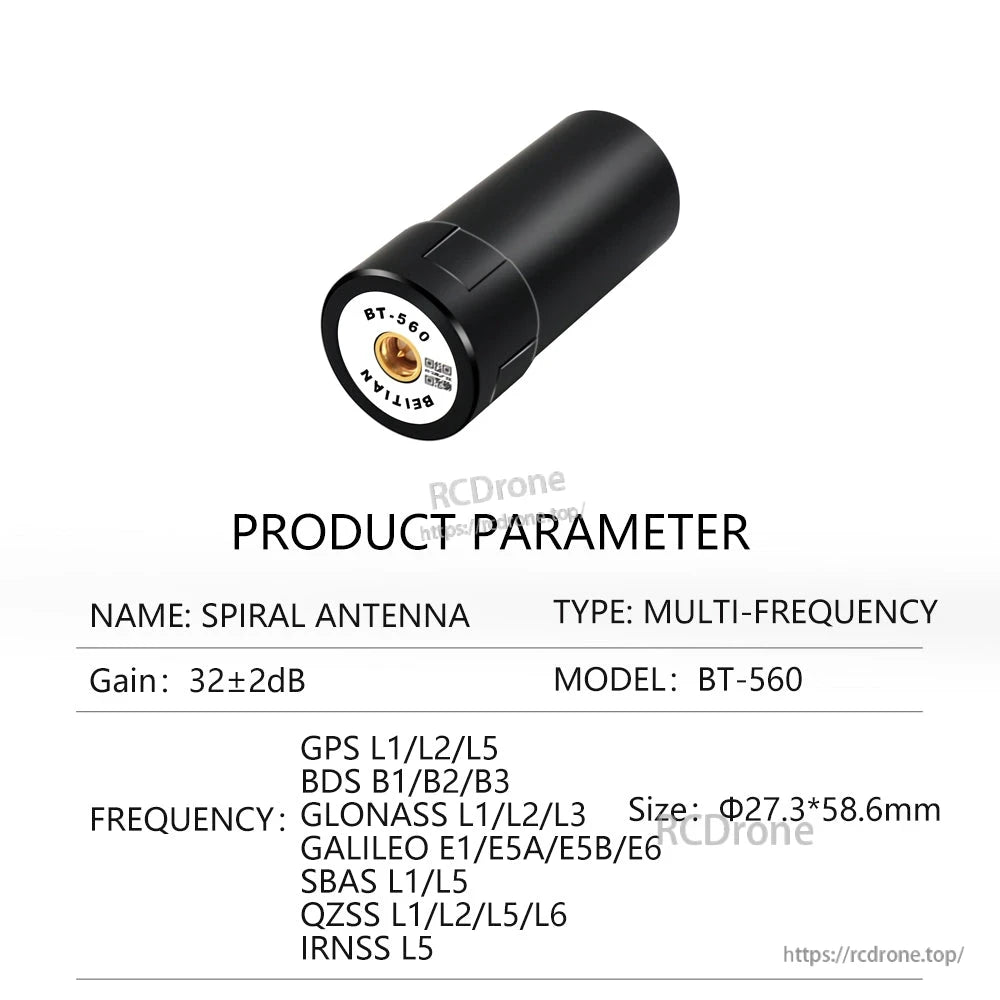

BT-560

Working mode (table) GPS L1/L2/L5; BDS B1/B2/B3; GLONASS L1/L2/L3; GALILEO E1/E5a/E5b/E6; SBAS L1/L5; QZSS L1/L2/L5/L6; IRNSS L5
LNA gain (table) 32 ± 2 dB
Noise figure (table) < 2 dB
Output VSWR (table) < 2.0
Output impedance (table) 50 ohm
In-band flatness (table) ± 2.0 dB
Supply voltage (table) 3.3–12.0 V
Supply current (table) ≤ 50 mA
Connector type (table) SMA-J
Size (table) Dia. 27.3 mm * 58.6 mm
Weight (table) < 20 g
Waterproof grade (table) IP67
Brand and model BEITIAN
Frequency range GPS L1/L2/L5; BDS B1/B2/B3; GLONASS L1/L2/L3; GALILEO E1/E5a/E5b/E6; SBAS L1/L5; QZSS L1/L2/L5/L6; IRNSS L5
Gain < 2 dBi
Antenna axis ratio <= 3 dB
Output voltage standing wave ratio <= 2
Polarization mode Right-handed circular polarization
Ports impedance 50 ohm
LNA gain 32 ± 2 dB
Working voltage 3.3 V–12.0 V
Joint model SMA-J
Antenna size Dia. 27.3 mm * 58.6 mm
Waterproof grade IP67

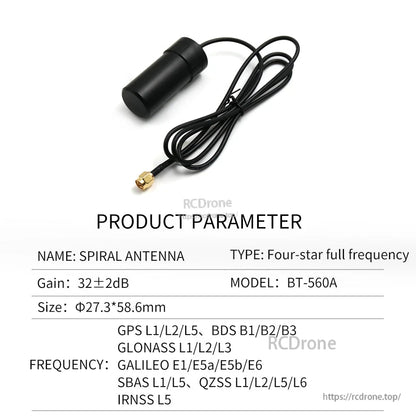

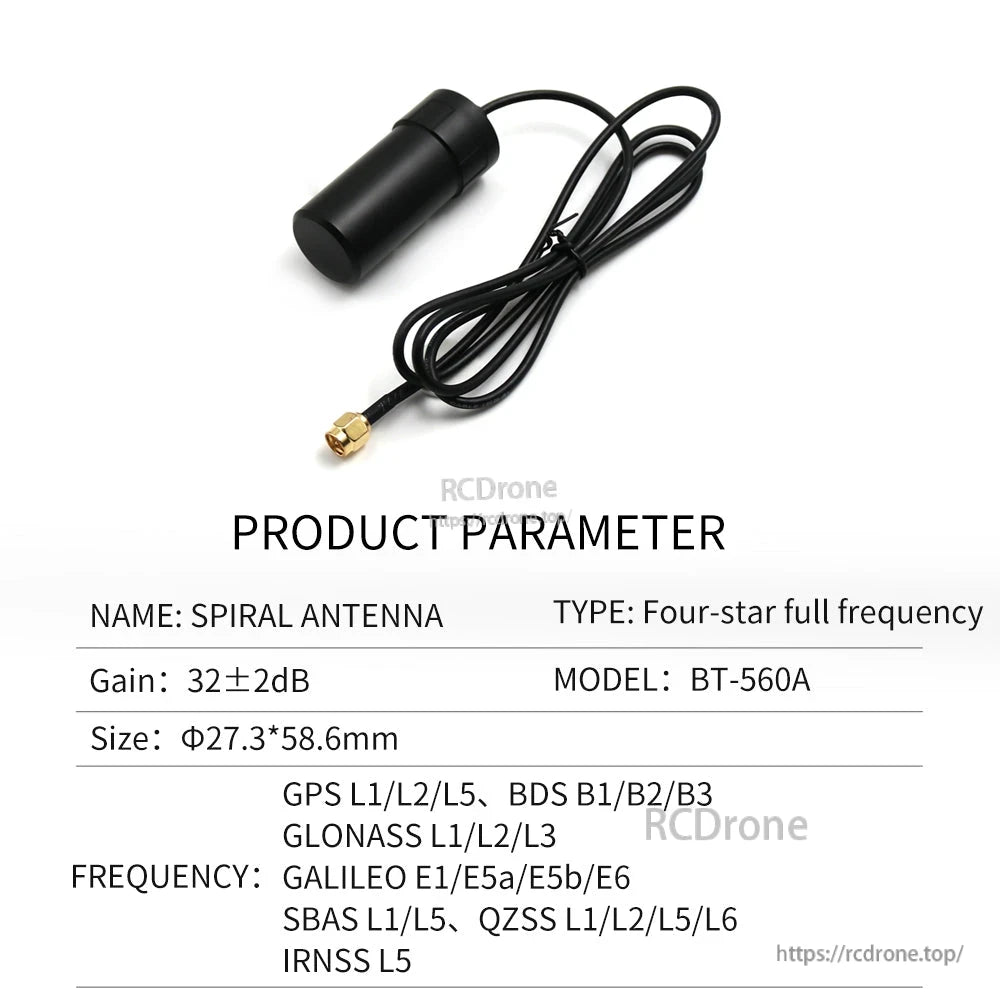

BT-560A

Working mode GPS L1/L2/L5; BDS B1/B2/B3; GLONASS L1/L2/L3; GALILEO E1/E5a/E5b/E6; SBAS L1/L5; QZSS L1/L2/L5/L6; IRNSS L5
LNA gain 32 ± 2 dB
Noise figure < 2 dB
Output VSWR < 2.0
Output impedance 50 ohm
In-band flatness ± 2.0 dB
Supply voltage 3.0–12.0 V
Supply current ≤ 50 mA
Connector type SMA-J
Size Dia. 27.3 mm * 58.6 mm
Length 1 m
Weight < 20 g (excluding line length)
Waterproof grade IP67

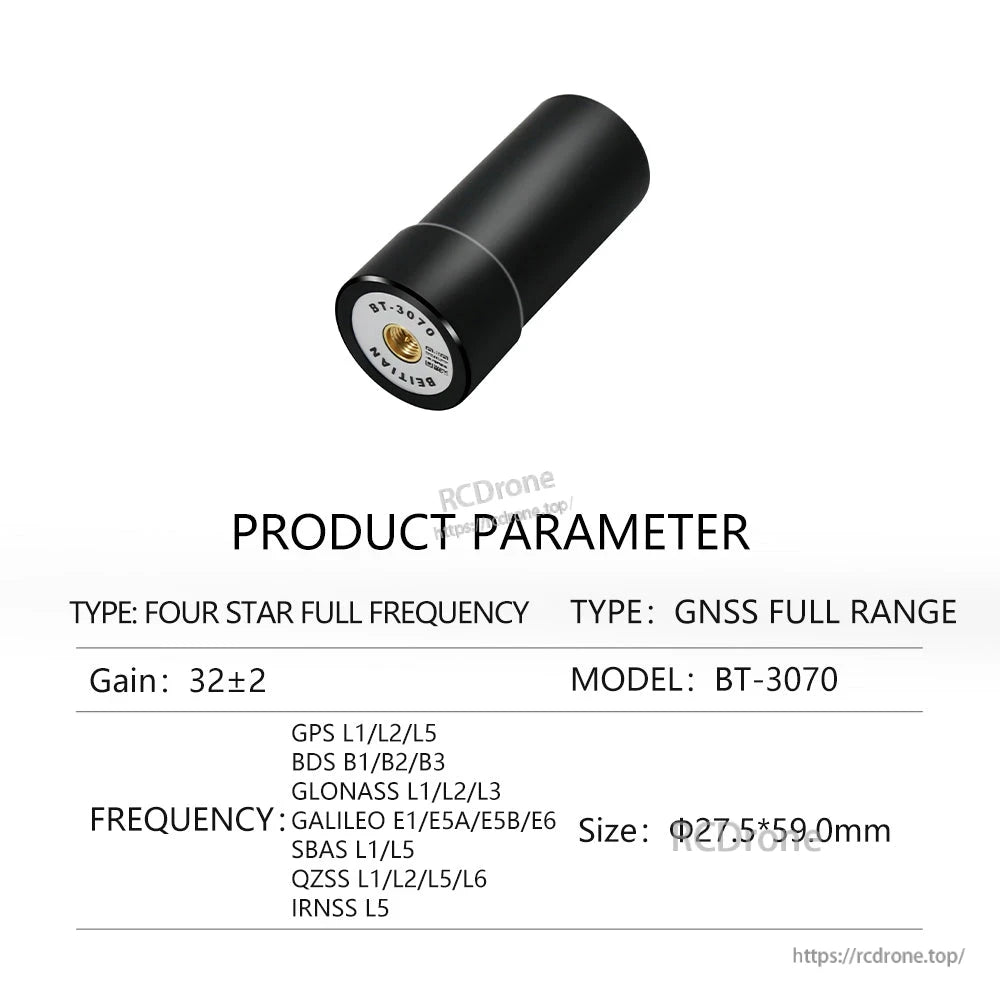

BT-3070

Working mode GPS L1/L2/L5; BDS B1/B2/B3; GLONASS L1/L2/L3; GALILEO E1/E5a/E5b/E6; SBAS L1/L5; QZSS L1/L2/L5/L6; IRNSS L5
LNA gain 32 ± 2 dB
Noise figure < 2 dB
Output VSWR < 2.0
Output impedance 50 ohm
In-band flatness ± 2.0 dB
Supply voltage 3.3–12.0 V
Supply current ≤ 50 mA
Connector type SMA-J
Size Dia. 27.5 mm * 59 mm
Weight < 17 g
Waterproof grade IP67

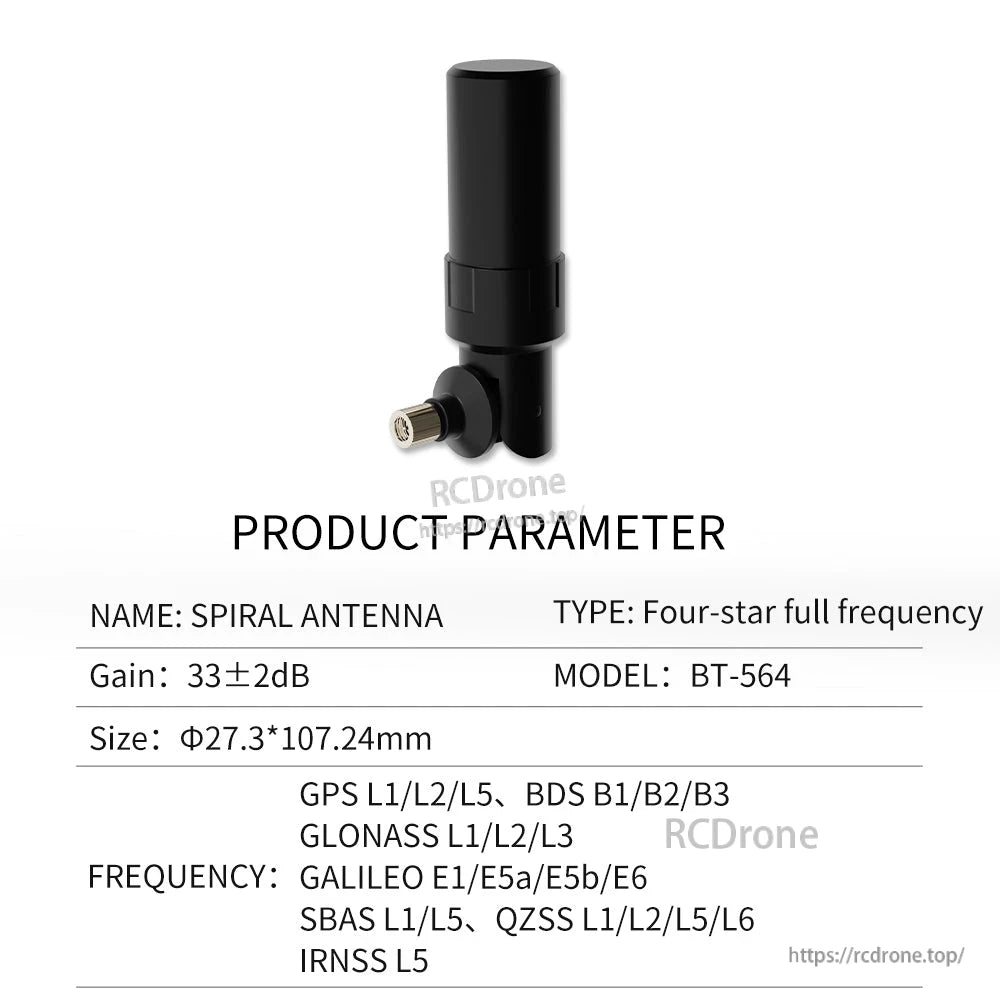

BT-564

Working mode GPS L1/L2/L5; BDS B1/B2/B3; GLONASS L1/L2/L3; GALILEO E1/E5a/E5b/E6; SBAS L1/L5; QZSS L1/L2/L5/L6; IRNSS L5
LNA gain 33 ± 2 dB
Noise figure < 2 dB
Output VSWR < 2.0
Output impedance 50 ohm
In-band flatness ± 2.0 dB
Supply voltage 3.3–12.0 V
Supply current ≤ 50 mA
Connector type SMA-J
Size Dia. 27.3 mm * 107.24 mm
Weight < 28 g
Waterproof grade IP67

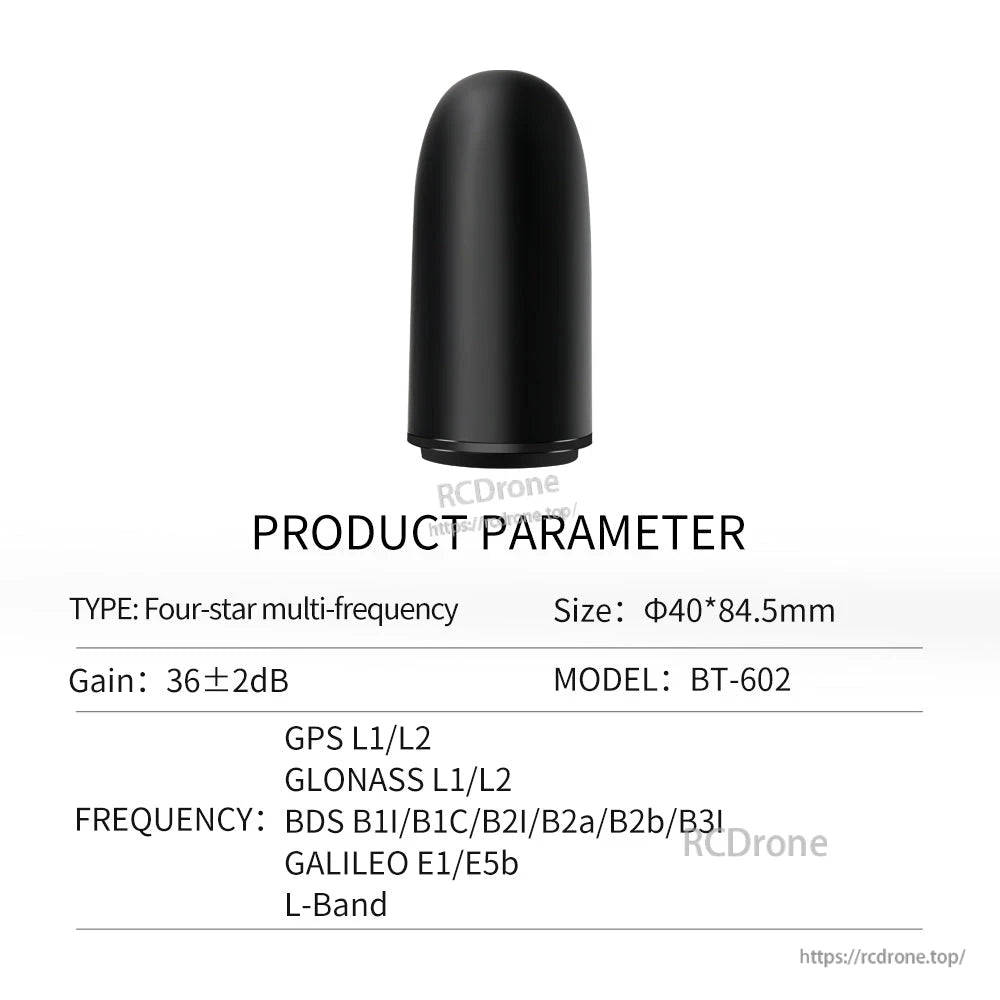

BT-602

Working mode GPS L1/L2; GLONASS L1/L2; BDS B1I/B1C/B2I/B2a/B2b/B3I; GALILEO E1/E5b; L-Band
LNA gain 36 ± 2 dB
Noise figure < 2 dB
Output VSWR < 2.0
Output impedance 50 ohm
In-band flatness ± 2.0 dB
Supply voltage 3.3–12.0 V
Supply current ≤ 60 mA
Connector type SMA-J
Size Dia. 40 mm * 84.5 mm
Weight ≤ 60 g
Waterproof grade IP67

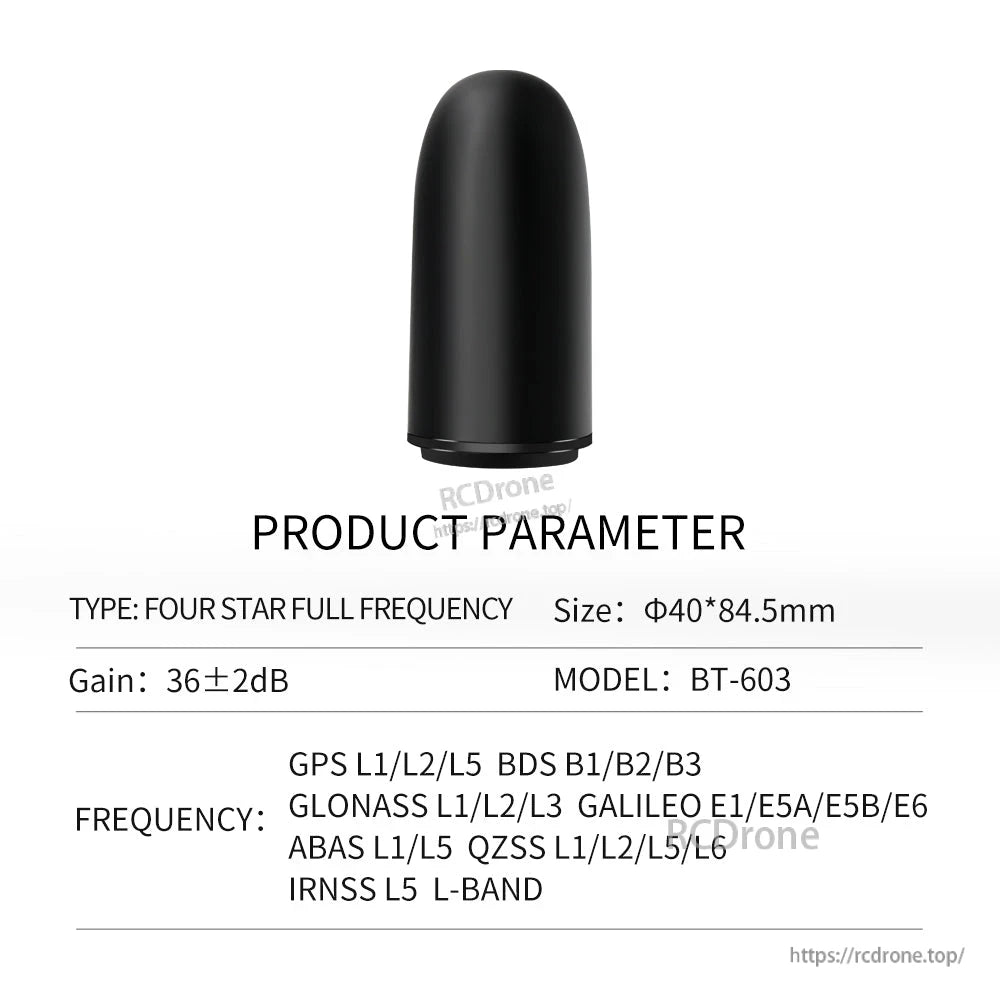

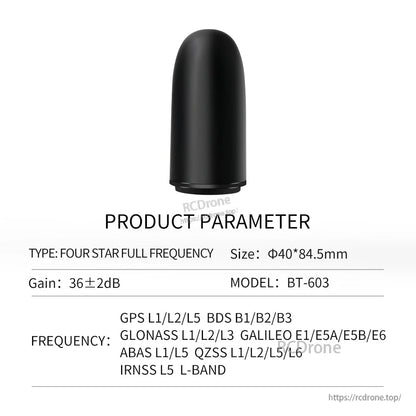

BT-603

Working mode GPS L1/L2/L5; BDS B1/B2/B3; GLONASS L1/L2/L3; GALILEO E1/E5a/E5b/E6; ABAS L1/L5; QZSS L1/L2/L5/L6; IRNSS L5; L-Band
LNA gain 36 ± 2 dB
Noise figure < 2 dB
Output VSWR < 2.0
Output impedance 50 ohm
In-band flatness ± 2.0 dB
Supply voltage 3.0–12.0 V
Supply current ≤ 50 mA
Connector type SMA-J
Size Dia. 40 mm * 84.5 mm
Weight ≤ 60 g
Waterproof grade IP67

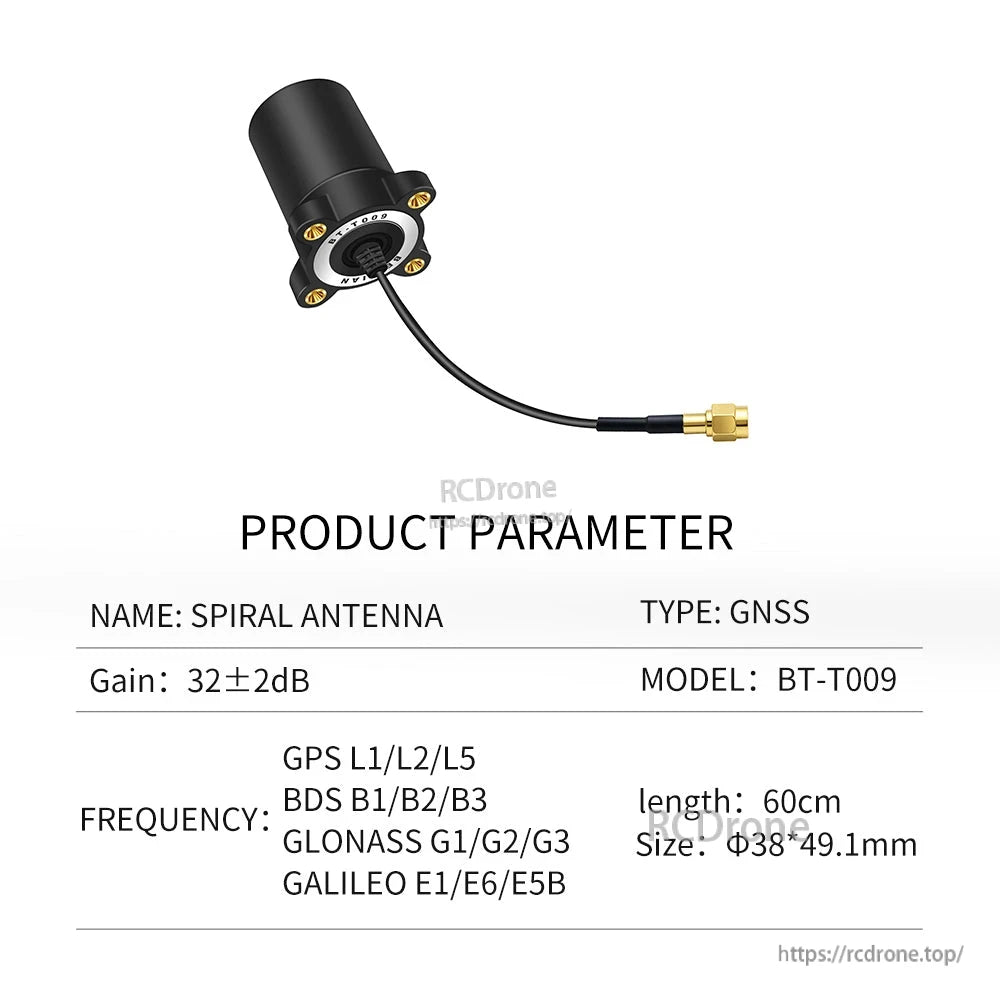

BT-T009

Working mode GPS L1/L2/L5; BDS B1/B2/B3; GLONASS G1/G2/G3; GALILEO E1/E6/E5b
LNA gain 32 ± 2 dB
Noise figure < 2 dB
Output VSWR < 2.0
Output impedance 50 ohm
In-band flatness ± 2.0 dB
Supply voltage 3.3–12.0 V
Supply current ≤ 50 mA
Connector type SMA-J
Size Dia. 38 mm * 49.1 mm
Cable RG316
Length 60 cm
Weight < 22 g (excluding line length)
Waterproof grade IP67

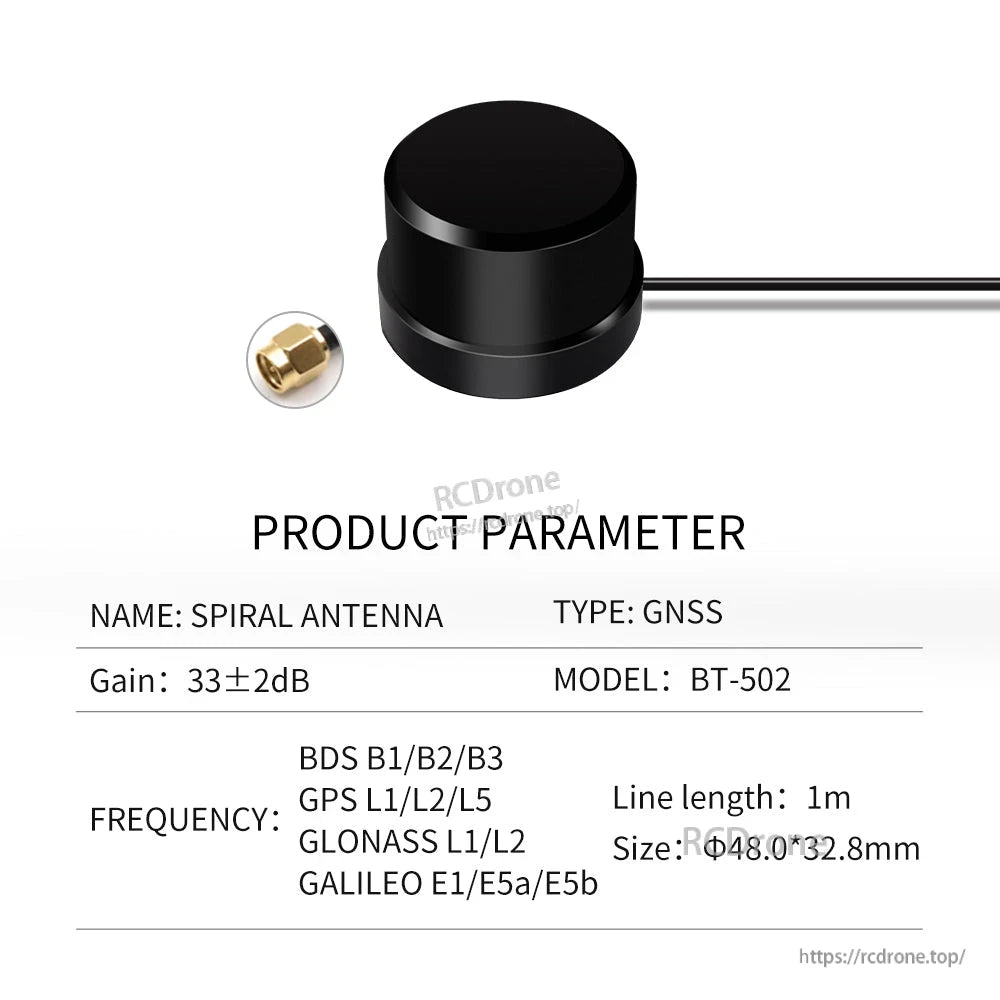

BT-502

Working mode BDS B1/B2/B3; GPS L1/L2/L5; GLONASS L1/L2; GALILEO E1/E5a/E5b
LNA gain 32 ± 2 dB
Noise figure < 2 dB
Output VSWR < 2.0
Output impedance 50 ohm
In-band flatness ± 2.0 dB
Supply voltage 3.3–12.0 V
Supply current ≤ 50 mA
Connector type SMA-J
Size Dia. 42.8 mm * 32.2 mm
Cable RG316
Length 1 m
Weight < 25 g (does not include wire)
Waterproof grade IP67

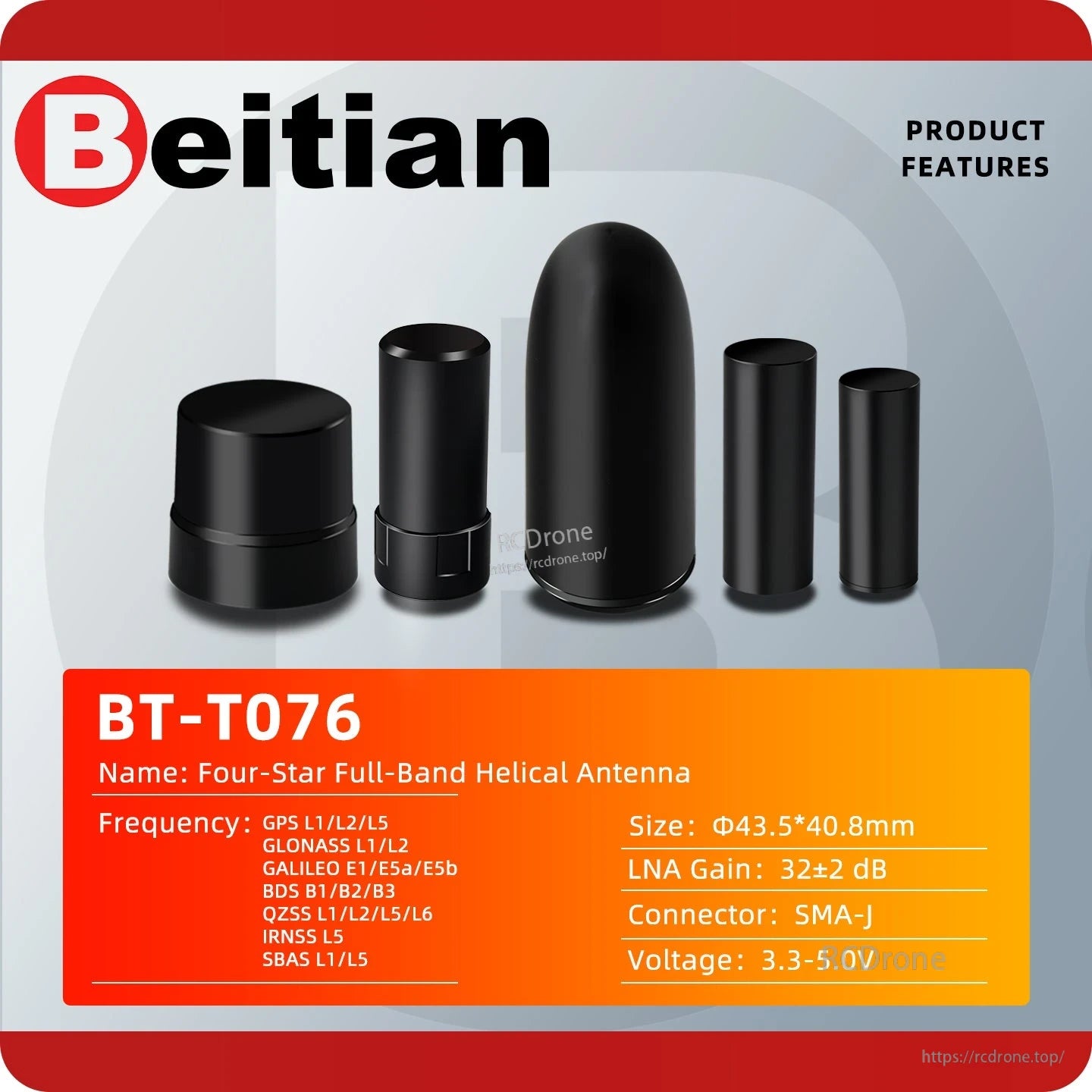

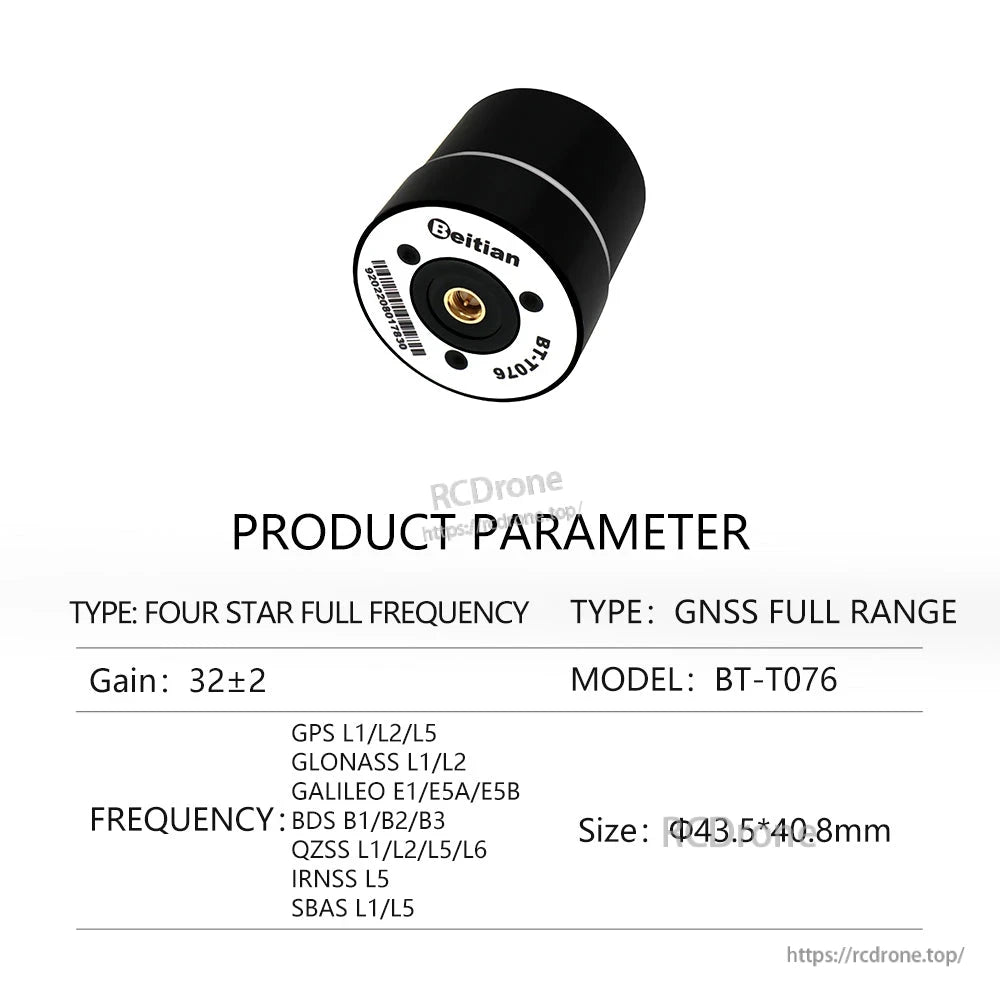

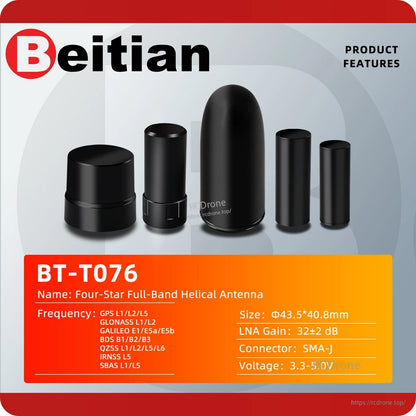

BT-T076

Working mode GPS L1/L2/L5; GLONASS L1/L2; GALILEO E1/E5a/E5b; BDS B1/B2/B3; QZSS L1/L2/L5/L6; IRNSS L5; SBAS L1/L5
LNA gain 32 ± 2 dB
Noise figure < 2 dB
Output VSWR < 2.0
Output impedance 50 ohm
In-band flatness ± 2.0 dB
Supply voltage 3.3–5.0 V
Supply current ≤ 55 mA
Connector type SMA-J
Size Dia. 43.5 mm * 40.8 mm
Weight < 35 g
Waterproof grade IP67

For model selection help or customization requests, contact [email protected] or visit https://rcdrone.top/.

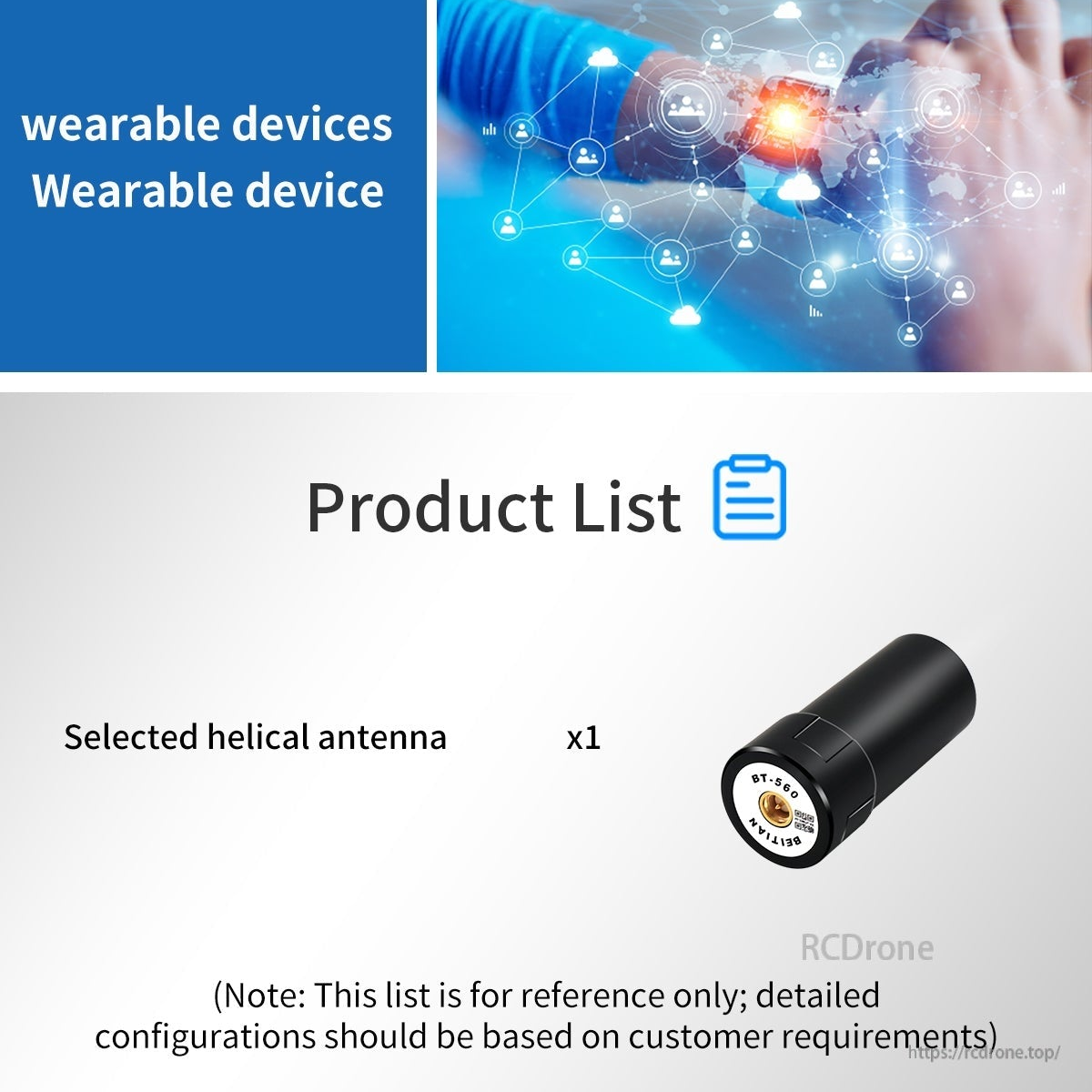

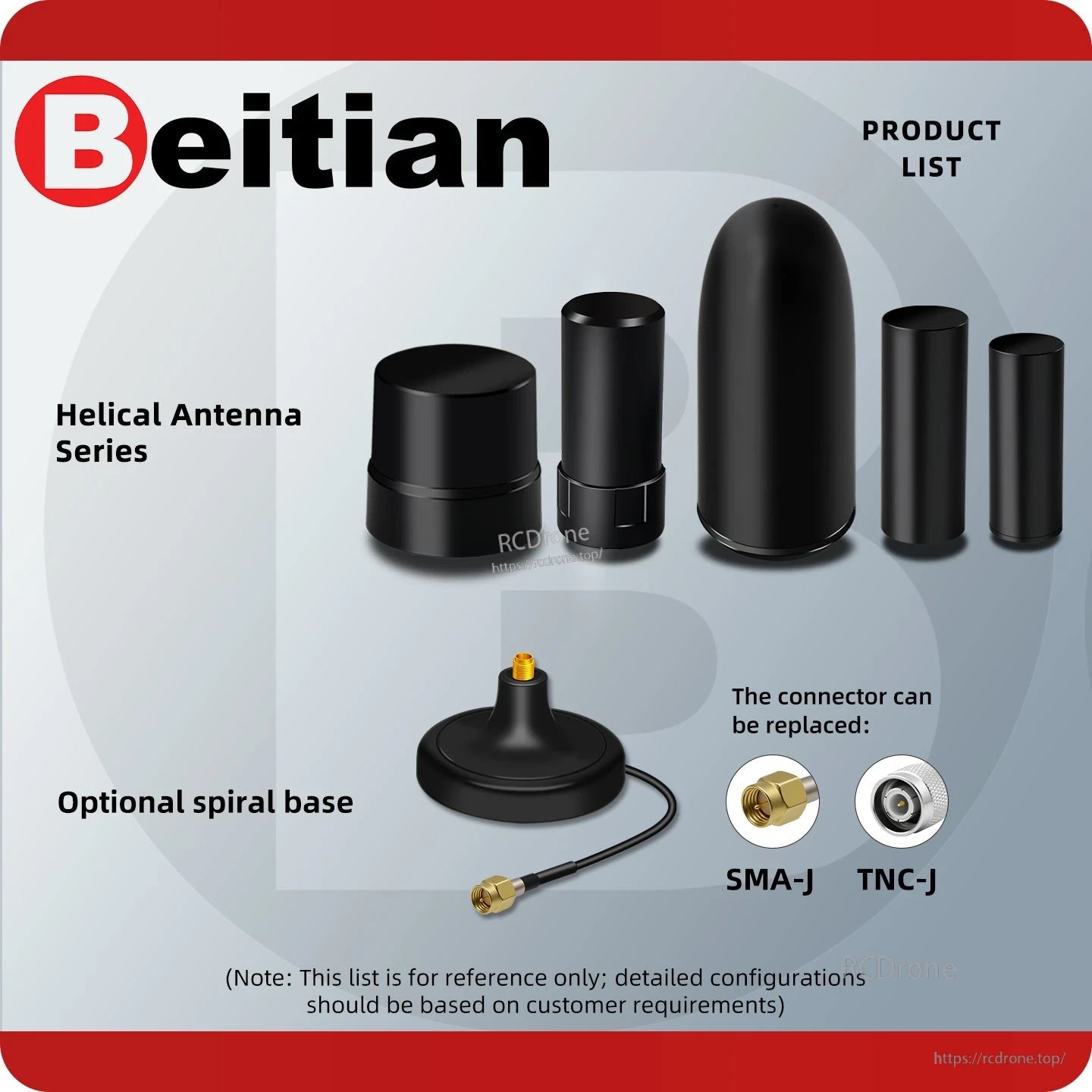

What's Included

  • Selected helical antenna x1

Note: the included list is stated as “for reference only; detailed configurations should be based on customer requirements”.

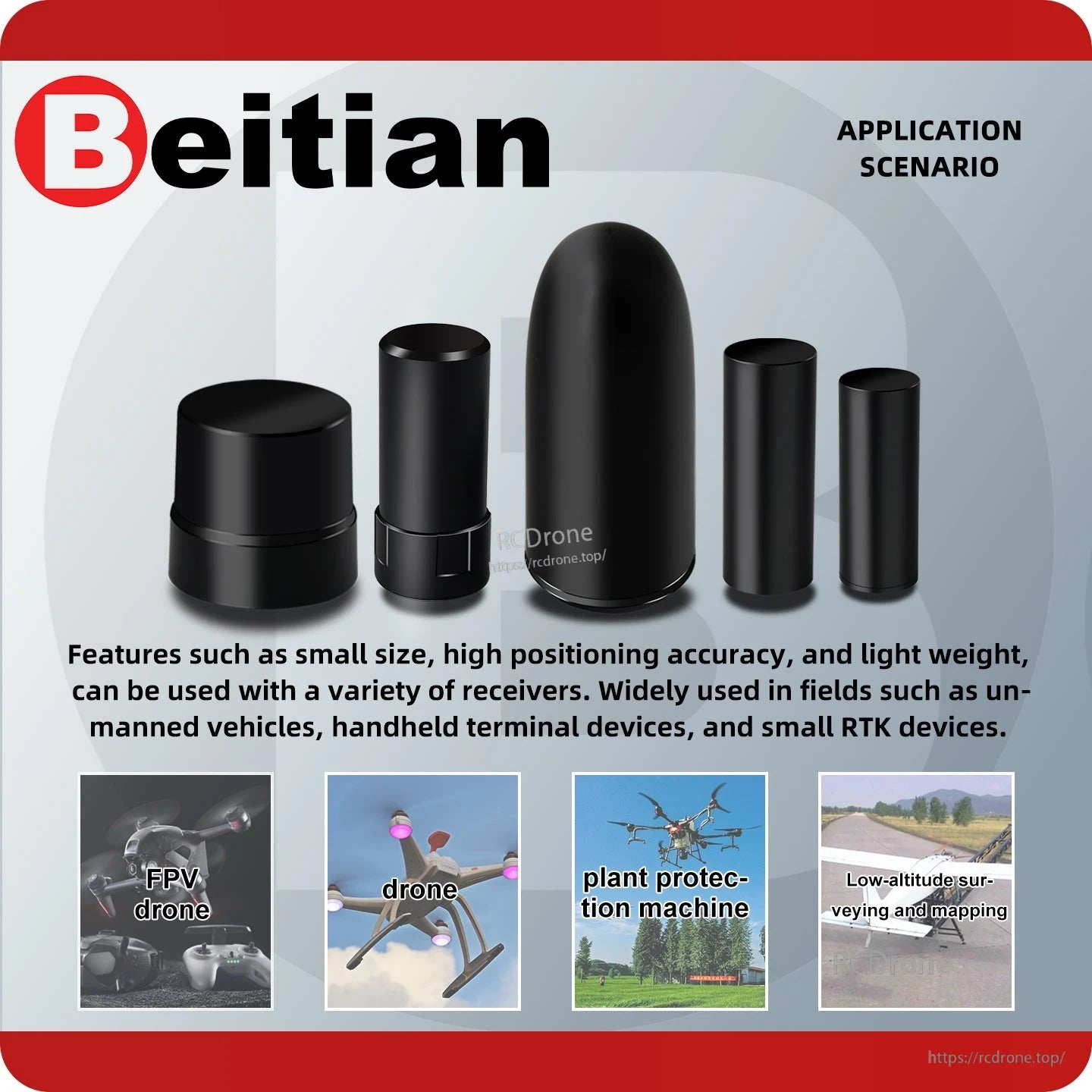

Applications

  • Hydrographic surveys
  • Geodesy / geodetic survey
  • Wearable devices
  • GNSS/RTK positioning builds such as drones used for lighting shows (application depends on the selected model and host receiver)

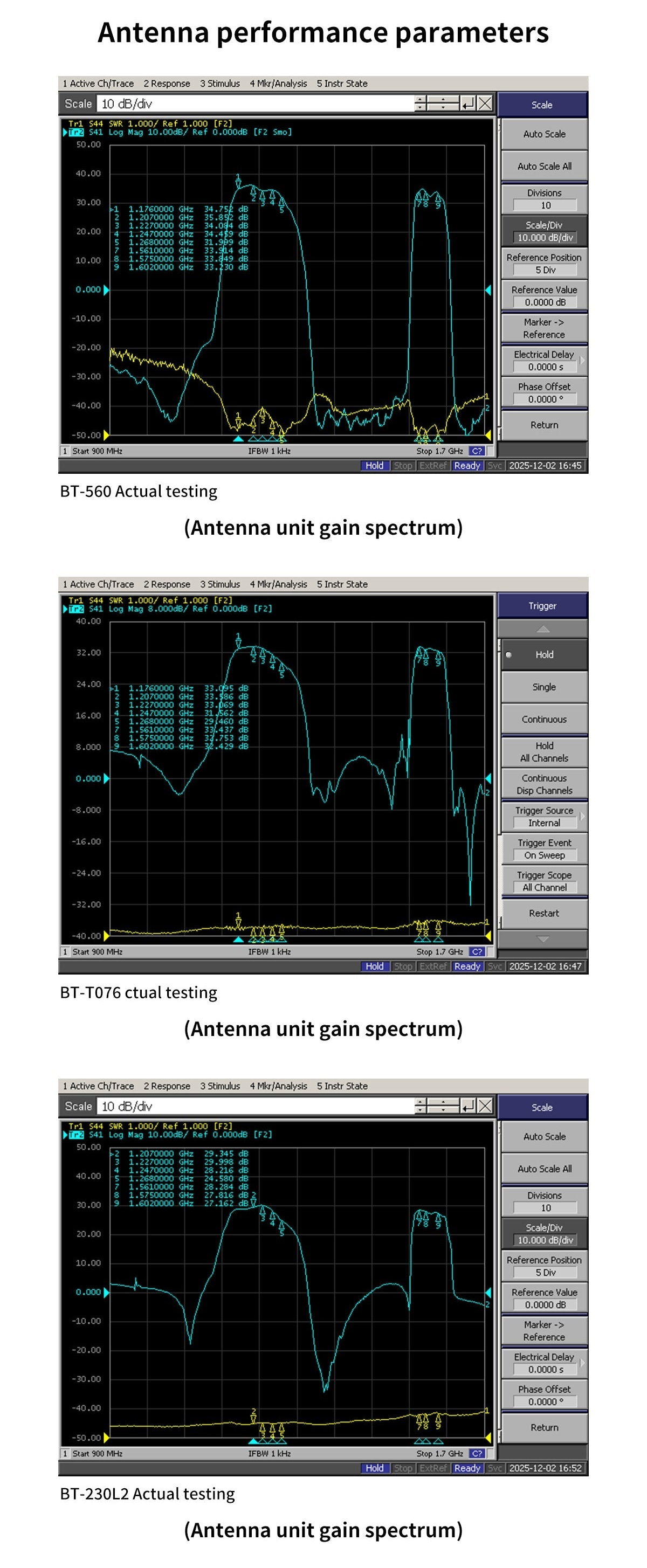

Testing / Parameter Notes (text shown)

  • Antenna performance parameters
  • BT-560 Actual testing (Antenna unit gain spectrum)
  • BT-T076 actual testing (Antenna unit gain spectrum)
  • BT-230L2 Actual testing (Antenna unit gain spectrum)

Details

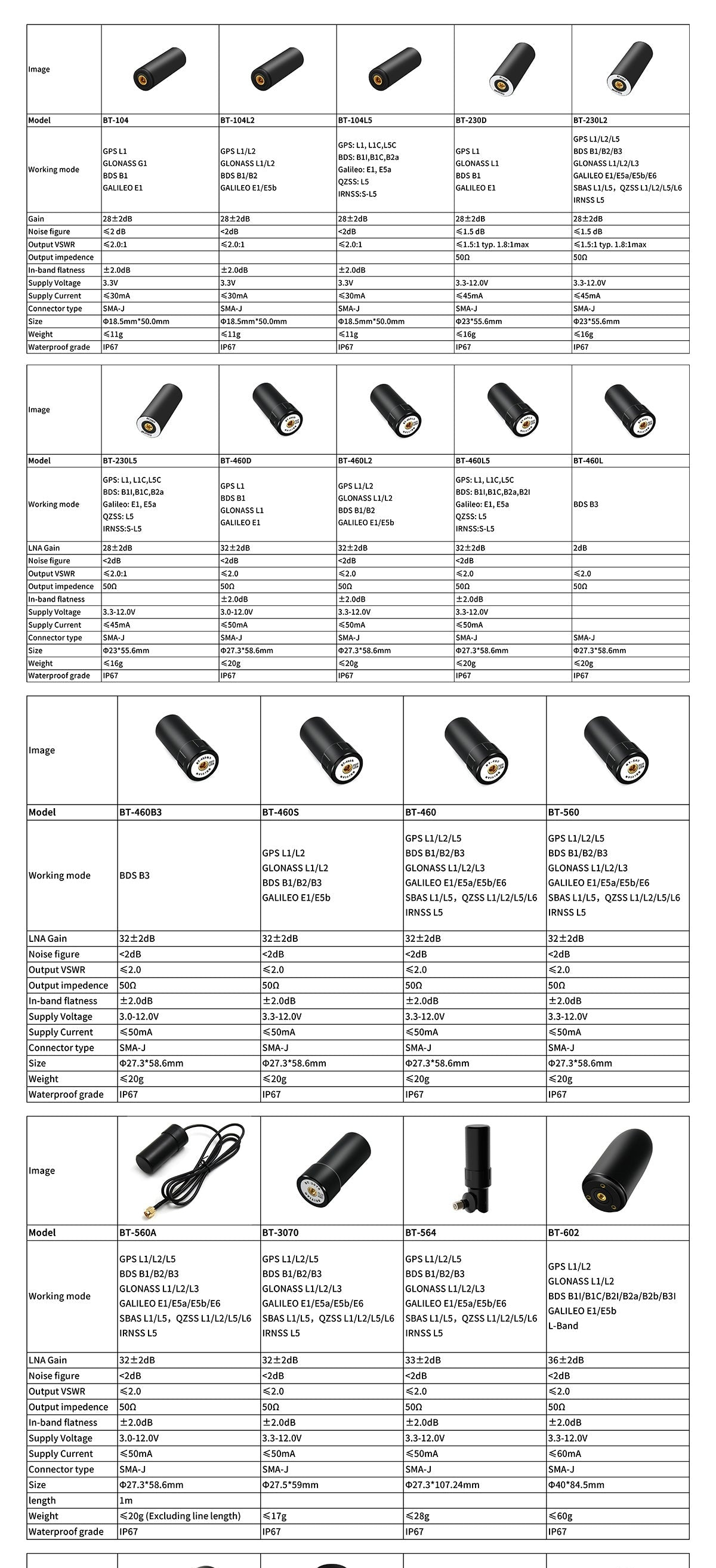

BEITIAN BT Series GNSS helical antenna model comparison chart with dimensions, bands, gain and IP67 notes

Choose the right BT-series model by comparing supported GNSS bands, size, power range, and waterproof rating across the lineup.

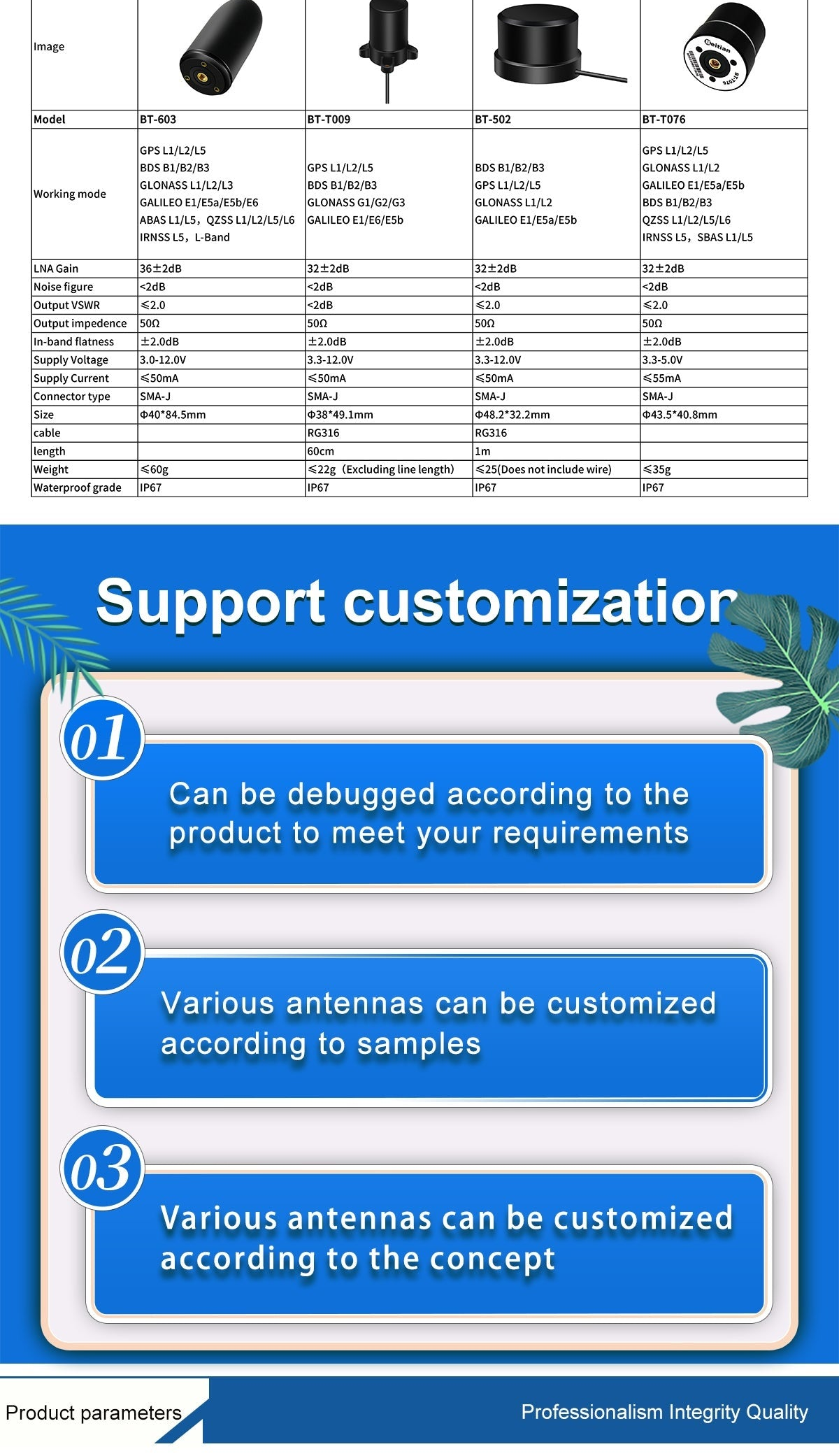

Customization options banner for BT-series GNSS helical antennas, listing debugging and sample/concept customization

Customization is available for firmware/debug settings and antenna variations to match your sample or design concept.

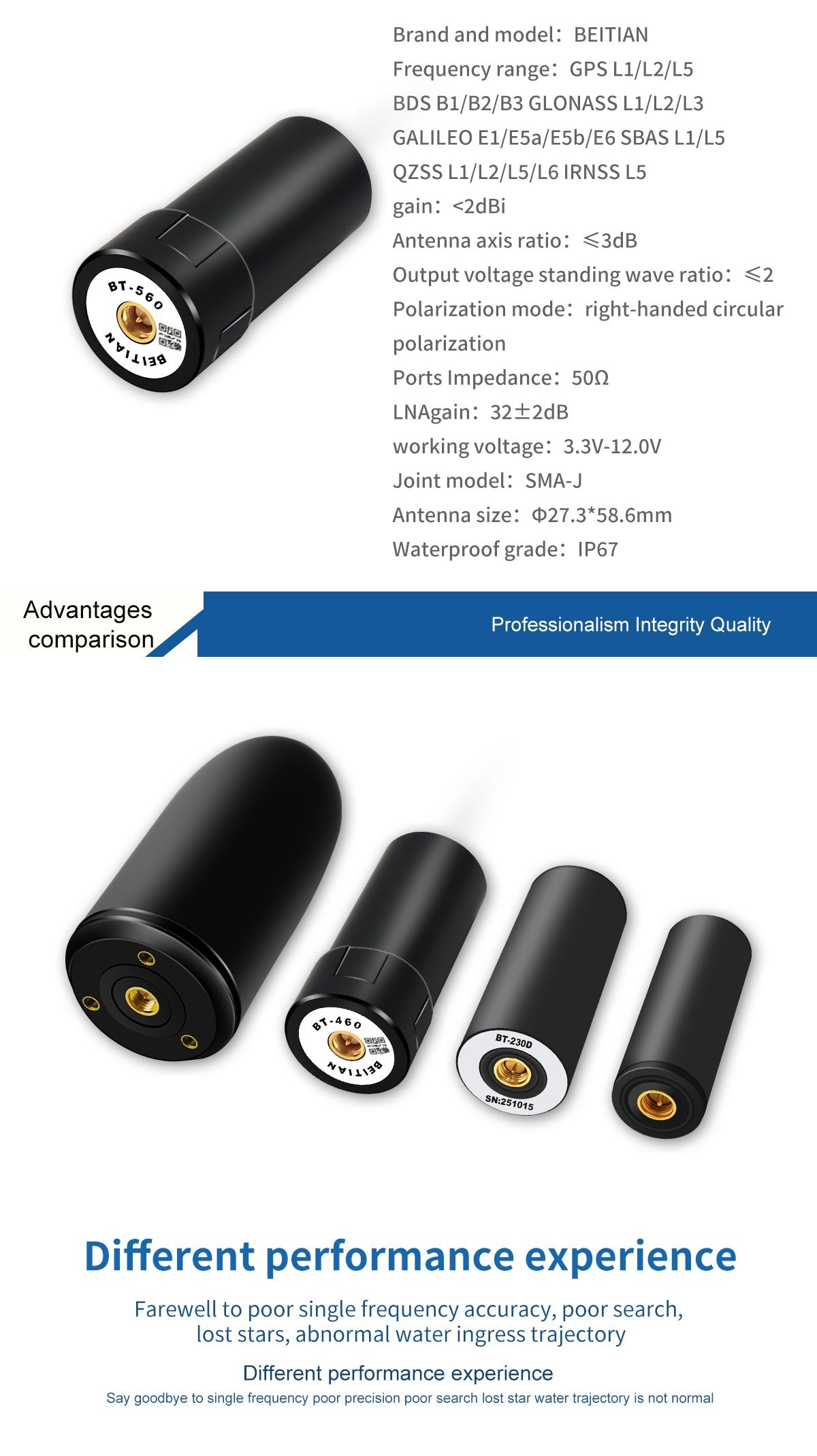

BEITIAN BT-series GNSS helical antenna close-up of SMA-J connector and multi-band/constellation feature list

An SMA-J active helical design supports multi-constellation reception, with frequency coverage varying by model.

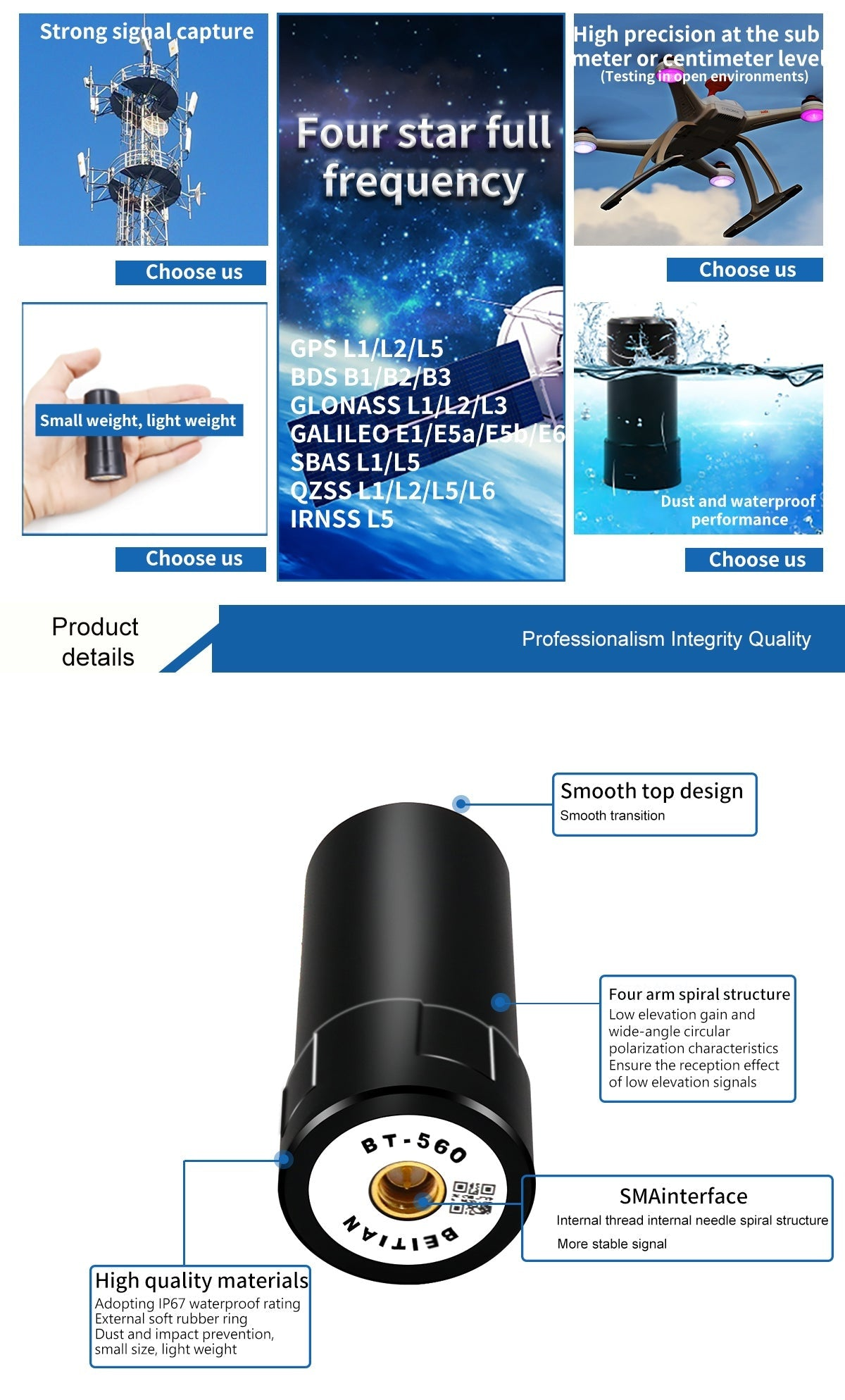

BEITIAN BT Series GNSS Helical Antenna feature graphic highlighting full-frequency support, IP67 waterproofing and SMA interface

IP67 sealing, compact cylindrical housing, and an SMA interface make the antenna suitable for demanding outdoor GNSS installs.

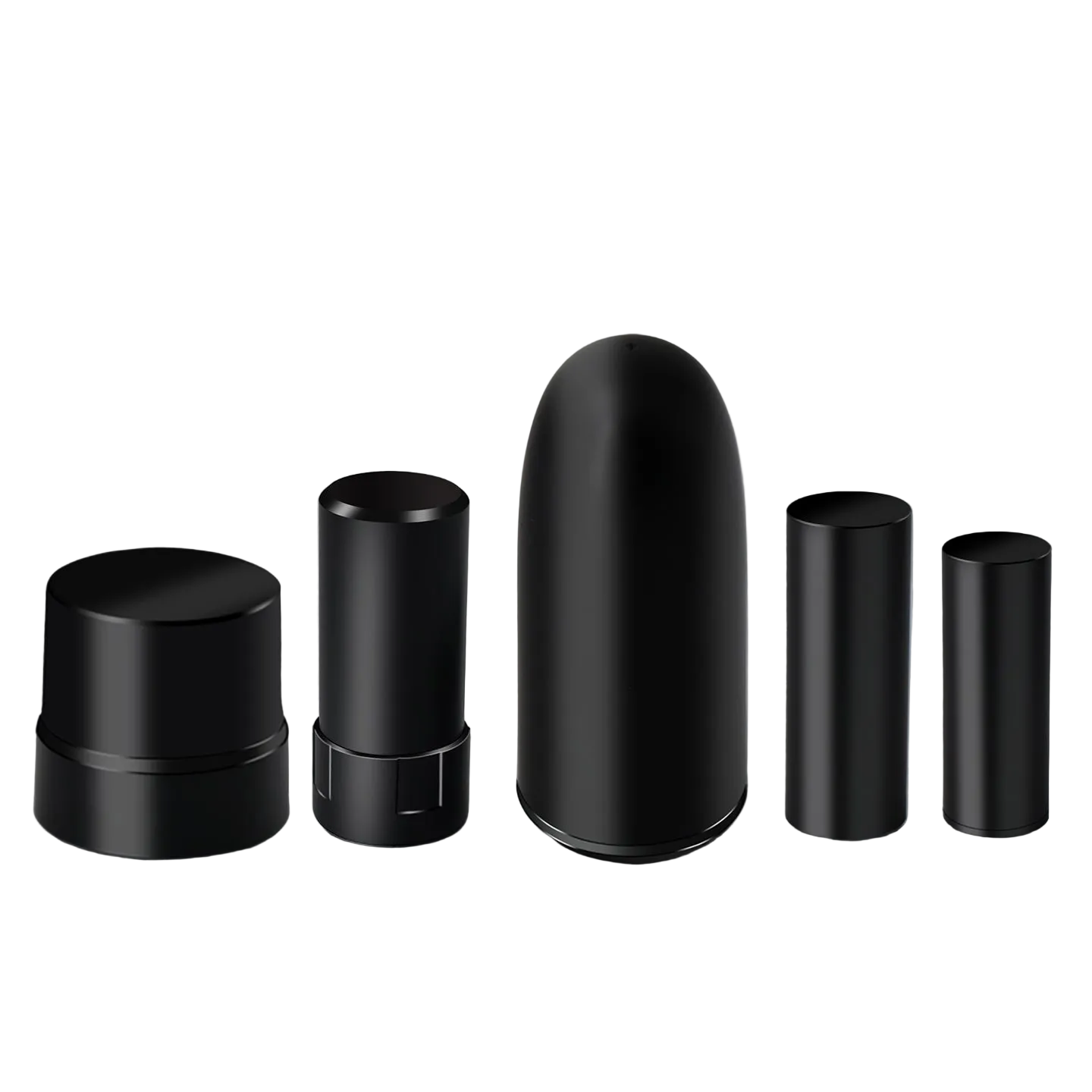

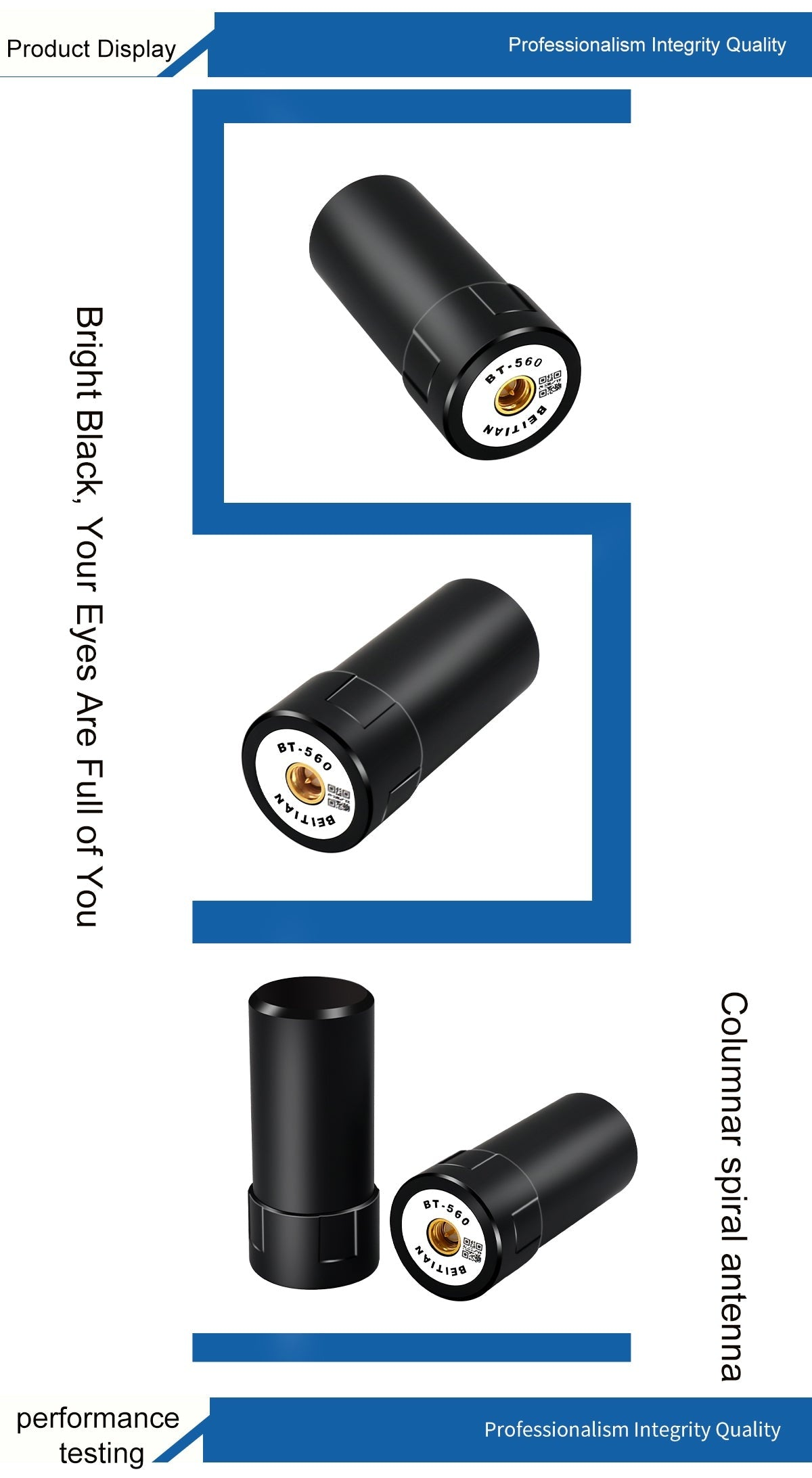

Multiple angles of BT-series cylindrical spiral antenna in black finish with SMA connector end viewAntenna performance parameter screenshots showing unit gain spectrum test plots for several BT-series models

Gain spectrum test plots provide a quick reference for how different BT-series variants perform across their intended bands.

GNSS application scenarios graphic for hydrographic surveys and geodesy/geodetic surveying environments

Common use cases include hydrographic surveying and geodetic fieldwork where stable satellite reception is required.

Product list graphic showing selected helical antenna included and wearable device application mention

Related Collections
