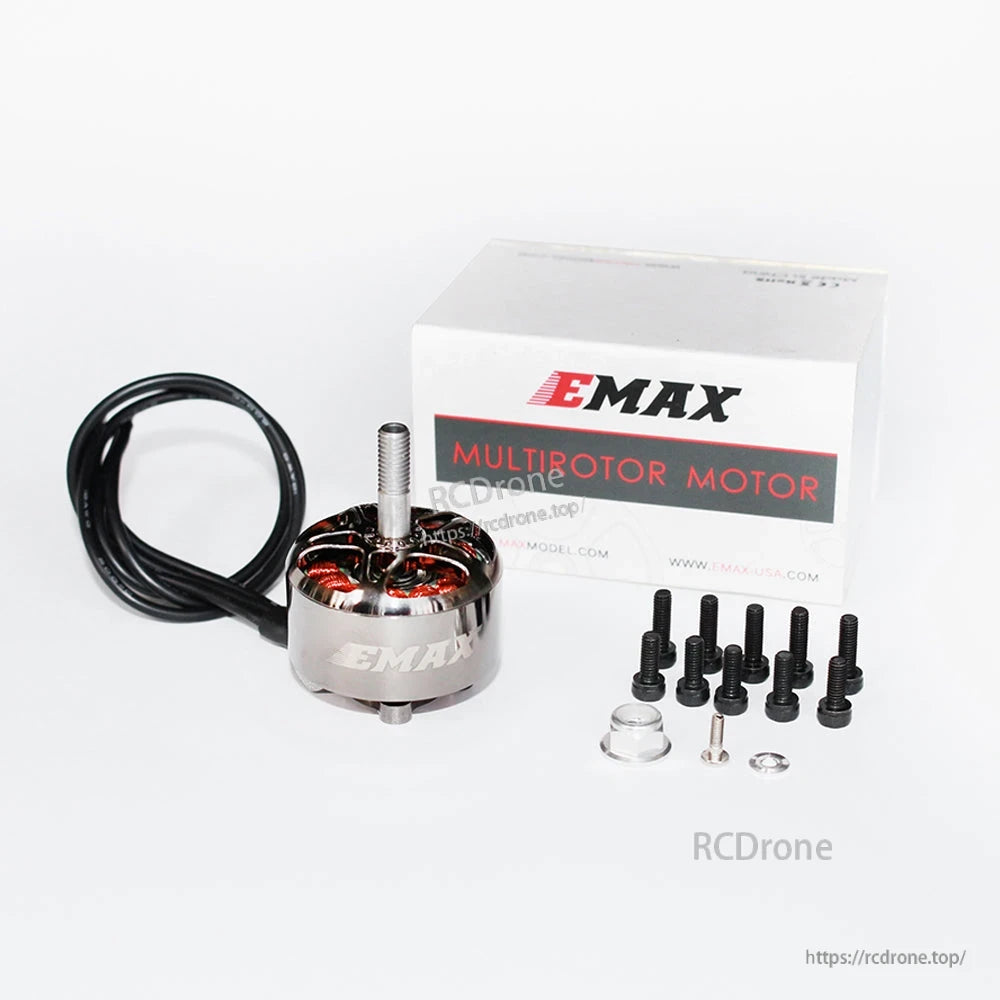

  • EMAX ECOII 2812 brushless motor kit with retail box, screws, prop adapter and hardware
1 8

EMAX ECOII 2812 Motor Tanpa Berus 3-6S 930KV/1100KV, 12N14P Aci M5 18AWG 250mm untuk Dron FPV

EMAX ECOII 2812 Motor Tanpa Berus 3-6S 930KV/1100KV, 12N14P Aci M5 18AWG 250mm untuk Dron FPV

Emax

$50.25 USD
$50.25 USD
Jualan Habis dijual
Cukai termasuk. Penghantaran dikira semasa pembayaran.
KV
  • PayPal
  • Visa
  • Mastercard
  • American Express
  • JCB
  • Discover
  • Diners Club
  • Google Pay
  • Apple Pay
Lihat butiran penuh

Overview

EMAX ECOII-2812 motor tanpa berus untuk drone RC dan binaan perlumbaan FPV, tersedia dalam pilihan 930KV dan 1100KV. Ia menyokong pemasangan 3-6S LiPo dan menggunakan poros berulir M5 dengan kabel motor 18AWG.

Ciri Utama

  • Sokongan 3-6S (kedua-dua varian KV)
  • Rangka 12N14P
  • Poros berulir M5, corak pemasangan 4 x M3
  • Kabel motor 18AWG, panjang 250mm

Untuk pertanyaan tentang kesesuaian (pemilihan prop, pemasangan, ESC pasangan), hubungi [email protected] or lawati https://rcdrone.top/.

Spesifikasi

Mekanikal (seri ECOII-2812)

Dimensi motor φ33.2 x 44.45mm
Dimensi diagram ditunjukkan 44.45mm / 37.55mm / 17.5mm / 4.45mm
Shaft M5 (berulir)
Pemasangan 4-M3, φ19
Kerangka 12N14P
Poros galas 4mm
Lead 18#AWG 250mm
Berat 72g (Tanpa Kabel Silikon)

Elektrik (KV930)

KV 930KV
Bilangan sel 3-6S
Arus menganggur (10V) 1.4A
Rintangan dalaman 59mΩ
Propeller 8"-9"
Arus puncak (6S) 62A
Kuasa maksimum (6S) 1550W

Elektrik (KV1100)

KV 1100KV
Bilangan sel 3-6S
Arus menganggur (10V) 1.8A
Rintangan dalaman 48mΩ
Propeller 7"-8"
Arus puncak (6S) 68.2A
Kuasa maksimum (6S) 1718W

Data Ujian Prestasi

ECOII-2812-930KV (25.2V) — Gemfan8060 3-blade propeller

Voltan (V) Arus (A) Daya (G) Kuasa (W) Kecekapan (G/W) Kelajuan (RPM)
25.2 2.6 300 65.52 4.58 6170
25.2 5.04 570 127.01 4.49 7920
25.2 8.8 900 221.76 4.06 9690
25.2 13.8 1250 347.76 3.59 11370
25.2 19.9 1610 501.48 3.21 12760
25.2 27.6 1950 695.52 2.80 14120
25.2 36.8 2400 927.36 2.59 15410
25.2 48.5 2850 1222.20 2.33 Max

ECOII-2812-930KV (25.2V) — HQ 8045 3-blade propeller

Voltan (V) Arus (A) Daya Angkat (G) Kuasa (W) Kecekapan (G/W) Kelajuan (RPM)
25.2 2.5 320 63.00 5.08 6200
25.2 4.88 570 122.98 4.64 7930
25.2 8.75 900 220.50 4.08 9680
25.2 14 1270 352.80 3.60 11310
25.2 20.6 1620 519.12 3.12 12700
25.2 28.5 1950 718.20 2.72 14020
25.2 38 2450 957.60 2.56 15180
25.2 50.5 2900 1272.60 2.28 Max

ECOII-2812-930KV (25.2V) — Emax Avia 9045 3-blade propeller

Voltan (V) Arus (A) Dorongan (G) Kuasa (W) Kecekapan (G/W) Kelajuan (RPM)
25.2 3.15 460 79.38 5.79 5840
25.2 6.53 810 164.56 4.92 7550
25.2 11.5 1220 289.80 4.21 9110
25.2 18.4 1660 463.68 3.58 10540
25.2 26.1 2100 657.72 3.19 11840
25.2 35 2500 882.00 2.83 12900
25.2 45.8 2800 1154.16 2.43 13820
25.2 62 3300 1562.40 2.11 Max

ECOII-2812-930KV (25.2V) — Gemfan9045 3-blade propeller

Voltan (V) Arus (A) Dorongan (G) Kuasa (W) Kecekapan (G/W) Kelajuan (RPM)
25.2 2.75 370 69.30 5.34 6020
25.2 5.6 700 141.12 4.96 7750
25.2 10 1100 252.00 4.37 9410
25.2 15.6 1520 393.12 3.87 10910
25.2 23 1960 579.60 3.38 12240
25.2 31.5 2400 793.80 3.02 13500
25.2 41.6 2830 1048.32 2.70 14560
25.2 56 3300 1411.20 2.34 Max

ECOII-2812-1100KV (25.2V) — Gemfan8040 3-blade propeller

Voltan (V) Arus (A) Daya Angkat (G) Kuasa (W) Kecekapan (G/W) Kelajuan (RPM)
25.2 3.15 380 79.38 4.79 7440
25.2 6.2 670 156.24 4.29 9550
25.2 11 1050 277.20 3.79 11540
25.2 17.1 1450 430.92 3.36 13340
25.2 25 1910 630.00 3.03 15080
25.2 34.9 2420 879.48 2.75 16770
25.2 46.3 2820 1166.76 2.42 17970
25.2 60.8 3320 1532.16 2.17 Max

ECOII-2812-1100KV (25.2V) — Emax Avia 8043 3-blade propeller

Voltan (V) Arus (A) Daya angkat (G) Kuasa (W) Kecekapan (G/W) Kelajuan (RPM)
25.2 3.4 430 85.68 5.02 7320
25.2 6.7 730 168.84 4.32 9360
25.2 11.7 1100 294.84 3.73 11360
25.2 18.3 1470 461.16 3.19 13100
25.2 26.7 1900 672.84 2.82 14760
25.2 37 2330 932.40 2.50 16250
25.2 49.4 2600 1244.88 2.09 17420
25.2 68.2 2900 1718.64 1.69 Max

Permohonan

  • FPV perlumbaan dan binaan drone RC freestyle menggunakan sistem kuasa 3-6S
  • Projek multirotor khusus yang memerlukan jejak motor kelas ECOII-2812 (4-M3, φ19)

Butiran

EMAX ECOII 2812 brushless motor spec sheet with dimensions, M5 shaft, 4×M3 mount, and 18AWG 250mm leadsECOII-2812 930KV performance test table on 6S (25.2V) with 3-blade props, showing thrust, power and efficiencyECOII-2812 1100KV performance test table on 6S (25.2V) with 3-blade props, listing current, thrust and RPM
