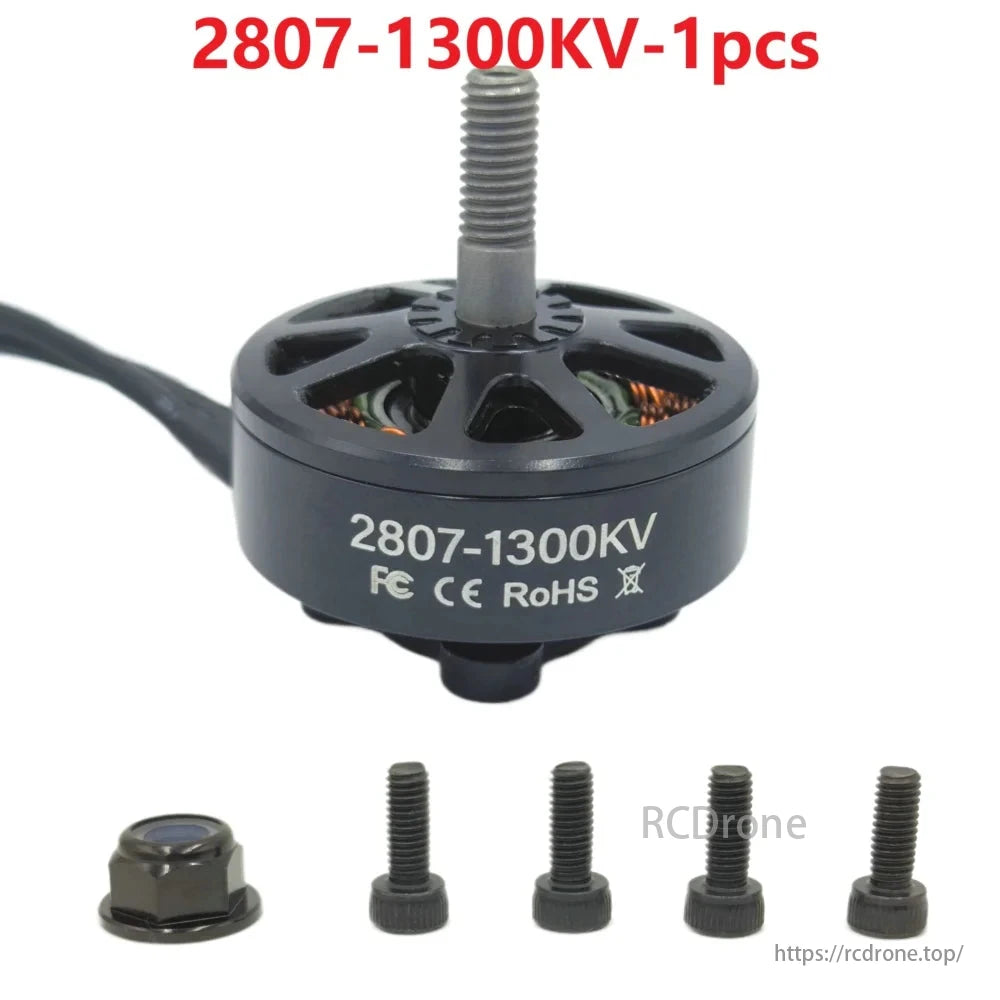

  • Dogmang 2807 Series Brushless Motor, 1300 KV, 4 mm Shaft, ideal for FPV drones.
1 8

Dogmang 2807 Series Brushless Motors (1300 kV / 1500 kV / 1700 kV)-2-6 S Lipo, 4 mm aci untuk 6 "-7" FPV Freestyle & LR7 Drone jarak jauh

Dogmang 2807 Series Brushless Motors (1300 kV / 1500 kV / 1700 kV)-2-6 S Lipo, 4 mm aci untuk 6 "-7" FPV Freestyle & LR7 Drone jarak jauh

RCDrone

$42.55 USD
$42.55 USD
Jualan Habis dijual
Taxes included. Penghantaran dikira semasa pembayaran.
Warna
  • PayPal
  • Visa
  • Mastercard
  • American Express
  • JCB
  • Discover
  • Diners Club
  • Google Pay
  • Apple Pay
Lihat butiran penuh

Gambaran keseluruhan

Siri Dogmang 2807 memberikan tujahan sedia perlumbaan dan kecekapan untuk binaan dron jarak jauh 6″–7″ FPV gaya bebas dan LR7. Menampilkan reka bentuk 12 N14 P tork tinggi, rotor seimbang secara dinamik dan belitan kuprum bebas oksigen, setiap motor berjalan lancar merentasi pelbagai voltan LiPo sambil meminimumkan getaran dan haba.

Ciri-ciri Utama

  • 12 N14 P Konfigurasi Tork Tinggi: Nisbah tujah-kepada-berat yang luar biasa

  • Keserasian Voltan Lebar:

    • 1300 KV: 2–6 S LiPo (sehingga 1400 W)

    • 1500 KV: 3–5 S LiPo (sehingga 1300 W)

    • 1700 KV: 3–4 S LiPo (sehingga 900 W)

  • Ketepatan 4 mm Aci: Keluli dikeraskan dengan galas berkelajuan tinggi

  • Pengimbangan Dinamik: Mengurangkan getaran untuk penerbangan yang stabil

  • Belitan Rintangan Rendah: 60 mΩ / 55 mΩ / 45 mΩ untuk pemindahan kuasa yang cekap

  • Plumbum Bertebat Silikon: 18 AWG, 200 mm

Spesifikasi

Model 1300 KV 1500 KV 1700 KV
sel 2–6 S LiPo 3–5 S LiPo 3–4 S LiPo
Kuasa Maks (6 S) 1400 W 1300 W 900 W
Arus Puncak 55 A 63 A 55 A
Arus Tanpa Beban 1 A @ 10 V 1.2 A @ 10 V 1.9 A @ 10 V
Rintangan Dalaman 60 mΩ 55 mΩ 45 mΩ
Dimensi (L×Ø) 33.5 × 17.5 mm 33.5 × 17.5 mm 33.5 × 17.5 mm
Aci / Lekap 4 mm / M3 4 mm / M3 4 mm / M3
baling-baling 6″–7″ 6″–7″ 6″–7″
Berat badan (tanpa wayar) 48.6 g 48.6 g 47.9 g

Mengapa Memilih Dogmang 2807?

Setiap motor Dogmang 2807 diuji dan seimbang untuk prestasi puncak, memberikan kuasa yang boleh dipercayai, tindak balas pendikit yang lancar dan pelesapan haba yang sangat baik—menjadikannya peningkatan yang sempurna untuk binaan dron LR7 gaya bebas FPV anda yang seterusnya.

Pakej Termasuk:

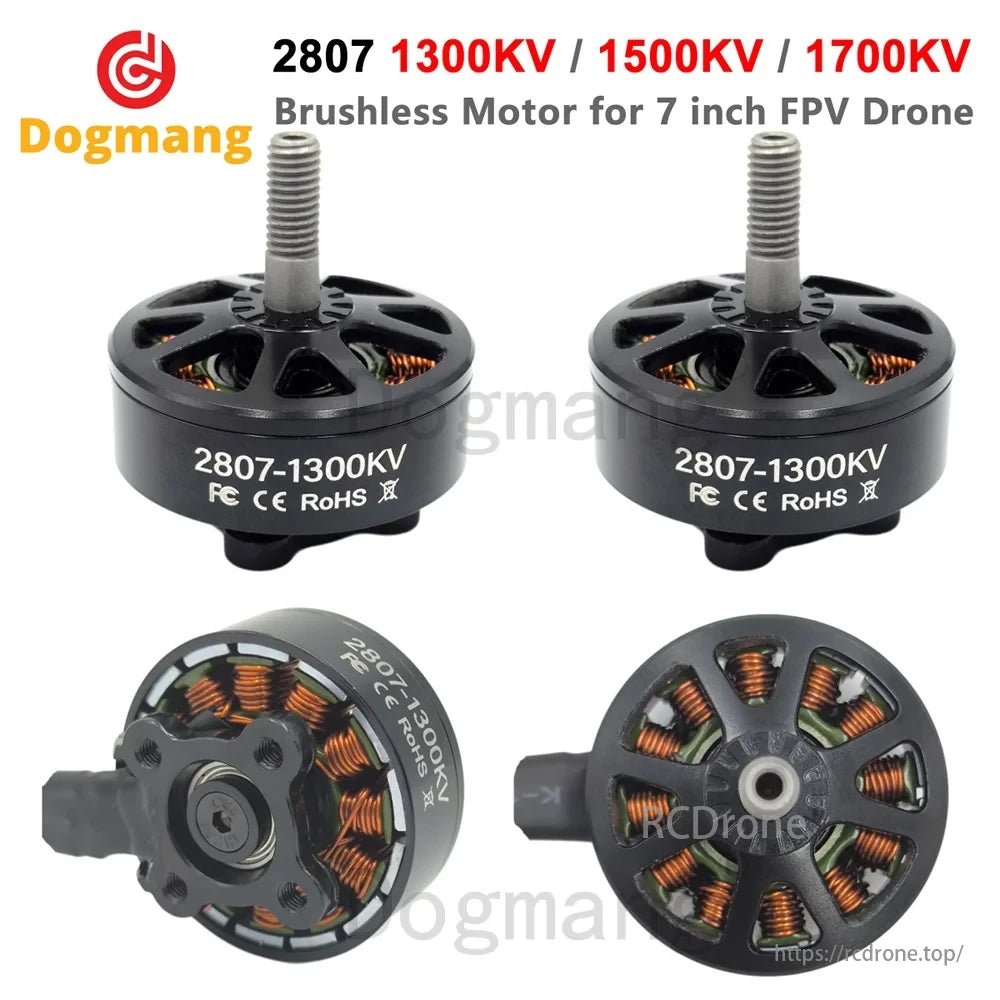

Dogmang 2807 Series Brushless Motor, Dogmang 2807 brushless motor for 7-inch FPV drones, 1300KV/1500KV/1700KV options, compact with visible copper windings.

Motor Tanpa Brushless Siri Dogmang 2807 untuk Drone FPV 7-inci, tersedia dalam pilihan 1300KV, 1500KV dan 1700KV. Reka bentuk padat dengan belitan kuprum yang boleh dilihat.

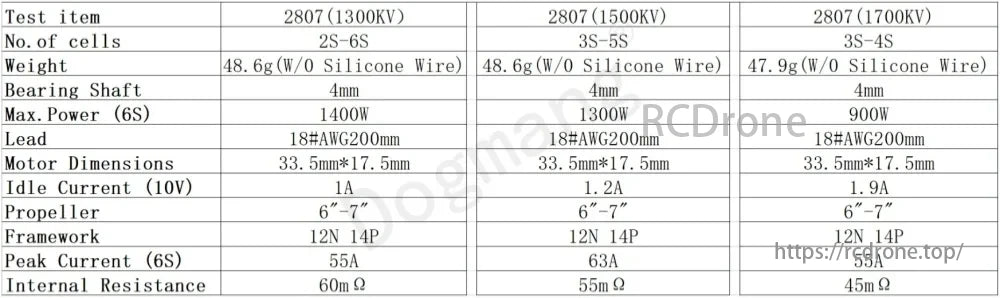

Dogmang 2807 Series Brushless Motor, Dogmang 2807 Brushless Motor: 2S-6S, 48.6-47.9g, 4mm shaft, 1400-900W, 18#AWG lead, 33.5x17.5mm, 1-1.9A idle, 6"-7" prop, 12N 14P, 55-63A peak, 45-60mΩ.

Spesifikasi Motor Tanpa Brushless Siri Dogmang 2807: sel 2S-6S, berat 48.6-47.9g, aci 4mm, kuasa 1400-900W, plumbum 18#AWG200mm, saiz 33.5x17.5mm, arus melahu 1-1.9A, 6"-7" kipas, rangka kerja 12N 14P, arus puncak 55-63A, rintangan 45-60mΩ.

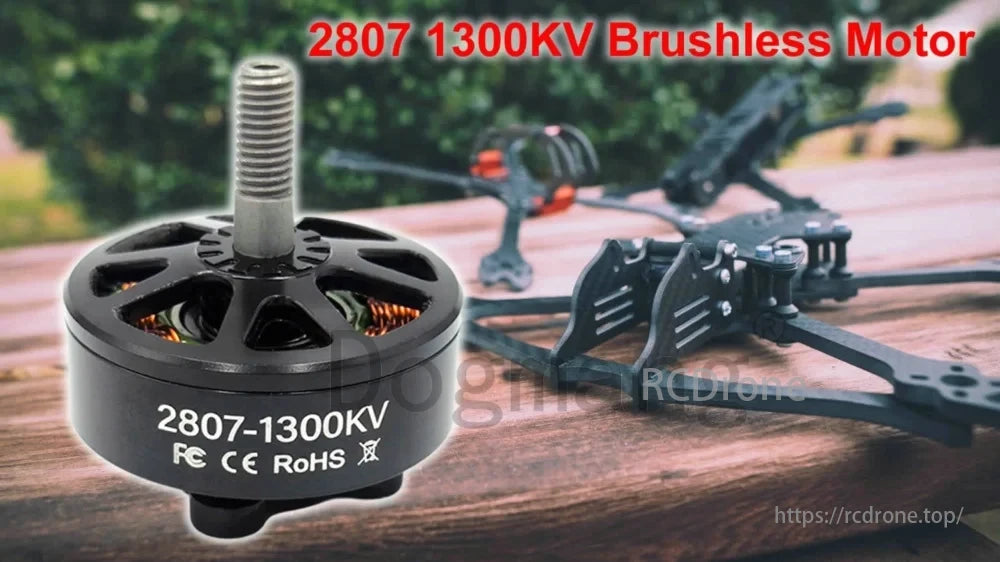

Dogmang 2807 Series Brushless Motor, Dogmang 2807-1300KV Brushless Motor, high-performance FPV drone motor with CE/RoHS certifications.

Dogmang 2807-1300KV Brushless Motor, menampilkan prestasi tinggi untuk dron FPV, dengan pensijilan CE dan RoHS.

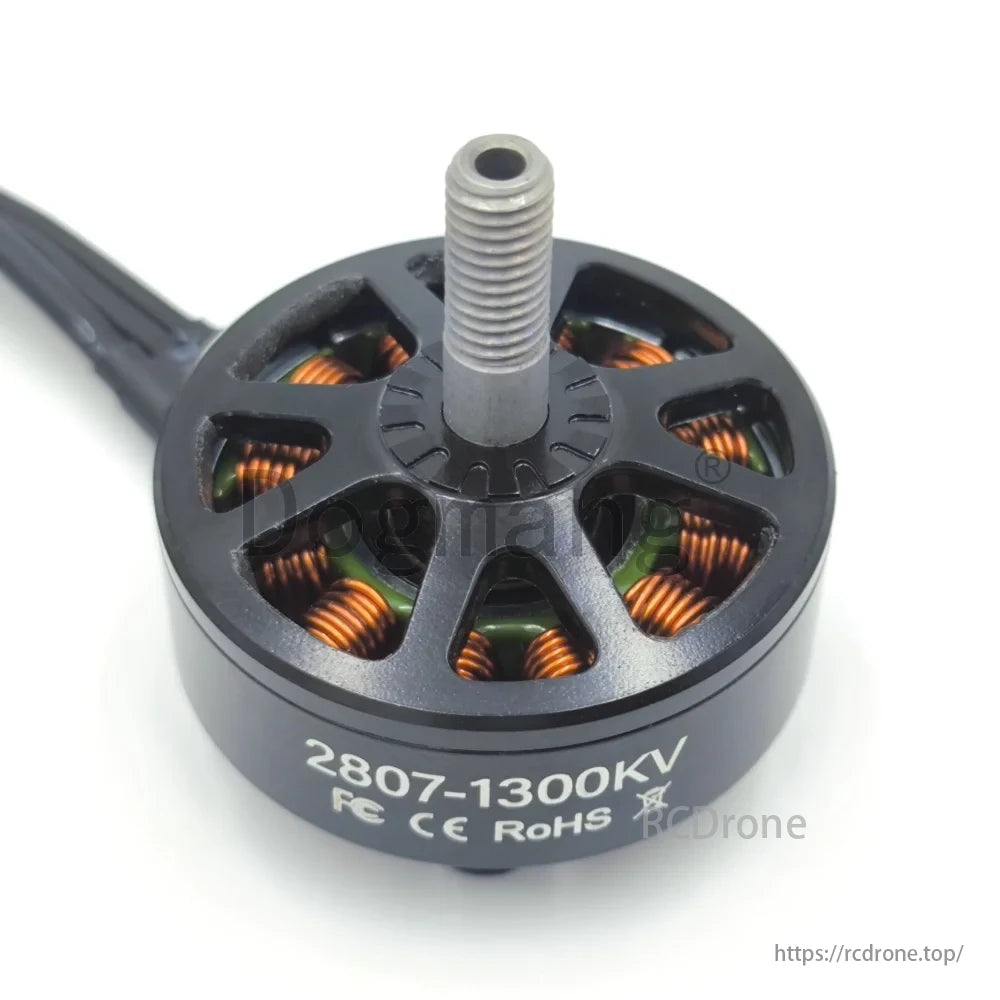

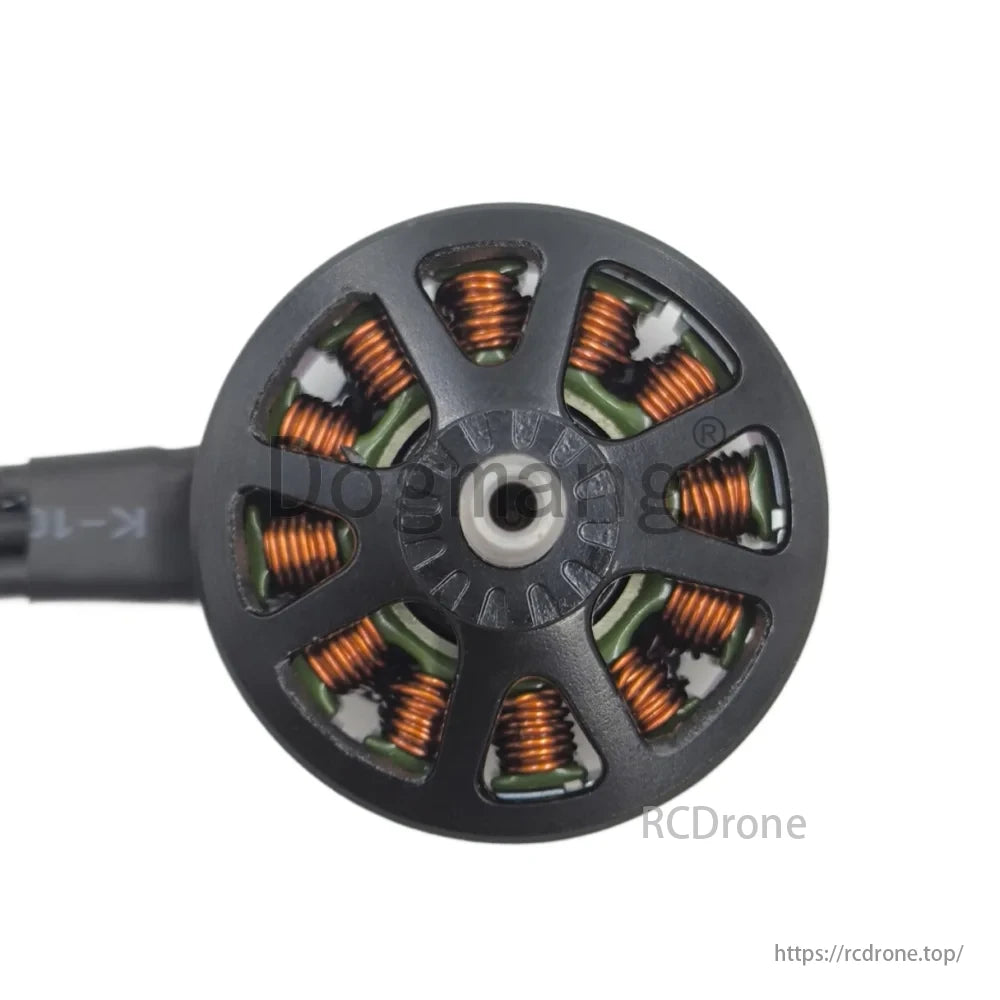

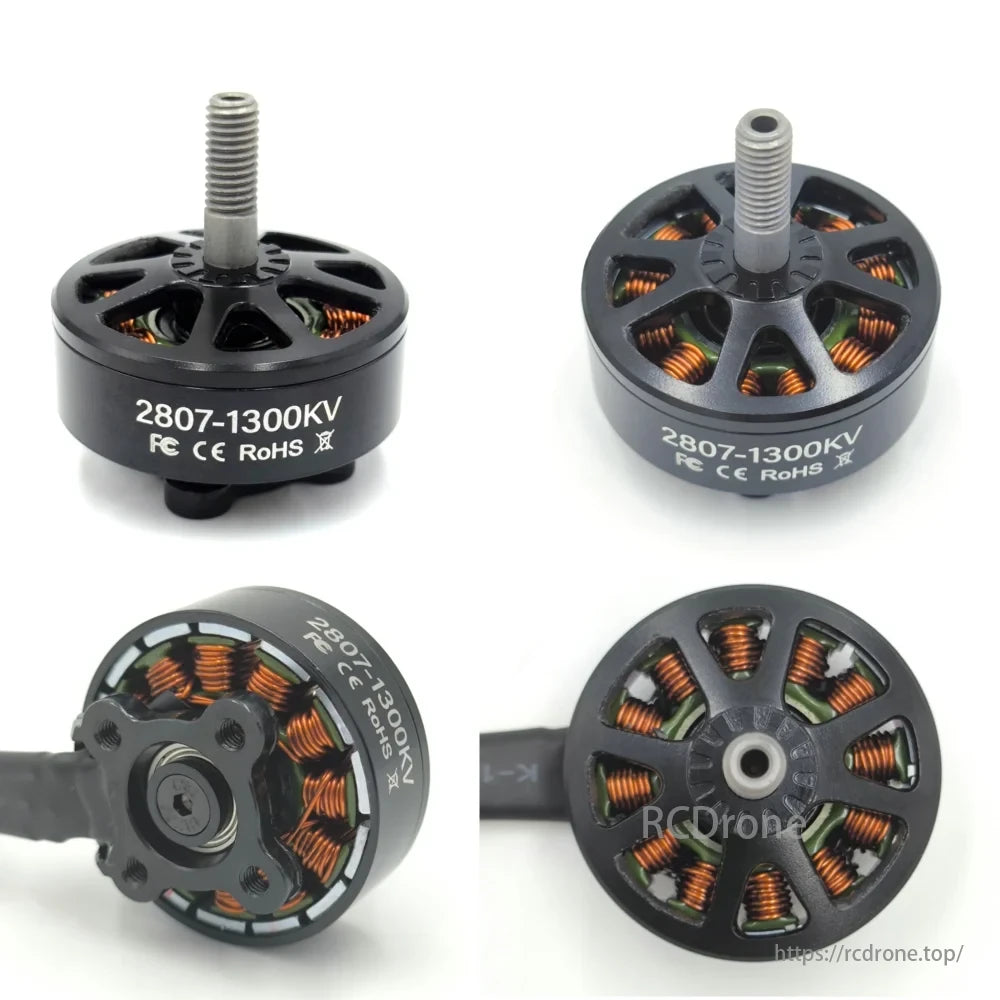

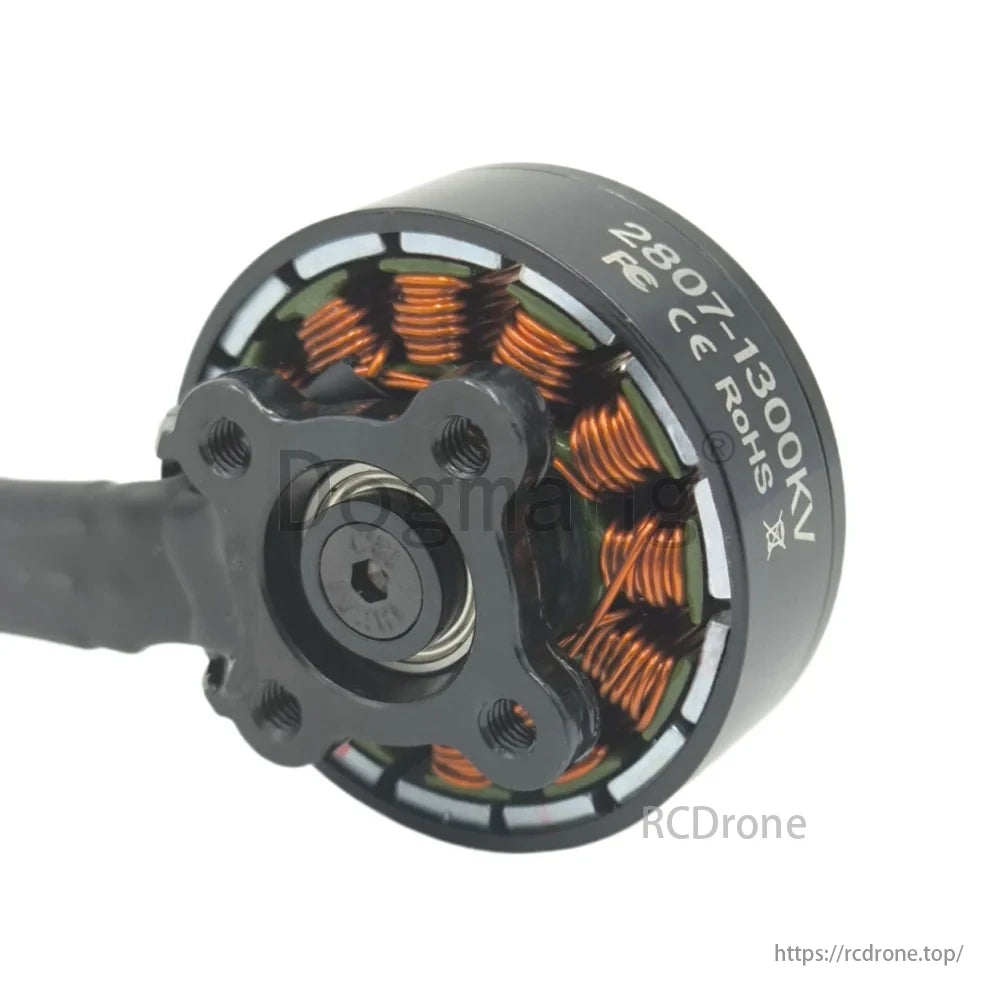

Dogmang 2807 Series Brushless Motor, The motors feature high-torque design, balanced rotors, and copper windings for smooth operation and reduced vibration and heat.Dogmang 2807 Series Brushless Motor, The Dogmang 2807 series provides high-performance thrust and efficiency for 6-7 inch FPV freestyle and LR7 long-range drone builds.Dogmang 2807 Series Brushless Motor, A package includes one dogmang brushless motor and a set of M3 mounting screws for selection.Dogmang 2807 Series Brushless Motor, Package includes one dogman brushless motor and one set of M3 mounting screws.Dogmang 2807 Series Brushless Motor, Dogmang 2807 1300KV brushless motor, FC/CE/RoHS compliant. Compact, visible copper windings, central screw for secure attachment.

Motor Tanpa Brushless Siri Dogmang 2807, 1300KV, menampilkan pematuhan FC, CE, RoHS. Reka bentuk padat dengan belitan kuprum yang boleh dilihat dan skru tengah untuk lampiran selamat.

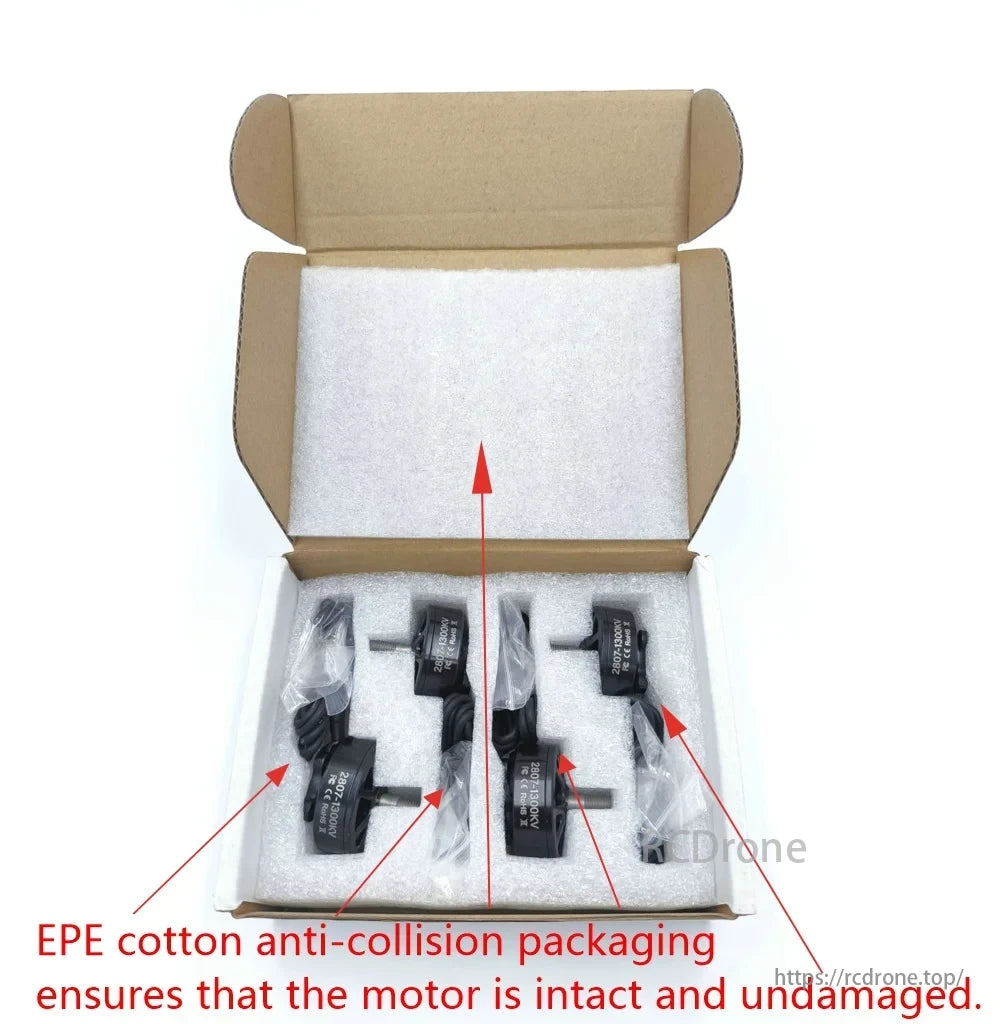

Dogmang 2807 Series Brushless Motor, Dogmang 2807 brushless motor features EPE cotton anti-collision packaging for safe delivery.

Dogmang 2807 Series Brushless Motor dalam pembungkusan anti-perlanggaran kapas EPE memastikan penghantaran utuh dan tidak rosak.

Dogmang 2807 Series Brushless Motor, Each Dogmang motor is tested and balanced for peak performance, delivering reliable power and smooth response.
