Overview

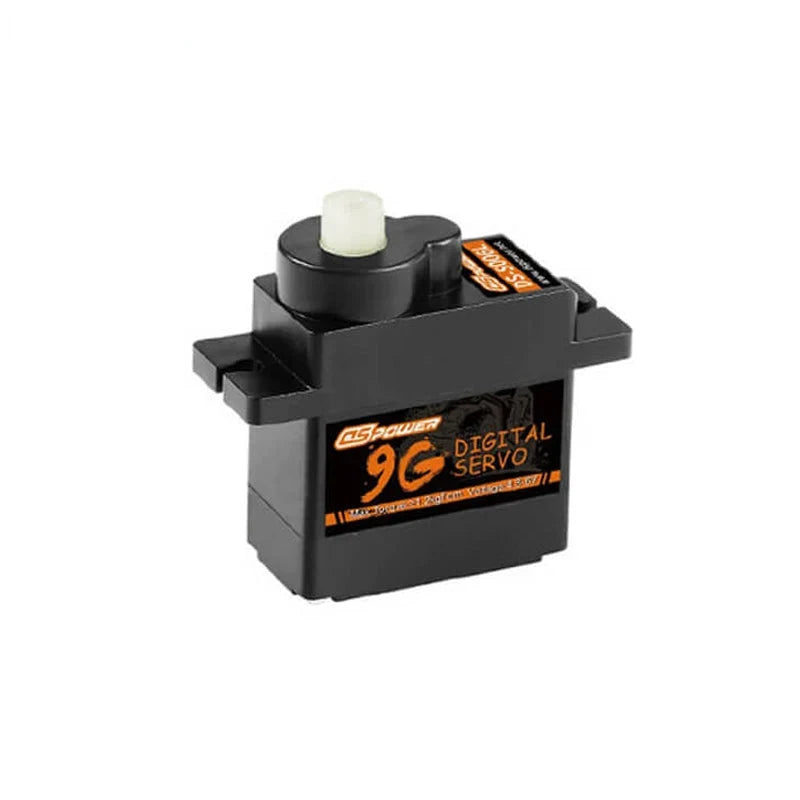

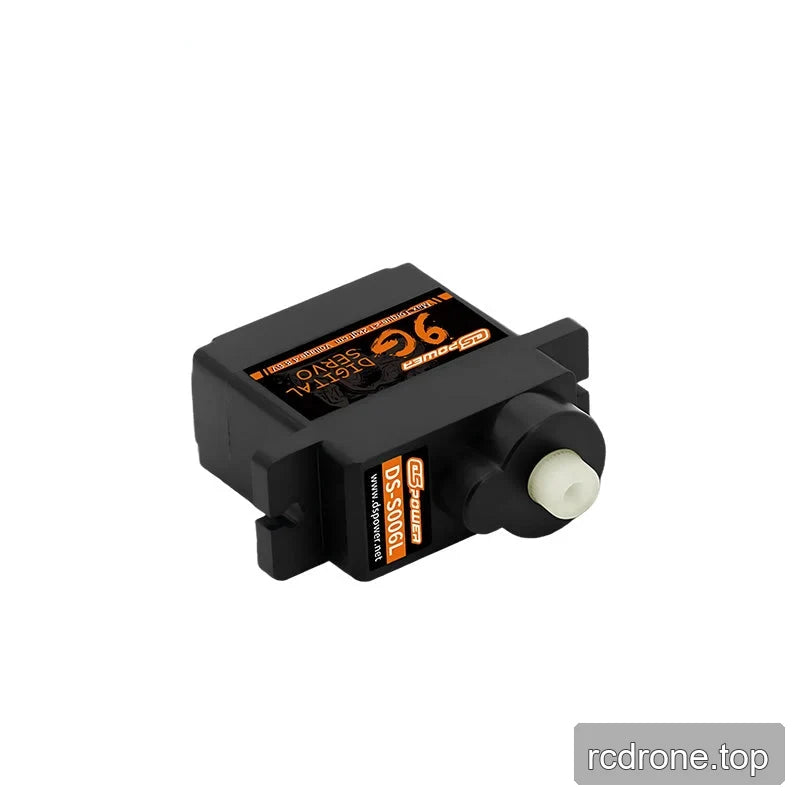

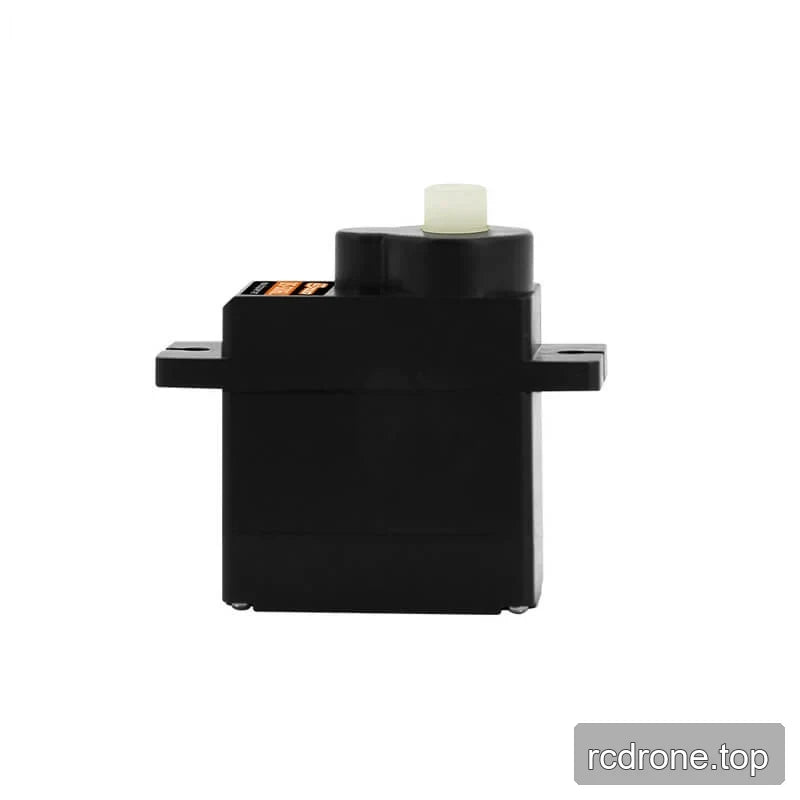

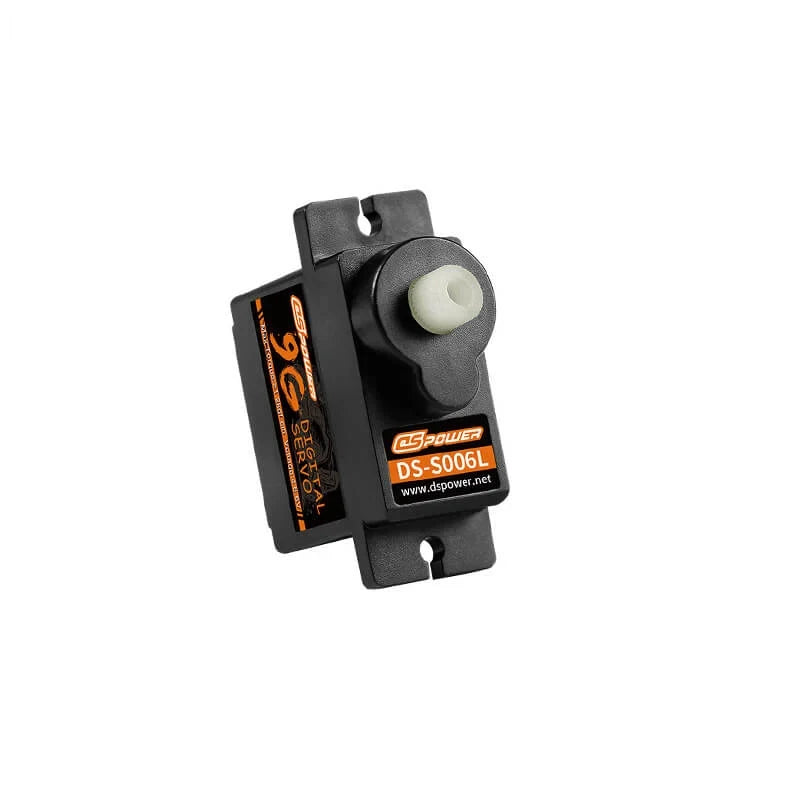

The DSpower DS-S006L is a 9 g PWM sub-micro digital servo for compact robot mechanisms, STEAM projects, and RC car applications. It operates from 4.8–6 VDC, provides 180° travel through a 500–2500 µs pulse-width range, and uses a 40T, Φ4.85 mm output shaft. A clutch gear DC core motor, precision plastic gears, torsion protection, and power-failure protection are specified.

Features

9 g sub-micro servo with PWM communication interface.

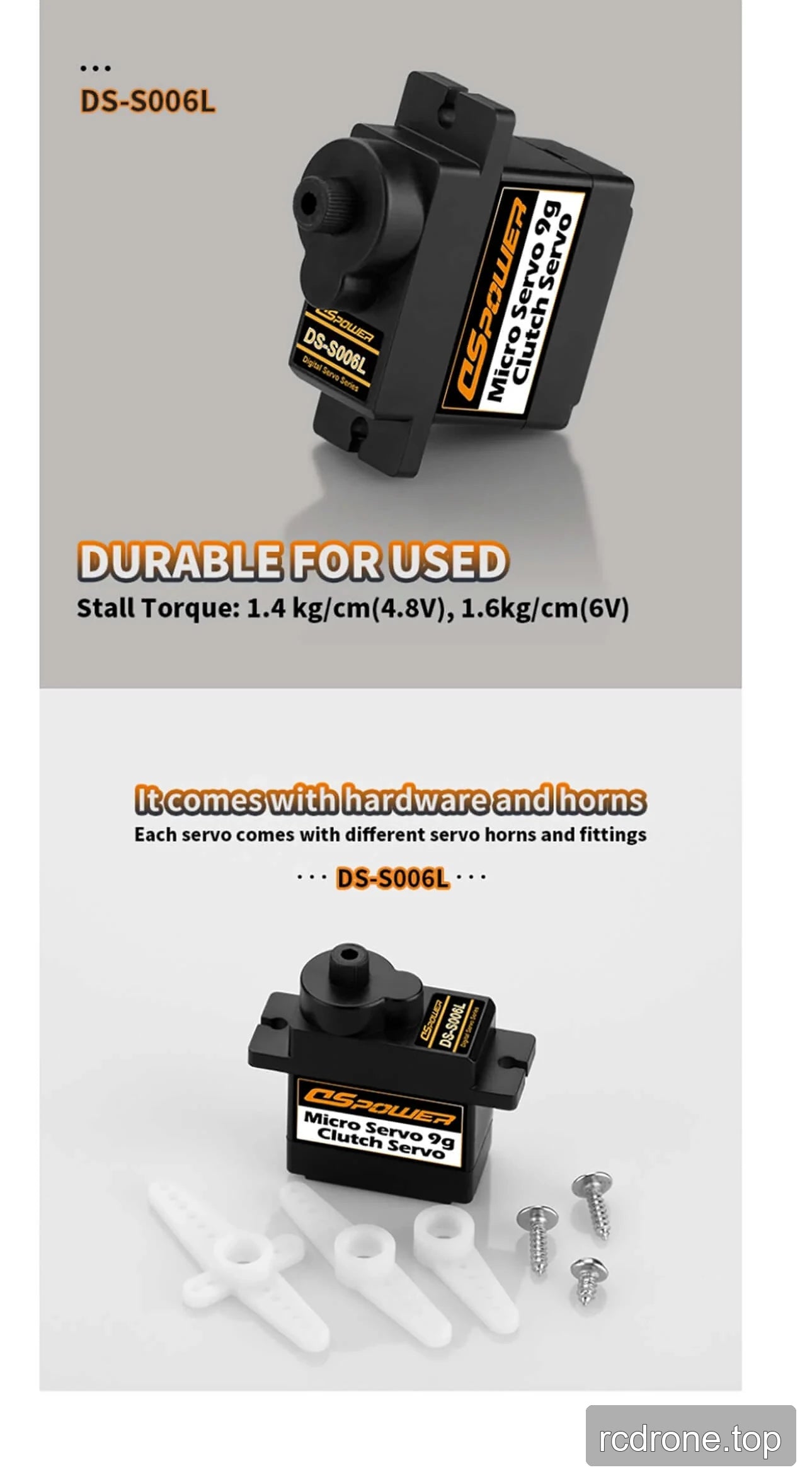

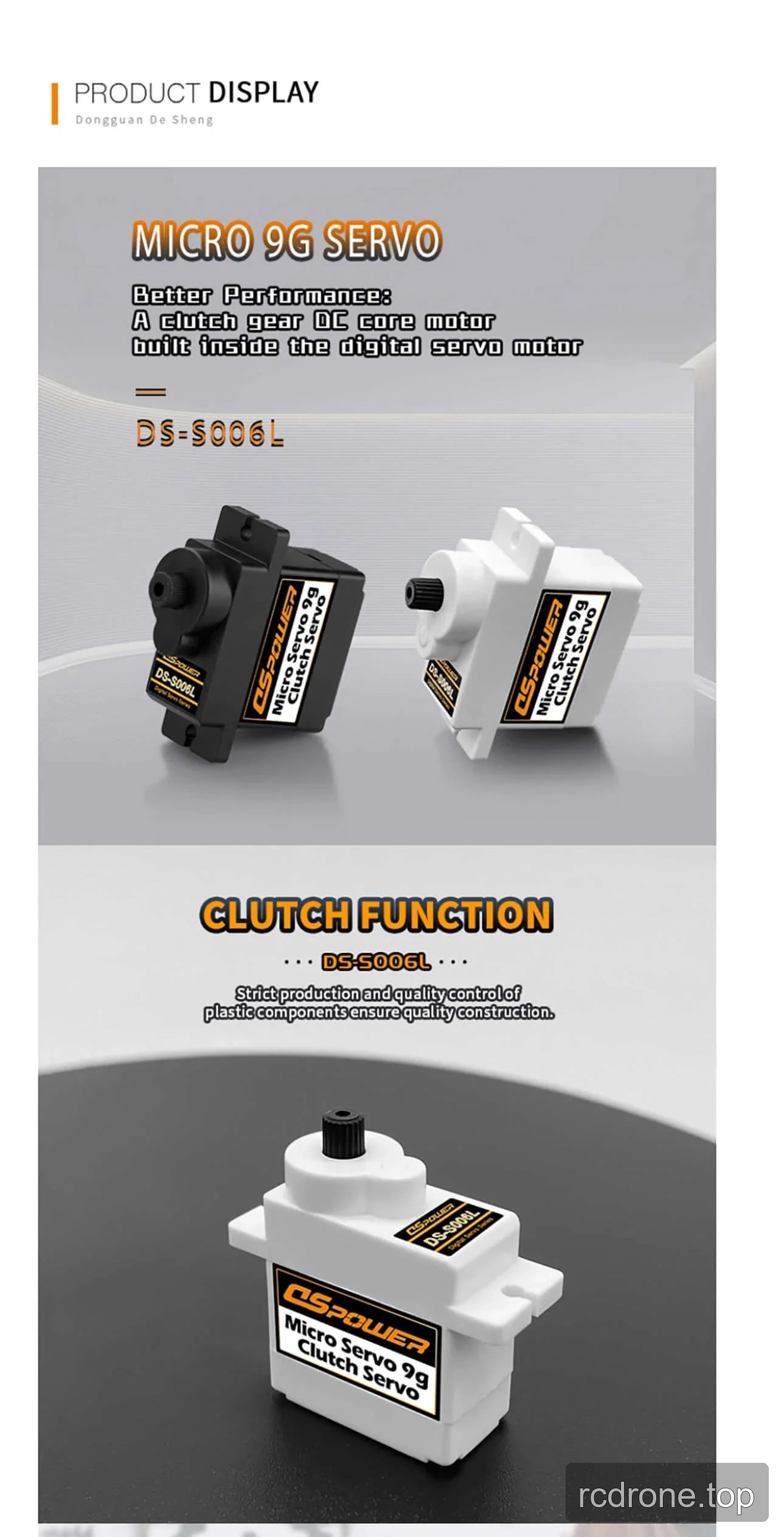

Clutch gear DC core motor in a digital servo design, with clutch function and clutch protection.

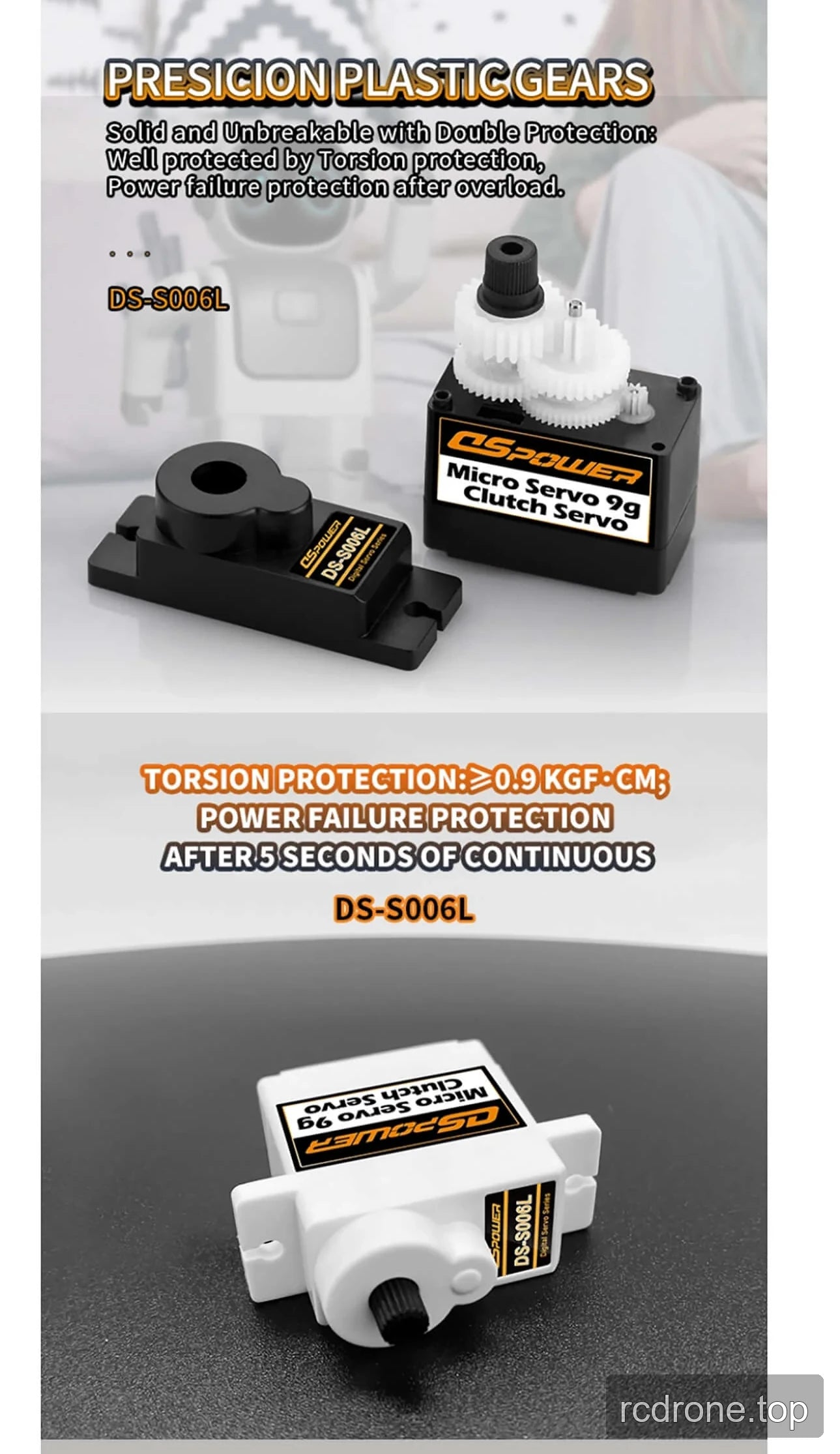

Precision plastic gears and an ultra-high-precision product designation.
Torsion protection specified at ≥0.9 kgf·cm.
Power-failure protection is specified after 5 seconds of continuous operation; double protection is also described as torsion protection and power-failure protection after overload.

Specifications

Parameter	Value
Operating voltage	4.8–6 VDC
Static current	≤20 mA at 6.0 V
Stall current	≤550 mA at 4.8 V ≤650 mA at 6.0 V
Rotating direction	CCW (1000 → 2000 µs)
No-load speed	0.09 sec/60°
Pulse-width range	500–2500 µs (180°)
Operating travel angle	180°
Return angle deviation	≤1°
Weight	9 g
Communication interface	PWM
Wire length	250 mm
Output shaft specification	40T / Φ4.85 mm
Plug	JR 2.54
Torsion protection	≥0.9 kgf·cm

Applications

Use the DS-S006L where compact PWM-controlled positioning is needed in humanoid robots, robotic arms, exoskeletons, quadruped robots, AGV vehicles, and ARU robots. Its 9 g format and 180° travel also suit dancing robots, STEAM education projects, and remote-control car applications.
