Kpower M0600 Metal-Gear Servo Motor, 6.5 kg·cm at 6 V, for RC Models and Robot Joints

Kpower

$37.00 USD

Jualan Habis dijual

Cukai termasuk. Penghantaran dikira semasa pembayaran.

Version M0600

Kuantiti

Lihat butiran penuh

Overview

The Kpower M0600 is a metal-gear servo motor for RC models, robot joints and equipment mechanisms. It combines a DC brushed motor, potentiometer position sensing and a plastic housing in a 40.7 × 19.8 × 37.7 mm package weighing 58 g. Torque is 5.8 kg·cm at 4.8 V and 6.5 kg·cm at 6.0 V, with respective speeds of 0.13 and 0.12 s/60°.

Features

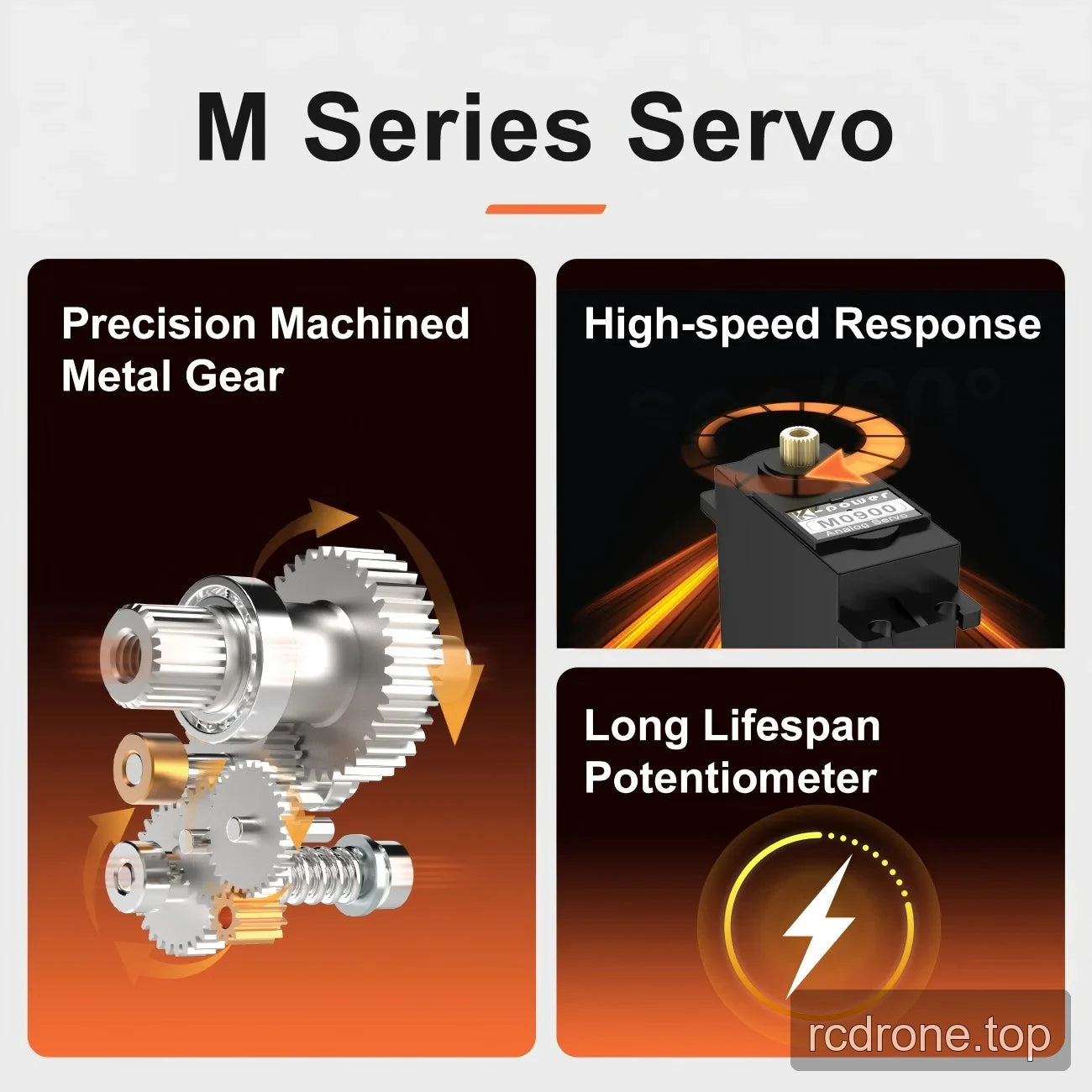

Precision-machined metal gears transmit motion from the DC brushed motor.
High-speed response, with a specified speed of 0.12 s/60° at 6.0 V.
Potentiometer position sensing with a long-life potentiometer design.

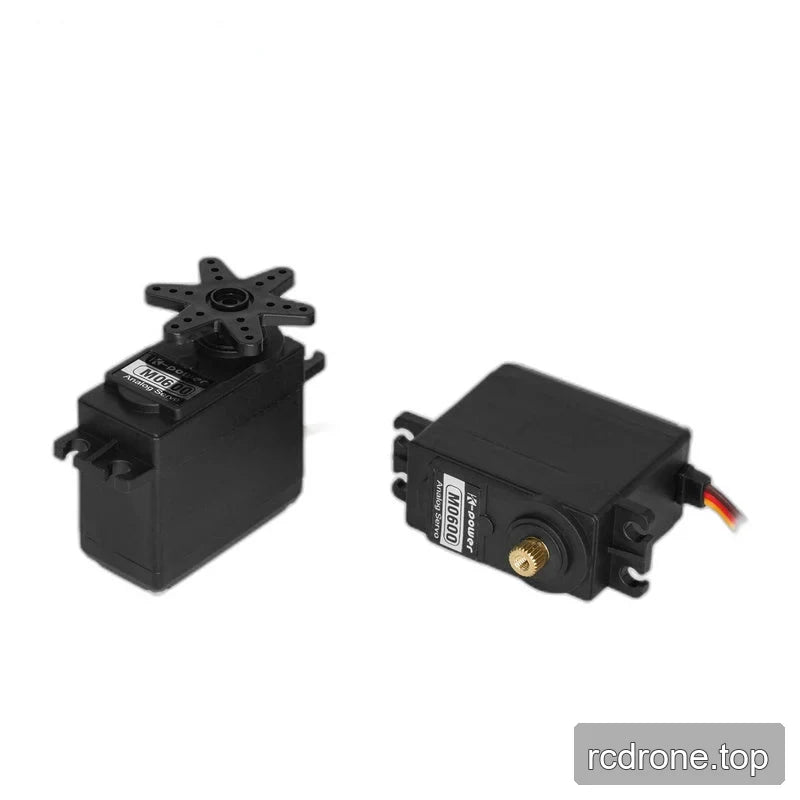

Splined output shaft with a central threaded opening and a 25T, Ø5.7 mm horn spline.
Mounting flanges with four mounting openings for securing the servo to a mechanism.
Three-wire lead, plastic case and two ball bearings.
120° travel angle, with customization stated for the travel range.

Specifications

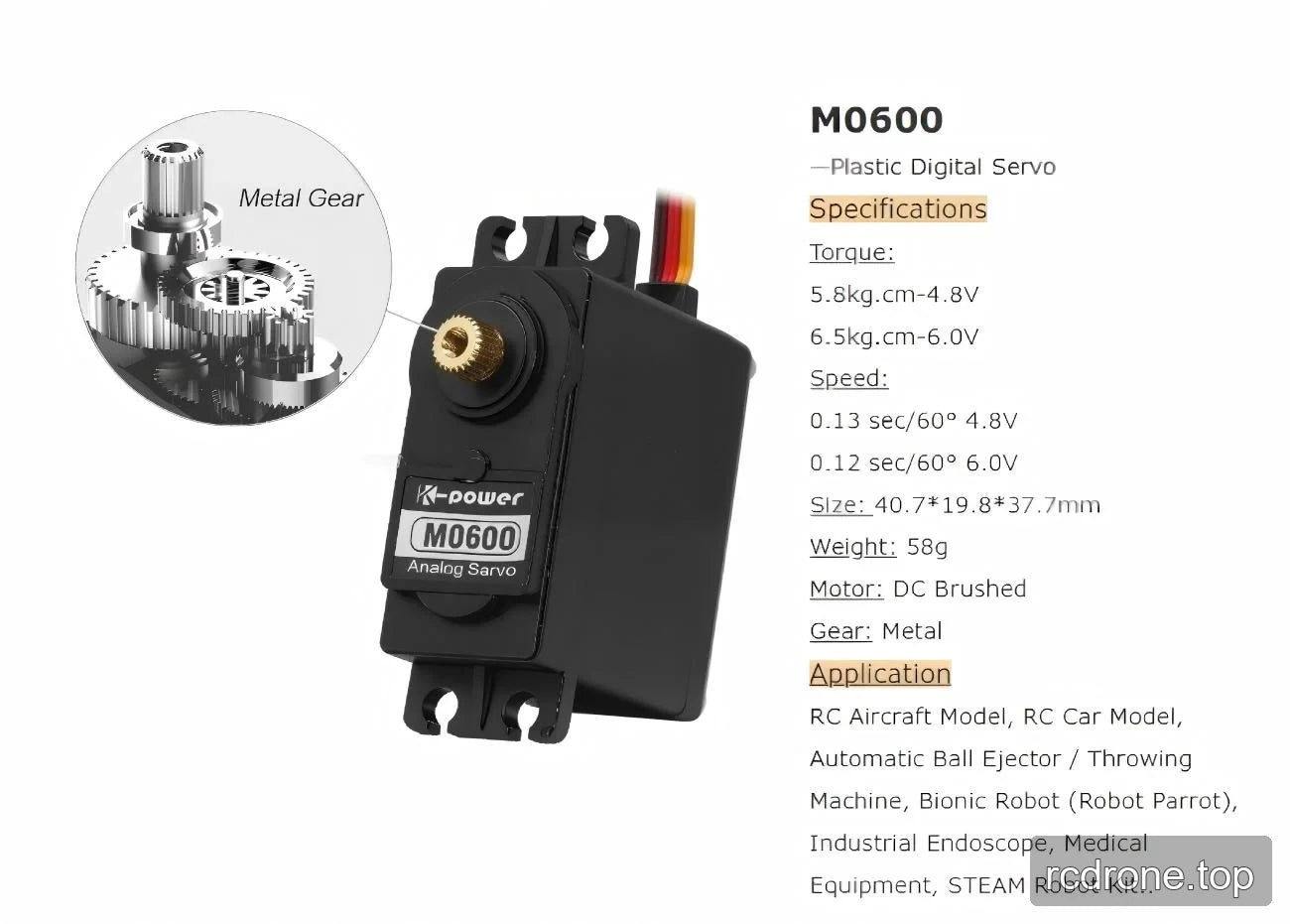

Torque and Speed by Supply Voltage

Parameter	At 4.8 V	At 6.0 V
Torque	5.8 kg·cm	6.5 kg·cm
No-load speed	0.13 s/60°	0.12 s/60°

Mechanical and Electrical Specifications

Parameter	Value
Brand / model	Kpower M0600
Stall torque	6.5 kg·cm at 6.0 V
Rated torque, as supplied	1.5 kg; torque arm unit and test conditions unspecified
Weight	58 g
Dimensions	40.7 × 19.8 × 37.7 mm (1.61 × 0.78 × 1.48 in)
Travel angle range	120°; customizable
Operating voltage	4.8–8.4 V
Horn gear spline	25T, Ø5.7 mm
Output shaft	Splined, with central threaded opening
Mounting	Flanges with four mounting openings
Gear material	Metal
Motor	DC brushed
Lead	Three-wire
No-load current	3000 mA
Position sensor	Potentiometer
Case material	Plastic
Ball bearings	2BB
Working frequency	50–333 Hz
Operating temperature	−10 to 50 °C
IP rating	IP42

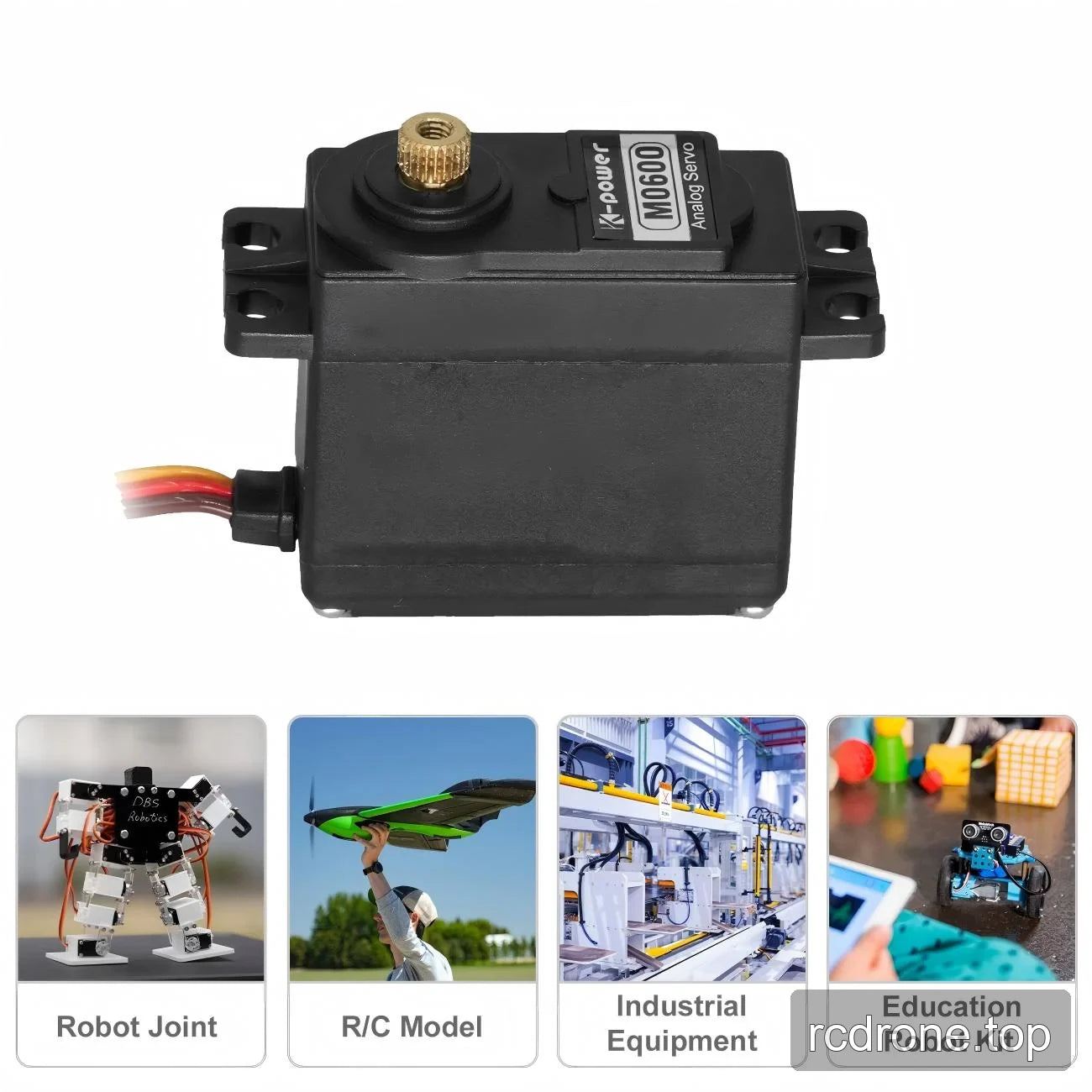

Applications

RC aircraft and car models: actuate model linkages using the splined output and metal gearing, with a specified speed of 0.12 s/60° at 6.0 V.
Robot joints and educational builds: move joints in educational and STEAM robot kits, or animate bionic robots such as robot parrots, using potentiometer position sensing and the 120° travel range.
Automatic ball ejectors and throwing machines: actuate a machine linkage with the DC brushed motor and metal gear train.
Equipment mechanisms: provide servo actuation in industrial equipment, industrial endoscopes and medical equipment, using the compact housing and flange mounting for mechanical integration.
