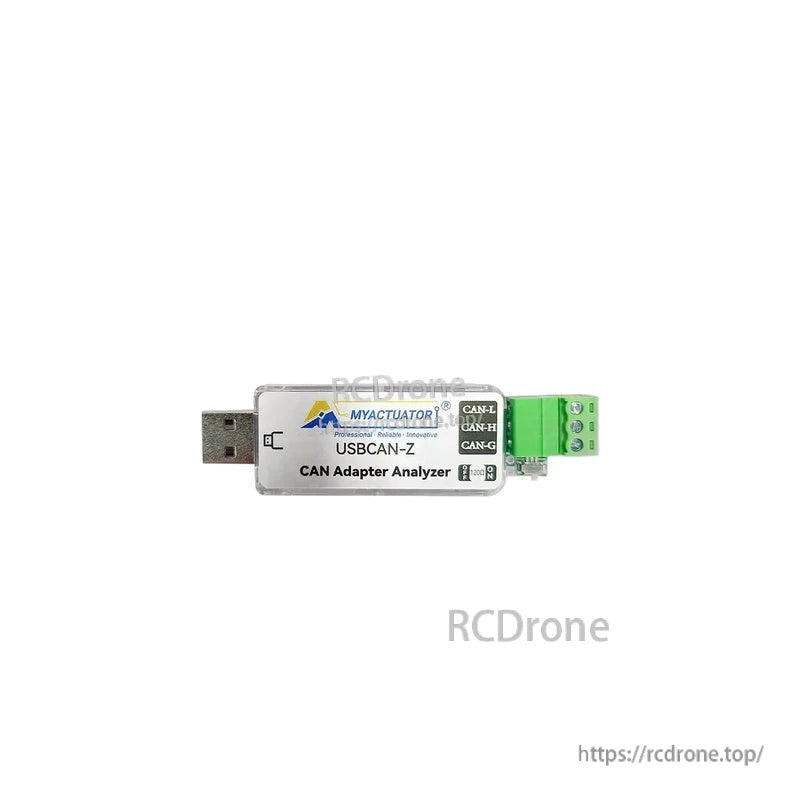

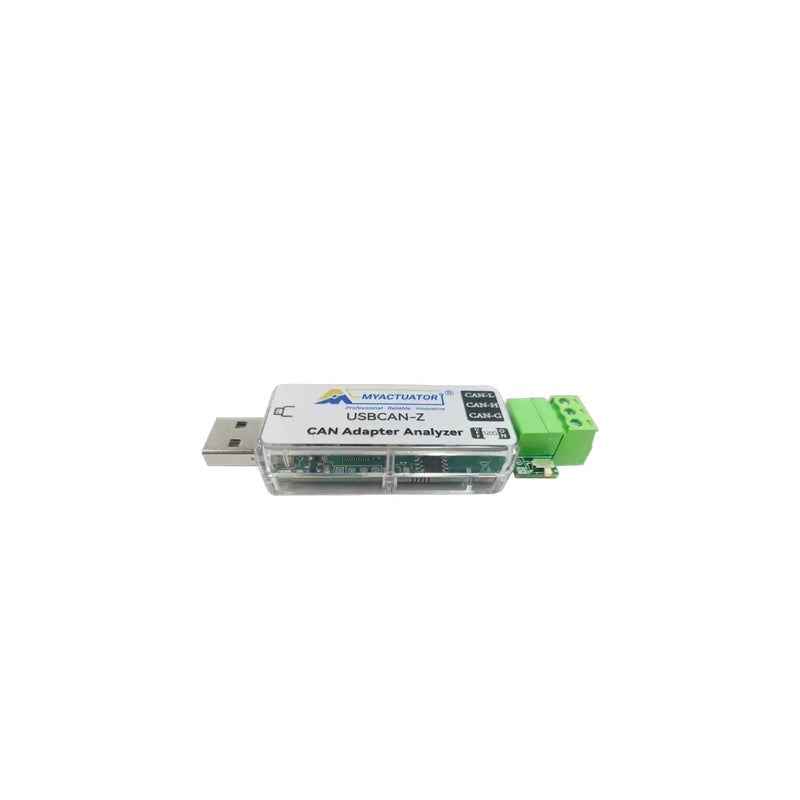

MyActuator USBCAN-Z USB to CAN Module CAN Adapter Analyzer with 120Ω Terminator Switch (15.7g)

Overview

The MyActuator USBCAN-Z is a USB to CAN module designed as a CAN adapter/analyzer for connecting a computer USB port to a CAN bus. It provides CAN-L, CAN-H, and CAN-G terminals and includes an onboard 120Ω termination resistor that can be switched ON/OFF.

Key Features

• Model/series marking: USBCAN-Z
• Product marking: CAN Adapter Analyzer
• Terminal connections: CAN-L, CAN-H, CAN-G
• Selectable bus termination: 120Ω terminal resistor ON/OFF

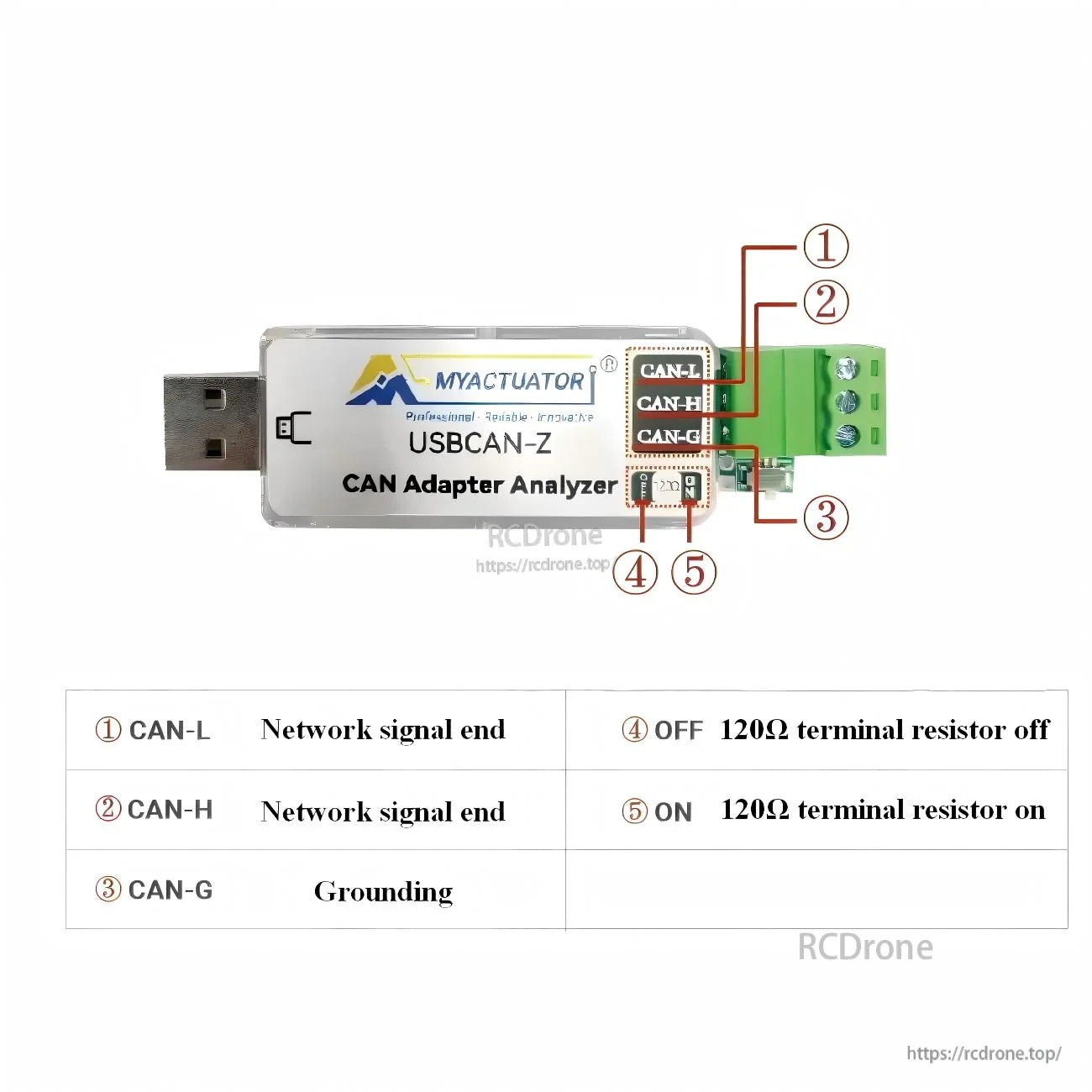

• Terminal definitions:
  • CAN-L: Network signal end
  • CAN-H: Network signal end
  • CAN-G: Grounding

Specifications

For product selection help and after-sales support, contact https://rcdrone.top/ or email support@rcdrone.top.

Details

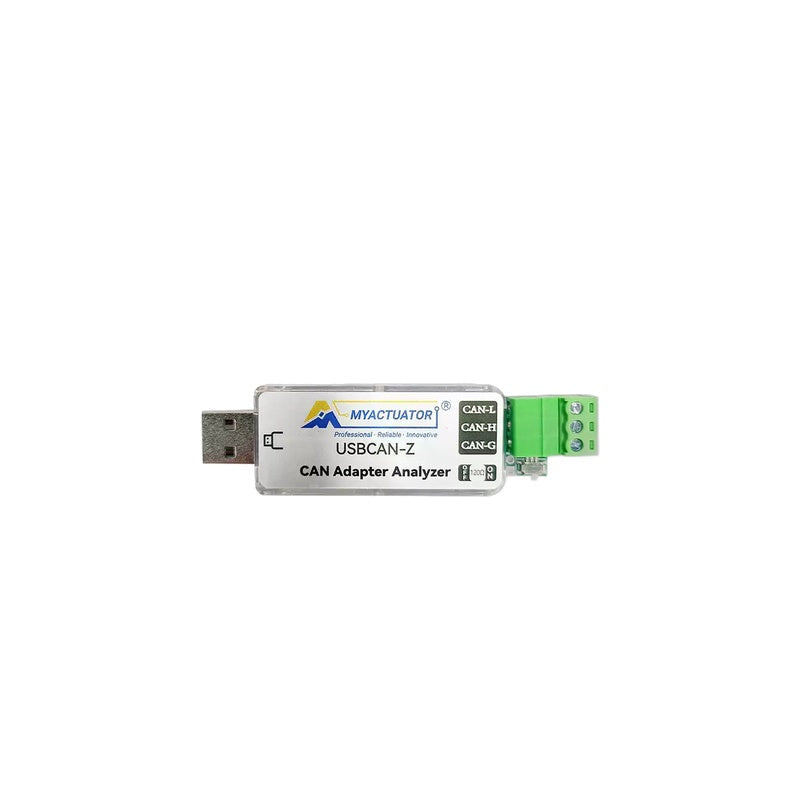

Connect a PC USB port to a CAN bus using the CAN-L, CAN-H, and CAN-G screw terminals, with selectable 120Ω termination.
