Overview

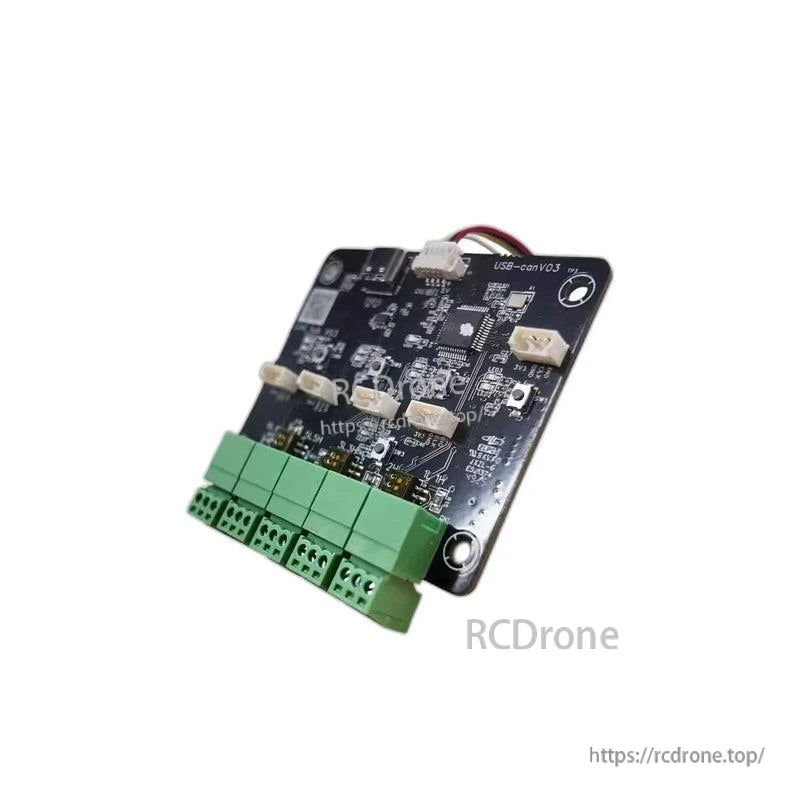

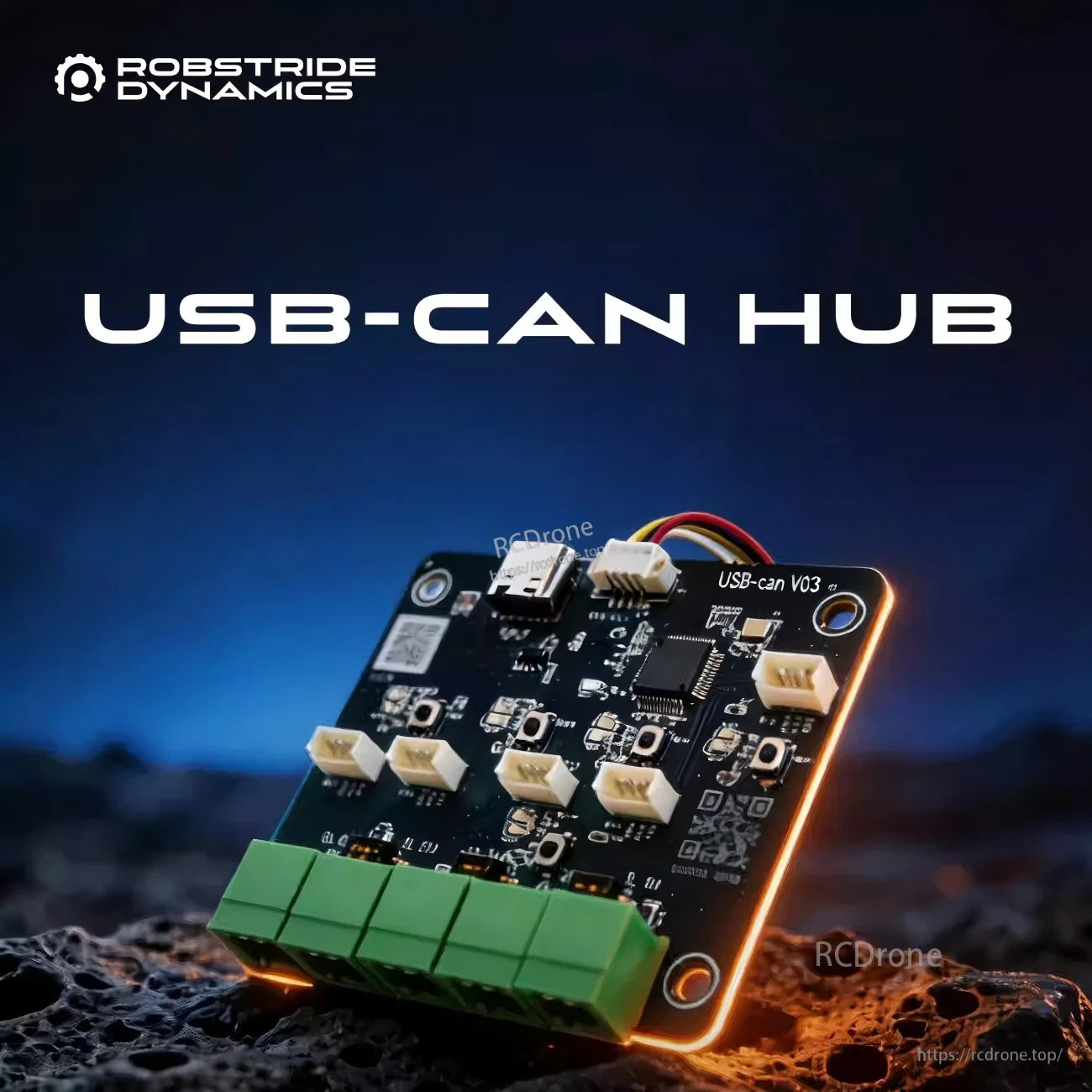

The ROBSTRIDE USB-CAN-HUB is a USB-CAN HUB module designed to connect a host computer via USB Type-C (USB 2.0) to multiple CAN channels. It provides a Type-C host interface, five CAN channels via 2.54-3P mating terminals, onboard status/data indicators, and a DIP-switch controlled 120Ω termination resistor.

Key Features

Product identification: USB-CAN-HUB
USB Type-C host interface (USB 2.0 + 5V power)
CAN interface: 2.54-3P mating terminal, total 5 channels
Termination resistor: DIP switch controlled, 120Ω when ON
Configurable CAN baud rate (1Mbps shown as an example)
Indicators: Green LED (CAN Rx) / Red LED (CAN Tx); LED1 for USB chip status
Reset button: Black button; short BOOT0 for firmware update via USB
Supported OS: Linux / Windows
Supported software: C++ (ROS examples) / Python SDK link
Board marking: USB-can V03

For pre-sales and integration support, contact https://rcdrone.top/ or email support@rcdrone.top.

Specifications

Parameter	Value
Product Name	USB-CAN-HUB
Standard Operating Temperature	25±5°C
Operating Temperature Range	-20~50°C
Operating Humidity Range	5~85% (non-condensing)
Power Supply	USB Type-C / USB 2.0 (5V)
CAN Interface	2.54-3P mating terminal, total 5 channels
Host Interface	Type-C (USB 2.0 and 5V power)
Termination Resistor	DIP switch controlled, 120Ω when ON
CAN Baud Rate	Configurable (1Mbps in example)
Data Indicators	Green LED (CAN Rx) / Red LED (CAN Tx)
Status Indicator	LED1: USB chip status
Reset Button	Black button, short BOOT0 for firmware update via USB
Supported OS	Linux / Windows
Supported Software	C++ (ROS examples) / Python SDK link

Applications

Multi-node CAN bus connection and testing via a USB Type-C host
Robot and automation development workflows using Linux/Windows with C++ (ROS examples) or Python
