Overview

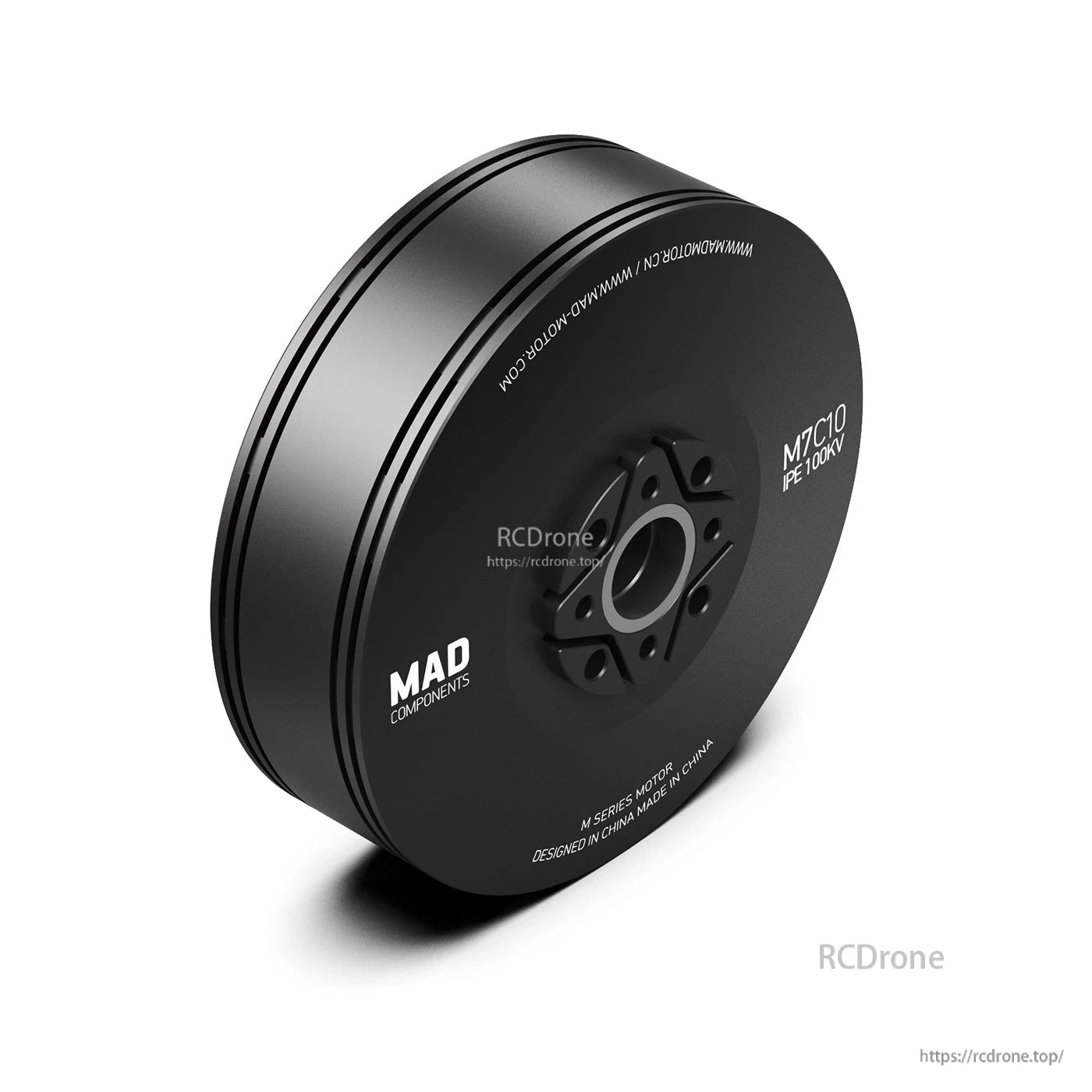

The MAD M7C10 IPE V2.0 drone motor is designed for multirotor UAV platforms (including hexacopters and octocopters), supporting 12S (100KV/120KV) and 6S (190KV) setups for medium-lift applications.
| Sustained thrust | 2~4 kg |
| Max thrust | 8.7 kgf |
| Supported voltage (by KV) | 100KV/12S, 120KV/12S, 190KV/6S |
| Motor weight (by KV) | 275 g (100KV), 277 g (120KV), 281 g (190KV) |
Key Features
- Recommended hover thrust (by KV): 2.0~3.0 kgf (100KV), 3.0~4.0 kgf (120KV), 2.0~2.5 kgf (190KV)
- Efficiency (by KV): >83% (100KV/120KV), >76% (190KV)
- Centrifugal heat dissipation: YES
- Protection rating: IP35
For build compatibility questions (ESC, propeller, battery), contact support@rcdrone.top or https://rcdrone.top/.
Specifications
Motor Data (common)
| Motor model | MAD M7C10 IPE V2.0 |
| Number of pole pairs | 21 |
| Stator | Anticorrosive |
| Varnished wire degree | 180°C |
| Magnet degree | 150°C |
| Motor size | D:78.3 × 27.8 mm |
| Degree of protection | IP35 |
| Cable length | 150 mm 16# Awg(Black) silicone |
| Rotor balance | ≤5 mg |
| Motor balance | ≤10 mg |
| Shaft diameter | IN: 12 mm |
| Bearing | 6901ZZ*2 |
| Disruptive test | 500 V |
Mounting / Drawing Dimensions
| Motor mounting holes | Ø32-M4*4 |
| Propeller mounting holes | D:20 M3×4, D:23 M3×4 |
| Additional dimensions | 25.8 mm; Ø78.3; Ø28; Ø10; Ø11.6; 14.5; Ø6×4; Ø20-Ø3.2×4; 3 |
Electrical / Performance (by KV option)
| Parameter | 100KV (12S) | 120KV (12S) | 190KV (6S) |
|---|---|---|---|
| RPM/V | 100KV | 120KV | 190KV |
| Nominal voltage | 12S lipo battery | 12S lipo battery | 6S lipo battery |
| No load current | 0.6 A / 20 V | 0.7 A / 20 V | 1.2 A / 20 V |
| Internal resistance | 151mΩ | 106mΩ | 61mΩ |
| Motor weight | 275 g | 277 g | 281 g |
| Maximum current | 25.5 A | 34.8 A | 36 A |
| Maximum power | 1205W | 1639W | 857W |
| Maximum torque | 2.45 Nm | 2.75 Nm | 1.8 Nm |
| Maximum thrust | 7.6 kg | 8.7 kg | 5.8 kg |
| Recommended propellers | 26x7.8, 27x8.1, 28x8.4 | 26x7.8, 27x8.1, 28x8.4 | 27x8.1, 28x8.4 |
| Recommended ESC | MAD AMPX 40A (5-14S) HV | MAD AMPX 40A (5-14S) HV | MAD AMPX PRO 40A (2~6S) |
| Single rotor take-off weight | 2kg ~ 3kg | 3kg ~ 4kg | 2kg ~ 2.5kg |
| Product boxed weight | 538 g (150 x 150 x 69 mm) | 540 g (150 x 150 x 65 mm) | 544 g (150 x 150 x 65 mm) |
What’s Included
- Motor x1
- Propeller Plate x1
- Locating Pin x1
- 3.5mm Bullet Connector x3
- Heat Shrinkable Tube x3
- M4*8 Motor Screws x4
- M3*14 Propeller screws x4
- Sticker x2
Applications
- UAV multirotor builds (hexacopter / octocopter)
- Mid-to-heavy lift setups using 26–28 inch carbon fiber propellers
Details

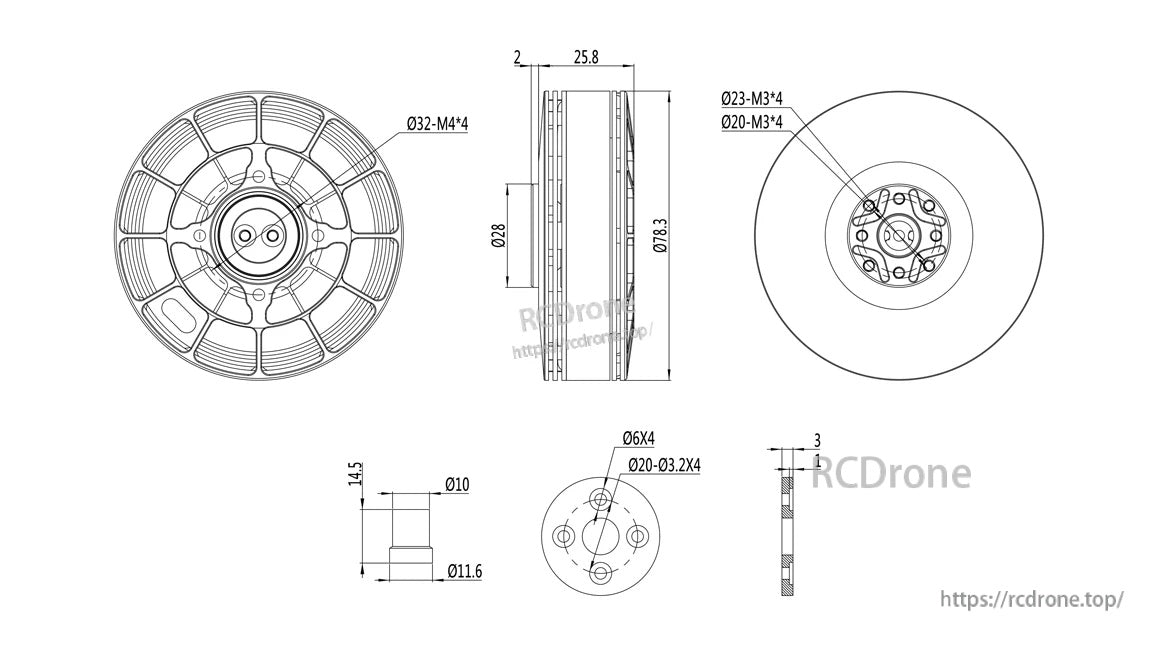

The MAD M7C10 IPE V2.0 motor drawing details key dimensions and mounting patterns, including Ø23 M3×4 and Ø32 M4×4 hole spacing.

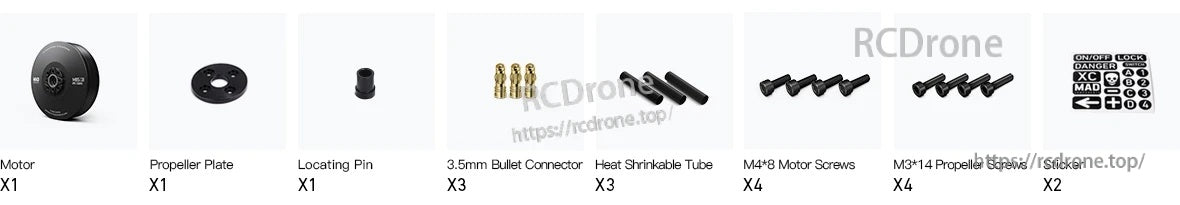

MAD M7C10 IPE V2.0 drone motor includes a propeller plate, locating pin, screws, 3.5mm bullet connectors, and heat shrink for installation.

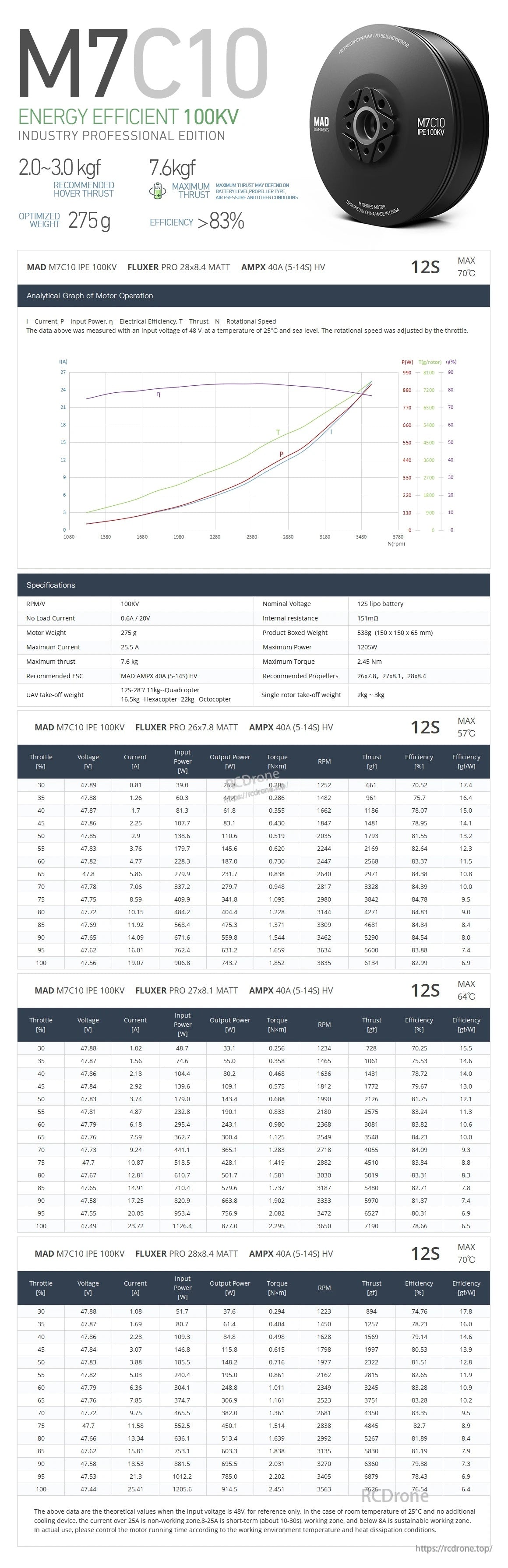

The MAD M7C10 IPE V2.0 motor is rated at 100KV for 6–8S setups, with a listed weight of 275g and a 20–30kg thrust range.

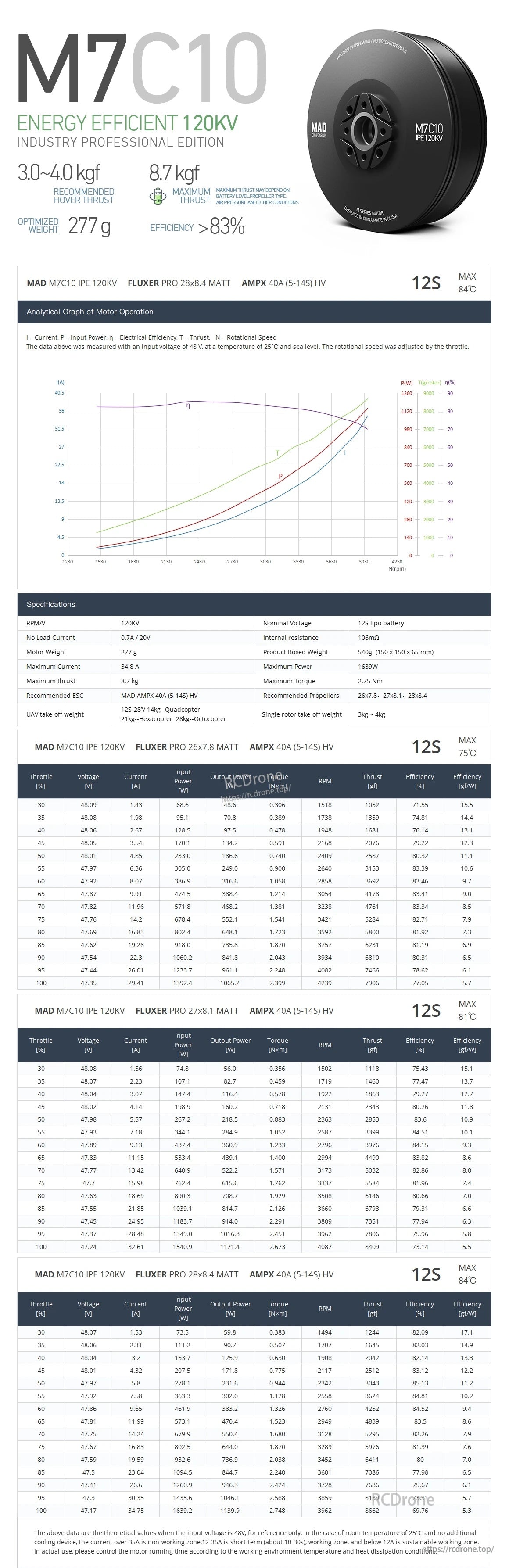

The MAD M7C10 IPE V2.0 motor is listed at 120KV and 277g, with performance curves and test data to help with setup and tuning.

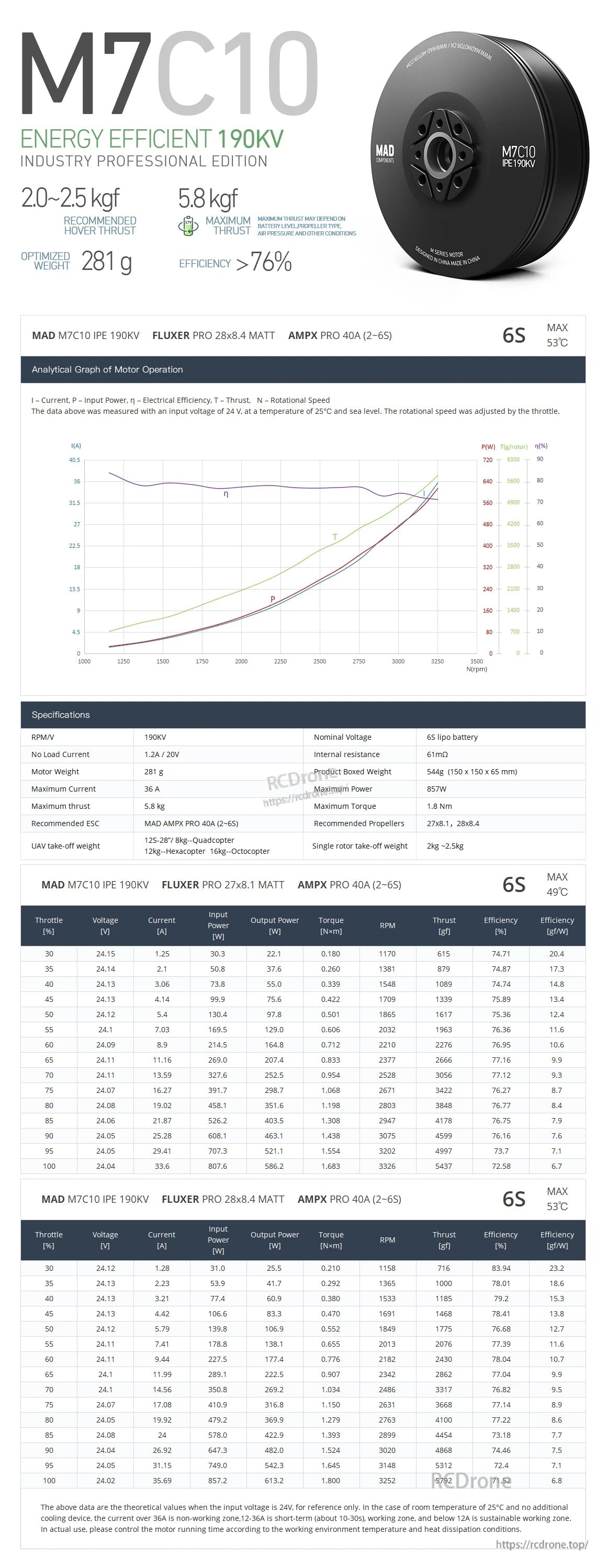

MAD M7C10 IPE V2.0 motor specs list a 190KV rating, 20–25V operating range, 291g weight, and efficiency over 76% with thrust and current data tables.
