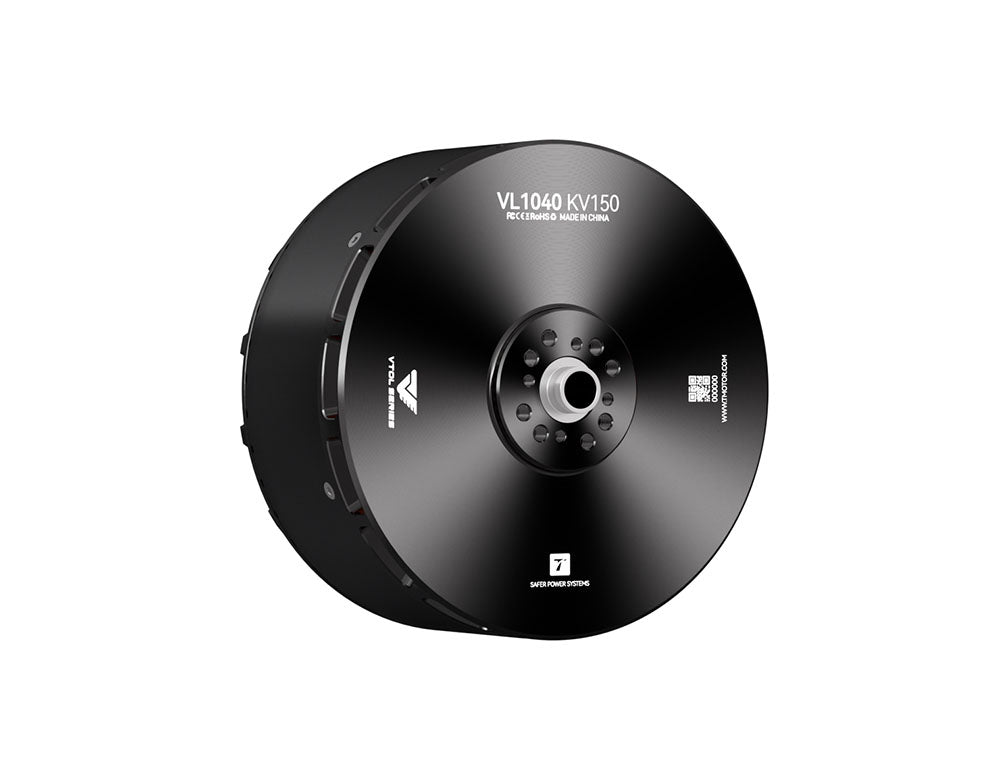

• T-Motor VL1040 KV150 brushless motor, black top view with central shaft opening and mounting hole pattern

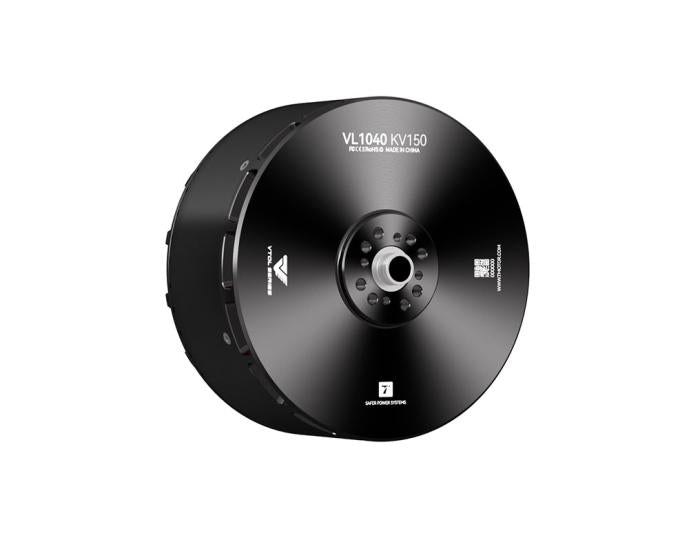

  • T-Motor VL1040 KV150 brushless motor with black housing and central mounting hub

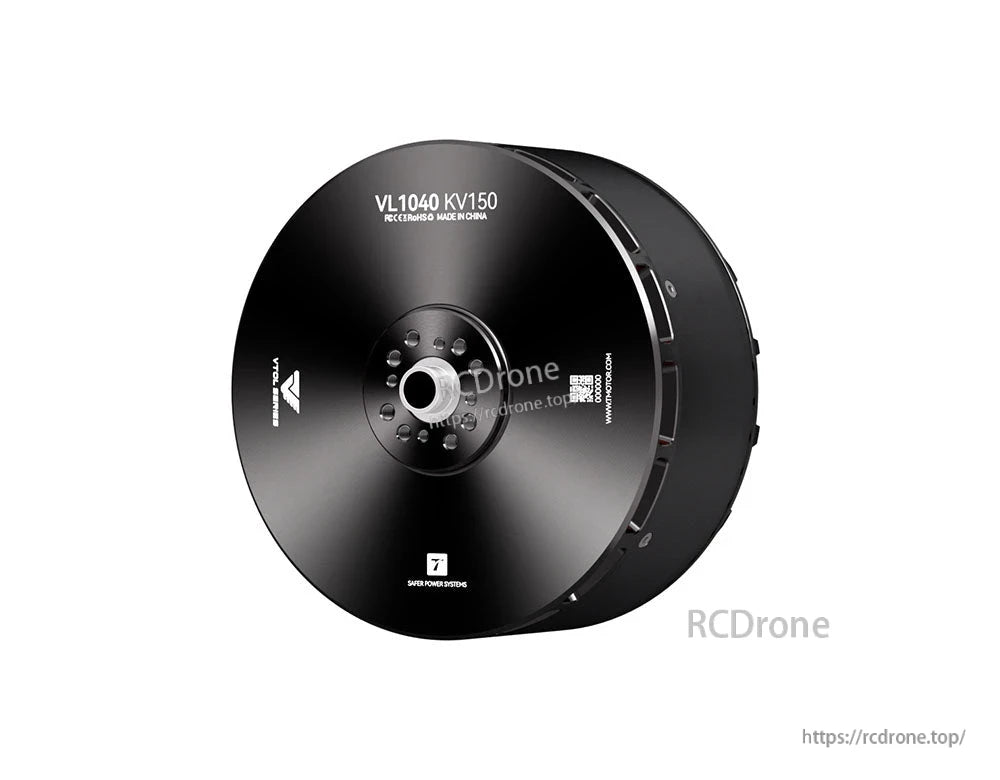

  • T-Motor VL1040 KV150 brushless drone motor, black housing with front mounting plate and central shaft opening

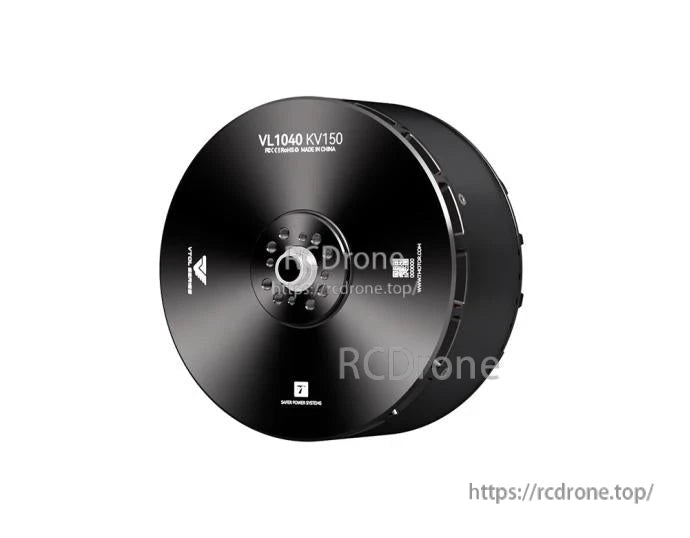

  • T-Motor VL1040 KV150 black brushless drone motor with central mounting hub and ventilation slots

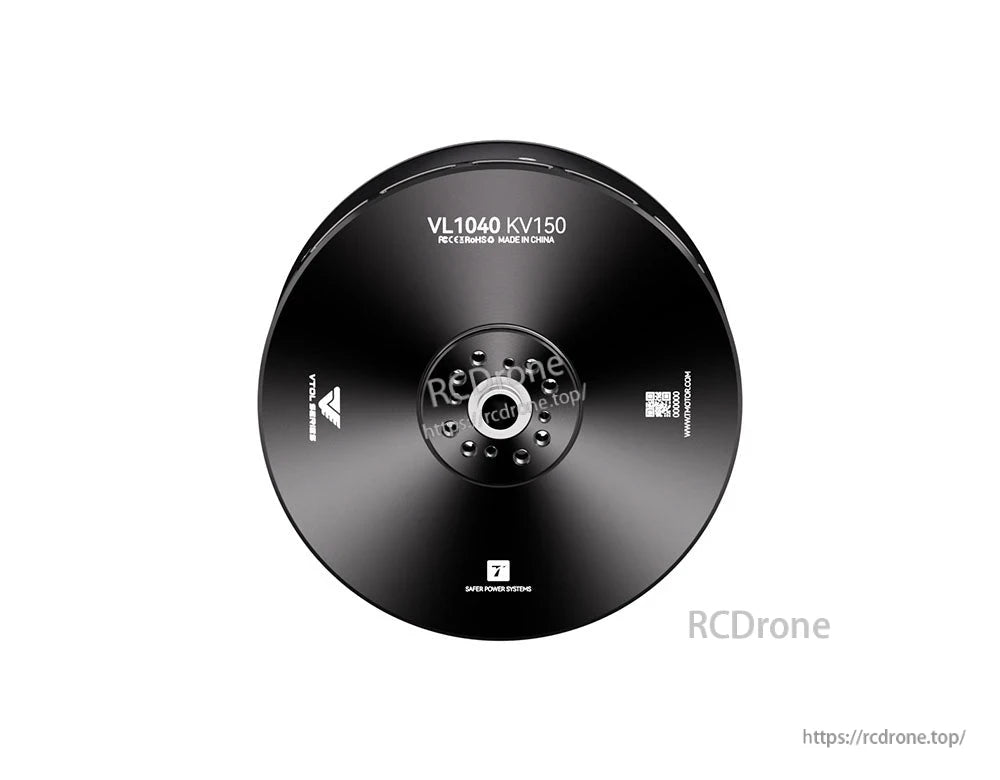

  • Top view of T-Motor VL1040 KV150 brushless motor with centered shaft opening and circular mounting holes

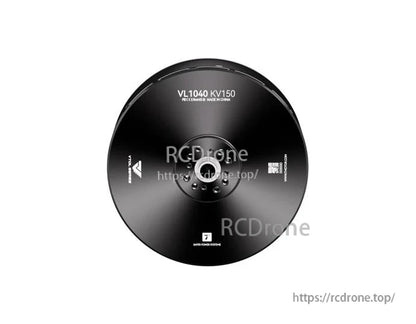

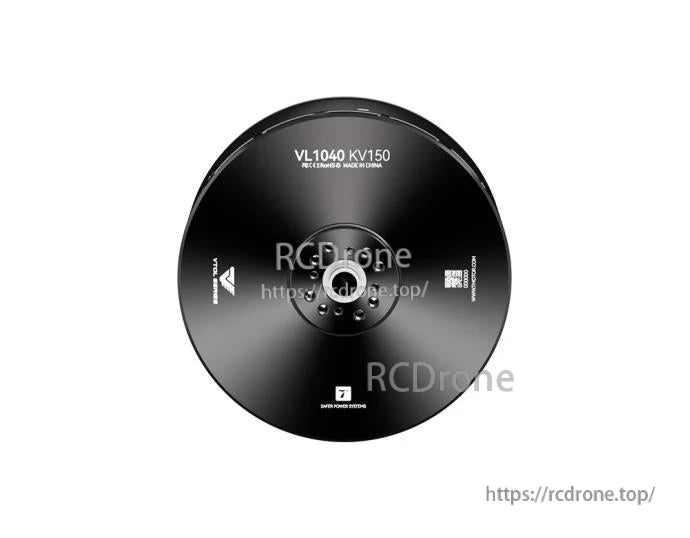

  • Top view of T-Motor VL1040 KV150 brushless motor with black circular housing and central mounting holes

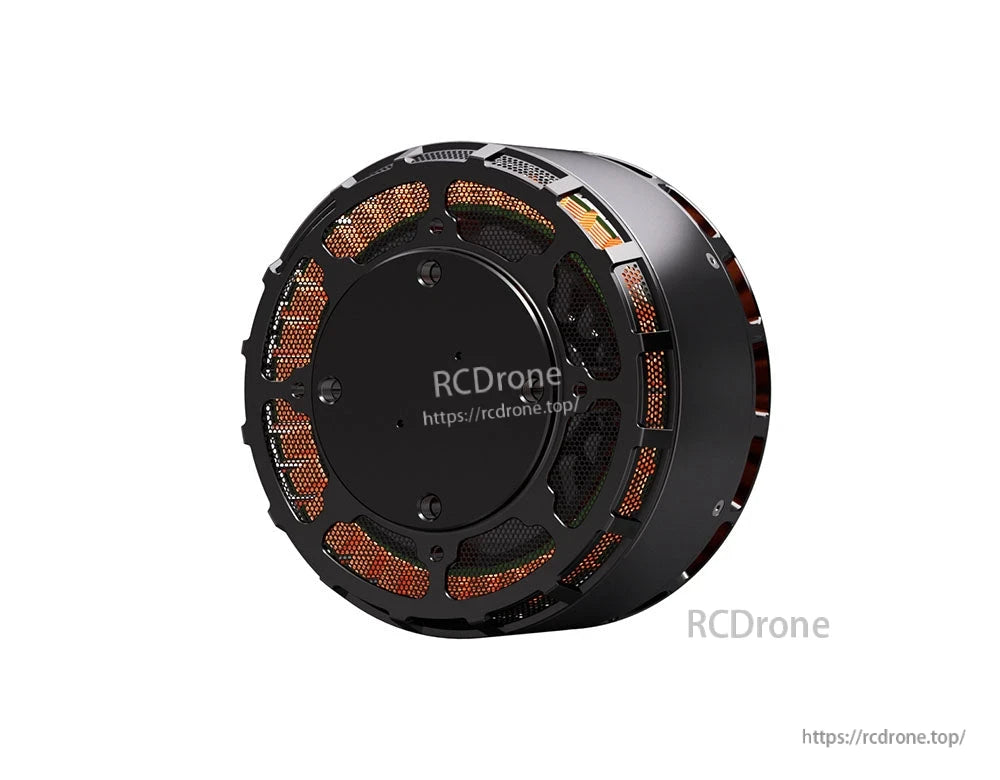

  • T-Motor large brushless outrunner motor with vented black housing and visible copper windings

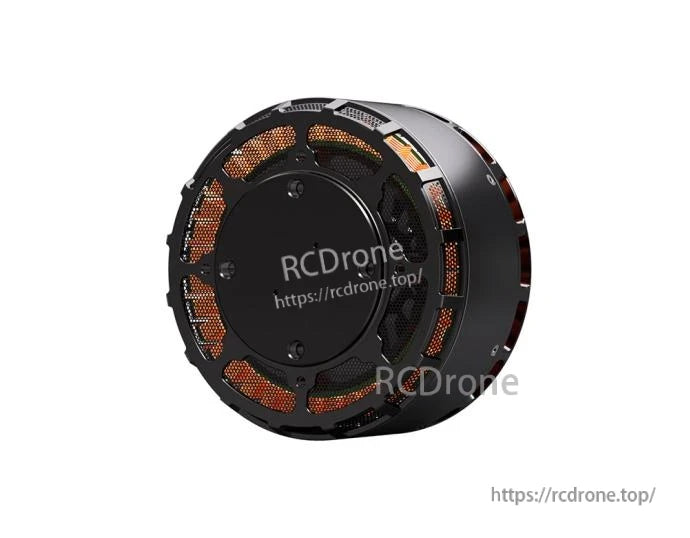

  • T-Motor brushless outrunner motor with black housing and visible copper windings, side profile view

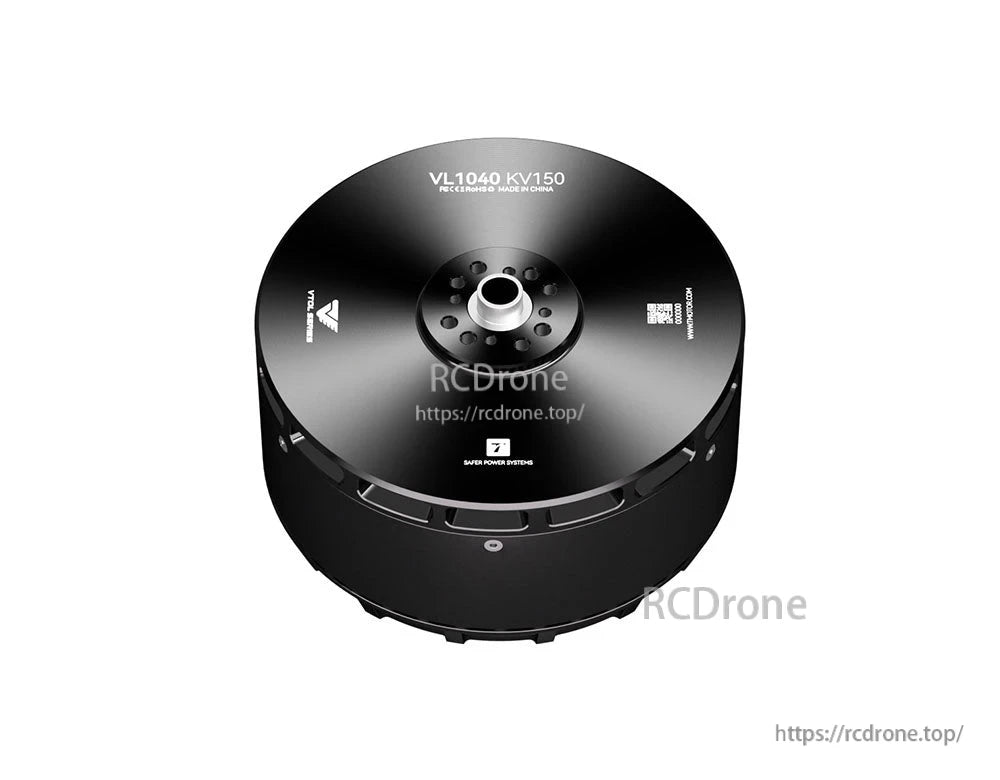

  • T-Motor VL1040 KV150 brushless drone motor, black housing with top-mounted hub and ventilation slots

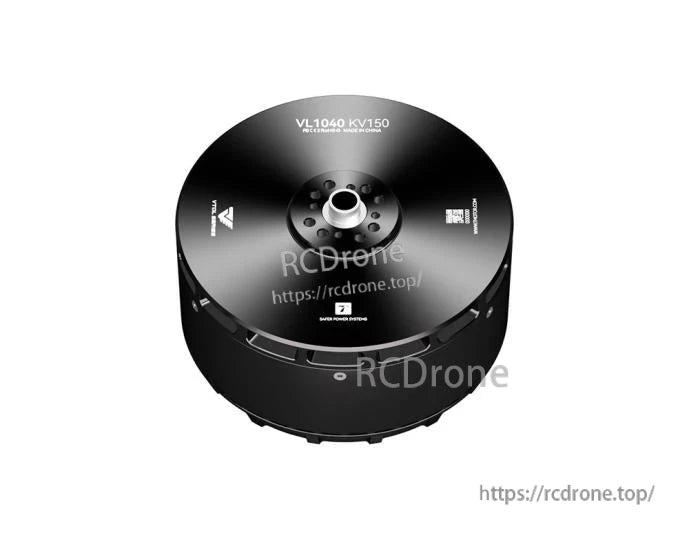

  • T-Motor VL1040 KV150 brushless motor, top view with central shaft mount and black housing
  • Black circular mounting plate with multiple bolt holes and four hex screws for a T-Motor setup
  • T-Motor black circular mounting plate with multiple bolt holes and four silver screws
1 12

T-Motor VL1040 KV150 UAV Motor for VTOL Drone, 14S, 45kg Max Thrust, IPX5, 65–70kg MTOW

T-Motor VL1040 KV150 UAV Motor for VTOL Drone, 14S, 45kg Max Thrust, IPX5, 65–70kg MTOW

T-MOTOR

$698.60 USD
$698.60 USD
Jualan Habis dijual
Taxes included. Penghantaran dikira semasa pembayaran.
  • PayPal
  • Visa
  • Mastercard
  • American Express
  • JCB
  • Discover
  • Diners Club
  • Google Pay
  • Apple Pay
Lihat butiran penuh

Overview

The T-Motor VL1040 KV150 is a UAV motor for VTOL compound-wing (quad) platforms, designed for a recommended 65~70 kg MTOW setup. It is part of the VL Series propulsion system and is commonly paired with the VL248A 14S ESC and VZ32 propeller.

Key Features

  • Fast propeller locking: 360° custom-angle propeller locking helps reduce turbulence and maintain fixed-wing aerodynamic layout; propeller can be locked in seconds.
  • Economical (adaptive) propeller locking: ESC adjusts current to control torque based on external force changes, helping reduce power consumption and heat.
  • Propeller-locking power consumption: approximately 10 W.
  • Dust-proof mesh + optimized motor structure: designed to reduce dust ingress and support winding insulation performance and service life. (Promotional material references IP45; specification table lists IPX5.)
  • Temperature feedback & real-time monitoring: designed to keep operation stable and controllable under high load.

Specifications

Motor (VL1040 KV150)

Model No. VL1040 KV150 Magnet Level 180°C
Motor Size Dia. 107.2 x 64.8 mm Lead Cable Enameled Wire 150 mm
Stator 150°C high temperature-resisting coatings Copper Wire 200°C
Configuration 36N42P Coil Insulation Test 1000V/5s
Shaft Diameter IN: 12 / OUT: 10 Rotor Dynamic Balance Standard ≤20 mg
Bearing Imported 6001 IP IPX5
Centrifugal Cooling Design YES Package Size 180 x 130 x 70 mm

Motor Electrical / Performance

Model No. VL1040 KV (RPM/V) 150
Rated Voltage (LiPo) 14S Idle Current (15V) 4.1A
Internal Resistance (25°C) 8 mΩ Peak Current 245A
Continuous Power (180s) 2900W Ambient Temperature -30 to 55°C
Max Thrust 45 kg Motor Weight (Incl. Cable) 1100 g

ESC Specs (VL248A 14S)

Model No. VL248A 14S Control PWM/CAN
Max Voltage 63V Protocol CAN
Peak Current (10s) 250A (Open environment and temperature ≤60°C) Propeller-Locking Electronic propeller-locking
Continuous Current 125A (Under certain heat dissipation conditions) Encoder Cables M6-4 aviation connector - 450±10 mm
Standby Consumption ≤15 mA Output Cable Silicone wire, black, 8 AWG - 240±10 mm
Throttle Pos. Range 1100~1940 us (Fixed) Input Cable Silicone wire, red/black, 8 AWG - 1920±15 mm
Throttle Refresh Frequency 50~500 Hz Signal Cable Shielded cables, black, OD4.2, 5C - 1980±15 mm - JP-3P*2
Throttle Response Speed 300 ms Weight (Excl. Cable) 455 g

Prop Specs

Model No. VZ32*12 Inch (812.8 x 304.8 mm) Weight (Single Blade) 133 g

System Recommendations

  • Voltage: 14S
  • Max thrust/arm: 45.7 kg
  • Recommended MTOW (Quad): 65~70 kg (Compound-Wing)

What’s Included

  • Packaging Box x1
  • VL1040 x1
  • Parts Bag x1

For product selection and integration support, contact support@rcdrone.top or visit https://rcdrone.top/.

Applications

  • VTOL compound-wing UAV platforms (quad lift configuration)
  • Multi-rotor propulsion setups requiring 14S-rated components

Manuals

Details

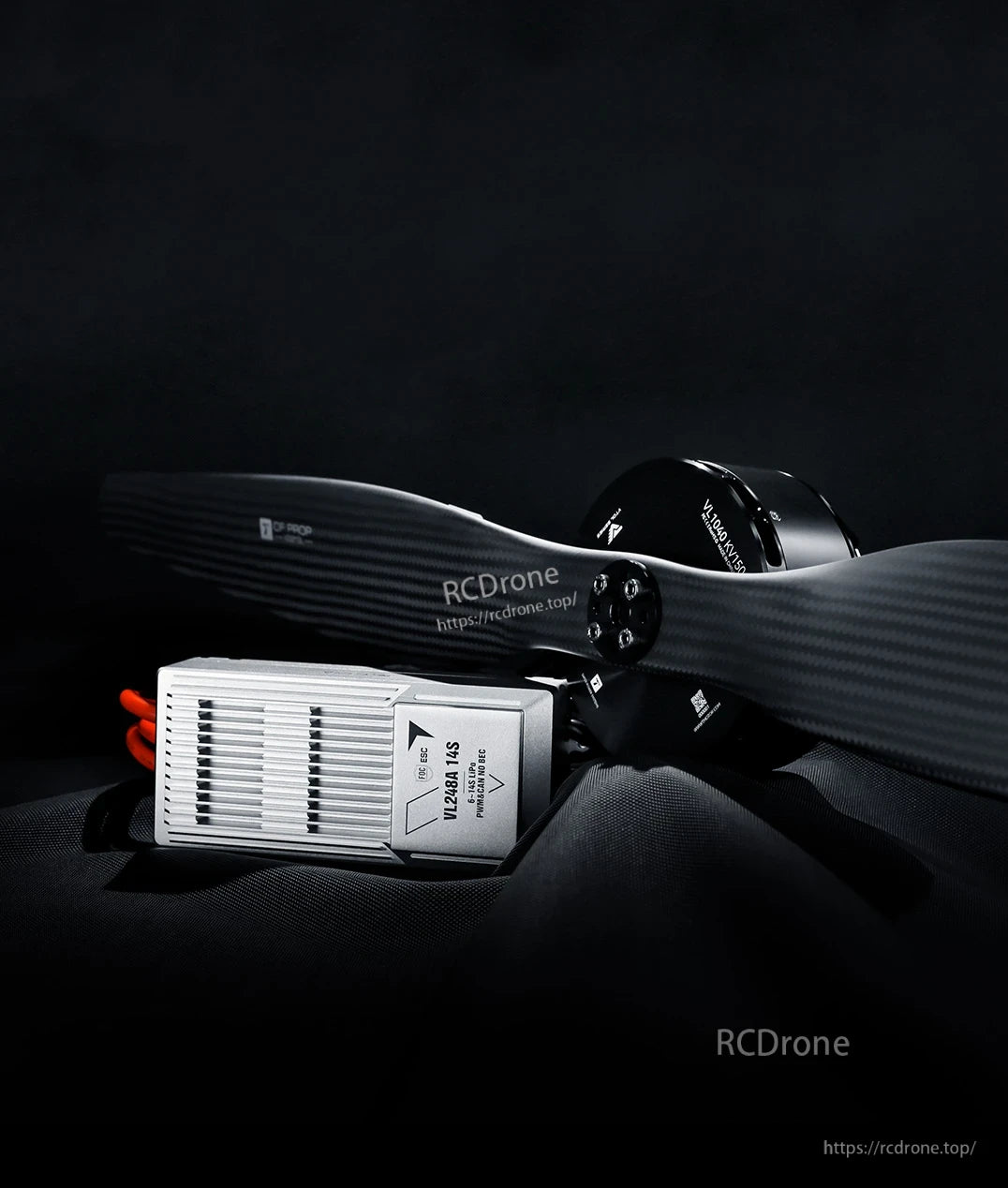

T-Motor VL1040 KV150 motor

The T-Motor setup pairs a carbon-fiber propeller and motor with a finned V12 48A 14S ESC rated up to 1800W for clean, compact power delivery.

VL series propeller locking features

The T-Motor carbon fiber propeller’s lightweight weave finish helps keep your drone build clean and efficient.

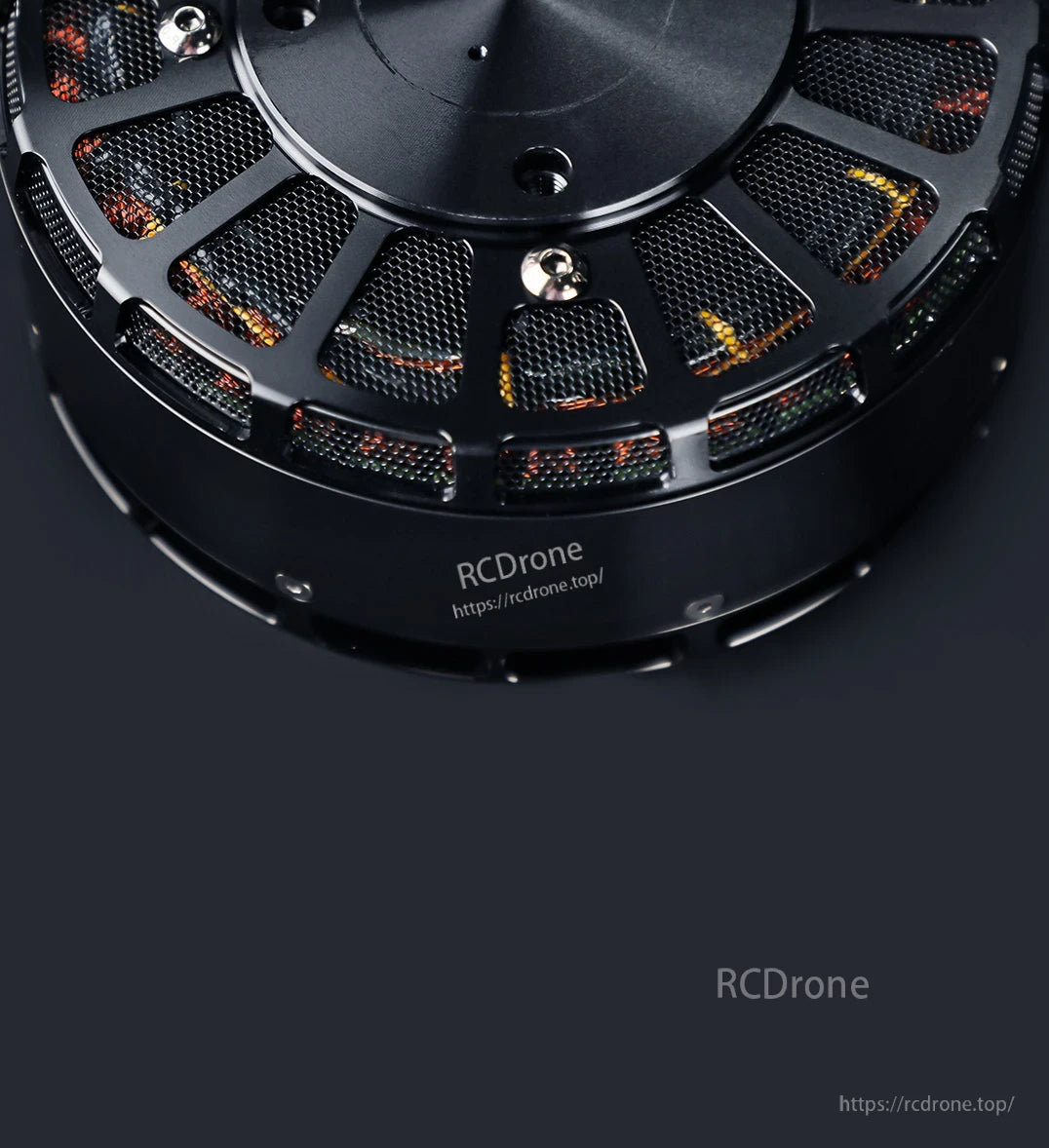

VL series dust-proof mesh

The vented housing with protective mesh helps keep internal windings shielded while allowing airflow around the motor.

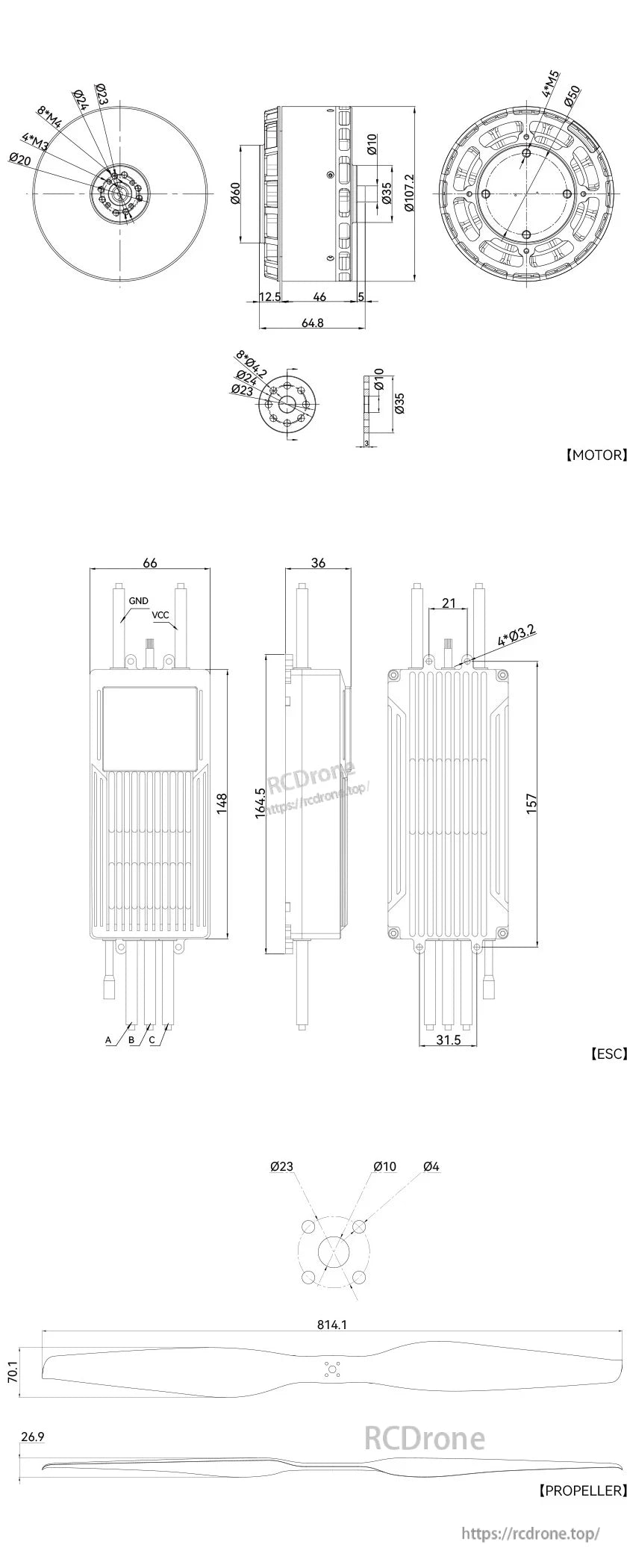

Temperature feedback and real-time monitoringVL1040 technical drawing

Detailed dimension and mounting-hole measurements help plan motor, ESC placement, and propeller fitment during installation.

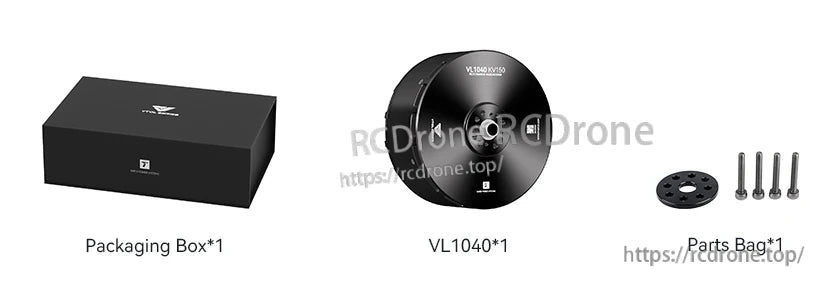

VL1040 packing list

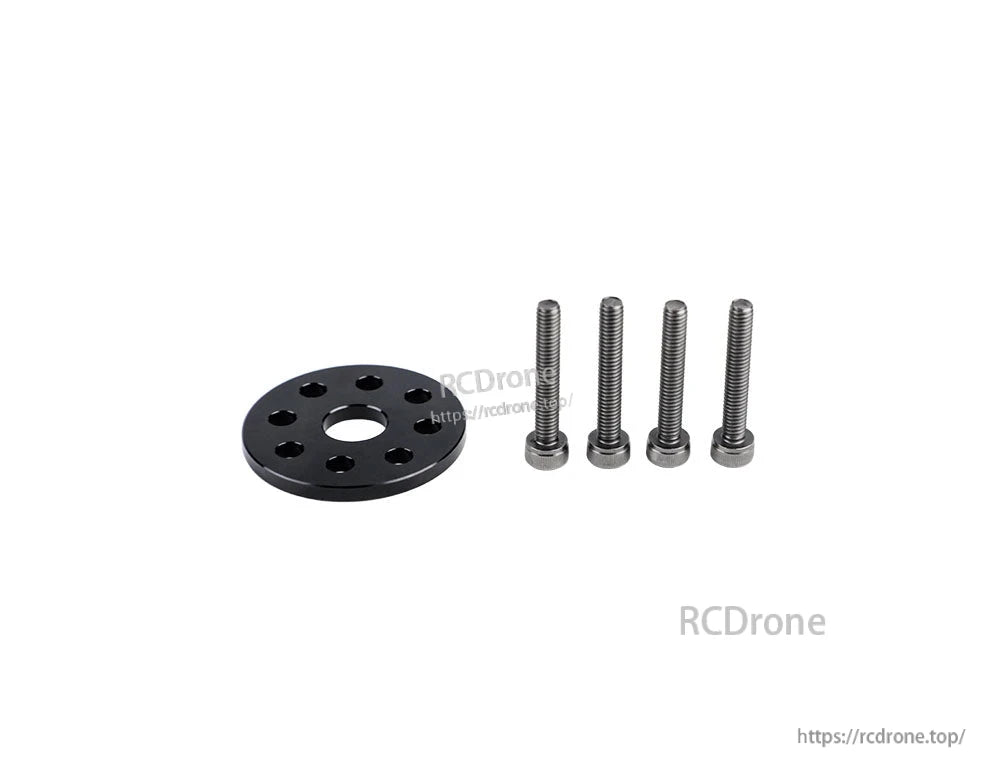

The T-Motor VL1040 KV150 comes with a packaging box and a small parts bag including a mounting plate and screws for installation.
