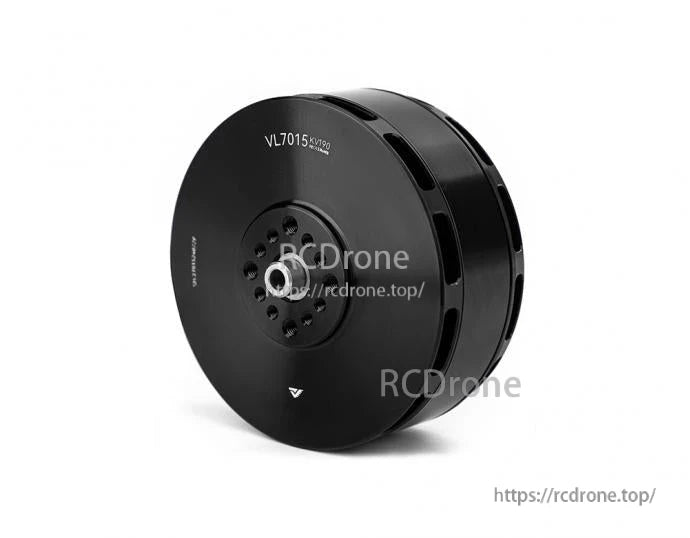

  • T-Motor VL7015 KV190 UAV brushless motor with black vented housing and front mounting hole pattern
  • Front view of T-Motor VL7015 KV190 UAV brushless motor showing central shaft and mounting bolt pattern
  • Front view of T-Motor VL7015 KV190 UAV brushless motor with central shaft and mounting holes

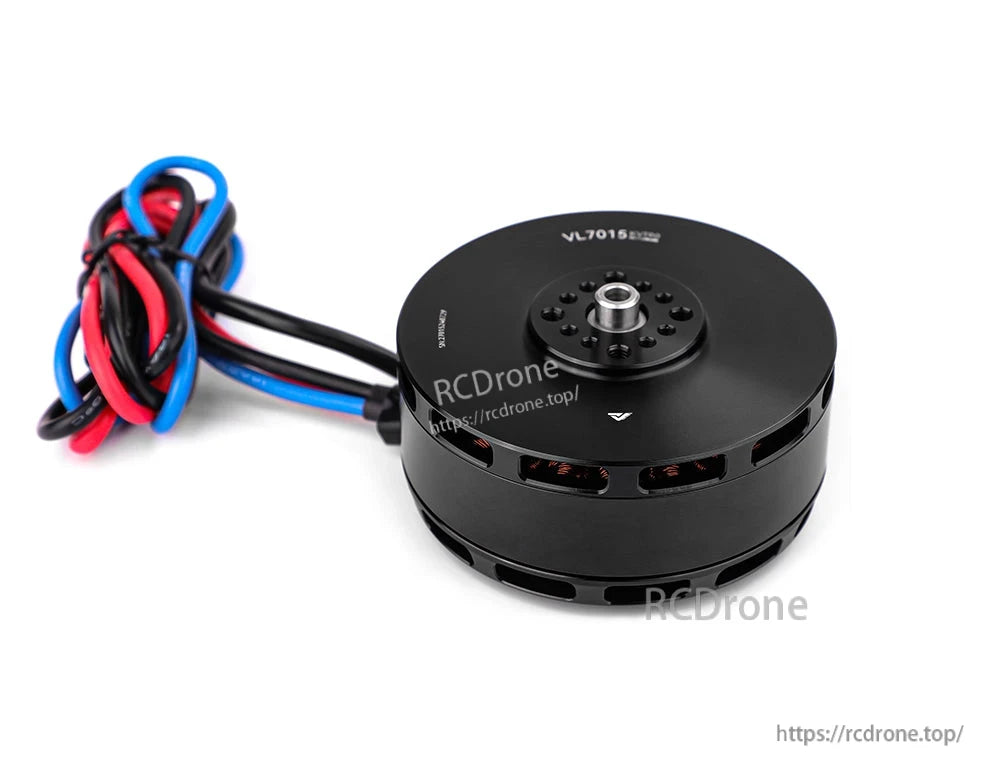

  • T-Motor VL7015 brushless UAV motor with vented black housing, top mounting hub, and red/blue lead wires
  • T-Motor VL7015 UAV brushless motor with top mounting plate, central shaft, and red/blue/black leads

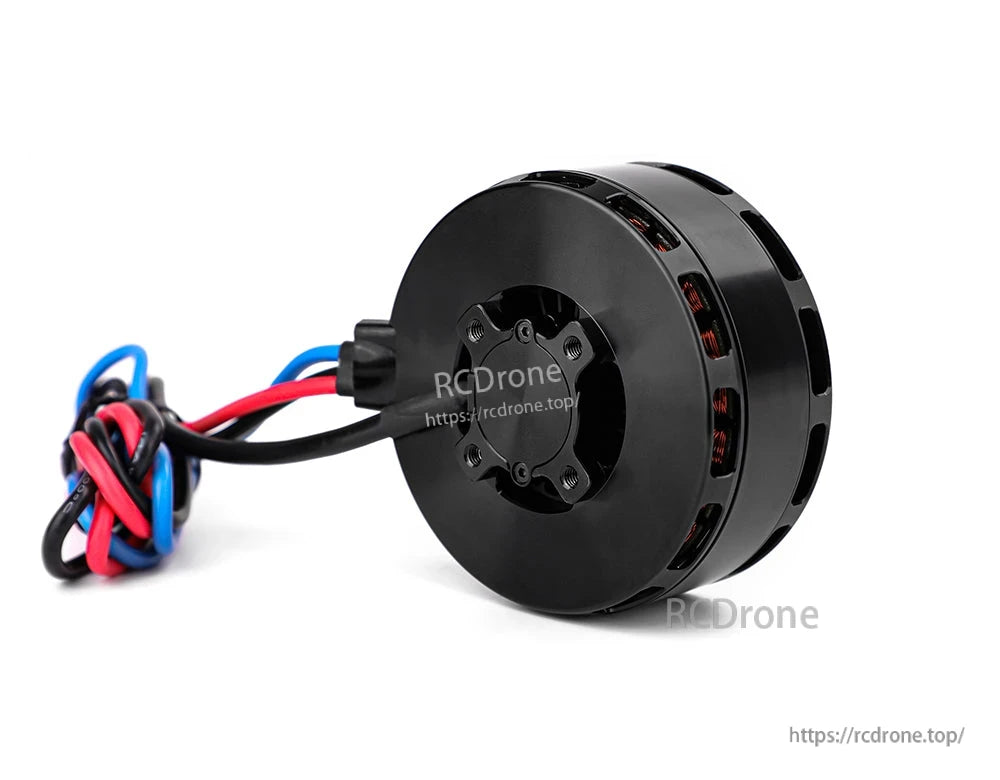

  • T-Motor VL7015 KV190 UAV brushless motor with black round housing and three-phase power wires
  • T-Motor VL7015 KV190 brushless UAV motor with black cylindrical housing and red, black, and blue wires

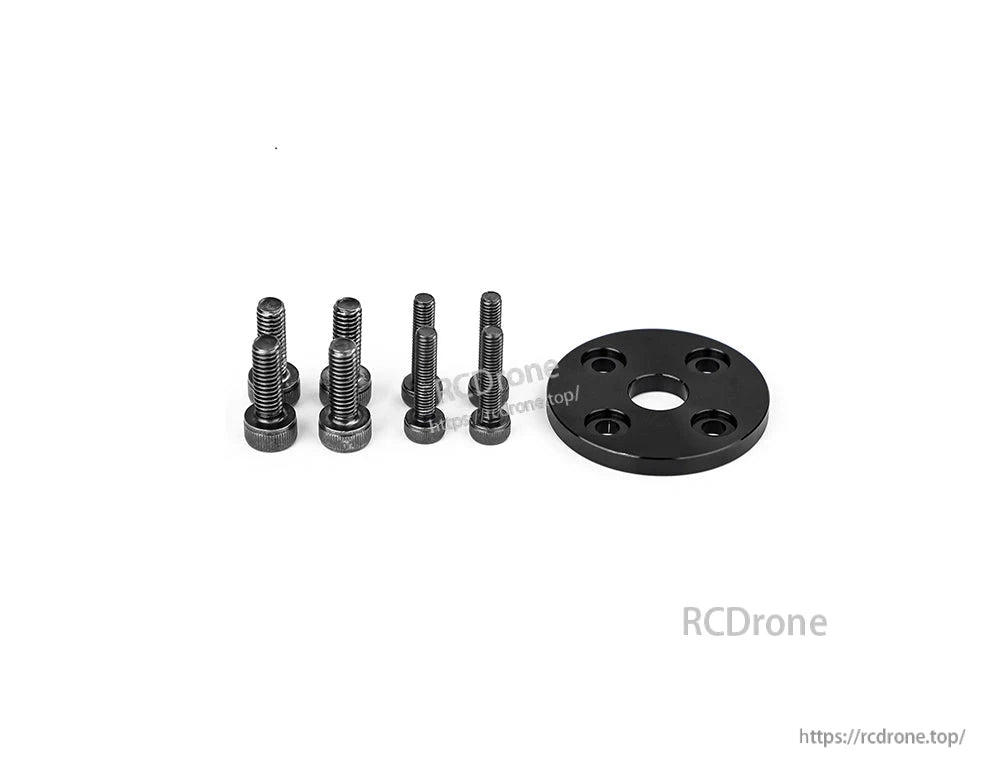

  • T-Motor, Black round motor mounting plate with center opening and bolt holes, plus eight hex screws for UAV motor setup
  • Black round motor mounting plate with four screws, spare hardware for T-Motor VL7015 UAV motor setup
1 12

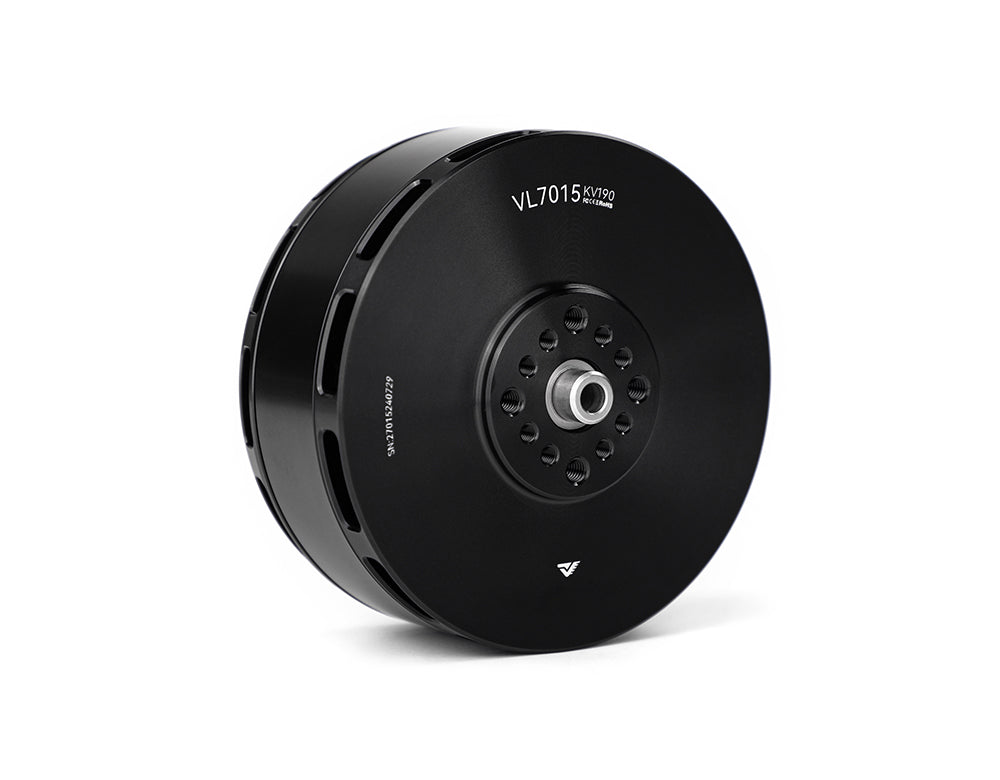

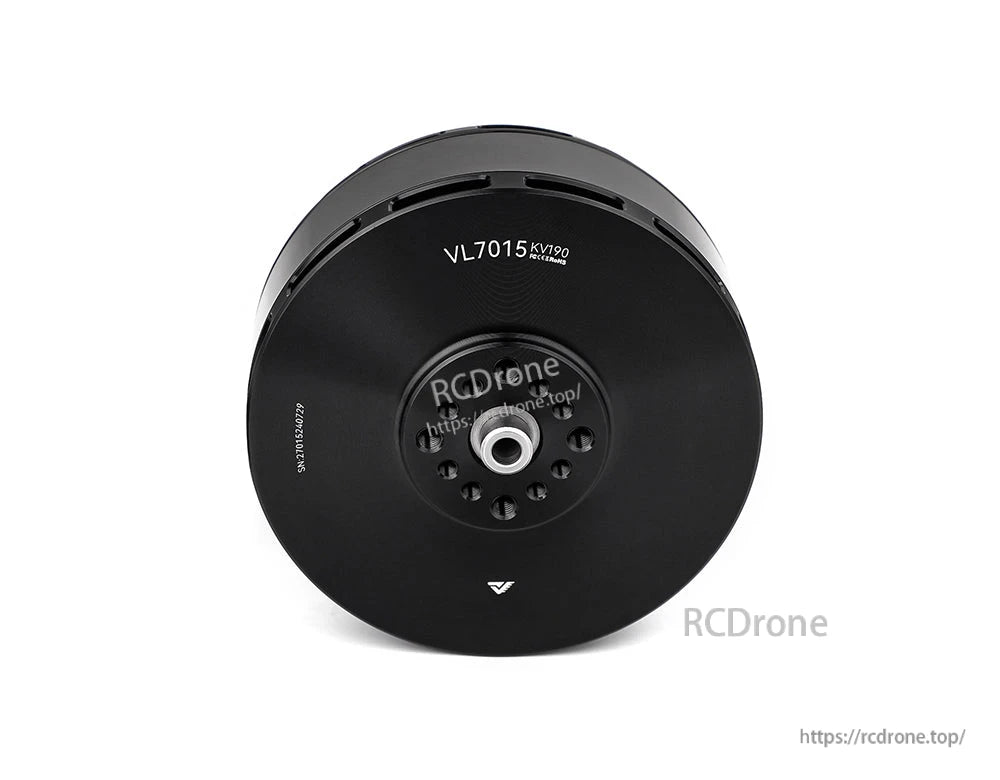

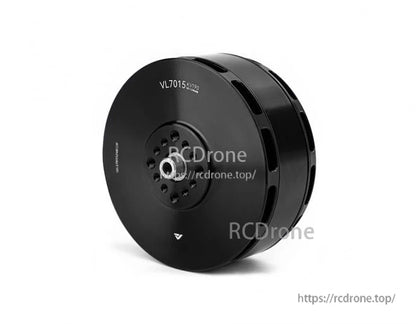

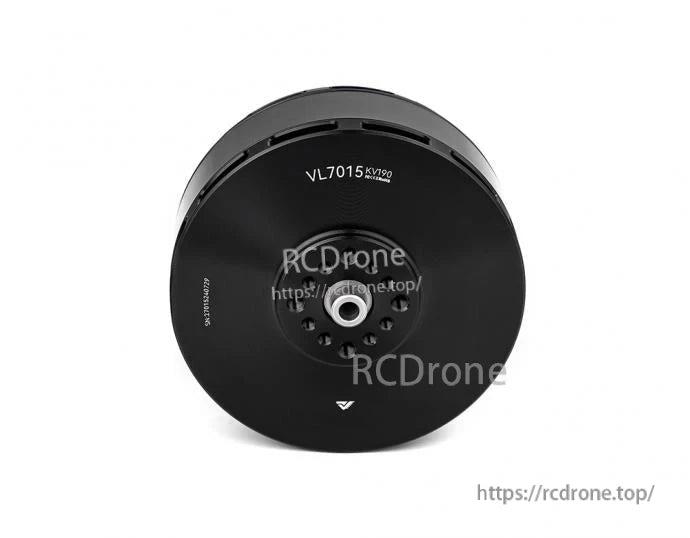

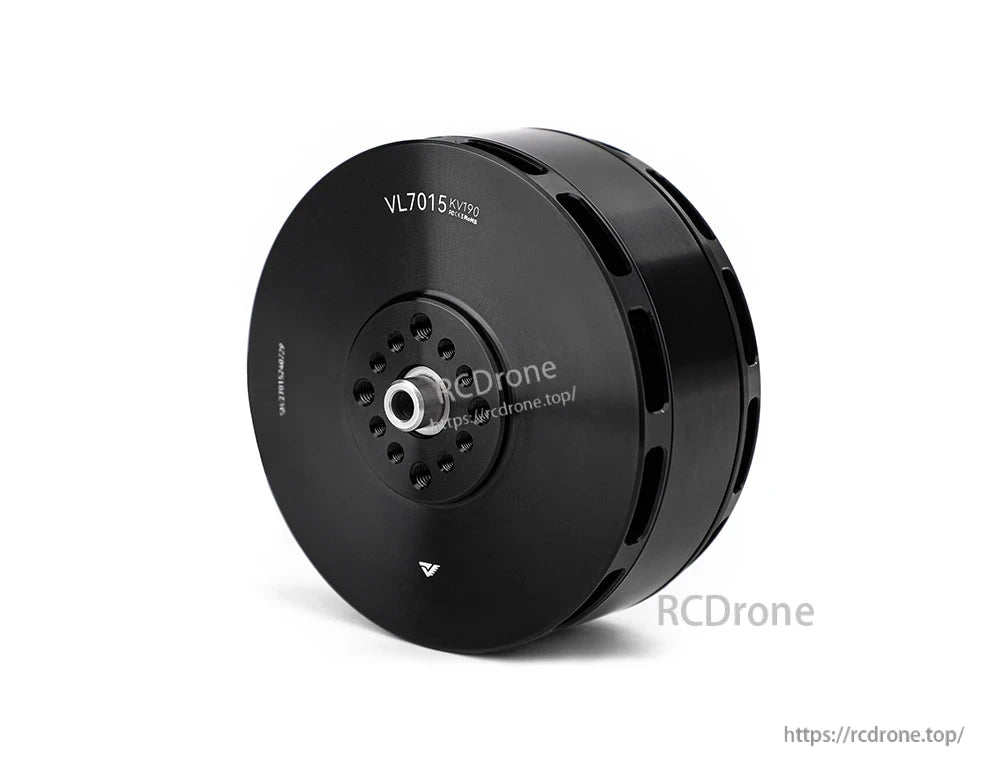

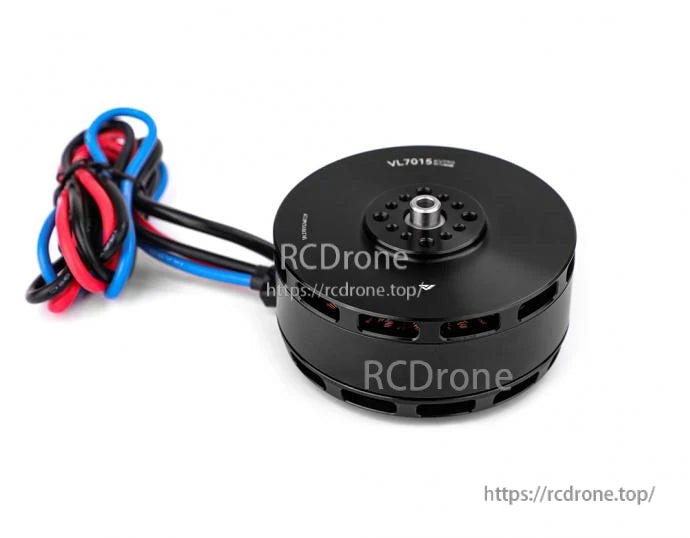

T-Motor VL7015 KV190 UAV Motor (12S) with V80A ESC & P24 Prop, Max Thrust 15.8kg

T-Motor VL7015 KV190 UAV Motor (12S) with V80A ESC & P24 Prop, Max Thrust 15.8kg

T-MOTOR

$320.60 USD
$320.60 USD
Jualan Habis dijual
Taxes included. Penghantaran dikira semasa pembayaran.
  • PayPal
  • Visa
  • Mastercard
  • American Express
  • JCB
  • Discover
  • Diners Club
  • Google Pay
  • Apple Pay
Lihat butiran penuh

Overview

The T-Motor VL7015 KV190 UAV motor is part of the VL Series propulsion system, matched with the V80A ESC and P24 propeller for VTOL and fixed-wing aircraft applications. It supports 12S power and is specified for up to 15.8 kg max thrust.

Key Features

  • Propeller-locking design: 360° custom angle propeller-locking to help avoid turbulence from rotor rotation and maintain aerodynamic layout.
  • Adaptive propeller locking: ESC automatically adjusts current to control torque based on external force changes, reducing power consumption and heat.
  • Centrifugal cooling design: YES.

For configuration help and compatibility questions, contact support@rcdrone.top or visit https://rcdrone.top/.

Specifications

Recommended Setup

Voltage 12S
Max thrust/arm 15 kg
Recommended MTOW (Quad) 22~24 kg

Motor (VL7015)

Model No. VL7015 KV (RPM/V) 190
Magnet level 180°C Rated voltage (LiPo) 12S
Motor size 79.2 x 44.4 mm Idle current (15V) 2.0A
Lead cable Silicone wire 14# 600mm Internal resistance (25°C) 35 mΩ
Stator 150°C high temperature-resisting coatings Peak current 85A
Copper wire 220°C Continuous power (180s) 1600W
Configuration 24N28P Ambient temperature -30°C to 55°C
Coil insulation test 1000V/5s Max. thrust 15.8 kg
Shaft diameter IN: 8; OUT: 8 Motor weight (incl. cable) 540 g
Rotor dynamic balance standard ≤10 mg Bearing Imported 608
IP rating IP25 Package size 158 x 135 x 64 mm
Centrifugal cooling design YES

ESC (V80A)

Model No. V80A Control PWM/CAN
Max. voltage 60V Protocol DRONE CAN/UAV CAN
Peak current (10s) 80A (under certain heat dissipation conditions) Continuous current 40A (under certain heat dissipation conditions)
Propeller-locking Electronic propeller-locking Standby consumption ≤50mA
Throttle position range 1040~1940us (fixed) Throttle refresh frequency 50~500Hz
Throttle response speed 300ms Weight (incl. cables) 110 g
Encoder cables Shielded cables - black - 24AWG - 5C - 450±10mm - M6 aviation connector Output cable Silicone wire - orange - 14AWG - 110±10mm
Input cable Silicone wire - red/black - 12AWG - 180±10mm Signal cable Shielded cables - black - OD4.2 - 5C - 450±10mm - JP-3P*2 - black blank white-green yellow gray

Propeller (P24*7.2)

Model No. P24*7.2 inch (610*198.1mm)
Weight (single blade) 60±5 g

What’s Included

  • VL7015 x1
  • Parts Bag x1

Applications

  • VTOL aircraft propulsion
  • Fixed-wing aircraft with propeller-locking requirements
  • Multirotor builds (quad MTOW recommendation: 22~24 kg)

Downloads

Details

T-Motor VL7015

The VL7015 KV190 motor pairs with a carbon-fiber prop and a compact 80A 14S ESC for a clean UAV power setup.

T-Motor VL Series propeller locking

The included P24 propeller features a carbon-fiber weave finish and a simple hub mount for quick installation.

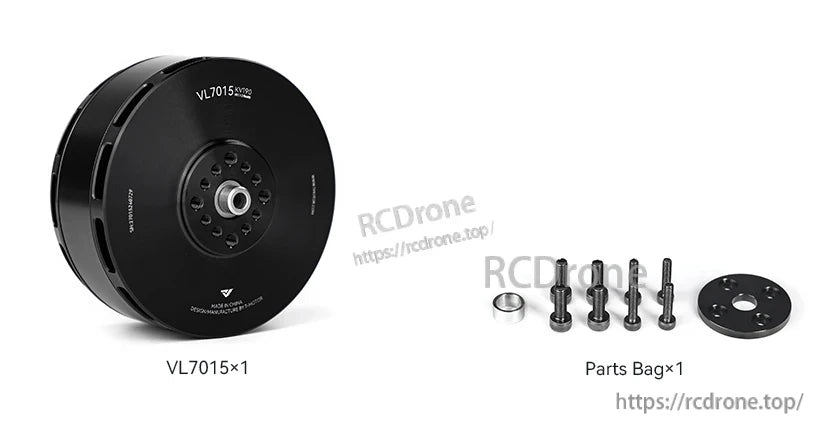

VL7015 V80A P24 technical drawingVL7015 packing list

The T-Motor VL7015 KV190 UAV motor includes a parts bag with mounting screws, spacer, and adapter plate for installation.
