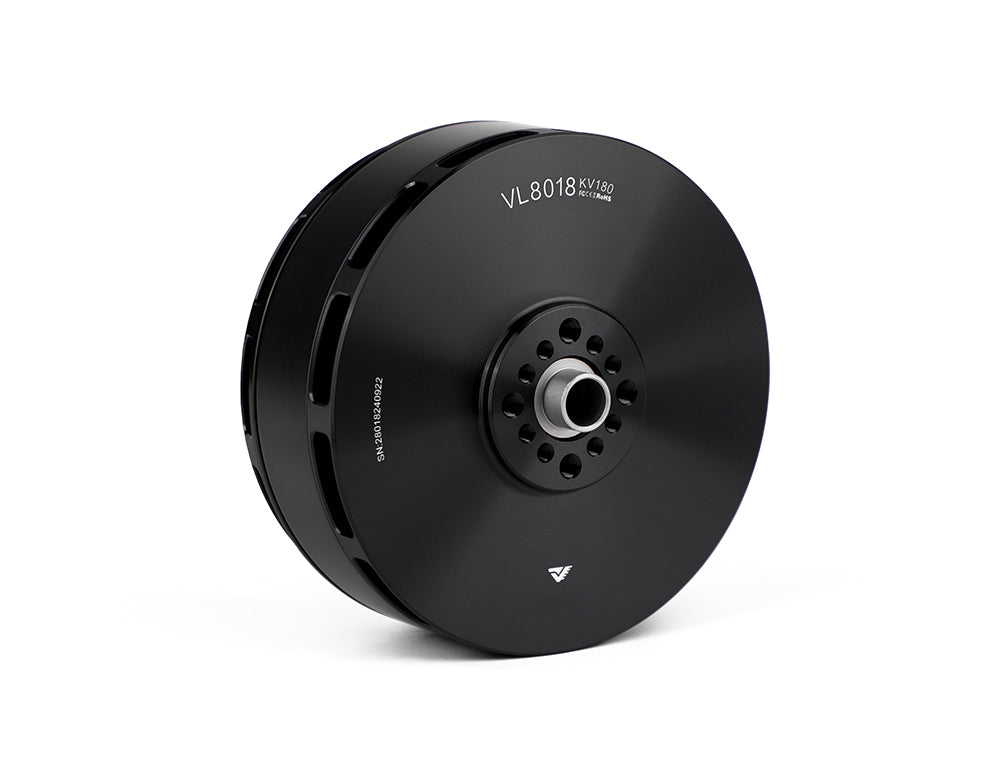

• T-Motor VL8018 KV180 black brushless motor with central mounting hub and vented housing
  • T-Motor VL8010 KV100 brushless motor in black housing with side ventilation slots and centered shaft mount

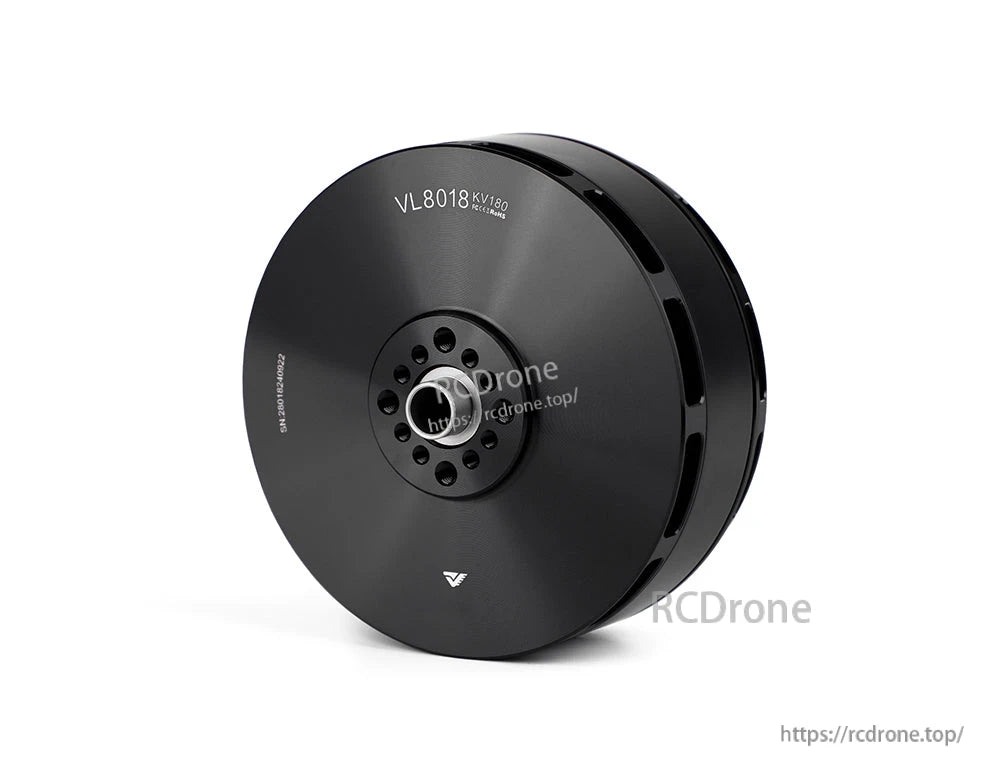

  • T-Motor VL8018 KV180 brushless motor in black, top view with central shaft and mounting hole pattern

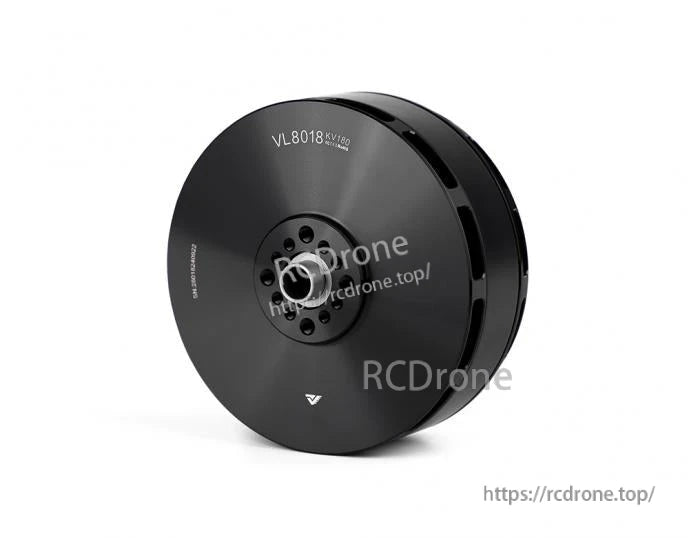

  • T-Motor VL8018 KV180 black drone motor with round housing and central mounting hub

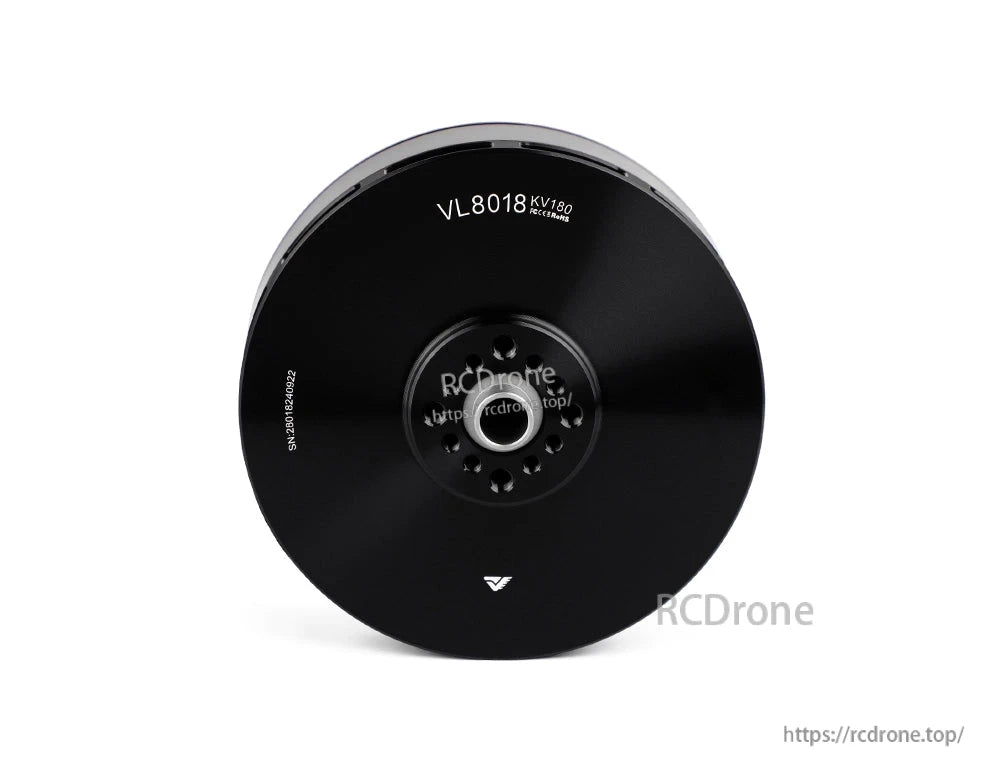

  • Top view of T-Motor VL8018 KV180 brushless drone motor with black housing and central mounting/shaft opening
  • Top view of a black T-Motor VL8018 KV180 brushless drone motor with central mounting holes

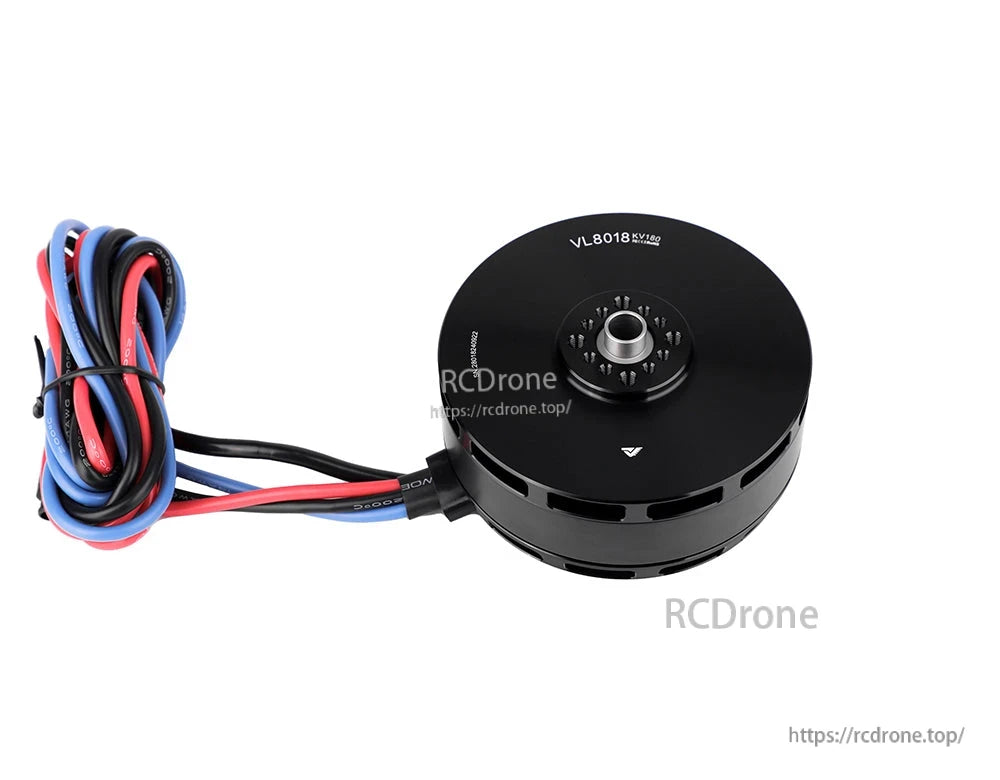

  • T-Motor VL8018 KV180 brushless drone motor with black housing and red, blue, and black leads
  • T-Motor VL8018 KV100 brushless motor with central shaft and bundled red, blue, and black wires

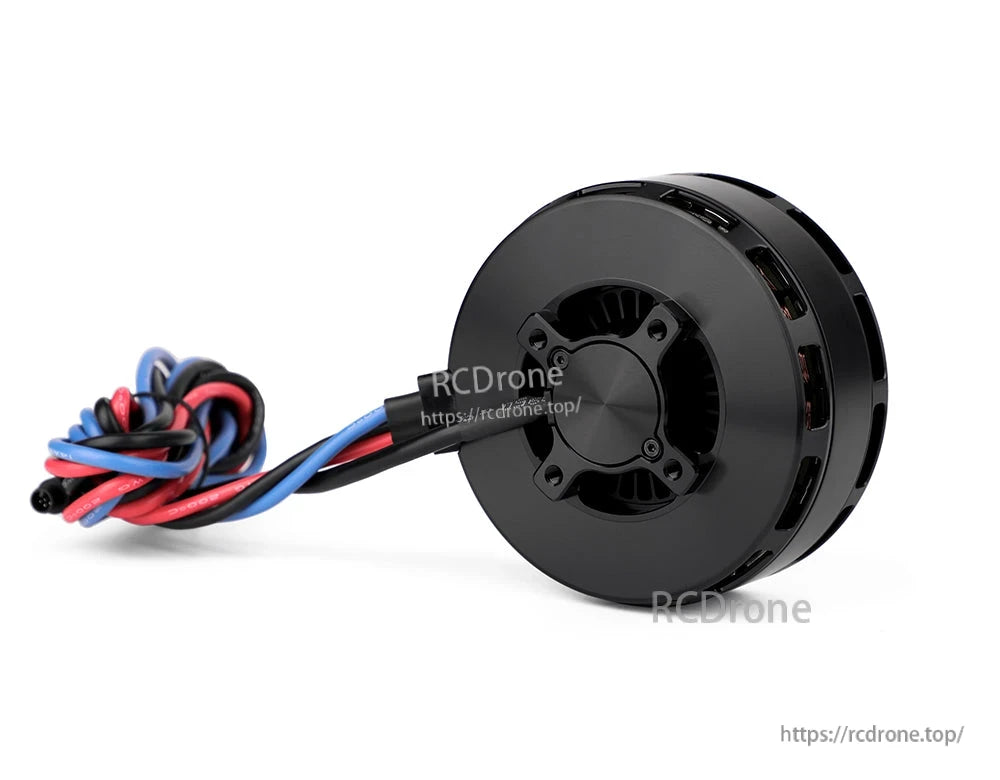

  • Black T-Motor brushless motor with round housing and red, blue, and black power leads

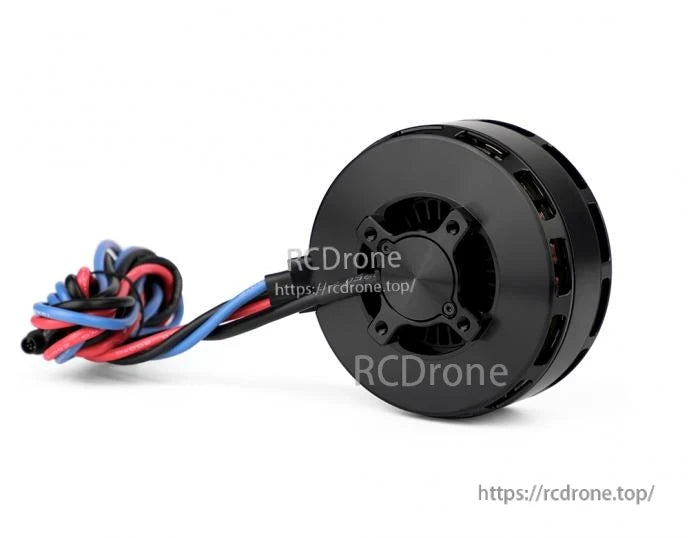

  • Black T-Motor brushless drone motor with mounting hub and red, blue, and black wires

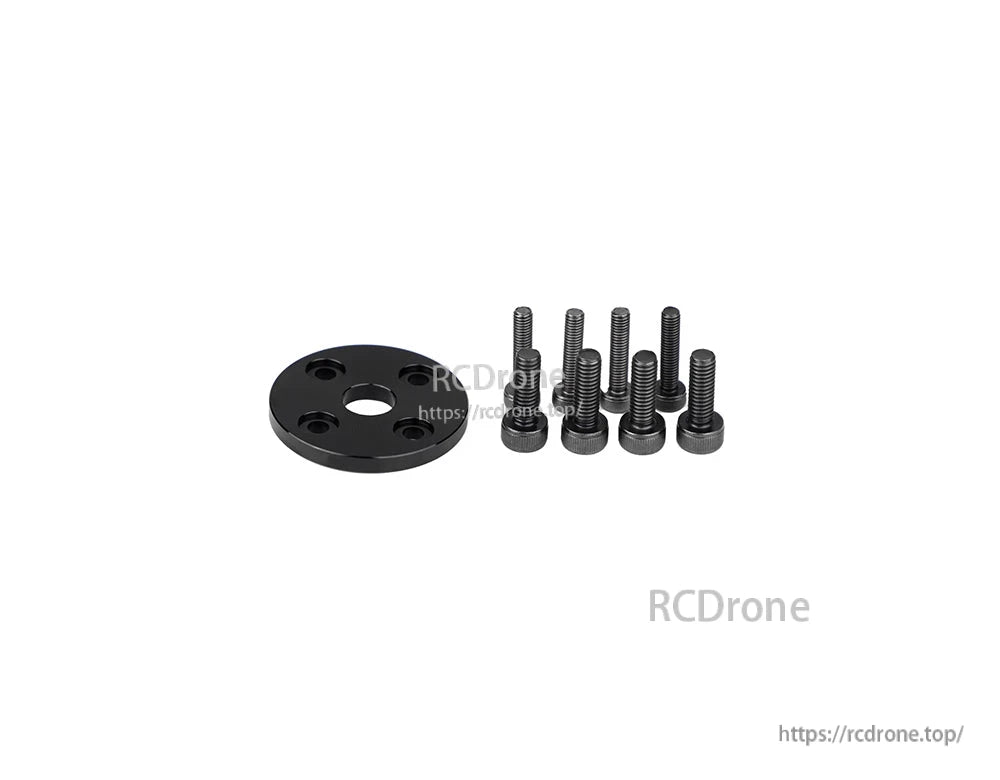

  • T-Motor black round mounting plate with center bore, four screw holes, and a set of hex socket screws

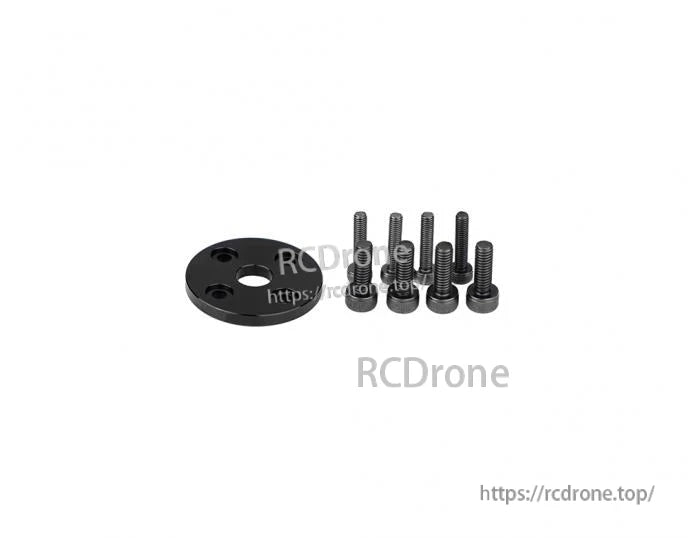

  • T-Motor mounting hardware set with black circular adapter plate and assorted hex socket screws
1 12

T-Motor VL8018 KV180 UAV Motor Propulsion System 12S, 17.6kg Max Thrust/Arm, V120A ESC, G26 Prop

T-Motor VL8018 KV180 UAV Motor Propulsion System 12S, 17.6kg Max Thrust/Arm, V120A ESC, G26 Prop

T-MOTOR

$418.60 USD
$418.60 USD
Jualan Habis dijual
Taxes included. Penghantaran dikira semasa pembayaran.
  • PayPal
  • Visa
  • Mastercard
  • American Express
  • JCB
  • Discover
  • Diners Club
  • Google Pay
  • Apple Pay
Lihat butiran penuh

Overview

The T-Motor VL8018 KV180 is a UAV Motor designed for VTOL/fixed-wing propulsion setups, with a propulsion system option that includes matching ESC and propeller specifications. Recommended setup guidance includes 12S voltage, 17.6kg max thrust/arm, and 30~32kg recommended MTOW (Quad).

Key Features

  • Fast propeller locking: 360° custom angle propeller-locking to reduce turbulence impact and help maintain aerodynamic layout.
  • Economical propeller locking: ESC automatically adjusts current/torque to lock the propeller based on external force changes, reducing power consumption and heat.

For integration and compatibility support (ESC control, CAN protocol, wiring), contact support@rcdrone.top or visit https://rcdrone.top/.

Specifications

Motor (VL8018)

Model No. VL8018 KV (RPM/V) 180
Magnet Level 180°C Motor Size Φ88.8*43.5mm
Lead Cable Silicone wire 14# 1000mm Configuration 24N28P
Stator 150°C high temperature-resisting coatings Copper Wire 220°C
Coil Insulation Test 1000V/5s Shaft Diameter IN: 12 OUT: 10
Rotor Dynamic Balance Standard ≤10mg Bearing Imported 6901
IP IPX5 Centrifugal Cooling Design YES
Rated Voltage (LiPo) 12S Idle Current (15V) 2.2A
Internal Resistance (25°C) 37mΩ Peak Current 100A
Continuous Power (180s) 1600W Ambient Temperature -30°C~55°C
Max. Thrust 17.6kg Motor Weight (incl. Cable) 655g
Package Size 150*120*57mm

ESC (V120A) Specs

Model No. V120A Control PWM/CAN
Max. Voltage 60V Protocol DRONE CAN/UAV CAN
Peak Current (10s) 130A (Under certain heat dissipation conditions) Propeller-locking Electronic propeller-locking
Continuous Current 60A (Under certain heat dissipation conditions) Encoder Cables Shielded cables - Black - 24AWG - 5C - 420±10mm - M6 aviation connector
Standby Consumption ≤50mA Output Cable Silicone wire - orange - 12AWG - 75±10mm
Throttle Pos. Range 1040~1940us (fixed) Input Cable Silicone wire - red/black - 12AWG - 120±10mm
Throttle Refresh Frequency 50~500Hz Signal Cable Shielded cables - Black - OD4.2 - 5C - 470±10 - JP - 3P*2 - Black blank white - green yellow gray
Throttle Response Speed 300ms Weight (incl. cables) 170g

Propeller (G26) Specs

Model No. G26*8.5 inch (660.4*215.9mm) Weight (Single Blade) 68±5g

Recommendation

Voltage 12S Max Thrust/Arm 17.6kg
Recommended MTOW (Quad) 30~32kg

What’s Included

  • VL8018 x1
  • Parts Bag x1

Downloads

Details

T-Motor VL8018

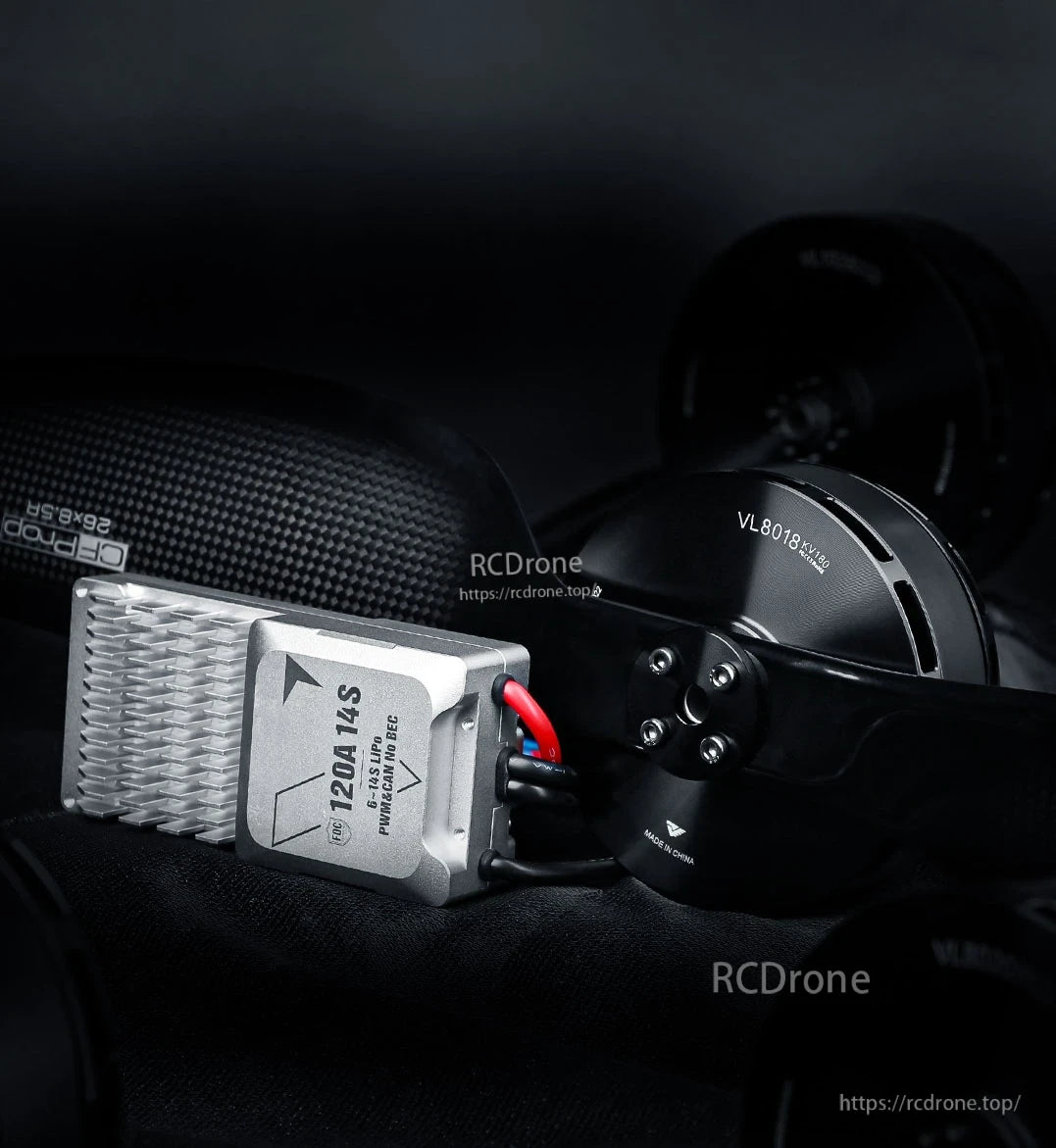

The FDC 120A 14S ESC features a finned heatsink body and PWM/CAN leads for clean integration with a motor setup.

T-Motor VL8018

The T-Motor carbon fiber propeller features a checkered weave finish and a standard center mounting hub for secure installation.

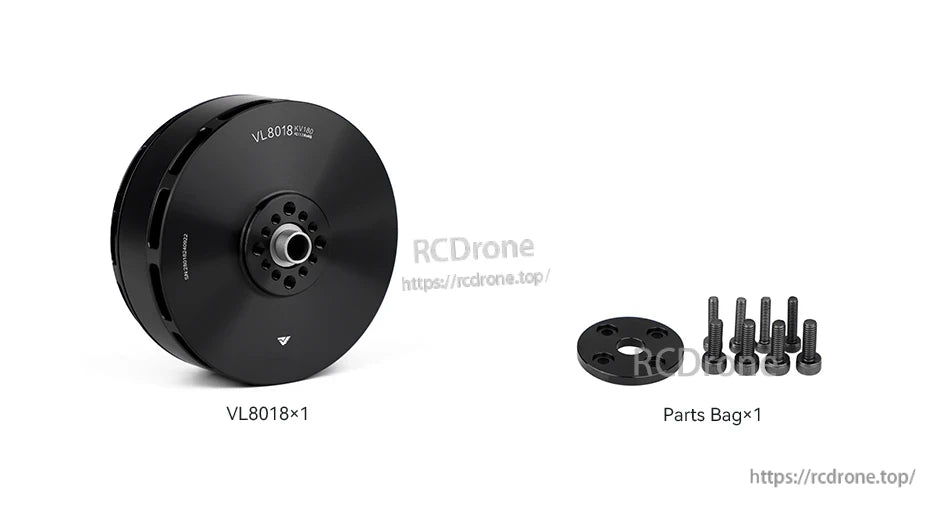

VL8018 technical drawingVL8018 packing list

The T-Motor VL8018 motor comes with a mounting plate and screw hardware for a straightforward installation.
