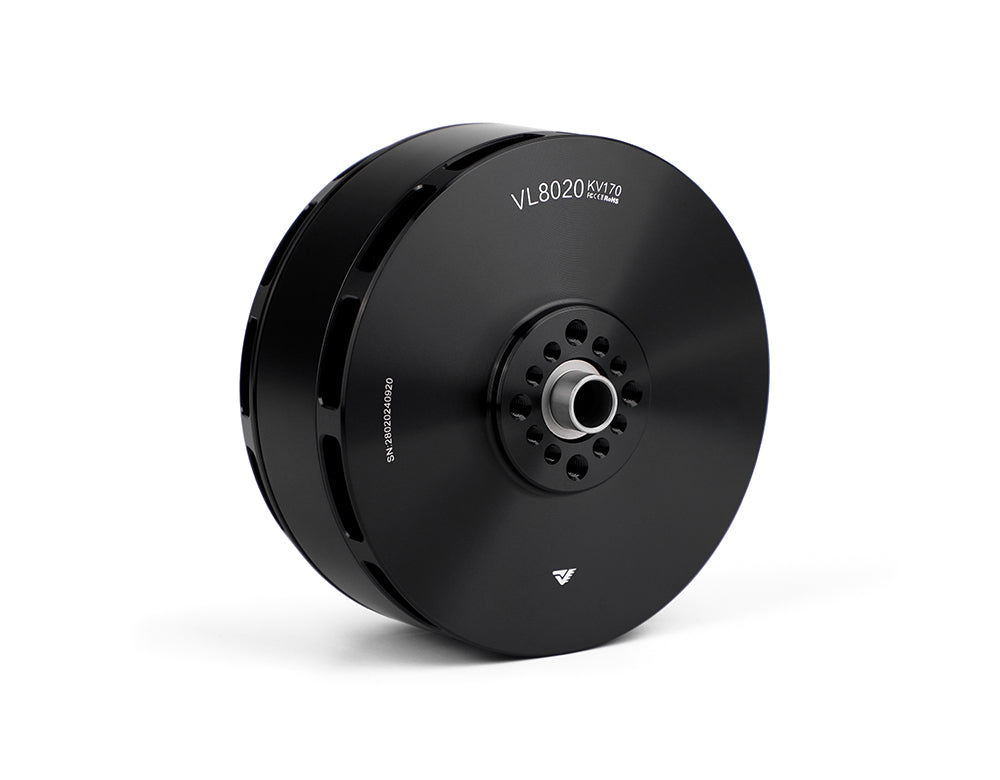

• T-Motor VL8020 KV170 black brushless motor with central mounting hub and vented housing
  • T-Motor VL8020 KV120 black brushless motor with round housing and centered shaft mount

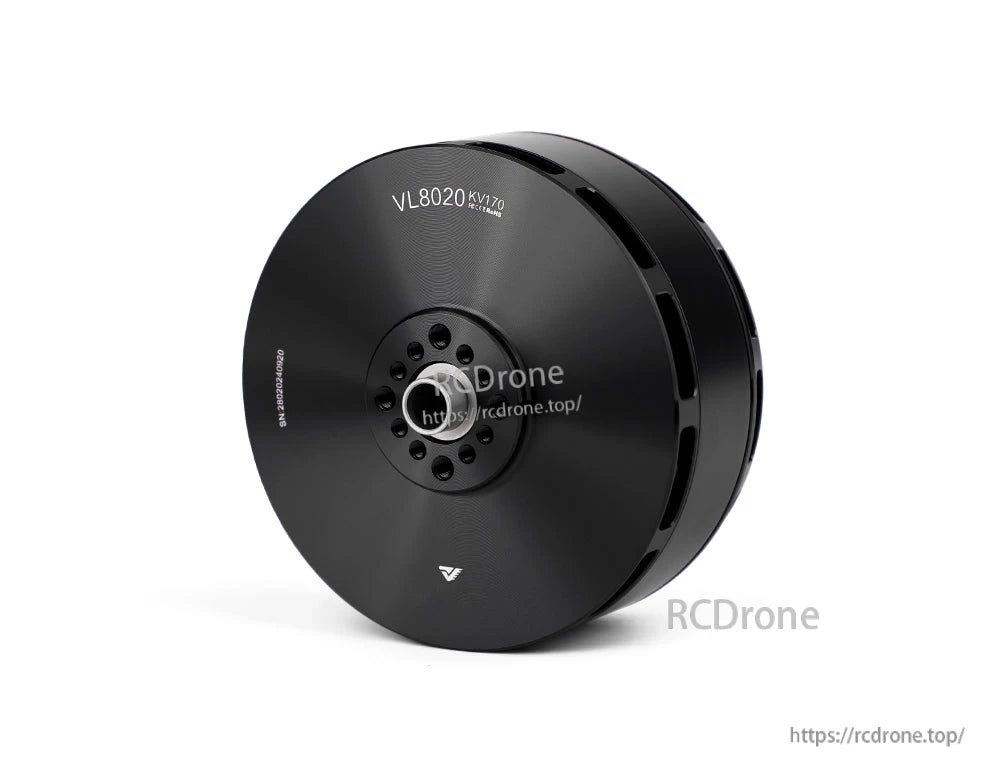

  • T-Motor VL8020 KV170 black brushless drone motor with vented can and multi-hole mounting hub

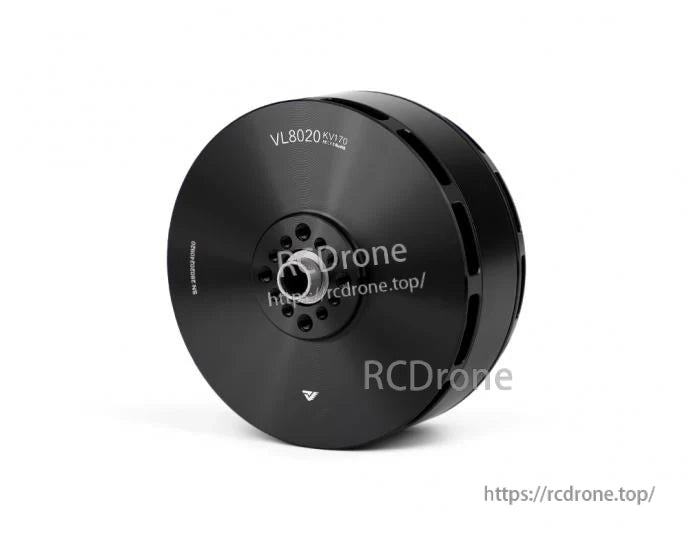

  • T-Motor VL8020 KV170 black brushless outrunner motor with central shaft and mounting hole pattern

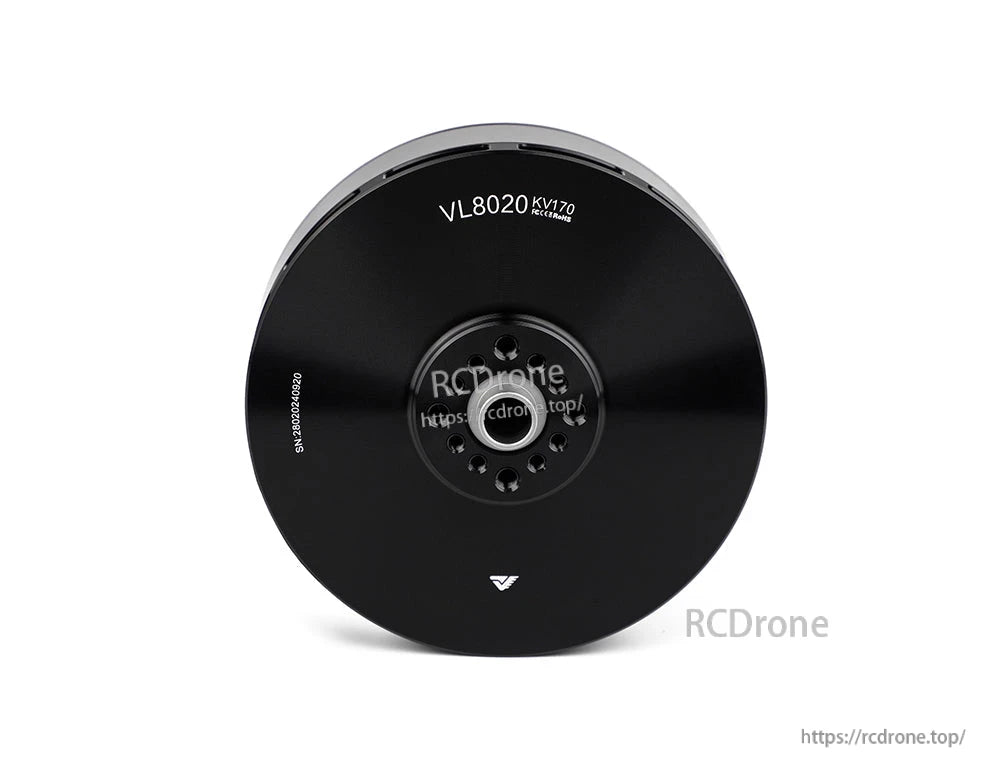

  • T-Motor VL8020 KV170 brushless motor top view with black housing and multi-hole mounting hub

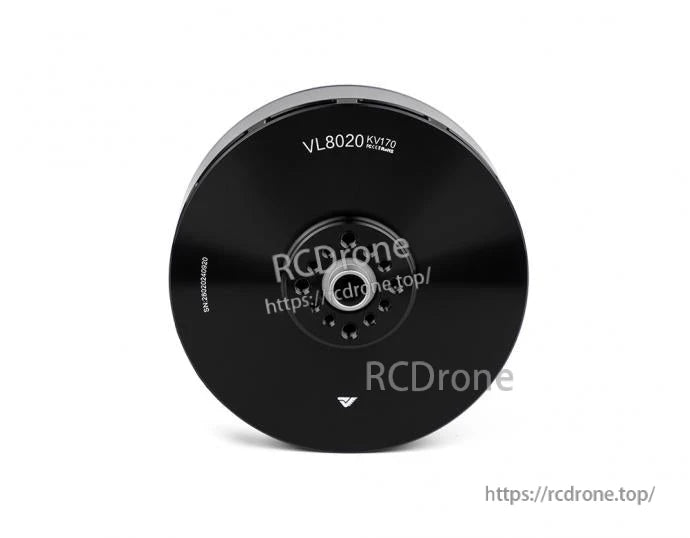

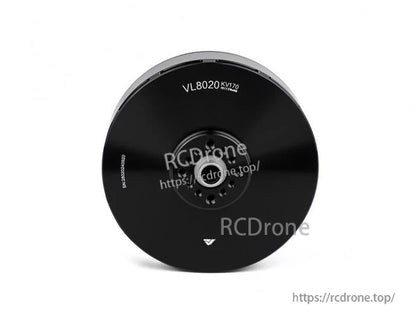

  • T-Motor VL8020 KV170 brushless drone motor, black round housing with central mounting holes

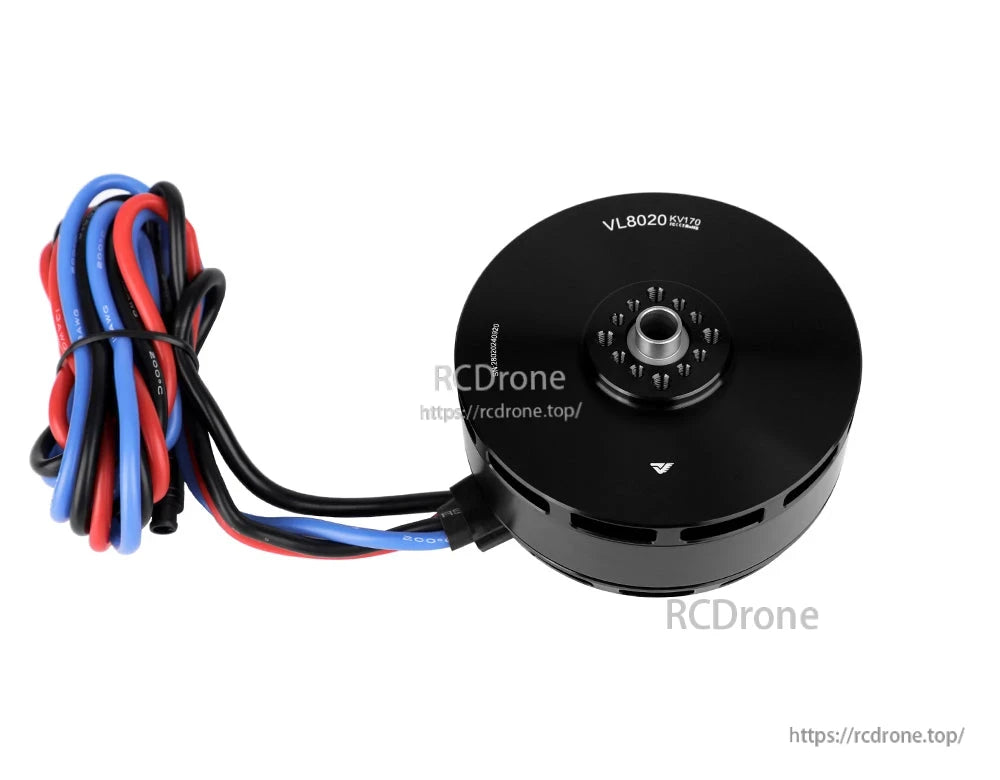

  • T-Motor VL8020 KV170 brushless outrunner motor with black housing, center shaft hub, and red/blue/black wires
  • T-Motor VL8020 series brushless motor with center mounting hub and red, blue, and black lead wires

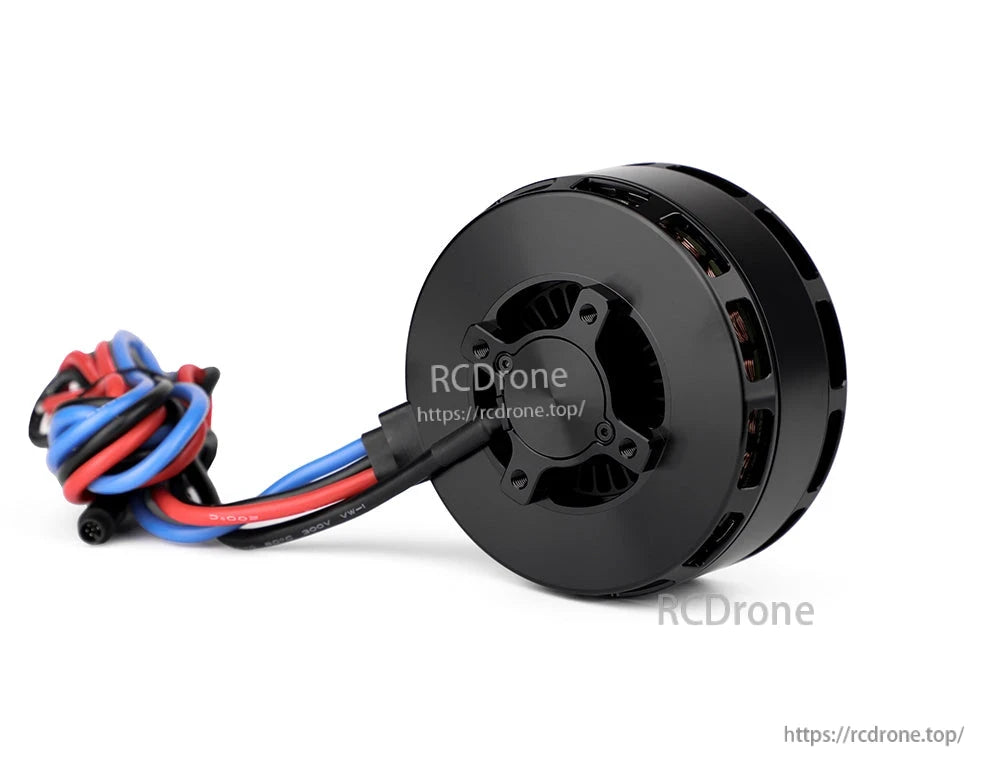

  • Black T-Motor brushless drone motor with round housing, mounting plate, and red-blue-black wires
  • Black T-Motor brushless drone motor with three-wire lead (red, blue, black) and mounting base
  • Black T-Motor motor mount plate with multiple bolt holes and a set of hex socket screws
  • T-Motor black mounting plate with assorted hex screws for securing a motor to a drone frame
1 12

T-Motor VL8020 KV170 UAV Motor Propulsion System for VTOL (V150A ESC + VZ28 28x10.8 Prop), 12S

T-Motor VL8020 KV170 UAV Motor Propulsion System for VTOL (V150A ESC + VZ28 28x10.8 Prop), 12S

T-MOTOR

$460.60 USD
$460.60 USD
Jualan Habis dijual
Taxes included. Penghantaran dikira semasa pembayaran.
  • PayPal
  • Visa
  • Mastercard
  • American Express
  • JCB
  • Discover
  • Diners Club
  • Google Pay
  • Apple Pay
Lihat butiran penuh

Overview

The T-Motor VL8020 is a UAV Motor propulsion system for VTOL platforms, combining the VL8020 KV170 motor with the V150A ESC and VZ28 propeller. It supports 360 custom angle propeller-locking to reduce rotor-induced turbulence and help keep the fixed-wing aerodynamic layout less affected.

Key Features

  • Fast propeller locking: locks the propeller in seconds
  • 360 custom angle propeller-locking to effectively avoid turbulence caused by rotor rotation
  • Adaptive propeller locking: ESC automatically adjusts current to control torque based on external force changes
  • Reduced power consumption and heat for energy saving
  • Recommendation: 12S voltage, 19.7kg max thrust/arm, 35kg recommended MTOW (Quad)

For compatibility questions, integration support, or bulk purchasing, contact support@rcdrone.top or visit https://rcdrone.top/.

Specifications

Motor (VL8020)

Model No. VL8020 KV (RPM/V) 170
Rated Voltage (LiPo) 12S Idle Current (15V) 2.4A
Internal Resistance (25 C) 32m9 Peak Current 116A
Continuous Power (180s) 1760W Ambient Temperature -30 C~55 C
Max. Thrust 19.7kg Motor Weight (incl. Cable) 735g
Motor Size 888.8*45.5mm Package Size 150*120*57mm
Configuration 24N28P Magnet Level 180 C
Stator 150 C high temperature-resisting coatings Copper Wire 220 C
Coil Insulation Test 1000V/5s Rotor Dynamic Balance Standard 410mg
Shaft Diameter IN: 12 OUT: 10 Bearing Imported 6901
Lead Cable Silicone wire13# 1000mm IP IPX5
Centrifugal Cooling Design YES

ESC (V150A)

Model No. V150A Control PWM/CAN
Max. Voltage 60V Protocol DRONE CAN/UAV CAN
Peak Current (10s) 160A (Under certain heat dissipation conditions) Continuous Current 70A (Under certain heat dissipation conditions)
Propeller-locking Electronic propeller-locking Standby Consumption 450mA
Throttle Pos. Range 1040~1940us (fixed) Throttle Refresh Frequency 50~500Hz
Throttle Response Speed 300ms Weight (Incl. cables) 295g
Encoder cables Shielded cables-Black-24AWG-5C-400 410mm-M6 aviation connector Output Cable Silicone wire-orange-10AWG-100 410mm
Input Cable Silicone wire-red/black-10AWG-130 410mm Signal Cable Shielded cables-Black-OD4.2-5C-460 410-JP-3P*2-Black blank white-green yellow gray

Propeller (VZ28)

Model No. VZ28*10.8 inch (711.2*274.32mm) Weight (Single Blade) 80 45g

What's Included

  • VL8020 71
  • Parts Bag 71

Downloads

Details

T-MOTOR VL8020

The T50A 14S ESC pairs with a VL8020 motor and carbon fiber propeller for a clean, high-power drone drive setup.

T-MOTOR VL8020

The T-Motor two-blade propeller features a carbon-fiber weave finish and a clean hub design for straightforward installation.

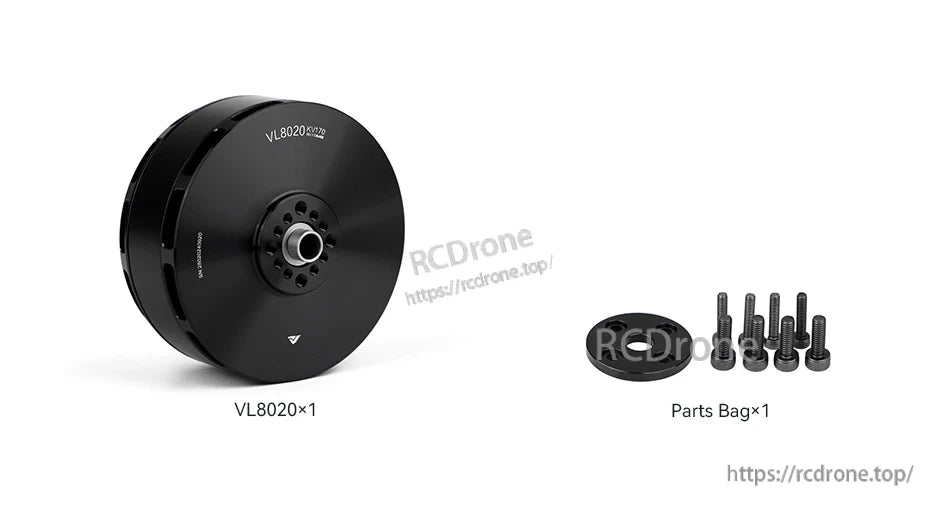

Technical DrawingPacking List

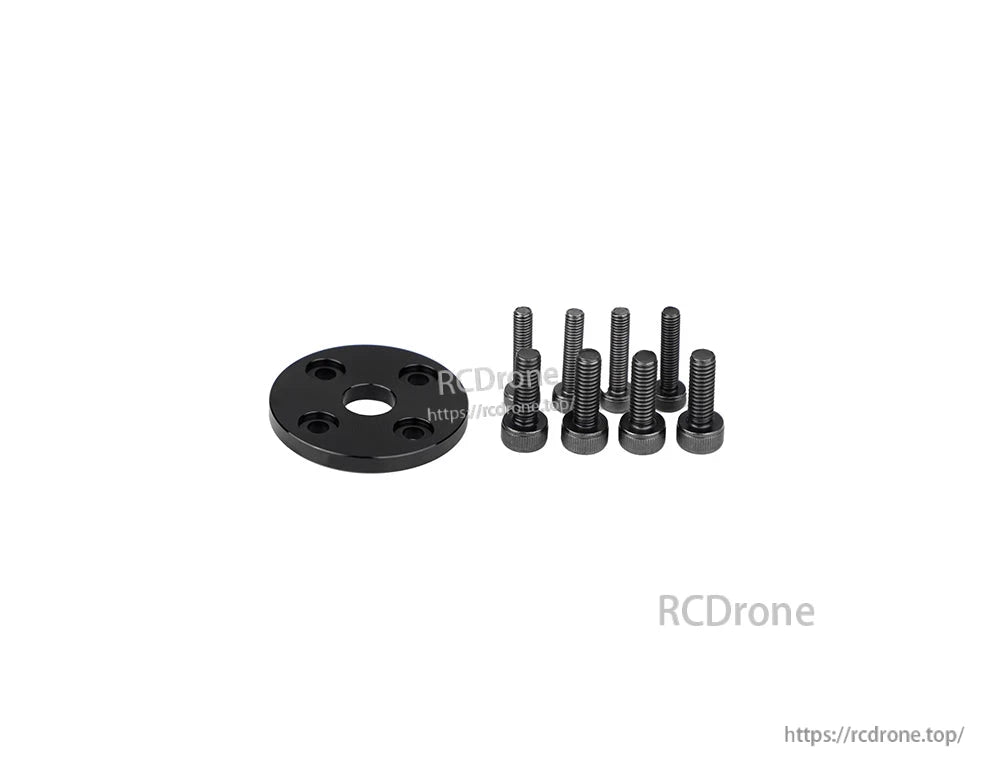

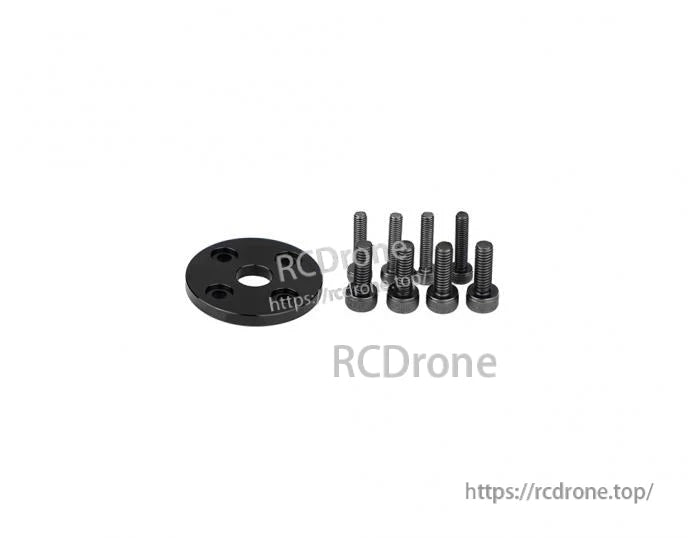

The T-Motor VL8020 KV120 motor includes a parts bag with a mounting plate and screws for installation.
