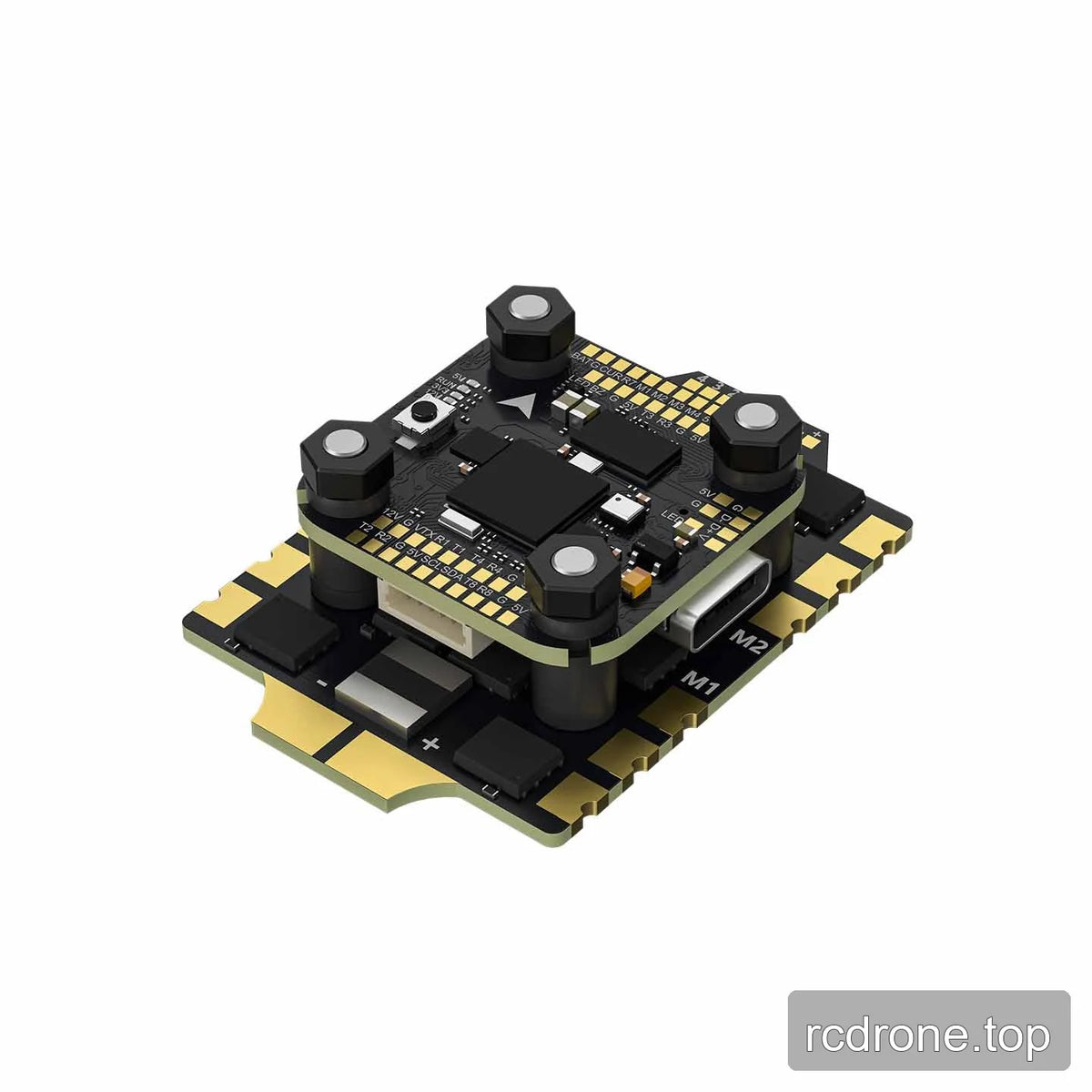

  • Close angled view of the compact two-board stack, highlighting the USB-C connector, white plug, gold pads, and mounting grommets.
  • Top view of the assembled electronics stack with labeled edge pads, central chip, push button, and motor-pad markings.
  • Underside view of a black circuit board with four metal mounting points, surface components, gold test pads, and a white connector.
  • Top view of one board from the stack showing USB-C, push button, four mounting grommets, labeled solder pads, and battery terminals.
  • Rear angled view of the two-board stack with white connector, battery terminals, gold pads, and M3 and M4 markings.
  • Angled view of the electronics stack with USB-C port in front, white connector below, push button, gold pads, and mounting grommets.
  • Low side profile of the stacked circuit boards, showing board spacing, four mounting grommets, edge pads, and M3 and M4 labels.
1 9

AxisFlying Argus H743 Mini 60A Flight Controller & AM32 4-in-1 ESC Stack

AxisFlying Argus H743 Mini 60A Flight Controller & AM32 4-in-1 ESC Stack

AxisFlying

$143.60 USD
$143.60 USD
فروش فروخته شده
Taxes included. حمل و نقل هنگام تسویه حساب محاسبه می شود.
STACK
  • PayPal
  • Visa
  • Mastercard
  • American Express
  • JCB
  • Discover
  • Diners Club
  • Google Pay
  • Apple Pay
مشاهده جزئیات کامل

Overview

The AxisFlying Argus H743 Mini 60A stack combines an H743 flight controller with a 60A 4-in-1 ESC running AM32 firmware. It is specified for 3–5 inch models and includes connections for analog and HD video systems, GPS, receivers, LEDs, buzzer, servo, and other supported peripherals.

Features

H743 Mini Flight Controller

  • STM32H743 main MCU with H7 core at 480 MHz
  • ICM-42688P gyroscope and DPS368 barometer
  • AXISFLYINGH743MINI firmware name
  • 16 MB flash memory with Blackbox support
  • 6 UARTs and USB port
  • Supports OSD, GPS, servo motor, LED, buzzer, and M1–M4 motor outputs
  • Dual BEC outputs: 12 V/2 A controllable output plus a 5 V BEC output; the supplied source materials differ on the 5 V output rating.

60A 4-in-1 ESC

  • AM32 firmware, F4A MCU, and 5C430L MOSFET
  • 60 A continuous current and 70 A burst/peak current
  • 3–6S LiPo input
  • Bidirectional DShot; DShot300 and DShot600 protocols
  • 24–96 kHz PWM and ESC telemetry support
  • Current meter scale: 175

Connections and Installation Notes

Flight Controller Connections

  • Labeled connections for GPS, RX, VTX, servo, LED, and buzzer.
  • 4-in-1 ESC connection labels: BAT, GND, CURR, TELE, M1, M2, M3, and M4.
  • Camera connection labels: 5V, GND, and Video.
  • Analog VTX connection labels: DATA, GND, BAT, and VIDEO.
  • HD-system connection is labeled for DJI O4 Air Unit, Avatar HD, and Vista/Link.
  • For GPS use without a magnetometer, SCL and SDA do not need to be connected.
  • ELRS receivers are recommended.
  • Confirm the interface definition and correct connection before soldering.
  • When using DJI Sky and an ELRS receiver is not recognized by the flight controller, disconnect the Sky Cable SBUS signal cable from the flight controller.
  • Disconnect SBUS (R2) when not using the DJI FPV Controller.

ESC Connections

  • Motor outputs: M1, M2, M3, and M4.
  • ESC-to-flight-controller connection labels: M4, M3, M2, M1, TELE, CURR, GND, and BAT.
  • Positive and negative battery input pads.

Specifications

H743 Mini Flight Controller

Main MCU STM32H743; H7 core at 480 MHz
Gyroscope ICM-42688P
Barometer DPS368
Firmware name AXISFLYINGH743MINI
Flash memory 16 MB
Ports USB; 6 UARTs
BEC outputs 12 V/2 A and 5 V BEC output; supplied materials list the 5 V output as either 2 A or 2.5 A
Input voltage 4–8S
Supported functions Blackbox, OSD, GPS, servo motor, LED, buzzer, M1–M4
Mounting-hole spacing 20.5 × 20.5 mm
Dimensions 28 × 28 × 6.3 mm; another supplied dimension panel labels the board as 29.61 × 28 mm with 6.3 mm thickness
Weight 5 g

Argus Mini V2 60A ESC

MCU F4A
MOSFET 5C430L
Firmware AM32
LiPo input 3–6S
Continuous current 60 A
Burst current 70 A
Protocol DShot300/600; bidirectional DShot
PWM 24–96 kHz
Telemetry Supported
Current meter scale 175
Dimensions 50 × 34 × 6.5 mm; another supplied dimension panel labels 34 × 41.5 mm, a 50 mm measurement, and 6.5 mm thickness
Weight 14 g

Stack Dimensions

Specified model size 3–5 inch
Shown assembled stack height 15.8 mm

Applications

Specified for 3–5 inch models and presented for racing, freestyle, long-range, and tight-build applications. Long-range configurations can use GPS, VTX, and other peripherals through the available connections.

What's Included

Basic Kit contents:

  • 1 × Argus Mini V2 60A ESC
  • 1 × Argus H743 Mini Flight Controller
  • 1 × Argus Mini V2 60A ESC / H743 Mini FC common manual
  • 8 × orange M2 silicone damping standoffs
  • 8 × M3 silicone damping standoffs
  • 4 × M2 × 25 button-head socket-cap screws
  • 4 × M3 × 25 button-head socket-cap screws
  • 4 × M2 self-locking nuts
  • 4 × M3 self-locking nuts
  • 1 × 35 V 1000 μF capacitor
  • 1 × XT60 power cable
  • 1 × stack connection cable
  • 1 × HD VTX connection cable
  • 1 × receiver connection cable
  • 1 × analog camera connection cable
  • 1 × GPS connection cable

Visual Details

Features and Design

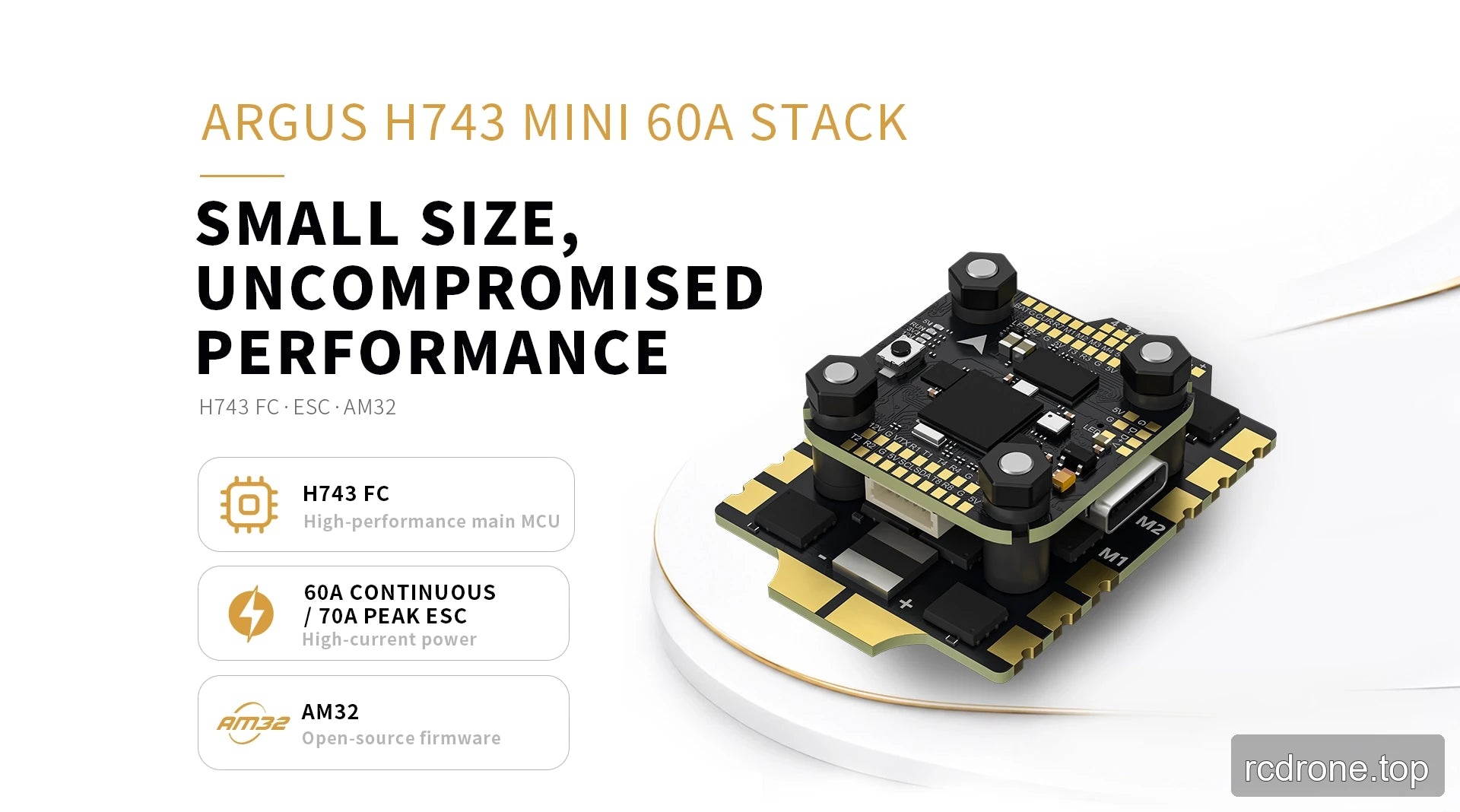

AxisFlying Argus H743 Mini 60A stack with H743 flight controller and 60A ESC
The Argus H743 Mini 60A Stack includes an H743 flight controller and AM32 ESC. The ESC is rated for 60A continuous current and 70A peak current.

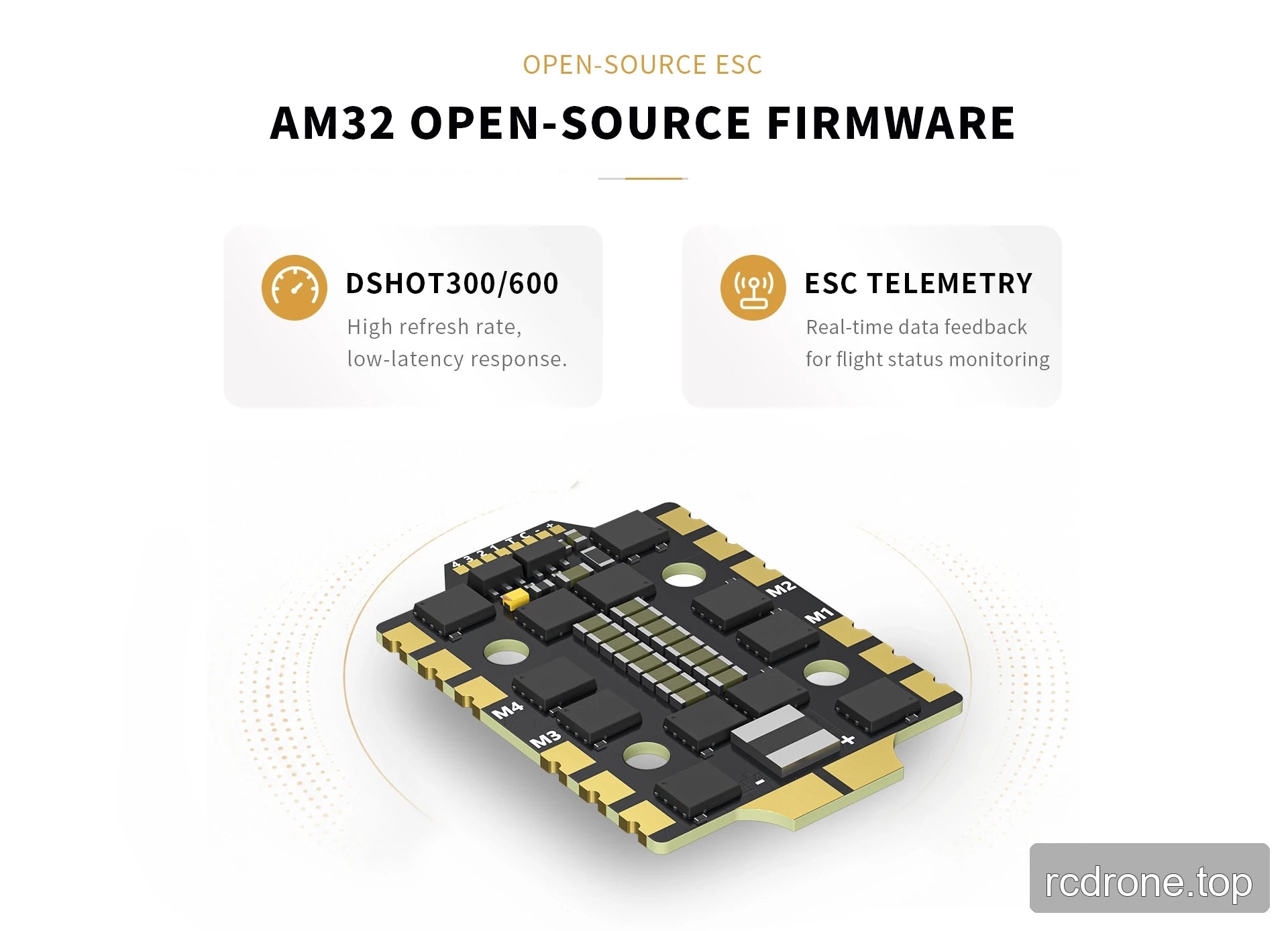

Argus Mini 60A ESC with AM32 firmware and DShot telemetry
The ESC uses AM32 open-source firmware. The ESC supports DSHOT300 and DSHOT600.

Specifications and Performance

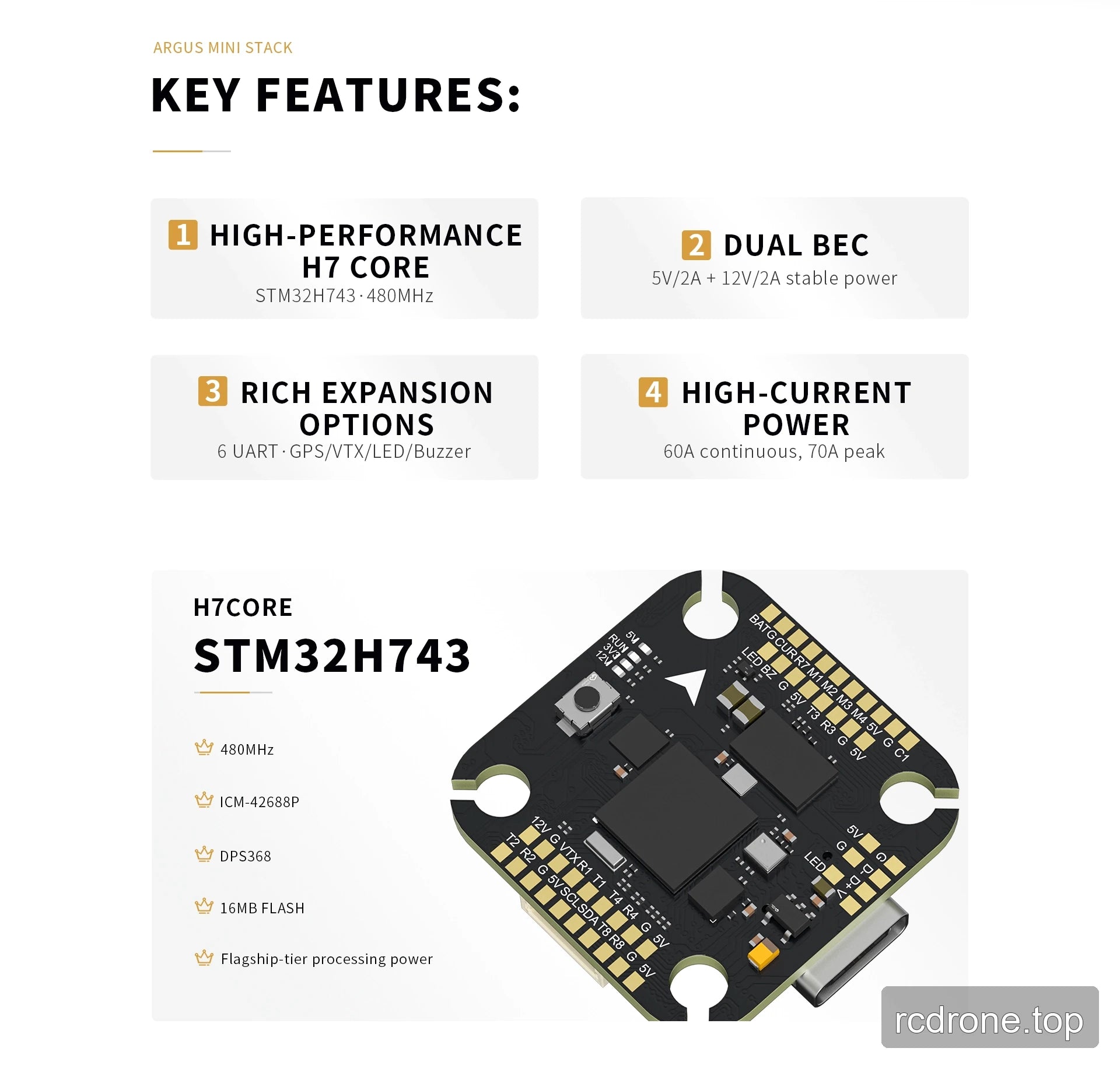

Argus Mini H743 flight controller key features and STM32H743 specifications
The flight controller has an STM32H743 H7 core running at 480MHz. The stack provides dual BEC outputs: 5V/2A and 12V/2A.

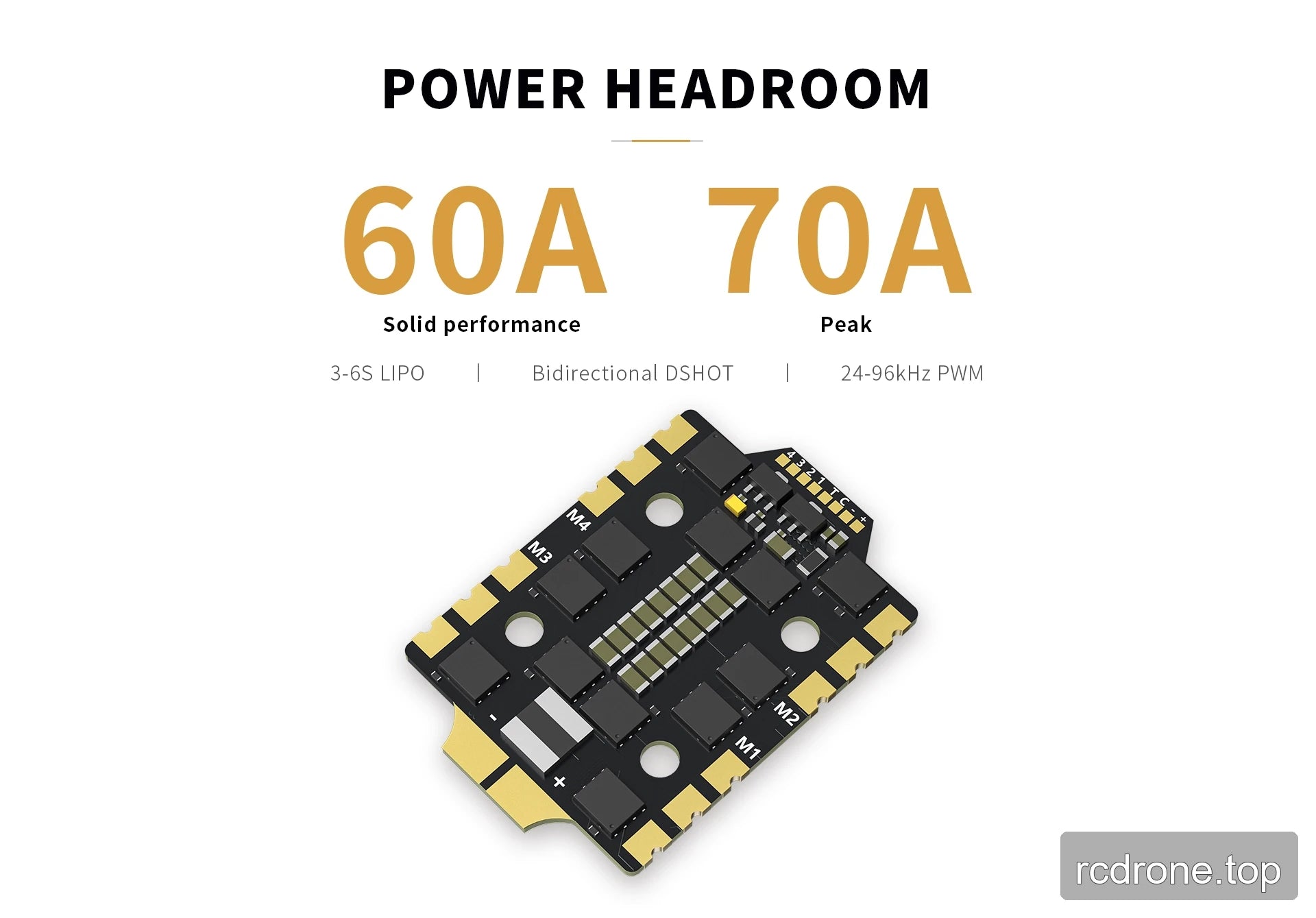

Argus Mini 60A ESC specifications for 3–6S LiPo and bidirectional DShot
The ESC is rated for 60A continuous current. The ESC has a 70A peak-current rating.

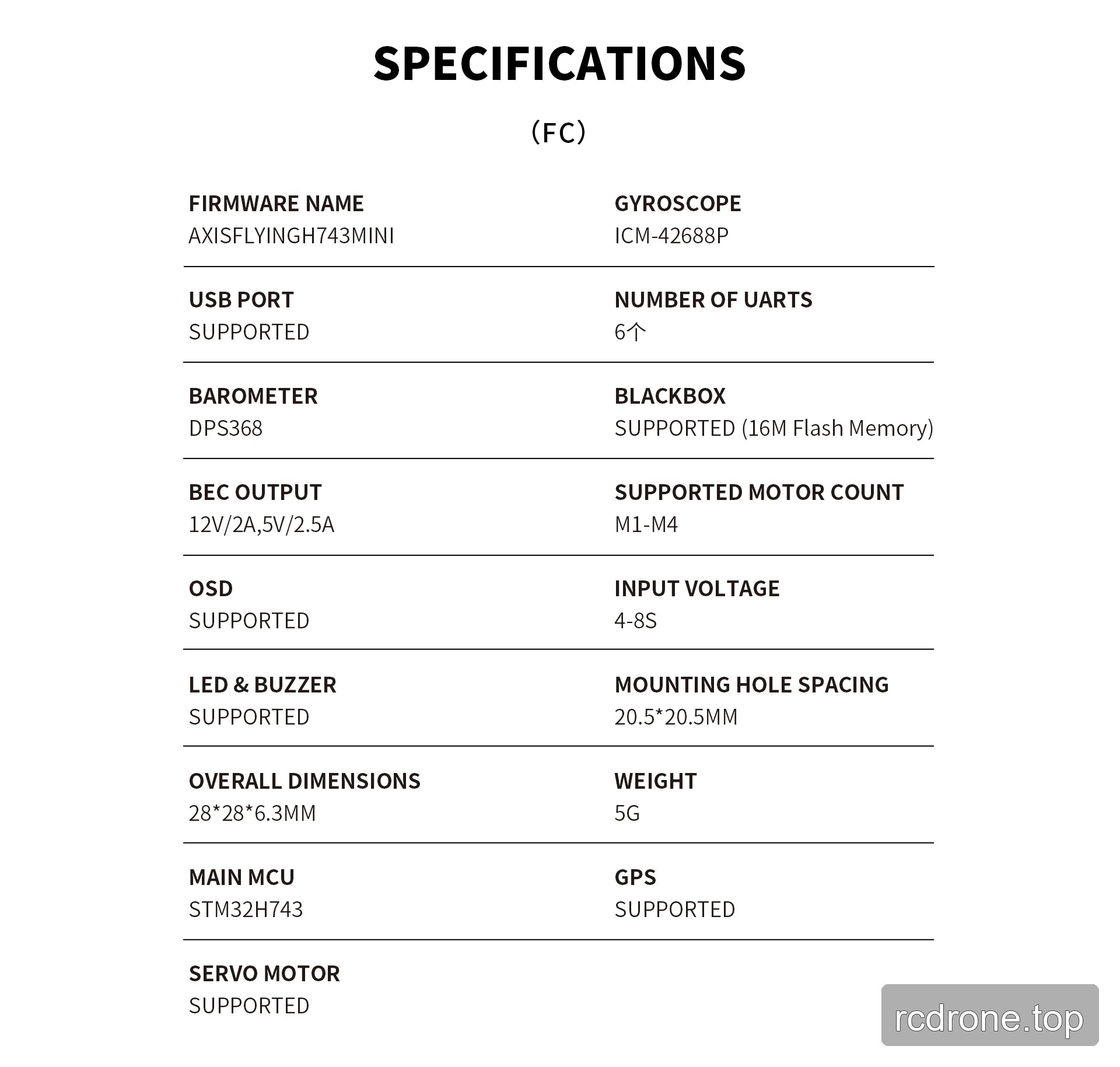

H743 Mini flight controller specification table
The flight-controller firmware name is AXISFLYINGH743MINI. The gyroscope is ICM-42688P.

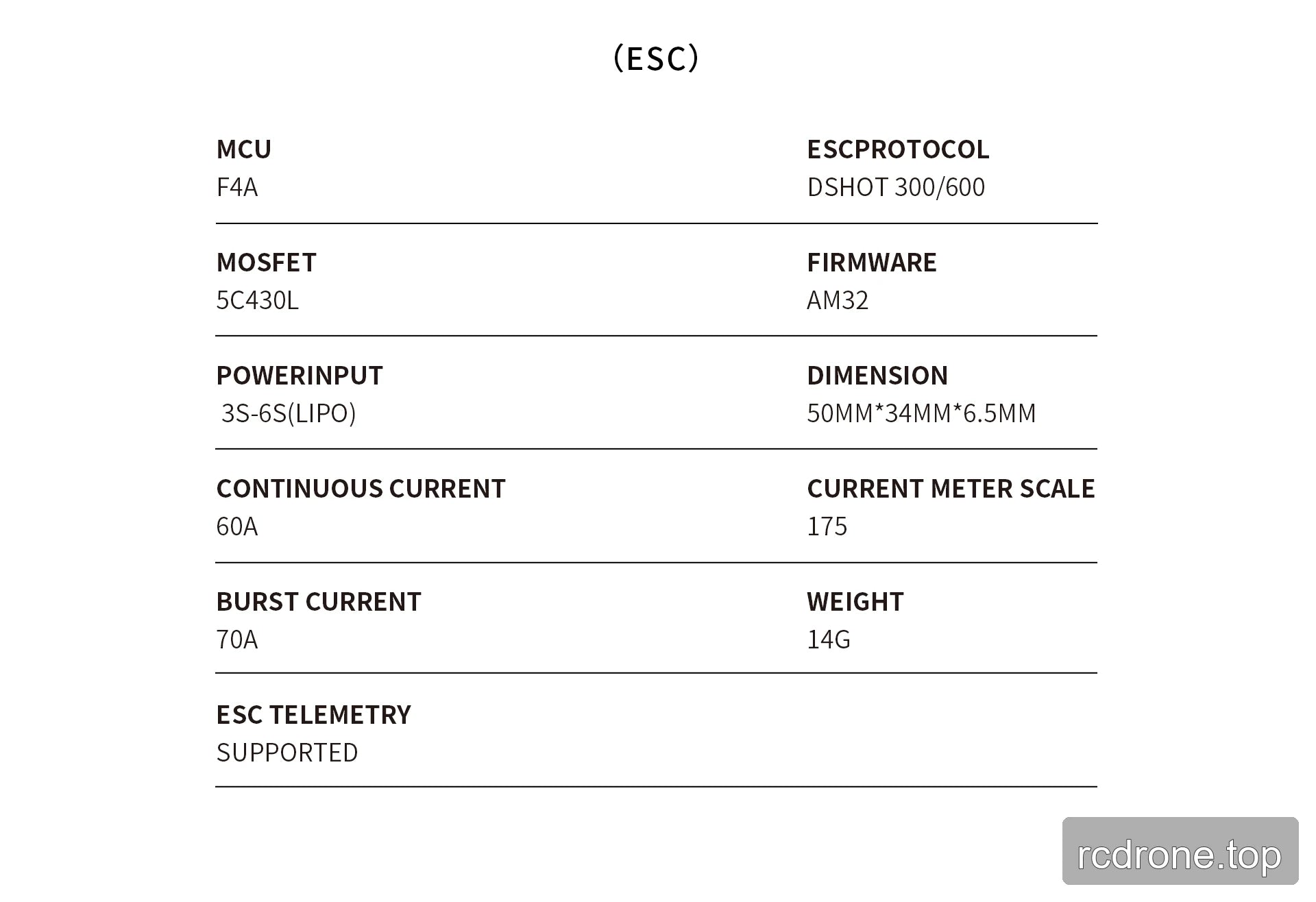

Argus Mini V2 60A ESC specification table
The ESC MCU is F4A. ESC protocol is DSHOT 300/600.

Interfaces and Connections

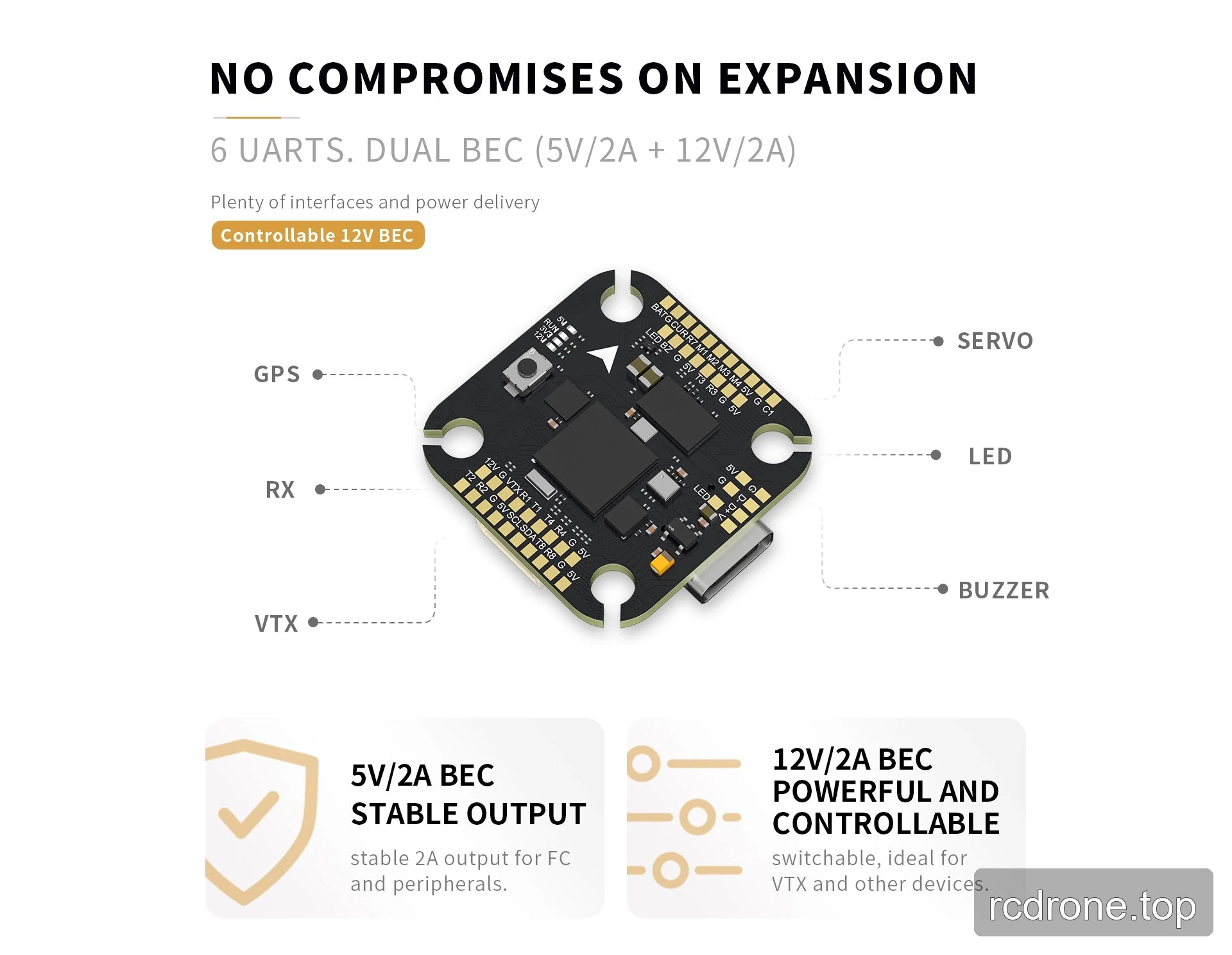

Argus Mini H743 flight controller interfaces and dual BEC outputs
The flight controller provides 6 UARTs. The stack provides dual BEC outputs: 5V/2A and 12V/2A.

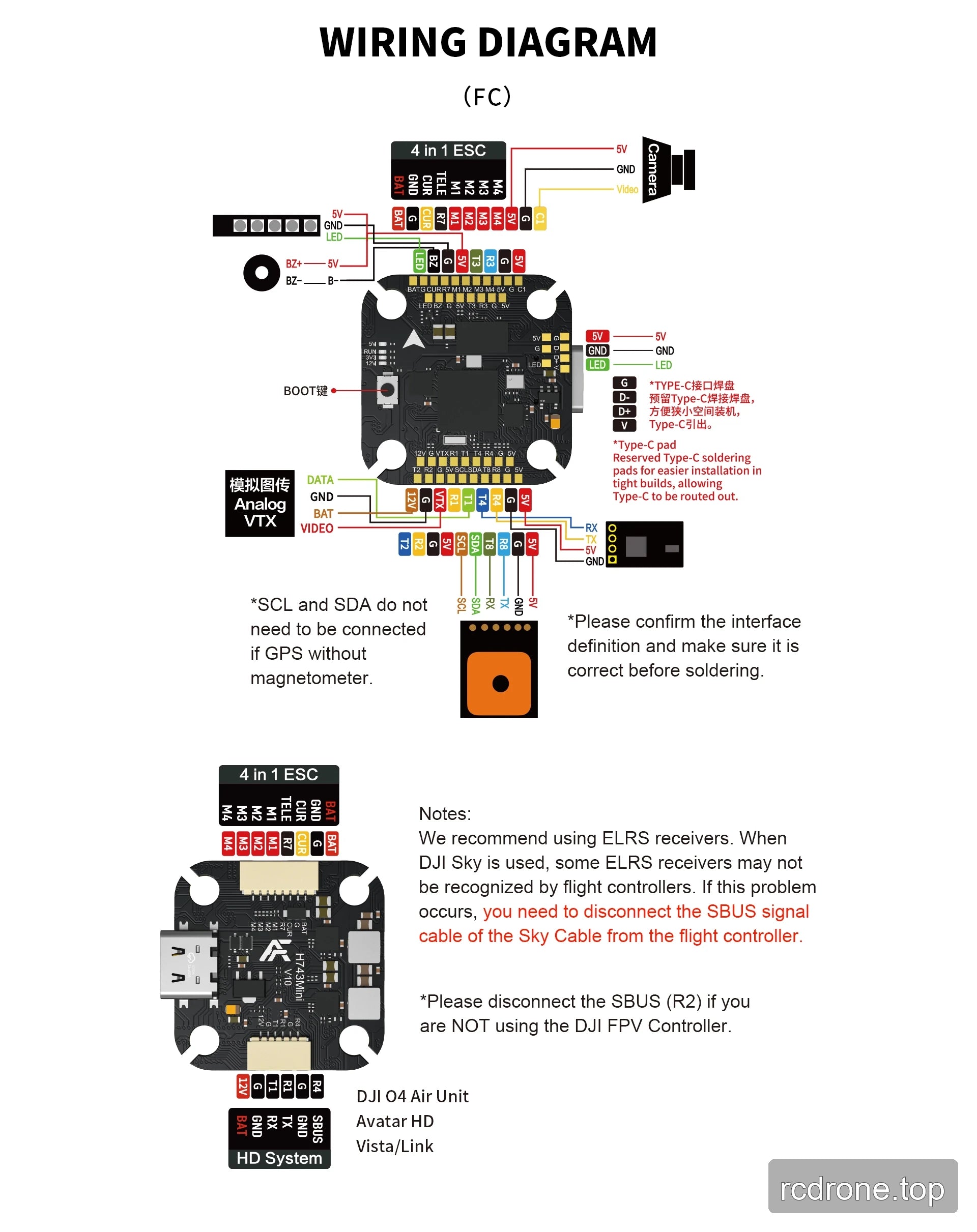

H743 Mini flight controller wiring for ESC, camera, VTX, GPS, receiver and HD systems
The flight controller's 4-in-1 ESC connection is labeled BAT, GND, CURR, TELE, M1, M2, M3 and M4. The camera connection is labeled 5V, GND and Video.

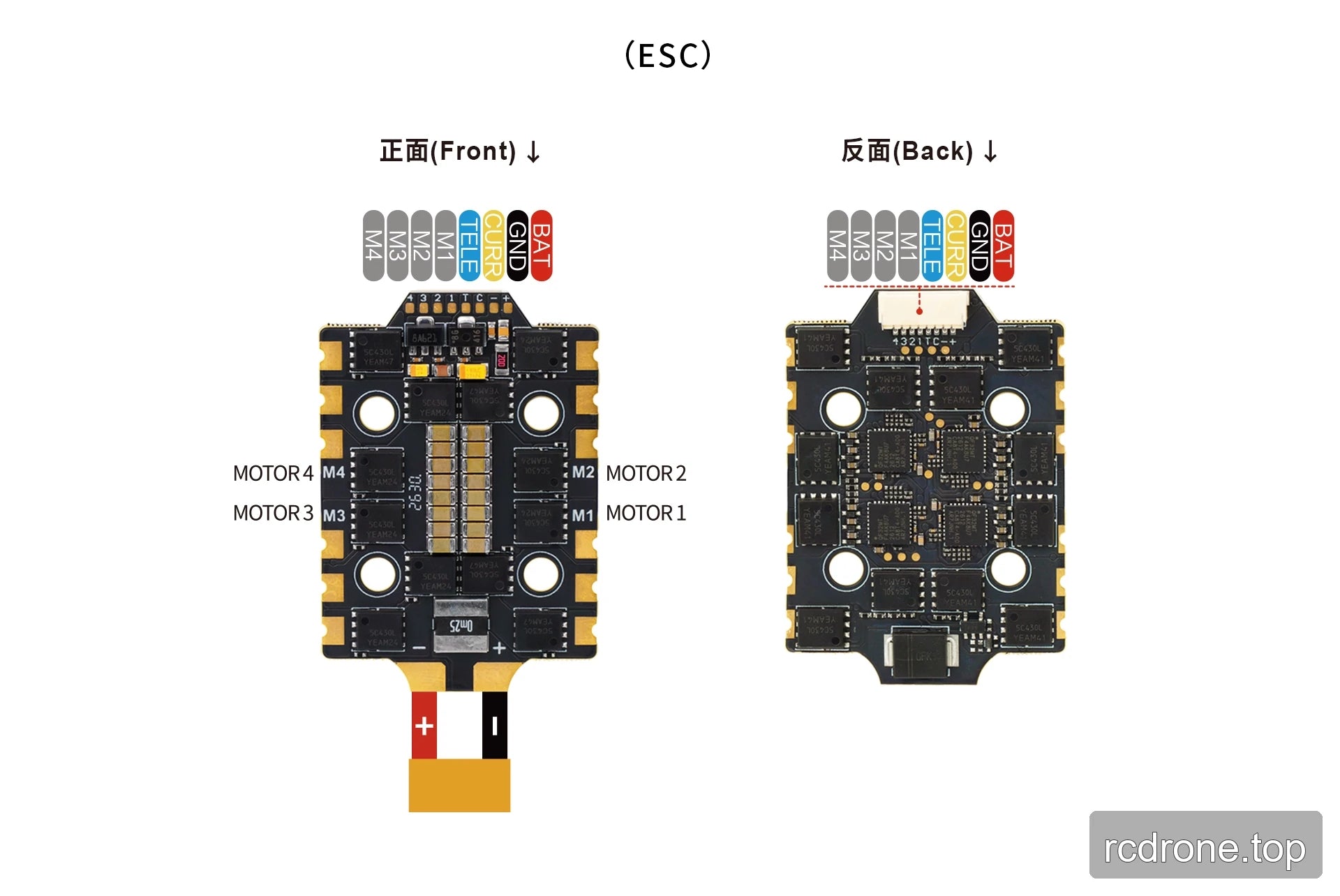

Argus Mini V2 60A 4-in-1 ESC motor and battery pad labels
The 4-in-1 ESC provides motor outputs M1, M2, M3 and M4. The ESC-to-flight-controller connection is labeled M4, M3, M2, M1, TELE, CURR, GND and BAT.

Dimensions and Construction

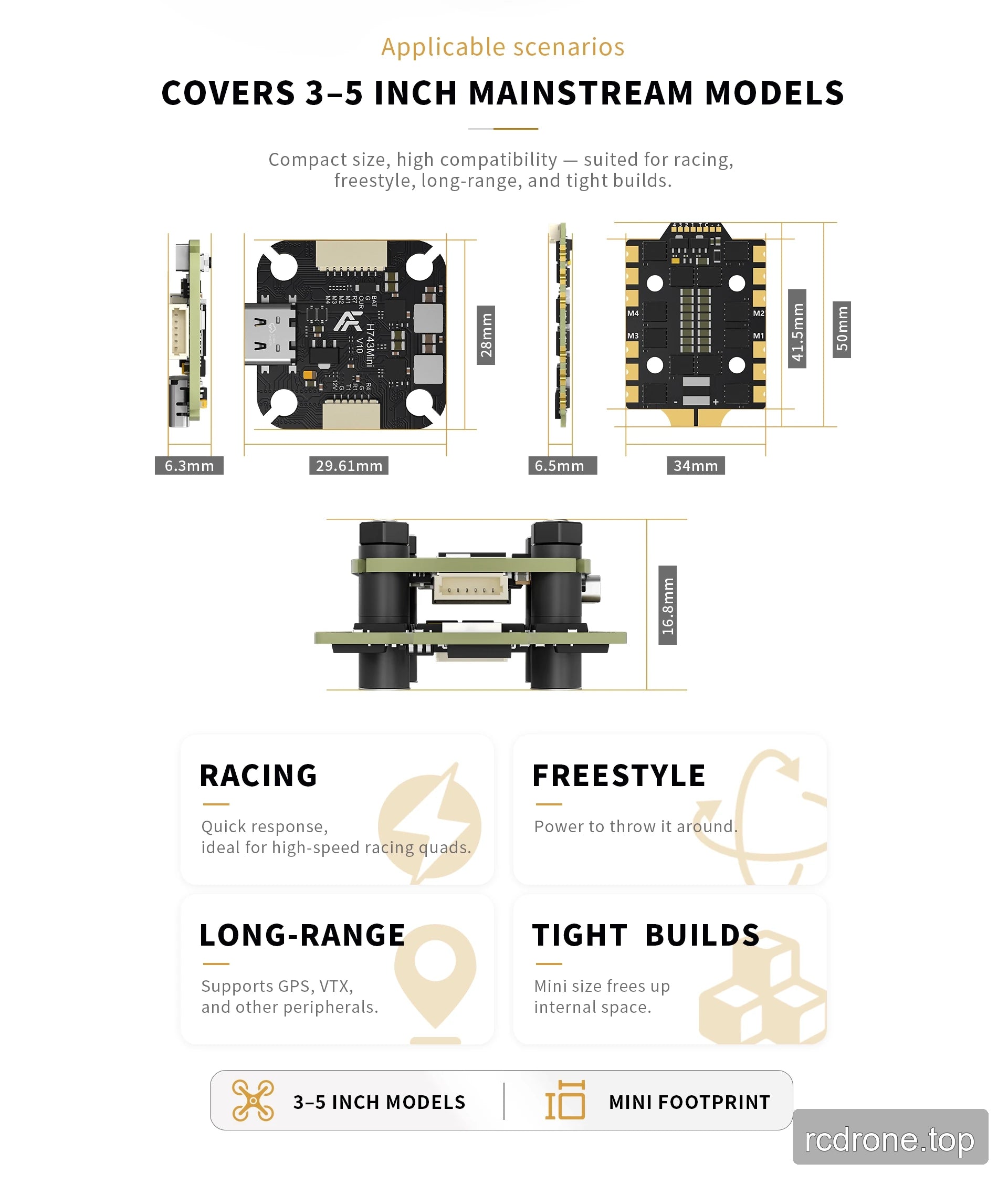

Argus Mini stack dimensions and 3–5 inch model applications
The stack is specified for 3–5 inch models. The flight-controller board dimensions shown are 29.61mm by 28mm, with a shown thickness of 6.3mm.

Product Views

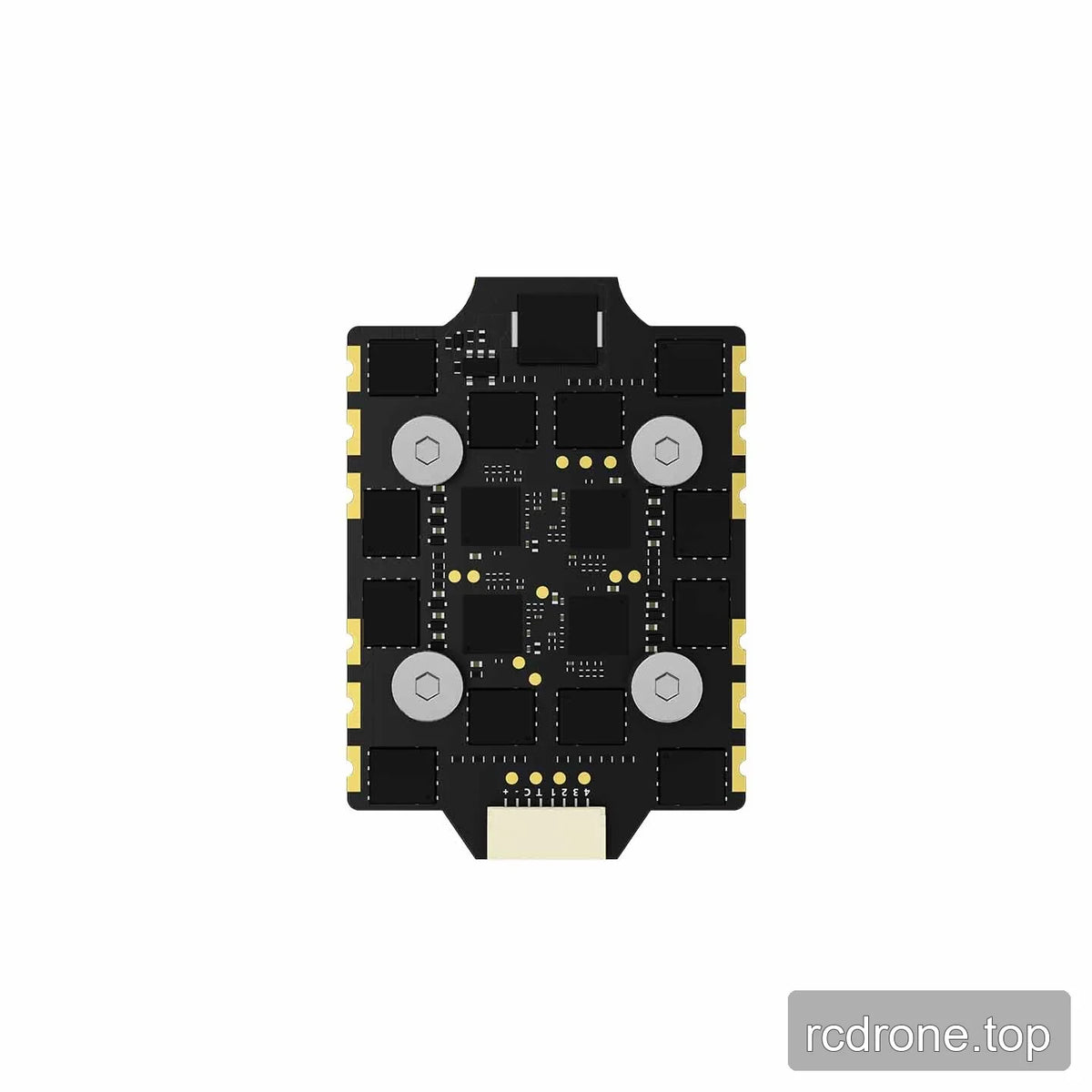

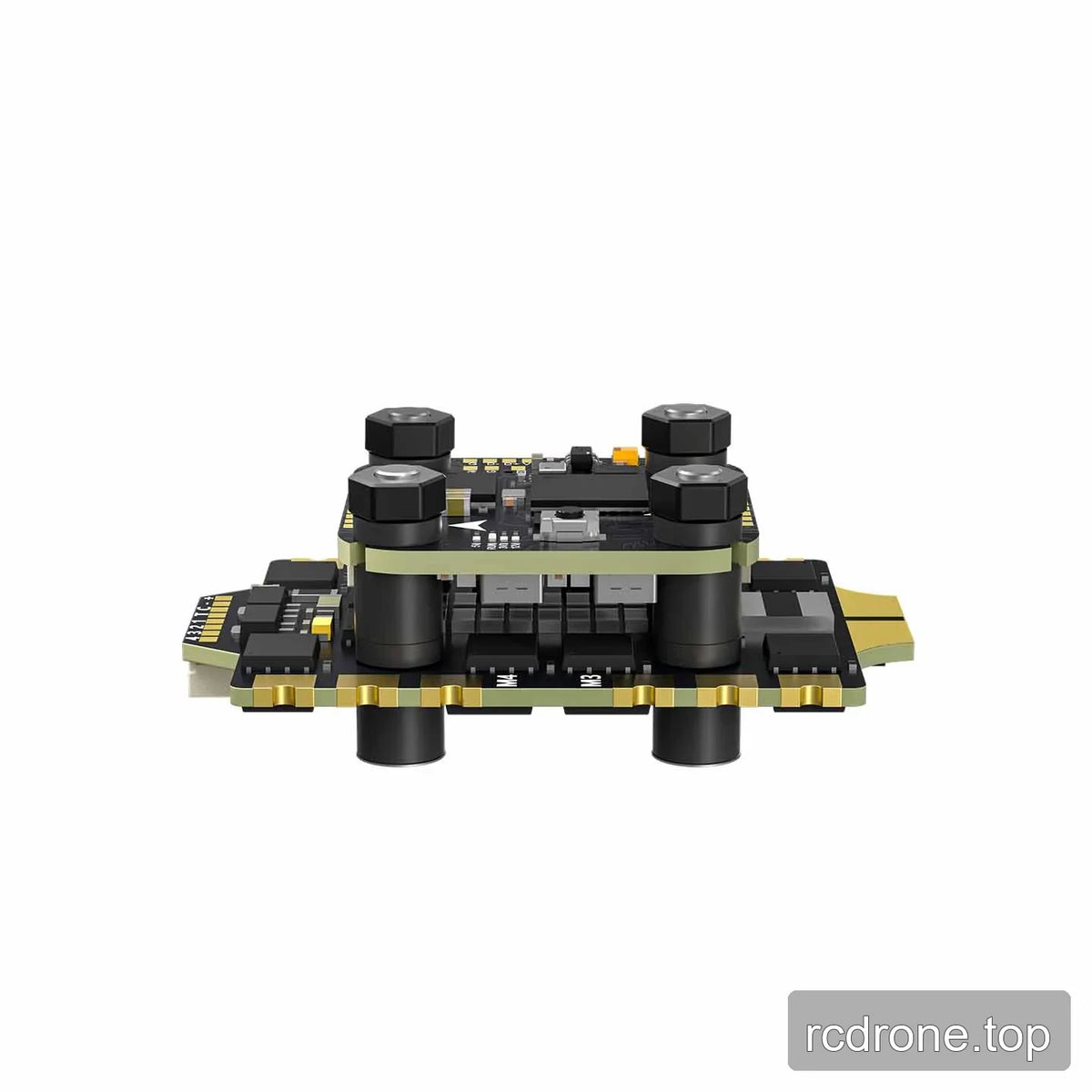

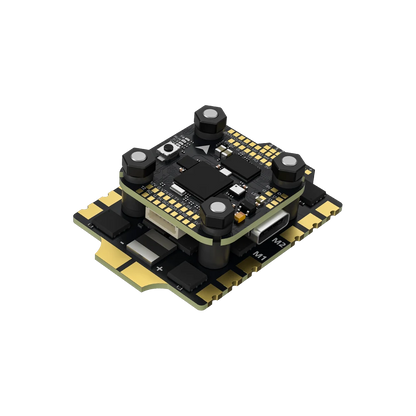

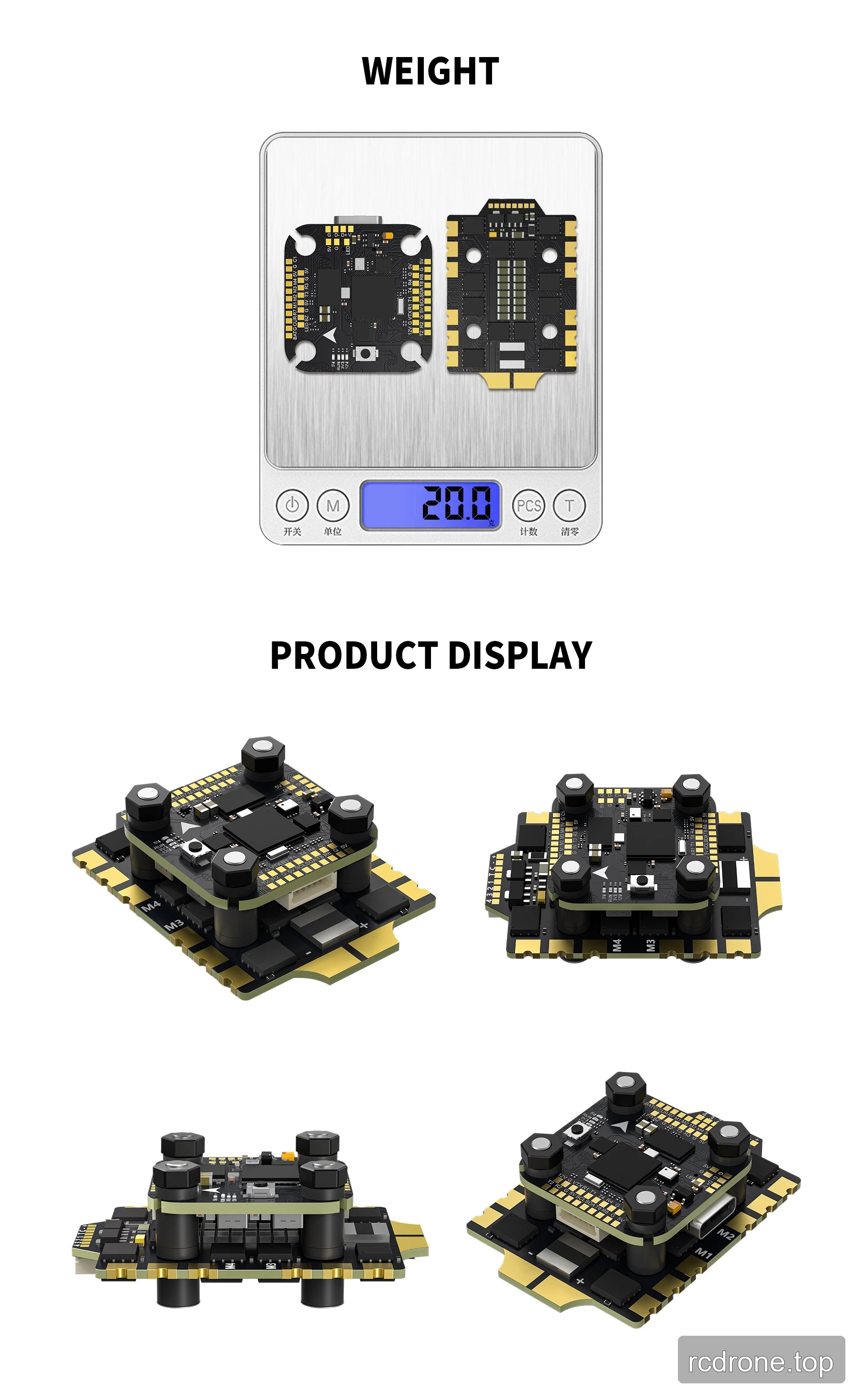

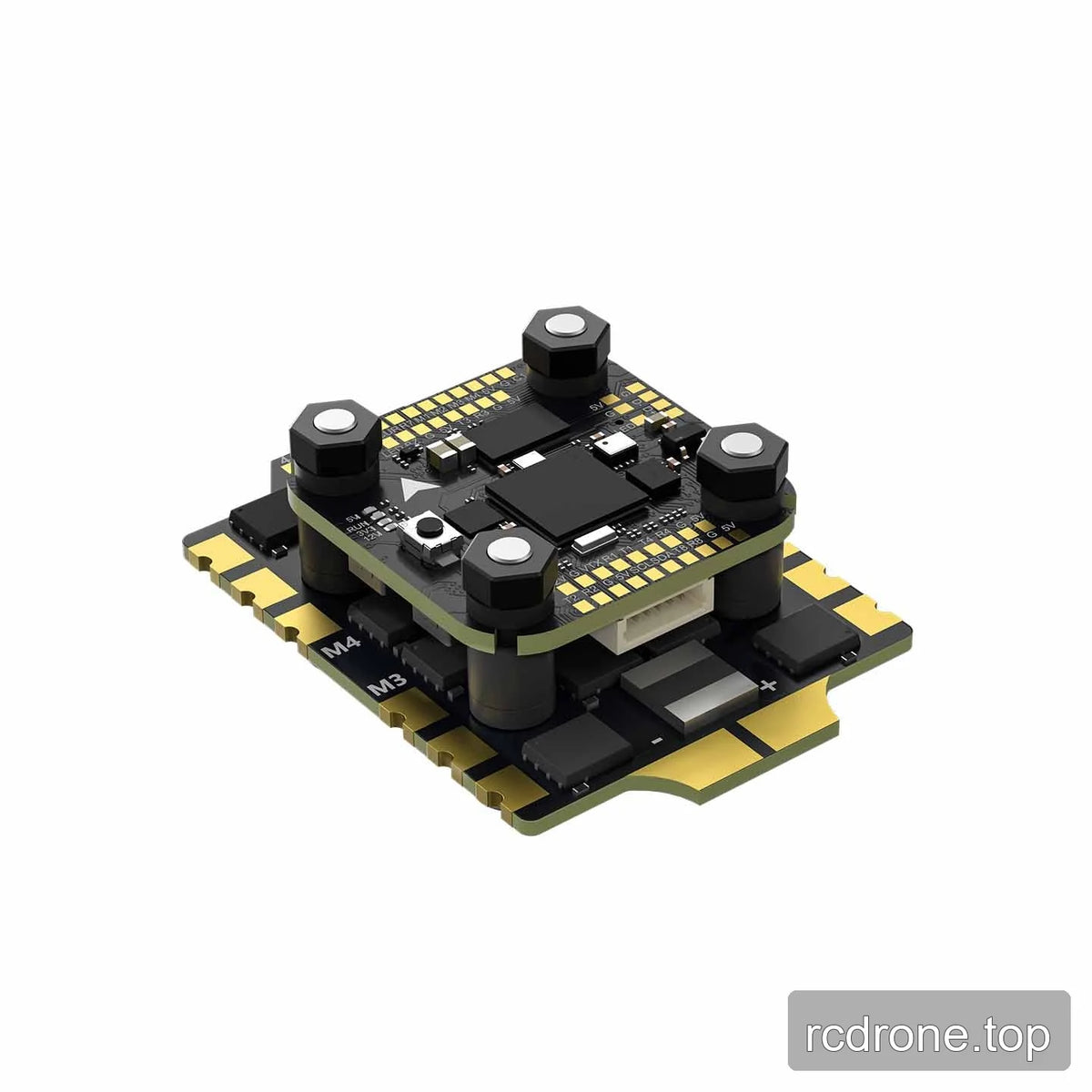

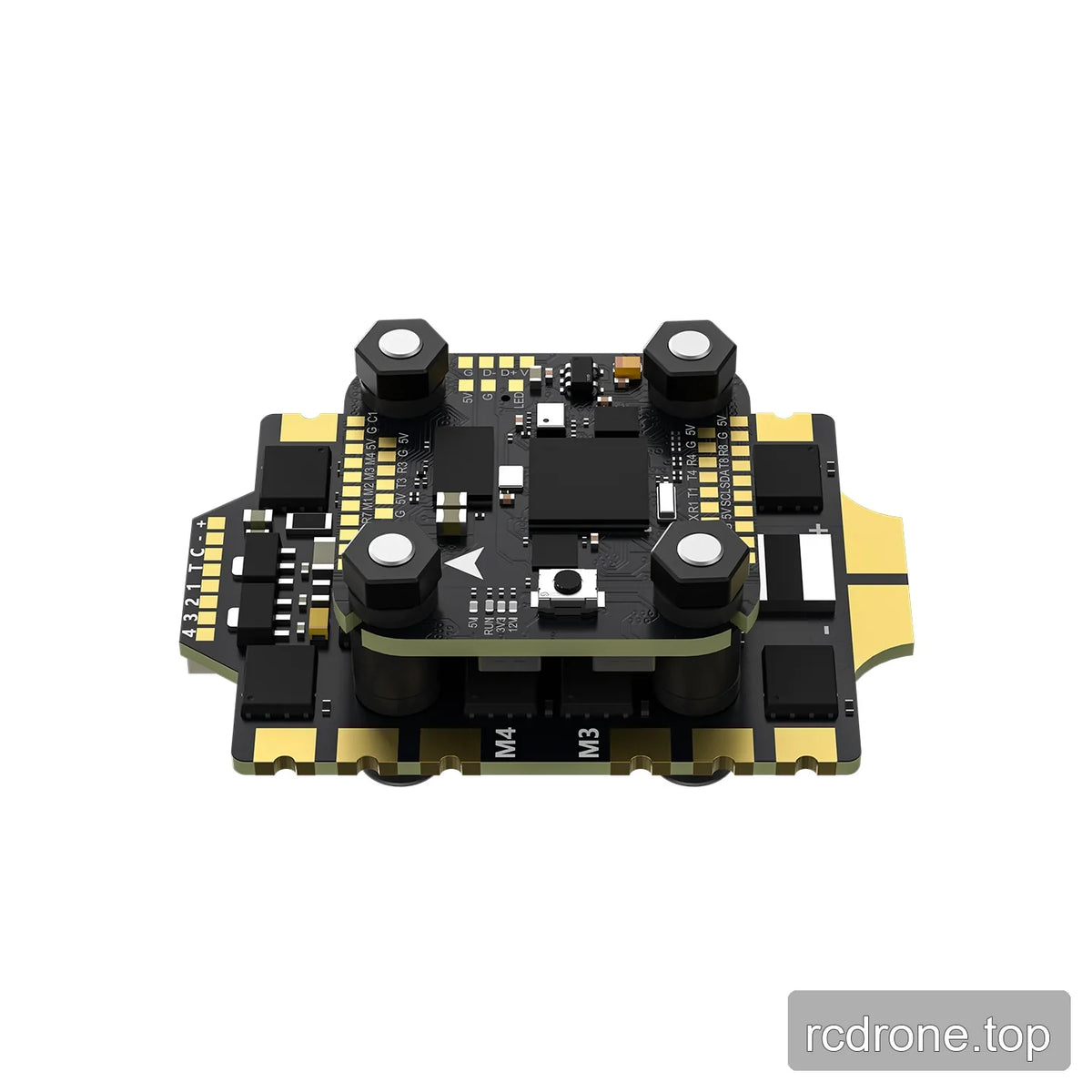

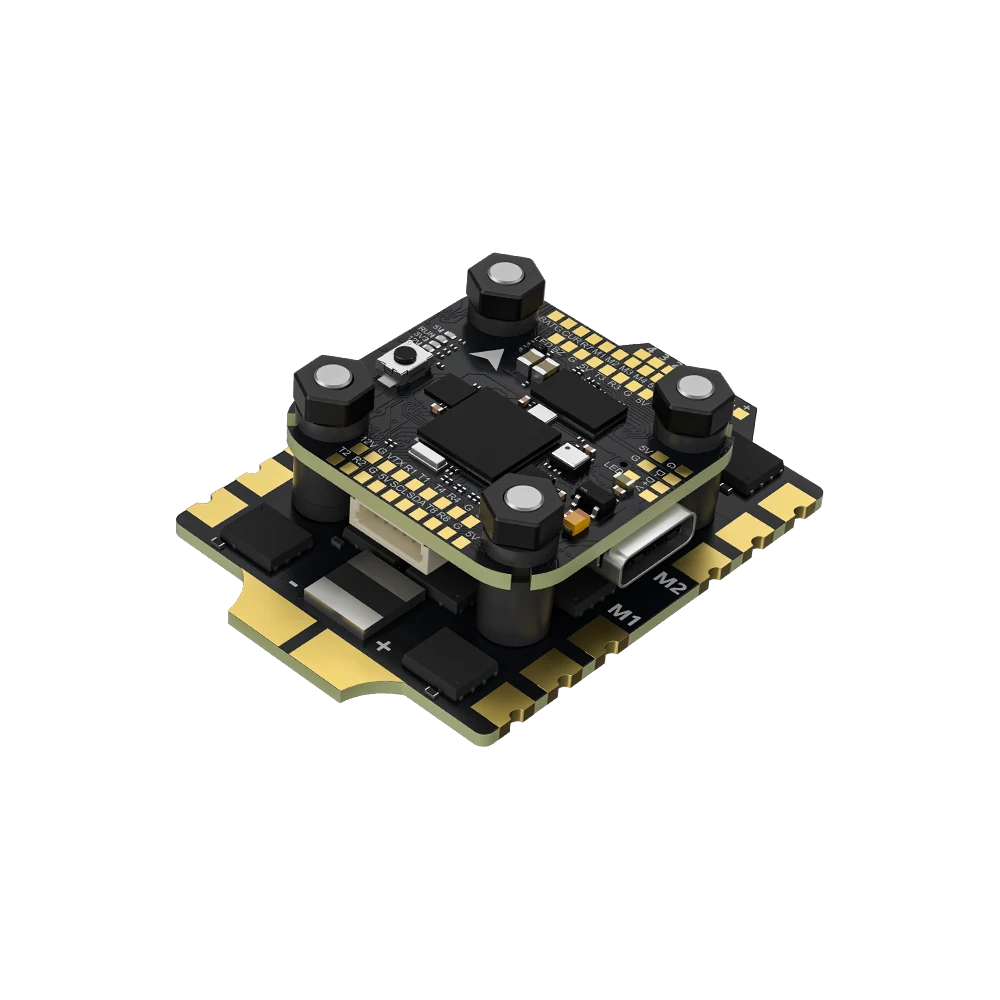

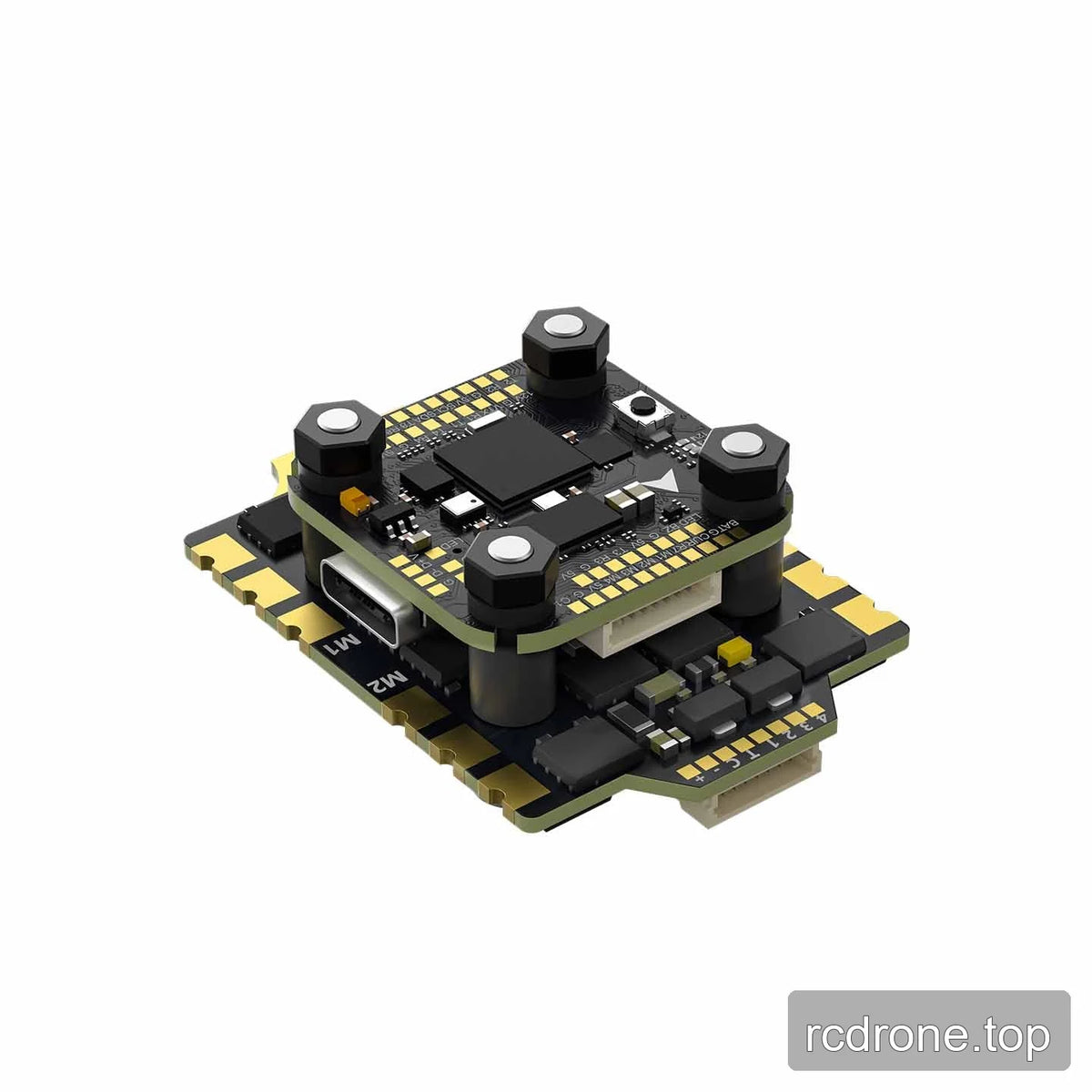

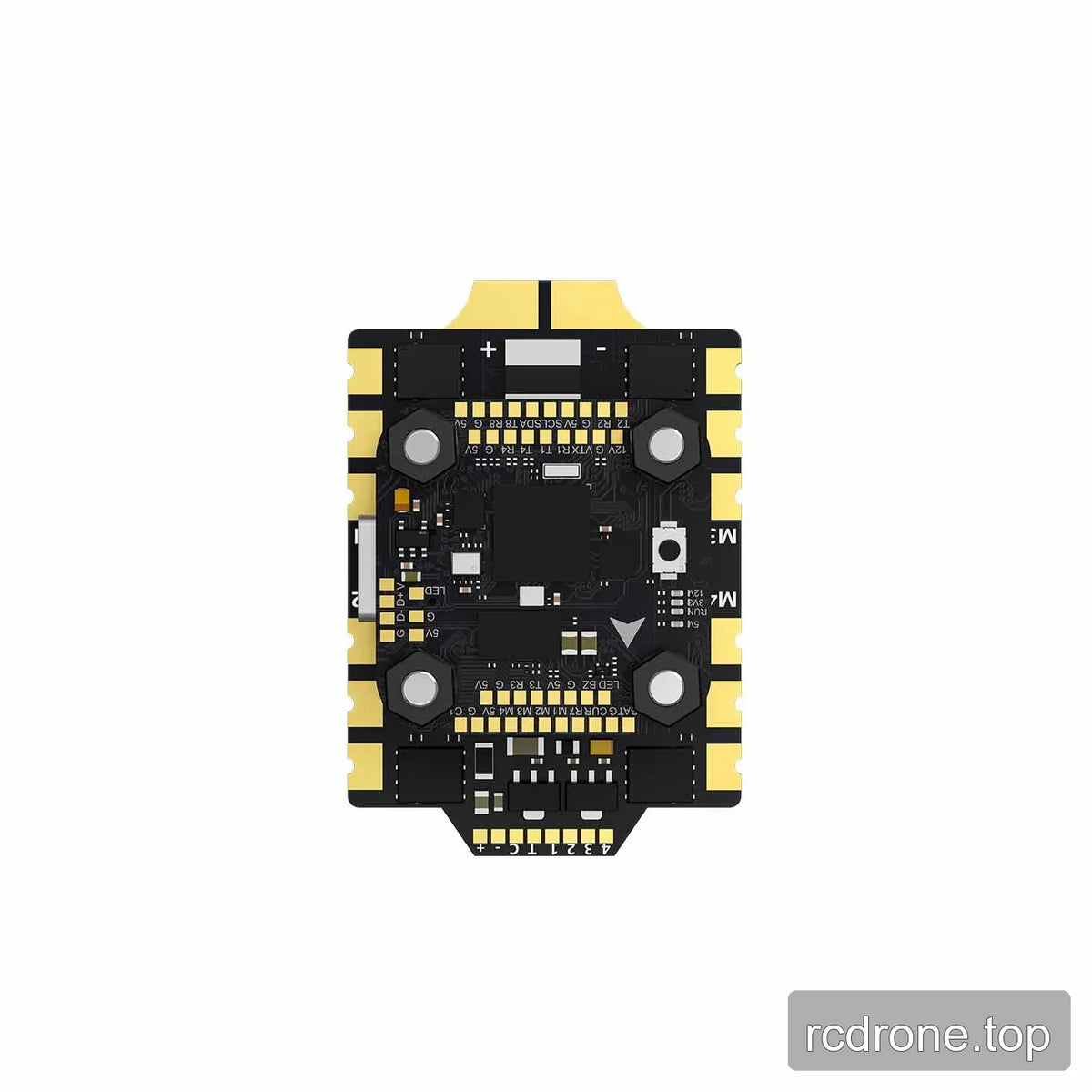

Assembled Argus Mini 60A and H743 stack from multiple angles
Assembled Argus Mini 60A and H743 stack shown on a scale and from multiple angles

Package Contents

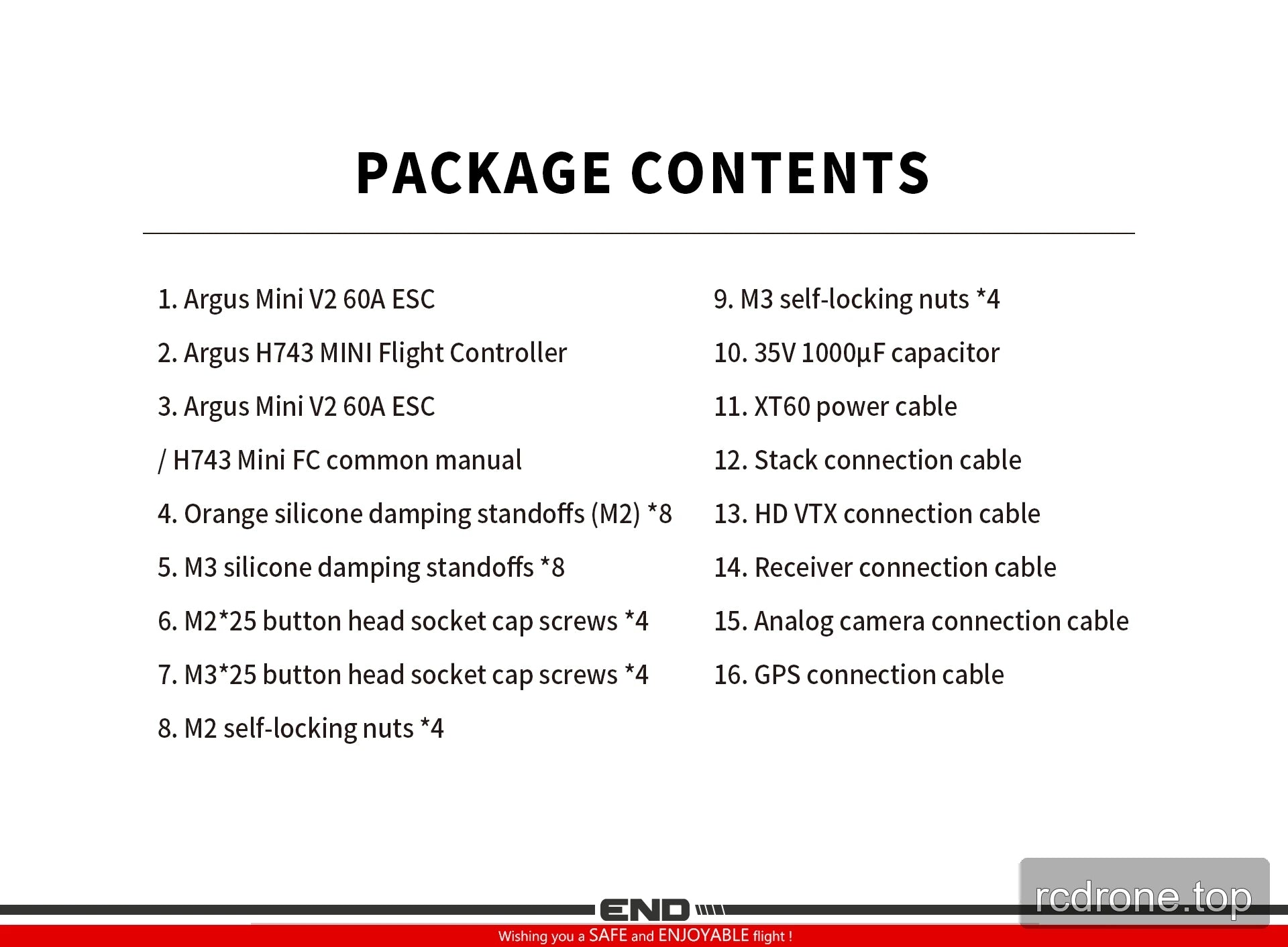

Package contents for the Argus Mini V2 60A ESC and H743 Mini flight controller stack
The Basic Kit includes 1 Argus Mini V2 60A ESC. The Basic Kit includes 1 Argus H743 MINI Flight Controller.
