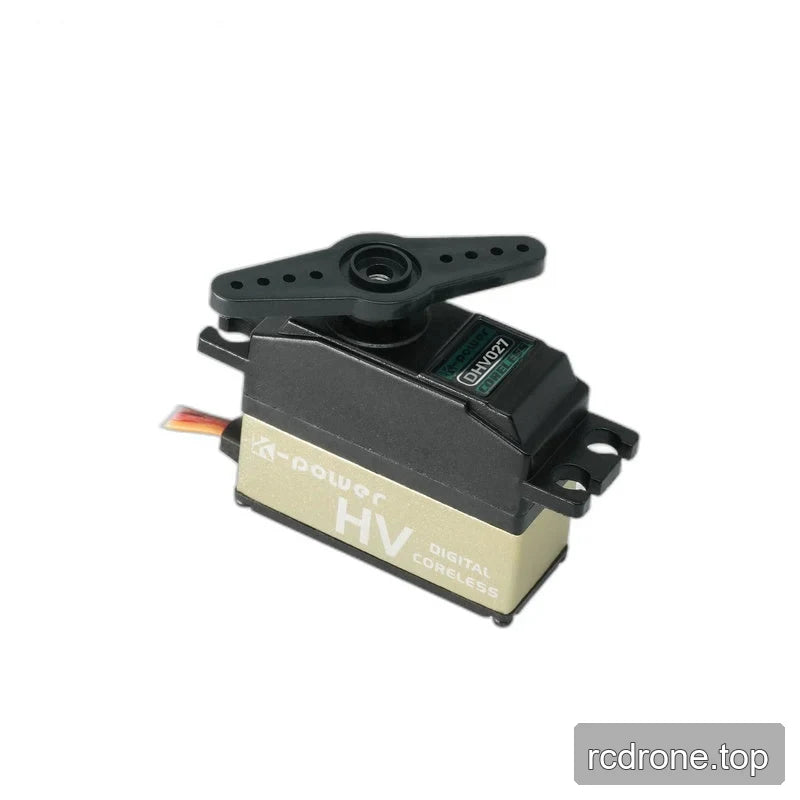

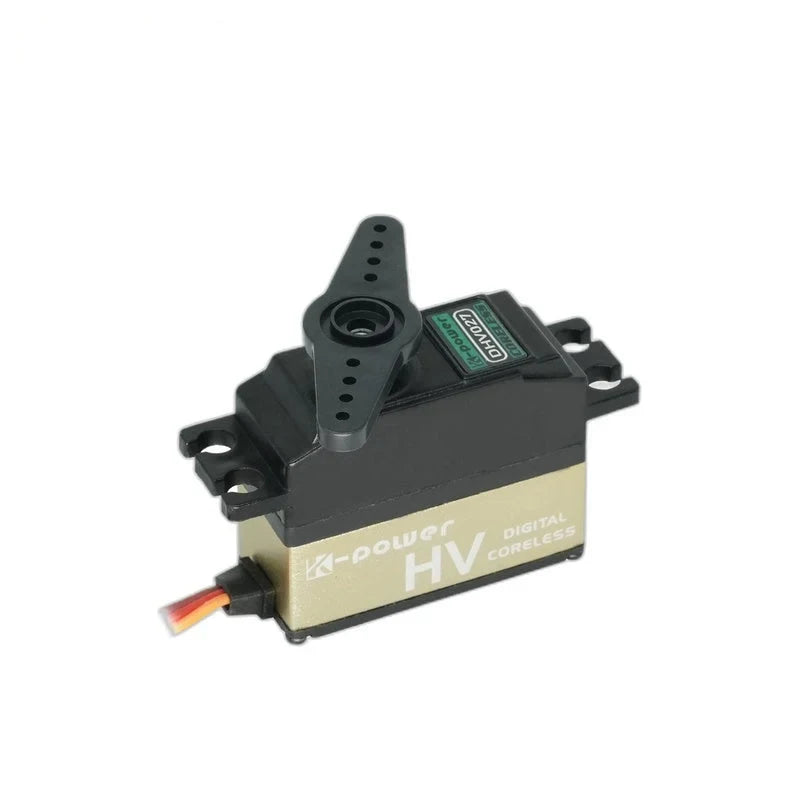

Kpower DHV027 Coreless Servo Motor, 4.8–8.4 V, Metal Gears for Robotic Arm Positioning

Kpower

$41.00 USD

Oferta Vendido

Impostos incluídos. Envio calculado no momento do pagamento.

Version DHV027

Quantidade

Ver detalhes completos

Overview

The Kpower DHV027 is a coreless servo motor with metal gears for controlled positioning in robotic arms and joint mechanisms. Its 35.8 × 15 × 29 mm body weighs 28 g and operates from 4.8–8.4 V. A 120° travel range, customizable travel angle and 25T output spline provide key mechanical selection details, while potentiometer position sensing and a 50–333 Hz working frequency define further control requirements.

Features

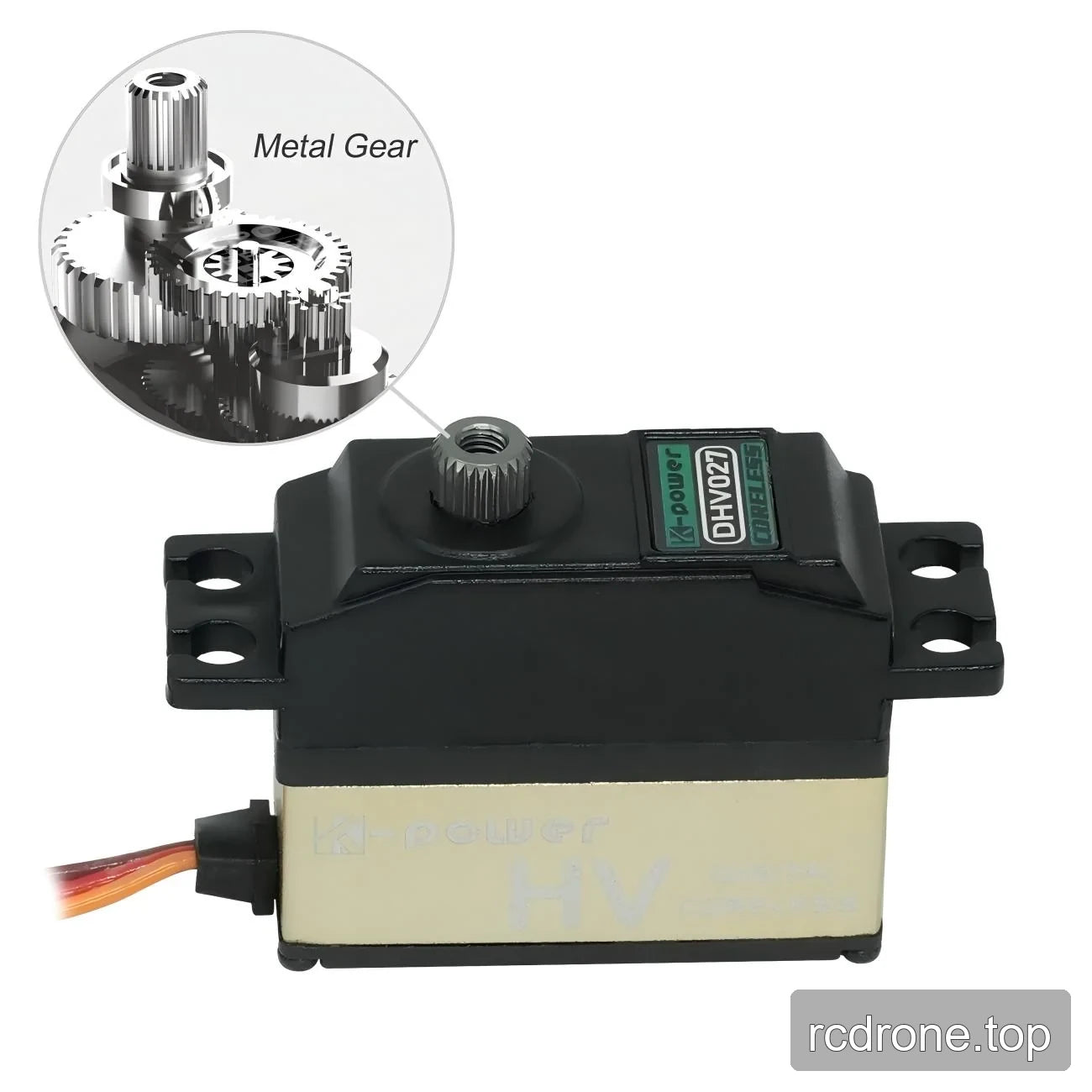

Coreless motor with metal gears.
Potentiometer position sensor and two ball bearings (2BB).
Plastic and aluminum-alloy case.

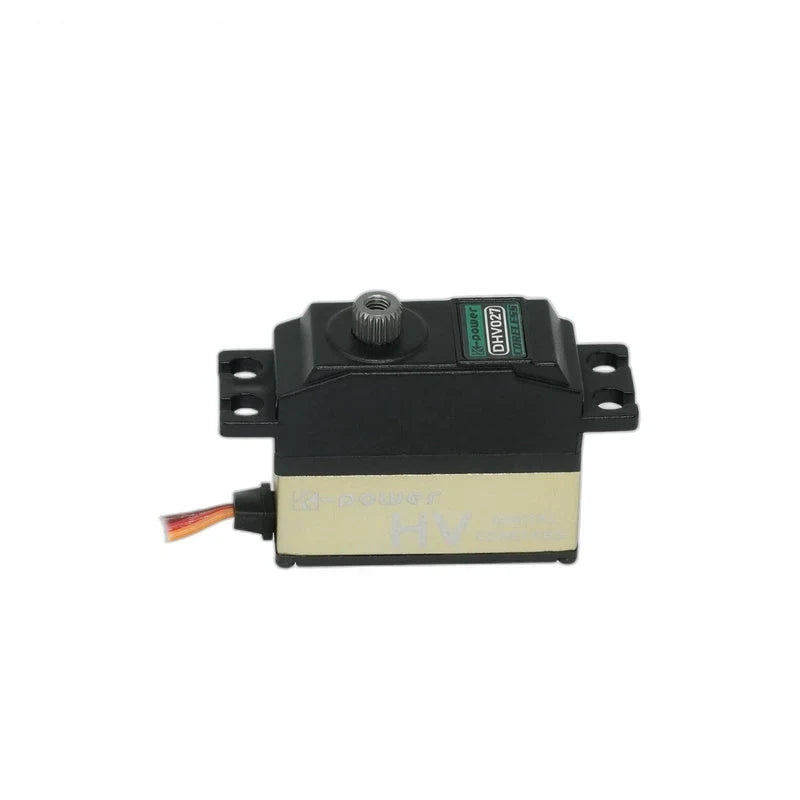

Splined output shaft with a central threaded opening; horn spline specification: 25T, Ø5.79 mm.
Mounting ears at both ends, with two mounting openings per end.
120° travel angle range with customization available.

Specifications

Parameter	Value
Model	DHV027
Stall torque	3.8 kg
Rated torque	1 kg
No-load speed	0.05 s
Weight	28 g
Dimensions	35.8 × 15 × 29 mm
Travel angle range	120° (customizable)
Operating voltage	4.8–8.4 V
Horn gear spline	25T, Ø5.79 mm
Gear material	Metal
Motor	Coreless motor
Protocol	PWM \| TTL \| RS-485
No-load current	2000 mA
Position sensor	Potentiometer
Case material	Plastic + aluminum alloy
Ball bearings	2BB
Working frequency	50–333 Hz
Operating temperature	−10 to 50 °C
IP rating	IP42

Applications

Robotic arm linkage positioning: Use the 120° travel range for limited-angle linkage movement, with a splined output for mechanical coupling.
Compact robot joint mechanisms: The 28 g body and mounting ears support installation where actuator size, mass and mounting layout are important design constraints.
