Overview

The Kpower DHV150 is a coreless digital servo motor with metal gears for RC models, robotic mechanisms and compact positioning tasks. Its 40 × 20 × 39.4 mm body weighs 63 g and operates from 4.8–8.4 V. Voltage-dependent performance reaches 16.5 kg·cm torque and 0.07 s/60° at 7.4 V, helping buyers assess movement speed, load requirements and available installation space.

Features

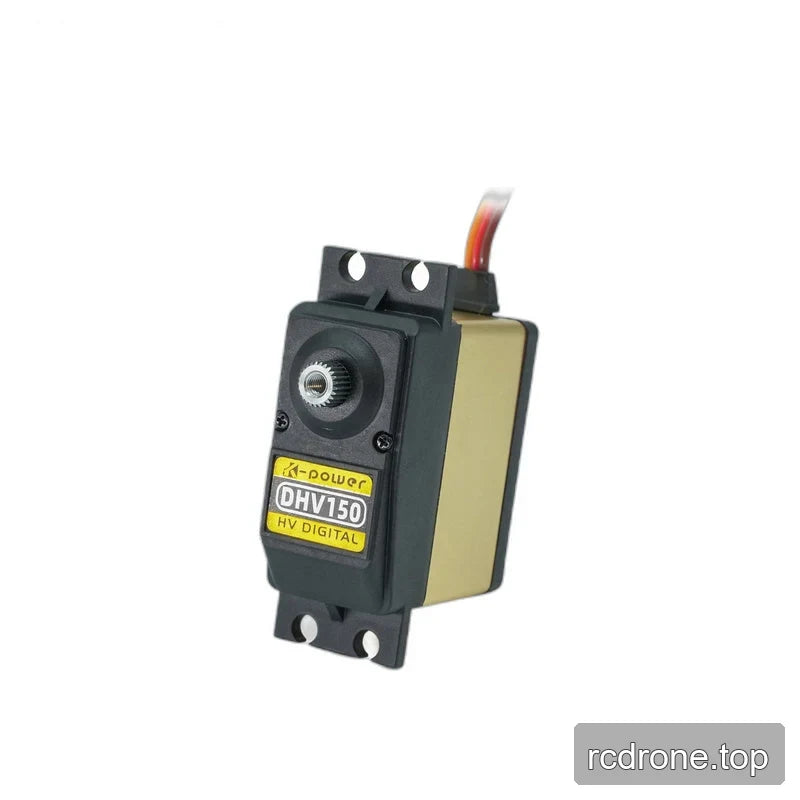

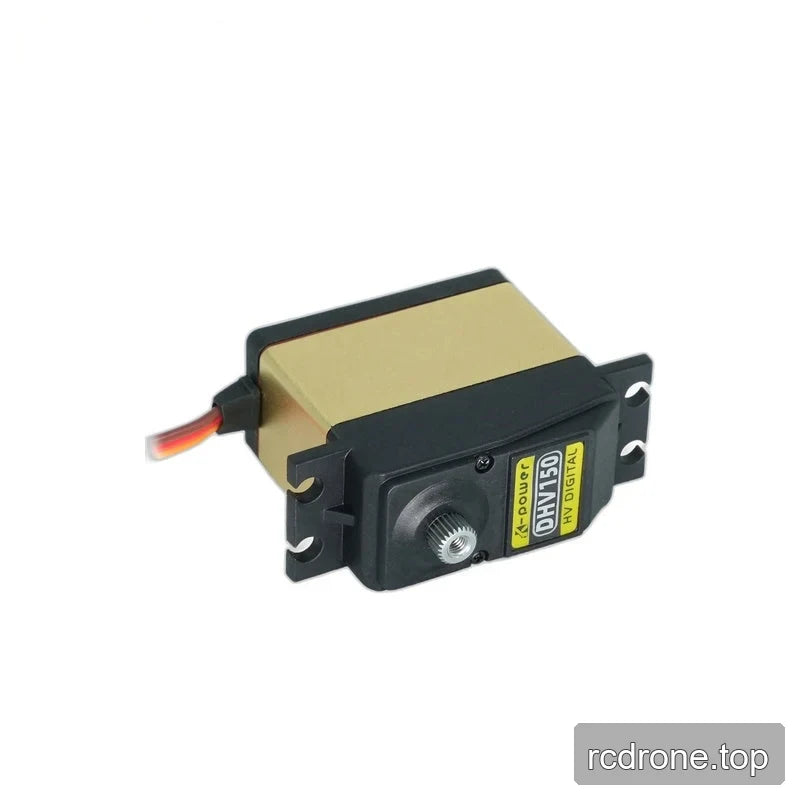

Coreless motor with metal gears and an HV DIGITAL marking.
Potentiometer position sensing and two ball bearings (2BB).

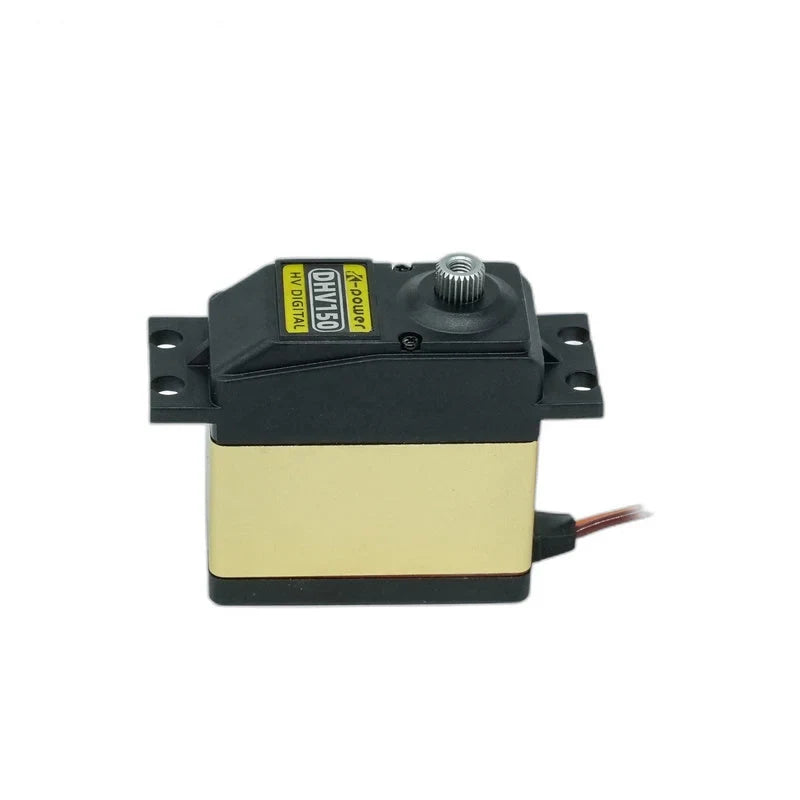

Plastic and aluminum-alloy case with mounting flanges and four mounting holes.

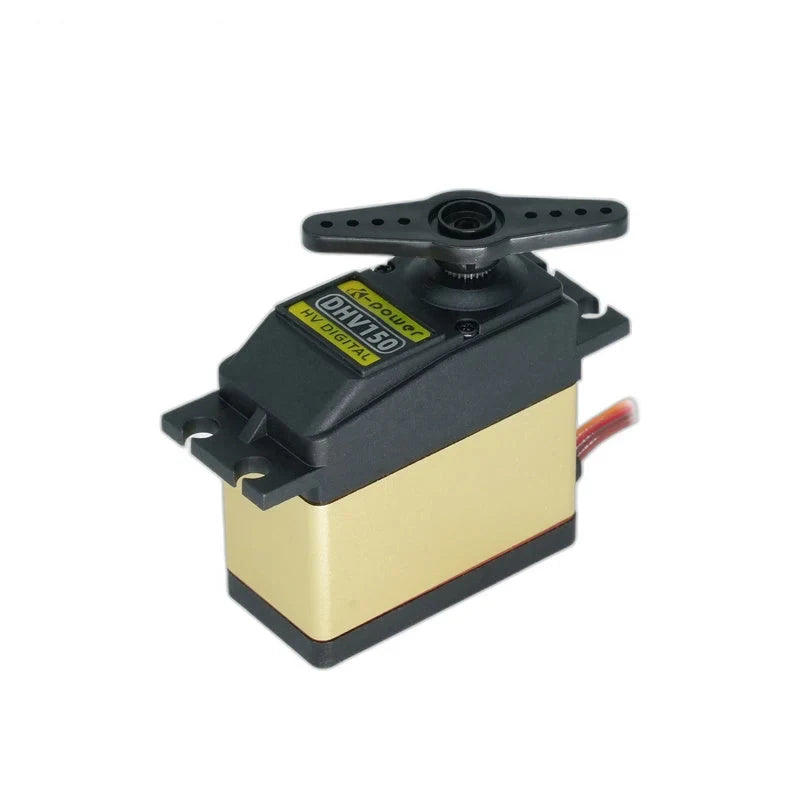

Splined output shaft with a 25T, Ø5.82 mm horn interface.
Three-conductor lead.
120° travel angle, with customization indicated.

Specifications

Parameter	DHV150
Model	DHV150
Operating voltage	4.8–8.4 V
Stall torque	16.5 kg·cm at 7.4 V
Rated torque	4 kg
No-load speed	0.07 s/60° at 7.4 V
Weight	63 g
Dimensions	40 × 20 × 39.4 mm
Travel angle range	120°; customizable
Horn gear spline	25T, Ø5.82 mm
Gear material	Metal
Motor	Coreless motor
Listed protocols	PWM, TTL, RS-485
No-load current	3500 mA
Position sensor	Potentiometer
Case material	Plastic and aluminum alloy
Ball bearings	2BB
Working frequency	50–333 Hz
Operating temperature	−10 to 50 °C
IP rating	IP42

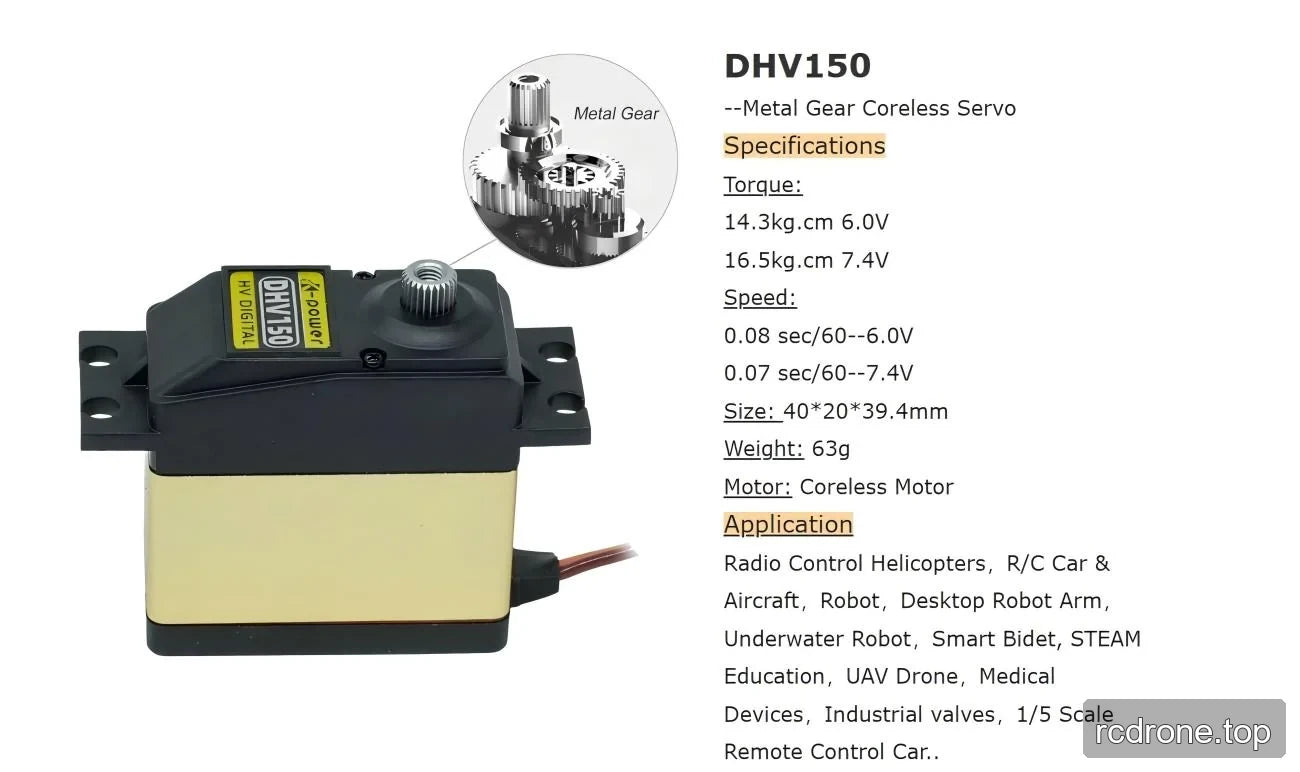

Voltage-Dependent Performance

Operating voltage	Torque	Speed
6.0 V	14.3 kg·cm	0.08 s/60°
7.4 V	16.5 kg·cm	0.07 s/60°

Applications

RC cars: Steering and linkage actuation, including 1/5-scale RC-car projects, using the metal gear train and splined horn interface.
RC aircraft, helicopters and UAV drones: Control-linkage positioning where the 63 g weight, mounting dimensions and voltage-dependent movement speed suit the mechanism.
Robots, desktop robotic arms and STEAM education: Joint and linkage positioning using potentiometer feedback and 120° travel. For underwater-robot projects, keep the servo in a dry, protected compartment; IP42 is not an immersion rating.
Smart-home mechanisms and smart bidets: Compact linkage positioning using the 40 × 20 × 39.4 mm body and flange mounting.
Industrial valves: Rotary linkage actuation where the required travel and load fit the servo's specifications.
Medical-device mechanisms: Compact mechanical positioning using the coreless motor and potentiometer feedback.
