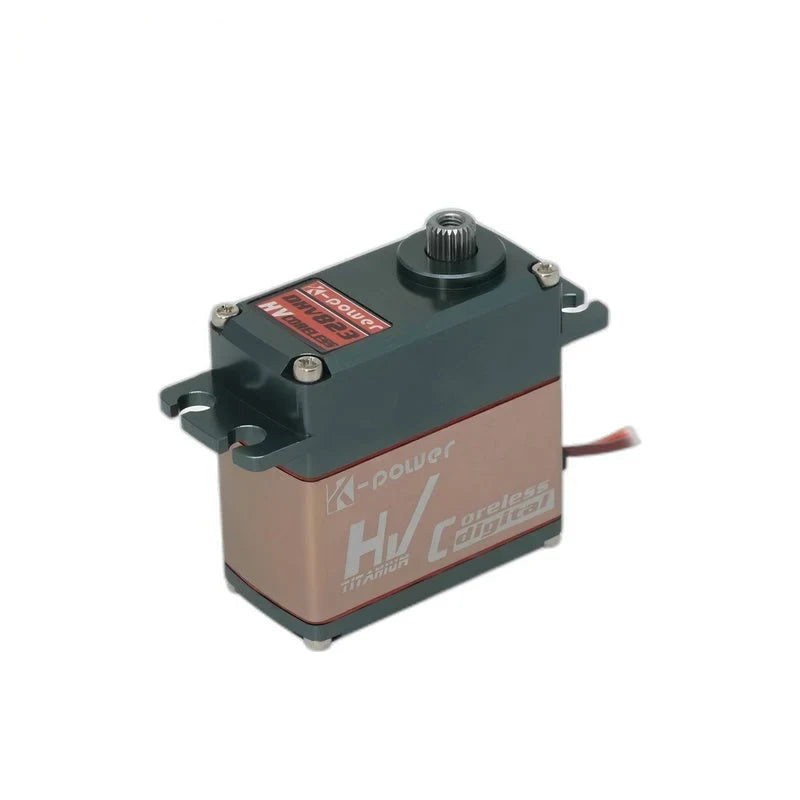

• Bronze-colored servo with dark housing, splined output shaft and mounting tabs, viewed at an angle with lead on the right.

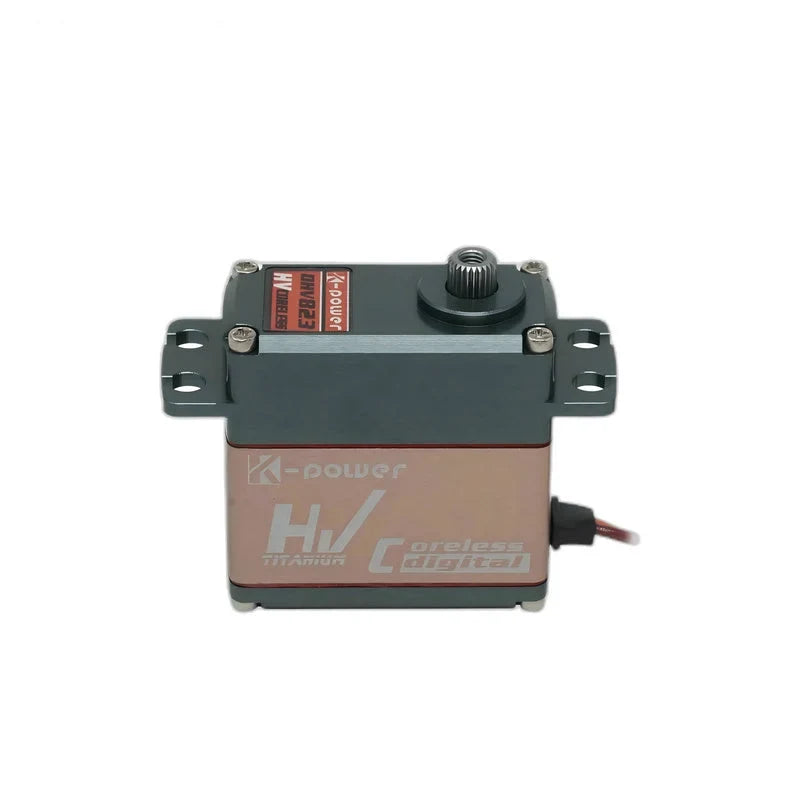

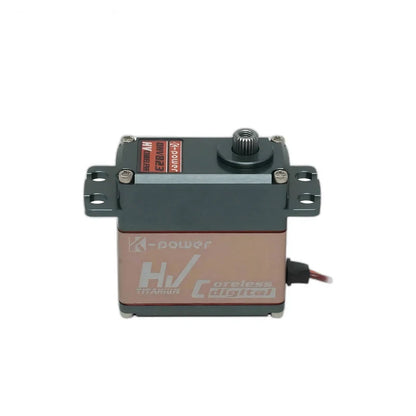

  • Straight-on view of servo showing the bronze-colored labeled side, top output shaft, mounting tabs and right-side wire exit.

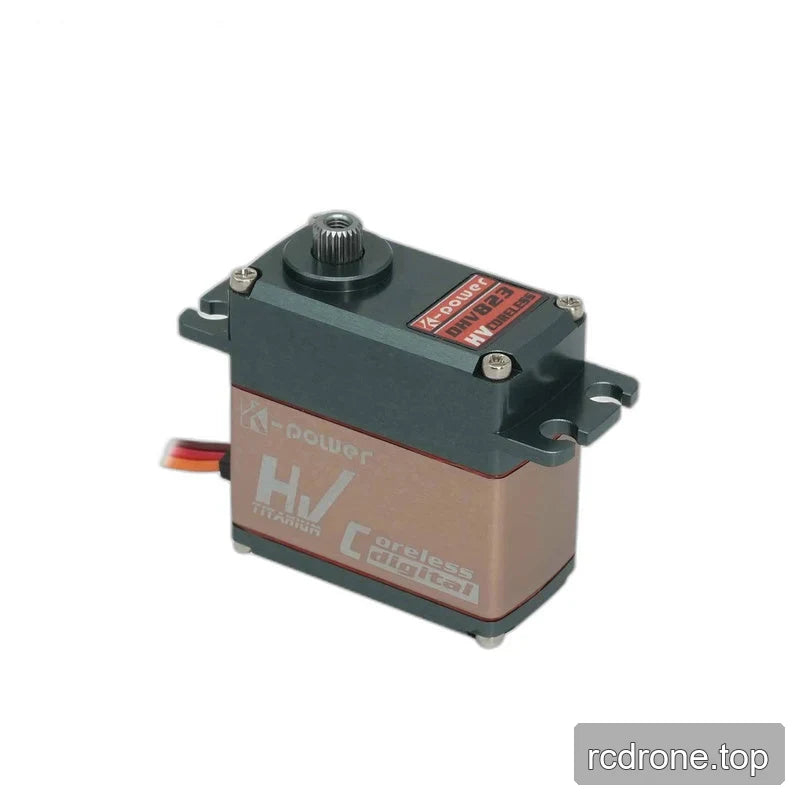

  • Servo viewed from the opposite angle, showing the right end of its bronze-colored case, top model label and lead on the left.

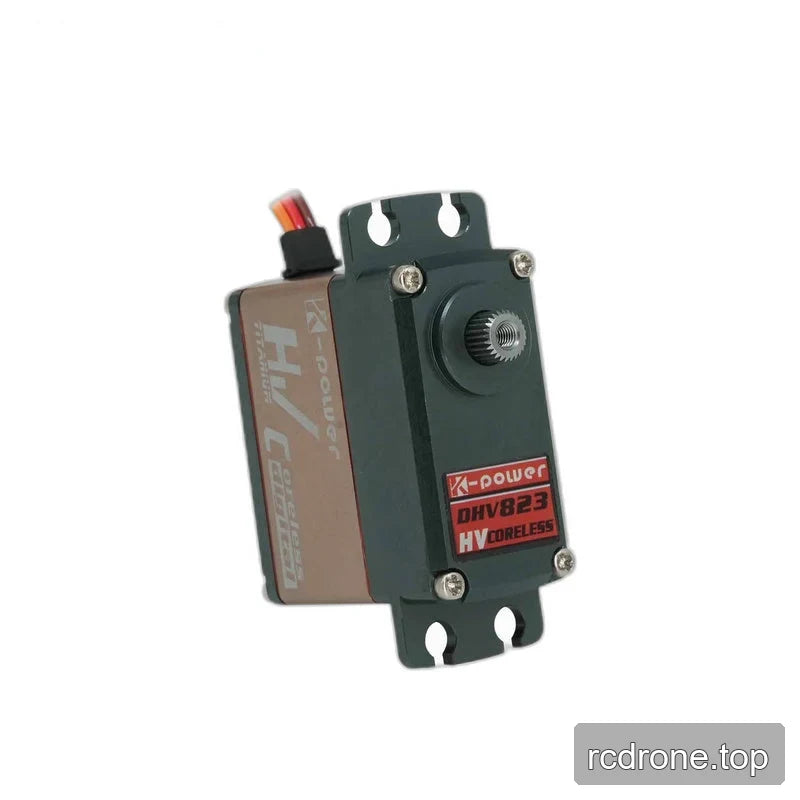

  • Tilted servo showing the splined shaft with threaded center, DHV823 HV coreless label and slotted mounting tabs.

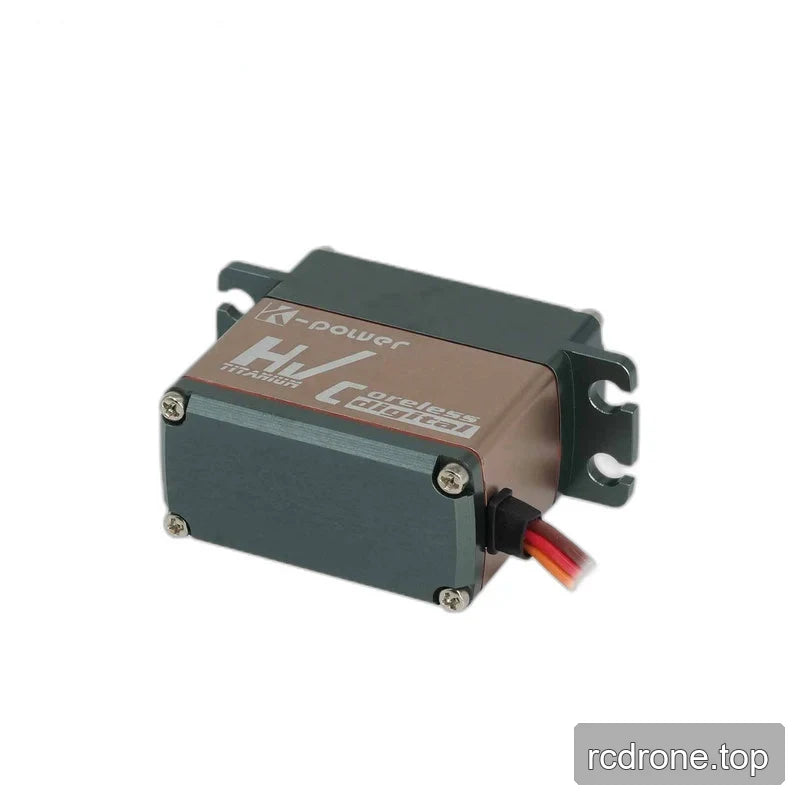

  • Angled underside view of servo with a dark four-screw bottom plate, bronze-colored side and three-color wire lead.
1 5

Kpower DHV823 Coreless Digital Servo Motor, 4.8–8.4 V, 330 Hz PWM for RC Cars and Robotics

Kpower DHV823 Coreless Digital Servo Motor, 4.8–8.4 V, 330 Hz PWM for RC Cars and Robotics

Kpower

$115.00 USD
$115.00 USD
Oferta Vendido
Impostos incluídos. Envio calculado no momento do pagamento.
Version
  • PayPal
  • Visa
  • Mastercard
  • American Express
  • JCB
  • Discover
  • Diners Club
  • Google Pay
  • Apple Pay
Ver detalhes completos

Overview

The Kpower DHV823 is a coreless digital R/C servo motor for radio-controlled vehicle steering and positioning mechanisms in robotics and automation. Its 4.8–8.4 V operating range and 330 Hz PWM control help buyers match power and control requirements. With an aluminum-alloy housing, metal gears and dual ball bearings, it delivers a specified no-load speed of 0.08 s/60° at 7.4 V in a 40 × 20 × 39 mm package.

Features

  • Energy-efficient coreless motor for responsive positioning.
  • CNC-machined full aluminum-alloy housing.
  • Precision-machined, impact-resistant metal gears and dual ball bearings (2BB).
  • Potentiometer position sensing.
  • Digital PWM control, including an advertised 330 Hz operating frequency.
  • 25T output spline with a 5.9 mm diameter.
  • Wire length, control type and position sensor customization are subject to supplier confirmation; request details before specifying a custom unit.

Specifications

Voltage-dependent performance

Parameter At 6.0 V At 7.4 V
Stall torque 15.3 kg·cm 16.8 kg·cm
No-load speed 0.09 s/60° 0.08 s/60°

Electrical, control and mechanical details

Parameter Value
Model DHV823
Operating voltage 4.8–8.4 V
Nominal advertised voltage 7.4 V
Rated torque 4 kg
Weight 72 g
Dimensions 40 × 20 × 39 mm (1.57 × 0.79 × 1.54 in)
Wire length 290 mm
Horn gear spline 25T, diameter 5.9 mm
Gear material Metal
Motor Coreless motor
Listed control protocols PWM, TTL, RS-485
Stall current 3200 mA
Position sensor Potentiometer
Case material Full aluminum alloy
Ball bearings 2BB — dual ball bearings
Working frequency 50–333 Hz; advertised PWM frequency: 330 Hz
Pulse length range 900–2100 μs
Operating temperature −10 to 50 °C
IP rating IP42

Applications

  • RC road and off-road vehicle steering: the coreless motor and 0.08 s/60° no-load speed at 7.4 V support responsive steering-linkage positioning.
  • Service robots and industrial robots: use the potentiometer feedback and metal-geared output for controlled positioning of small mechanisms.
  • Industrial inspection robots and robot dogs: the 72 g weight and compact housing help with actuator placement in space-constrained positioning assemblies.
  • Industrial automatic testing equipment: use the servo to position fixtures or operate small test mechanisms with defined pulse commands.
  • Agricultural spraying machines, agricultural spraying drones and other UAV drones: use the compact servo for positioning control linkages or adjustable mechanisms.
  • Medical endoscope mechanisms: the compact housing and position sensor support mechanically controlled positioning tasks.

What's Included

  • 1 × Kpower DHV823 servo motor.
  • 1 × six-arm servo horn.
  • 1 × four-arm servo horn.
  • 1 × double-arm servo horn.
  • 1 × circular servo horn.
  • 4 × black mounting grommets.
  • 4 × gold-colored flanged mounting sleeves.
  • 4 × silver-colored mounting screws.
  • 1 × black horn-retaining screw.

Documents

Product Videos

Visual Details

Product Video

Features and Design

Kpower DHV823 servo with coreless motor, metal gear and PWM feature labels
The DHV823 has an advertised speed of 0.08 sec/60°. The DHV823 is a 330 Hz PWM digital servo.
DHV823 R/C servo beside an off-road radio-controlled truck
The DHV823 has an advertised speed of 0.08 s/60°. The DHV823 supports 330 Hz PWM control.

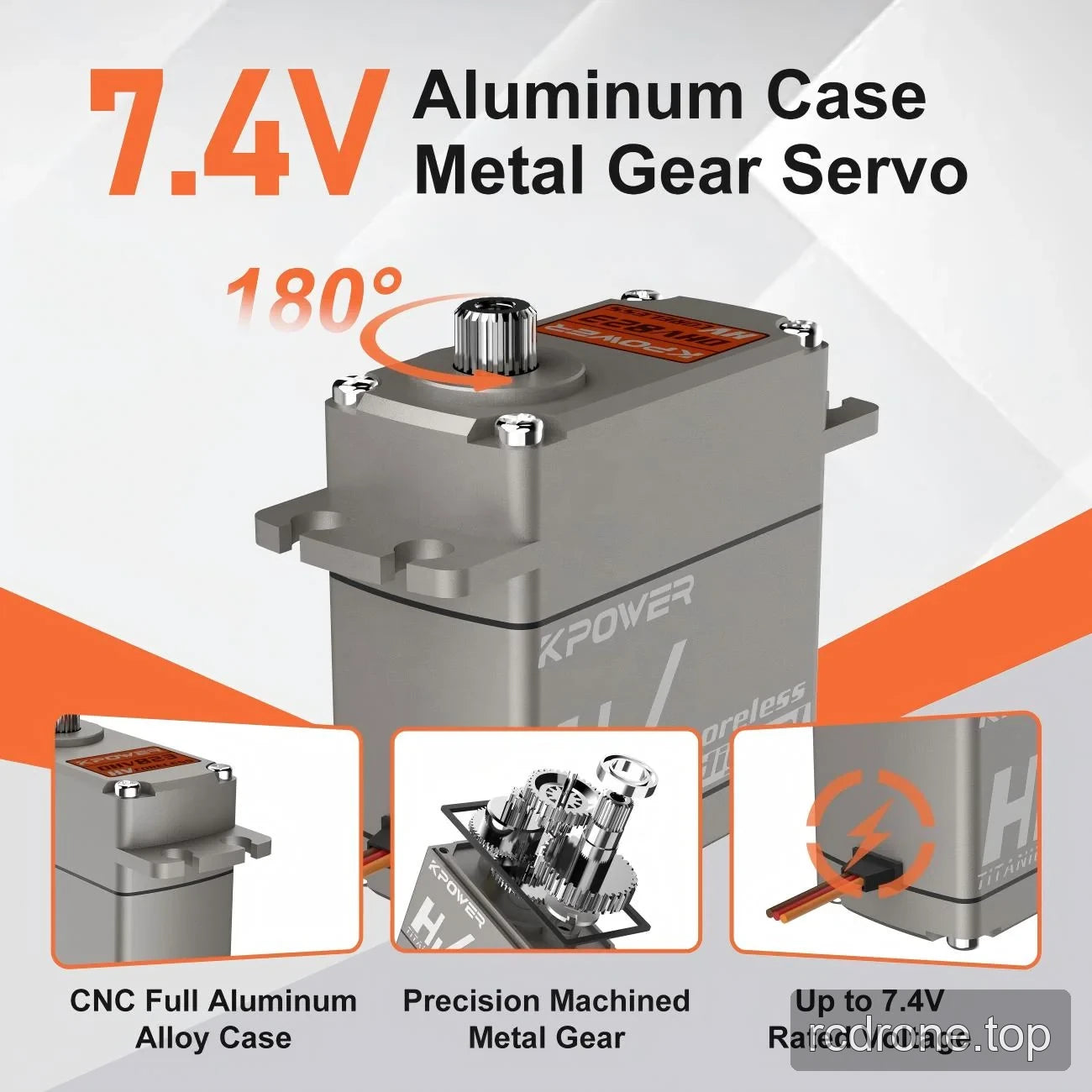

Aluminum-alloy servo housing and metal gear train with construction labels
The DHV823 has 180° travel. The DHV823 is advertised with a rated voltage up to 7.4 V.

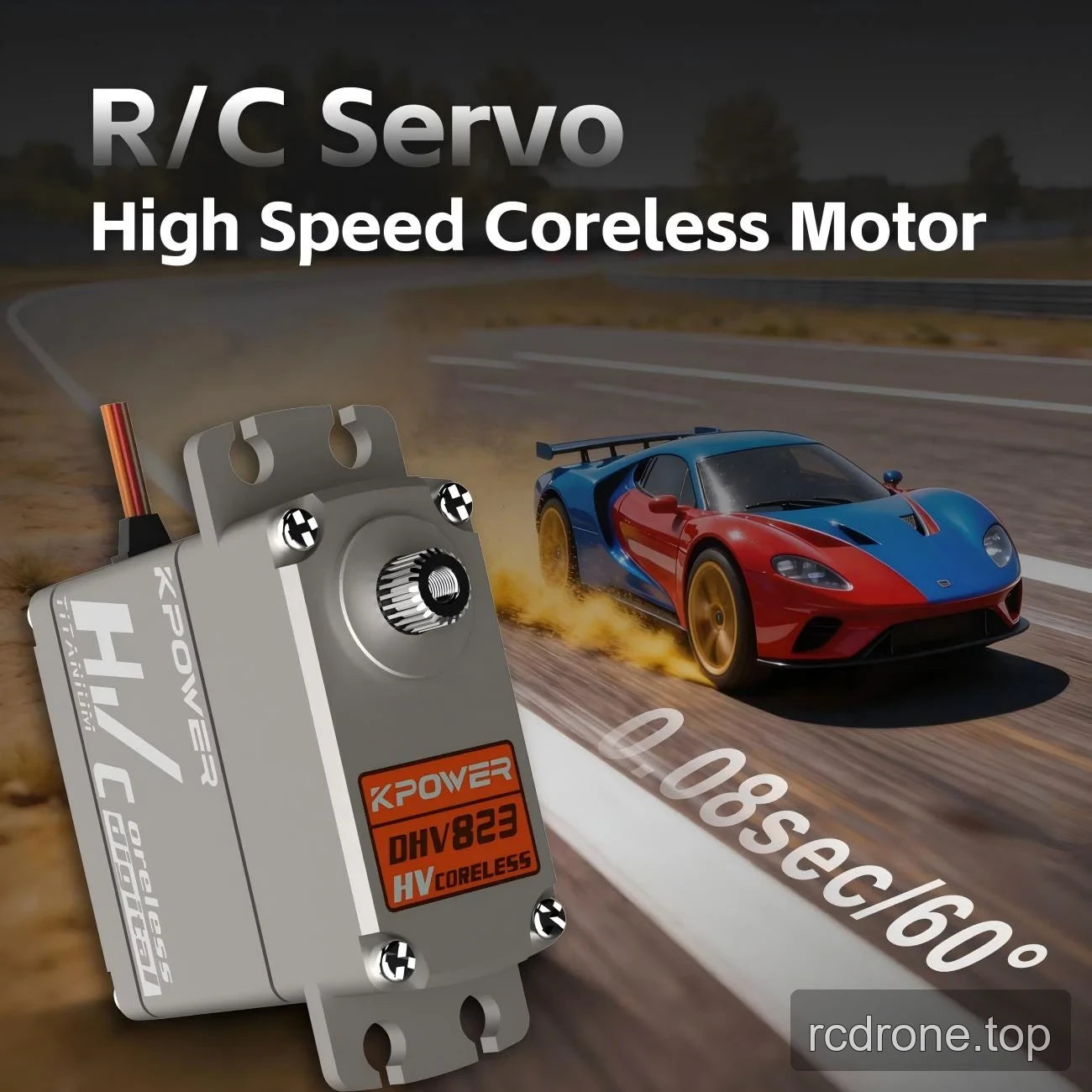

Coreless DHV823 servo beside an R/C road car with speed label
The DHV823 has an advertised speed of 0.08 sec/60°. The DHV823 is an R/C servo with a high-speed coreless motor.

Specifications and Performance

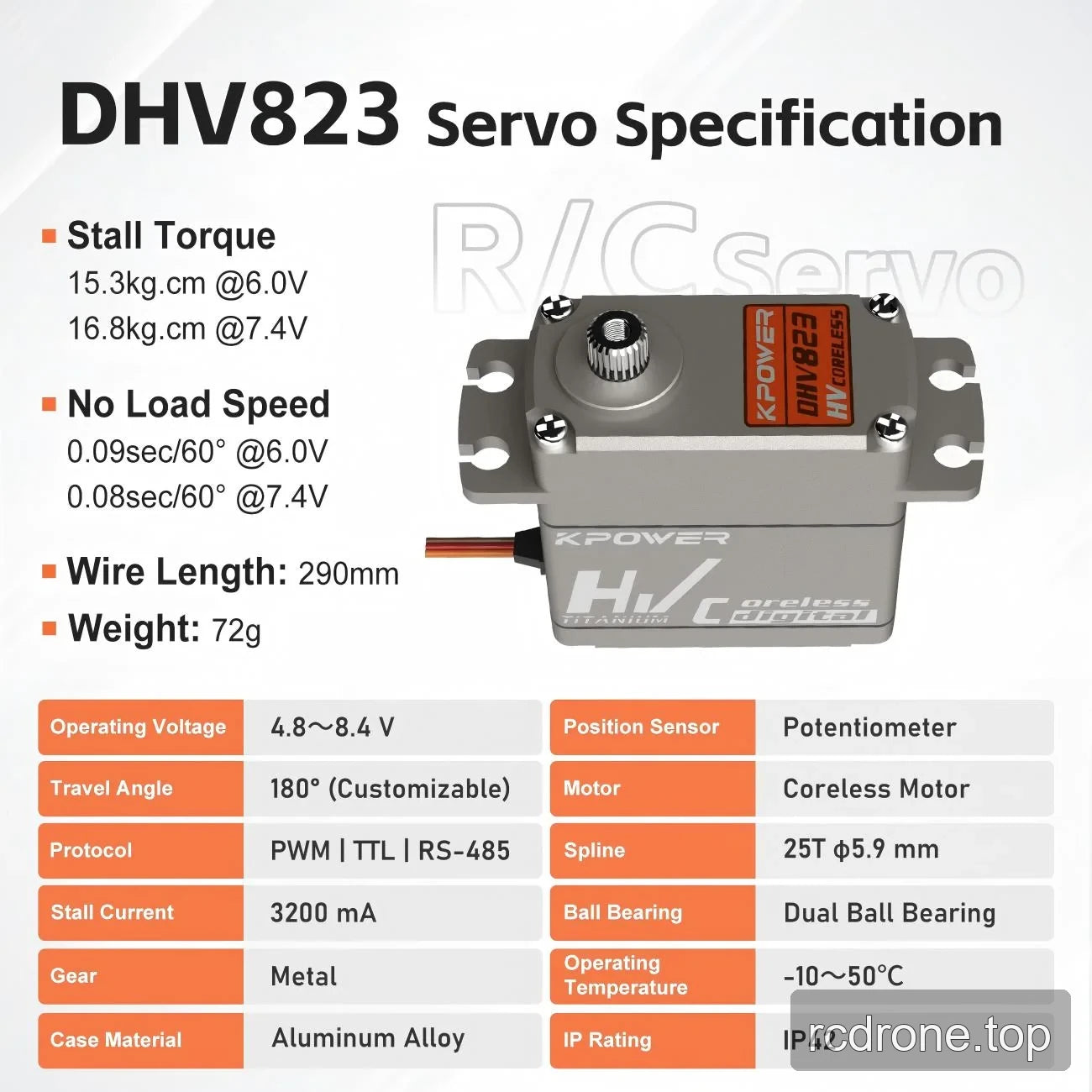

DHV823 specification panel with voltage-dependent torque and speed
The DHV823 stall torque is 15.3 kg.cm at 6.0 V. The DHV823 stall torque is 16.8 kg.cm at 7.4 V.

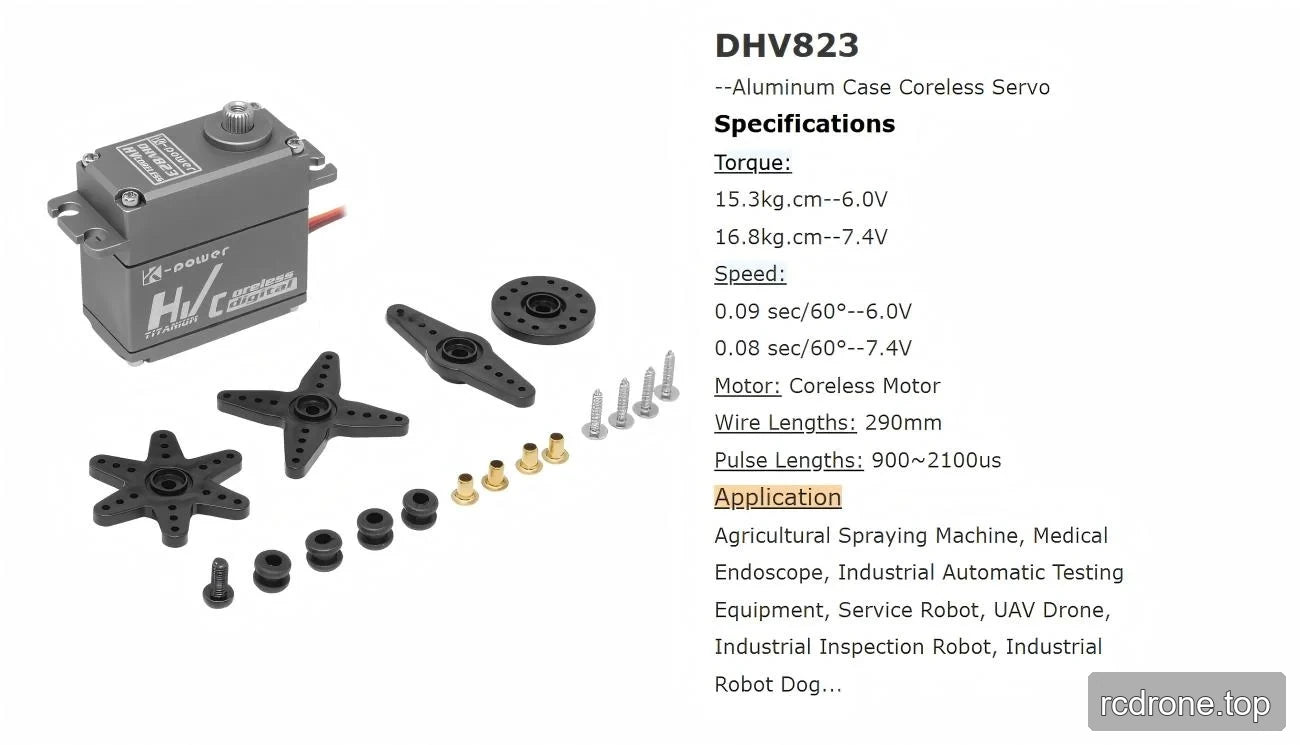

DHV823 servo, specification panel, four servo horns and mounting hardware
The servo model is DHV823. The DHV823 uses a coreless motor.

Options and Model Comparison

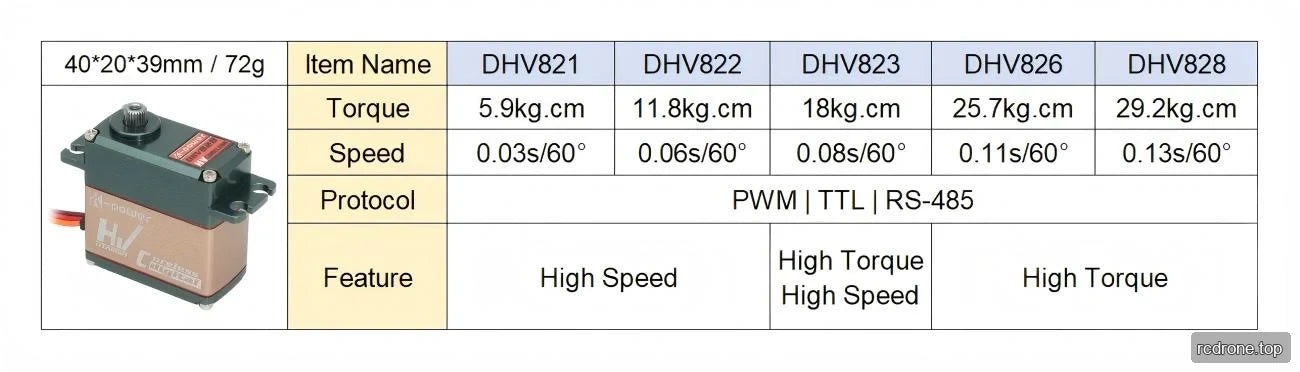

DHV821, DHV822, DHV823, DHV826 and DHV828 servo comparison chart
The DHV821, DHV822, DHV823, DHV826 and DHV828 comparison chart lists shared dimensions of 40 × 20 × 39 mm. The DHV821, DHV822, DHV823, DHV826 and DHV828 comparison chart lists a shared weight of 72 g.

Application Examples

Agricultural spraying drone, service robot, industrial robot and UAV application examples
The DHV823 lists agricultural spraying drones as an application. The DHV823 lists service robots as an application.
