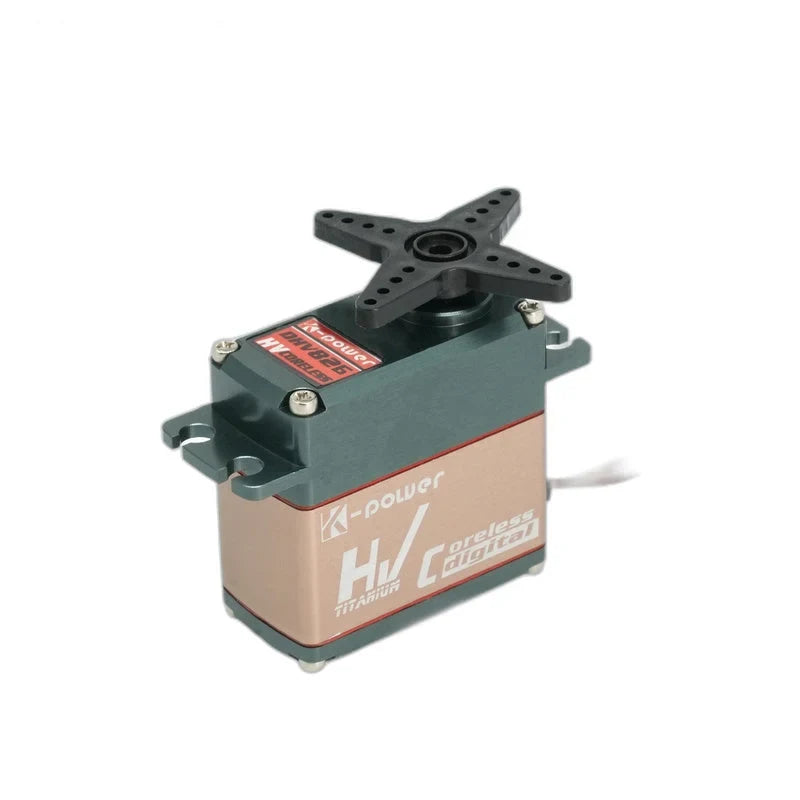

• Kpower DHV826 servo with a black four-arm horn attached above its dark housing and rose-gold side panel.

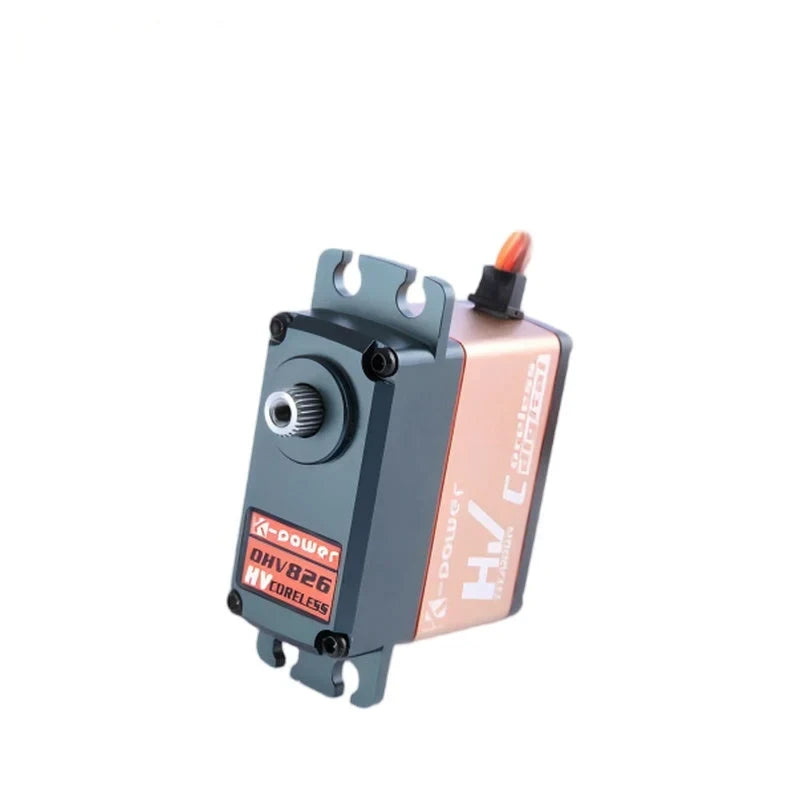

  • Servo tilted upright with an exposed splined shaft, DHV826 label, right-side rose-gold panel, and short wire lead.

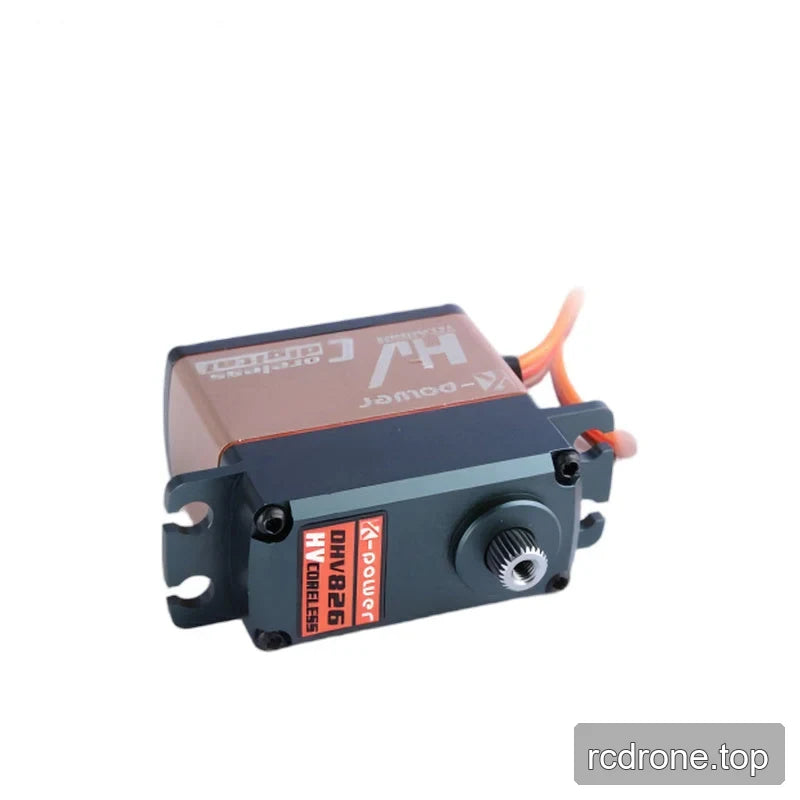

  • Horizontal servo view showing the exposed splined shaft, front model label, slotted mounting tabs, and trailing wires.

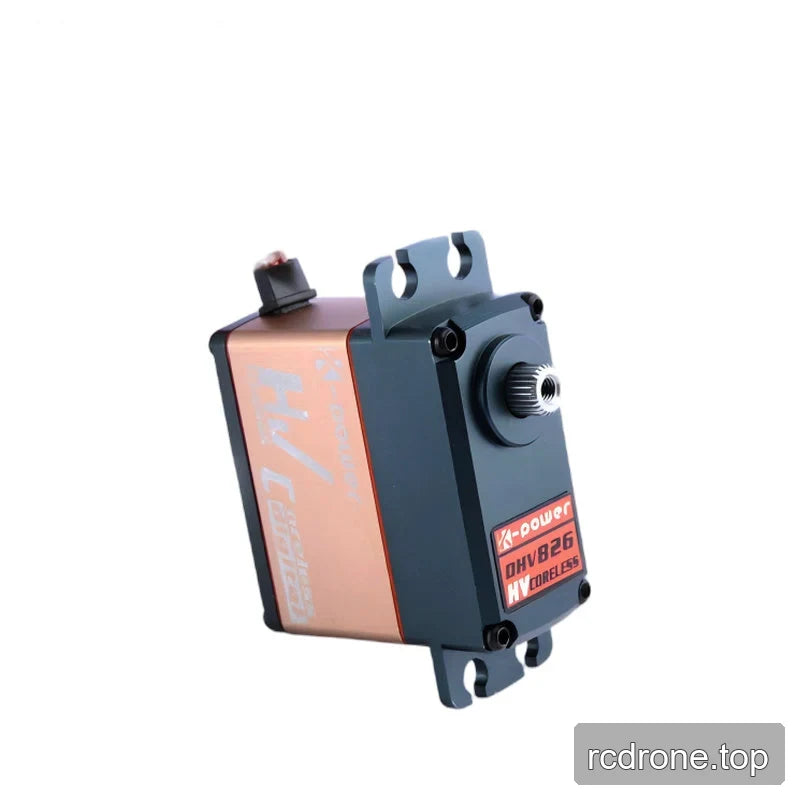

  • Upright servo with a rose-gold panel on the left, exposed splined shaft on the right, and slotted mounting tabs.

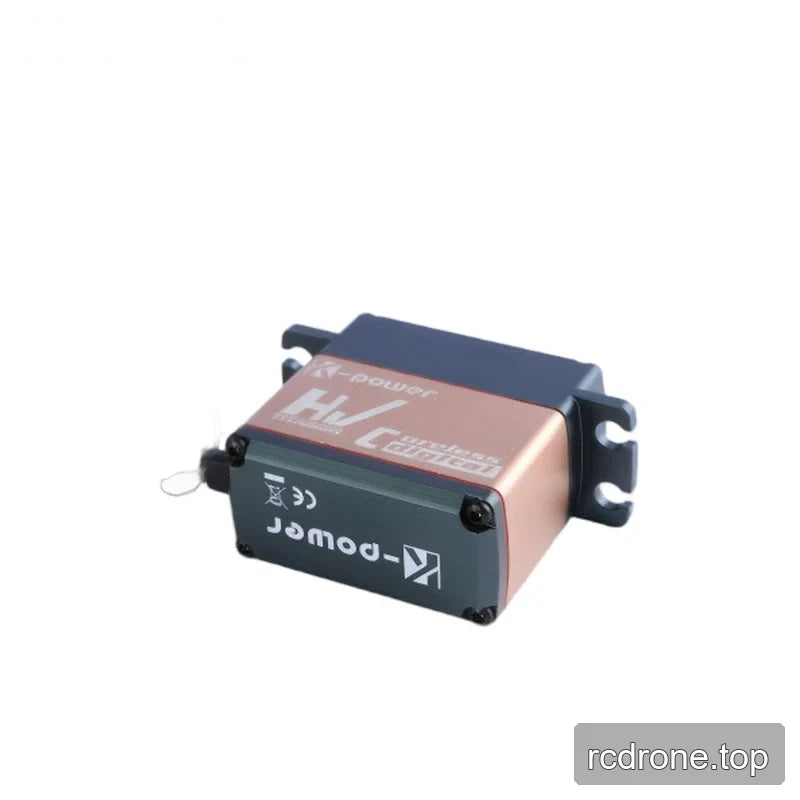

  • Rear view of the servo showing its branded dark cover, four corner screws, rose-gold side panel, and mounting tabs.
1 5

Kpower DHV826 Digital Coreless Servo Motor, 40 × 20 × 39 mm, for RC Aircraft and Robotic Arms

Kpower DHV826 Digital Coreless Servo Motor, 40 × 20 × 39 mm, for RC Aircraft and Robotic Arms

Kpower

$139.00 USD
$139.00 USD
Oferta Vendido
Impostos incluídos. Envio calculado no momento do pagamento.
Version
  • PayPal
  • Visa
  • Mastercard
  • American Express
  • JCB
  • Discover
  • Diners Club
  • Google Pay
  • Apple Pay
Ver detalhes completos

Overview

The Kpower DHV826 is a digital metal-gear servo motor for remote-control airplanes, drones, gliders and robotic arms. Its coreless motor, steel gears and 40 × 20 × 39 mm housing provide a compact actuator for controlled angular movement. A 120° ± 3° travel angle and voltage-specific torque and speed figures help buyers assess movement requirements, while PWM, TTL and RS-485 are listed control interfaces.

Features

  • Digital servo with a coreless motor and high-precision steel gears.
  • CNC-machined 7075 aluminum case.
  • High-torque model classification, with performance values detailed by operating voltage below.
  • Listed control interfaces: PWM, TTL and RS-485.
  • Signal range of 900–2100 μs, 3 μs dead band and 50–333 Hz refresh frequency.

Specifications

Parameter Value
Brand / model Kpower DHV826
Servo type Digital, metal-gear, coreless servo
Model classification High torque
Gear material Steel
Case material and construction 7075 aluminum; CNC-machined case
Motor type Coreless
Dimensions 40 × 20 × 39 mm
Operating voltage range 4.8–7.4 V
Upper-voltage support Up to 8.4 V; DHV series high-voltage rating: 8.4 V
Operating temperature −10 to +50 °C
Signal range 900–2100 μs
Dead band 3 μs
Travel angle 120° ± 3°
Refresh frequency 50–333 Hz
Listed control interfaces PWM, TTL, RS-485
Wire gauge / insulation 22 AWG PVC

Performance by Operating Voltage

Parameter At 6.0 V At 7.4 V
No-load speed 0.14 ± 0.01 s/60° 0.12 ± 0.01 s/60°
Stall torque 24.0 ± 0.20 kg·cm 26.0 ± 0.20 kg·cm
No-load current 700 ± 30 mA 900 ± 30 mA
Stall current 3200 ± 40 mA 3600 ± 50 mA

Additional DHV826 Performance Ratings

Parameter Value Rating conditions
Torque 25.7 kg·cm Operating voltage and torque test condition unspecified
Speed 0.11 s/60° Operating voltage and load condition unspecified

Applications

  • RC airplane and glider control linkages: use the servo's controlled angular travel to move aircraft control mechanisms, with the published dimensions supporting installation planning.
  • Drone mechanism actuation: drive an angular linkage using the digital servo and metal gear train, with voltage-specific speed and current figures available for system sizing.
  • Robotic-arm joint or linkage movement: use the 120° ± 3° travel for bounded angular motion, selecting loads with reference to the voltage-specific stall torque ratings.

Documents

Product Videos

Visual Details

Product Video

Features and Design

DHV826 feature panel with metal gears, coreless motor and control interface labels
DHV826 is labeled a 25KG digital metal-gear coreless high-voltage servo; the headline does not specify a torque unit beyond '25KG'. DHV826 supports voltage up to 8.4 V.
DHV series construction panel featuring a servo labeled DHV840
The DHV series feature panel states 8.4 V rated high voltage. The DHV series is described as using a CNC aluminium case.
Custom servo development panel with mechanical, wiring and protocol design categories
Custom servo development panel covering mechanical, wiring, protocol and reliability-design customization

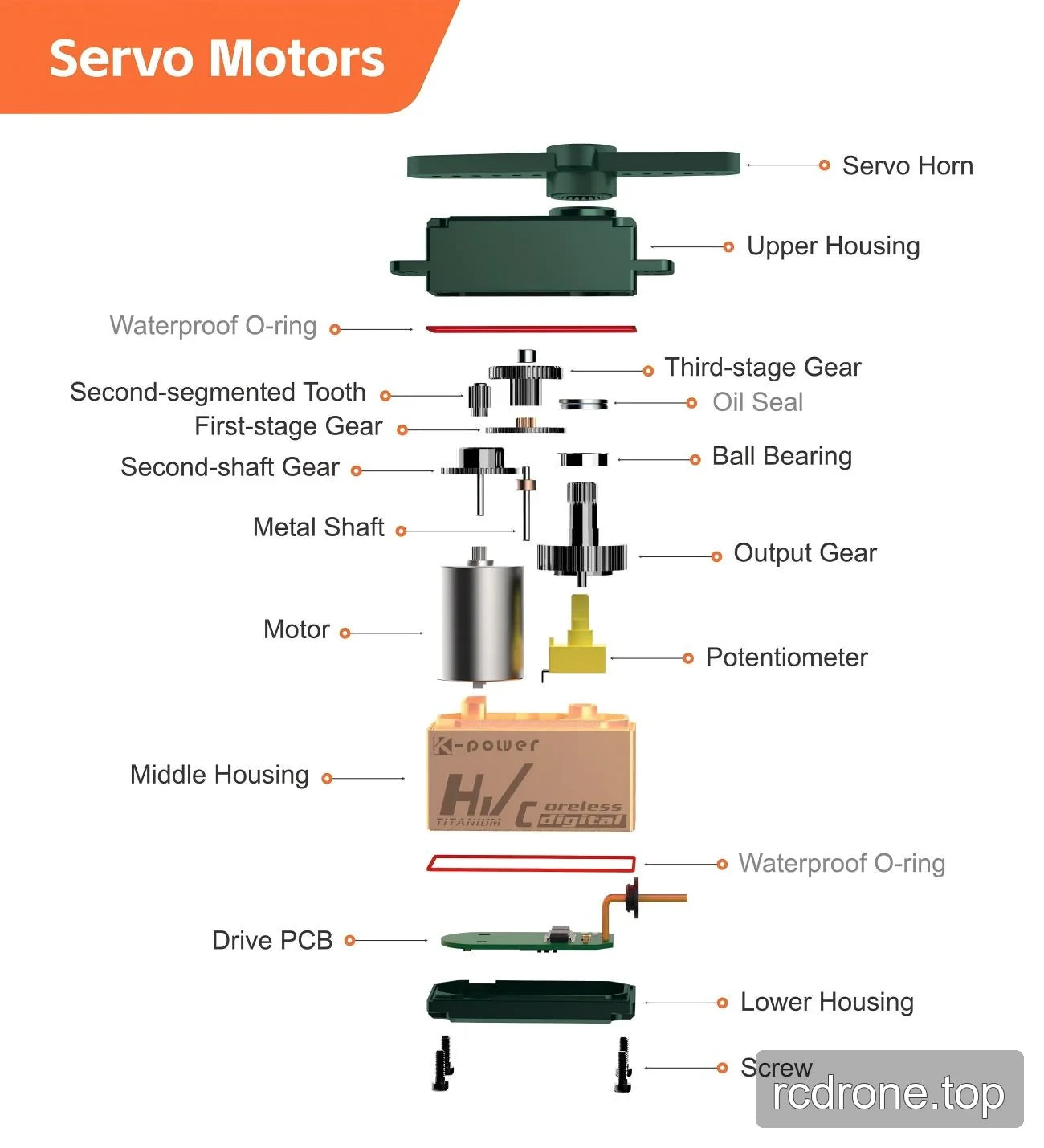

Generic exploded servo diagram with housing, gears, motor, seals and drive PCB
Exploded servo diagram labeling housing sections, gear train, seals, motor, potentiometer and drive PCB

Options and Model Comparison

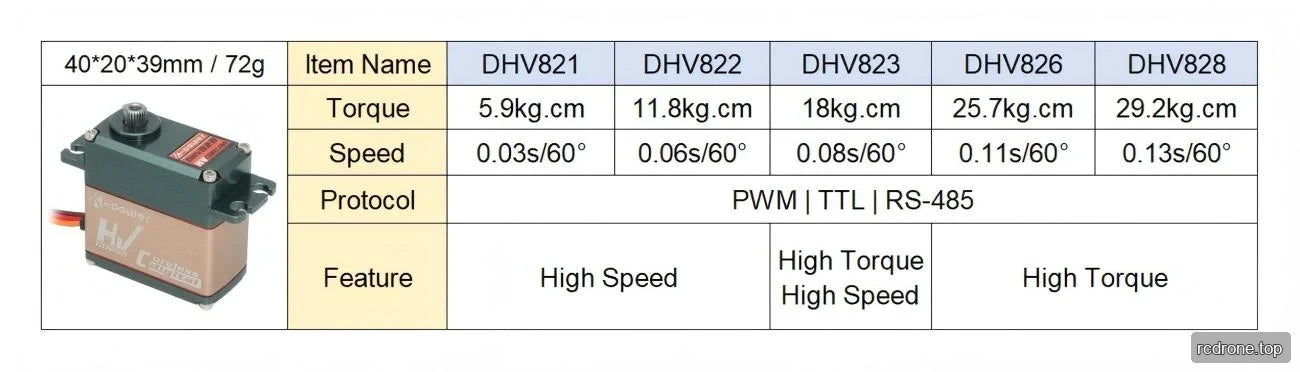

DHV servo comparison table with a DHV826 column for torque, speed and model classification
The comparison table lists shared dimensions of 40 × 20 × 39 mm for DHV821, DHV822, DHV823, DHV826 and DHV828. The comparison table lists a shared weight of 72 g for DHV821, DHV822, DHV823, DHV826 and DHV828.

Additional Product Details

Servo horn shapes labeled Flat, Cross, Round, Star and Single
Five servo horn shapes labeled Flat, Cross, Round, Star and Single
Generic ODM workflow from needs assessment and design to sampling and mass production
ODM development workflow from needs assessment and design to sampling and mass production

Interfaces and Connections

Generic three-pin connector diagram with brown GND, red Vcc and orange signal wires
The illustrated servo connector has three pins. Wire 1 is brown and connects to GND.

Application Examples

Kpower brand application chart for robotics, automation, vehicles and other equipment
Kpower application chart covering robotics, home devices, automation, vehicles, drones and agricultural equipment
