Kpower DM1500W Analog Servo Motor, PWM, 4.8–8.4 V for Robotic Linkage Positioning

Kpower

$37.00 USD

Oferta Vendido

Impostos incluídos. Envio calculado no momento do pagamento.

Version DM1500W

Quantidade

Ver detalhes completos

Overview

The Kpower DM1500W is an analog servo motor for controlled angular movement in robotic linkages. Its PWM interface and 4.8–8.4 V operating range provide key electrical selection criteria, while the metal gears, potentiometer position sensor and 25T, Ø6 mm output spline define its drive arrangement. Travel is specified as 120°/180° with customization; the housing includes mounting tabs and a three-conductor lead.

Features

Analog servo with PWM control and potentiometer position sensing.
DC brushed motor, metal gears and two ball bearings (2BB).

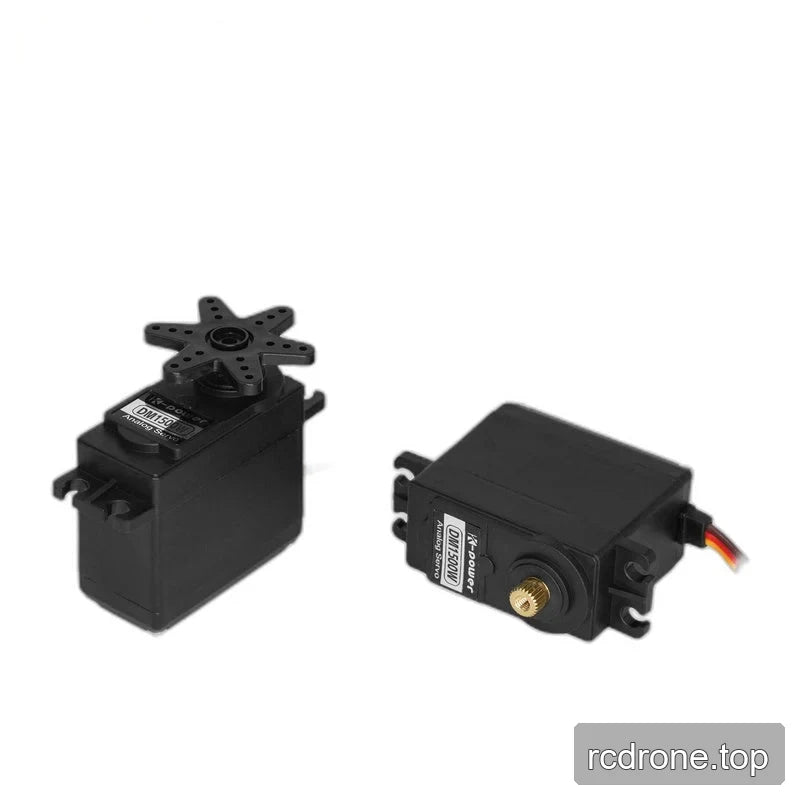

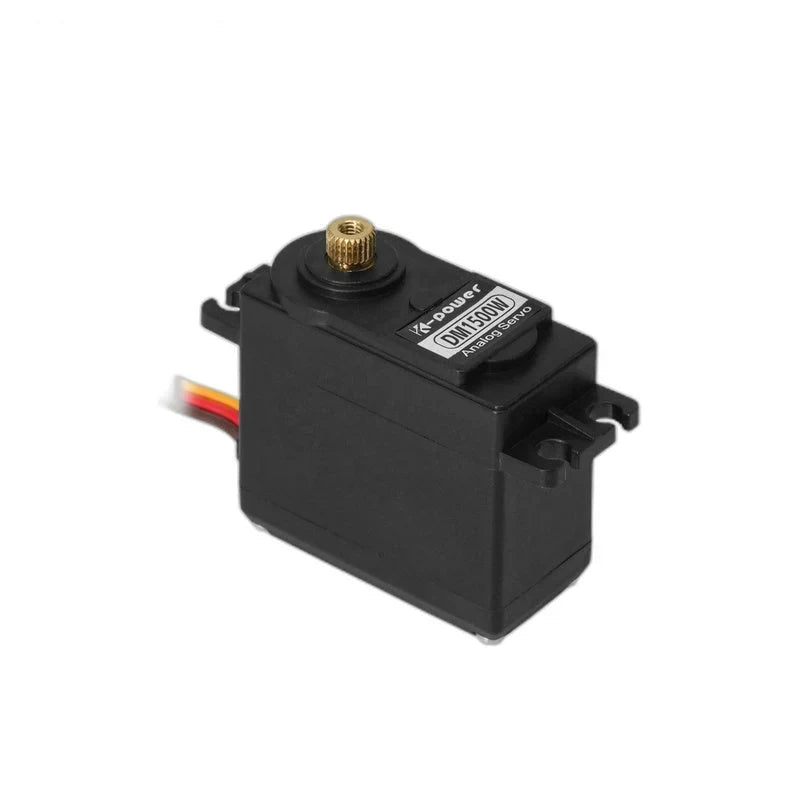

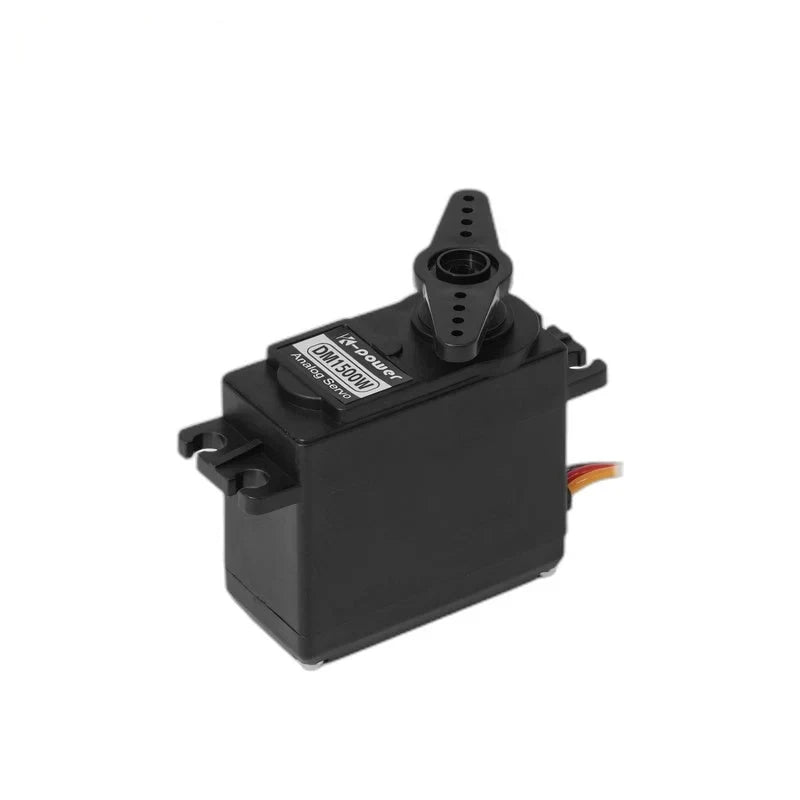

Black plastic housing with mounting tabs, a splined output shaft and a three-conductor lead.
120°/180° customizable travel-angle specification.
IP67 protection rating.

Specifications

Parameter	Value
Brand	Kpower
Model / selected version	DM1500W
Servo type	Analog
Stall torque	16.3 kg
Rated torque	2.5 kg
No-load speed	0.13 s/60°
Weight	60 g
Dimensions	40.7 × 19.8 × 37.7 mm
Travel angle range	120°/180° (customizable)
Operating voltage	4.8–8.4 V
Horn gear spline	25T, Ø6 mm

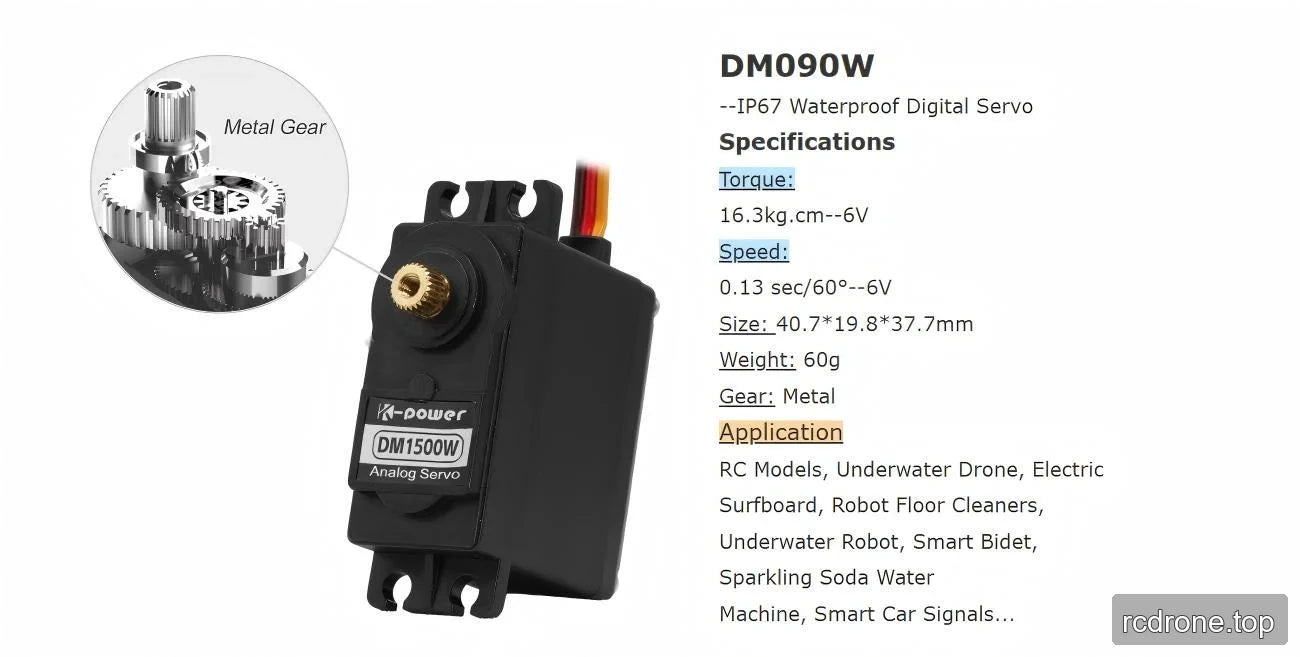

Gear material	Metal
Motor	DC brushed
Protocol	PWM
No-load current	2500 mA
Position sensor	Potentiometer
Case material	Plastic
Ball bearings	2BB
Working frequency	50–333 Hz
Operating temperature	−10 to 50 °C
IP rating	IP67

Applications

Robotic linkage positioning: Use PWM commands to control angular movement in a linkage, selecting the required 120°/180° travel configuration for the mechanism.

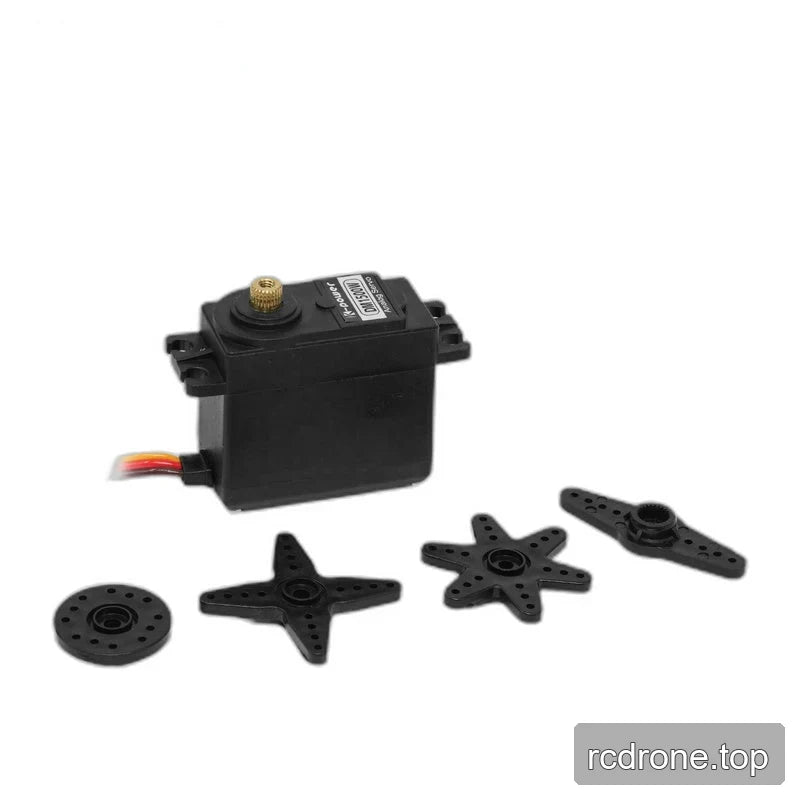

Servo-driven arm mechanisms: The mounting tabs and 25T, Ø6 mm spline provide attachment points for integrating the servo housing and output linkage into a mechanical assembly.
