Kpower P0025 2.5 g PWM Coreless Micro Servo Motor for RC Aircraft, Cars and Micro Toys

Kpower

$35.00 USD

Oferta Vendido

Impostos incluídos. Envio calculado no momento do pagamento.

Version P0025

Quantidade

Ver detalhes completos

Overview

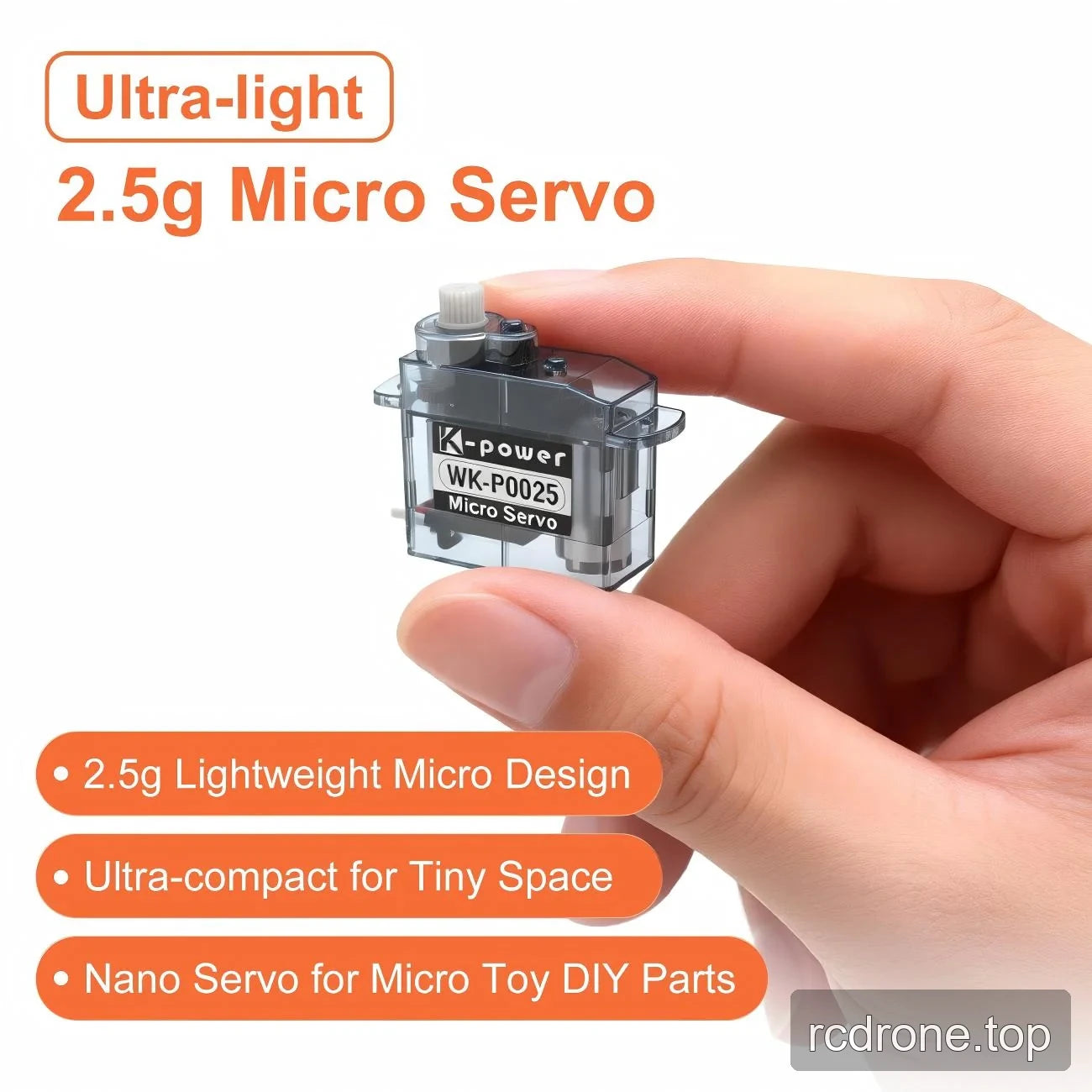

The Kpower P0025 is a 2.5 g coreless micro servo motor for compact RC models, small aircraft and micro-toy mechanisms. Its 19.8 × 8.2 × 18.9 mm body fits space-constrained builds, while PWM control supports position commands through a three-position lead. POM gears, dual ball bearings and potentiometer feedback form the positioning mechanism. Operating voltage is 4.8–8.4 V, with voltage-specific no-load speeds detailed below.

Features

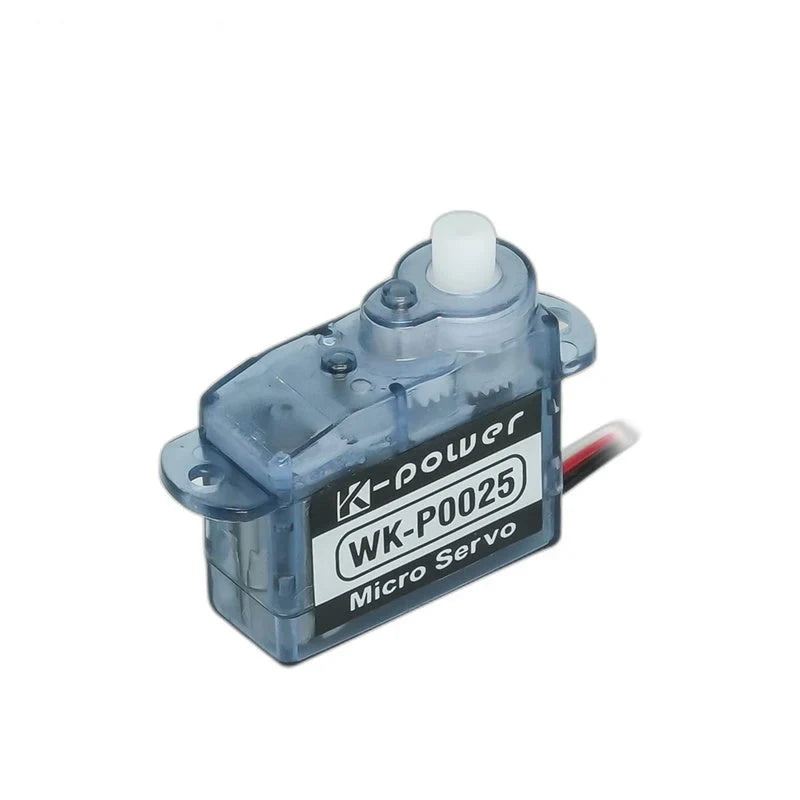

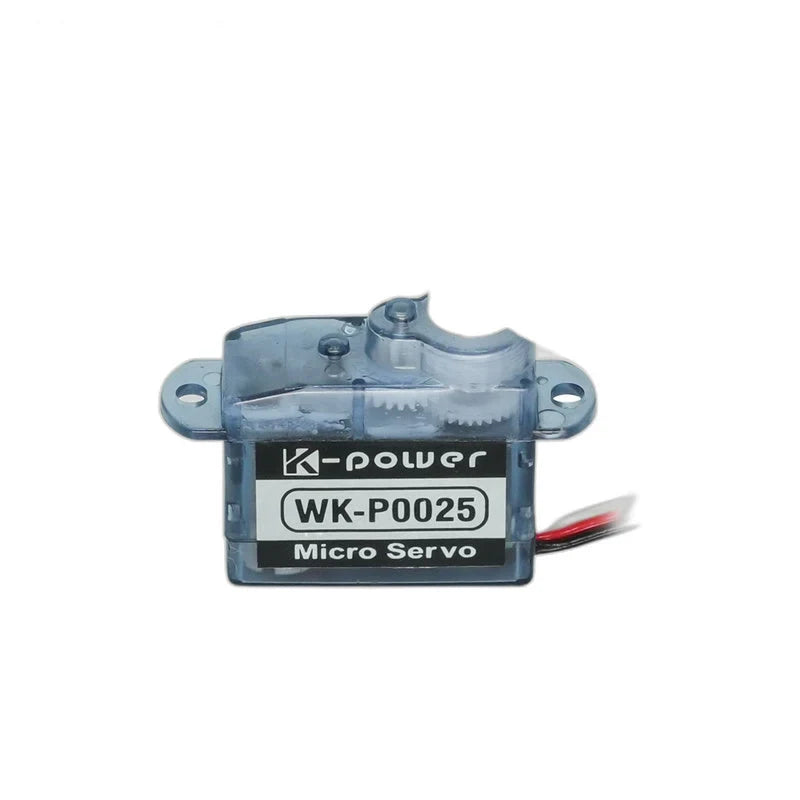

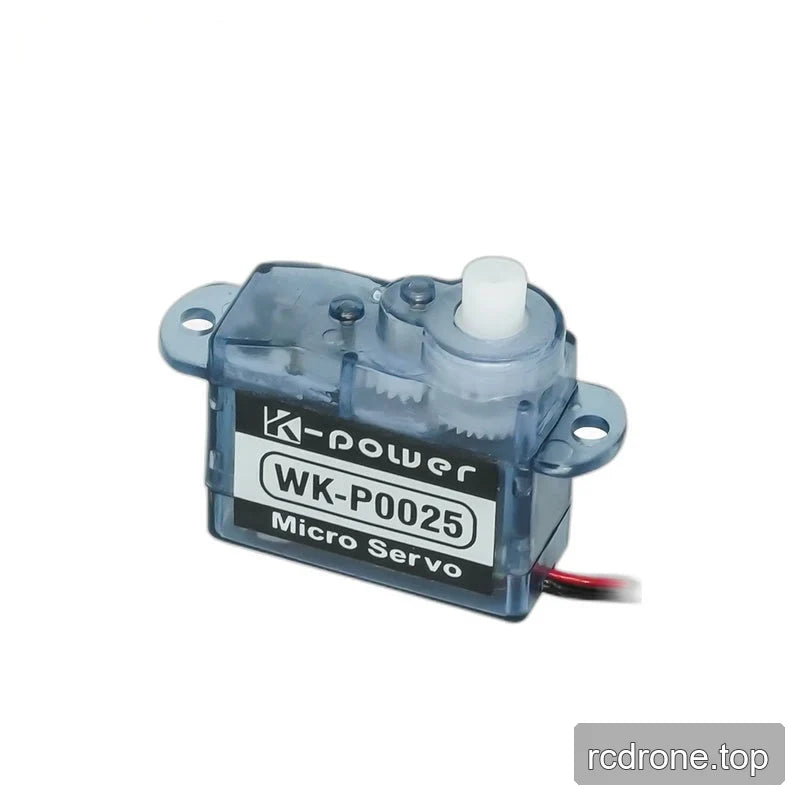

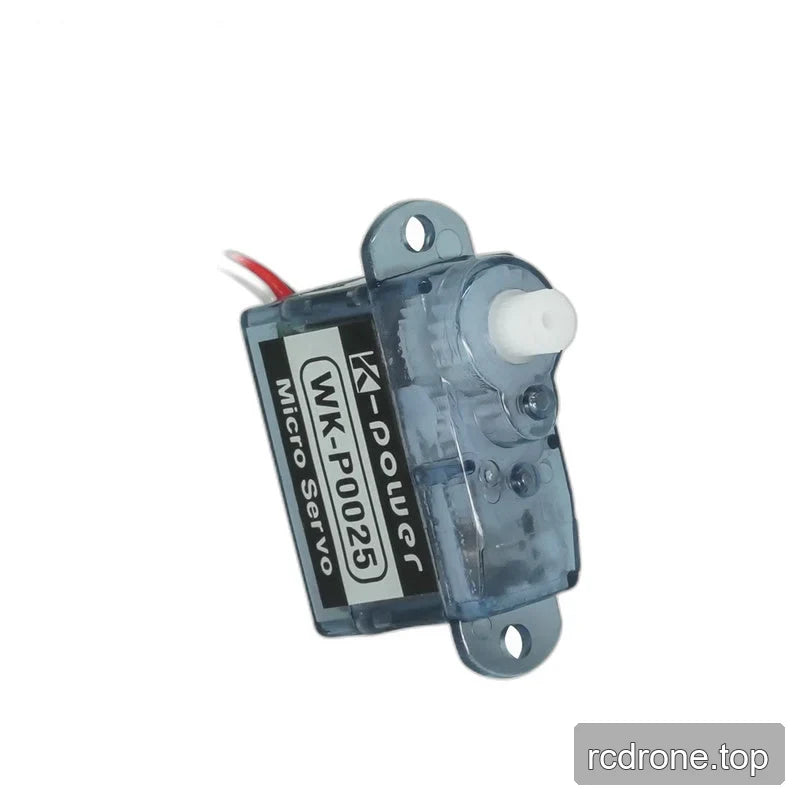

Lightweight, translucent plastic housing with mounting tabs and screw holes for compact installations.

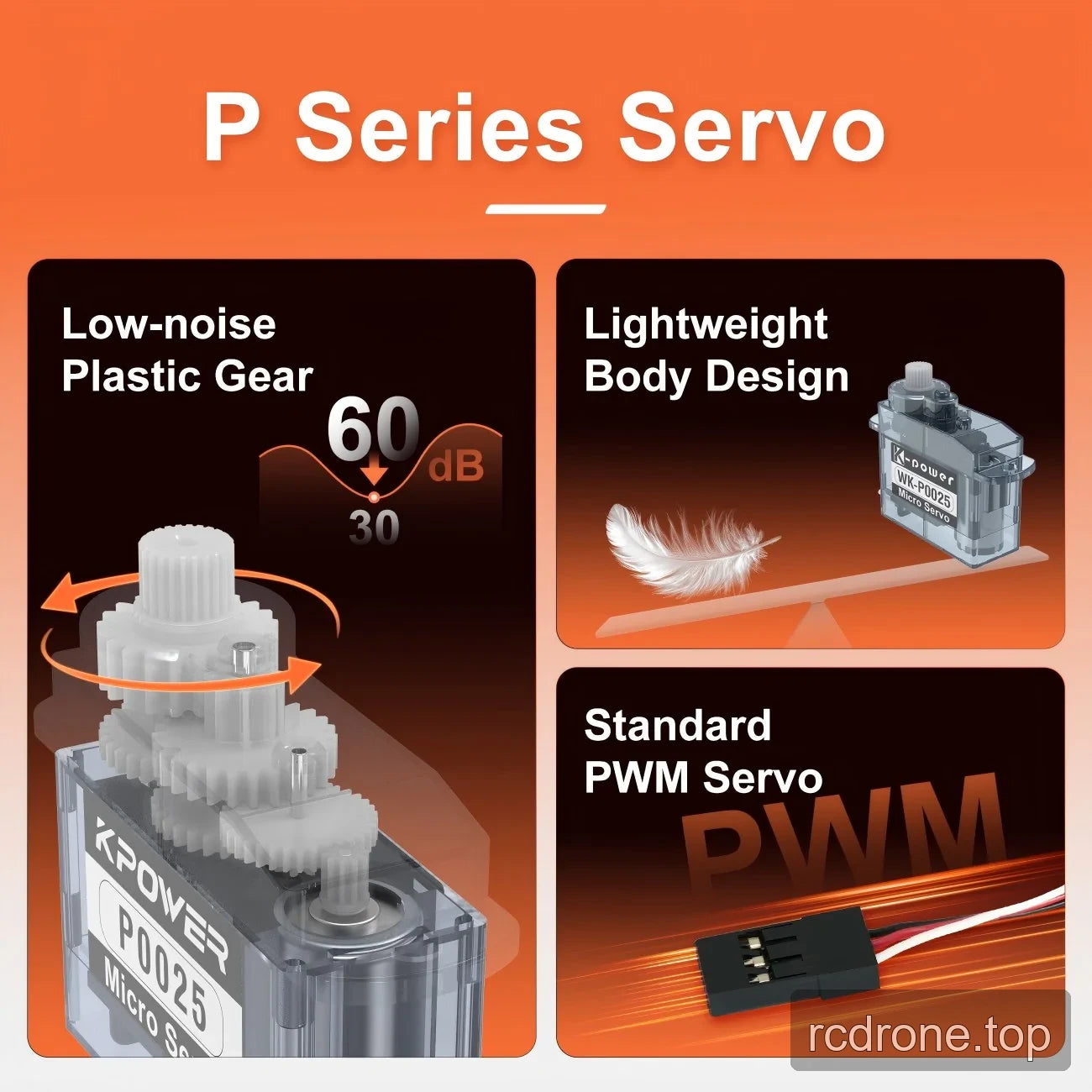

Coreless motor with POM plastic gearing for smooth motion and low-noise operation.
Potentiometer position feedback and dual ball bearings (2BB).
Standard PWM control through a three-position connector with black, red and white wires.
185 mm lead and a 20-tooth, 3.6 mm diameter output spline.

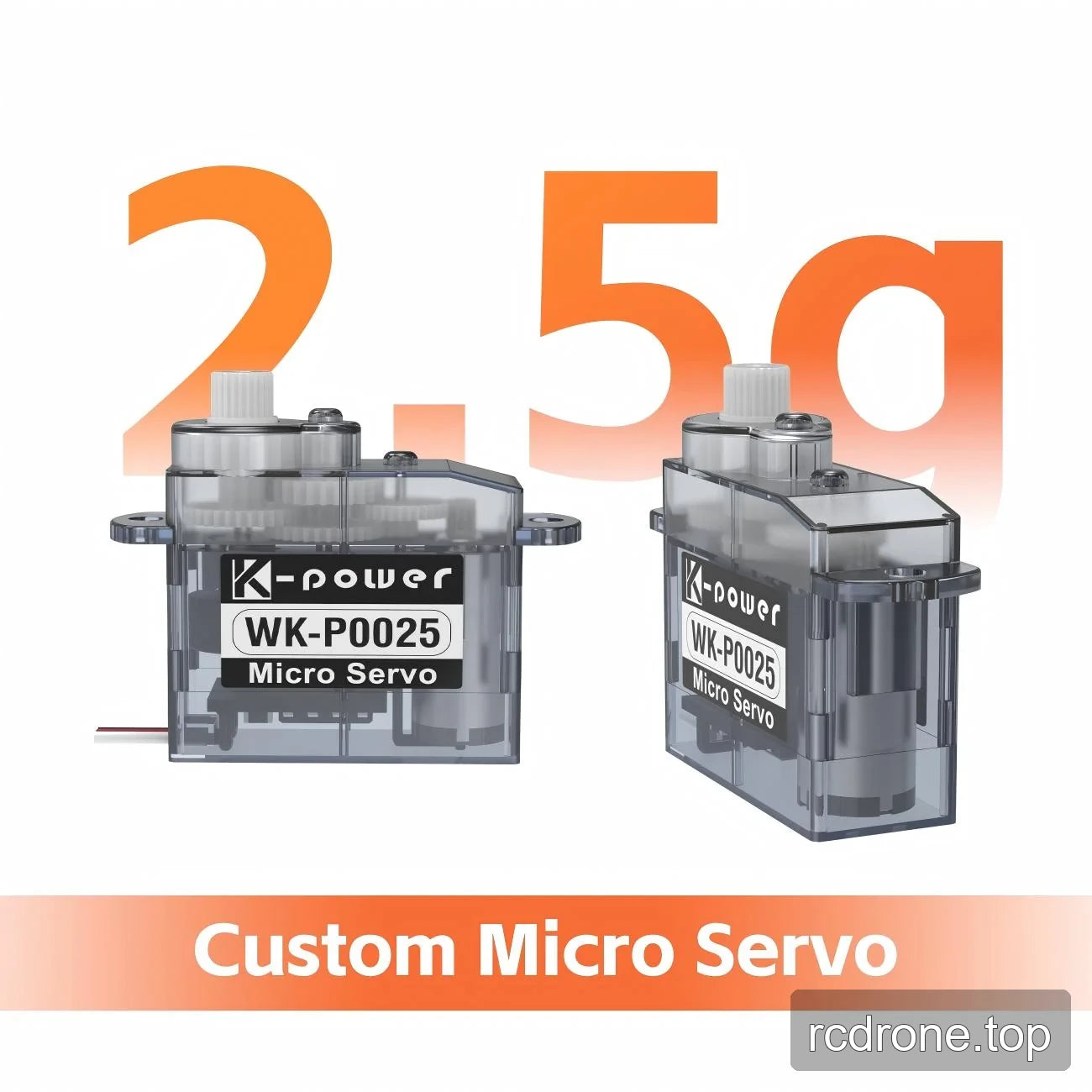

120° ± 5° travel; travel-angle customization is indicated, but is not a separate listed selection.

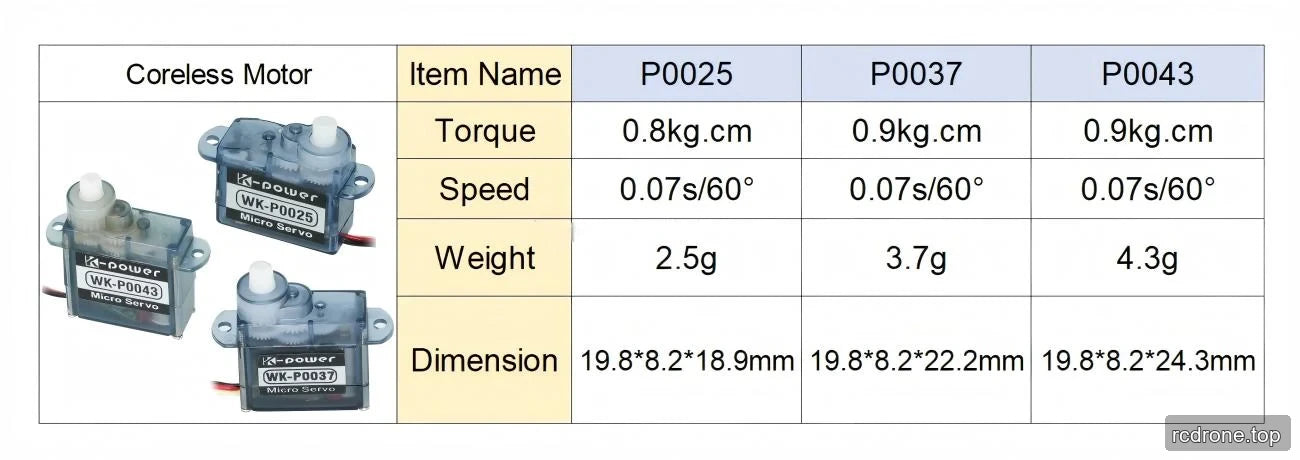

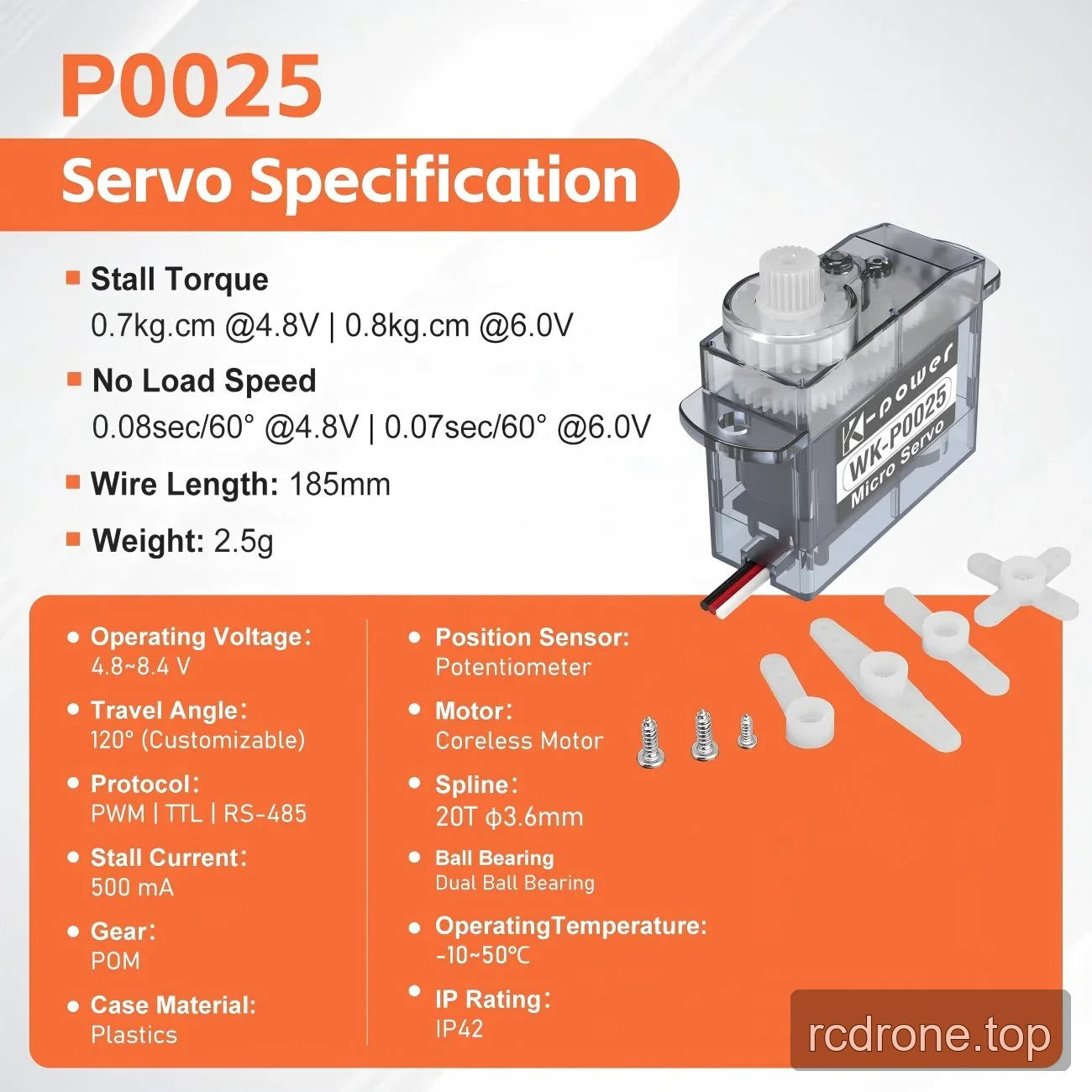

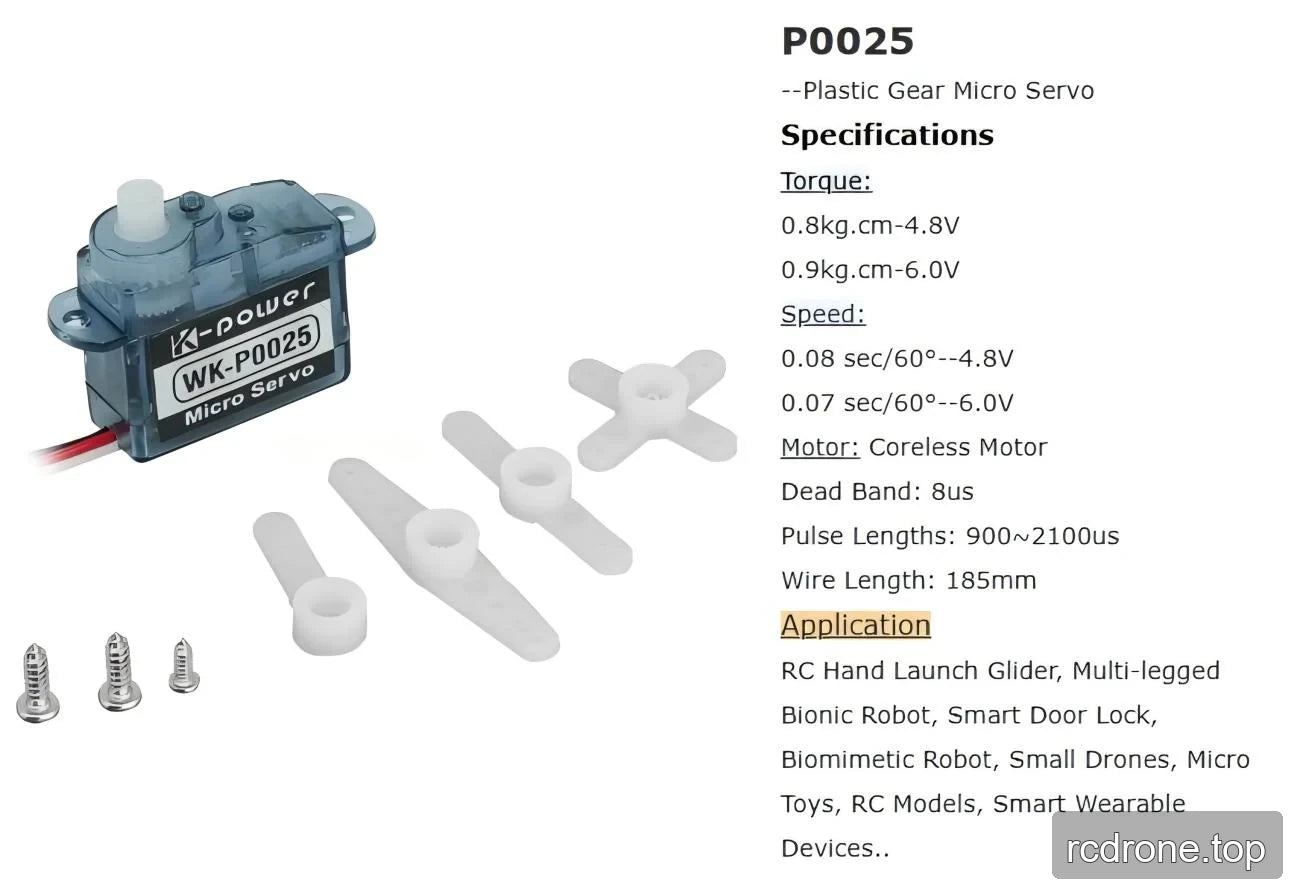

Specifications

Parameter	P0025 specification

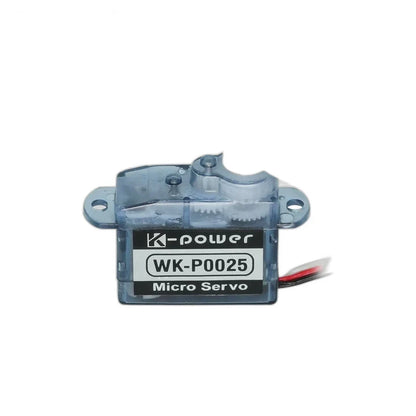

Model	P0025; housing label WK-P0025 Micro Servo
Servo type	Coreless micro servo
Weight	2.5 g
Dimensions	19.8 × 8.2 × 18.9 mm (0.78 × 0.32 × 0.74 in)
Operating voltage	4.8–8.4 V
Rated torque	0.2 kg; torque-arm length unspecified
No-load speed at 4.8 V	0.08 s/60°
No-load speed at 6.0 V	0.07 s/60°
Travel angle	120° ± 5°; customization indicated
Horn gear spline	20T, Ø3.6 mm
Gear material	POM plastic
Motor	Coreless motor
Control protocol	PWM
Working frequency	50–333 Hz
Pulse-length range	900–2100 µs
Dead band	8 µs
Stall current	500 mA; voltage not specified
Position sensor	Potentiometer
Case material	Plastic
Ball bearings	2BB (dual ball bearings)
Wire length	185 mm
Lead connector	Three-position connector; black, red and white wires
Operating temperature	−10 to 50 °C
IP rating	IP42

Applications

RC aircraft and hand-launch gliders: Position small control linkages where the 2.5 g weight and compact body help limit installation mass and space.
RC car models: Drive compact steering or auxiliary linkages using PWM position control and the 20T output spline.
Small drones: Actuate small auxiliary mechanisms where a lightweight servo and 185 mm lead suit a compact layout.
Micro toys and DIY RC models: Add controlled movement to miniature mechanisms with a 120° ± 5° travel range.
Multi-legged bionic and biomimetic robots: Position small leg or linkage mechanisms using potentiometer feedback in a compact actuator.
Smart door-lock mechanisms: Move small internal linkages where compact dimensions and PWM positioning are useful.
Smart wearable devices: Actuate miniature moving elements where low mass and a small installation footprint matter.
