Kpower P0037 Coreless Micro Servo Motor, 3.7 g, 4.8–6.0 V for RC Airplanes

Kpower

$35.00 USD

Oferta Vendido

Impostos incluídos. Envio calculado no momento do pagamento.

Version P0037

Quantidade

Ver detalhes completos

Overview

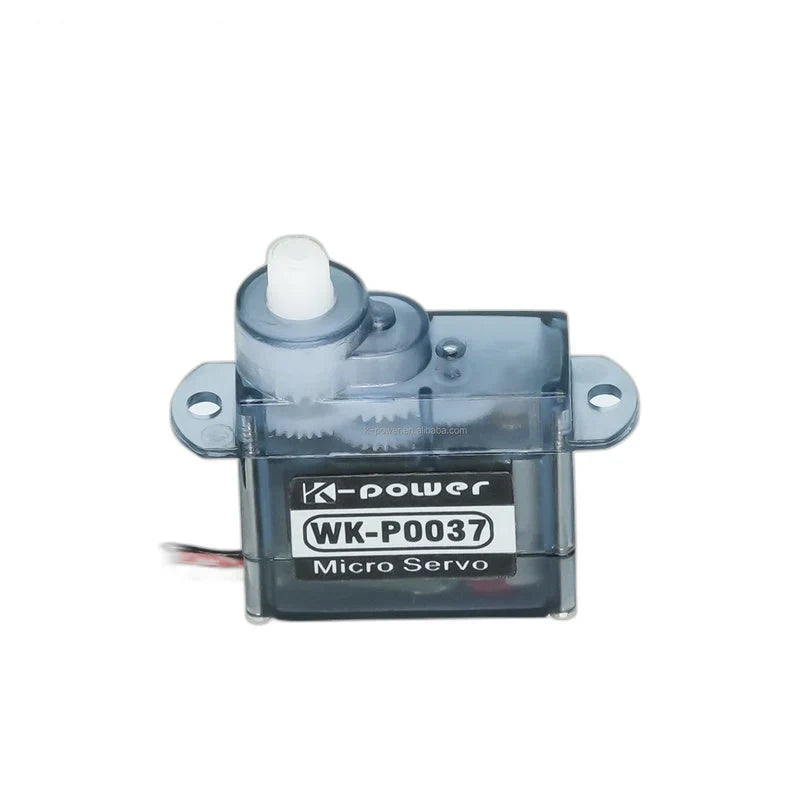

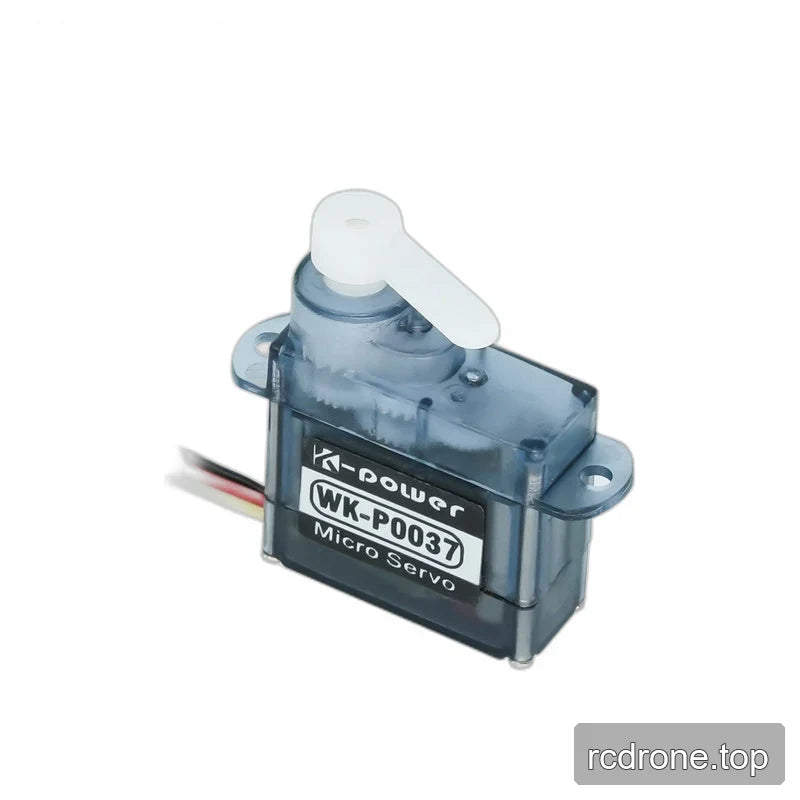

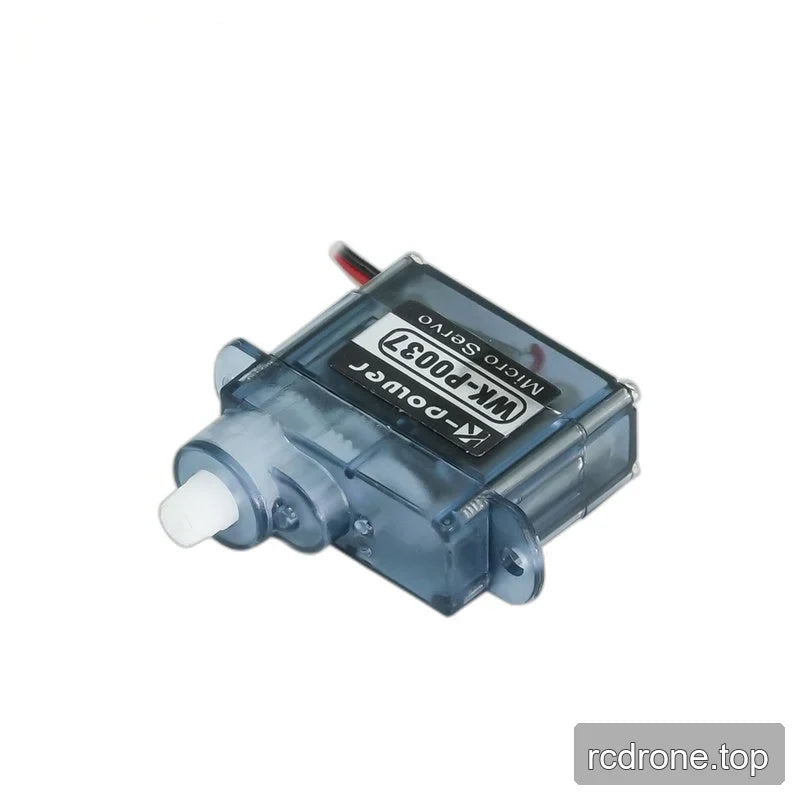

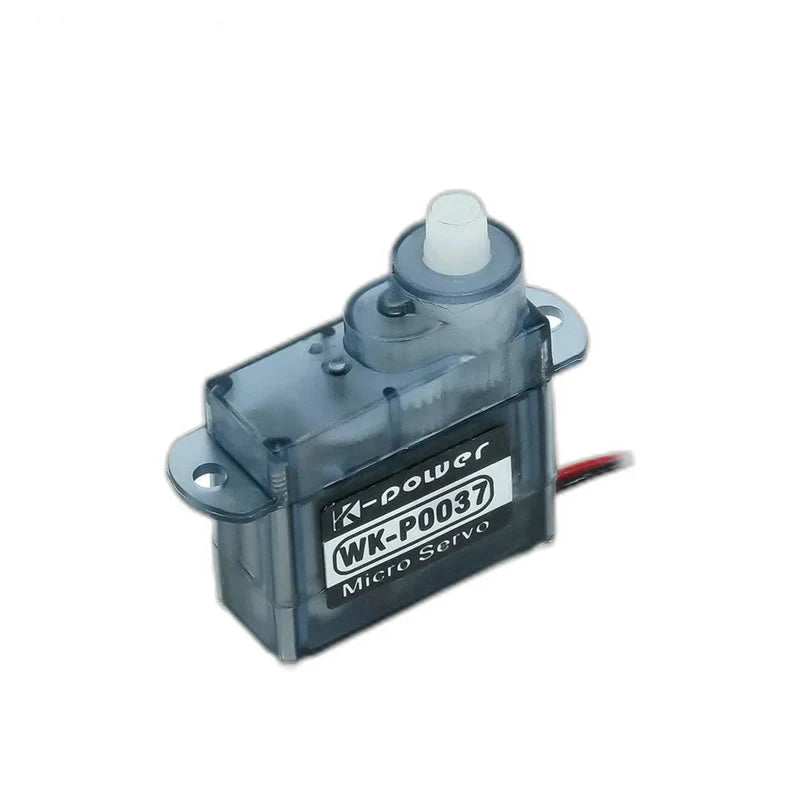

The Kpower P0037 is a coreless micro servo motor for RC airplane control mechanisms where low weight and compact dimensions matter. It weighs 3.7 g, measures 19.8 × 8.2 × 22.2 mm, and operates from 4.8–6.0 V. A plastic case and POM gears keep its construction lightweight, while voltage-specific torque and speed ratings help you select a suitable supply for your control setup.

Features

Coreless motor in a compact micro servo format.

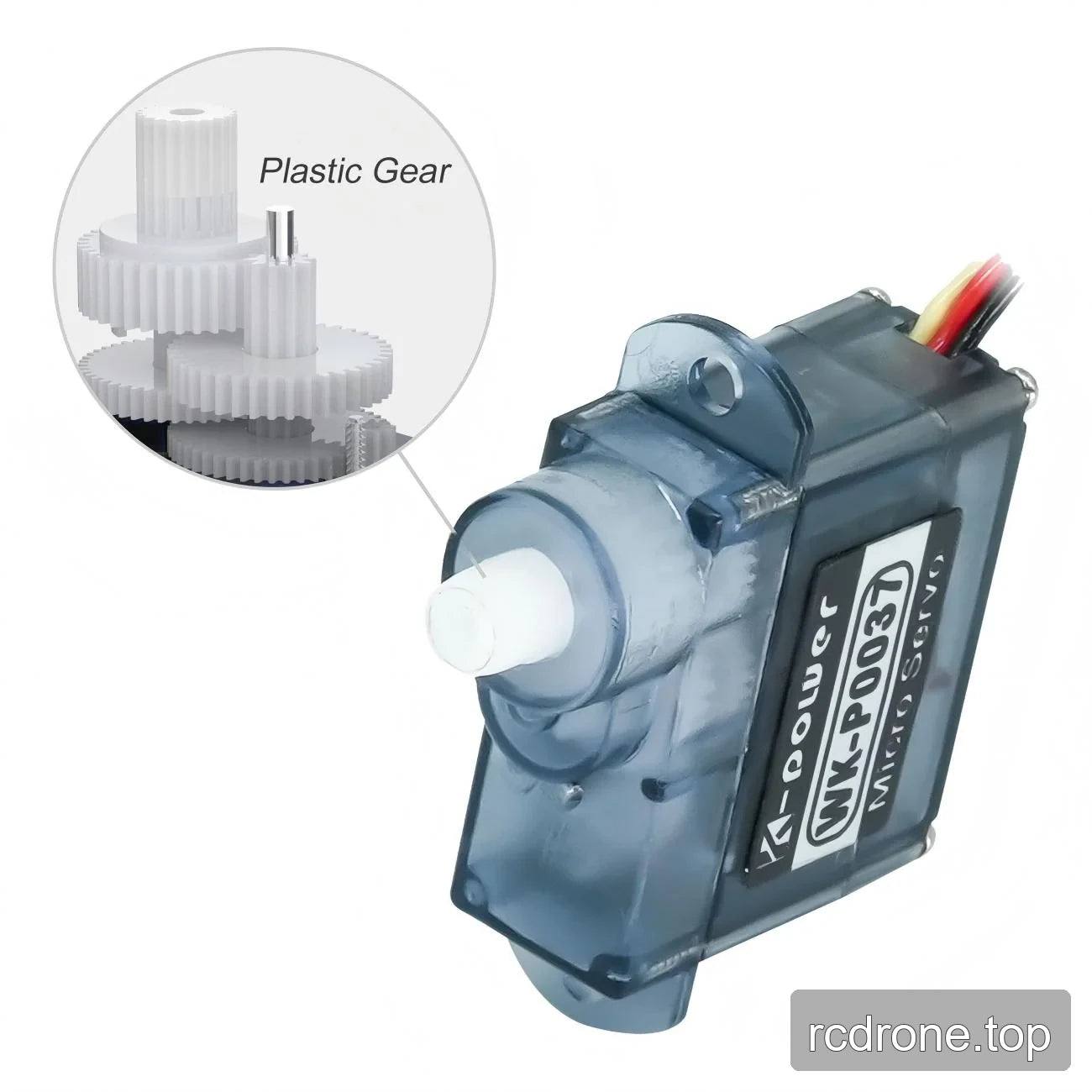

Plastic housing with POM plastic gears.
20T output spline with a 3.6 mm diameter.
2 μs dead band width.

Specifications

Parameter	Value
Brand	Kpower
Model	P0037 tiny servo; also labelled WK-P0037 Micro Servo
Motor type	Coreless
Case material	Plastic
Gear material	POM
Weight	3.7 g / 0.1 oz
Dimensions	19.8 × 8.2 × 22.2 mm / 0.78 × 0.32 × 0.87 in
Operating voltage	4.8–6.0 V
Pulse width	1000–1500 μs
Dead band width	2 μs
Interface types	JR / FT / JST1.5 / JST2.0 / Other
Operating temperature	−20 to 60 °C
Output spline	20T, φ3.6 mm
Certification	CE & FCC
Application	RC airplane

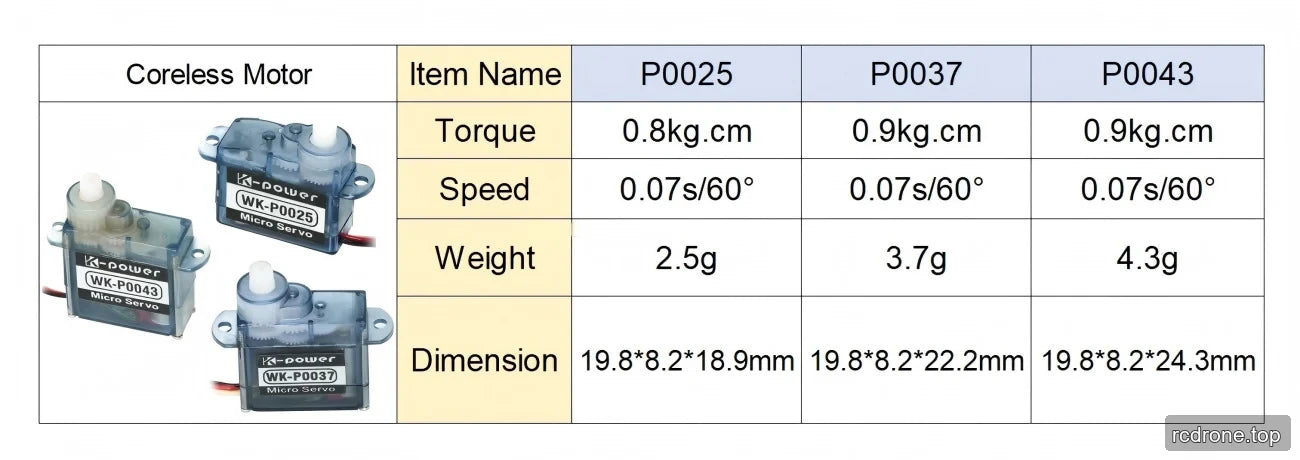

Torque and Speed

Operating voltage	Torque	Speed
4.8 V	0.75 kg·cm / 10 oz·in	0.08 s/60°
6.0 V	0.85 kg·cm / 12 oz·in	0.07 s/60°
Not specified	0.9 kg·cm	0.07 s/60°

The voltage-unspecified values are separate ratings and should not be substituted for the voltage-specific values.

Applications

Use the P0037 to actuate RC airplane control linkages where a 3.7 g servo and a compact mounting envelope are important. Select the supply within 4.8–6.0 V and size the linkage load against the torque rating at that voltage.
