Overview

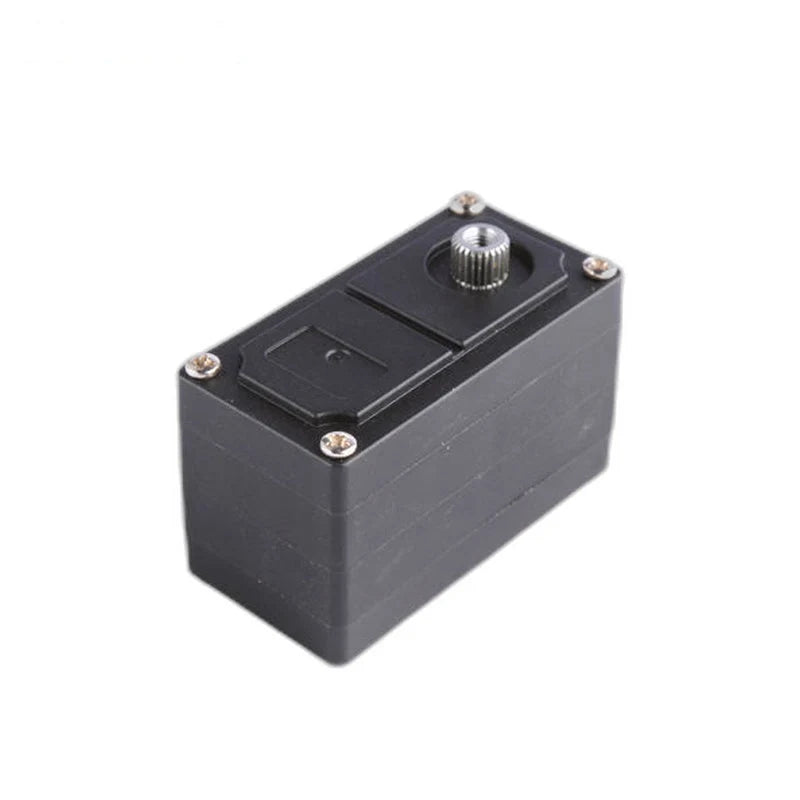

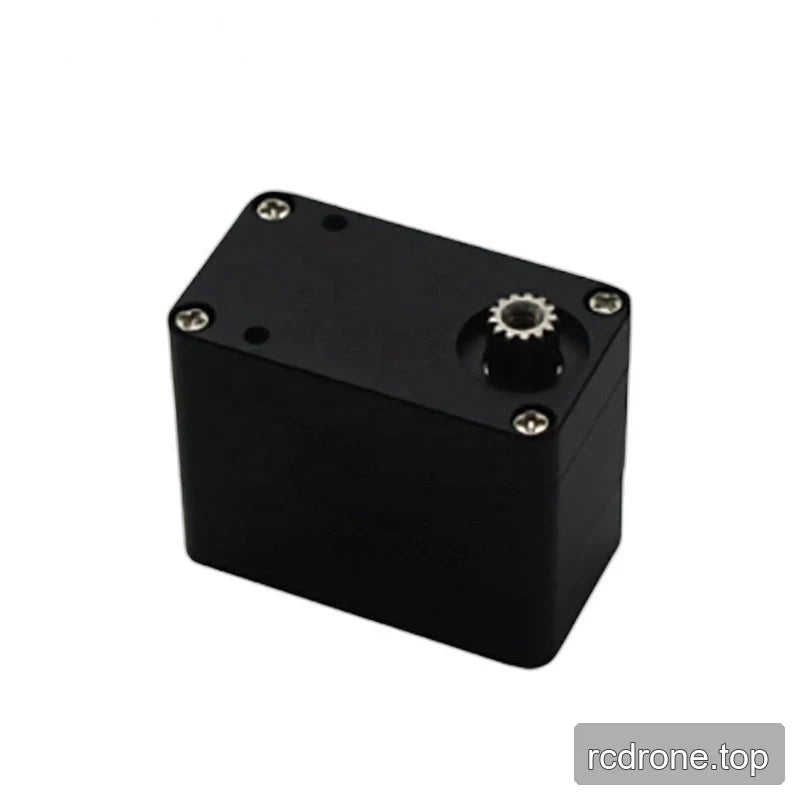

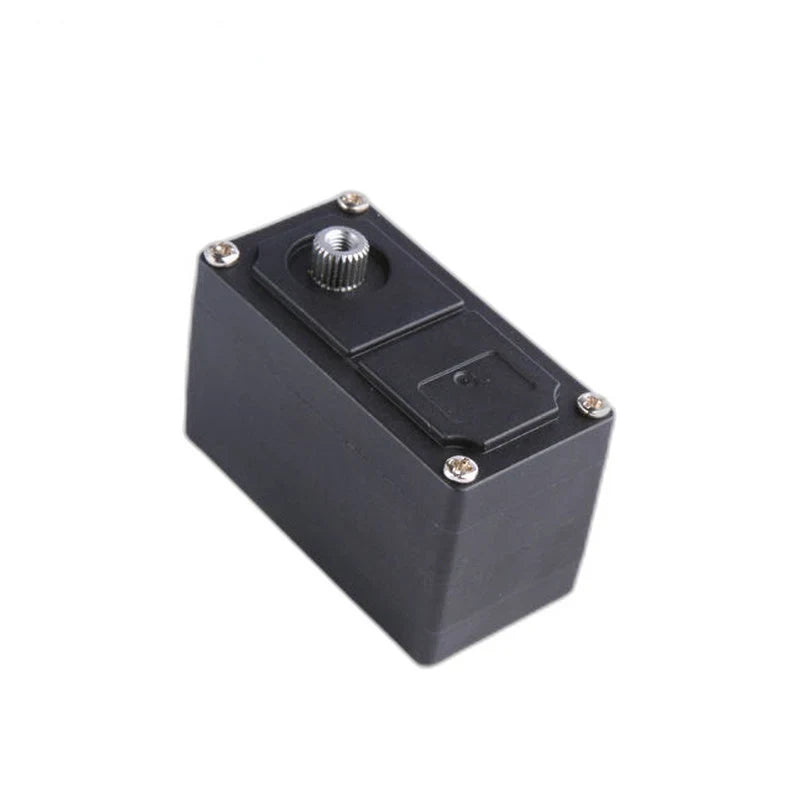

The Kpower RC03T is a 9G-class micro coreless servo motor for compact positioning mechanisms in robots, robotic arms and equipment. Its 20.5 × 11 × 17.5 mm body combines copper gears with a 7075 aluminum case. Travel is 180° ± 5°, while stall torque at 5.0 V is 1.6 ± 0.20 kg·cm, helping buyers assess its suitability for small linkages and joints.

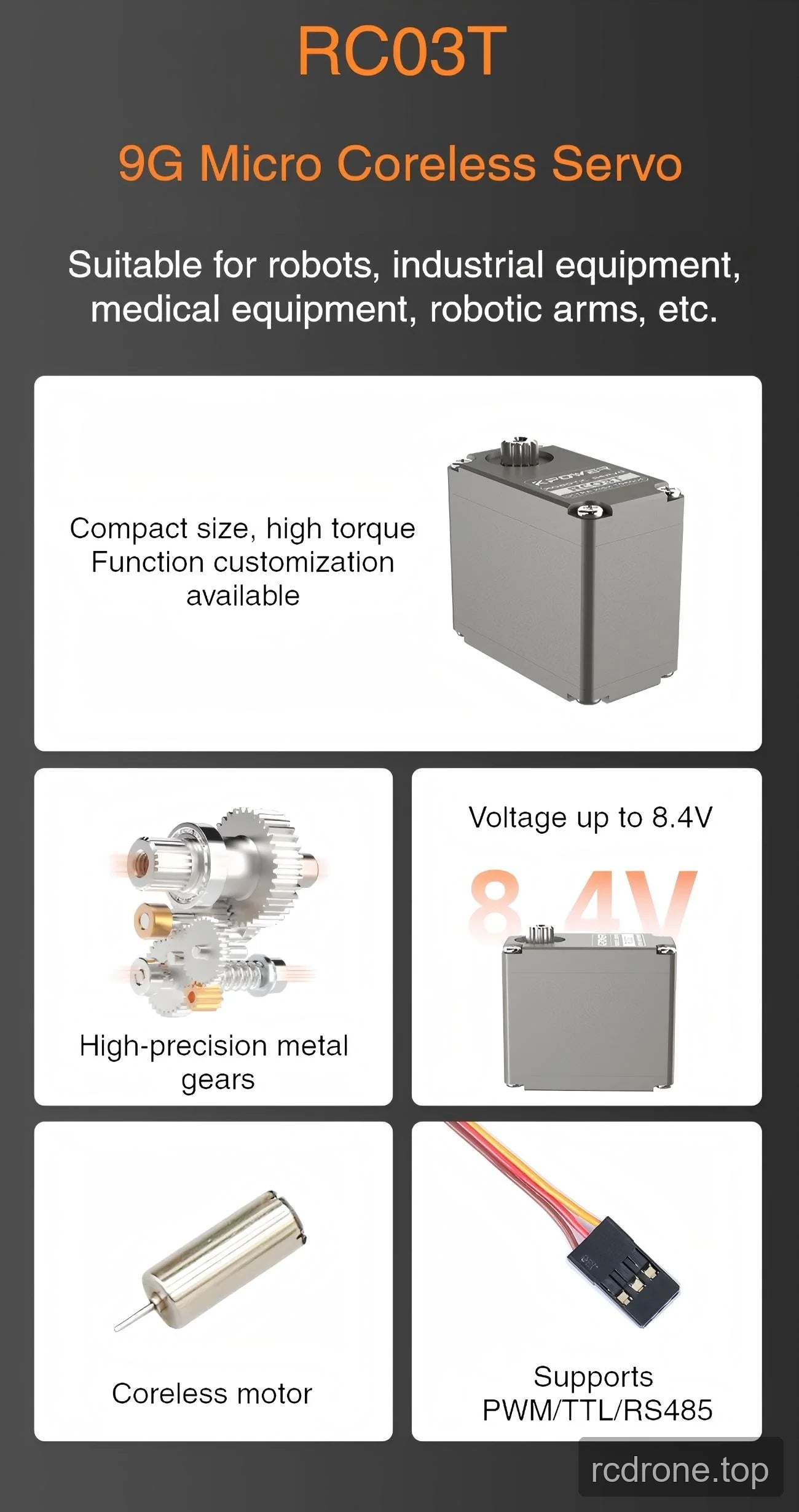

Features

Coreless motor in a compact micro-servo format.
Precision metal gearing made from copper.
7075 aluminum case.
Pulse-control signal range of 500–2500 μs, with a 3 μs dead band and 50–333 Hz refresh frequency.

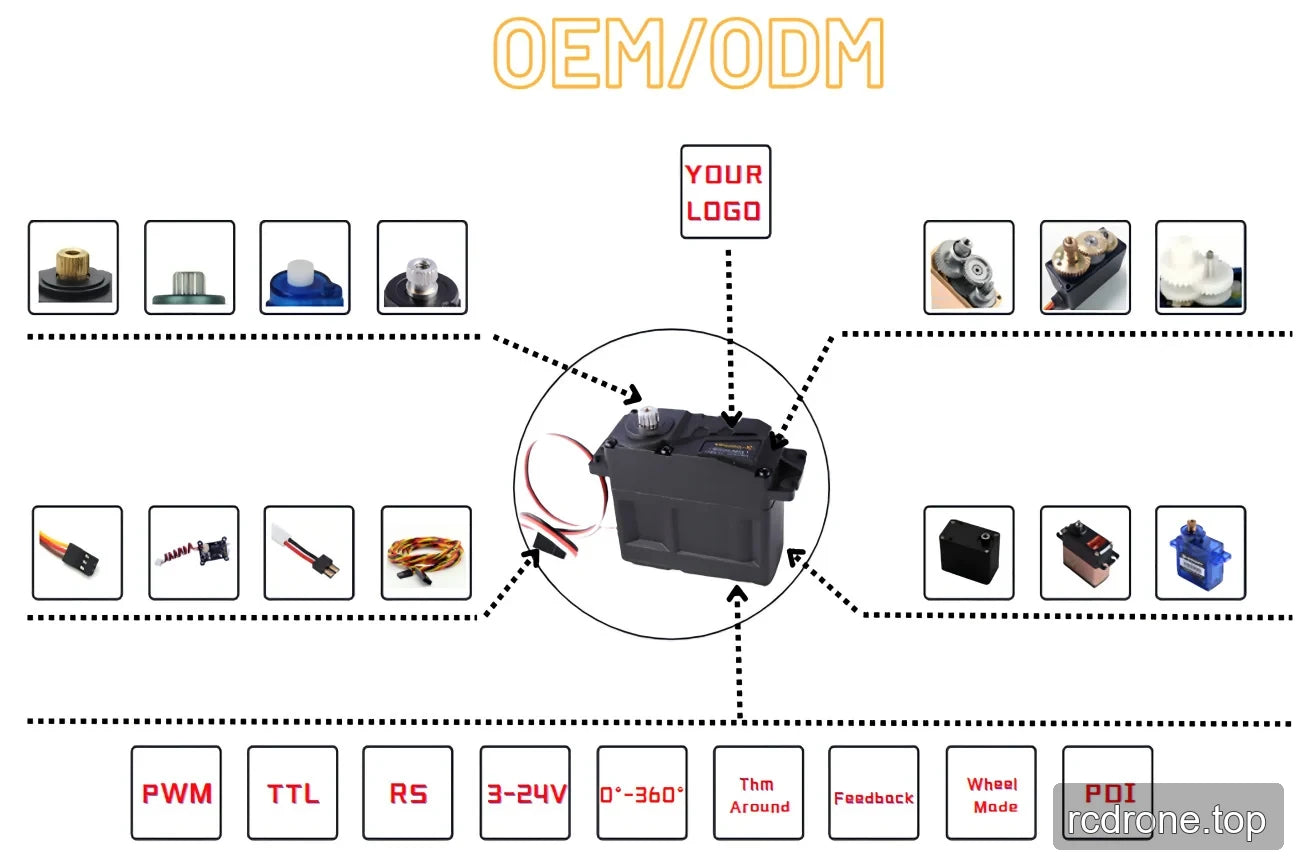

Function customization support.

Specifications

Parameter	RC03T specification
Brand	Kpower
Model / version	RC03T
Servo designation	9G micro coreless servo
Gear material	Copper
Signal range	500–2500 μs
Case material	7075 aluminum
Motor type	Coreless
Operating temperature	−10 °C to +50 °C
Dead band	3 μs
Travel angle	180° ± 5°
Refresh frequency	50–333 Hz
Dimensions	20.5 × 11 × 17.5 mm
Weight	8.5 ± 1 g
Wire gauge / insulation	28 AWG / PVC
No-load speed at 5.0 V	0.11 ± 0.01 s/60°
Stall torque at 5.0 V	1.6 ± 0.20 kg·cm
No-load current at 5.0 V	50 ± 30 mA
Stall current at 5.0 V	600 ± 40 mA

Applications

Robot and robotic-arm positioning: Move small joints or linkages where the compact body and 180° ± 5° travel fit the mechanism.
Industrial equipment mechanisms: Position compact levers or linkages using pulse control with a 500–2500 μs signal range.
Medical equipment mechanisms: Provide compact mechanical positioning where the stated dimensions, travel and torque suit the mechanism.
