3.3G 3W MAX Analog VTX & VRX SPECIFICATIONS

Brand Name: None

Is Electric: No battery

Origin: Mainland China

Material: Metal

Recommend Age: 14+y

Use: Vehicles & Remote Control Toys

Quantity: 1 pcs

3.3G VTX 3W max Analog VTX & VRX Lightweight compact 7inch 9inch 13 inch fpv drone VIDEO TRANSMITTER

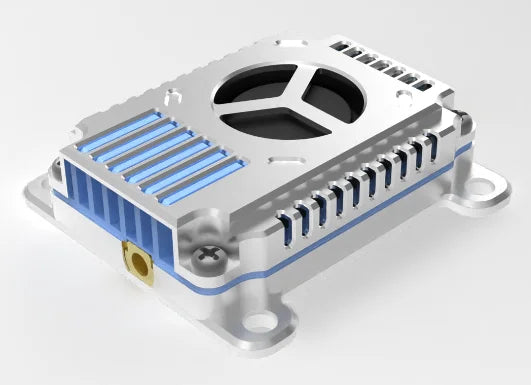

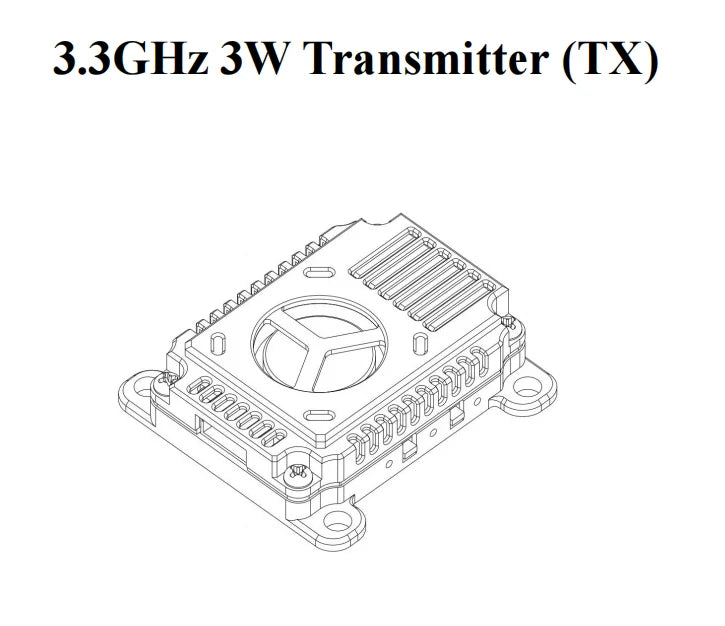

3.3G VTX

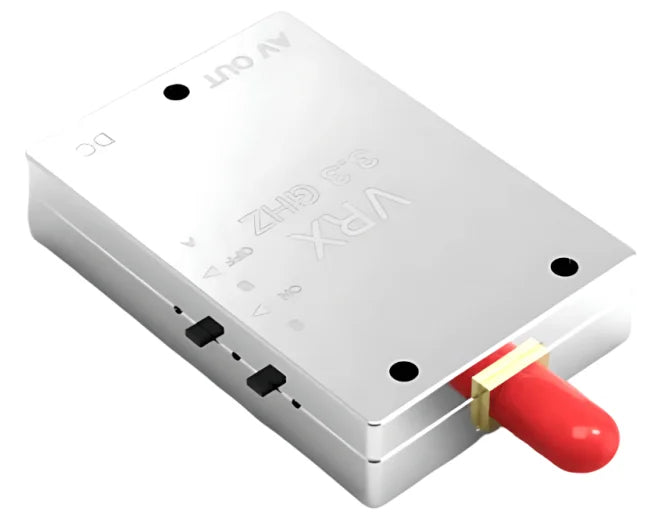

3.3G VRX

II. Specifications

1. Receiving frequency: 16CH (3320MHz to 3495MHz)

2. Input voltage: DC 7-36V

3. Current Consumption: (105）mA @12V

4. Button control and LED indicators

5. On board regulator output: 5V 1A RX

6. Sensitivity: -95dBm

7. Voltage Standing Wave Ratio: 2:1

8. Demodulation System: FM/PLL ANT.

9. Input Impedance: 50Ω, Typ.

10. Video Output Impedance: 75Ω, Typ.

11. RF Connector:  SMA

Introducing the 3.3G 3W MAX Analog VTX & VRX for 7-13 inch FPV video transmission, featuring a channel indicator with red LED, band indicator with blue LED, and power level indicator with green LED, along with buttons for band and channel change and power control.

Press the IV control and LED indicators definition button briefly to switch between frequency channels; for a longer press (over 3 seconds), toggle between channels and bands, indicated by flashing red LEDs for band A or blue LEDs for band B; the channel number is shown by the corresponding number of flashes.

Maximize video transmission with this analog VTX and VRX for 7-13 inch FPV displays, featuring a 3.3G 3W maximum power output and optimized signal processing for clear and stable video signals.

Toggle output power with short presses, entering PIT mode with long presses; power and PIT modes are indicated by simultaneous green LED turns on/off.

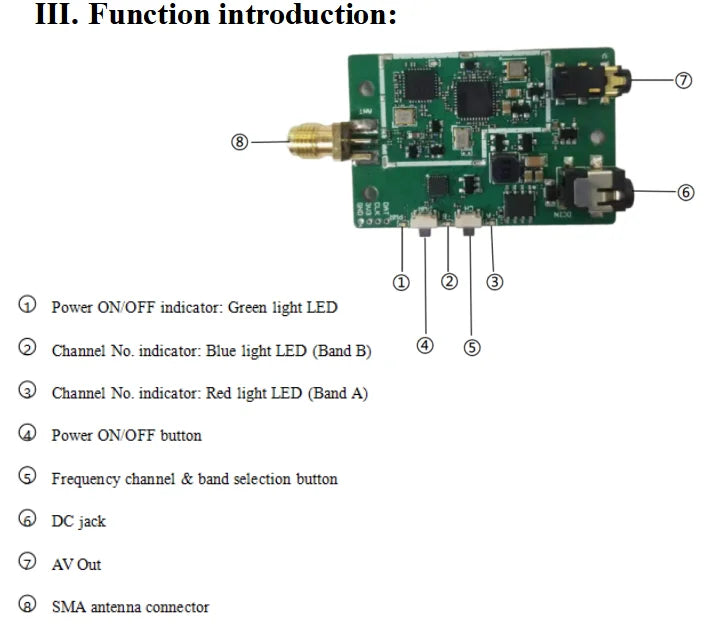

Features include a power on/off indicator with green light, channel number indicators in blue and red for Band B and A respectively, a power on/off button, frequency/channel selection button, DC input, AV output, and an SMA antenna connector.

IV control features include frequency channel and band selection via a key press. Pressing the key briefly selects the next frequency channel, indicated by flashing red (band A) or blue (band B) LEDs. The number of flashes corresponds to the channel number (1-8). Holding the key for over 3 seconds switches to another frequency plan or band. For example, pressing and releasing the key while in channel 3 of band A causes the red LED to flash three times, indicating channel 3 of band B.

3.3G 3W MAX analog VTX & VRX for 7-13 inch FPV video transmission features channel selection with CH1-CH6 indicators, a DC power ON/OFF control key that turns on the green LED when powered, and flashes corresponding channel numbers when pressed.
