868 MHz Lora Antenna Wifi 915MHz SPECIFICATIONS
Origin: Mainland China
Model Number: G900-7, G900-15, G900-23, G900-33
Gain(dB): 6dBi
Brand Name: XHCRF
Electrical Specification |
Mechanical Specification |
||
Frequency/ Band |
868MHz/915MHz |
Connector |
SMA-male |
Gain |
3dBi-6dBi |

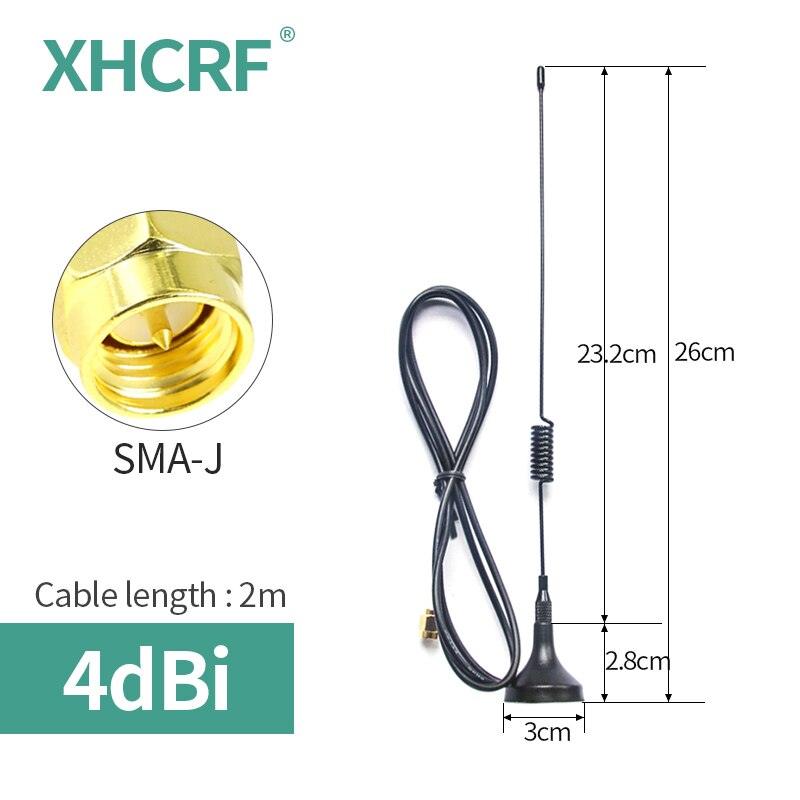

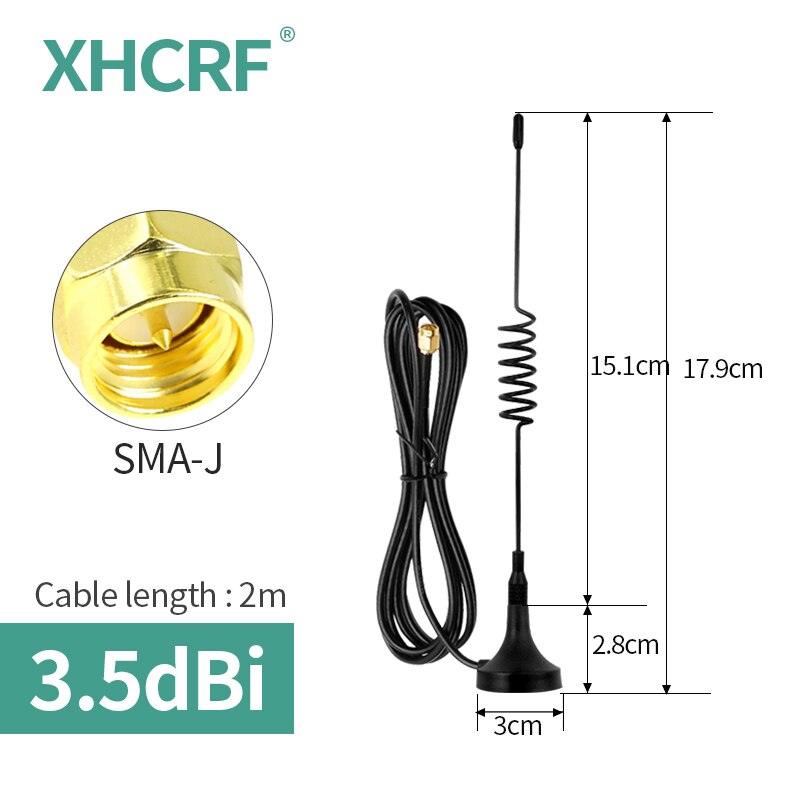

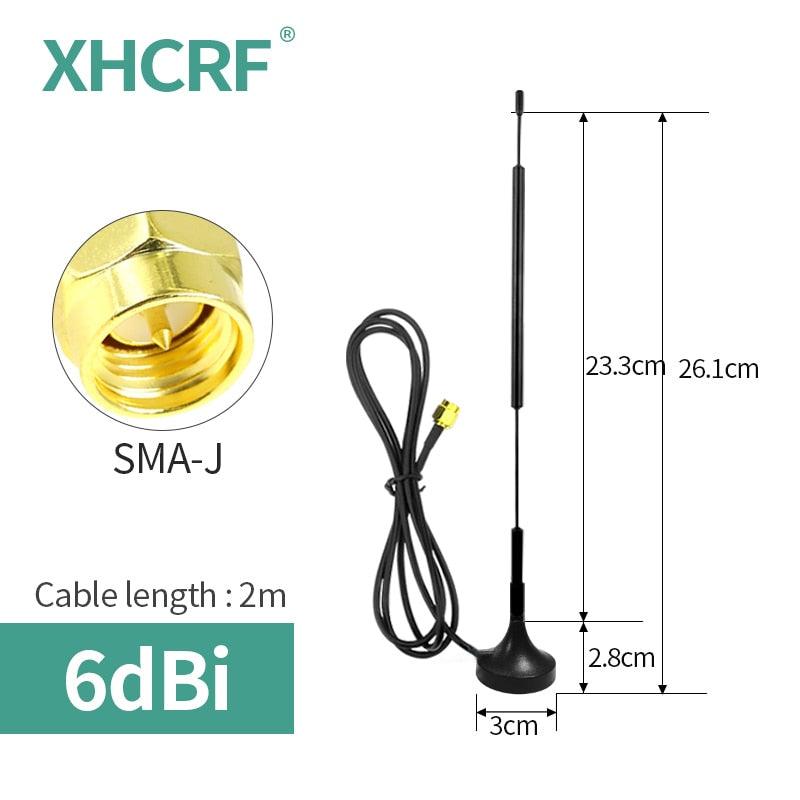

Antenna Height |
99mm-261mm |
VSWR |
≤1.5 |
Cable Type |
RG174 |
Polarization |
Vertical |
Cable Length |
2m |
Radiation Direction |
Omnidirectional |
Magnet Base Diameter |
30mm |
Input Impedance |
50Ω |
Working Temperature |
-40℃~+85℃ |
Power |
50W |
Storage Temperature |
-40℃~+85℃ |
copper elements are adopted for ZIISOR magnet antenna for higher sending efficiency and longer communication distance . copper element common magnet antenna TX4G-XPLI7 is one of the most widely used copper antennas .
the lower power loss of the device will be higher match lower loss 54.6950 Iclose to the center line.
Lower Data Loss Rapid data transmission; complete receiving with unlimited volume theoretically M . ZIISOR magnet antenna magnet antenna receives and receives data by sending and
longer communication distance by magnet antenna Gain is relatively higher for magnet antenna than rubber rod one with longer communication distance as well .
ZIISOR 868M/915MHz magnet antennas have no Frequency Fluctuation . center frequency of antennas will basically remain the same, but frequency of other antennas may fluctuate .
Easy Fixing with Strong Magnet Strong magnet is adopted in the antenna base for easy installation by simply sucked on metals . NdFeB suction force about 6.9Nm
F SMA male connector RG174 Cable Oxygen-free copper Excellent insulated core flexible rubber hose connector customizable excellent performance . low magnet heat-resistance temperature-resistant easy install performance improved cable safety .

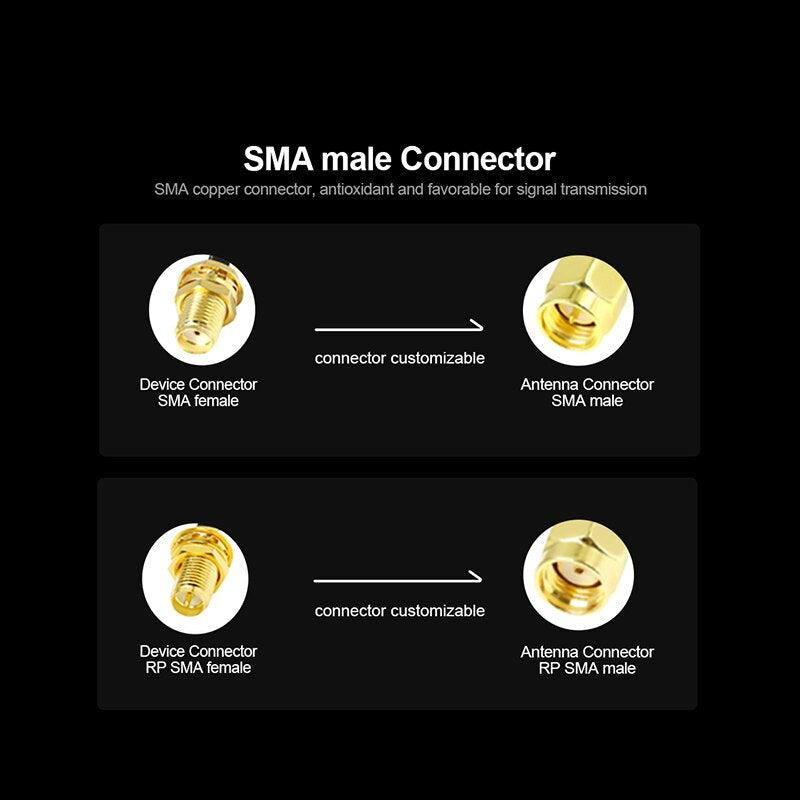

SMA male Connector SMA copper connector; antioxidant and favorable for signal transmission connector . customizable Device Connector Antenna Connector RP SMA female .
Application Easy install and widely applied to: wireless module; DTU, vending machine, charging pile . WiFi Module WiFi DTU Monitoring Devices Industrial Route
write to support@ziisor com for antenna customization . poor communication antenna Category Installation Location Limitation Data Loss Unmatched Impedance Connector and Size .
Advanced Testing Equipment Agilent E5071C VNA Antenna Simulation Testing #unl OrZ Froat## ula 7t atu Venkaoidn Roocr Kona Ia Actual VSWR Testing Actual Smith Testing_ Ago 10.0 K G0 4 AIISOR J JCoO Con LC
ZIISOR Technology Co, Ltd is skilled in various antenna development and production with its experenced antenna engineers and professional production technology . it offers antenna customization as well as best price to customers .
