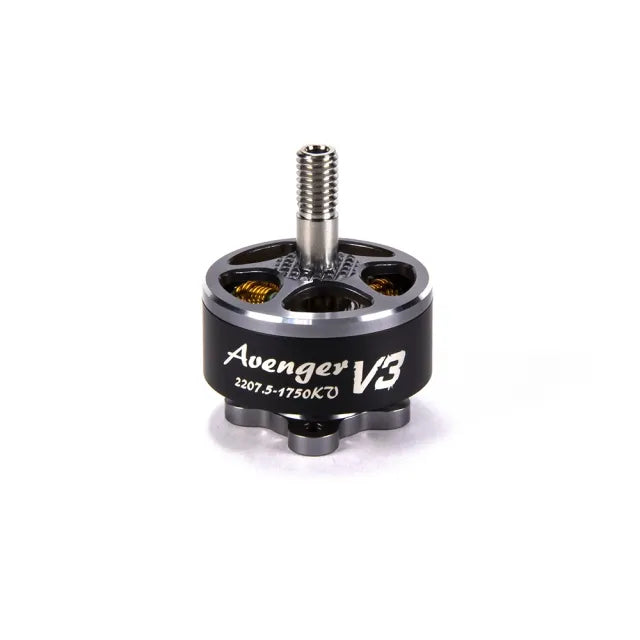

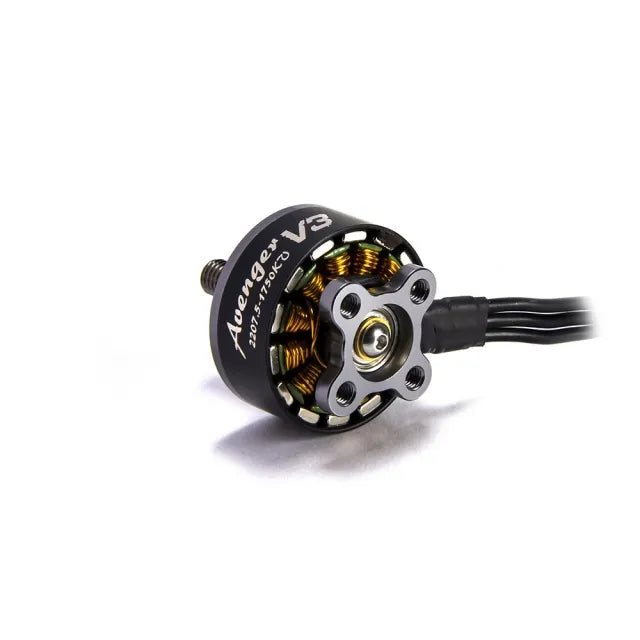

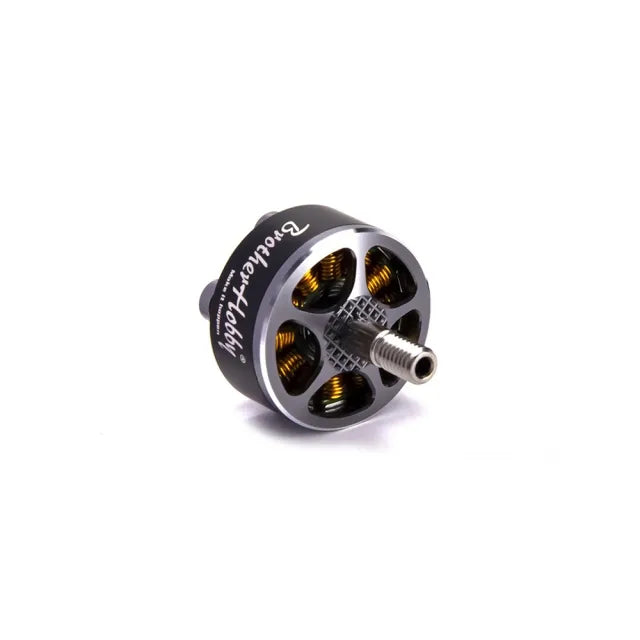

BrotherHobby Avenger 2207.5 V3 Motor(CW) 1750KV/1900KV/2350KV FPV Drone Motor

BrotherHobby Avenger 2207.5 V3 Motor(CW) 1750KV/1900KV/2350KV FPV Drone Motor

Brotherhobby

$32.90 USD
$32.90 USD
Sale Sold out
Taxes included. Shipping calculated at checkout.

181 orders in last 90 days

KV
  • PayPal
  • Visa
  • Mastercard
  • American Express

Warehouse: China/USA/Europe, can delivery to all countries;

Free Shipping: 9-15 days;

Express Shipping: 5-8 days;

Return&Refund: 30 Days.

View full details
Specifications
KV: 1750KV/1900KV/2350KV
Base casing: Al 7075
Stator: 0.15mm Nippon Steel silicon steel
Configuration: 12N14P
Prop Adapter Shaft Thread: M5
Shaft: Titanium Alloy hollow shaft
No.of Cells(Lipo): 5-6S
Bolt Pattern: M3(16X16mm)
Bearings: Japanese NMB 9x4x4mm
Rotor: N52H arc magnets
Weight: 33.6g with 16cm SR wires
Wire AWG: 20AWG 16cm length
Bell cap: Al 7075
Avenger 2207.5 V3 Motor Eagles cleaved the sky: RacingAerospace-grade 7075 AL, hard anodizing Japanese NMB bearings,

Featuring aerospace-grade 7075 aluminum construction, hard anodizing for added durability, and Japanese NMB bearings for silky smooth performance, this motor also boasts a heat-treated alloy steel shaft that is wear-proof and can withstand crash impacts without sustaining damage.

the temperature can reach 260C, don't 2.The output worry burn on 100% throttle

The motor's operating temperature can reach up to 260°C, allowing for prolonged flight times without worrying about overheating. Even when running at high throttle levels, the power output remains strong and consistent.

Specification KV: 1750kV/19o0kv/2350kv BaseSpecifications KV: 1750KV/1900KV/2350KV Base cas

Specifications KV: 1750KV/1900KV/2350KV Base cas
[BvothextLobbv Muki Avenger 2207.5-1750

Test Report: Avenger HQ 2207.5-1750KV Motor (Date: March 11, 2020) * Ambient temperature: 23.9°C * Maximum temperature reached during testing: 24.5°C * Test results: + 2.1V input: 10481 RPM, 3.71A current draw, 40C temperature + 4.1V input: 13458 RPM, 3.42A current draw, 90°C temperature

Bvother-Hobbu Huke Avenger 2207.5-1900KV Test

Avenger 2207.5 Motor Specifications: * Dimensions: 5.1mm x 4.1mm x 3mm * KV rating: 1900KV * Tri-blade design * Test results: + Ambient temperature: 23.9°C + Maximum temperature reached during testing: 25°C + Results at different throttle settings: - 24.0V input: 24567 RPM, 2.20A current draw - 34.3V input: 27648 RPM, 1.90A current draw - 41.7V input: 29610 RPM, 1.85A current draw

Avenger 2207.5-2350KV Specification M5 5 WH 027 00

Avenger 2207.5 Motor Specifications: * Dimensions: 5.1mm x 4.1mm x 3mm * KV rating: 2350KV * Tri-blade design * Test results: + Ambient temperature: 20.0°C + Maximum temperature reached during testing: 25°C + Results at different throttle settings: - 20.0V input: 23071 RPM, 2.28A current draw - 35.9V input: 26772 RPM, 1.90A current draw
