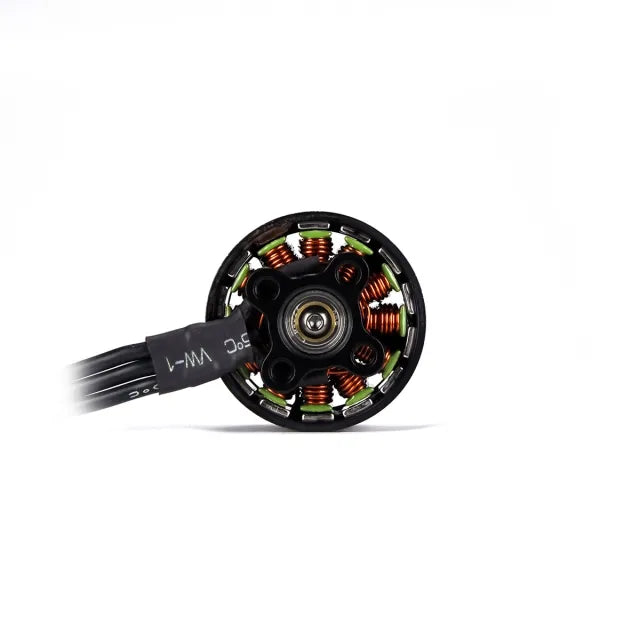

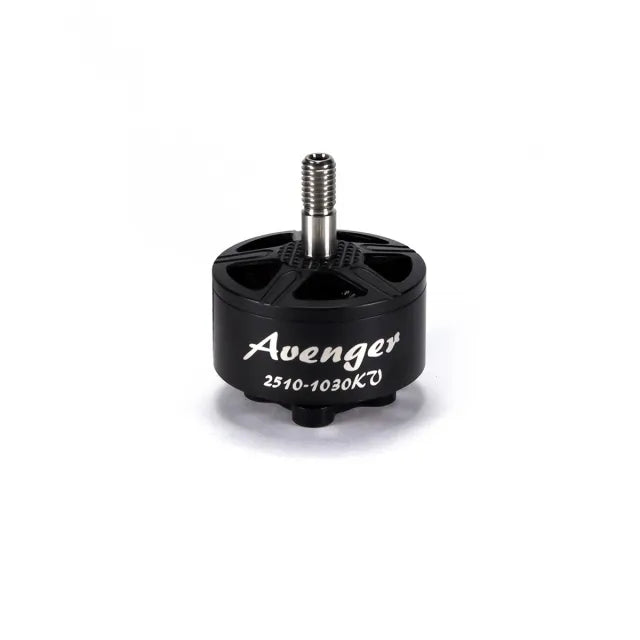

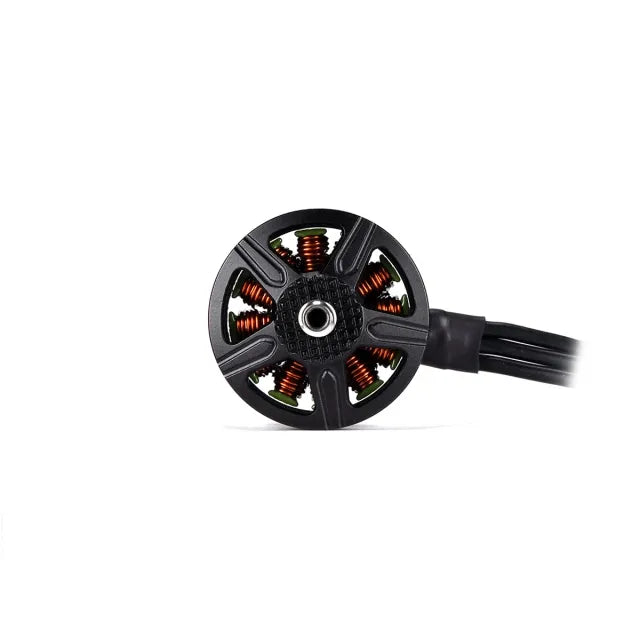

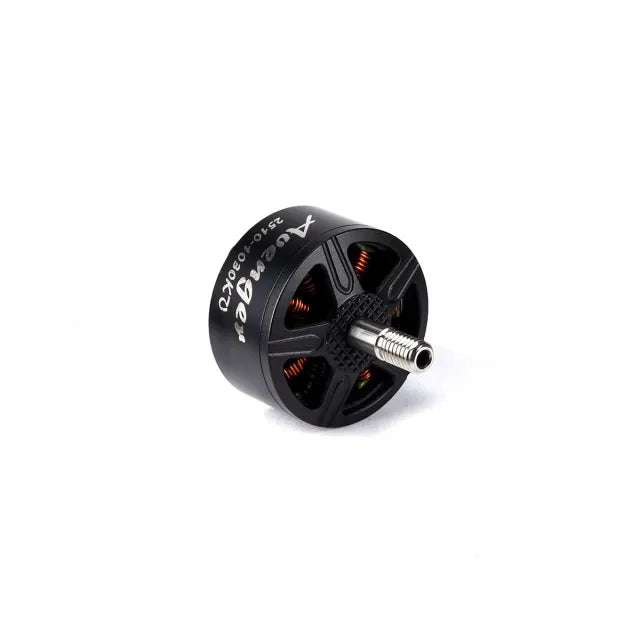

BrotherHobby Avenger 2510 Motor 930KV/1250KV/1380KV FPV Drone Motor

BrotherHobby Avenger 2510 Motor 930KV/1250KV/1380KV FPV Drone Motor

Brotherhobby

$34.99 USD
$34.99 USD
Sale Sold out
Taxes included. Shipping calculated at checkout.

192 orders in last 90 days

KV
  • PayPal
  • Visa
  • Mastercard
  • American Express

Warehouse: China/USA/Europe, can delivery to all countries;

Free Shipping: 9-15 days;

Express Shipping: 5-8 days;

Return&Refund: 30 Days.

View full details
Specifications
KV: 930KV/1250KV/1380KV
Base casing: Al 7075
Stator: 0.15mm Nippon Steel silicon steel
Configuration: 12N14P
Prop Adapter Shaft Thread: M5
Shaft: Titanium Alloy hollow shaft
No.of Cells(Lipo): 5-7S
Bolt Pattern: M3 (16mmX16mm)
Bearings: Japanese NMB 9X4X4
Rotor: N52H arc magnets
Weight: 55g with 25cm SR wires
Wire AWG: 18AWG 25cm length
Bell cap: Al 7075
Avenger 2510-4030k7 Bvothev-HLobbi N

Brother Hobby Avenger 2510 Motor Specifications: KV options include 930KV, 1030KV, and 1380KV. Key features include an AWG 18 wire, 25cm length, 12N14P configuration, aluminum 7075 bell cap, compatible with 5-7S lipo cells, and a M5 shaft thread.


2510K12019072602 Drawing Specification 9c0r Conmiqu

Brother Hobby Avenger 2510 Motor Specifications: * Dimensions: 8mm x 4.5mm x 3mm * Current: 138.2C (Continuous) * KV rating: 930KV Additional details: * Prop adapter diameter: 27.9mm * Weight: 124g * Length: 42mm * Efficiency: 49.3% * Power output: 322 Watts (5 cells)

2510K12019072603 Drawing Specification IDU Configuration 12ni4

Brother Hobby Avenger 2510 Motor Specifications: * Drawing ID: 2510K12019072603 * Configuration: 12N14P IDU * Stator Dimensions: + Height (mm): 20 + Width/Length (mm): 326 * Weight Including Cable (g): [insert weight] * Magnet NeSH internal Resistance (ohms): [insert resistance] * Idle Current @10V (A): [insert current] * Compatible with: 0-7S Lipo cells

2510K12019072604 Drawing Specification 1380kv Configuration 12"

Kang Xu: Brother Hobby Avenger 2510 Motor Specifications: * Drawing Specification: 2510K12019072604 * KV Rating: 1380KV * Configuration: 12N14P IDU * Stator Dimensions: + Height (mm): [insert height] + Length (mm): [insert length] * Motor Dimensions (mm): + AWG 18 Wire: 250mm Long * Additional details: [insert additional details if any]
