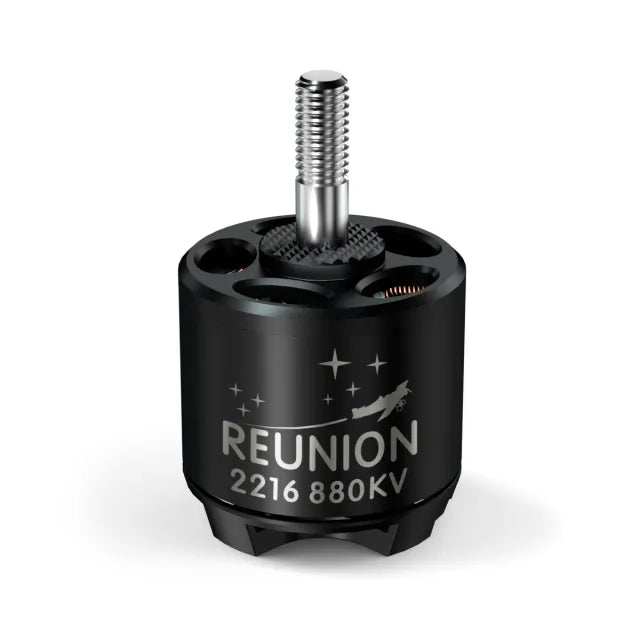

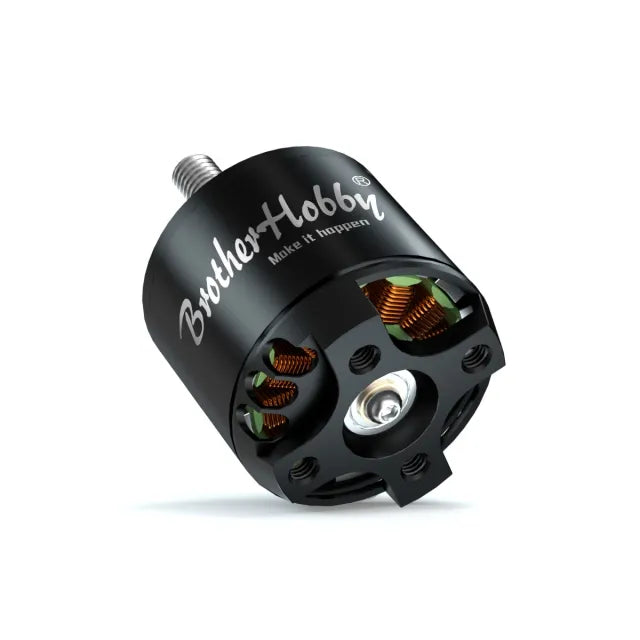

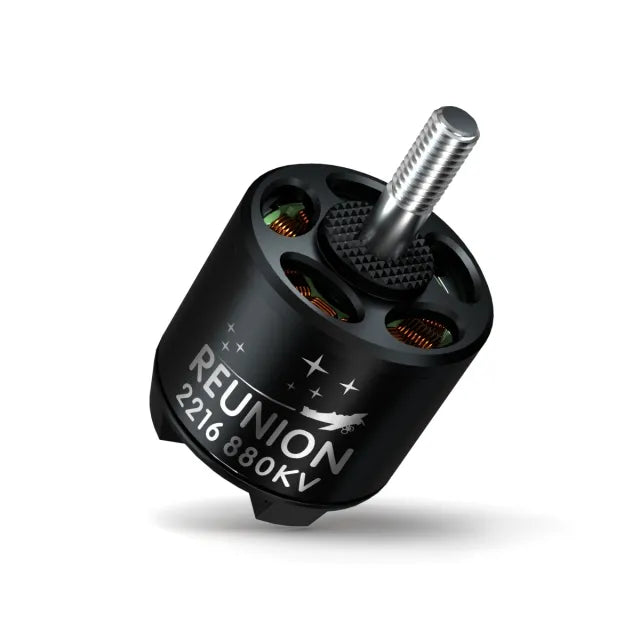

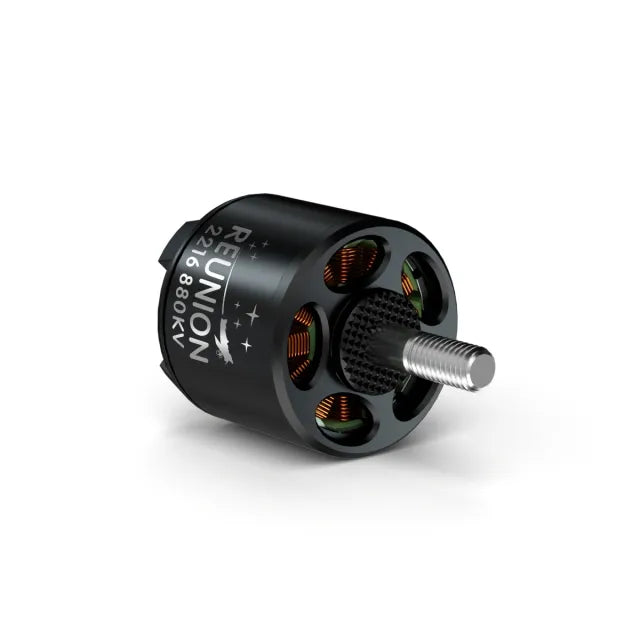

BrotherHobby Reunion 2216 Motor 880KV 4S 6S Fixed Wing Aircraft Motor

The Brother Hobby Reunion 2216 motor provides reliable power without worry, with an impressive 880KV output. It's designed to pair well with 10-inch propellers and is part of our new product line, the Reunion 2216.

The anodizing process preserves aluminum components, reducing weight and enhancing heat dissipation. Additionally, the motor features a hollow-carved design that minimizes energy consumption and thermal buildup.

The Reunion 2216 motor features a robust magnetic circuit with a consistent air gap and NS Zh arc magnet design for stable performance. Additionally, it boasts premium NMB bearings that provide linear torque and can withstand greater axial loads.

The Reunion 2216 motor features enameled wire with a high full-slot ratio, resulting in low internal resistance and efficient energy conversion. Additionally, it exhibits minimal eddy current hysteresis loss, ensuring optimal performance.

The Reunion 2216 motor has the following key parameters: * KV rating: 880 * Configuration: 12N14P * Maximum thrust: 1540g * Motor weight: 61.09g * ESC (by BrotherHobby): 4S, 30A capable * Recommended battery configuration: 5S Lipo * Compatible propellers: 10-inch x 5-inch * Installation size: 27.4mm x 40mm

Test Report for Reunion 2216 Motor: * Specification: + KV rating: 880KV + Configuration: 12N14P + Stator dimensions (mm): 22 x 27.4 x 44.4 + Motor dimension (mm): 27.4 + AWG wire gauge: 20# + Stator height (mm): 16 + Weight including cable (g): 61.09 + Magnet type: N52H * Internal resistance (mΩ): 131.40 * Idle current (@1V): [not specified]

Test Report for Reunion 2216 Motor: Specification: KV rating: 880KV Configuration: 4S, 16.8V, 30A capable Motor dimensions: [not specified] Recommended propellers: 10-inch x 4.5-inch
