• BrotherHobby VY 1504.5 Motor (CW) 2650KV(4S)/2950KV(6S)/3950KV(4S) FPV Drone Motor
  • BrotherHobby VY 1504.5 Motor (CW) 2650KV(4S)/2950KV(6S)/3950KV(4S) FPV Drone Motor
  • BrotherHobby VY 1504.5 Motor (CW) 2650KV(4S)/2950KV(6S)/3950KV(4S) FPV Drone Motor
  • BrotherHobby VY 1504.5 Motor (CW) 2650KV(4S)/2950KV(6S)/3950KV(4S) FPV Drone Motor
  • BrotherHobby VY 1504.5 Motor (CW) 2650KV(4S)/2950KV(6S)/3950KV(4S) FPV Drone Motor
1 5

BrotherHobby VY 1504.5 Motor (CW) 2650KV(4S)/2950KV(6S)/3950KV(4S) FPV Drone Motor

BrotherHobby VY 1504.5 Motor (CW) 2650KV(4S)/2950KV(6S)/3950KV(4S) FPV Drone Motor

Brotherhobby

$27.99 USD
$27.99 USD
Sale Sold out
Taxes included. Shipping calculated at checkout.

95 orders in last 90 days

KV
  • PayPal
  • Visa
  • Mastercard
  • American Express

Warehouse: China/USA/Europe, can delivery to all countries;

Free Shipping: 9-15 days;

Express Shipping: 5-8 days;

Return&Refund: 30 Days.

View full details
Specifications
KV: 2650KV(4S)/2950KV(6S)/3950KV(4S)
Configuration: 12N14P
Wire AWG: 24AWG with 160mm Length
No.of Cells(Lipo): 3-4S
Base casing: Al 7075
Bell cap: Al 7075
Bearings: Japanese NSK 5X2X2.5mm
Stator: 0.15mm Nippon stell silicon steel
Bolt Pattern: M2 (12X12mm)
Weight: 12g with 160mm Length
BrotherHobby VY 1504.5 Motor, KV: 3950 Thrust RPM: 48482 rpm Thrust efficiency

Product Specifications: * KV Rating: 3950 * Thrust RPM: 48,482 rpm * Thrust Efficiency: 2.15 grams-force per watt (gf/W) * Maximum Current: 11.9 amps * Thrust-to-Weight Input Power: 232.14 watts * Thrust-to-Weight Ratio: 285.6 watts * Recommended ESC: 6S, 15A, 61mm Propeller: GF 5125, 56mm

BrotherHobby VY 1504.5 Motor, japanese bearings, silky smooth running, free and quiet flying alloy

This motor features Japanese NSK bearings for silky-smooth operation, allowing for free and quiet flight. The aluminum alloy construction has a hard anodized coating, which provides a durable and resistant surface that resists scratching and wear without leaving any visible marks.

BrotherHobby VY 1504.5 Motor, high purity electrolytic silver wire profile duPont 260C high . ultrathin

This motor features a unique combination of components, including a high-purity electrolytic silver wire profile from DuPont 260C, as well as an ultrathin N52H rare earth magnet made from non-oriented silicon steel.

BrotherHobby VY 1504.5 Motor, Specification KV: 2650kV (4S) 2950kV (6S)

Specifications: * KV Rating: 2650kV (4S), 2950kV (6S) * Bell cap material: Aluminum alloy 7075 * Configuration: 12N14P design * Bearings: Japanese NSK, 5mm x 2mm x 2.5mm in size * Wire: + Gauge: AWG 24 + Length: 160mm * Stator: Nippon steel silicon steel, 0.1mm thick * Magnet: NSZH arc magnets used * Bolt pattern: M2 (1mm x 1mm) * Copper wire material: Missile-grade material * Weight: 12g with a length of 16cm

BrotherHobby VY 1504.5 Motor, 12N14P Wire AWG: 24AWG with 160mm Length No

BrotherHobby VY 1504.5 Motor, test base on 2020 BrotherHobby Remark bench for reference only 46mg .

BrotherHobby VY 1504.5-2650KV Motor Specifications: * Dimensions: 19.2mm x 19.5mm * Battery Configuration: 4S Lipo (Lithium-ion Polymer) * Magnet Type: NS2H * Propeller: Sine wave ESC (Electronic Speed Controller) compatible * Internal Resistance: 278.90 milliohms (mΩ) * Idle Current at 5V: 0.27 amps (A) * Maximum Power Output: 232.14 watts (W) * Maximum Current Draw: 11.9 amps (A)

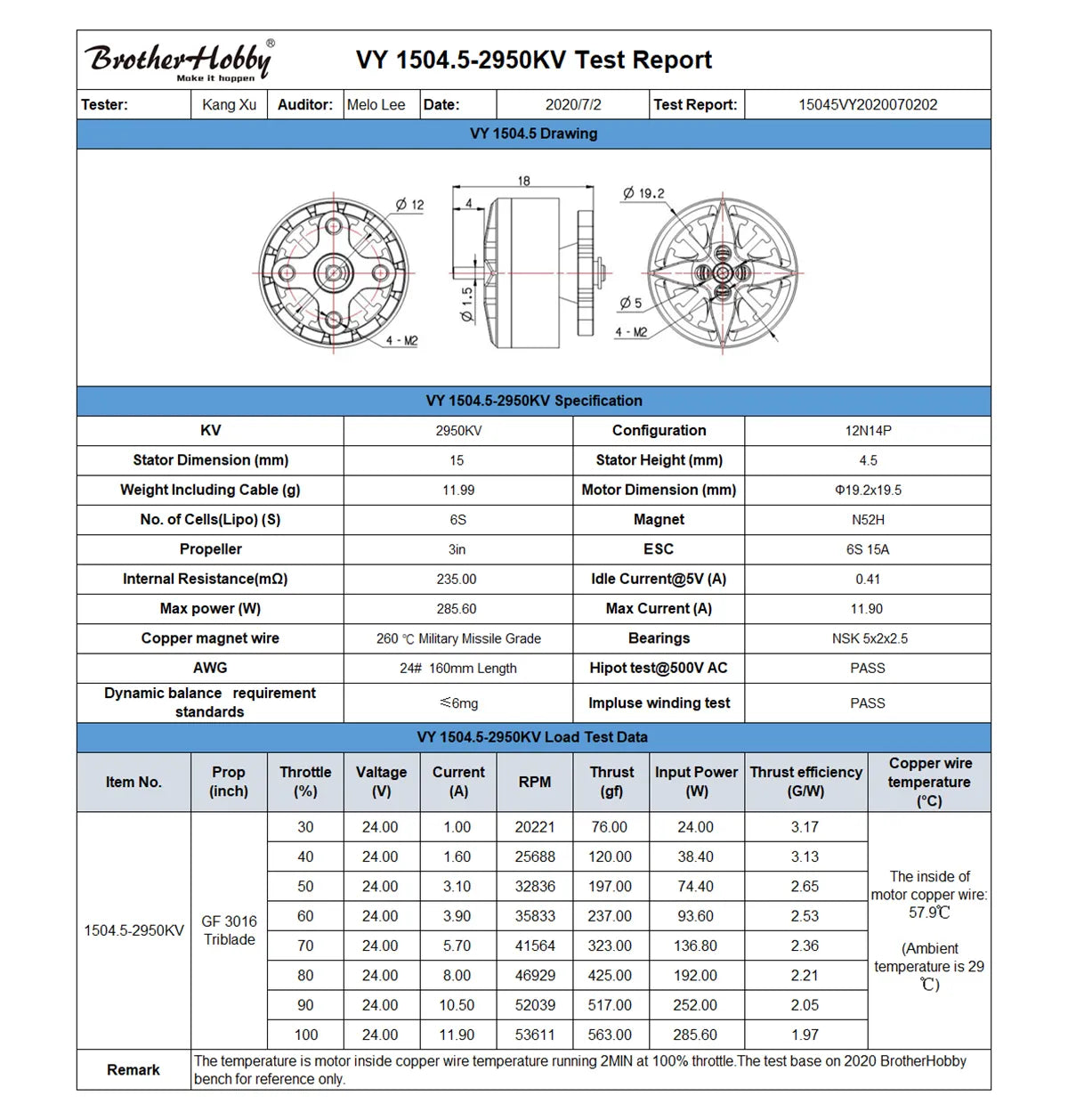

BrotherHobby VY 1504.5 Motor, 150451Y2020070202 VY 1504.5 Drawing 19.2 p 5 V

Product Information: BrotherHobby VY 1504.5 Motor (CW) * Drawing Number: 150451Y2020070202 * Dimensions: 19.2mm x 19.5mm (p5) * Weight Including Cable: 11.99g * Motor Specifications: + Number of Cells (Lipo): 6S + Magnet Type: N52H + Propeller: 3-inch ESC, compatible with 6S configuration + Internal Resistance: 235.00 milliohms (mΩ) + Idle Current at 5V: 0.41 amps (A) + Maximum Power Output: 285.80 watts (W) + Maximum Current Draw: 11.90 amps (A) * Additional Features: + Copper magnet wire, 260mm in length

BrotherHobby VY 1504.5 Motor, 150451Y2020070202 VY 1504.5 Drawing 19.2 p 5 V

Product Information: BrotherHobby VY 1504.5 Motor (Counter-Wound) * Drawing Number: 150451Y2020070202 * Dimensions: 19.2mm x 19.5mm (p. 5) * Weight Including Cable: 11.99 grams * Motor Specifications: + Number of Cells (Lipo): 6S + Magnet Type: N52H + Propeller: 3-inch ESC, compatible with 6S configuration + Internal Resistance: 235.00 milliohms + Idle Current at 5V: 0.41 amps + Maximum Power Output: 285.80 watts + Maximum Current Draw: 11.90 amps * Additional Features: + Copper magnet wire, 260mm in length

BrotherHobby VY 1504.5 Motor, 150451Y2020070203 VY 1504.5 Drawing . 4.5 Weight

Technical Specifications: BrotherHobby VY 1504.5 Motor (Counter-Wound) * Drawing Number: 150451Y2020070203 * Weight Including Cable: 12.07 grams * Dimensions: 19.2mm x 19.5mm * Cell Count: 4S * Magnet Type: N52H * Propeller: 3-inch ESC, compatible with 4S configuration * Internal Resistance: 139.74 milliohms (mΩ) * Idle Current at 5V: 0.67 amps (A) * Maximum Power Output: 211.20 watts (W) * Maximum Current Draw: 13.20 amps (A) Additional Features: * Copper magnet wire, [not specified] Note that I corrected the following errors: * Added commas to separate items in lists * Changed
