SPECIFICATIONS
Weight: 0.1
Size: 0
Package: Yes
Origin: Mainland China
Model Number: Air Unit Module
Compatible Drone Model: Runcam
Compatible Drone Brand: DJI
Brand Name: Jumpeak
The FPV Air Unit Module features an ultra-low-latency high-definition digital image transmission, 1080p/60fps video recording, and eight frequency channels, allowing eight pilots to fly simultaneously.
Highlights
A modular with a quick-release design, making replacement easier and cost-efficient for users. Also features an ultra-low-latency high-definition digital image transmission, 1080p/60fps video recording, and eight frequency channels, allowing eight pilots to fly simultaneously.
In The Box
FPV Air Unit Module × 1
Specifications
Dimensions
Air Unit: 44 × 37.8 × 14.4 mm
Operating Frequency: 5.725-5.850 GHz
Transmitter Power (EIRP): FCC/SRRC: <30 dBm; CE: <14 dBm
Min. Latency (end-to-end)
Low Latency Mode (720p/120fps): <28 ms
High-Quality Mode (720p/60fps): <40 ms
Max. Transmission Distance: FCC/SRRC: <4 km; CE: <0.7 km
Video Format: MP4 (Video format: H.264; Audio format: ACC-LC)
I/O Interface: USB-C, MMCX, 3-in-1 port, microSD card slot
Operating Temperature Range: 32°to 104°F (0° to 40°C)
Input Power: 7.4-17.6 V, about 4-9 W
Channels: 8
Channels Info
FCC
Channel 1: 5660
Channel 2: 5695
Channel 3: 5735
Channel 4: 5770
Channel 5: 5805
Channel 6: 5878
Channel 7: 5914
Channel 8: 5839
CE/SRRC
Channel 1: 5735
Channel 2: 5770
Channel 3: 5805
Channel 8: 5839
MIC
Channel 1: 5660
Channel 2: 5700
Channel 8: 5745
Compatibility
FPV Camera
![Caddx Digital HD FPV Air Unit Module - RCDrone](http://rcdrone.top/cdn/shop/products/Hd98d130aee9840beb42c670e824664f3A.jpg?v=1684069048&width=1445)

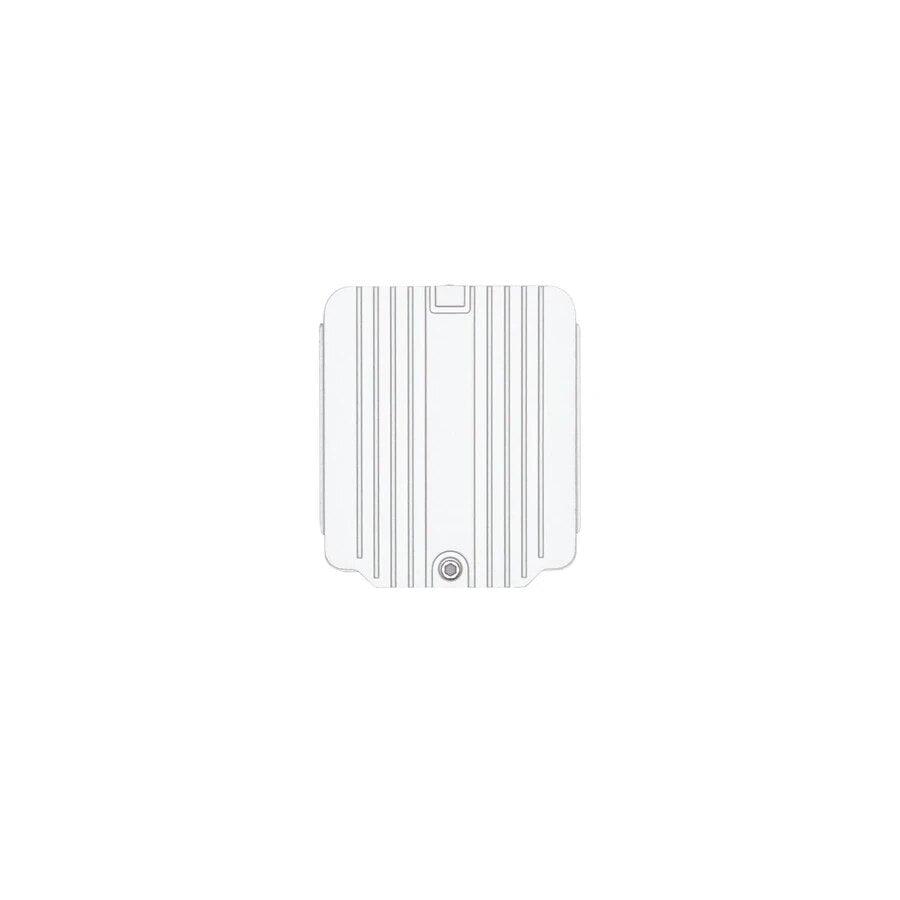

![Caddx Digital HD FPV Air Unit Module - RCDrone](http://rcdrone.top/cdn/shop/products/He7412c0b5eaf4131b505de82ea84a2cal.jpg?v=1684069050&width=1445)
