CUAV CAN PDB Power Module Carrier Board And X7+ Pro Core Pixhawk Flight Controller Autopilot

CUAV CAN PDB Power Module Carrier Board And X7+ Pro Core Pixhawk Flight Controller Autopilot

CUAV

$1,656.74 USD
$2,319.43 USD $1,656.74 USD
Sale Sold out
Taxes included. Shipping calculated at checkout.

2 orders in last 90 days
  • PayPal
  • Visa
  • Mastercard
  • American Express

Warehouse: China/USA/Europe, can delivery to all countries;

Free Shipping: 9-15 days;

Express Shipping: 5-8 days;

Return&Refund: 30 Days.

View full details

X7+ Pro Core Pixhawk Flight Controller SPECIFICATIONS

Wheelbase: Bottom Plate

Use: Vehicles & Remote Control Toys

Upgrade Parts/Accessories: Flight controller

Tool Supplies: Assembly Category

Technical parameters: Value 2

Size: 89*42.5*33mm

Remote Control Peripherals/Devices: Remote Controller

Recommend Age: 14+y

RC Parts & Accs: Speed Controllers

Quantity: 1 pcs

Origin: Mainland China

Model Number: CAN PDB and X7+ pro core

Material: Metal

Four-wheel Drive Attributes: Assemblage

For Vehicle Type: Helicopters

Certification: CE,FCC

Brand Name: CUAV



CAN PDB and X7+ Pro Core

CUAV New CAN PDB Carrier Board with X7+ pro core Autopilot Pixhawk Flight Controller RC Drone power module drop ship

CAN PDB Introduction：

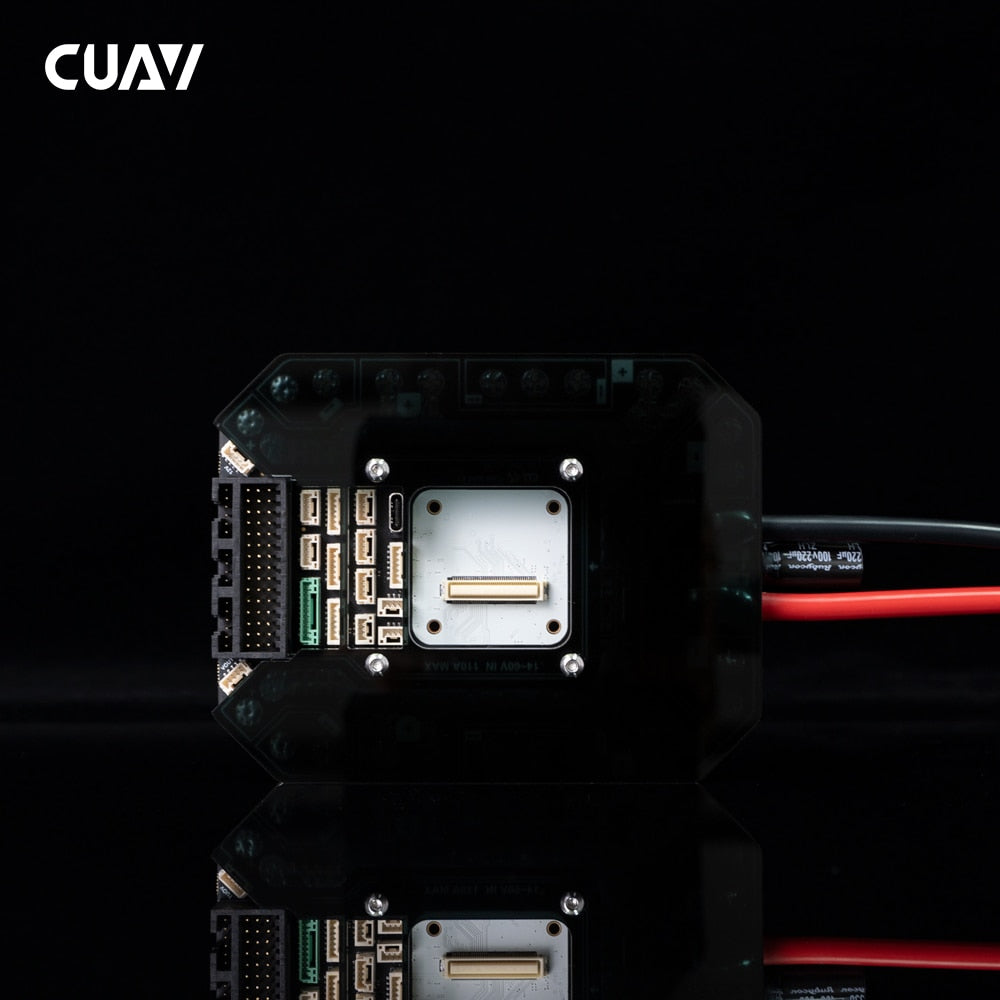

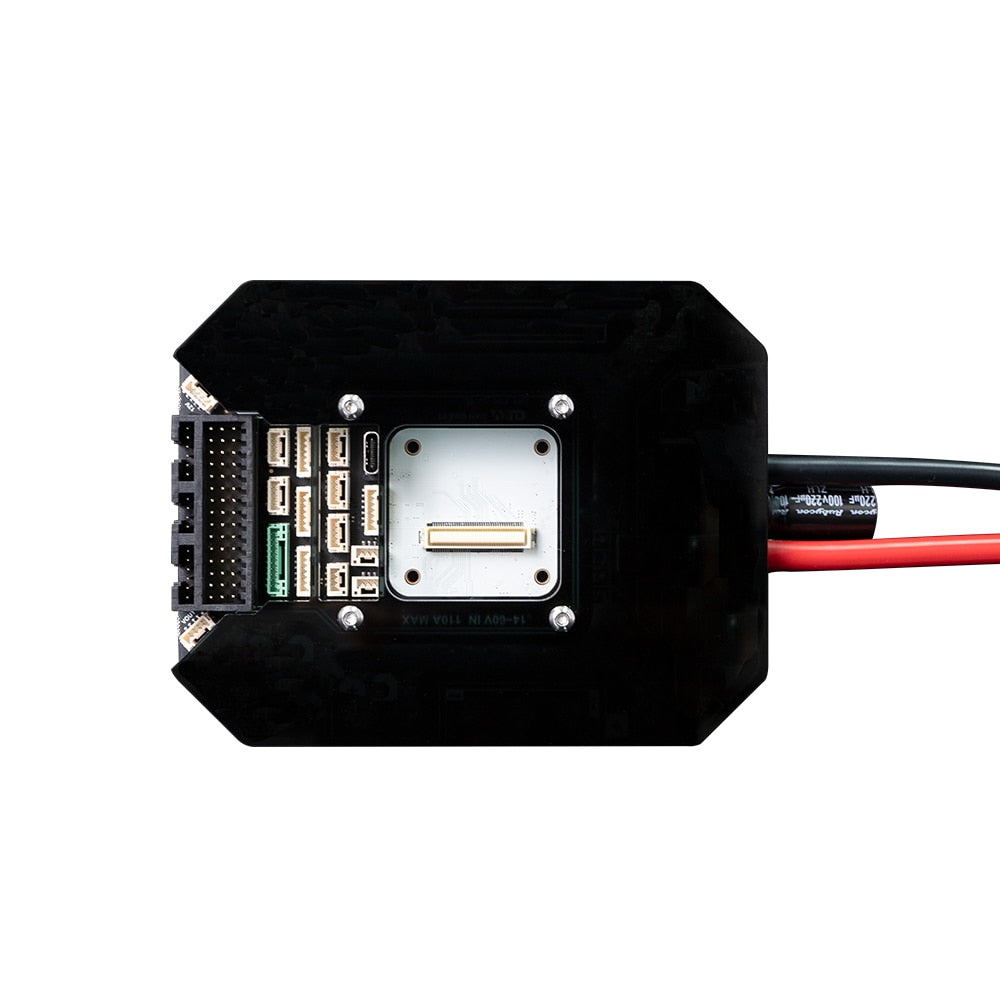

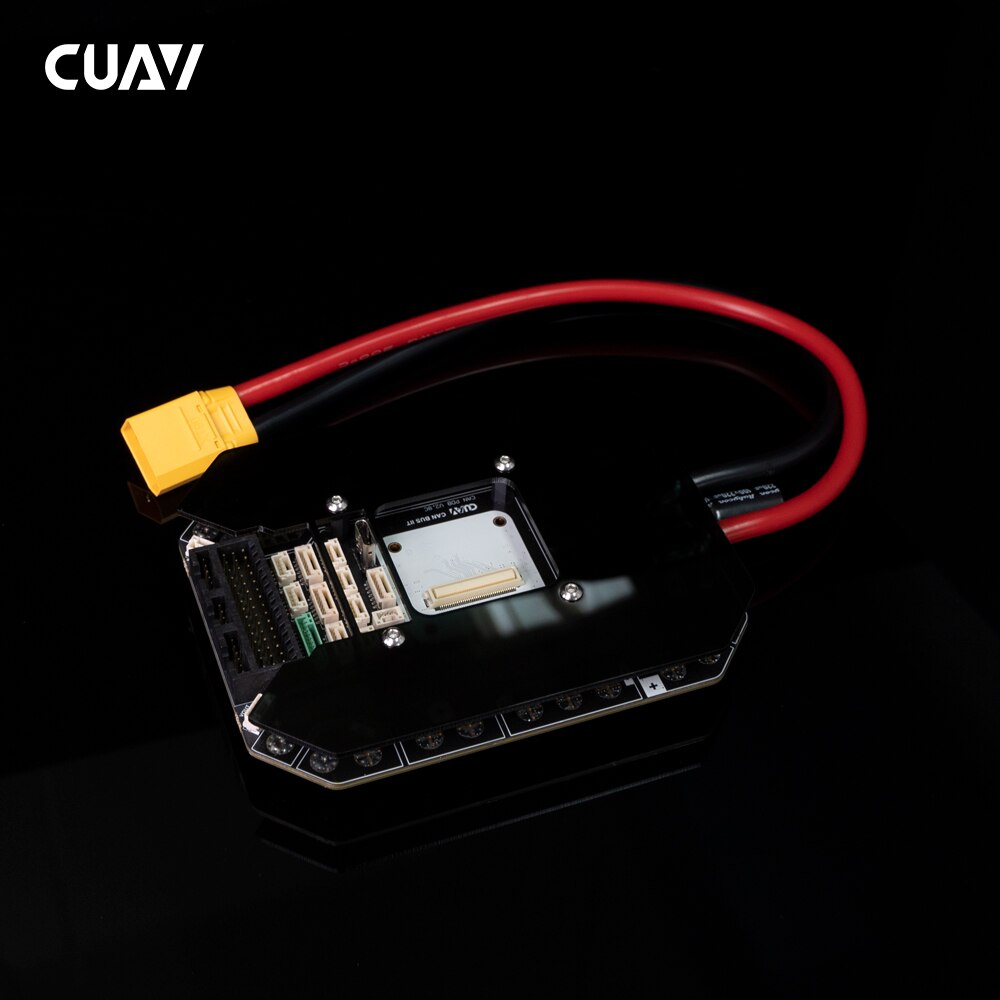

CAN PDB is a multi-functional baseboard of CORE flight controller, which provides abundant interfaces, integrates the functions of power module and power distribution board, and supports voltage input of 14~60V, and provide continuous working current up to 110A. It adopts self-developed ITT algorithm and has high accuracy power detection of 0.1A and 0.05V,. It has 10 power output welding points, and provides a 5V/6A and a 12V/4A stabilized output to provide power for external device. Supports the CORE modules of V5 +,X7 +, and X7+ Pro flight controller.

CAN PDB Features：

1 --Support 14~60V voltage input, 110A current.
2 --0.1A, 0.05V power measurement accuracy
3 --14 PWM outputs
4 --5V/6A and a 12V/4A stabilized output
5 --Thickened tinned PCB to reduce internal resistance
6 --Power indicator LED, visually display battery
voltage status.

#azta001 Jrozz Ioduott Wo AdCAN PDB Features: 1 --Support 1460V voltage input, 110it has 10 power output welding points, and provides a 5V/6A and aSupports the CORE modules of V5 +,X7 +, and X7
CAN PDB is a multi-functional baseboard of CORE flight controller .

The CAN PDB is a multifunctional board designed for use with the CORE flight controller. It features a wide range of voltage inputs, including 10V-6V, and provides continuous working current up to 11A.

Adding PPM interface enriches the support of remote control receiver protocol . power output

The addition of a PPM interface enhances the board's compatibility with various remote control receiver protocols. Additionally, the power output has been upgraded from traditional screw fixation to a more reliable welding process, minimizing the risk of loose connections.

0.05V 110A Power Accuracy Sustained Current 12VI4A UB

The power module features accurate current control, with sustained currents up to 110A, as well as stable output voltages ranging from 0.05V to 12V (with a UBEC output) and up to 6V (SVI).

CAN PDB is a new integrated flight controller carrier board of CUAV .

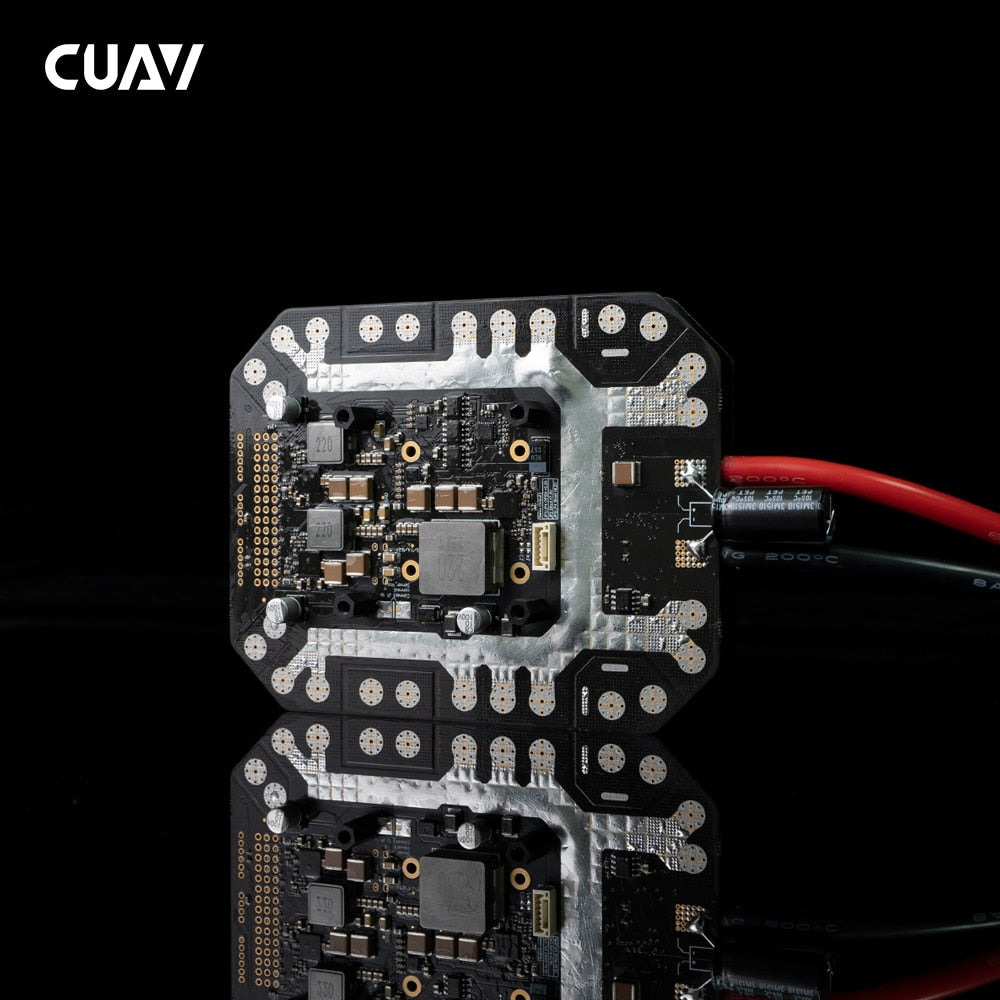

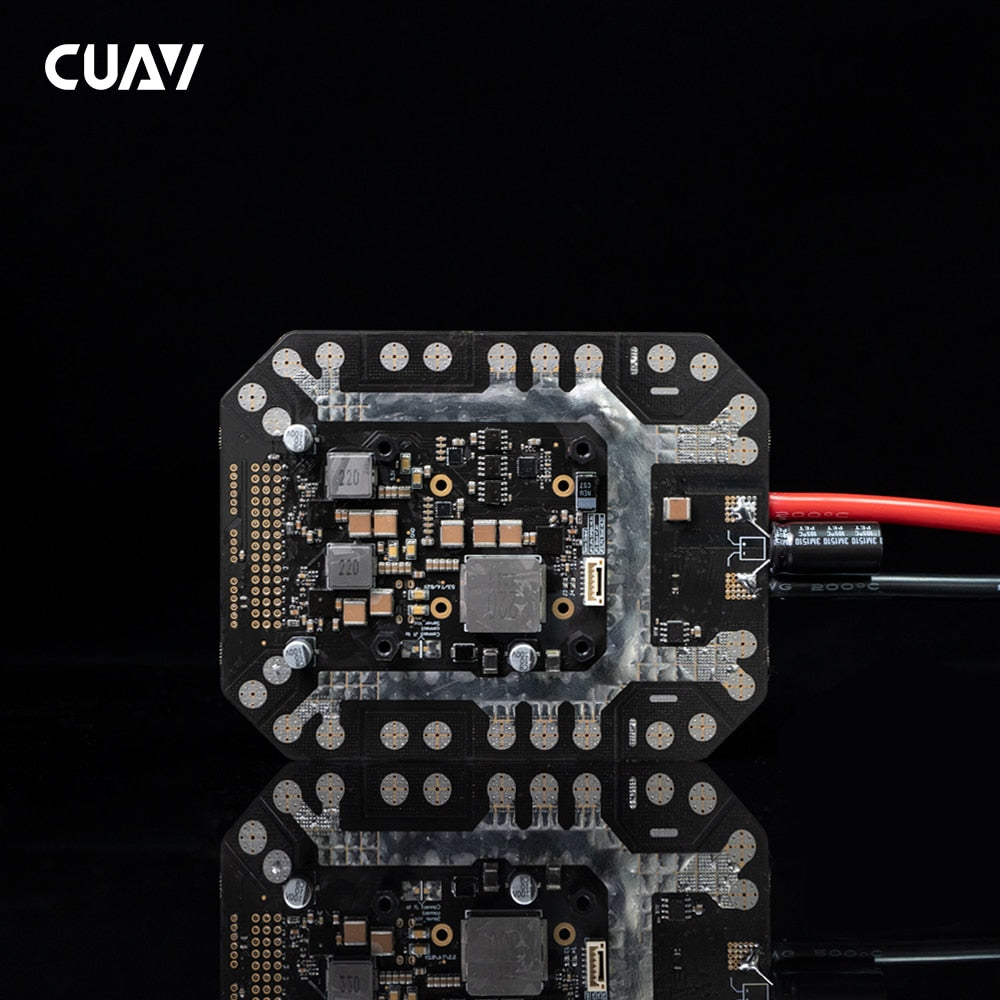

The CUAV CAN PDB Power Module Carrier Board is an integrated flight controller carrier board that provides automatic driving functions for various types of equipment. Its ultra-thick copper and thick tin-plated PCB design enables it to deliver up to 180A of continuous working current, making it suitable for powering a wide range of devices.

0-110 A of current range 0-180 A 5V voltage regulator Maximum6A,

The CUAV CAN PDB Power Module Carrier Board features a current range of 0-110A, with a maximum stable output current of 6A from its 5V voltage regulator. Additionally, it has a 12V power regulator with a maximum output current of 4A and a table output of 3.5A. This board supports up to 14 control receiver channels and accepts SBUS, DSMX/PPM, and other signal inputs. It is compatible with ArduPilot firmware versions 4.0.0 and above, as well as PX4 firmware versions 1.11.0 and above. The board operates within a temperature range of -20°C to +10°C, and its main interface is a USB-C port.

2 --0.1A, 0.05V power measurement accuracy 3 --14 PWM outputsSV+ OUT SBUS OUT RssI Weight:87g(Power cable

Dimensions: The CUAV CAN PDB Power Module Carrier Board measures 12.8 cm in length, 3.75 cm in width, and 4.5 cm in height, weighing approximately 87g (including power cable).

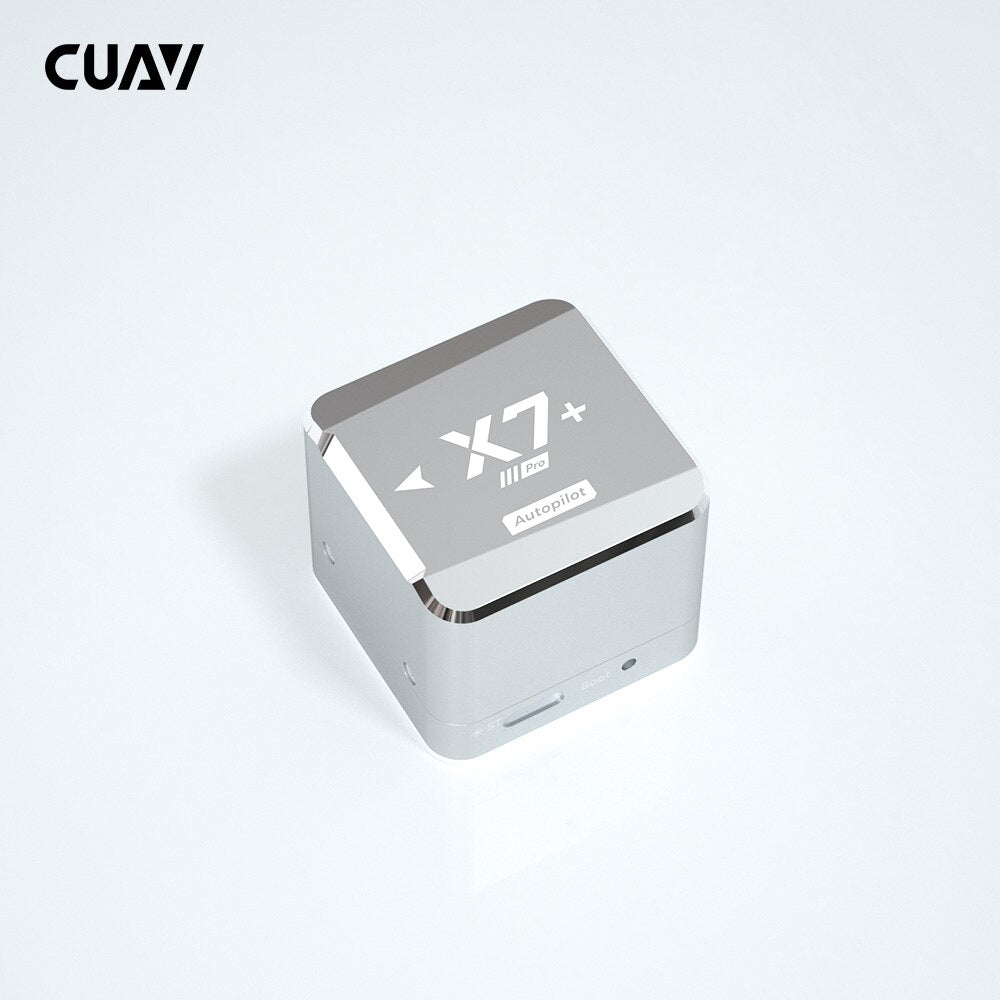

Autopilot CORE series units contain all the functions of autopilot . users need to design

The Autopilot CORE series units come equipped with all the necessary functions for autopilot capabilities. To integrate these units with other components, users need to design their own baseboard or utilize our CAN PDB products to ensure seamless collocation.

CUAV CAN PDB Power Module

The package includes: CAN PDB, X7 Pro Core, XL storage card, one Exoisk I2C/CAN cable, two ADC 3.3 cables, one PW-Link module, and one Type-C cable. Additionally, you'll find six hexagon screws (M2*6) and eight hexagon screws (M3*8).
