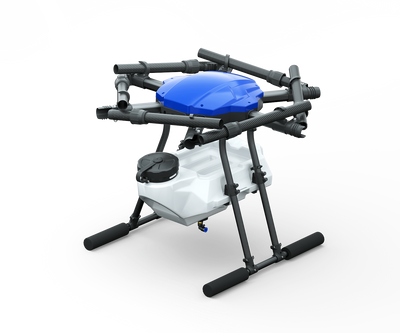

EFT E610M 10L Agriculture Drone: Lightweight, Compact, and User-Friendly Solution for Modern Farming
The EFT E610M Agriculture Drone has undergone significant structural optimization to streamline its parts and eliminate redundancies, building on the reliable E series drone frames. These enhancements result in a take-off weight of under 25kg with a full load and a 25% reduction in volume, making the E610M exceptionally portable and efficient for agricultural tasks.
Specifications:
- Brand: EFT
- Model: E610M
- Wheelbase: 1402mm
- Frame (Net weight): 3.6kg
- Tank (Net weight): 835.8g
- Effective Load: 10kg
- Expanded Size: 1472 x 1284 x 547mm
- Folded Size: 772 x 703 x 592mm
- Arm Diameter: 30mm
- Recommended Motor: X6 Plus with 24" Propeller
- Recommended Battery: 12S 16000mAh
- Flight Time without Load: 21'30" (Test data for reference only)
- Full Load Hover Time: 9'44" (Test data for reference only)
- Cover Color: Blue (Default) / White
Main Features:
Lighter and More Efficient The E610M drone's structure has been meticulously optimized, reducing parts and cutting redundancies to achieve a lightweight design. This results in a take-off weight of under 25kg when fully loaded, enhancing maneuverability and efficiency.
Compact Design The innovative cross-folding design reduces the drone's volume by 25% compared to conventional folding methods, making the E610M more compact and easier to transport to various work sites.
User-Friendly Assembly The streamlined structural design and integration of injection molding technology significantly reduce the number of parts and modules, simplifying the installation and maintenance processes. This makes the E610M exceptionally user-friendly, even for operators with minimal technical experience.
Stable and Reliable Leveraging the proven E series structural design, mature module technology, and standardized production processes, the E610M ensures high-quality performance and reliability in the field.
Flexible and Secure Equipped with special protective foam and a well-thought-out layout, the E610M's minimum packing size guarantees safe and secure long-distance transportation, providing peace of mind and flexibility for various agricultural operations.
Frame Kit Includes:
- EFT E610M Drone Frame Kit x 1
Featuring an ultralight frame with a maximum take-off weight of 25kg, this E610M drone has a 6-axis payload capacity of 10kg for efficient agriculture applications.
Equipped with a full load weight of 25kg, this drone features an ultralight frame that reduces volume by 75%, making it easier to transport. The plug-in design allows for direct installation of components, including a lightweight injection-molded body and landing gear. A new spray tank with a fixed folding buckle securely holds the battery in place, allowing for compact and sturdy storage.
Introducing the EFT E610M, a lightweight agriculture drone featuring a six-axis design and a maximum take-off weight under 25kg, optimized for simplicity and reduced parts to achieve an impressive payload capacity.
The new cross-folding design reduces volume by 25%, making it more compact and easy to transport, compared to traditional folding methods.
Streamlined design simplifies installation with integrated injection molding technology, minimizing parts and modules for easy assembly and maintenance.
Two packaging options are available: single set or five sets, featuring protective foam for safe transportation. The drone's dimensions are 676x436x146mm and its weight is approximately 10kg.
Featuring a quick-release type landing gear with quick detachment capabilities.
![EFT E610M 10L Agriculture Drone - 6-Axis 10KG Payload Take-off Under 25KG Ultralight Frame](http://rcdrone.top/cdn/shop/files/e610m_1_img_25434e5f-0815-42cd-9cc4-d7534859c18b.png?v=1718420893&width=1445)
![EFT E610M 10L Agriculture Drone - 6-Axis 10KG Payload Take-off Under 25KG Ultralight Frame](http://rcdrone.top/cdn/shop/files/e610m_1_img.png?v=1718420892&width=1445)
![EFT E610M 10L Agriculture Drone - 6-Axis 10KG Payload Take-off Under 25KG Ultralight Frame](http://rcdrone.top/cdn/shop/files/e610m_2_img.png?v=1718420892&width=1445)
![EFT E610M 10L Agriculture Drone - 6-Axis 10KG Payload Take-off Under 25KG Ultralight Frame](http://rcdrone.top/cdn/shop/files/E610M-3.jpg?v=1718421357&width=1445)
![EFT E610M 10L Agriculture Drone - 6-Axis 10KG Payload Take-off Under 25KG Ultralight Frame](http://rcdrone.top/cdn/shop/files/E610M-4.jpg?v=1718421357&width=1445)
![EFT E610M 10L Agriculture Drone - 6-Axis 10KG Payload Take-off Under 25KG Ultralight Frame](http://rcdrone.top/cdn/shop/files/E610M-5.jpg?v=1718421358&width=1445)
![EFT E610M 10L Agriculture Drone - 6-Axis 10KG Payload Take-off Under 25KG Ultralight Frame](http://rcdrone.top/cdn/shop/files/e610m_3_img.png?v=1718420892&width=1445)
![EFT E610M 10L Agriculture Drone - 6-Axis 10KG Payload Take-off Under 25KG Ultralight Frame](http://rcdrone.top/cdn/shop/files/e610m_6_img03.png?v=1718420972&width=1445)
![EFT E610M 10L Agriculture Drone, Ultralight agriculture drone with 6-axis gyro and 10kg payload capacity, ideal for small-scale farming.](http://rcdrone.top/cdn/shop/files/e610m_5_img_7cefca14-234a-454d-990a-703fa05ab650.png?v=1718421033&width=1445)
![EFT E610M 10L Agriculture Drone - 6-Axis 10KG Payload Take-off Under 25KG Ultralight Frame](http://rcdrone.top/cdn/shop/files/6_18919d8b-5890-4c75-bc0f-bbcbda977890.jpg?v=1718422151&width=1445)
