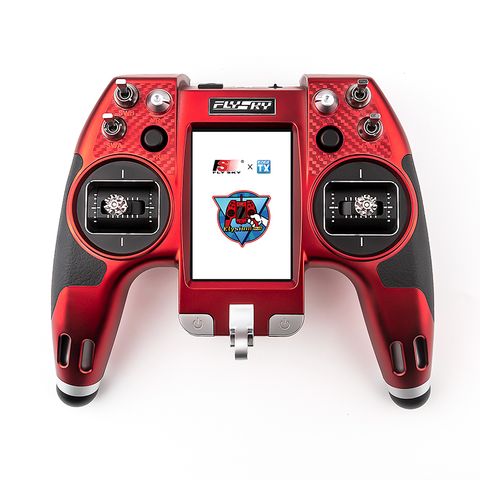

FLYSKY Elysium EL18 Transmitter - 2.4GHz AFHDS 3 Open Source EdgeTX Transmitter with Tmr Micro Receiver

The FLYSKY Elysium EL18 tansmitter is 2.4GHz AFHDS 3 18ch Open Source EdgeTX Transmitter,and you can use for your racing drones, fixed-wing aircraft, gliders or multicopters. The EL18 has 3.5-inch touch screen, featuring IPS high-brightness outdoor screen. Besides,it has 2RF options, internal RF and external RF. the internal RF, namely AFHDS 3 supports up to 18 channels of output, the external RF supports up to 32 channels of output. The transmitter comes with the Tmr receiver, making it a perfect system for FPV.
The EL18 adopts FLYSKY's upgraded AFHDS 3 (Third-Generation Automatic Frequency Hopping Digital System) high-frequency protocol, for less interference and greater range.With the ability to use any mainstream RF modules including those with a transmitting power of up to 2W, the EL18 can offer an interference-free range of 3000 meters or more.

FLYSKY Elysium EL18 Transmitter  Features:
1.Attractive ergonomic design with durable red acrylic textured coating.
2.Utilizes FLYSKY's upgraded AFHDS 3 high-frequency protocol.
3.3.5" IPS color touch screen with adjustable brightness, easy to read in even the most challenging light conditions.
4.Includes EdgeTX open source system and FLYSKY's core RC technology.
5.Accurate, sensitive, high-precision, Hall effect CNC gimbals.
6.Has the ability to use mainstream RF modules including support for CRSF, and CRSF2 protocols.
7.Set includes the FLYSKY Tmr 2.4GHz AFHDS 3 micro receiver.

Details:
Radio
Product Model ：EL18
Compatible Receivers： Classic version receivers, such as FTr10 or FTr16s, etc. Enhanced version receivers, such as FTr8B, FTr12B or Tmr, etc.
Compatible Models: Racing drones, fixed-wingaircraft, gliders or multicopters, etc.
Number of Channels :18-channel is for Internal RF, and 32-channel is for External RF.
RF :2.4 GHz ISM
2.4GHz Protocol ：AFHDS 3
Maximum Power ：< 20dBm (e.i.r.p.) （EU）
Antenna ：Two antennas, one is a built-in antenna, the other is external rotatable antenna.
Input Power ：2* 18650 Li-Ion battery
Working Current ：400mA/4.2V
Data Output ：Type-C USB
Charging Port ：Type-C USB
Resolution ：4096
Screen ：320*480 resolution IPS color touch-screen
Distance ：> 3500m (Air distance without interference）
Online Update ：Yes
Temperature Range：-10℃ ~ +60℃
Humidity Range：20% ~ 95％
Dimensions：205*183.7*82.9mm
Weight ：726g
Certifications CE，FCC ID：2A2UNEL1800, UKCA

Receiver
Product Model:Tmr
Frequency:2.4GHZ ISM
Protocol:AFHDS 3
Antenna:parellel antenna(ipex4)
Output protocol:PWM/PPM/I-BUS/S.BUS/I-BUS 2
Temperature Range：-10℃ ~ +60℃
Humidity Range：20% ~ 95％
Online Update ：Yes
Weight:0.9g
Certifications:CE，FCC ID：N4ZTMR000

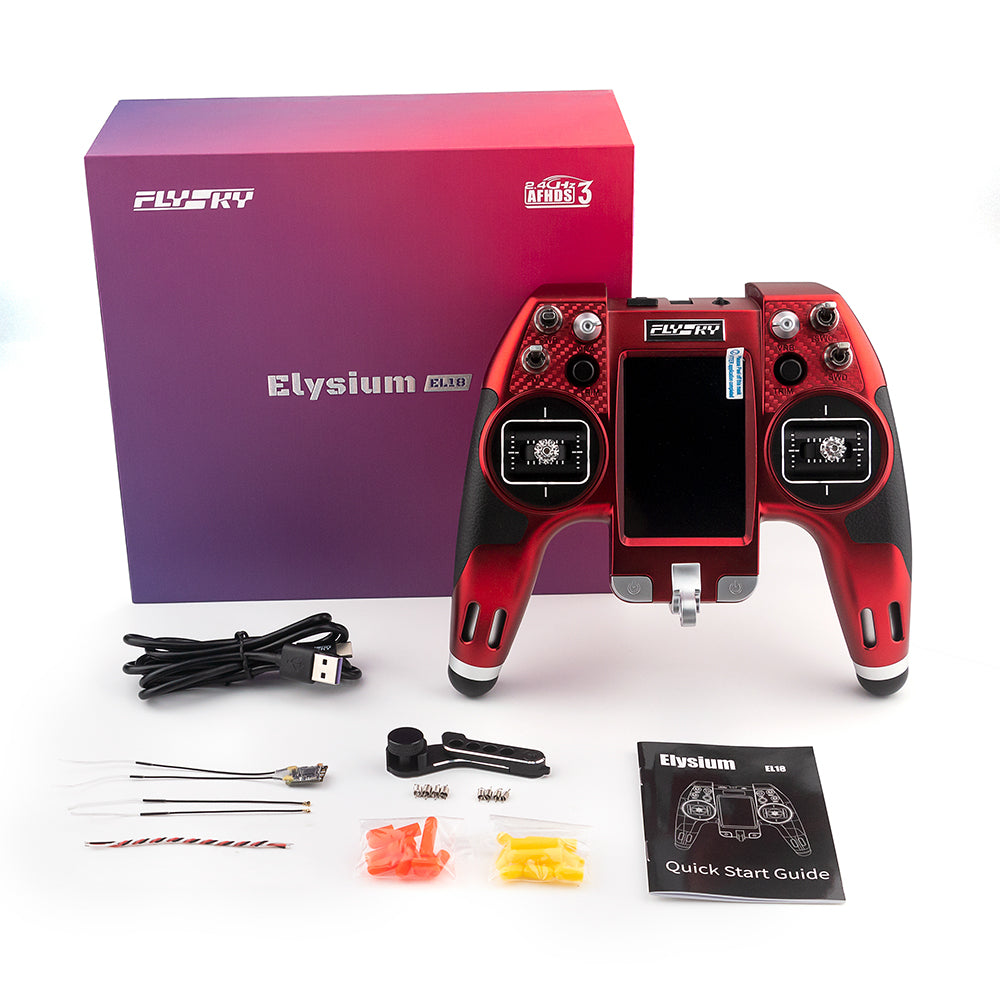

Package Includes:
1 x FLYSKY Elysium EL18 18ch Open Source EdgeTX Transmitter
1 x FLYSKY Tmr 2.4GHz AFHDS 3 micro receiver
1 x Transportation cover to protect the gimbals
1 x CG neckstrap adapter
1 x Pack of red switch covers
1 x Pack of yellow switch covers
1 x Pack of soft gimbal springs
1 x Pack of hard gimbal springs
1 x USB cable
1 x Quick start guide

Note:The radio doesn't include battery and you need to order 2pcs 18650 battery separately.

EL18 will produce strong orvivid impressions for users . shell is treated by using the optimized and upgraded electroplating process .

EL18 complies with built-in Flysky AFHDS 3 (Third Gen EACz Automatic Frequency Hopping Digital System) high frequency protocol features stability and reliability even in fast speed with farther distance .

EL18 adopts 3.5-inch touch screen, featuring IPS ad high-brightness outdoor screen . it is equipped with the mainstream Type €C interface; upgraded power management module .

edge # UX Flysky and EdgeTX carry out the deep partnership officially SaC 5 to embrace the open source . EL18 uses the built-in Flysky core RC technology .

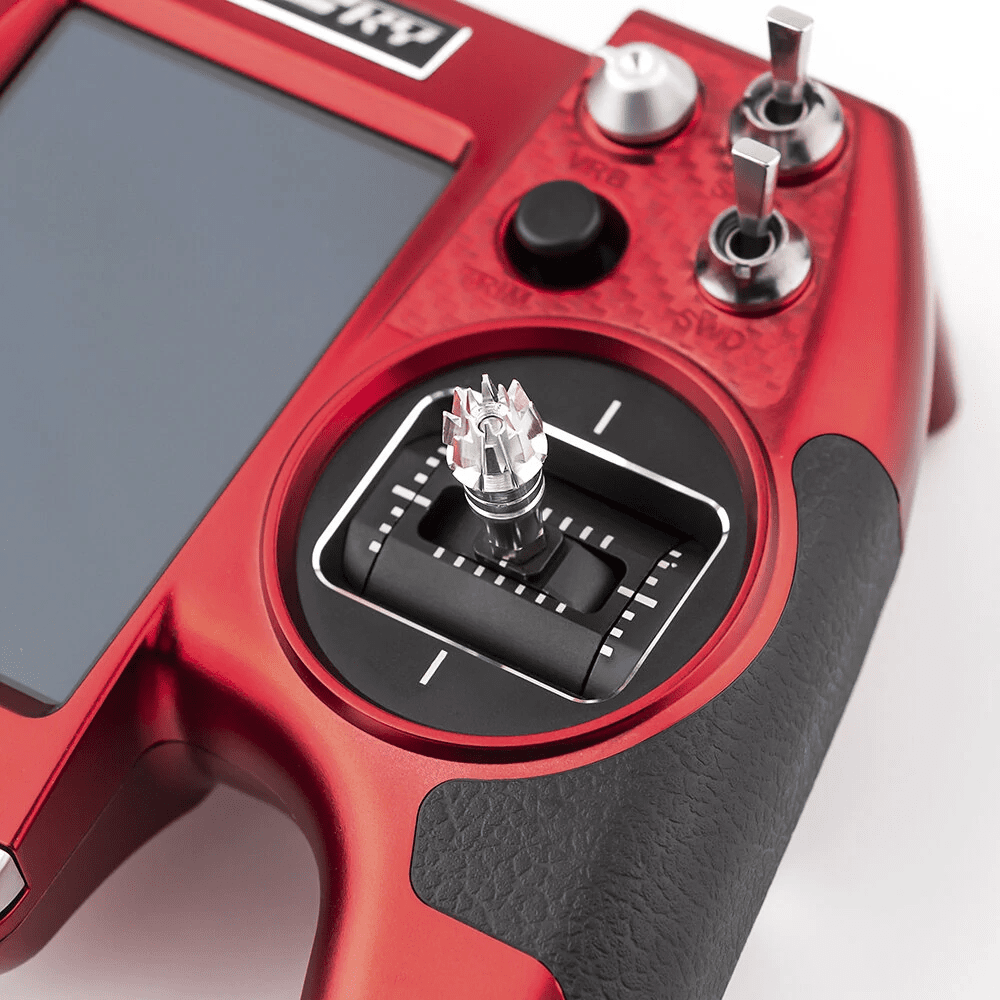

Hall stick assembly holder's lifespan is more than 100,000 times . the left-hand/right-hand throttle channel is adjustable. the friction strength is adjustable .

built-in third-generation radio frequency (RF) module FRM3O1 supports a variety of RF communication protocols . EL18 supports the CRSF2 protocols and can transfer back flight control parameters .

multiple receivers for rich experiences EL18 can adapt to allAFHDS receivers with more receiving options .

EL18 supports the direct connections to DCL, DRL, and Phoenix RC via USB without blow-up, to endless happiness for users . VHOENL 52 bring you the ultimate in flight simulation and real flying

ELIB NVI4 FLYSKY VS Romanee Red Black Color Electroplating process, Plastic spraying shell acrylic texture treatment Surface treatment AFHDS 3 More functions available with stability . EdgeTX Official partnership OpenTX Colour screen with Multilingual interface System 3.5-inch touch screen, featuring IPS high-brightness outdoor screen .
