Holybro Kakute H743-Wing Autopilot Flight Controller - Layout Specifically For Fixed Wing & VTOL Applications With M9N M10 GPS Module

Holybro Kakute H743-Wing Autopilot Flight Controller - Layout Specifically For Fixed Wing & VTOL Applications With M9N M10 GPS Module

HolyBro

Regular price $125.00 USD
Regular price Sale price $125.00 USD
Sale Sold out
Tax included. Shipping calculated at checkout.

94 orders in last 30 days

FLIGHT CONTROLLER
GPS

If you have payment problems, pls refresh the page or "Chat with us".

Free Shipping: 10-20 days to arrive.

Express Delivery: 6-14 days to arrive.

Warehouse: China/USA/Europe, Can delivery to all countries, tax included.

Free shipping & User guarantee

  • Free Shipping:Ships within 3days, arrives within 10-18 days
  • Paid Express: Ships within 2days,arrives within 4-7 days
  • Money back guarantee: Quality problems, return and exchange within 30 days
  • 12-month warranty, long-term after-sales service
  • No need to register account, Order tracking url will send to your email
  • More FAQ:FAQ

Overview

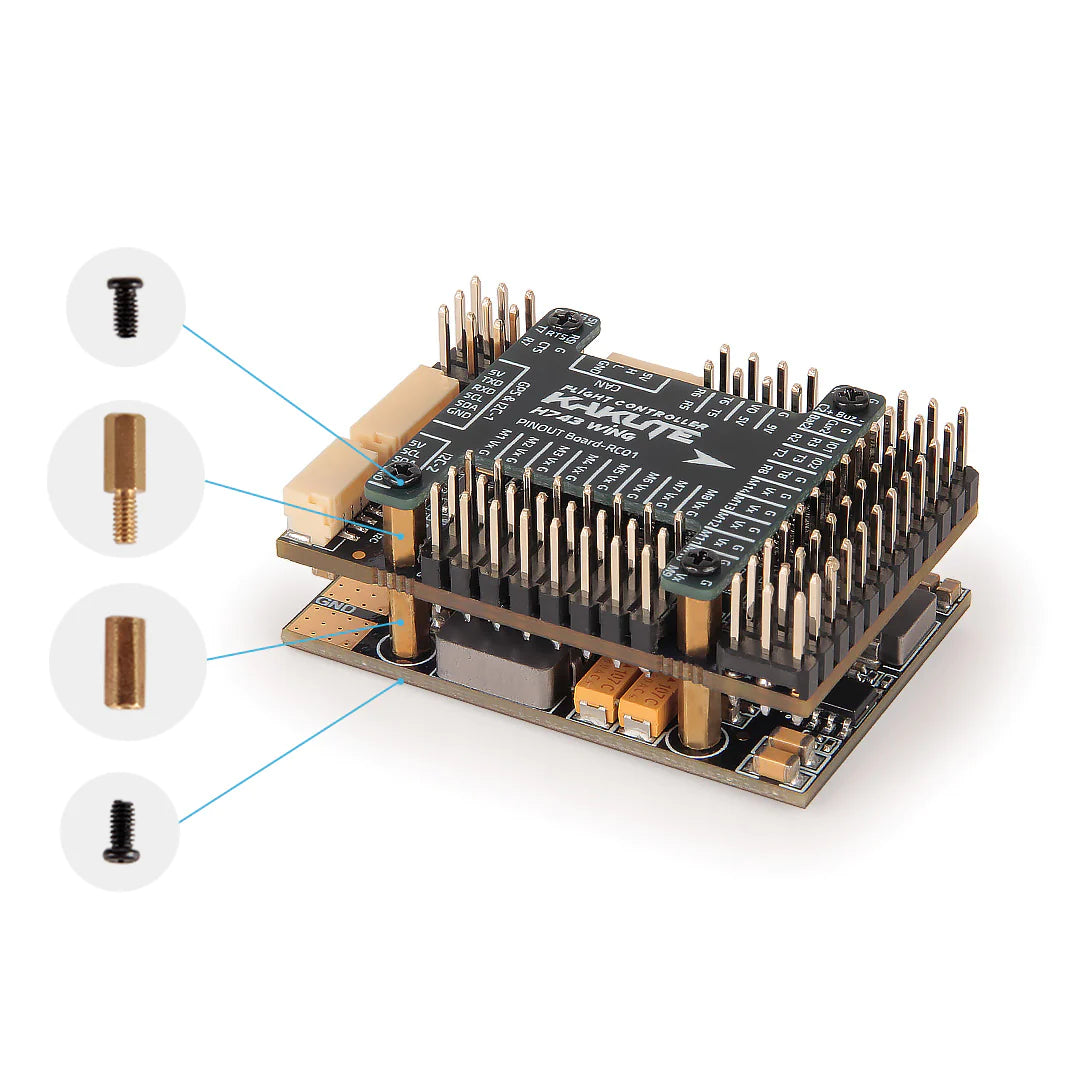

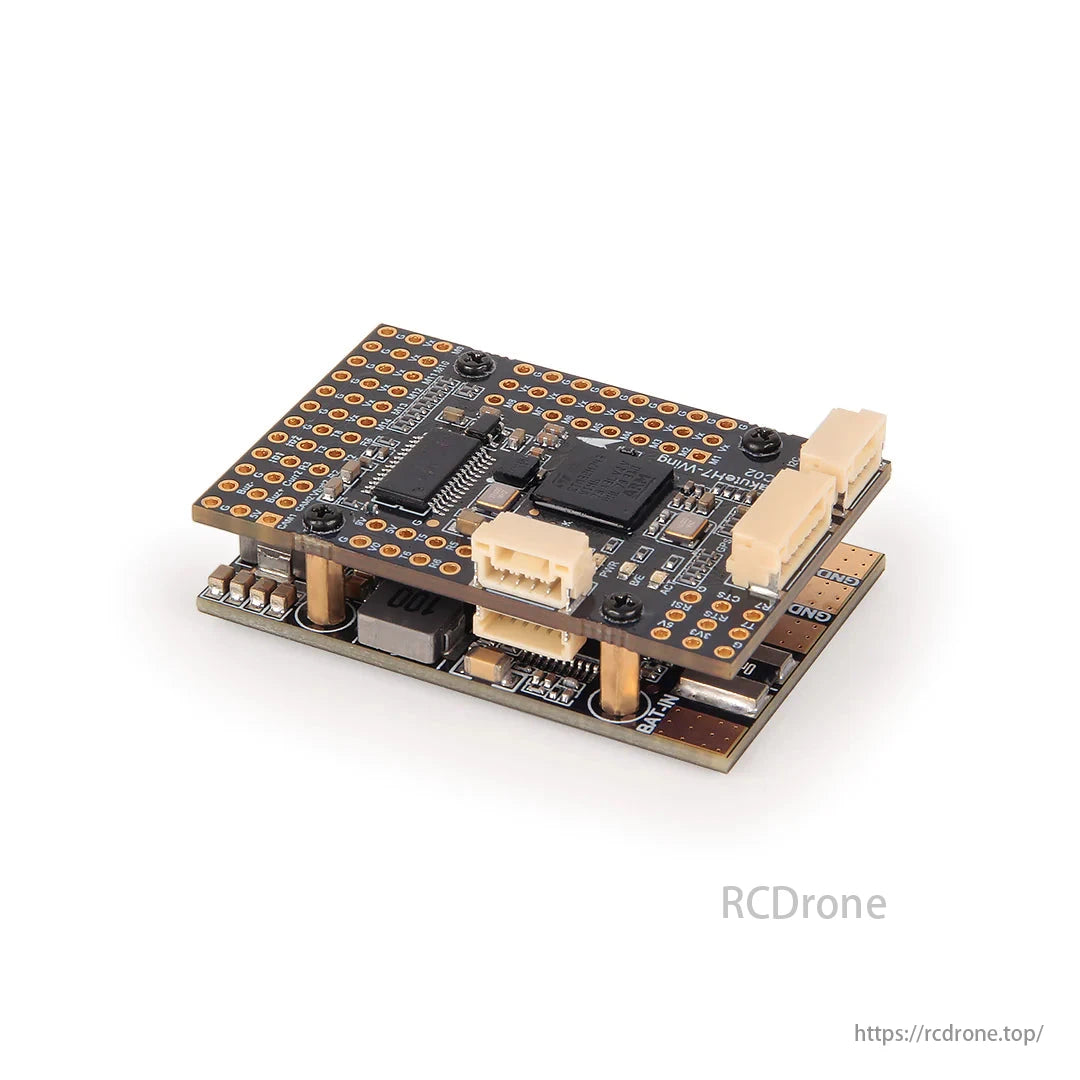

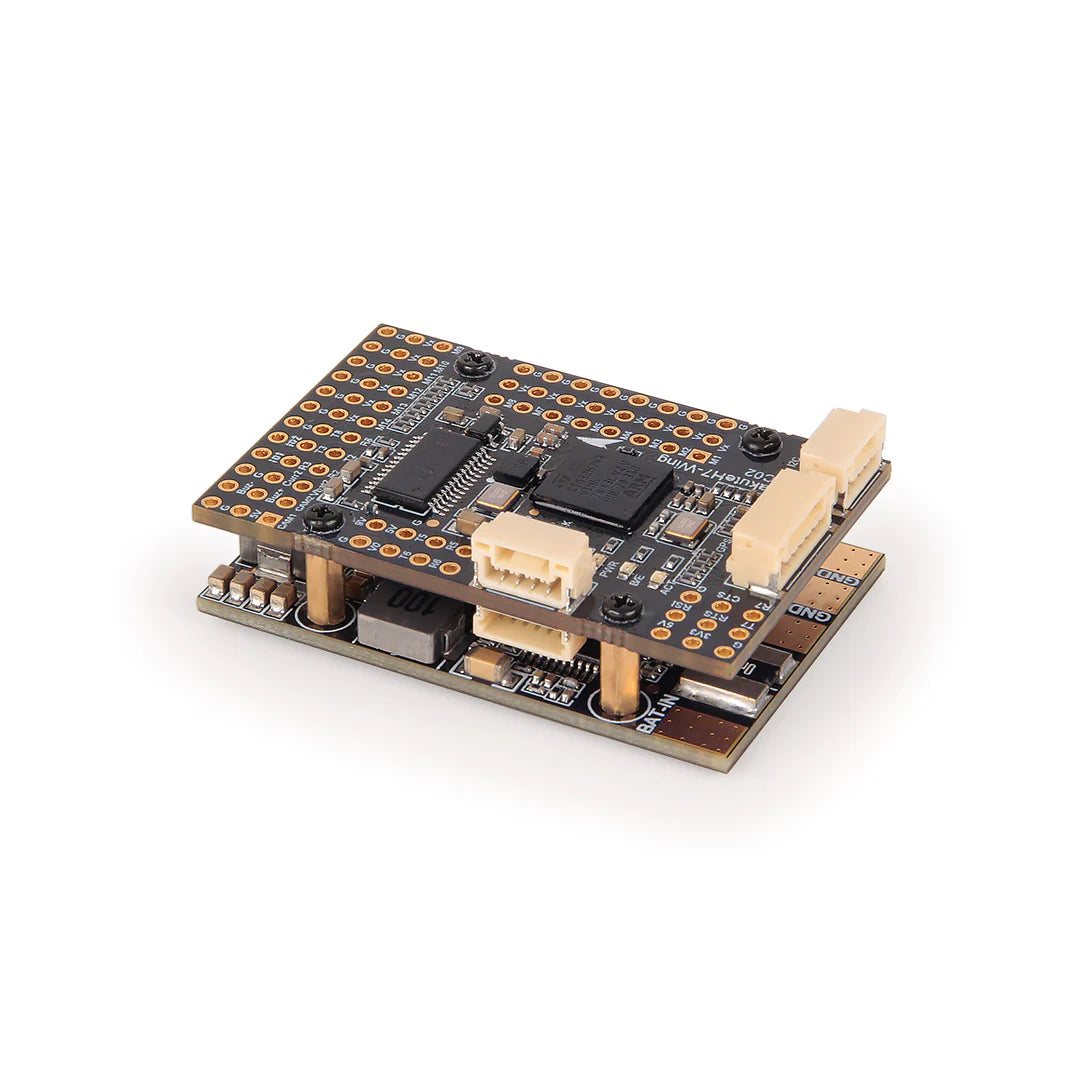

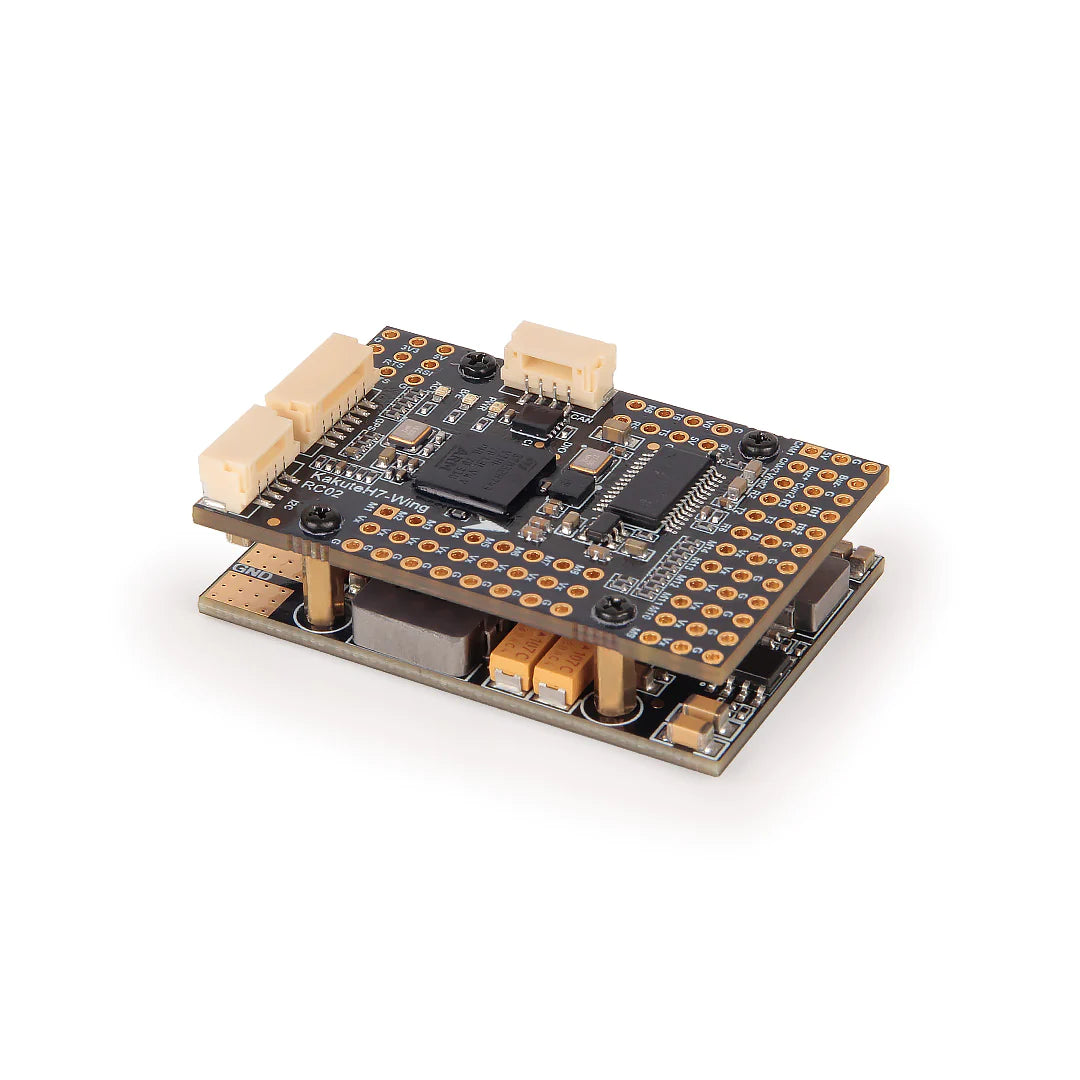

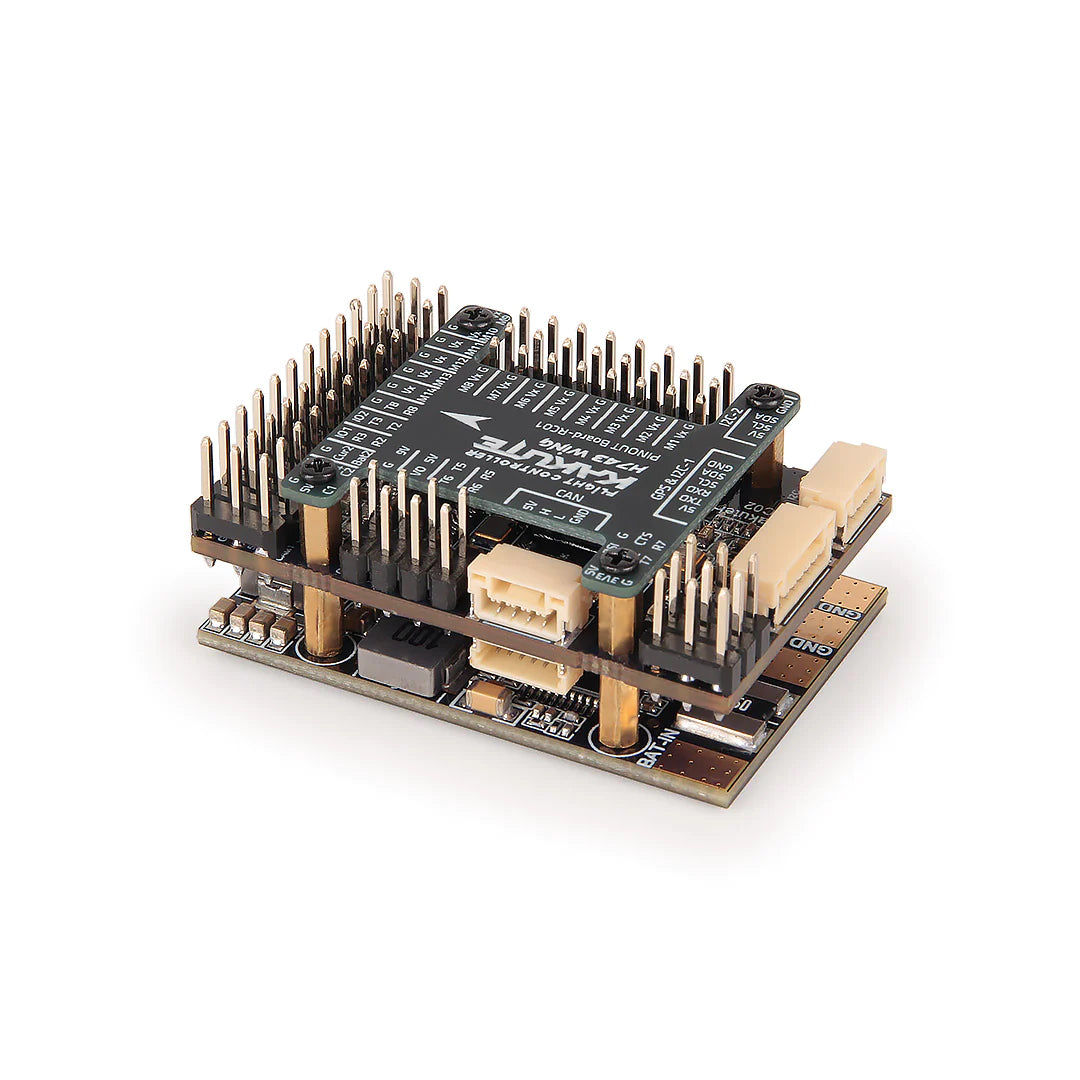

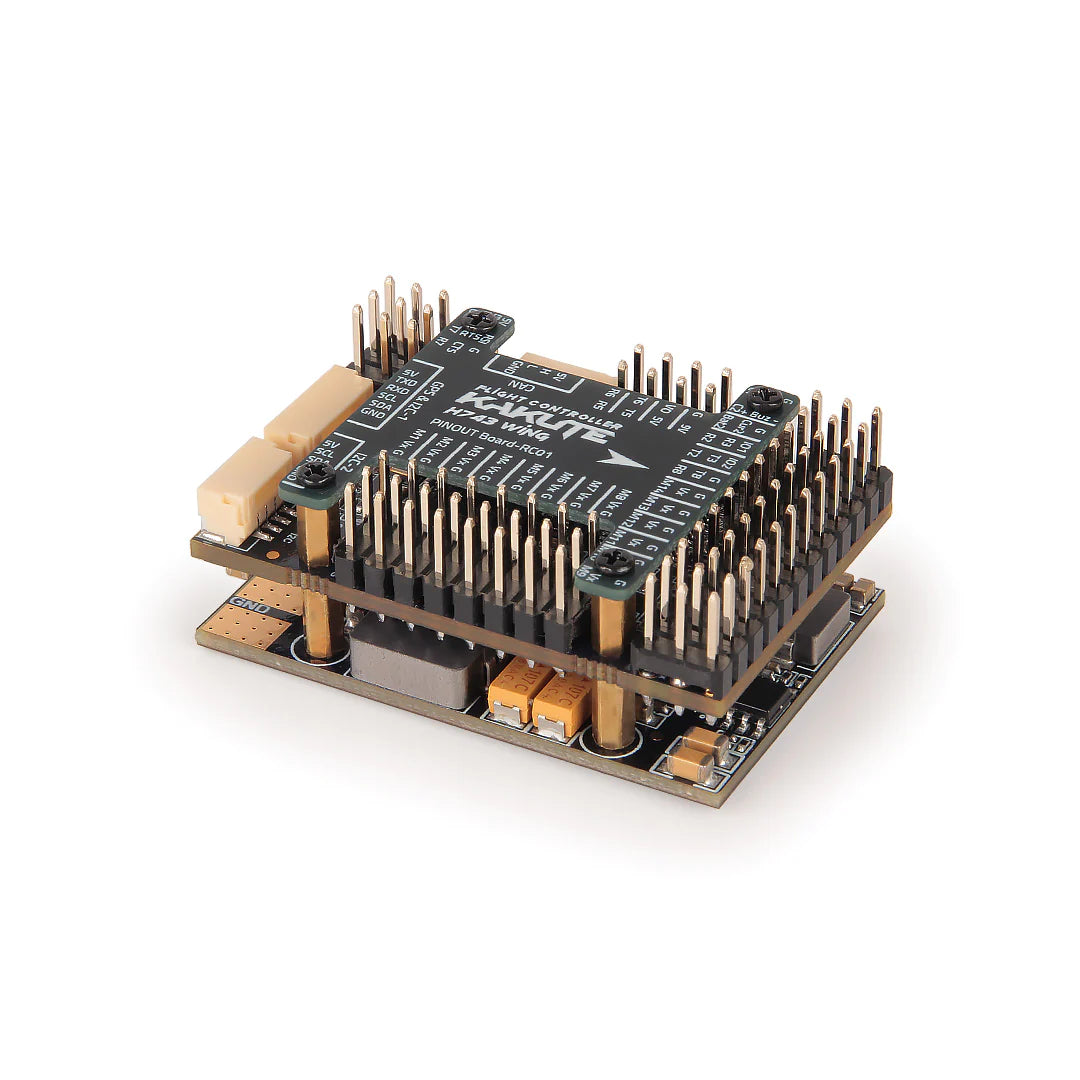

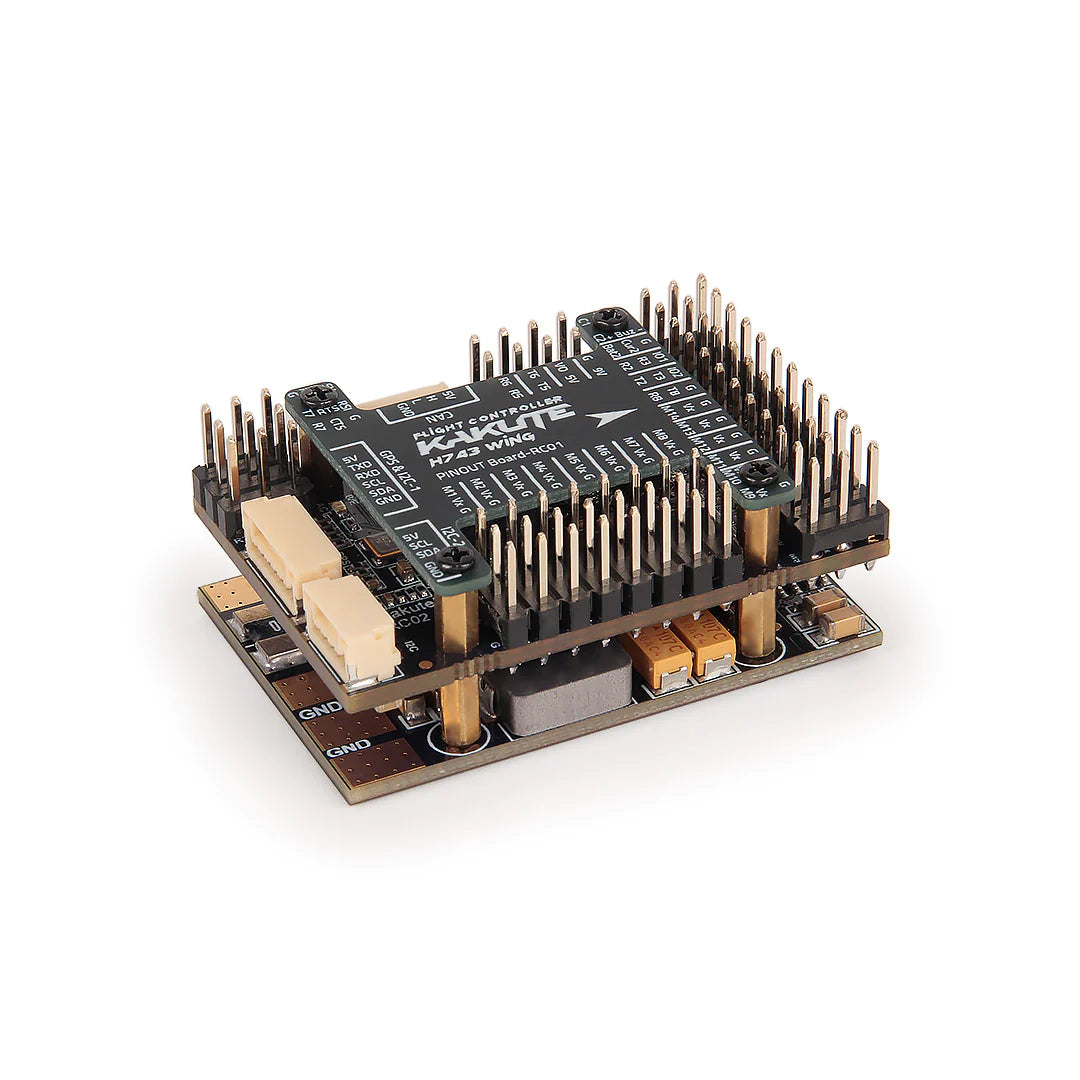

The Holybro Kakute H743 Wing is a full featured flight controller with layout specifically for fixed wing & VTOL applications. It has the STM32 H743 Processor running at 480 MHz and CAN Bus support, along with dual camera support & switch, ON/OFF Pit Switch, 5V, 6V/8V, 9V/12 BEC, and plug-and-play GPS, CAN, I2C ports.

Features

  • STM32H743 MCU running at 480 MHz
  • High-Precision / low-noise ICM-42688-P IMU
  • CAN Bus Support
  • Dual Camera Inputs switch
  • 3 On-board BEC output 5V, 6V/8V and 9V/12V
  • 9V/12V ON/OFF Pit Switch
  • On-board voltage & current sensor
  • Integrated BMP280 barometer
  • Plug-and-play GPS, CAN, I2C ports
  • Small & low-profile design fits into compact frames
  • Supports INAV (6.1.1 & later), Ardupilot (4.4 & later)

Specifications

  • MCU: STM32H743, 480 MHz, 1MB RAM, 2MB Flash
  • IMU: ICM-42688P (SPI3)
  • Baro: BMP280 (I2C4)
  • OSD: AT7456E (SPI2)
  • Blackbox: MicroSD card slot on SDMMC2
  • 7x Uarts (1,2,3,5,6,7,8) with built-in inversion.
  • 14x PWM outputs, 1x CAN, 5x ADC (Bat1/Curr1, Bat2/Curr2 and RSSI)
  • 3x I2C (I2C1 and I2C2 for external devices, I2C4 for onboard sensors)
  • 3x LEDs for FC STATUS (Blue, Red) and 3.3V indicator (Green)
  • USB/DFU Key Extender with USB Type-C
  • Dual Camera Inputs switch
  • 5V/9V(12V) for Camera/VTX power switch
  • High-precision Current Sense (90A continuous, 220A peak)
  • Battery Voltage Sensor: 5K:25.5K (Scale 1800 in INAV, BATT_VOLT_MULT 18.18 in ArduPilot)
  • Static power 160mA@5V

Firmware Support

  • Ardupilot Target: KAKUTEH7-Wing(Ardupilot 4.4 or newer)
  • INAV Target: KAKUTEH7Wing (INAV 6.1.1 or newer)

    PDB

    • Input voltage range: 10~36V (3~8S LiPo)
    • 1x ESC power pads
    • Current Sense: 90A continuous, 220A peak. (Scale 275 in INAV, 36 A/V in ArduPilot)

    BEC 5V output

    • Designed for FC, Receiver, OSD, Camera, 2812 LED Strip, Buzzer, GPS, Air Speed Sensor, etc.
    • Output 5.15 +/- 0.1V DC
    • Continuous current 2 Amps, 3A Peak

    BEC 9V /12V output

    • Designed for Video Transmitter, Camera, Gimbal etc.
    • Continuous current 2 Amps, 3A Peak
    • 12V option with Jumper pad

    BEC Vx output

    • Designed for Servos
    • Voltage adjustable, 6V Default, 8V option with Jumper pad
    • Continuous current 6 Amps, 8A Peak

    BEC 3.3V output

    • Linear Regulator
    • Continuous current: 200mA

    Mechanical

    • Mounting: 25 x 25mm, M2 hole
    • Dimensions: 45x 30 x 13.5 mm
    • Weight: 28g with USB extender

    Reference Link

    • Holybro Documentation Page
    • Camera Switch & 9V/12V On/Off Pit Switch Setup Guide
    • Ardupilot WIKI
    • Ardupilot Mapping
    • INAV Mapping

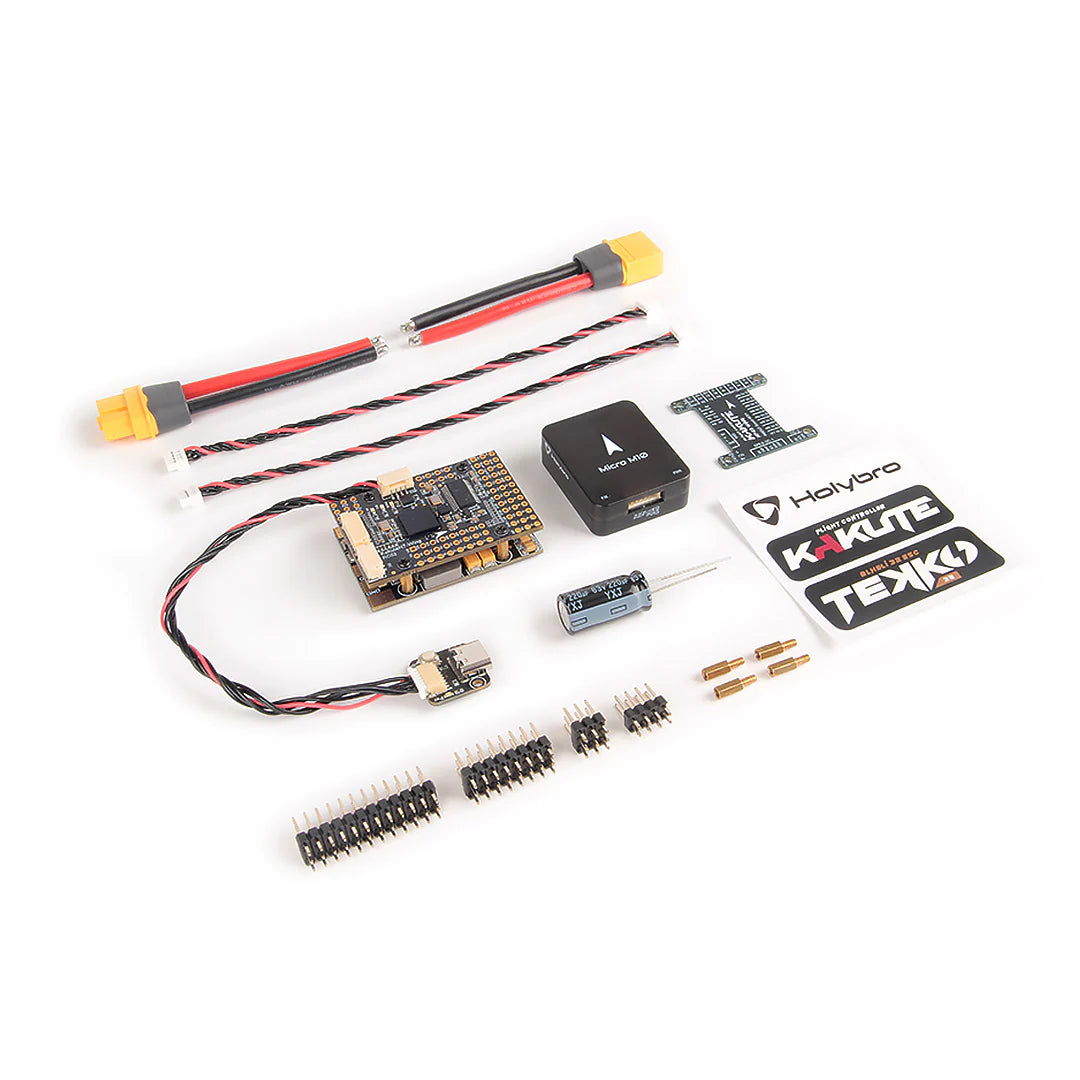

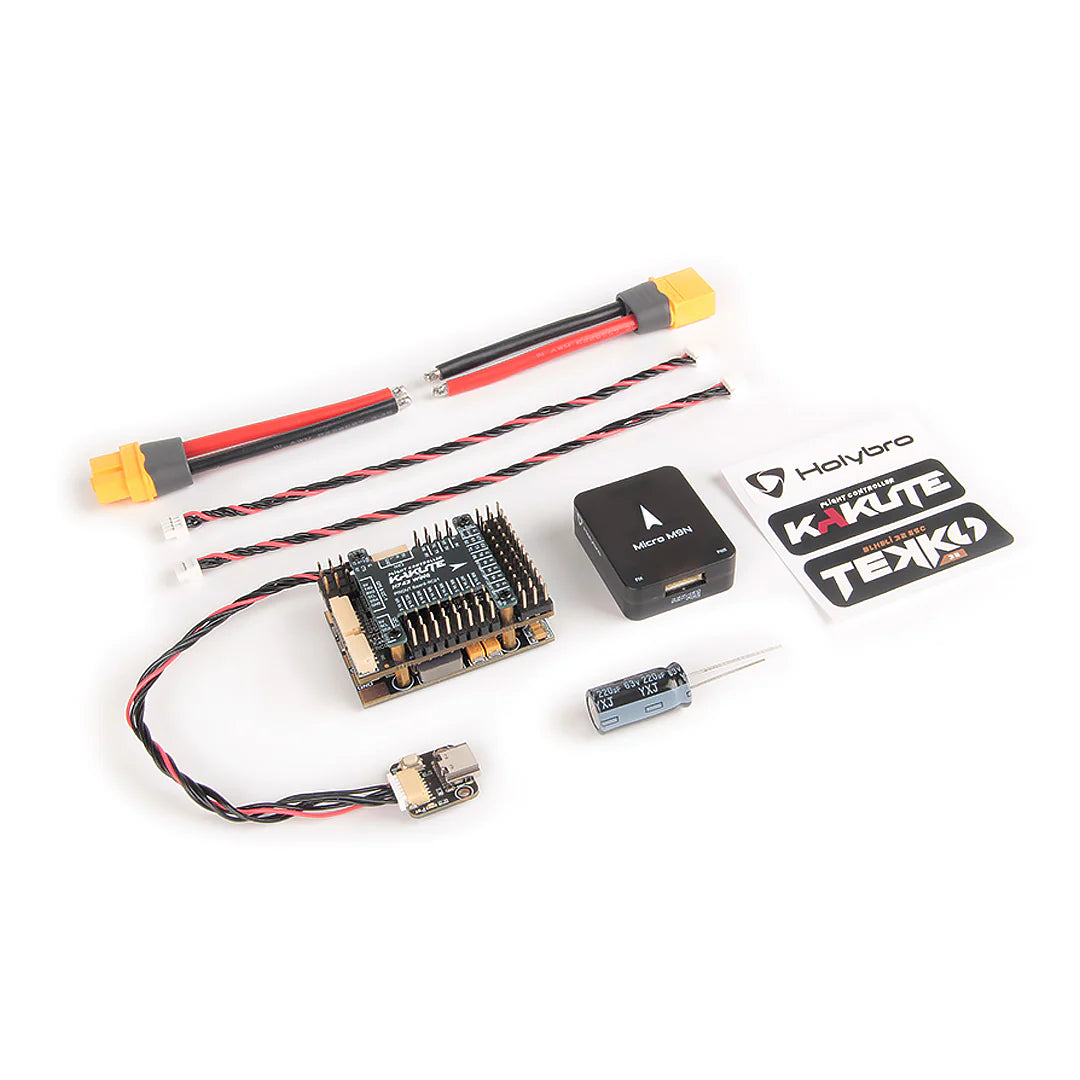

    Package Includes

    • 1x Kakute H743-Wing Flight Controller
    • 1x Power Board
    • 1x Top Board
    • 1x USB-EXT Board

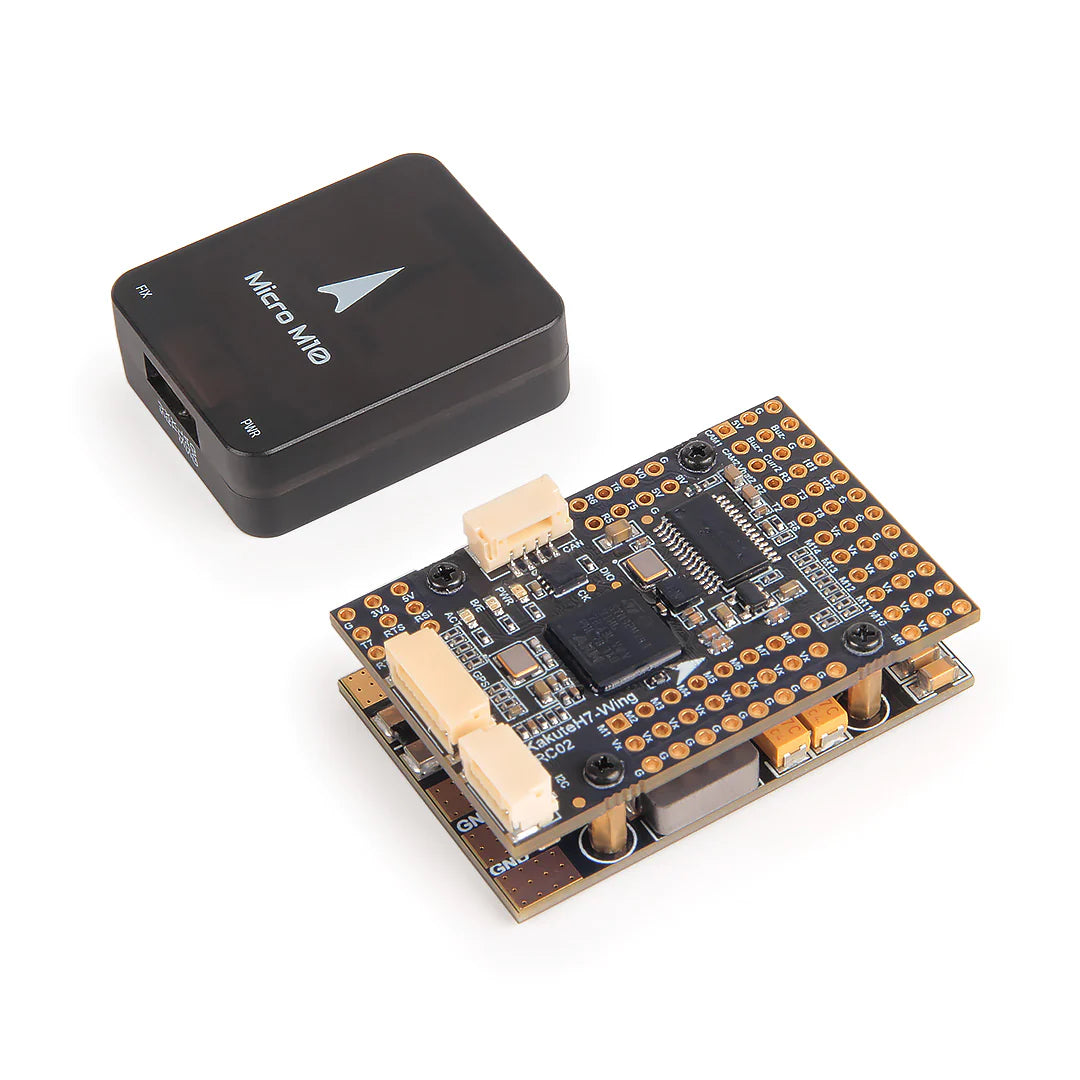

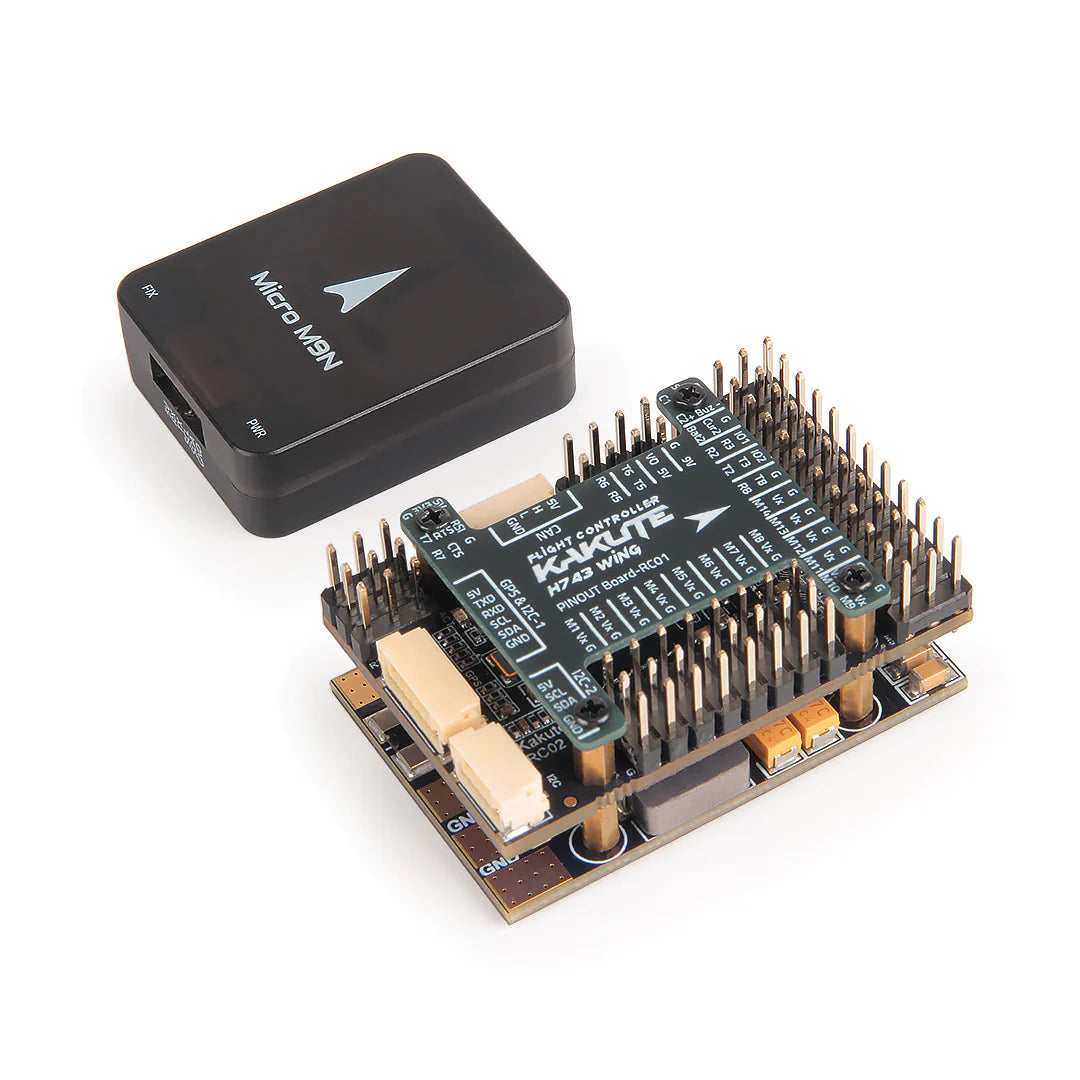

    • 1x GPS Module (Optional)
    • 1x Electrolytic capacitor: 220uF 62v
    • 2x XT60 60mm Power Cable
    • 4x Sets 2.54 DuPont Pin
    • 2x JST-GH 4Pin Cable
    • 1x 15cm JST-SH 6Pin Cable (For USB-EXT Board)

    Manual:

    Holybro Kakute H743-Wing Manual v1.0
