SPECIFICATIONS
Wheelbase: Bottom Plate
Use: Vehicles & Remote Control Toys
Upgrade Parts/Accessories: Frame
Tool Supplies: Battery
Technical parameters: Value 2
Size: 60.8x40mm
Remote Control Peripherals/Devices: Remote Controller
Recommend Age: 12+y
RC Parts & Accs: Motors
Quantity: 1 pcs
Origin: Mainland China
Model Number: XING 5215
Material: Metal
Four-wheel Drive Attributes: Assemblage
For Vehicle Type: Airplanes
Brand Name: IFLIGHT
Description:

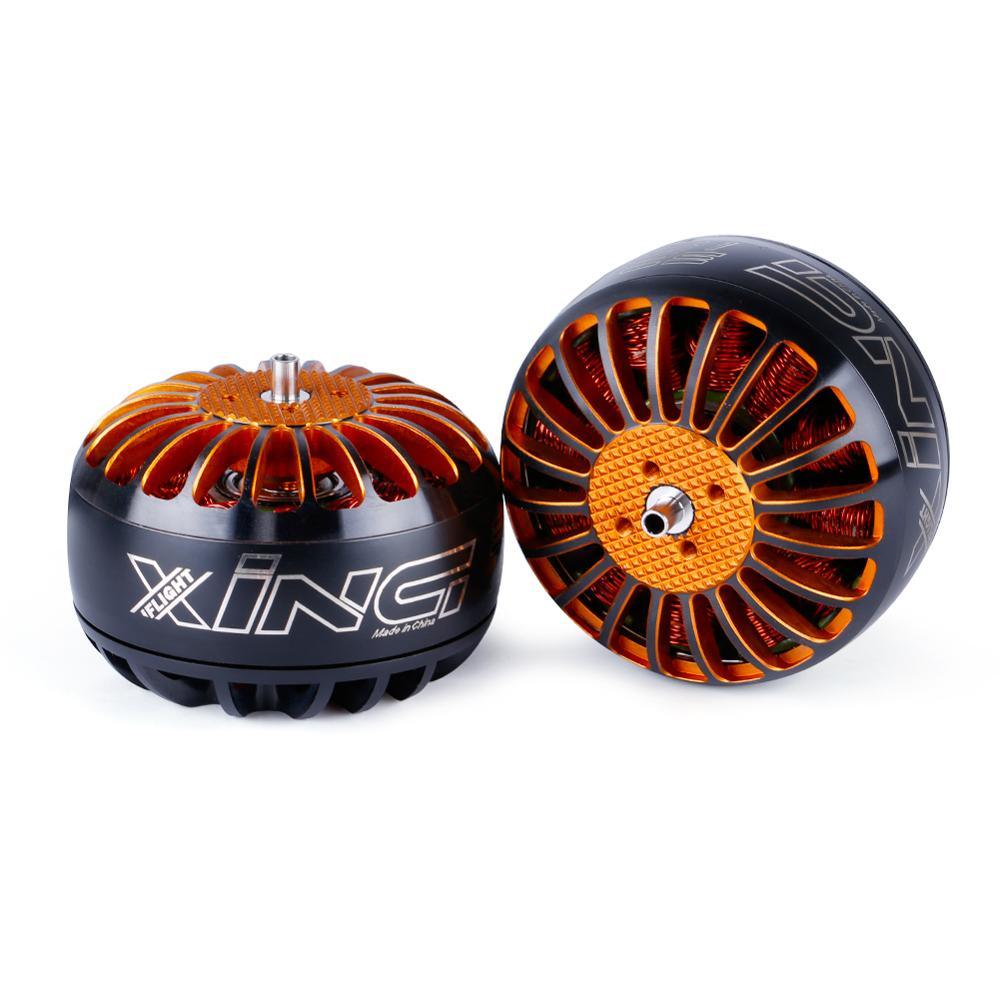

The Motor XING 2806.5 designed for bigger X-Class quads like 11-15 inch quad frames, which is with better efficiency in this range frames.The XING 5215 features Japan NSK bearing, N52H arc magnets. It offers incredible thrust number, highly responsive and extremely smooth flight characteristics. The bigger stator size 5215 allows it to provide instant power to save you from those crazy mountain dives last minute. It's a great motor if you're building bigger drones like 13 inch or 15 inch.
Specs:
Voltage:4-6S
KV Option: 330/500
Configuration: 12N14P
Stator Diameter: 52
Stator Length:15mm
shaft diameter: 4mm
No.of Cells(Lipo):4-8S
Bearing:φ15xφ6x5

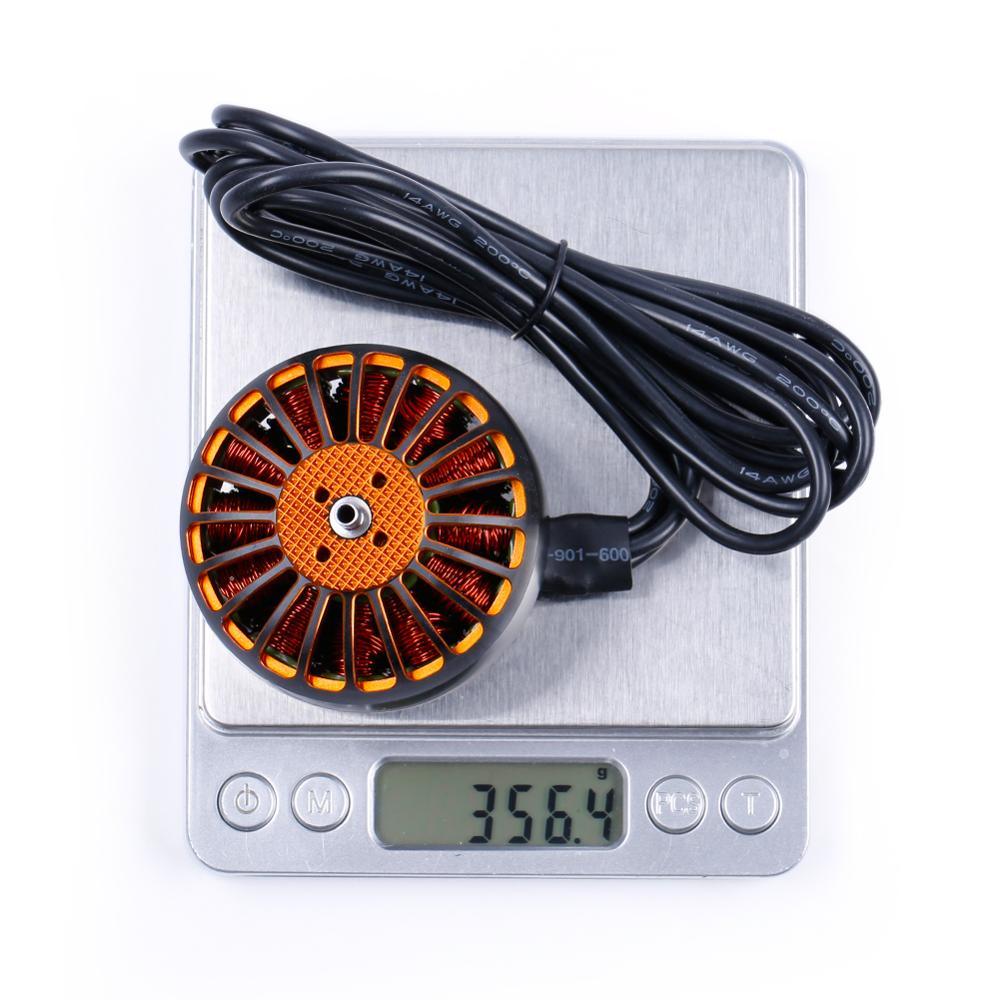

Weight:356.4g(withlong cable)
Package included:
1pc x5215motorwith screw pack
iflight XING 5215 500KV Technical Datas KV 500 Configu-ration 12NI4P Stator Diamter 52.8mm Stator Length 15mm Shaft Diameter 4mm Motor p60.8*40mm Dimension(Dia. Len) Weightlg) 356.4 73 Ee Idle current(2Ol@1OV(A) 3.45 No.of Cells(Lipo) 4-85 Max Continuous 3603.21 Power(W)180S Internal

The iFlight XING 5215 motor has the following technical specifications: KV rating: 330; configuration: 12N14P; stator diameter: 52.8mm; stator length: 15mm; shaft diameter: 4mm; dimensions (diameter x length): 60.8mm x 40mm; weight: approximately 356g; percentage of copper: 0%; peak power output: 2441.6W; maximum continuous power: unknown; idle current at 20V: 2.34A; number of cells required (Lipo battery): 4-6S.
