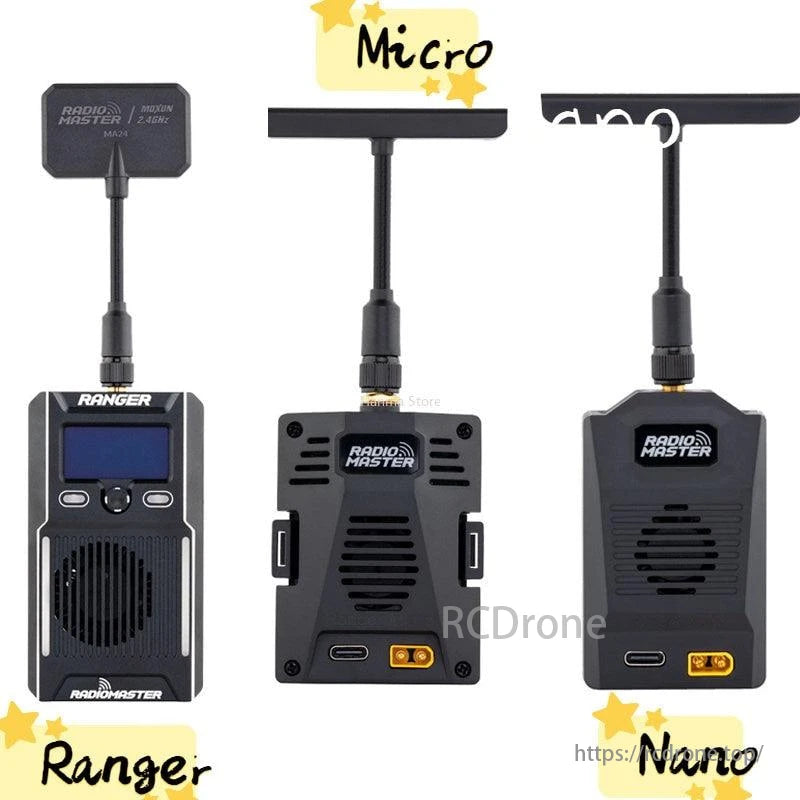

RadioMaster RANGER ELRS 2.4G RANGER MICRO NANO Transmitter SPECIFICATIONS
name: hanma
Wheelbase: Upper Shell
Use: Vehicles & Remote Control Toys
Upgrade Parts/Accessories: Adapter
Tool Supplies: Battery
Technical parameters: KV1100
Remote Control Peripherals/Devices: Remote Controller
Recommend Age: 14+y
RC Parts & Accs: Antennas
Origin: Mainland China
Model Number: RadioMaster Ranger
Material: Plastic
Four-wheel Drive Attributes: Assemblage
For Vehicle Type: Airplanes
Brand Name: abay
RadioMaster RANGER ELRS Nano Module Regulatory Domain: ISM (24GHz) MCU: ESP32 (main), ESP8285 (auxiliary, used as an ESP backpack) RF Chip: SX1281IMLT RT Frequency Range: 2.4 GHz to 2.48 GHz Maximum Packet Rate: up to 500 Hz or 1000 Hz.
Micro Features High-efficiency cooling system Up to 1Watt Power output Wifi and Bluetooth support Packet rates up to F-1OOOHz T-antenna included With the Micro connector; support TX16S and TX12 MKII radio .
Ranger
Features
-
OLED Display
-
Rugged CNC Case
-
Built-in Accelerometer
-
Packet rates up to F-1000Hz
-
Up to 1 Watt Power output
-
Wifi and Bluetooth support
-
High-efficiency cooling system
-
5 Direction Nav key and customizable shortcut buttons
-
Micro and Nano adapters included
-
Moxon and T-antenna included
-
CRSF cable for compatible Futaba radios included
Specification
-
Item: Ranger 2.4GHz ELRS Module
-
Regulatory Domain: ISM2400
-
MCU: ESP32(main), ESP8285(aux, as ESP backpack)
-
RF chip: SX1281IMLTRT
-
Frequency Range: 2400 MHz - 2480 MHz
-
Maximum packet rate: 500Hz/F-1000Hz (F-1000Hz mode requires EgdeTX 2.7.1 or later)
-
Minimum receiver refresh rate: 25Hz
-
RF Output Power: 30dBm for FCC, 20dBm for CE (Adjustable by LUA)
-
Module bay adapters: JR standard 5pin socket & Nano standard 8pin socket
-
Futaba CRSF socket cable: Included
-
OLED screen: 64x128px
-
Wifi Support: Yes
-
Bluetooth support: Yes
-
3-Axis Accelerometer: Yes (STK8BA58 MEMS Accelerometer)
-
Built-in RGB light strip
-
XT30 Power supply voltage: DC 6V - 16.8V
-
Weight: 138g (with Moxon antenna) / 135g (with T antenna) / 126g (without antenna)
-
Dimension: 95*51*25mm (without antenna)
High-contrast display with a resolution of 1:128 and an OLED screen, featuring a frequency of 0.0 FIO (frequency of interest) at 13a 'Ranger' ExpressLRS module, with a transmission range of approximately 250 milliwatts.
Ranger VTX Version: TLH Detect Full Function 2.4GHz ELRS Module, compatible with ExpressLRS Admin v3.0, FIOO Hz, 1/128, range 250m.
Frequency range: 2.4 GHz, maximum output power: 100mW, packet rate: 1MHz.
This module includes modular adapters for various radio control systems, specifically nano adapters compatible with Zorro and other JR brand systems, as well as JR adapters for the TX16S Mark II and TX12 Mark I.
Futaba CRSF cable supports compatibility with Futaba radios such as the 161Z, 16SZ, and 18SZ models, ideal for use with Moxon antennas for directional long-range communication.
