Specifications
| Product Parameters | Flight Performance | ||
|---|---|---|---|
| Supported frame types | Quadcopter (+ type, X type) | Hover accuracy | Horizontal ±1.5m |
| Hexacopter (+ type, X type, Y type coaxial twin propellers) | Vertical ±0.5m | ||
| Octocopter (+ type, X type, V type) | |||
| Supported ESC types | ESC below 490HZ PWM | Maximum tilt angle | 30 degrees |
| Maximum output channels | 8 channels | Maximum yaw speed | 150 degrees/sec |
| Suggested remote control type | SBUS receiver | Maximum vertical speed | 6 m/s |
| Supported receiver types | PPM, S-BUS receiver | Wind resistance | Continuous wind: level 4 |
| Supported peripherals | RTK, K-BOX, IOT, obstacle avoidance radar, terrain following radar, integrated remote transmitter, FPV camera, binocular vision sensor, flow meter, liquid level meter, etc. | Gust: Level 5 | |
| Lipo battery types | 2-12S | Flight modes and functions | Attitude mode, GPS mode, ABT operation, autonomous operation, one-button return, out of control protection, out of control to continue operation, low voltage protection, drug out protection function, precision spraying, fence function, log storage function, landing lock function, forbidden Fly zone function, vibration protection function, star loss protection function, active noise reduction function, motor sequence detection function, direction detection function, dual water pump mode, water pump switch control, water pump linkage control |
| Power dissipation | <5W | ||
| Working temperature | -10~60℃ | ||
| Storage temperature | -25~60℃ | ||
| Seismic rating | <1G< /td> | ||
| Hardware specifications | |||
| Weight | Total net weight: 321g | ||
| FC: 87g | |||
| PMU: 41g | |||
| PMU2(UPS): 44g | |||
| Size | FC 72.6 × 48.0 × 22.8 mm | ||
| PMU 53.4 × 34.4 x 14.5 mm | |||
| PMU2(UPS) 53.4 × 34.4 x 14.5 mm | |||
| GPS Φ62.0 × 14.3 mm | |||
| LED 24.0 × 24.0 × 8.0 mm | |||
Details

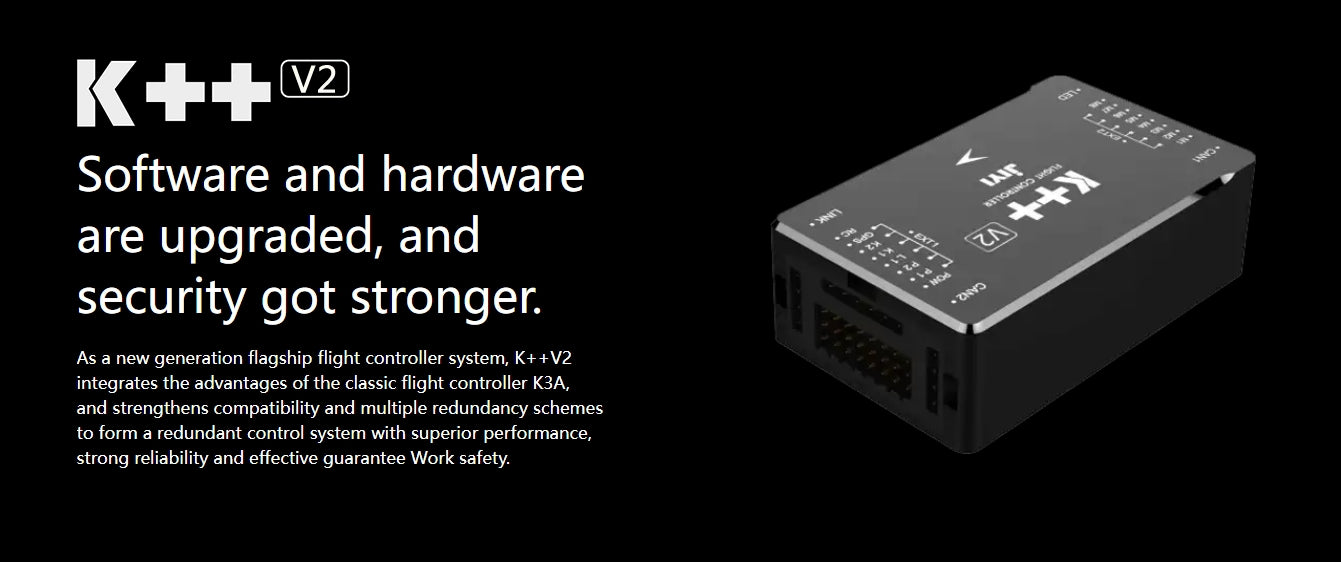

K++ V2 flight controller system upgrades software and hardware, enhancing security. Integrates classic K3A features, improves compatibility and redundancy for superior performance and reliability.

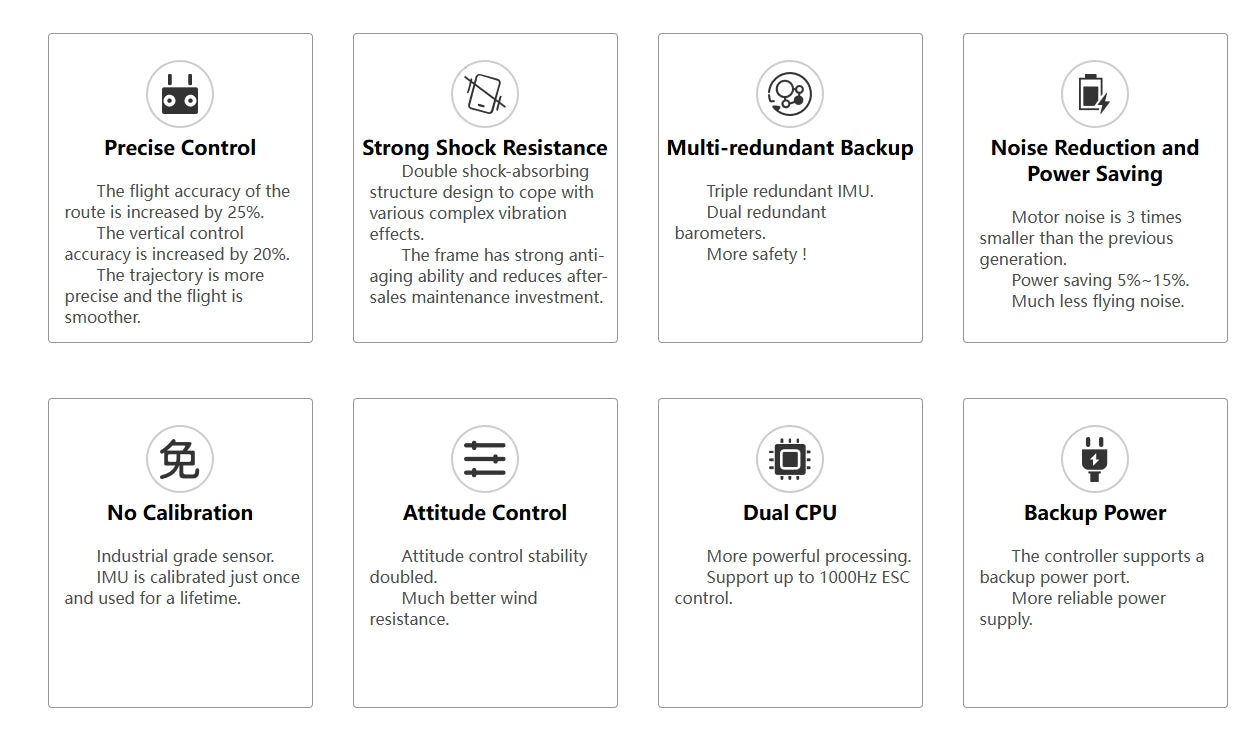

Features include precise control, strong shock resistance, multi-redundant backup, noise reduction, no calibration, attitude control, dual CPU, and backup power. These enhancements improve flight accuracy, safety, stability, and efficiency, reducing maintenance and noise while increasing processing power and reliability.
K++V2 features intelligent vibration analysis, real-time aircraft vibration judgment, safety warnings in the app, and improved flight efficiency and safety.
K++V2 features triple redundant IMU and dual redundant barometer sensors for safer flight. Real-time monitoring ensures system switching to backup sensors if abnormalities occur.

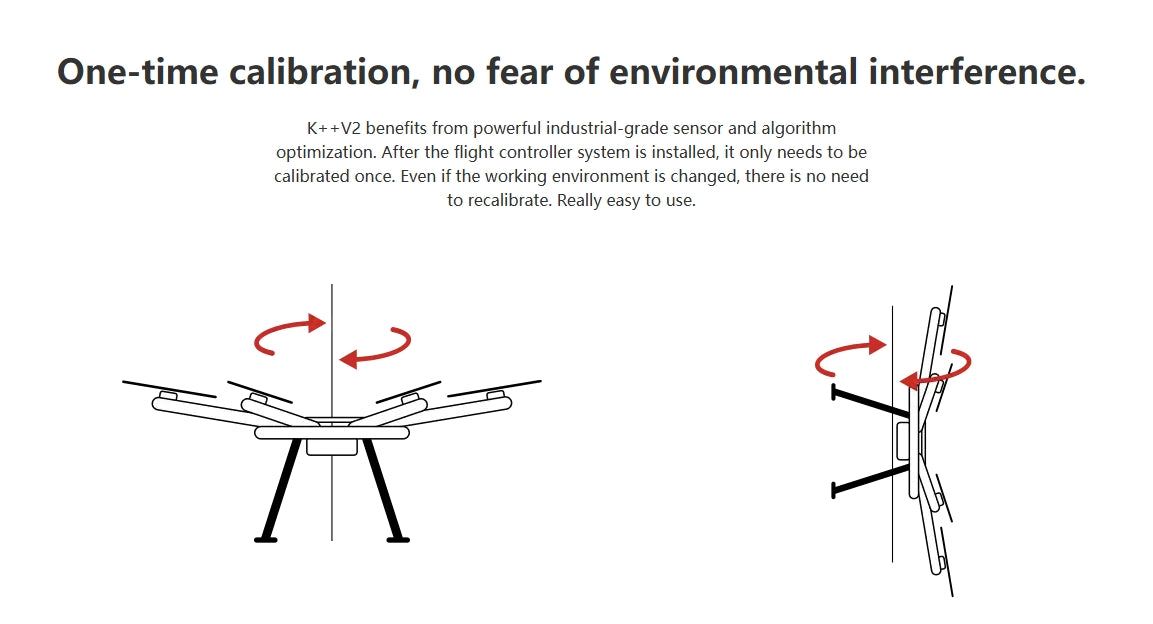

K++V2 uses industrial-grade sensors, needs one-time calibration, no recalibration required for environmental changes, easy to use.

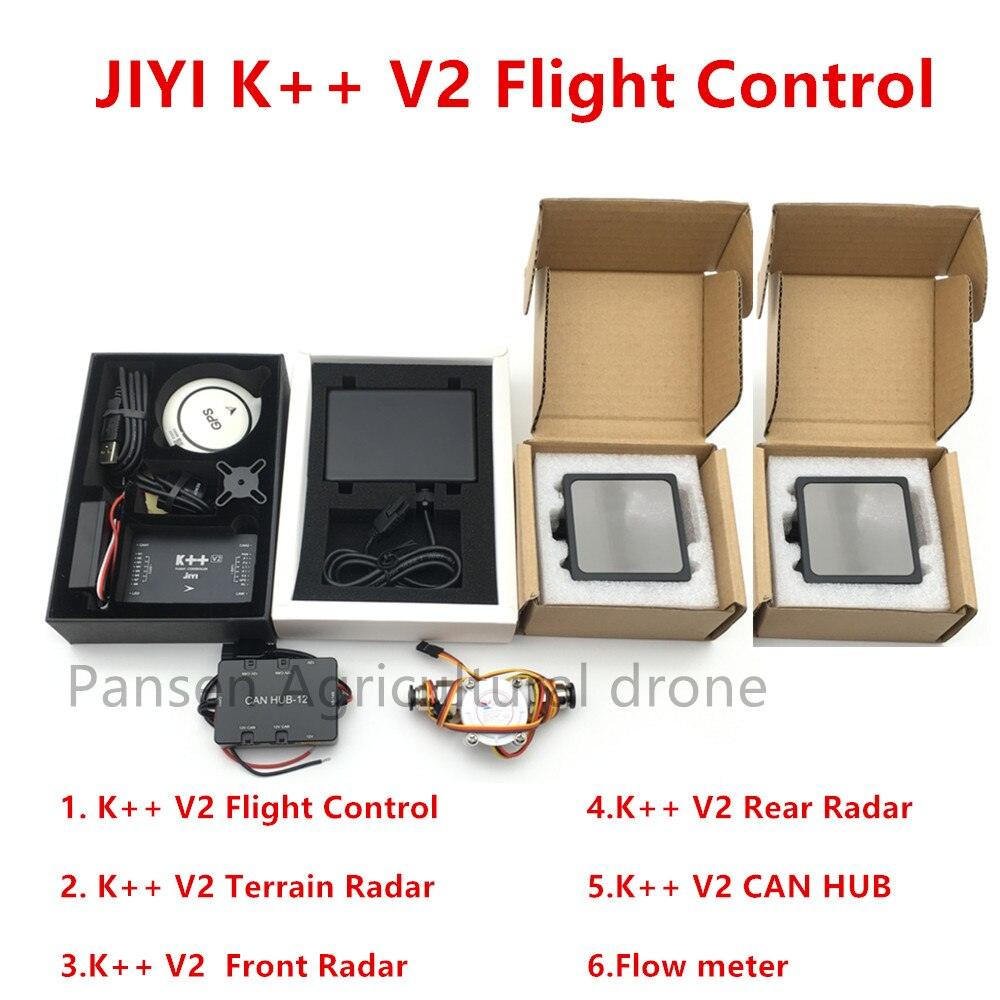

JIYI K++ V2 Flight Control includes K++ V2 Flight Control, Terrain Radar, Front Radar, Rear Radar, CAN HUB, and Flow meter for agricultural drones.

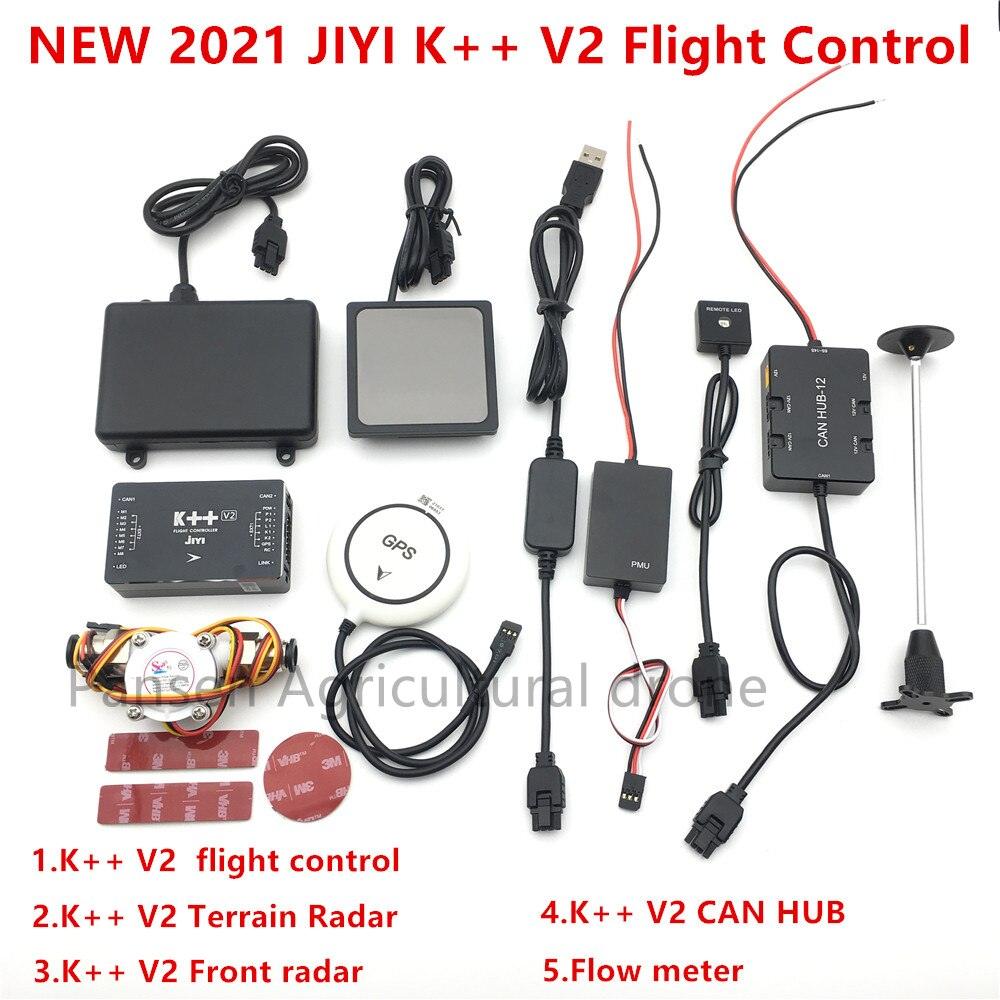

2021 JIYI K++ V2 Flight Control includes flight control, terrain radar, front radar, CAN HUB, and flow meter for agricultural drones.

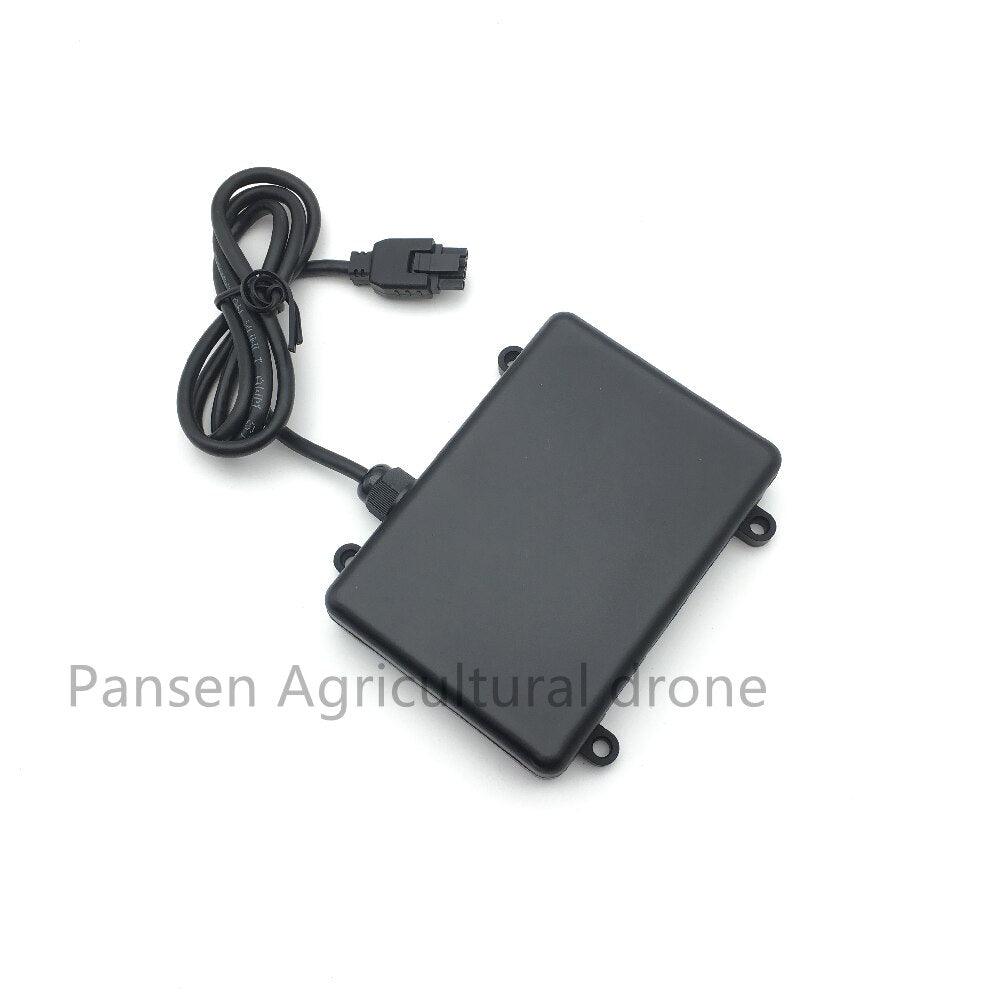

K++ V2 Front Obstacle Avoidance Radar (K+ + V2 flight control K++ cannot be used)
K++ flight controller diagram includes CAN HUB, Kbox3 or 4G module, PMU, water pump, level gauge, flow meter, GPS, SBUS receiver, and LED light.
The NEW Original JIYI K++ V2 Flight Control system features dual CPUs, optional front and rear obstacle avoidance radar, and is designed for special agricultural drones. This system includes a CAN HUB, Kbox3 or 46 module with reserved PMU, water pump, level gauge, flow meter, GPS LED link, SBUS receiver assistant, and upgrade options for RTK line data transmission in a single unit.

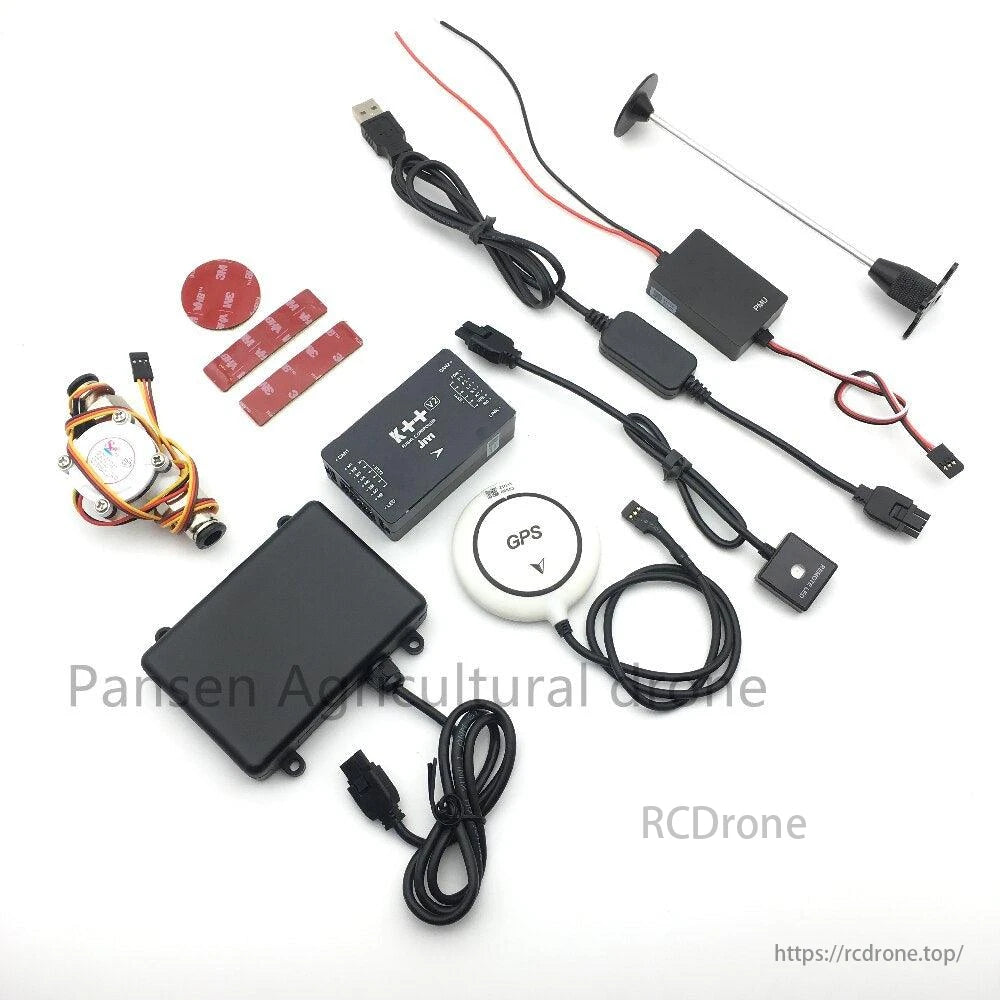

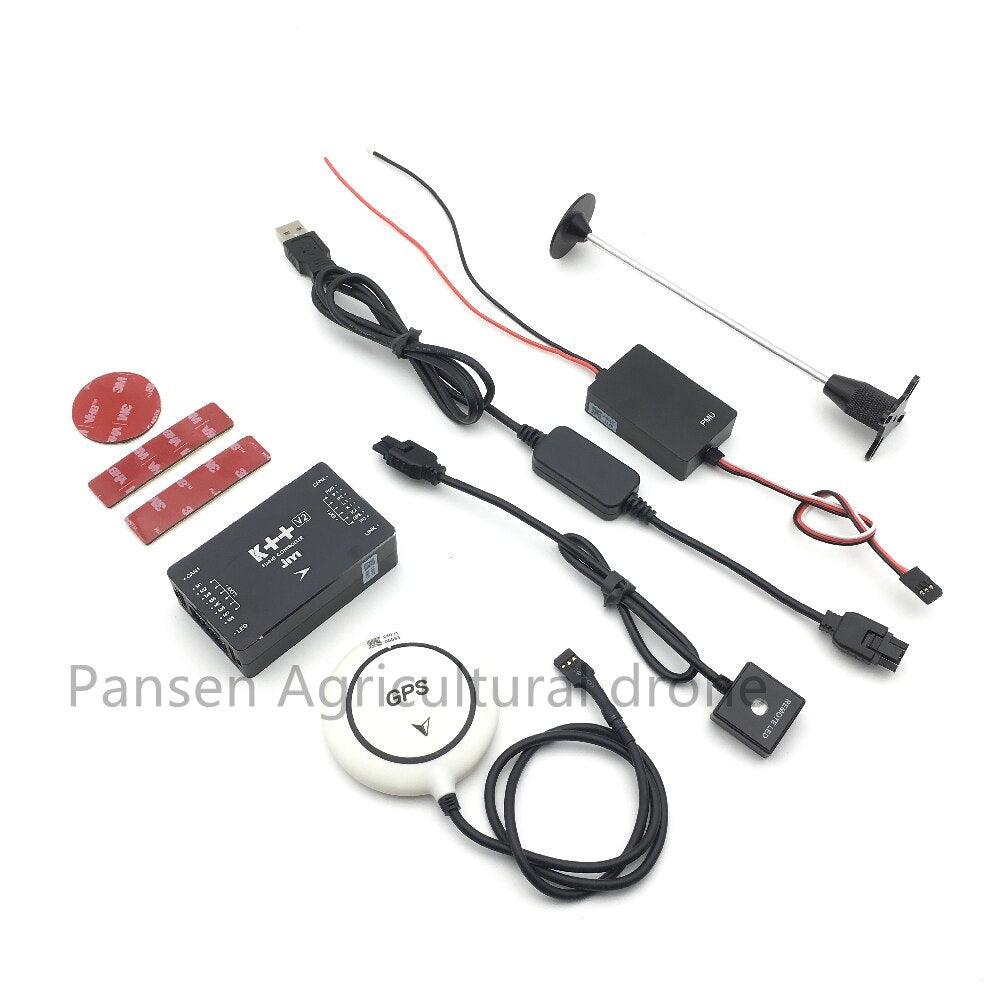

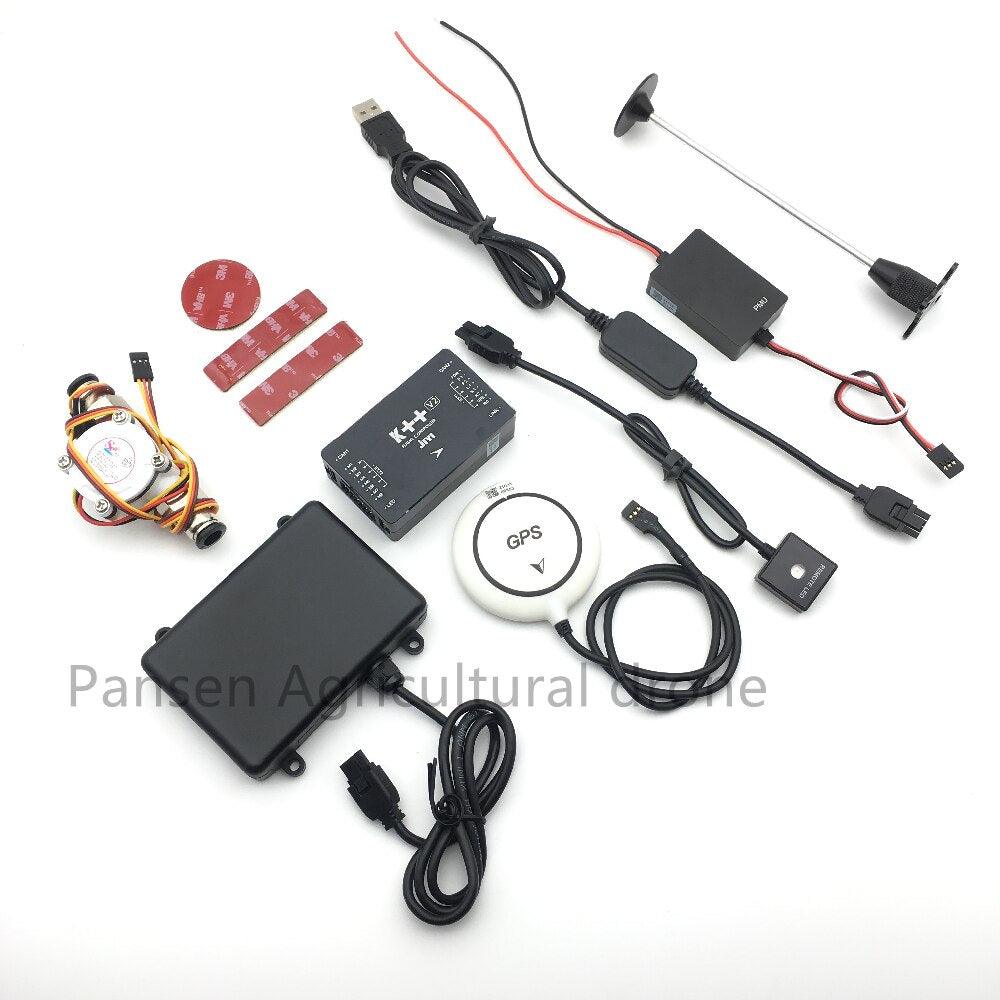

Product standard list includes: main control (FC), power management module (PMU), GPS, LED light, 3M tape, warranty card, GPS bracket, and adjustment cable. Check for missing items before use.
Please inspect the contents of your pre-shipment package upon receipt of this product. If you find that any items are missing, please reach out to our customer service team at urid@urid.com.
IOT, obstacle radar, ground radar, RTK, integrated remote controller; quantities: 1 each.

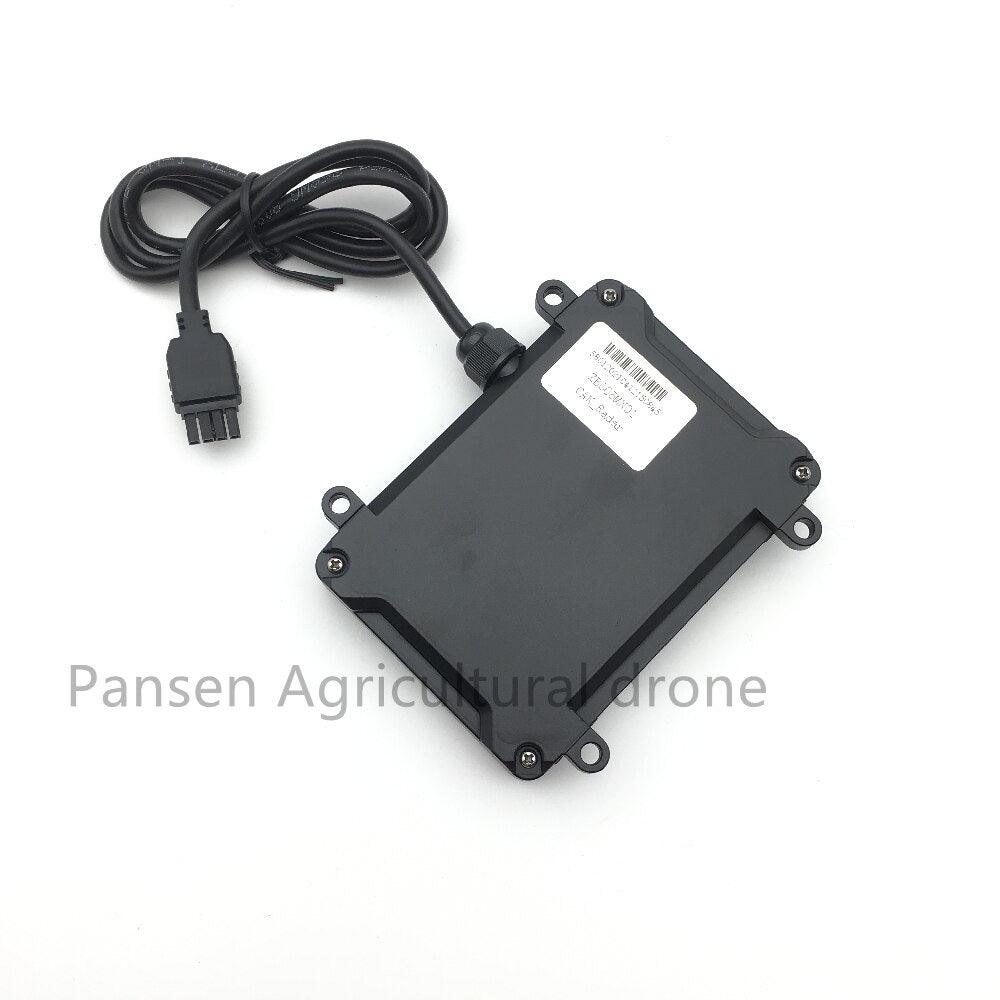

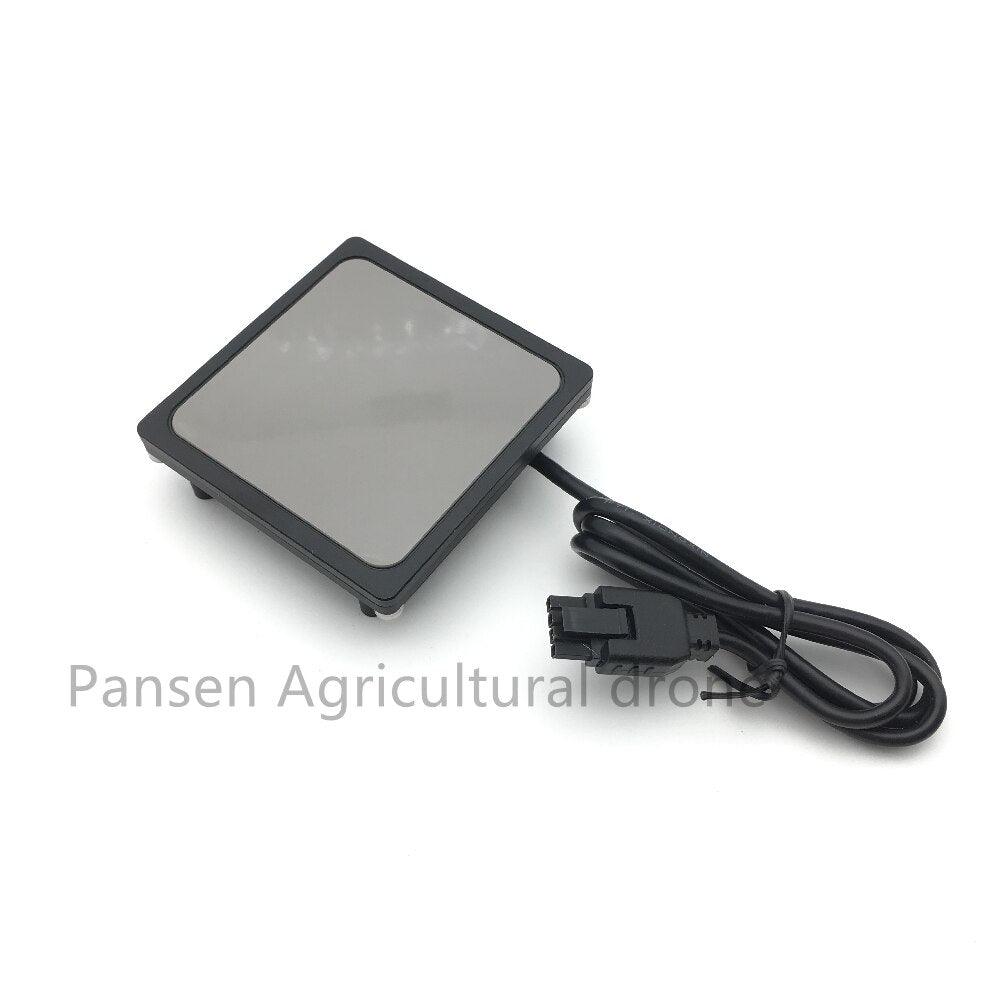

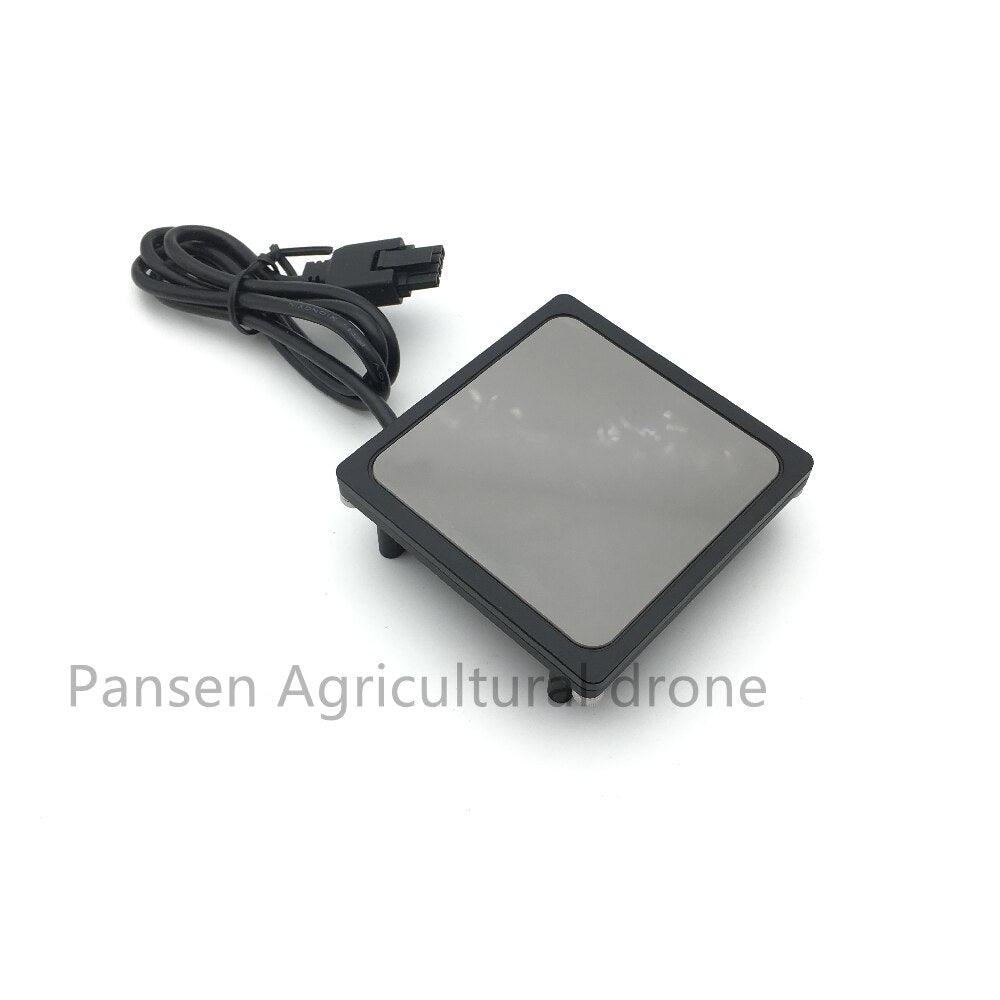

K++ V2 Terrain Radar for K++ V2 flight control only.
K++ V2 Terrain Radar (K++ cannot be used for K+ + V2 flight control)

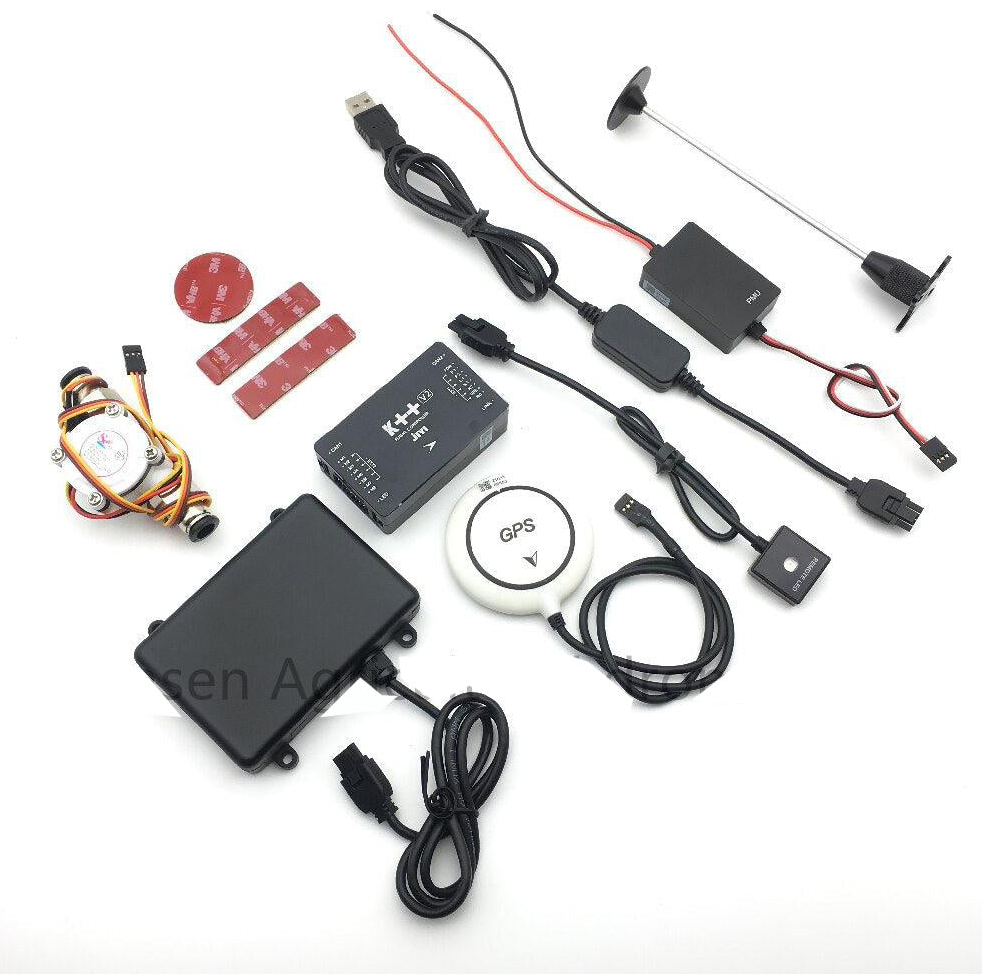

K++ V2 Flight Controller, JIYI, GPS module, cables, mounting bracket.
kit includes GPS module, flight controller, CAN HUB-12, and display screen in packaging.
K++, CAN HUB-12, GPS module for agricultural drone.
2021 JIYI K++ V2 Flight Control includes flight control, terrain radar, front radar, CAN HUB, and flow meter for agricultural drones.

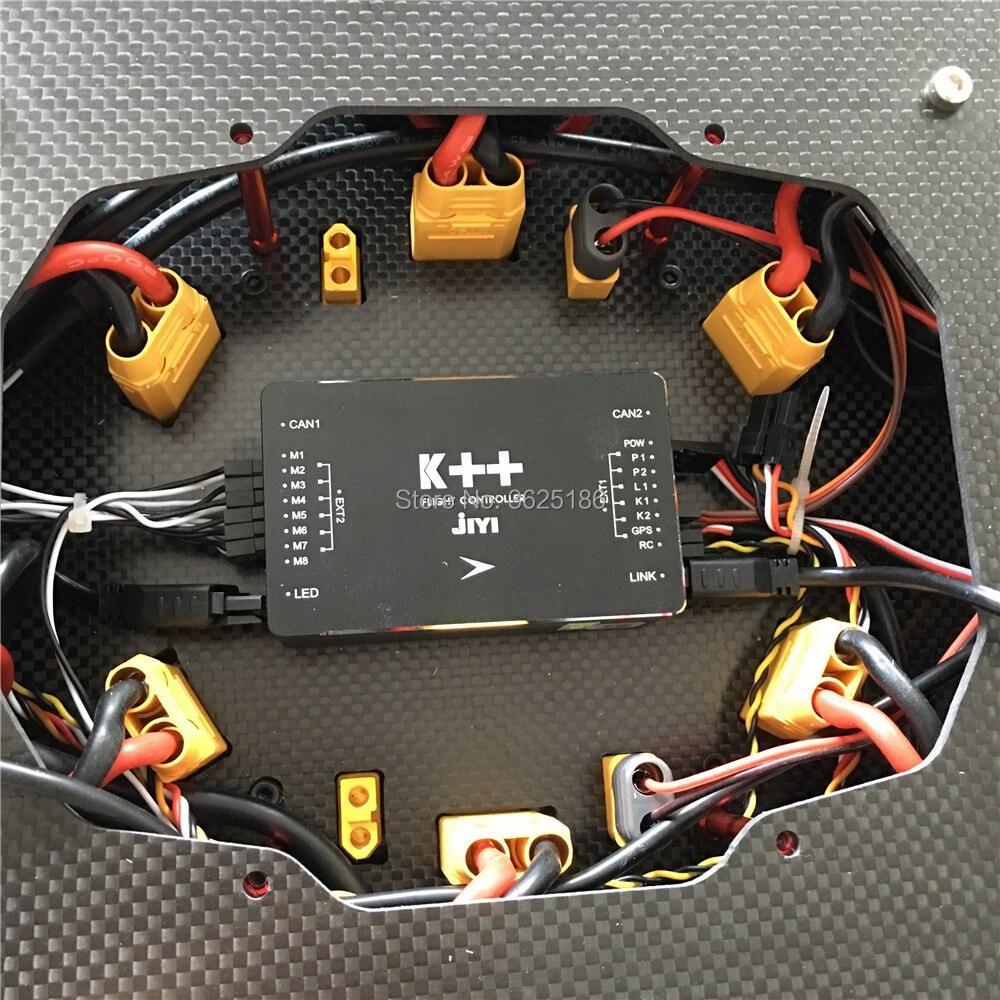

K++ flight controller by JIYI, with CAN1 and CAN2 ports, connected to various cables and connectors on a carbon fiber plate.
K++ flight controller, PMU power module, SKYDRONID sensor on a drone's carbon fiber frame.
