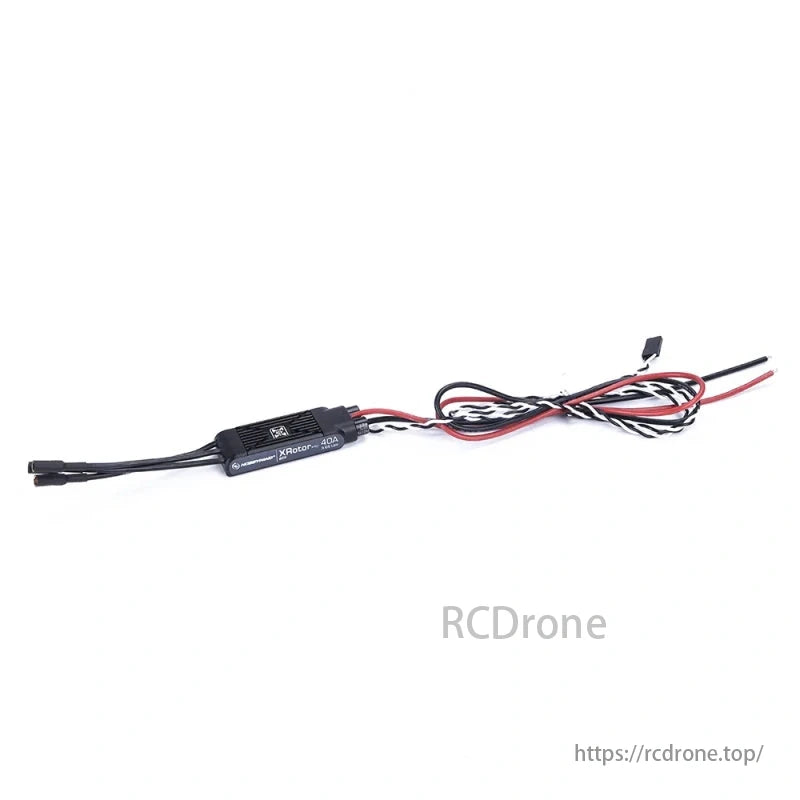

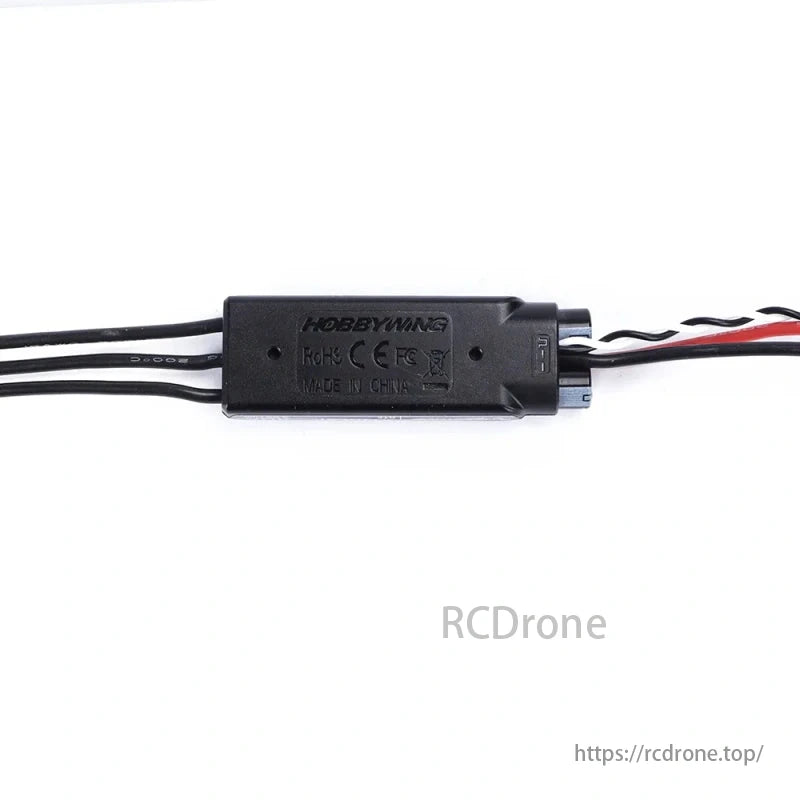

The XROTOR Pro 40A ESC is a high-performance electronic speed controller designed for multi-rotor drones, offering smooth throttle response, high efficiency, and robust protection mechanisms. It features a continuous current of 40A, peak current of 60A for 10 seconds, and supports 3-6S LiPo batteries, making it an ideal choice for high-power drone applications. Weighing only 50g, this ESC is lightweight yet powerful, ensuring optimal flight performance.

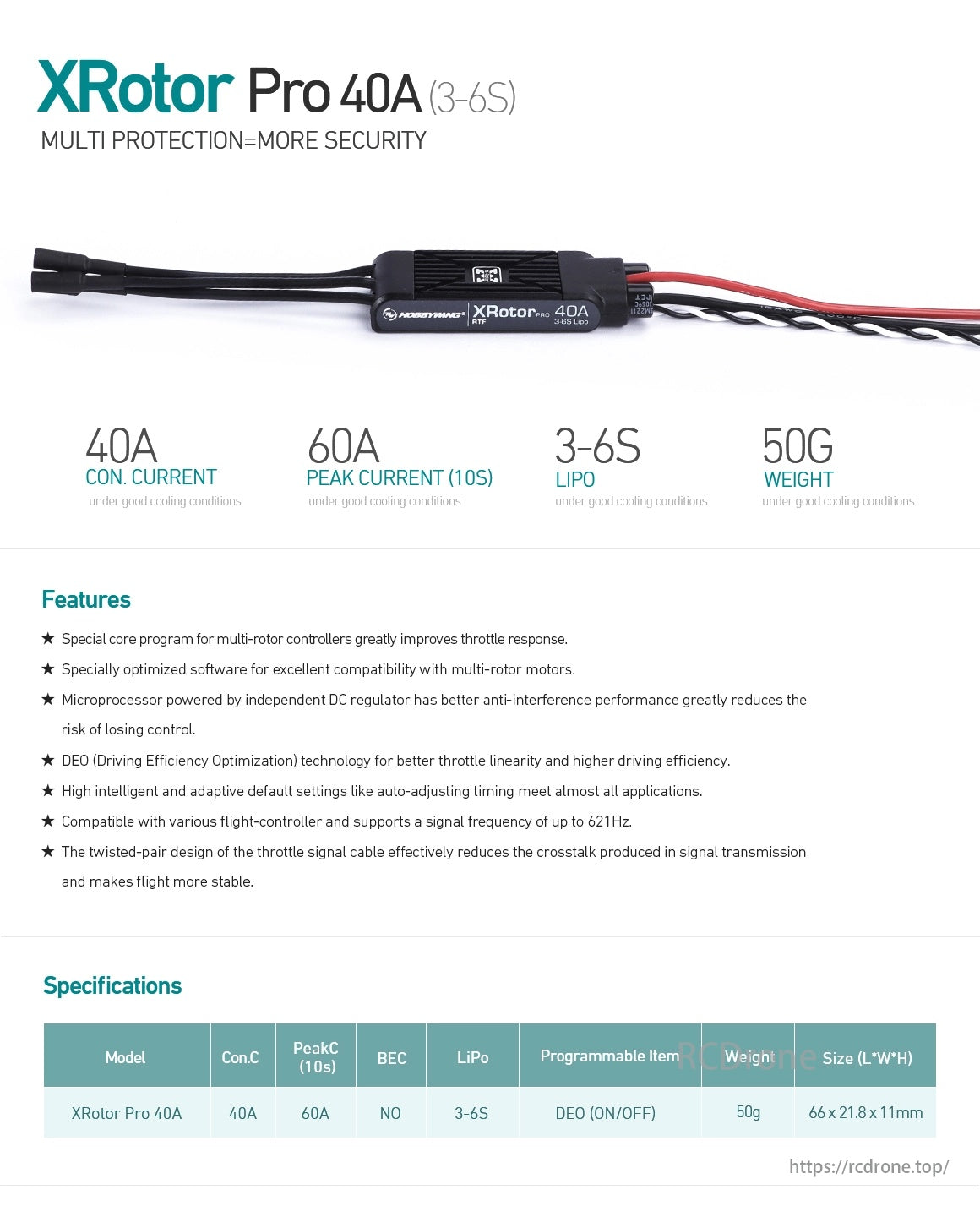

Key Features
- Optimized Performance: Special core program enhances throttle response and improves multi-rotor stability.
- Wide Compatibility: Works with various multi-rotor flight controllers and supports a signal frequency of up to 621Hz.
- Reliable Microprocessor: Powered by an independent DC regulator, providing excellent anti-interference performance.
- DEO Technology: Driving Efficiency Optimization (DEO) ensures better throttle linearity and higher efficiency.
- Adaptive Settings: Intelligent auto-adjusting timing ensures compatibility with most drone applications.
- Enhanced Signal Stability: Twisted-pair design reduces crosstalk, ensuring a stable and reliable throttle signal.
- Robust Build: High-quality components ensure durability and extended lifespan.
Specifications
| Model | XROTOR Pro 40A |
|---|---|
| Continuous Current | 40A |
| Peak Current (10s) | 60A |
| BEC | No |
| LiPo Compatibility | 3-6S |
| Programmable Items | DEO (ON/OFF) |
| Weight | 50g |
| Dimensions (L×W×H) | 66 × 21.8 × 11mm |
User Guide
Throttle Calibration & ESC Programming

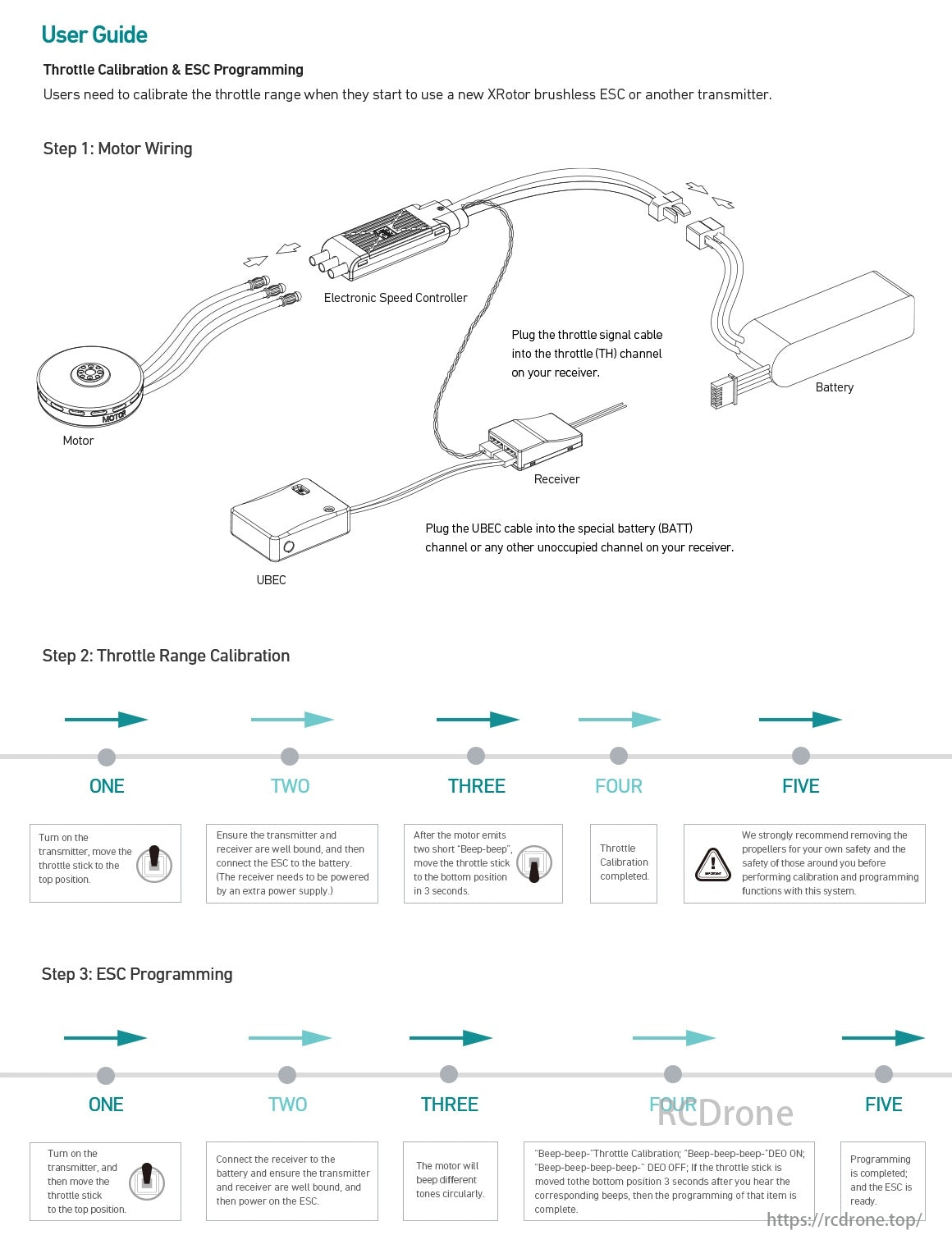

Before first use, users must calibrate the throttle range to ensure proper performance. Follow these steps:
Step 1: Motor Wiring
- Connect the motor to the ESC.
- Plug the throttle signal cable into the TH channel on the receiver.
- Connect the UBEC cable to the BATT channel (or any free receiver channel).
- Power the system using a compatible LiPo battery.
Step 2: Throttle Range Calibration
- Turn on the transmitter and move the throttle stick to the top position.
- Ensure the transmitter and receiver are well bound, then connect the ESC to the battery.
- When the motor emits two short “Beep-beep” sounds, move the throttle stick to the bottom within 3 seconds.
- Throttle calibration is completed.
⚠️ Important: Remove propellers before performing calibration for safety.
Step 3: ESC Programming
- Turn on the transmitter and move the throttle stick to the top position.
- Connect the ESC to the battery while ensuring the transmitter and receiver are bound.
- The motor will beep different tones indicating programming mode.
- Listen for the corresponding beeps:
- "Beep-beep" → Throttle Calibration
- "Beep-beep-beep" → DEO ON
- "Beep-beep-beep-beep" → DEO OFF
- Move the throttle stick to the bottom position 3 seconds after hearing the correct beep to complete programming.
Normal Start-up Process & Protections
Start-up Protection
- If the motor fails to start within 2 seconds, the ESC shuts down automatically to prevent damage.
- Users must reset the throttle stick to the bottom position and restart the motor.
Overload Protection
- The ESC will cut off power if the load suddenly increases beyond safe limits.
- Normal operation resumes once the throttle stick is reset to neutral.
Throttle Signal Loss Protection
- If the ESC detects a signal loss exceeding 0.25 seconds, it cuts off output to prevent motor damage.
- Once the signal is restored, the ESC resumes normal operation.
Troubleshooting
| Issue | Warning Tone | Possible Cause | Solution |
|---|---|---|---|
| Motor does not start | “Beep beep beep…” (Rapid beeping) | Throttle stick is not at the bottom position | Move throttle to bottom or recalibrate throttle range |
| No motor output | “Beep, beep, beep…” (1-second intervals) | No signal from throttle channel | Check transmitter binding and wiring |
| Incorrect throttle response | "BB, BBB, BBBB" (Looping tones) | Throttle channel direction reversed | Set throttle direction correctly in the transmitter |
This XROTOR Pro 40A ESC is an excellent choice for high-performance drone applications, offering smooth operation, precise control, and multiple safety features to ensure a reliable and stable flight experience.
Details
XRotor Pro 40A offers multi-protection for enhanced security. It supports 40A continuous and 60A peak current, compatible with 3-6S LiPo batteries. Weighing 50g, it features optimized software, anti-interference performance, DEO technology, adaptive settings, and a twisted-pair cable design for stable flights.
