Pixhawk PX4 PIX 2.4.8 32 Bit Flight Controller SPECIFICATIONS
Wheelbase: Bottom Plate
Use: Vehicles & Remote Control Toys
Upgrade Parts/Accessories: Tires
Tool Supplies: Tools
Technical parameters: KV1100
Size: 51mm*82mm*17mm
Remote Control Peripherals/Devices: Remote Controller
Recommend Age: 12+y,14+y
RC Parts & Accs: Speed Controllers
Origin: Mainland China
Model Number: Pixhawk2.4.8
Material: Composite Material
Four-wheel Drive Attributes: Assemblage
For Vehicle Type: Airplanes
Brand Name: rctosky
Note:
1.You can select White or Black shell of PIXHAWK flight controller, the hardware is same .White shell is more beautiful. If you need White shell,please leave a message.
2.If the package has 3DR power Module,by default we will send XT60 plug 3DR power Module,if you need T ,please leave a message.
3. Pixhawk has many packages.We will send the package as you select.
Pixhawk PX4 Autopilot PIX 2.4.8 32 Bit Flight Controller
Features:
Pixhawk 2.4.8 support the latest official ardupilot firmware and PX4 firmware.
1. The advanced 32-bit ARM CortexM4 high-performance processors(2MB flash), can run NuttX RTOS real-time operating system;
2. 14 PWM / servo output;
3. Bus interface (UART, I2C, SPI, CAN);
4. The integrated backup power and backup controller fails, the primary controller fails over to the backup control is safe;
5. Provide automatic and manual modes;
6. Provide redundant power input and failover;
7. Multicolor LED lights;
8. Provide multi-tone buzzer Interface
9. Micro SD recording flight data;
Specifications:
Interface
1 .5 high voltage compatible UART 1, 2 with hardware flow control
2. 2 CAN
3.Spektrum DSM / DSM2 / DSM-X satellite receiver compatible input
4.Futaba SBUS compatible inputs and outputs
5.PPM Signal Input
6.RSSI (PWM or voltage) Input
7.I2C
8.SPI
9.3.3 and 6.6VADC input
10. External MICRO USB Interface
XBEE S2C Radio telemetry (2.4G)
The updated Digi XBee S2C 802.15.4 module is built with the Silicon Labs EM357 SoC and offers improved power consumption, support for over-the-air firmware updates, and provides an upgrade path to DigiMesh® or Zigbee mesh protocols if desired.
Radio telemetry can be used for wireless communication between pixhawk and computer or mobile phone.
The V5 module offers interchangeable functionality, allowing it to be utilized as either a ground station or an airborne terminal.
Radio telemetry V1
WIFI V1.0 and V2.0 use 8bit CPU, only support UDP
WIFI V3.0 use 32 BIT CPU, support TCP and UDP.
WIFI V2.0 and V3.0 use external antenna (5DB)
OLED Module can display some message.
MINI OSD
PDB:
VTX5848 is video transmitter,support 25MW-600MW,48 channel (with heat sink abd 3DB antenna )
FPV Camera
450 Carbon Fiber Frame
BLHELI ESC:
A. Features
A1: Use authentic electronic components to ensure high quality and enhance the current endurance ability of the ESC.
A2: Based on BLHeli firmware, optimized for high performance with great linearity and much quicker throttle response.
A3: Special designed for multirotors, and compatible with fixed-wing aircrafts and helicopters.
A4: Multiple protection features including Low-voltage cut-off protection / over-heat protection / throttle signal loss protection.
A5: Throttle range can be configured and is fully compatible with all receivers, providing smooth, linear and precise throttle response. A6: All parameters can be programmed via using a transmitter, including default settings.
B. Productspecification
BEC BEC Treni Cobnbuou: DileD D Progranmable currebt Batfert Vir e : Mode Output Currenr LtutHoinil (105) Iocluded B-CCBE BLHeli -20A 026 27 LineAr 4T"
2212 920KV Motor
1045 Propellers
Packing list: (full set as your choose)
Simple Collocation: PIXHAWK 2.4.8(white or black shell)+ 4G TF Card + Safety Button + Buzzer + 3 Line(4Pin 1.25 ,6Pin 1.25 ,3Pin 2.5.4)
Standard Collocation: PIXHAWK 2.4.8(white or black shell)+ 4G TF Card + Safety Button + Buzzer + PPM Encoder + I2C Expansion Board+ 3 Line(4Pin 1.25 ,6Pin 1.25 ,3Pin 2.5.4)
High Collocation: PIXHAWK 2.4.8(white or black shell)+ 4G TF Card + Safety Button + Buzzer + PPM Encoder + I2C Expansion Board+ RGB Led + OLED Screen+ 3 Line(4Pin 1.25 ,6Pin 1.25 ,3Pin 2.5.4)
WIFI Package A: PIXHAWK 2.4.8(white or black shell)+ 4G TF Card + Safety Button + Buzzer + Wifi Telemetry +3DR Power Module + 3 Line(4Pin 1.25 ,6Pin 1.25 ,3Pin 2.5.4) (Wifi Telemetry is same as 3DR radio telemetry)

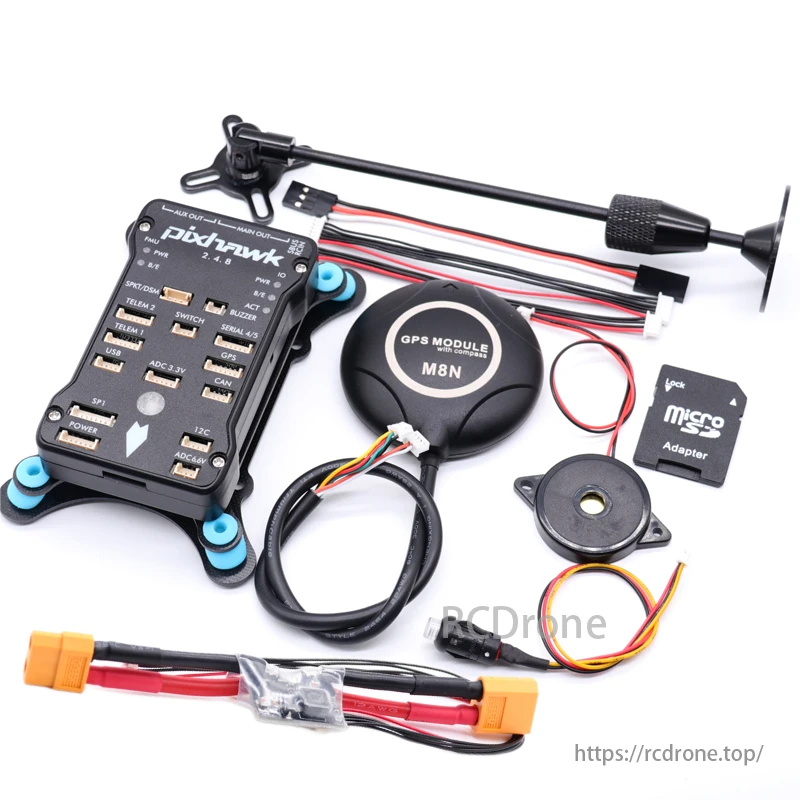

Standard Package:PIXHAWK 2.4.8(white or black shell)+ 4G TF Card + Safety Button + Buzzer + PPM Encoder + I2C Expansion Board+ 3 Line(4Pin 1.25 ,6Pin 1.25 ,3Pin 2.5.4) + M8N GPS+ GPS Holder+ 3DR Power Module+ Shock Absorber
Wifi Package:PIXHAWK 2.4.8(white or black shell)+ 4G TF Card + Safety Button + Buzzer + PPM Encoder + I2C Expansion Board+ 3 Line(4Pin 1.25 ,6Pin 1.25 ,3Pin 2.5.4) + M8N GPS
+ GPS Holder+ 3DR Power Module+ Shock Absorber Wifi Telemetry (Wifi Telemetry is same as 3DR radio telemetry)
High Package:PIXHAWK 2.4.8(white or black shell)+ 4G TF Card + Safety Button + Buzzer + PPM Encoder + I2C Expansion Board+ RGB LED + OLED Screen+ 3 Line(4Pin 1.25 ,6Pin 1.25 ,3Pin 2.5.4) + M8N GPS+ GPS Holder+ 3DR Power Module+Shock Absorber
433MHZ 1000MW Package:PIXHAWK 2.4.8(white or black shell)+ 4G TF Card + Safety Button + Buzzer + PPM Encoder +OLED Module+RGB LED+I2C Expansion Board+ 3 Line(4Pin 1.25 ,6Pin 1.25 ,3Pin 2.5.4) + M8N GPS+ GPS Holder+ 3DR Power Module+ Shock Absorber +
433MHZ 1000MW 3DR Radio Telemetry V5
433MHZ 1000MW OSD package:PIXHAWK 2.4.8(white or black shell)+ 4G TF Card + Safety Button + Buzzer + PPM Encoder +OLED Module+RGB LED+I2C Expansion Board+ 3 Line(4Pin 1.25 ,6Pin 1.25 ,3Pin 2.5.4) + M8N GPS+ GPS Holder+ 3DR Power Module+ Shock Absorber +
433MHZ 1000MW 3DR Radio Telemetry V5+ MINIOSD + PDB
XBEE S2C Package:PIXHAWK 2.4.8(white or black shell)+ 4G TF Card + Safety Button + Buzzer + PPM Encoder +OLED Module+RGB LED+I2C Expansion Board+ 3 Line(4Pin 1.25 ,6Pin 1.25 ,3Pin 2.5.4) + M8N GPS+ GPS Holder+ 3DR Power Module+ Shock Absorber +
XBEE S2C telemetry(3DB antenna and 10DB antenna )
PIXHAWK TOP package:PIXHAWK 2.4.8(white or black shell)+ 4G TF Card + Safety Button + Buzzer + PPM Encoder +OLED Module+RGB LED+I2C Expansion Board+ 3 Line(4Pin 1.25 ,6Pin 1.25 ,3Pin 2.5.4) + M8N GPS+ GPS Holder+ 3DR Power Module+ Shock Absorber +
433MHZ 1000MW 3DR Radio Telemetry V5+ MINIOSD + PDB +VTX5848 Video Transmitter +1080P Camera
