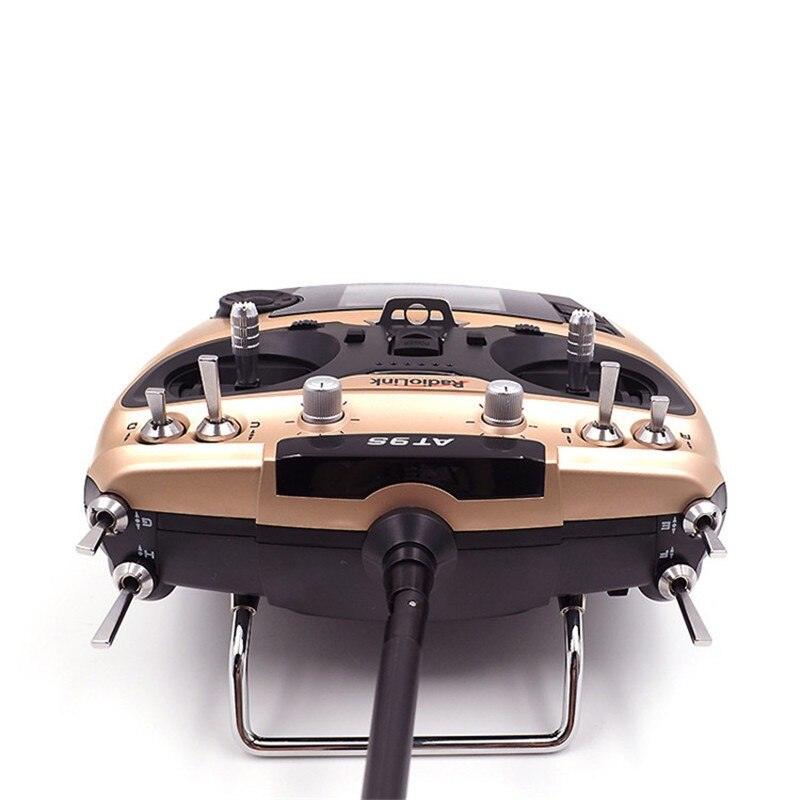

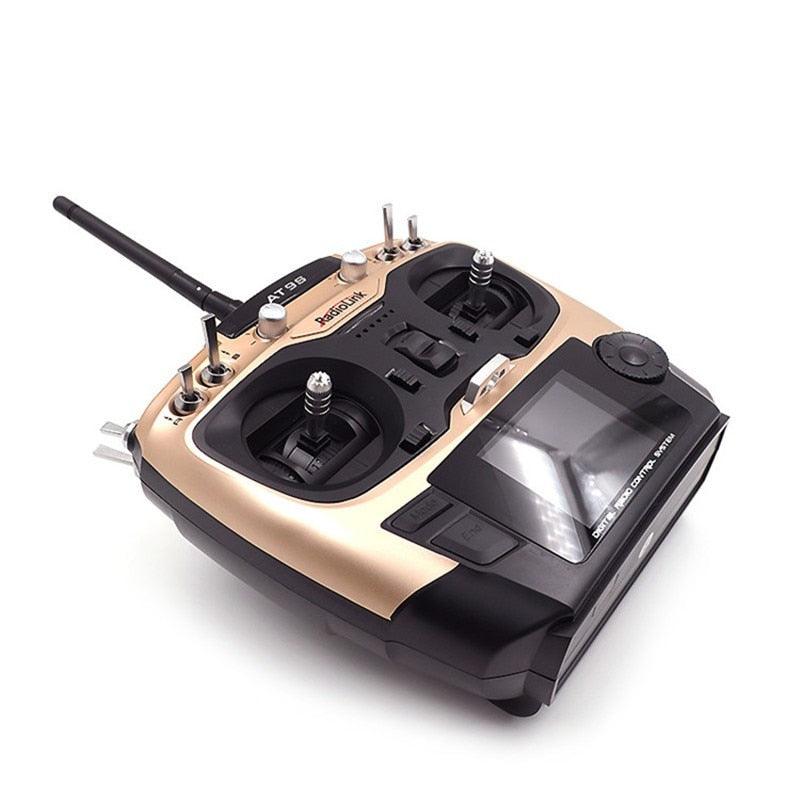

Radiolink AT9S Transmitter - Radio Remote Control System DSSS FHSS 2.4G 10CH Transmitter with R9DS Receiver for RC Helicopter FPV Drone Remote Controller



Package Inclued:

1 * Radiolink AT9S Transmitter

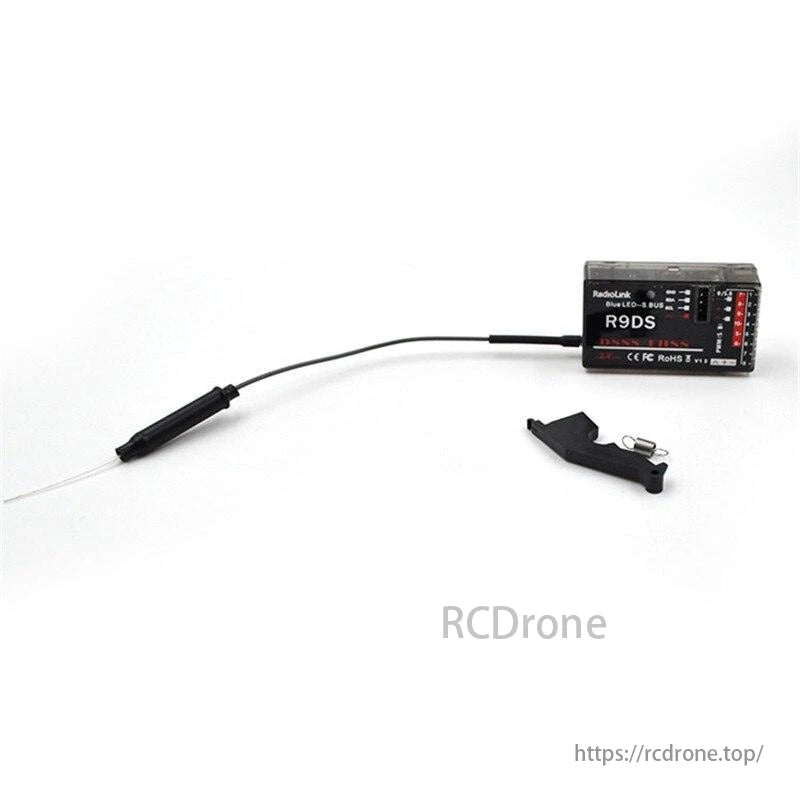

1 *Radiolink R9DS Receiver



Remark: 100% Original ,No retail Box Packaging

Model 1:Right Throttle with R9DS Receiver

Model 2:Left Throttle with R9DS Receiver



Features:



Programmable mix control ,The most full types and functions

Humanized switch positioning, Navigation Menu,PROGRAMMABLE MIX CONTROL

Green and low consumption:90mA operating current, MULTIPLE ALARM PROMPT





Specification:



1. Size: AT9S- 183*100*193mm, R9DS- 41*23*14mm

2. Weight: 0.88kg

3. Frequency: 2.4GHz ISM band (2400MHz to 2483.5MHz)

4. Modulation mode: QPSK

5. Channel bandwidth: 5.0 MHz

6. Spread spectrum: DSSS and amp FHSS

7. Adjacent channel rejection: >38dbm

8. Transmitter power: <100mW (20dbm )

9. Operating current: <90mA

10. Operating voltage: 7.418.0V

11. Control distance: more than 900 meters ground, 1500 meters air, the actual control distance depends on the flying environment

12. Channel: 10 channels, 5-10 channels are customized

13. Compatible model: include all 120 degree and 90 degree swash-plate helicopter, all fix wings, glider and multi-rotor

14. Simulator mode: under the simulator mode the transmitter action turn off, change to power saving mode

15. Screen: 2.8 inches 16 colorful screen, 240*320 pixels

16. Support receivers: sells with R9DS(SBUSandamp;PWM)Also support R10DS(SBUSandamp;PWM) and R6DS(SBUSandamp;PPMandamp;PWM)







The Most Full Types And Functions Suit for all airplanes including helicopter swash plate modes fixed wing tails airfoils , gliders airflakes 2 tails , and multicopter, RC cars and boats

The universal JST battery connector, combined with a wide input voltage range, enables compatibility with various battery types, including 8 x AA batteries, 2S-4S LiPo batteries, and other types.

TYPE: ACRNPT simplified operating and setting up [the] ATL (AT9S) Transmitter. OPP (Operating Parameters) Elev-Tron Digital Control System steps.

RF Node: On/Off External Power Indicator Backlight: 10 IDs Line Terminal Voltage: 74V User Name: Radiolink (supports English, Spanish, German, Italian, French, Turkish, Russian) About Us

The Radiolink AT9S transmitter supports simultaneous output of RGDS, SBUS, PPM, and PWM signals. It's compatible with receivers R9DS and RIO9D.

Alerts for Safe Flight: Set alarms for low RSSI (Received Signal Strength Indicator), low transmitter and receiver voltages, and extended engine voltage warnings. This ensures safe flight operation and prevents accidents caused by ignorance in noisy environments.

The Radiolink AT9S Transmitter has the following specifications: it measures 183mm in length, 100mm in width, and 193mm in height; weighs approximately 0.88 kilograms; operates on a frequency of 2.4 GHz within the ISM band (240 MHz to 2483.5 MHz); uses QPSK modulation; has a channel bandwidth of 5 MHz; and supports data transmission at a rate of 250 Kbps.
