SIYI VD32 Remote Controller SPECIFICATIONS
Use: Vehicles & Remote Control Toys
Type: agriculture use
Recommend Age: 12+y
Private Mold: Yes
Power: battery
Place of Origin: Guangdong, China
Origin: Mainland China
Model Number: SIYI VD32/ JIYI K3A PRO/JIYI K++
Material: Composite material
Material: Composite Material
Function: With Camera, APP Control, With Remote Control
Certification: ce
Capacity: 16 ml
Brand Name: SIYI JIYI
Brand Name: aerops
This remote control can also be used for aerial drones. VD32 built-in lipo-battery,direct charging by USB.

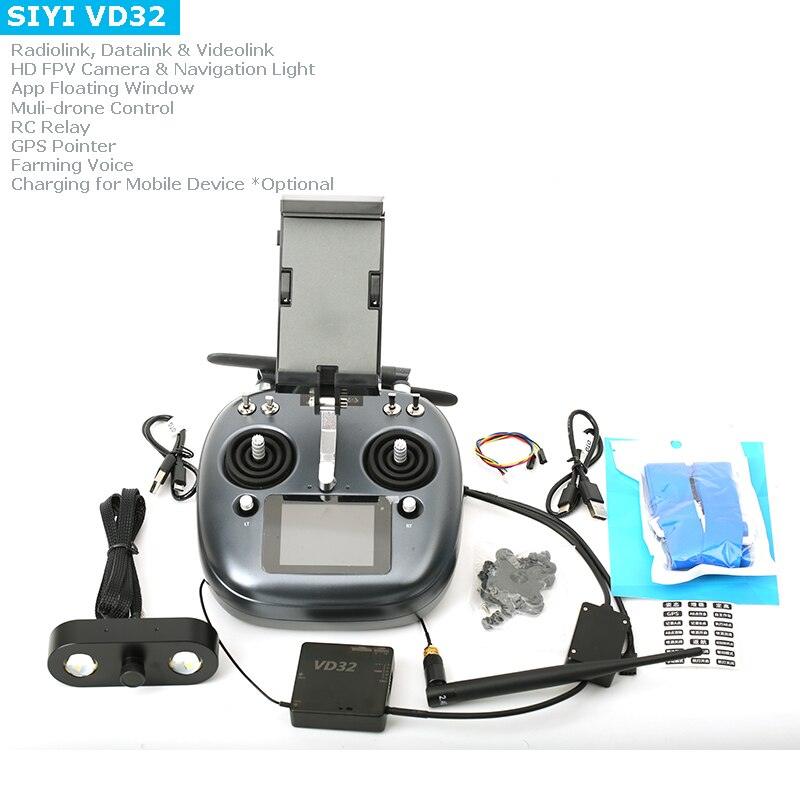

Features include FPV camera app with floating window, multi-drone control and navigation, light RC relay, farming voice guidance, GPS pointer, and mobile device charging - all optional.
Siyi's latest technology integrates radio link, data link, and video link into a single system, offering an effective operating range of up to 2 kilometers specifically designed for agricultural drone applications.
This FPV HD camera features a universal tilt-and-pan mechanism, allowing for adjustable camera angles with a field of view (FOV) of 120°. The floating window design enables zooming in capabilities. It is compatible with all popular flight controllers on the market.
The VD32's navigation lights feature an impressive 8W consumption and a wide searching angle of 120 degrees, ensuring maximum safety performance.
This remote controller comes with an FPV camera that has a transmission range of up to 2 kilometers, allowing for real-time video link monitoring. The camera features a resolution of maximum 48 megapixels at 24 frames per second, operating within a frequency band of 2.400-2.483 GHz. It also includes a navigation light with a camera angle field-of-view (FOV) of 120 degrees and 26 physical channels, as well as 16 transmitting channels. The dimensions of the remote controller are approximately 10.8 cm, making it suitable for use on various models of rotors, vehicles, boats, or robots. It consumes minimal power when in navigation light mode.
The Sky Station receiver outputs a signal with 16 S-Bus channels or PWM ports for flight controllers, featuring optional UART and CAN connectivity. The antenna has a gain of 50 dB. It operates at a voltage range of 0V to 50V and has a working temperature range of -10°C to 55°C.
