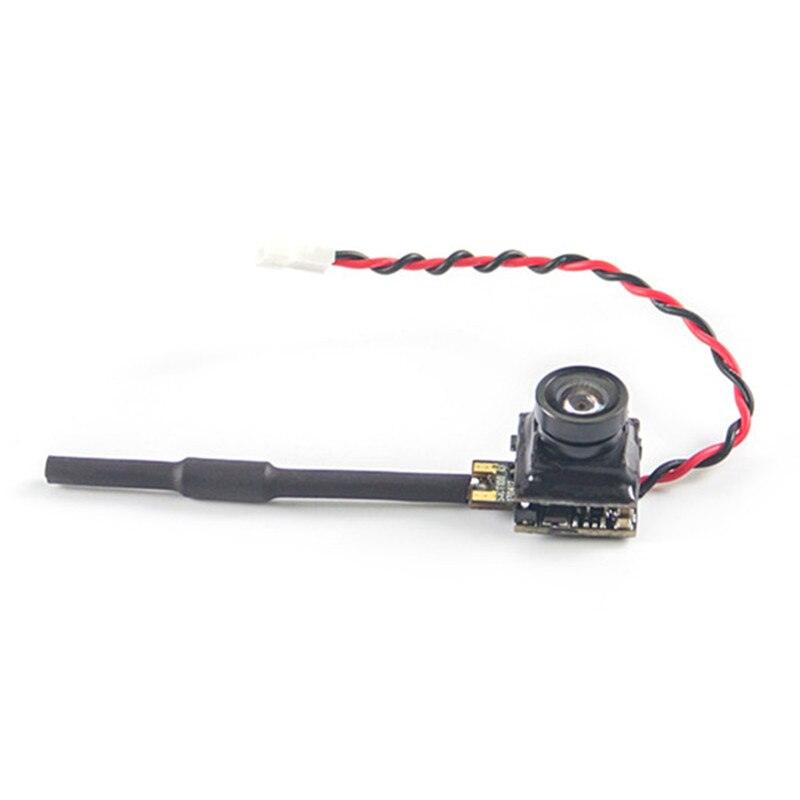

Skyzone 5.8G 25mW 48 Channel Transmitter w/ IR Sensitive PAL/NTSC Camera For RC Models Multirotor Quadcopter Antenna Part

Skyzone 5.8G 25mW 48 Channel Transmitter SPECIFICATIONS

Use: Vehicles & Remote Control Toys

Use: Vehicles & Remote Control Toys

Upgrade Parts/Accessories: Other

Unit Type: piece

Tool Supplies: Other

Technical parameters: Value 2

Size: As description

Remote Control Peripherals/Devices: Other

Recommend Age: 12+y

RC Parts & Accs: Transmitters

Package Weight: 0.035kg (0.08lb.)

Package Size: 2cm x 2cm x 1cm (0.79in x 0.79in x 0.39in)

Origin: Mainland China

Model Number: Skyzone 5.8G 25mW 48CH

Material: Composite Material

Four-wheel Drive Attributes: Other

For Vehicle Type: Helicopters

Brand Name: uuustore

Skyzone 5.8G 25mW 48 Channel Transmitter w/ IR Sensitive PAL/NTSC Camera For RC Models Multirotor Quadcopter Antenna Parts



Specification:

MODE:  SJCT100    5.8G 25mW 48 Channel transmitter with camera
	Modulate	Wide-band- FM Modulate
	Video Format	NTSC/PAL
	Characteristics	Value			Units
		Min.	Type.	Max.
1	Output Power	12	13	14	dBm
2	Operating Voltage	3.5	5	6	V
3	Supply current	---	230	---	mA
4	Operating Temperature	-10	---	+65	°
5	The camera resolution		640*480		pixel
6	Video band--width	0	---	8.0	MHz
7	Weight	---	4	---	g
8	dimension  (L x W x H)	19x15 x 18mm
9	FOV	120 Gegree
10	The lens thread	M7 * 0.35

Frequency range:

CH FR		CH  (MHz)
		CH1	CH2	CH3	CH4	CH5	CH6	CH7	CH8
FR	FR1(A)	5865M	5845M	5825M	5805M	5785M	5765M	5745M	5725M
	FR2(B)	5733M	5752M	5771M	5790M	5809M	5828M	5847M	5866M
	FR3(E)	5705M	5685M	5665M	5645M	5885M	5905M	5925M	5945M
	FR4(F)	5740M	5760M	5780M	5800M	5820M	5840M	5860M	5880M
	FR5(R)	5658M	5695M	5732M	5769M	5806M	5843M	5880M	5917M
	FR6(L)	5362M	5399M	5436M	5473M	5510M	5547M	5584M	5621M

Features:

1. When the camera is powered on, the red and blue LED lights are on at the same time.Then the blue light starts to flash,
the number of blinks represents current active channel. The red light starts to flash, and the number of blinks represents current active band-.



2. Short press 0.5 seconds once, for the operation channel. Channel 1-8 is cycle working and
corresponds to the number of times the channel indicates the blinking blue light. Refer to the channel list below.



3. Press and hold for 3 seconds, and the red and blue LED flashes at the same time,
the number of blinks represents current active band-. (A band- flashes once, B band- flashes twice,
by analogy. E-3;F-4;R-5;L-6.) 3 seconds without key operation, automatic exit frequency band- operation mode, return to normal display mode.

Package included:
1 x Transmitter with Camera

'
