SPECIFICATIONS

Use: Vehicles & Remote Control Toys

Technical parameters: Value 2

Remote Control Peripherals/Devices: ESC

Recommend Age: 14+y

RC Parts & Accs: Motors

Origin: Mainland China

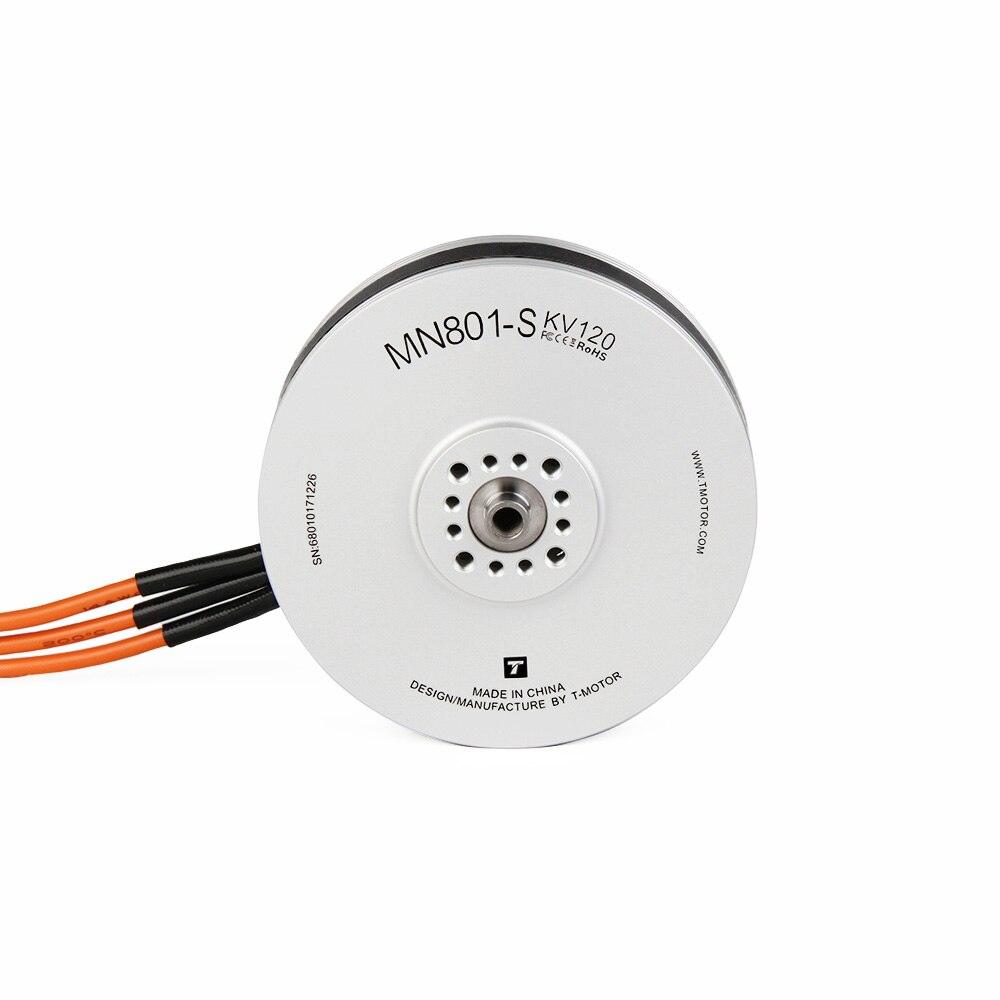

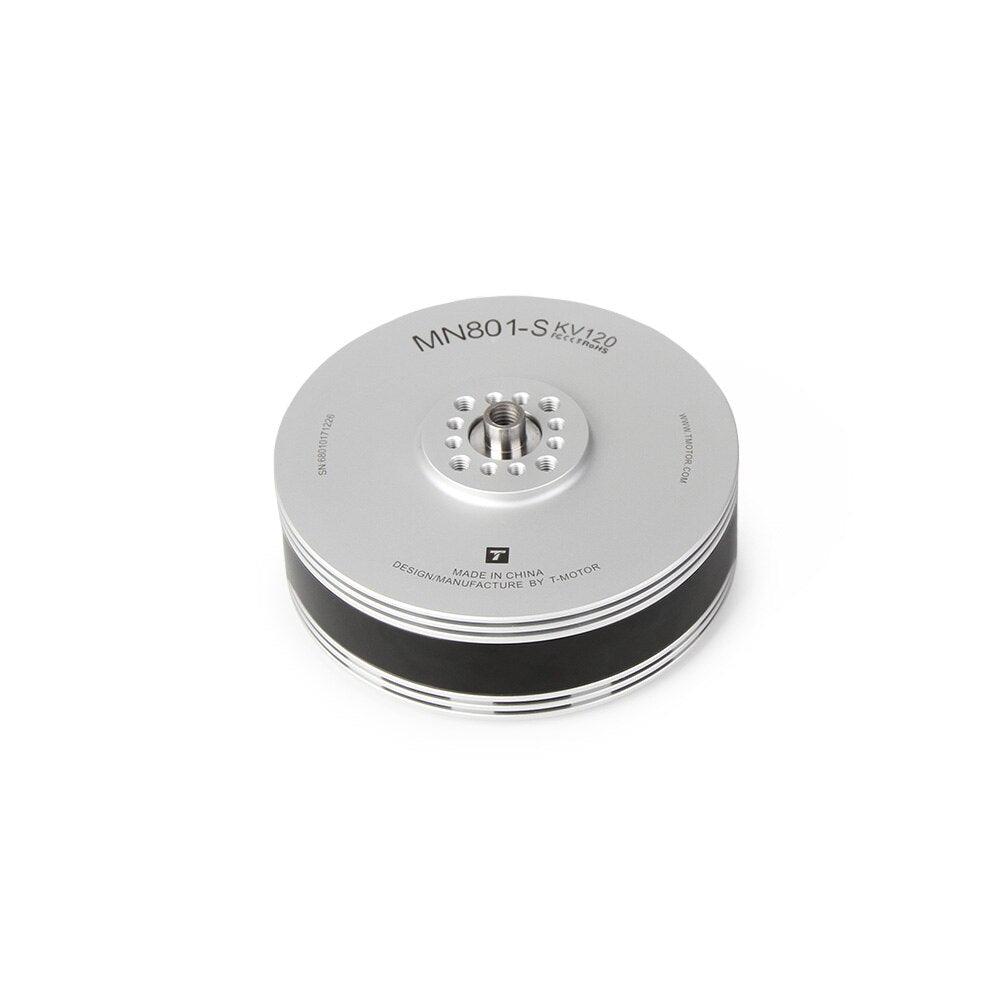

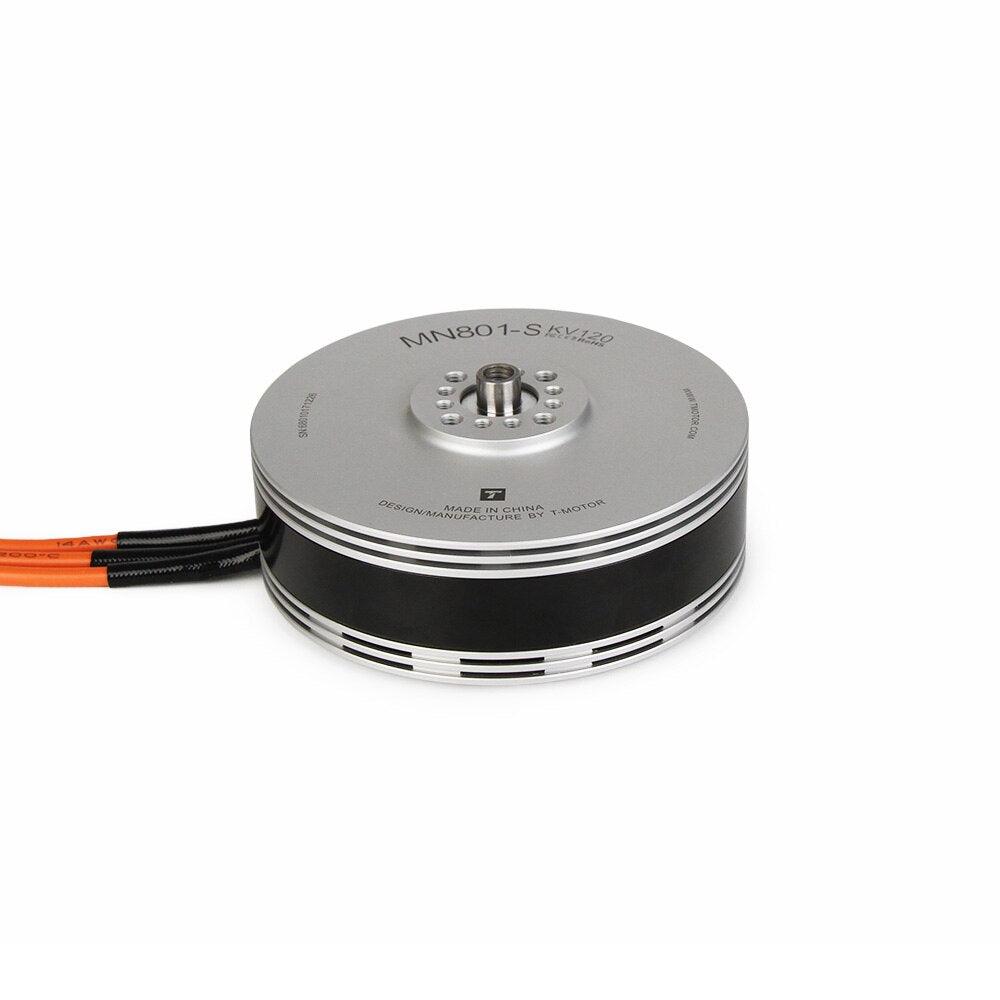

Model Number: MN801-S

Material: Metal

For Vehicle Type: Airplanes

Brand Name: T-MOTOR

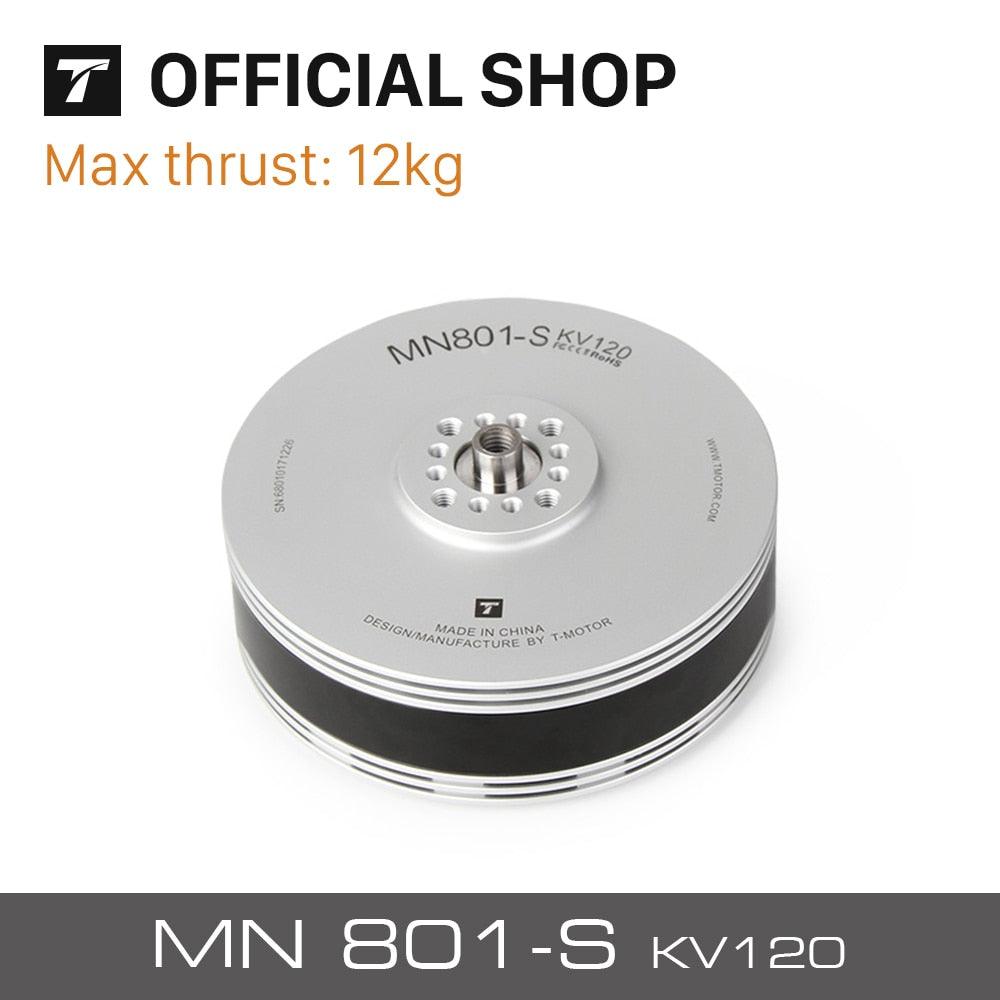

Heavy load motor born for VTOL Take off weight.20-30KG MN801S oHS 1 L MADE IN 12 KG 124 Thrust Stable & Reliable Safe Impact resistant IP45 Mn801-S KV12O Rce-Rc 1 1 T-MOTOR CHINA_ DESIGNIMANUFAC

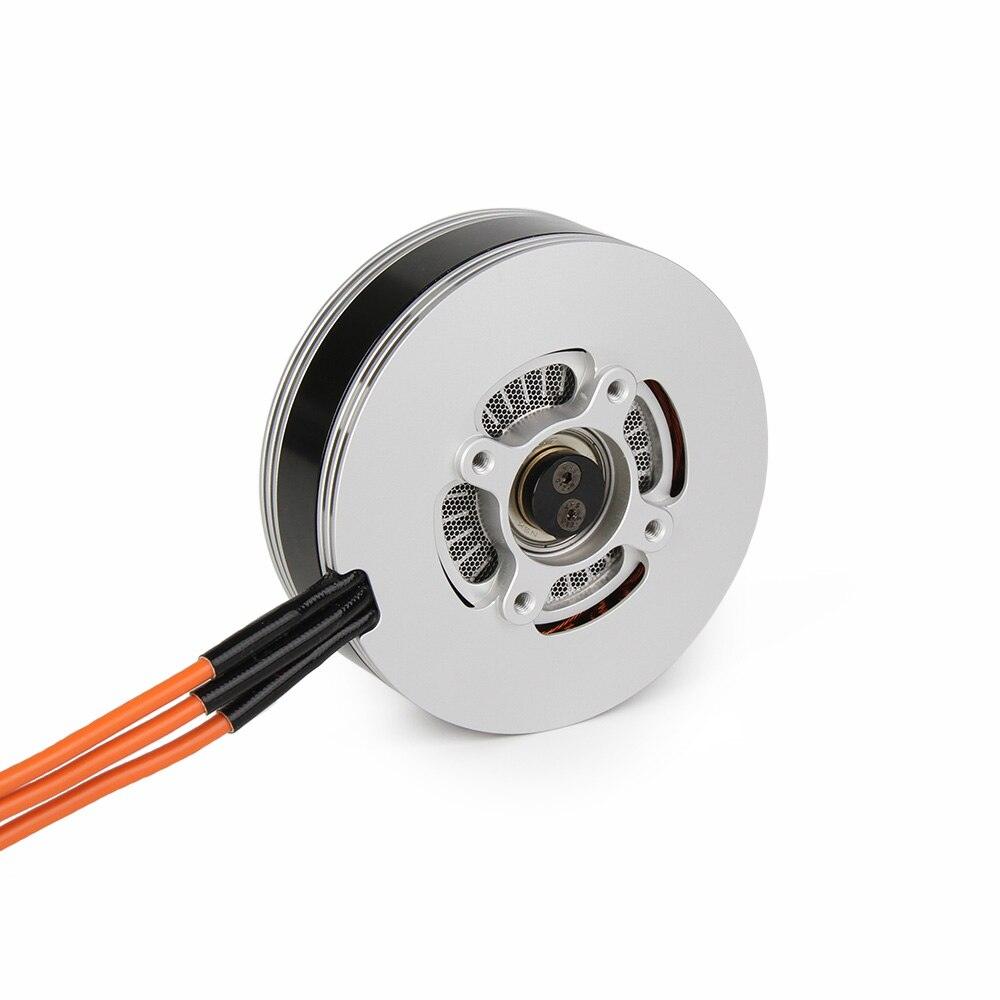

The bell-shaped cap increases the heat dissipation area, resulting in a 15% enhancement to the cooling performance. Additionally, the motor features superior cooling capabilities, including anti-overload protection and simulated airflow analyses.

Featuring a special alloy shaft, custom bearings, varnished wires, and a magnet and bell protected with the latest anti-rust and anti-corrosion technology for exceptional durability, this motor also boasts waterproof and dust-resistant design.

The T-motor MN801-S features a secure T-shaped shaft design that utilizes both a cir-clip and screw to prevent any rotor looseness, ensuring safety and reliability even at high RPM power levels. Additionally, this motor uses a long lifespan Zmm steel shaft and 24mm big bearings for added durability.

Featuring anti-high temperature curved magnets with precise tolerance control and optimized magnetic spacing, this motor's advanced magnetic circuit design enhances overall performance by at least 5%.

Specifications: * Motor Size: 89mm x 39.4mm * Import quality silicon steel sheet used for stator * Anti-rust treatment applied for added protection * Configuration: 24N28P * Shaft Diameter: + In: 8mm + Out: 8mm * Bearing: Imported 6901ZZ high-quality bearing * Magnet Level: 180FC high-temperature resistant magnets * Lead Cable: + Gauge: 14AWG + Length: 150mm * Copper Wire: 220FC high-heat resistance copper wire used * Coil Insulation Test: S0Ov (single-layer insulation test) * Centrifugal Cooling Design: YES, equipped with centrifugal cooling design for efficient heat dissipation * Rotor Dynamic Balance: The motor's rotor is dynamically balanced to ensure smooth operation and reduced vibration.

Recommended ESC (Electronic Speed Controller): FLAME 60A, with a peak current of 180 seconds at 12S (1.8Ah), rated voltage of 120V (Lipo) and idle current of 18V at 1.1A. Package weight: 600g, internal resistance: 80mOhms, and rated voltage: 150V.

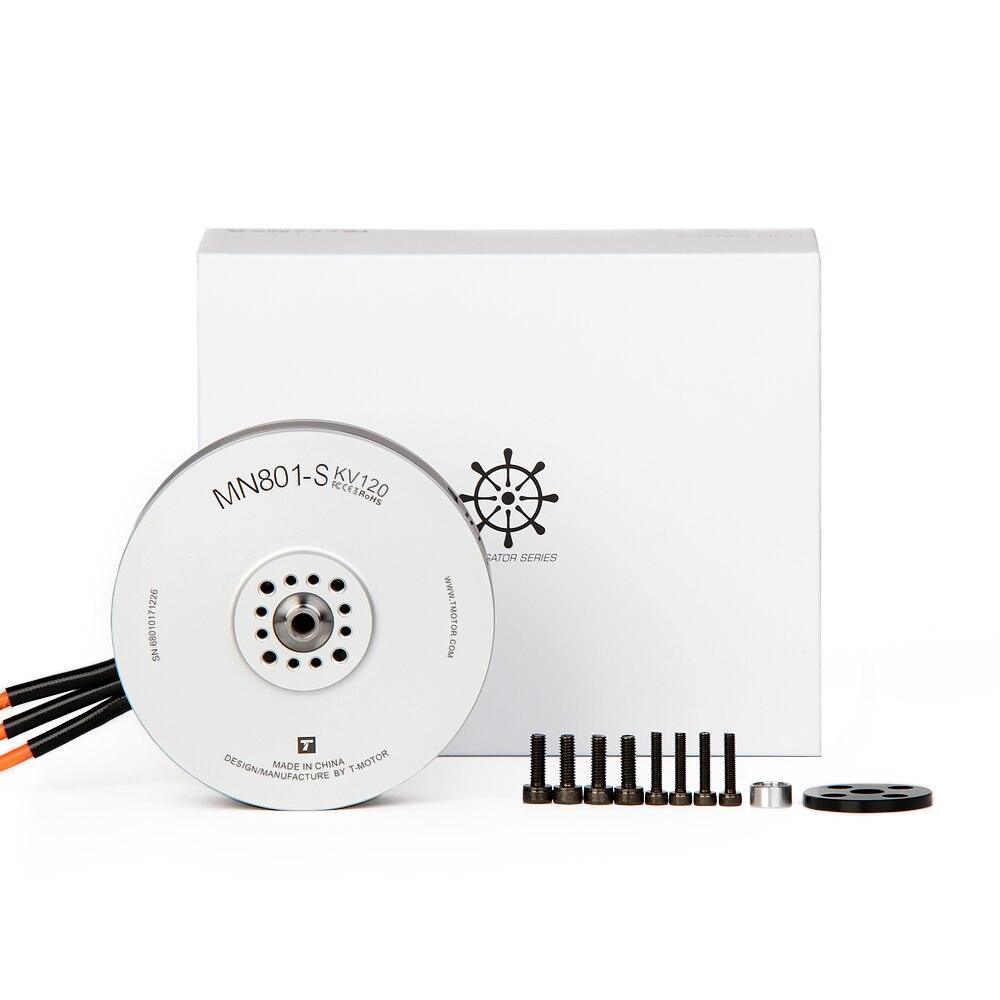

Upon receiving your package, kindly verify that it includes all the components listed above. If you find any discrepancies or missing items, please reach out to our online customer service for assistance.
