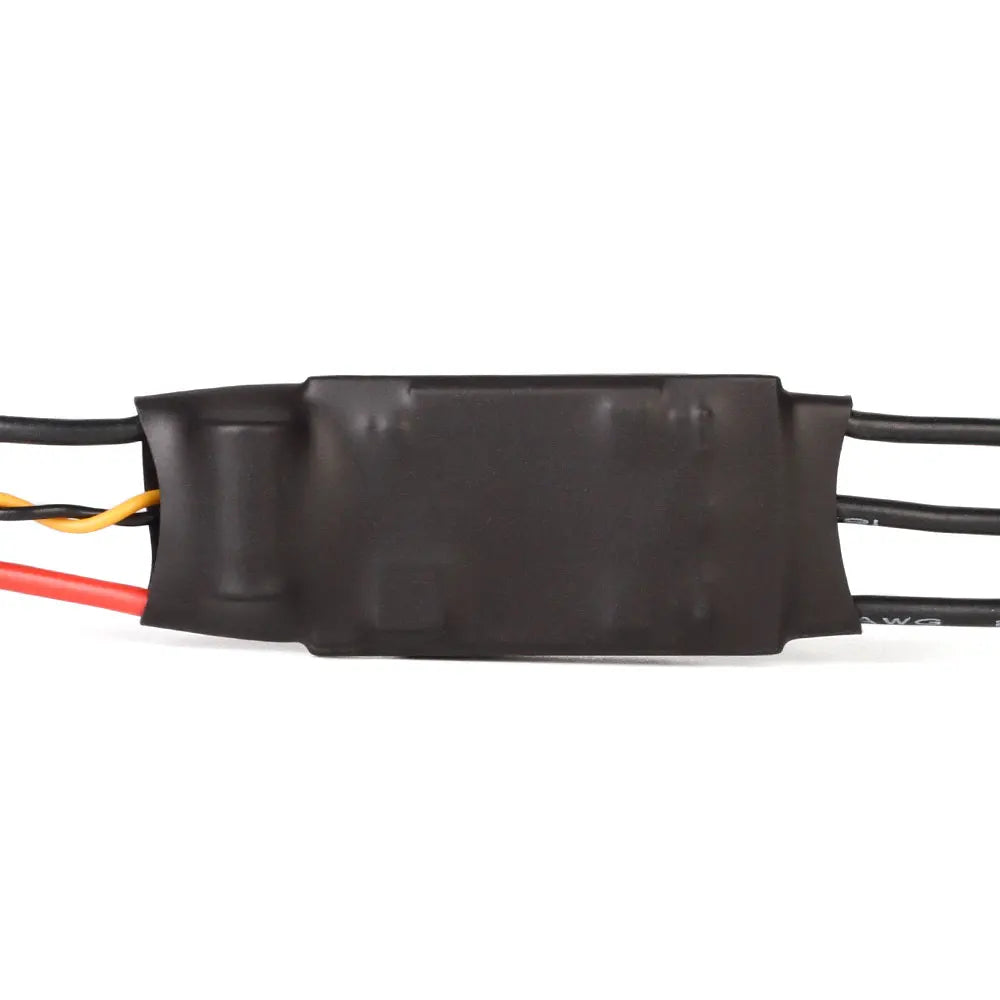

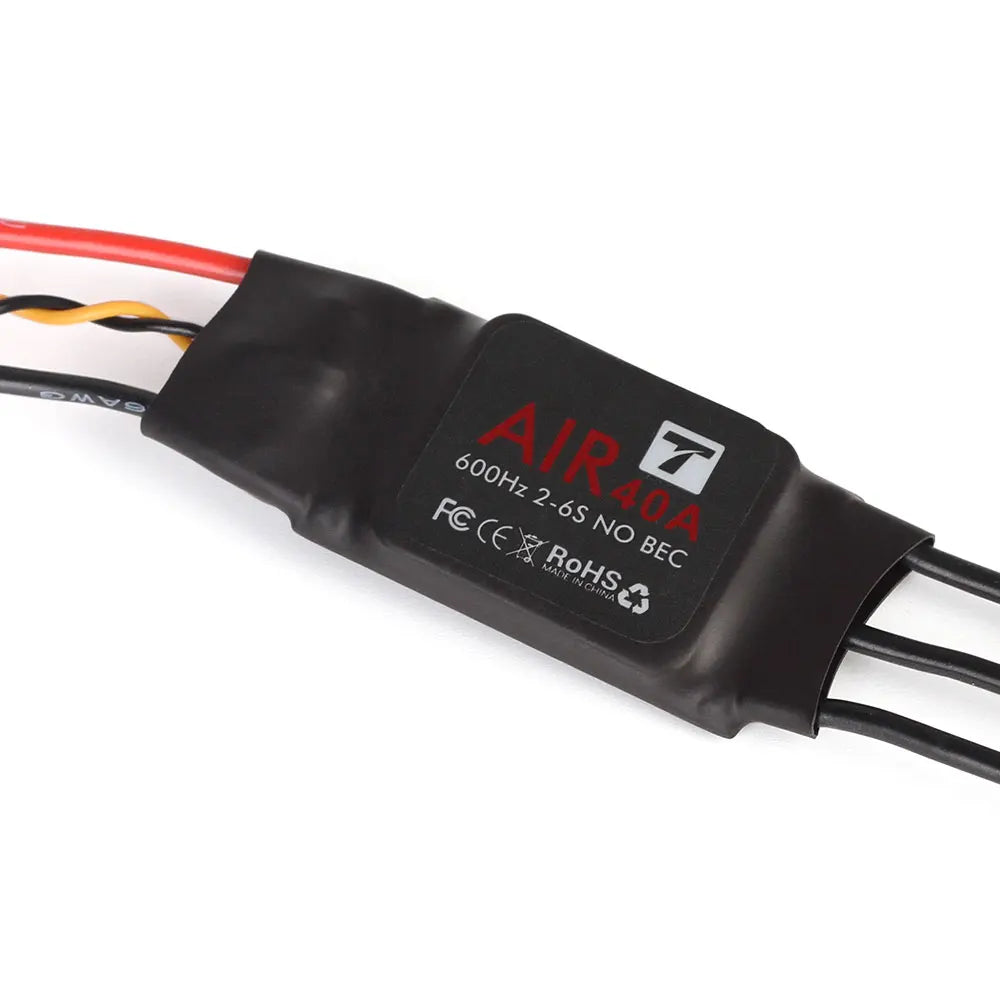

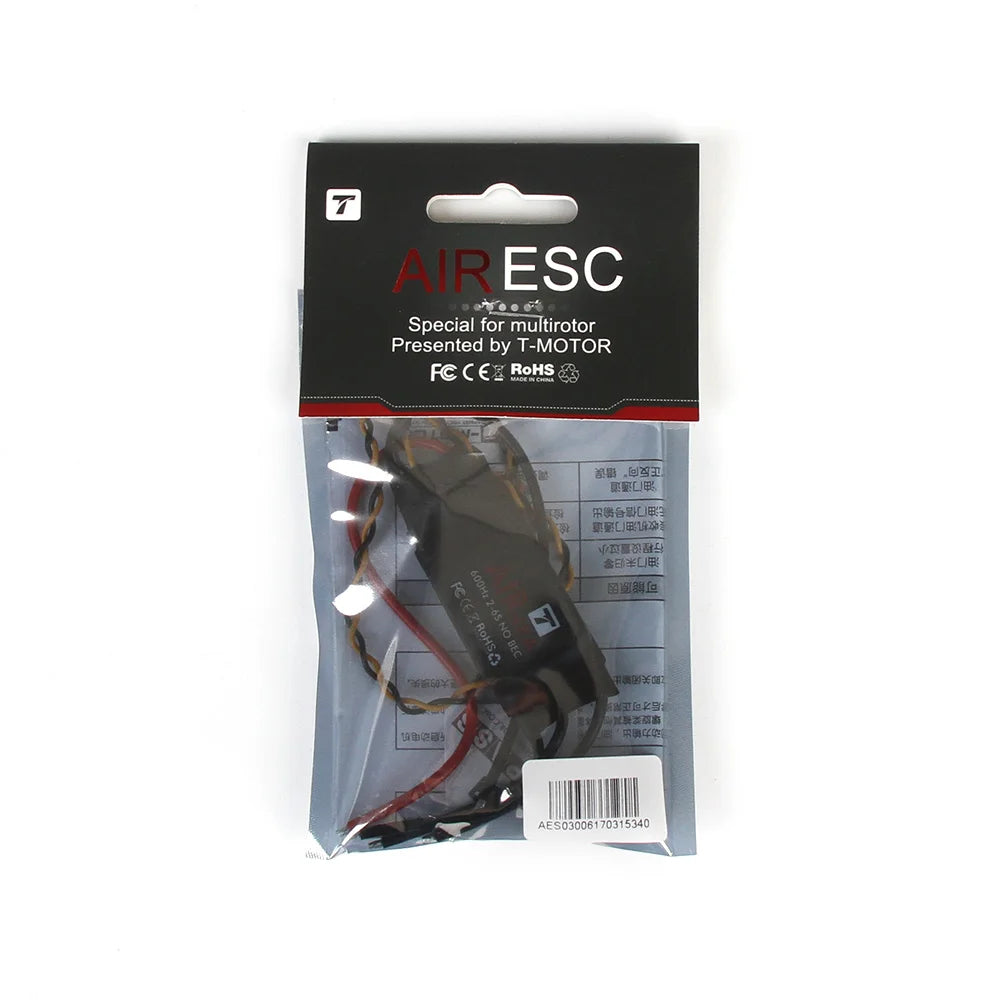

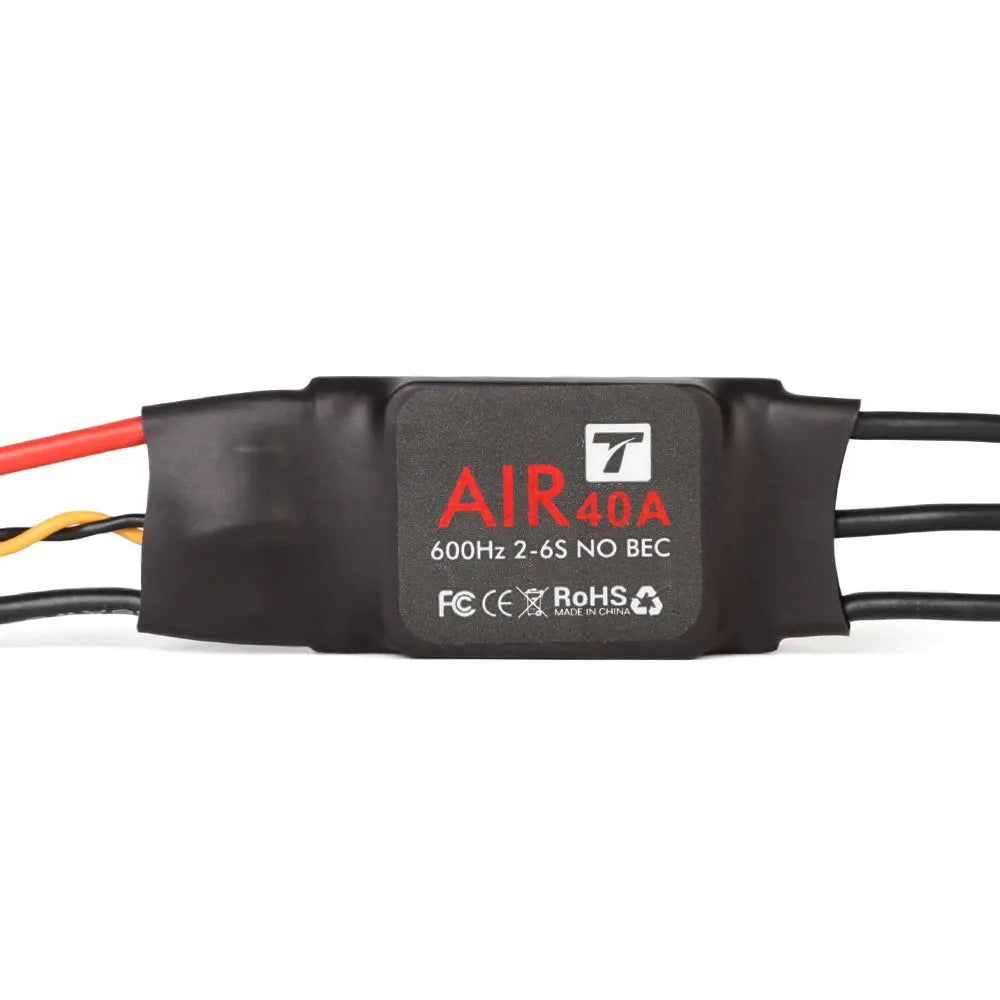

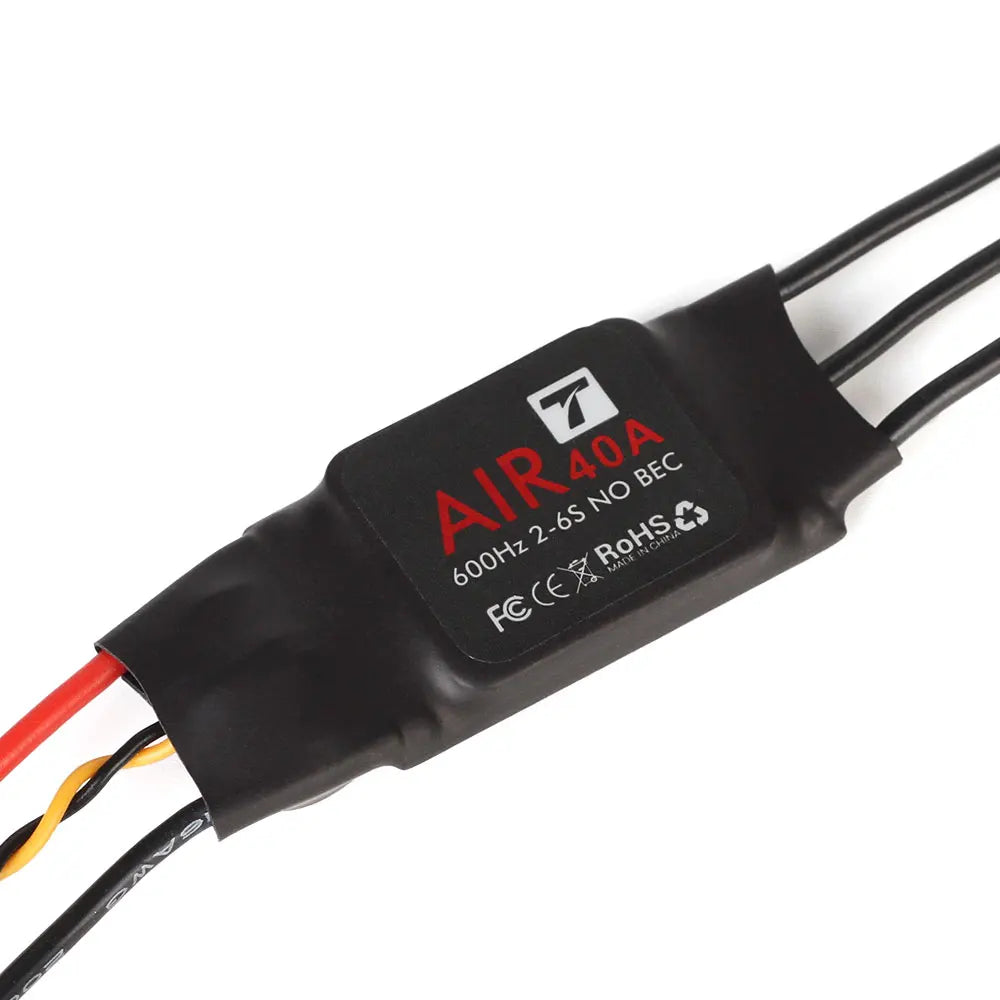

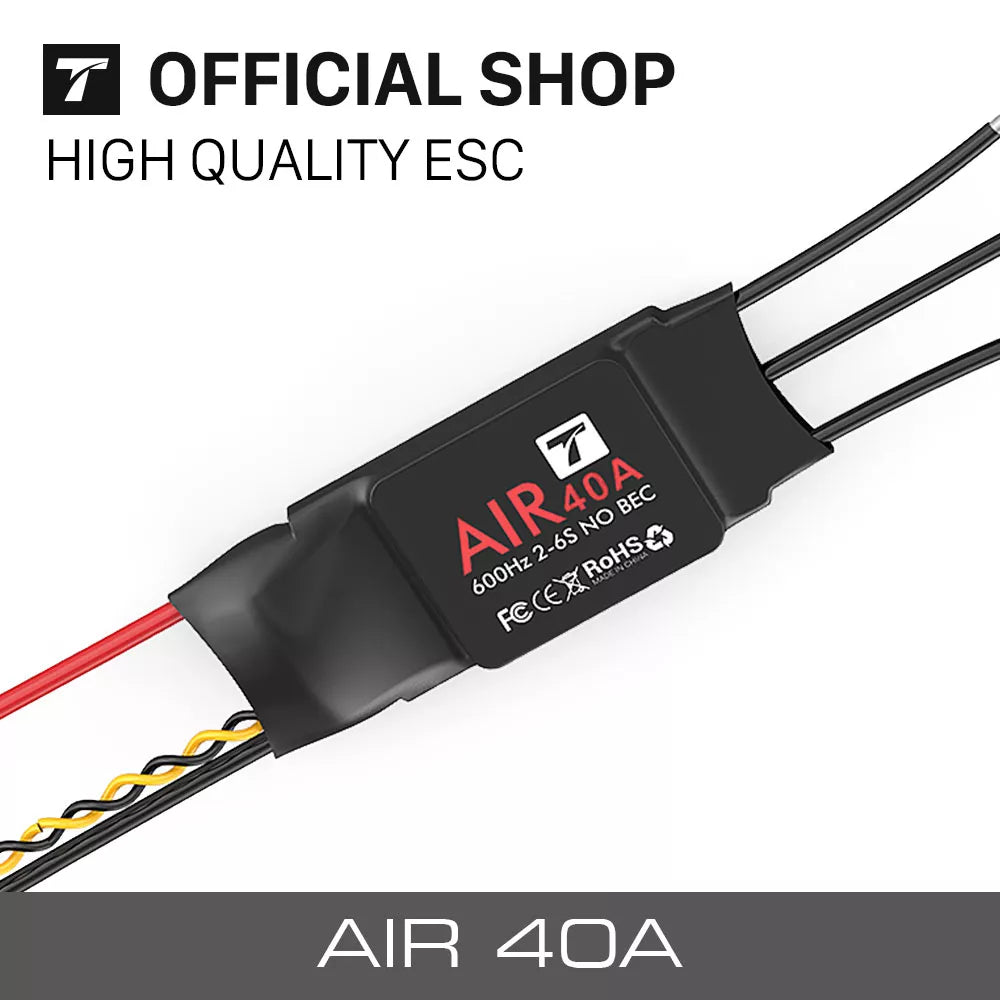

T-MOTOR ESC Air 40A ESC SPECIFICATIONS
Brand Name: T-MOTOR
Origin: Mainland China
Material: EVA
Recommend Age: 14+y
RC Parts & Accs: Motor Components
For Vehicle Type: Airplanes
Use: Vehicles & Remote Control Toys
Model Number: ESC Air 40A 2-6S 600HZ NO BEC
special core program for multi-rotor controllers greatly improves throttle response . specially optimized firmware for excellent compatibility with disc-type motors . twisted-pair design of the throttle signal cable effectively reduces crosstalk .
Step 1: Motor Wiring - Connect the ESC to the 'Battery' channel or any unoccupied channel on your flight controller. Step 2: Throttle Range Calibration - Connect your receiver to the ESC after the motor has emitted two short beeps.
ESC Programming: To begin, connect your receiver to your transmitter and attach your battery. Ensure the ESC is properly armed and ready for use. High timing settings are suitable for most motors, offering increased efficiency while reducing motor heat.
This ESC features a built-in fail-safe mechanism that shuts down the motor if it fails to start normally within 2 seconds by increasing the throttle value. In this situation, you need to return the transmitter's throttle stick to its lowest position and restart the motor. Possible causes for this issue include poor connections or disconnections between the ESC and motor wires.
