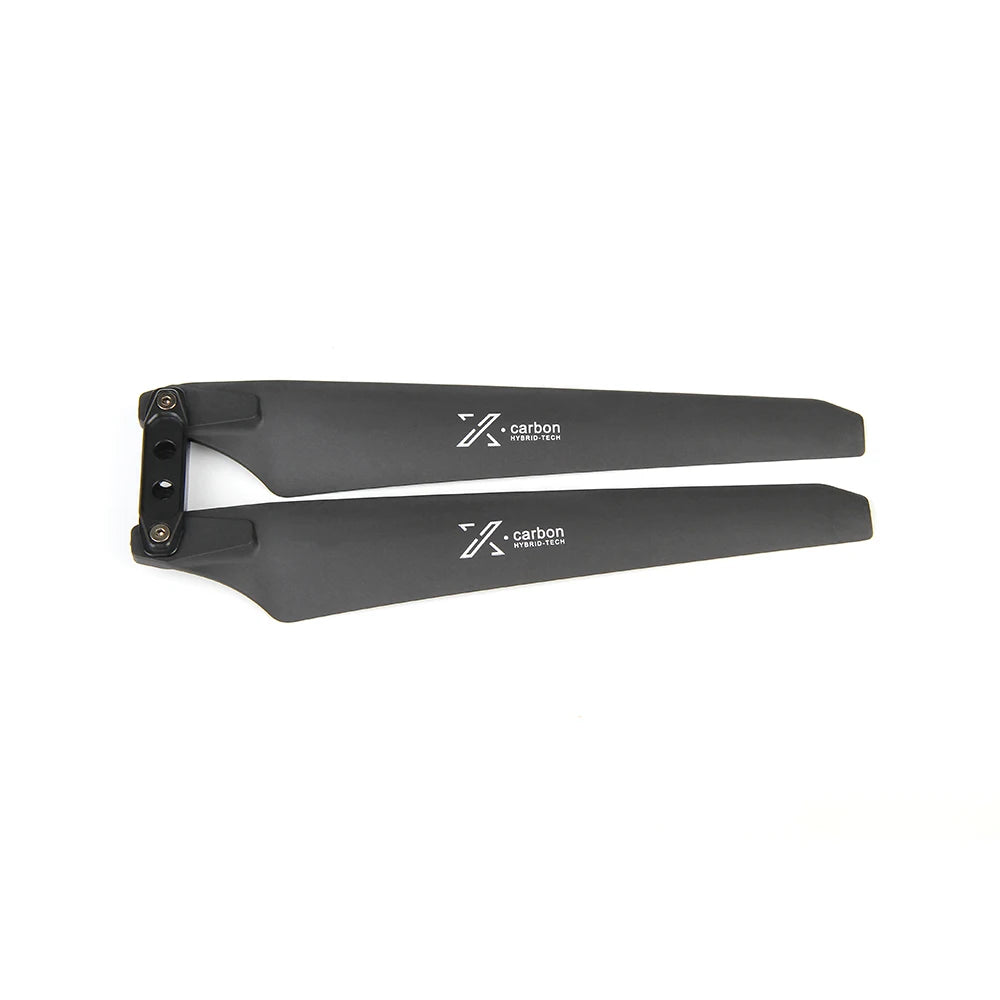

T-motor MF1806 Polymer Folding propeller SPECIFICATIONS
Brand Name: T-MOTOR
Origin: Mainland China
Material: Carbon Fiber
Recommend Age: 14+y
RC Parts & Accs: Propellers
Size: MF1806
For Vehicle Type: Helicopters
Use: Vehicles & Remote Control Toys
Upgrade Parts/Accessories: motor
Remote Control Peripherals/Devices: ESC
Tool Supplies: Battery
Model Number: MF1806
Model NO MF1806 T-MOTOR Series Folding Weight 37g Package Weight 152g (Single Rlade) Diameter 18.4inch(465.6mm) Package Size 230*85*38mm Pitch 6inch(166.9mm) Material Polymer+CF Recommended Recommended 11 '3200 42O0RPM 6kg/7S00RPM Thrust/RPM Ambient Temp -40'C 65'C Storage 10'C S0'cl
MF1806 M3*6 black cup head screwx4 Warning . Do not use propellers in hostile environments containing H2O,SO2,NO2,CIZ,organosilicon,cyanogroup and phenol .
carbon PRINCIPLE Propellers of light weight, durable density and small moment of inertia: 1 > carbon Myorid Tech .

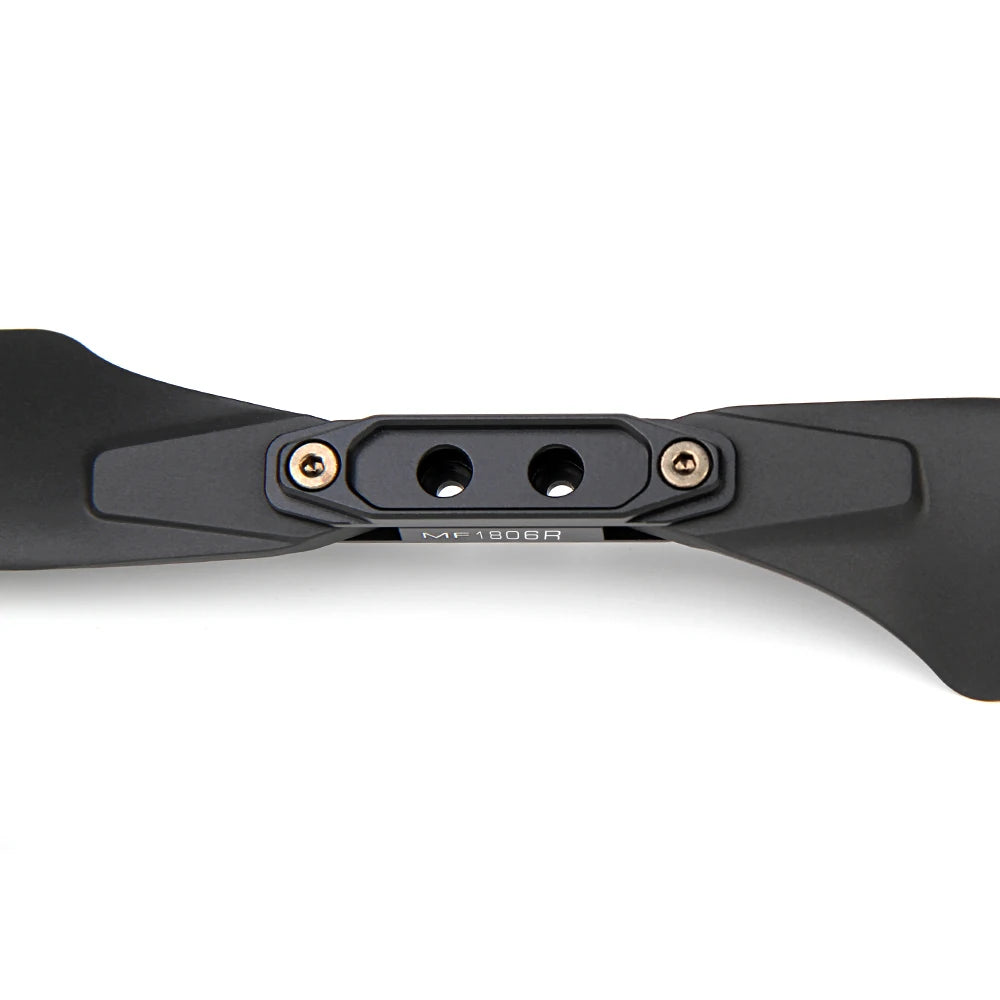

Choose with ease: The clear naming convention makes it simple to select the most suitable propeller for your multi-rotor drone. This MF1806R propeller (compatible with multi-rotors) features counter-clockwise rotation (CCW) and a maximum thrust of 6 kg.
By utilizing original technology, we have achieved an optimal blend of carbon fiber and polymer properties in our X-Carbon propellers. Additionally, this technology enables continuous improvement and refinement of our injection molding process.
The T-motor MF1806 features an insulating coating with high-shading injection technology applied to the trailing edge surface, which protects props from airflow interference and UV radiation. Additionally, the material exhibits excellent heat endurance, enabling prolonged flight under high temperatures.
After comparing over 10 design candidates under targeted operating conditions, we finalized the optimal propeller design. Additionally, X carbon uses computational fluid dynamics (CFD) to simulate the structural behavior of the propeller by incorporating load distribution analysis from fluid simulations.
Featuring an energy-snubbing technology integrated throughout the series, this propeller is designed to protect the motor from damage caused by extreme impacts. The unique structural design absorbs the energy from impact, reducing stress on the system.
T-Motor's R&D team has optimized the magnetic circuit design of their motors and Alpha ESCs to provide an exceptional flying experience, featuring fast response and responsive control.
Featuring superior texture, our T-motor MF1806 polymer folding propeller has undergone rigorous testing, including 100,000-fold folding simulations, to guarantee exceptional craftsmanship and quality.
Fix the propellers securely onto the motors using nylon nuts (Nylok). Ensure the blades are evenly spread apart and verify that the propellers are properly installed.
