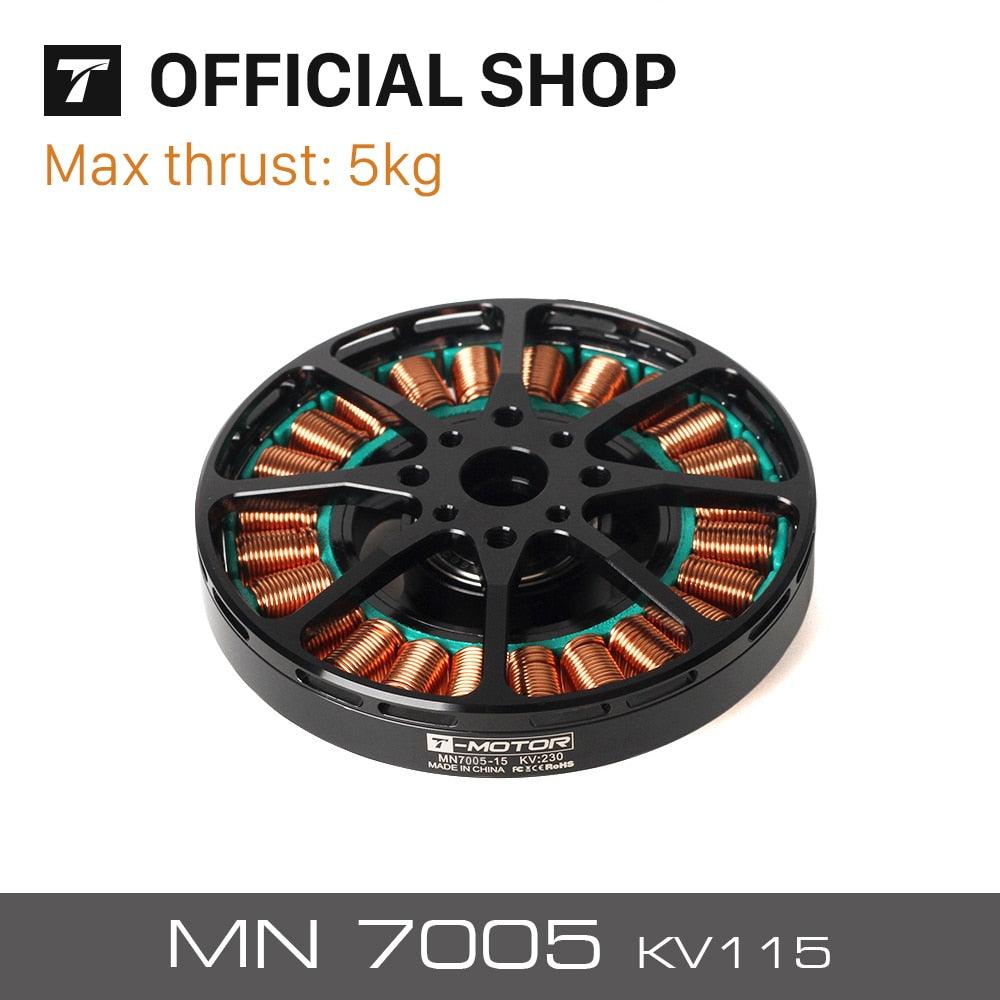

T-motor MN7005 KV115 Motor SPECIFICATIONS

Use: Vehicles & Remote Control Toys

Recommend Age: 14+y

RC Parts & Accs: Motors

Origin: Mainland China

Model Number: Antigravity MN7005 KV115

Material: Metal

For Vehicle Type: Airplanes

Brand Name: T-MOTOR

ANTIGRAVITY 7005 LIGHT EFFICIENT ENERGY-SAVING 1.Skg thrust with efficiency of 13g/W 5 kg 188 MAX THRUST MOTOR WEIGHT #MNZOO5 is for thrust requirement 1.5kg/

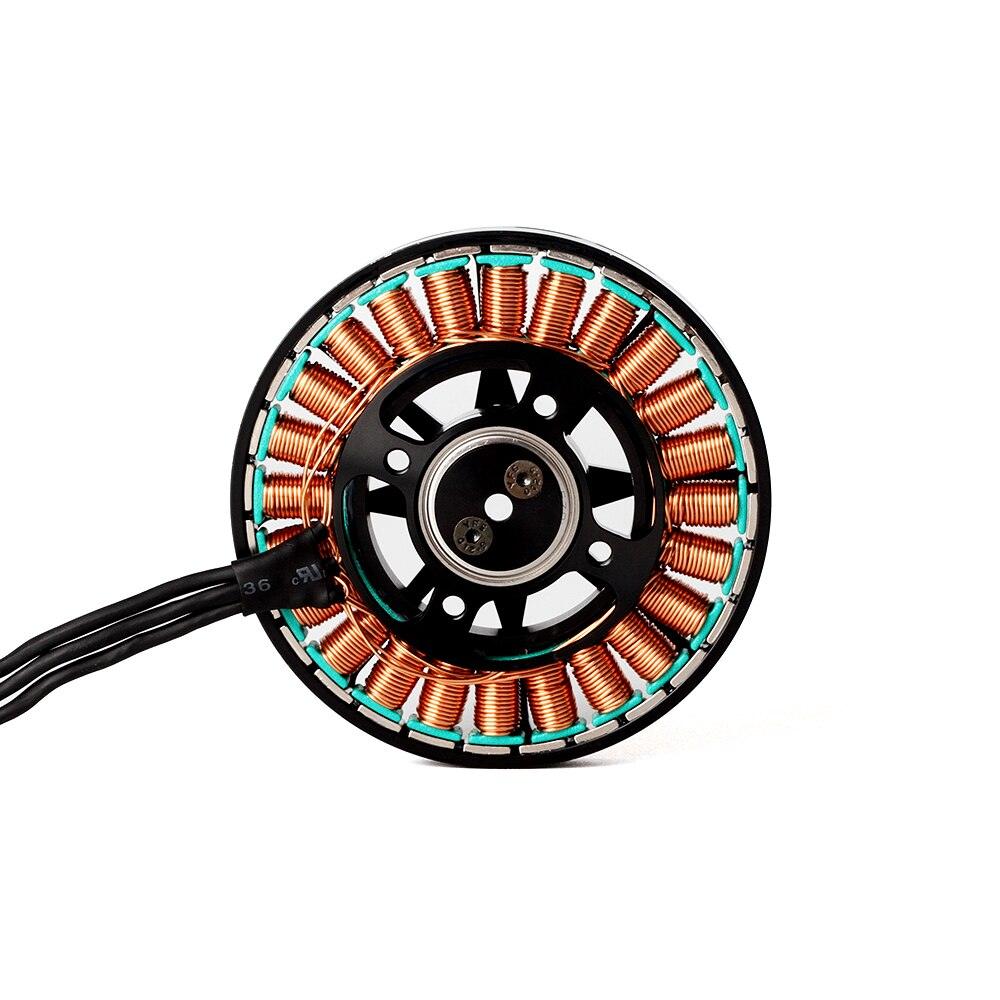

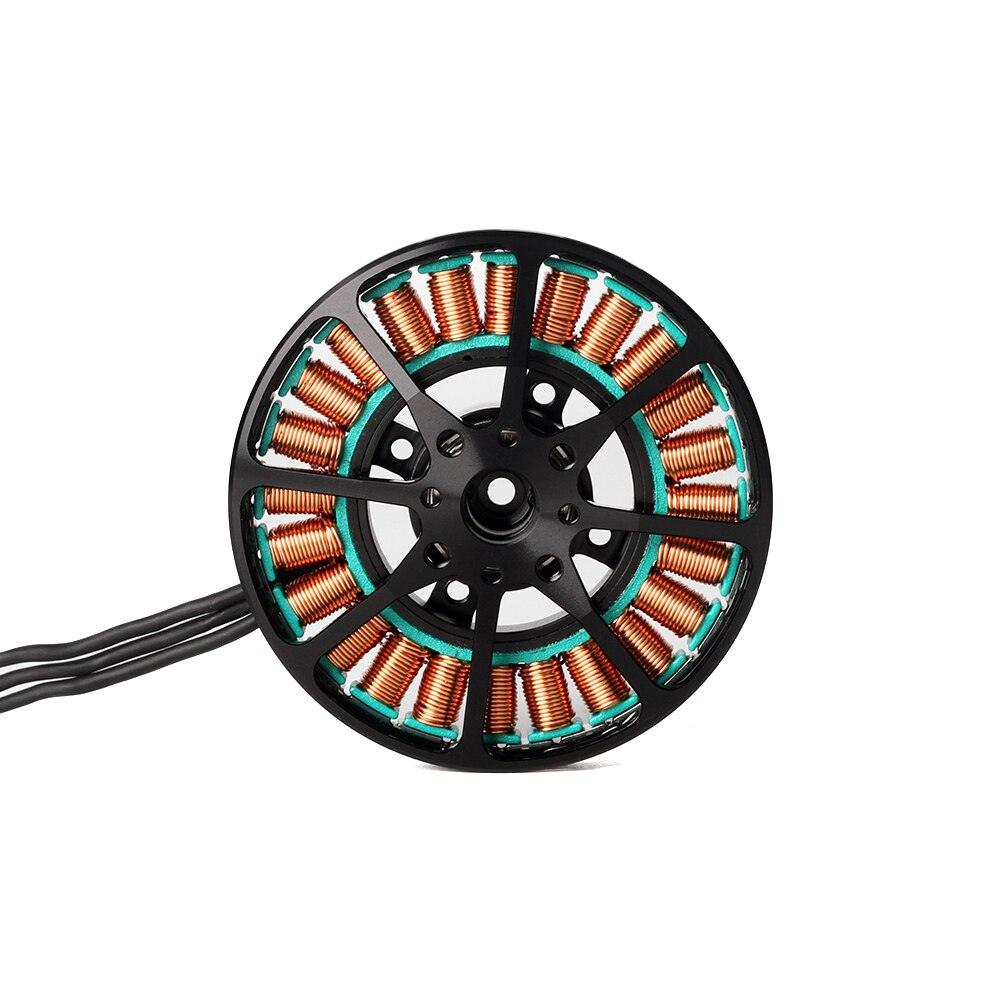

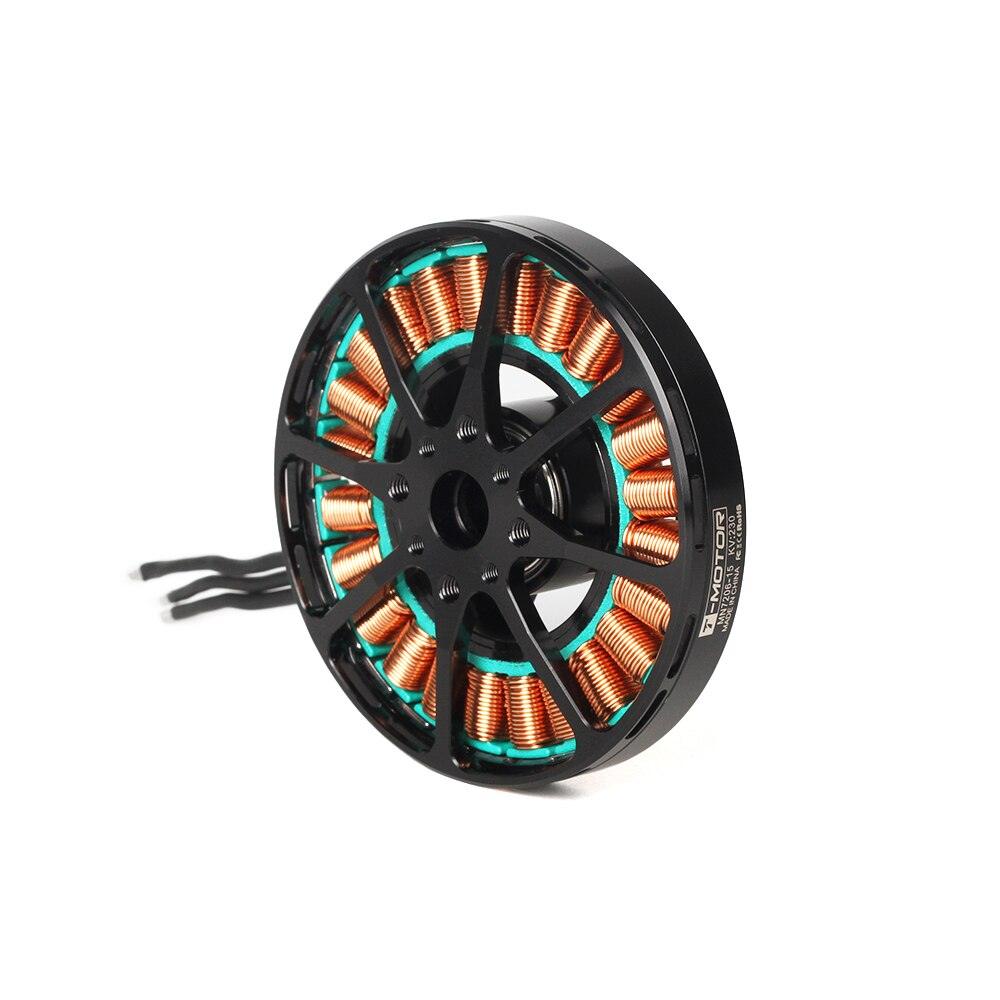

The T-motor MN7005 features a lightweight design with an open structure, allowing for enhanced cooling performance and constructed from high-quality 7075 aluminum alloy.

Curved Magnetic Design with Rational Magnet Gap: This motor features single or dual copper wire windings, designed to minimize internal resistance and withstand high temperatures, reducing current interference and increasing efficiency by up to 5%.

Features a 12mm aluminum shaft paired with a 24mm diameter bearing, designed to enhance stability and extend the motor's lifespan.

The MN7005 motor, when paired with a 24-inch carbon fiber propeller and an FOC Alpha 60A ESC, can deliver up to 1.5 kg of thrust while achieving an efficiency rate of 13g per watt and a conversion rate of over 80%.

Specifications Motor Size 079*21mm Imported silicon steel sheet; Anti-rust treatment; 180'C Stator high temperature-resisting coatings Configuration 24N28P Shaft Diameter IN: 1Smm Bearing Imported 6802ZZ Magnet evel 150'C high temperature resistance: Level E Lead Cable 60mm Copper Wire 180FC high temperature resistant coatings
