SPECIFICATIONS
Wheelbase: Screws
Use: Vehicles & Remote Control Toys
Upgrade Parts/Accessories: ESC
Tool Supplies: Battery
Technical parameters: Value 2
Size: heavy lift drone motors
Remote Control Peripherals/Devices: Remote Controller
Recommend Age: 14+y
RC Parts & Accs: Propellers
Origin: Mainland China
Model Number: U11 II KV120
Material: Metal
Four-wheel Drive Attributes: Motors
For Vehicle Type: Airplanes
Brand Name: T-MOTOR
ARRIVAL U11-II-Efficiency improvement by 5% *Optimal structure *Sine wave features *Military grade high-temperature resistant enamelled wires 8 IN 0Y DESIGNMAADACTURE KV12O FCC(RoHs Uwi-I 1 1 L T-MoTOR 'CHINA MADE
![T-MOTOR, 4% thrust increase . 2% increase in flight time . "Data obtained at 12](https://rcdrone.top/cdn/shop/files/Hea7f79769cd649f4b1bc6dd79330fd7bf.webp?v=1715461079)
We've achieved a 4% increase in thrust and a 2% increase in flight time, according to data collected using a 12-cell battery configuration with a 26-inch propeller.
![T-MOTOR, Military grade high-temperature resistant winding, U11-Il is capable of bearing](https://rcdrone.top/cdn/shop/files/H2857f2292d7f40dba6219b1f869b0740P.webp?v=1715461083)
The U11-II features military-grade high-temperature resistant winding, allowing it to withstand higher current demands and deliver improved performance in extreme environments. This design enables extended service life with up to a 30% increase in maximum power output. Additionally, its ordinary magnet, curved magnet, and arc magnet designs provide strong magnetic properties and even gaps for smooth motor operation.
![T-MOTOR, N42 UH Magnet Grade High grade magnets ensures high efficiency in high temperature .](https://rcdrone.top/cdn/shop/files/H7fcc1e81c5424e8d912ef4ffa172695aG.webp?v=1715461095)
The specifications for the N42UH motor are as follows: continuous current rating (C): 180; maximum torque (kGs): 12.9-13.5; nominal output power (KOe): 42-46 MGOe; temperature coefficient of resistance (T): 1.29-1.35; and air gap inductance (kAIm): 955-995 [kjlm].
![T-MOTOR, Safe flight Original dust prevention network and grid structure to protect the iron core . motor is secured](https://rcdrone.top/cdn/shop/files/H4ce3ac7aebba4ed5b1e78c383c53a27d2.webp?v=1715461099)

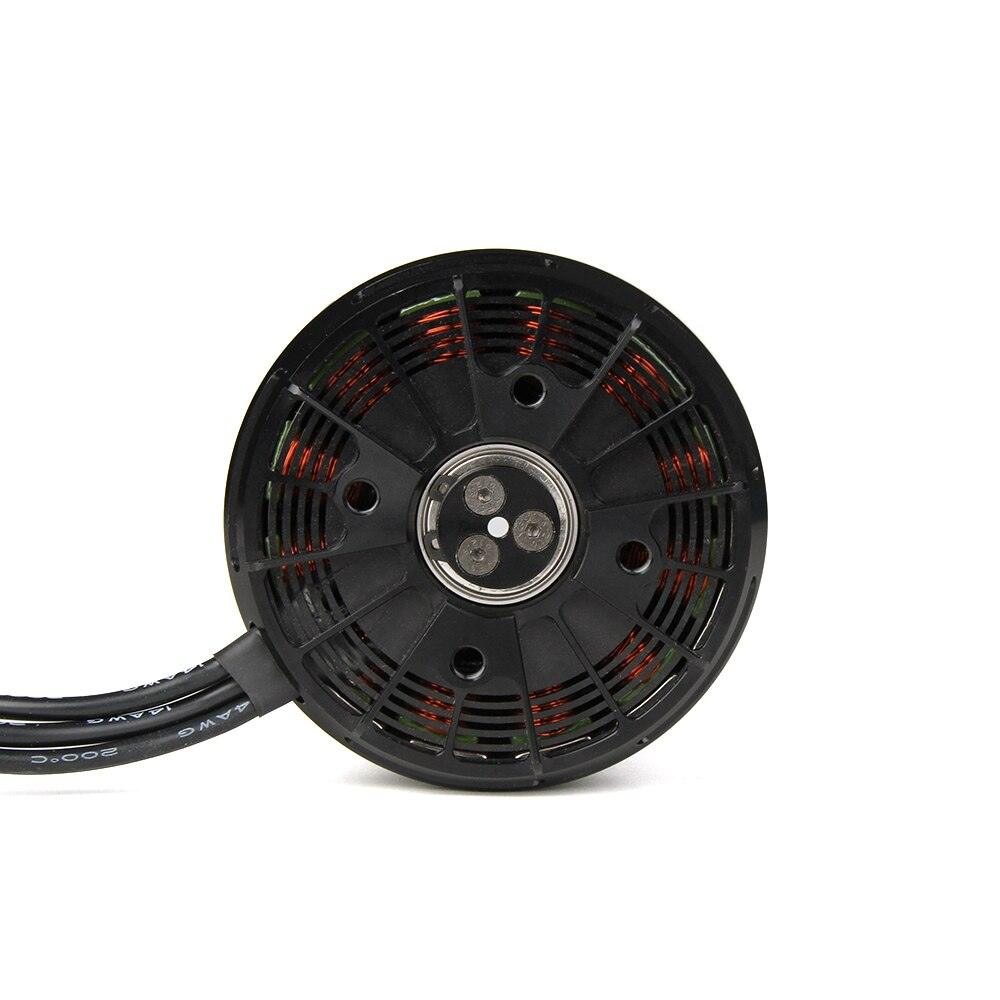

The original dust-proof network and grid structure effectively protects the motor's iron core, ensuring a safe flight. The motor is securely fastened in place using screws, while washers and circlips provide additional reliability during operation.
![T-MOTOR, silicon steel sheet 0.2mm decreases iron loss and heat for remarkable efficiency . electrophor](https://rcdrone.top/cdn/shop/files/H25113baf0fc143f78f7726d90e6dee1dR.webp?v=1715461102)
The motor features a silicon steel sheet with a thickness of 0.2mm, which significantly reduces iron loss and heat generation for enhanced efficiency. Additionally, the motor benefits from electrophoresis technology and high-temperature coating to provide robust protection against rusting and corrosion. Furthermore, the motor has undergone rigorous testing, including salt spray tests, to ensure its resistance to anti-rust treatment.
![T-MOTOR, M3*1Smm prop Installation Screw*4 32*10*3mm CPC](https://rcdrone.top/cdn/shop/files/Habc3e8ac7aa043b39027643243b3b05cK.webp?v=1715461105)
For easy installation, note that the motor weighs only 35g and features a location pin that should not be forgotten during assembly. Additionally, the propeller screw size is M3x1mm, and you'll need four screws for installation. The CPC (U7-038) dimensions are 32mm x 10mm x 3mm.
![T-MOTOR, KV120 Weight (Incl. Cable) 772g Motor Dimensions 079.5](https://rcdrone.top/cdn/shop/files/Hfd1e9daddf644c7cb1679c72b512e1c0x.webp?v=1715461109)
KV120 Weight (Incl. Cable) 772g Motor Dimensions 079.5*51.6 mm Interna Resistance 80+5mn Lead 14# AWG 1250mm Configuration 12N14P Shaft Diameter 15mm Rated Voltage(Lipo) 125 Idle Current(24v) 1.5A Peak Current(1 80s) 57.3A Max. Power 2783W Recommendation FLAME 8OA HV+G26*8.5"
![T-MOTOR, RC Parts & Accs : Propellers Origin : Mainland](https://rcdrone.top/cdn/shop/files/H1ae6e1f0bc024d5483627c5568a8365bp.webp?v=1715461122)
![T-MOTOR, RC Parts & Accs : Propellers Origin : Mainland](https://rcdrone.top/cdn/shop/files/H1a3faeeee9ef4f0cb41a74b9662545881.webp?v=1715461133)
![T-MOTOR, RC Parts & Accs : Propellers Origin : Mainland](https://rcdrone.top/cdn/shop/files/Hd2abff332ee64669b7076affd36970d6h.webp?v=1715461148)
![T-MOTOR, RC Parts & Accs : Propellers Origin : Mainland](https://rcdrone.top/cdn/shop/files/H9a518662c973421683ec80639d26a97br.webp?v=1715461157)
![T-MOTOR, RC Parts & Accs : Propellers Origin : Mainland](https://rcdrone.top/cdn/shop/files/H21a6c5600084437690b3520b3a15ad96S.webp?v=1715461164)
![T-MOTOR, if something is missing; please contact online customer service or leave message t0 onlines](https://rcdrone.top/cdn/shop/files/Hde09df8f8b1c4918aca19be3c79556ddM.webp?v=1715461167)
If you are missing any information, please contact our online customer service by leaving a message at onlinesales@t-motor.com.
