TOPOTEK KHP415S90 Dual Light Drone Gimbal - 7x Digital Zoom 4K Camera + 9x Digital Zoom 1080P Camera 3-Axis Stabilized Gimbal

TOPOTEK KHP415S90 Drone Gimbal Overview

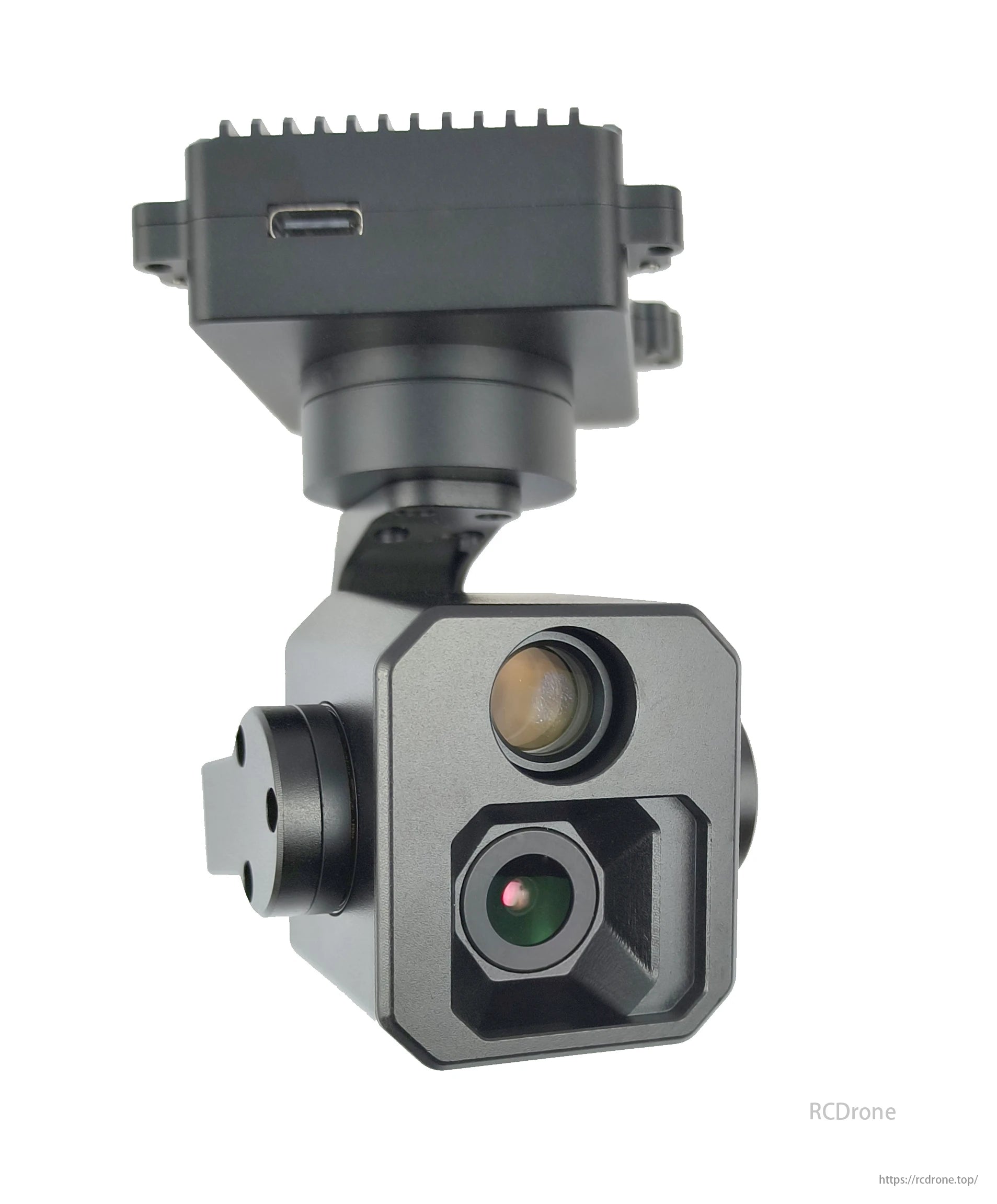

The TOPOTEK KHP415S90 is a dual visible light 3-axis stabilized small gimbal that integrates two visible light cameras: one with 8 megapixels and the other with 2 megapixels featuring IRCUT functionality. This gimbal is designed for high stability, compact size, lightweight construction, and low power consumption. It supports network RTSP output, multiple picture-in-picture modes, and local TF card dual synchronous recording and photography, with one channel at 4K and another at 1080P. The system is controllable via both serial port and network, supporting 9x digital zoom. The visible light cameras have focal lengths of 6mm and 25mm, respectively.

TOPOTEK KHP415S90 Features

• 4K + 1080P visible light camera
• Day and night switch
• Multiple picture-in-picture modes
• Standard RTSP stream output
• TF card 2-way recording
• Digital zoom
• 3-axis stabilizing PTZ
• HDMI and IP dual output
• Network, UART, and SBUS control
• Lightweight, 150g

TOPOTEK KHP415S90 Parameters

Unique dual-light design with 7x digital zoom for 4K camera and 9x digital zoom for 1080P camera, offering enhanced image quality and versatility.

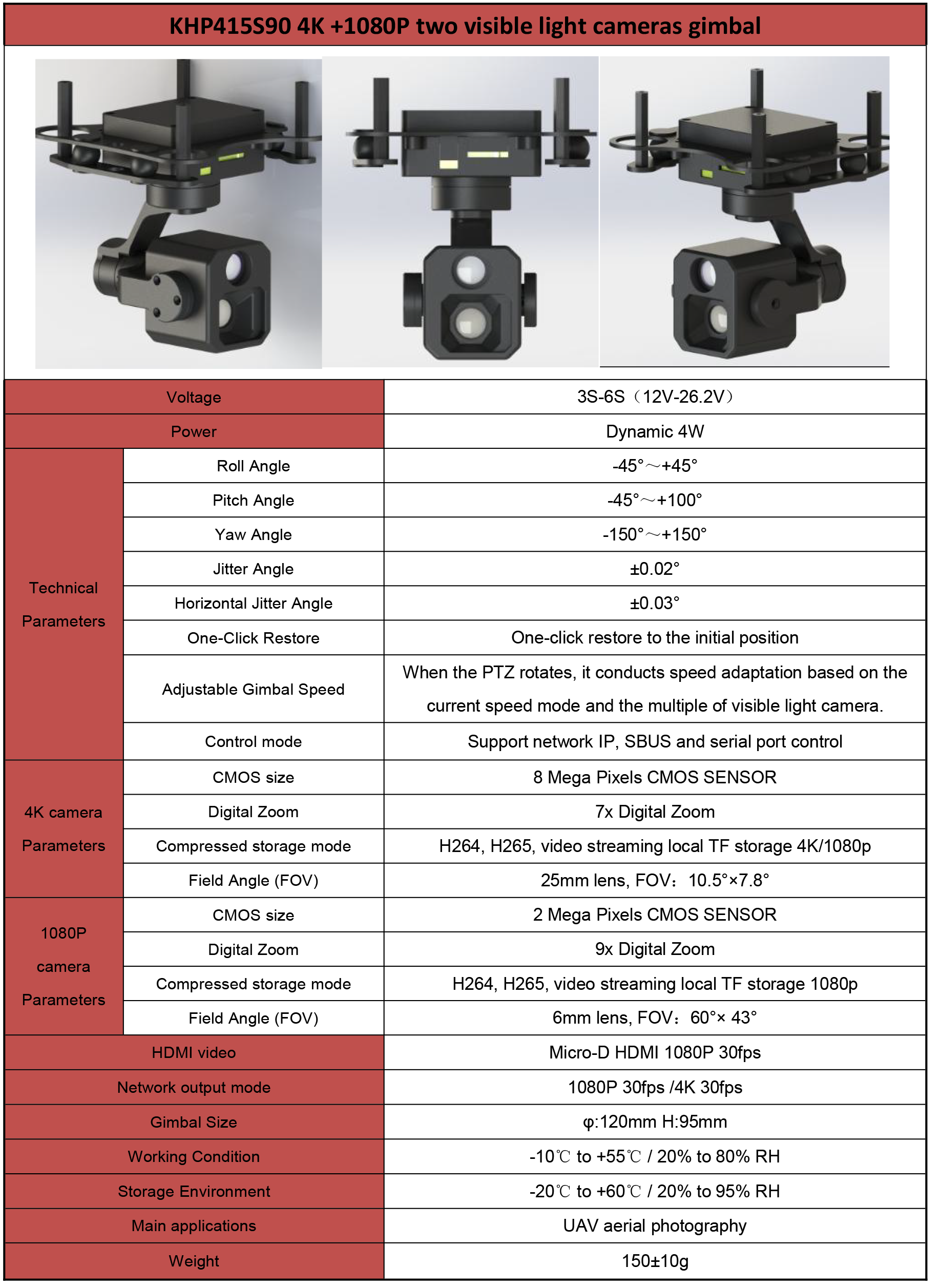

TOPOTEK KHP415S90: A dual light drone gimbal with two visible light cameras, featuring 4K and 1080P resolutions. Equipped with 3-axis stabilization, it supports voltage from 12V to 26.2V and power up to 6S. The gimbal has a dynamic roll angle of -459° to +458°, pitch angle of -458° to +100°, and yaw angle of -1508° to +150°. It also features one-click restore and adjustable gimbal speed based on the current mode. Controls are supported via network IP, SBUS, and serial port control. The cameras have CMOS sensors with 4K resolution (7x digital zoom) and 1080P resolution (9x digital zoom). Compressed storage modes include H264 and H265, with video streaming capabilities. Other features include HDMI output at 1080P and 3Ofps, as well as network output modes for 1080P and 4K. The gimbal measures 120mm in length, 95mm in height, and weighs around 150g (±10g). It operates within a temperature range of -20°C to +55°C and humidity range of 20% to 80%. Main applications include UAV aerial photography.

Install dimensions: 91.50cm x 55.0cm x 30.0cm; no further details provided.

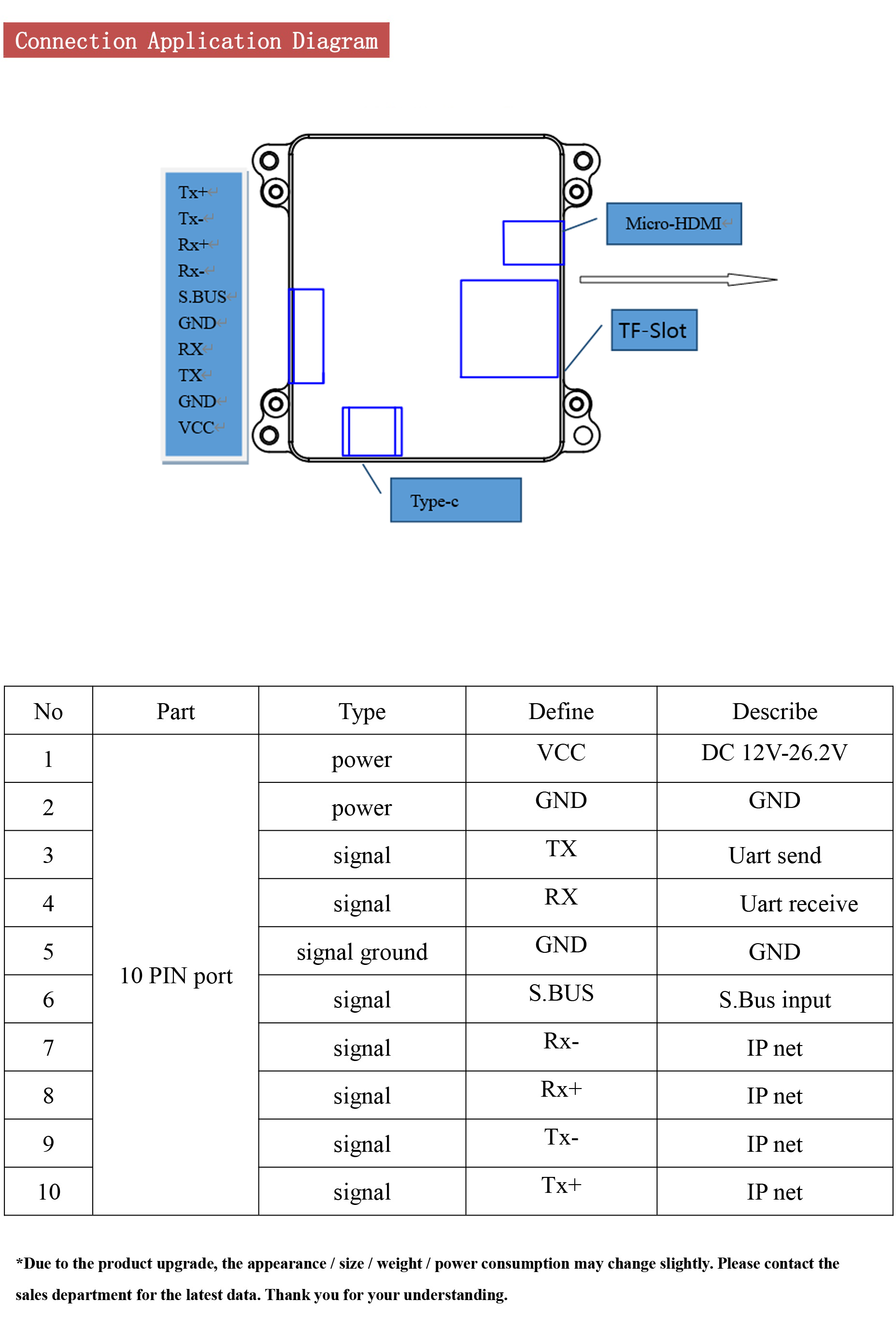

Quote: 'Dual light drone gimbal features a 7x digital zoom 4K camera and a 9x digital zoom 1080P camera, with a 3-axis stabilized gimbal. The device has multiple input/output ports, including micro-HDMI, SBUS, and ground connections, as well as power inputs for VCC (12V-26.2V) and GND. Due to product upgrades, appearance, size, weight, and power consumption may vary slightly.'
