Beitian BN-220 GPS Model - Airplane Traversing Drone GPS Module Beidou GLONASS SMALL SIZE F3 CC3D

Beitian BN-220 GPS Model - Airplane Traversing Drone GPS Module Beidou GLONASS SMALL SIZE F3 CC3D

Beitian

Regular price $34.28 USD
Regular price $54.85 USD Sale price $34.28 USD
Sale Sold out
Taxes included. Shipping calculated at checkout.

89 orders in last 90 days

Warehouse: China/USA/Europe, can delivery to all countries;

Free Shipping: 9-15 days;

Express Shipping: 5-8 days;

Return&Refund: 30 Days.

View full details

SPECIFICATIONS

Wheelbase: Screws

Use: Vehicles & Remote Control Toys

Upgrade Parts/Accessories: Adapter

Tool Supplies: Assembly Category

Size: 1 inch

Remote Control Peripherals/Devices: Accessories

Recommend Age: 12+y

RC Parts & Accs: Transmitters

Quantity: 1 pcs

Origin: Mainland China

Model Number: BN-220 GPS

Material: Composite Material

Four-wheel Drive Attributes: Assemblage

For Vehicle Type: Helicopters

Brand Name: GEPRC

Default shipment: GPS+GLONASS dual mode, built-in FLASH, TTL level, 9600, 1HZ output, NMEA-0183 protocol output.

Note: The BN-220 integrated module is a very small GPS+GLONASS dual-mode GPS. First-class performance.

Note: This integrated module has FLASH inside and can save the configuration. You can change the baud rate, frequency, and protocol. For customers who need to change the configuration, please tell us the output requirements in advance, we will change the configuration according to the requirements, and then ship the goods after the configuration.

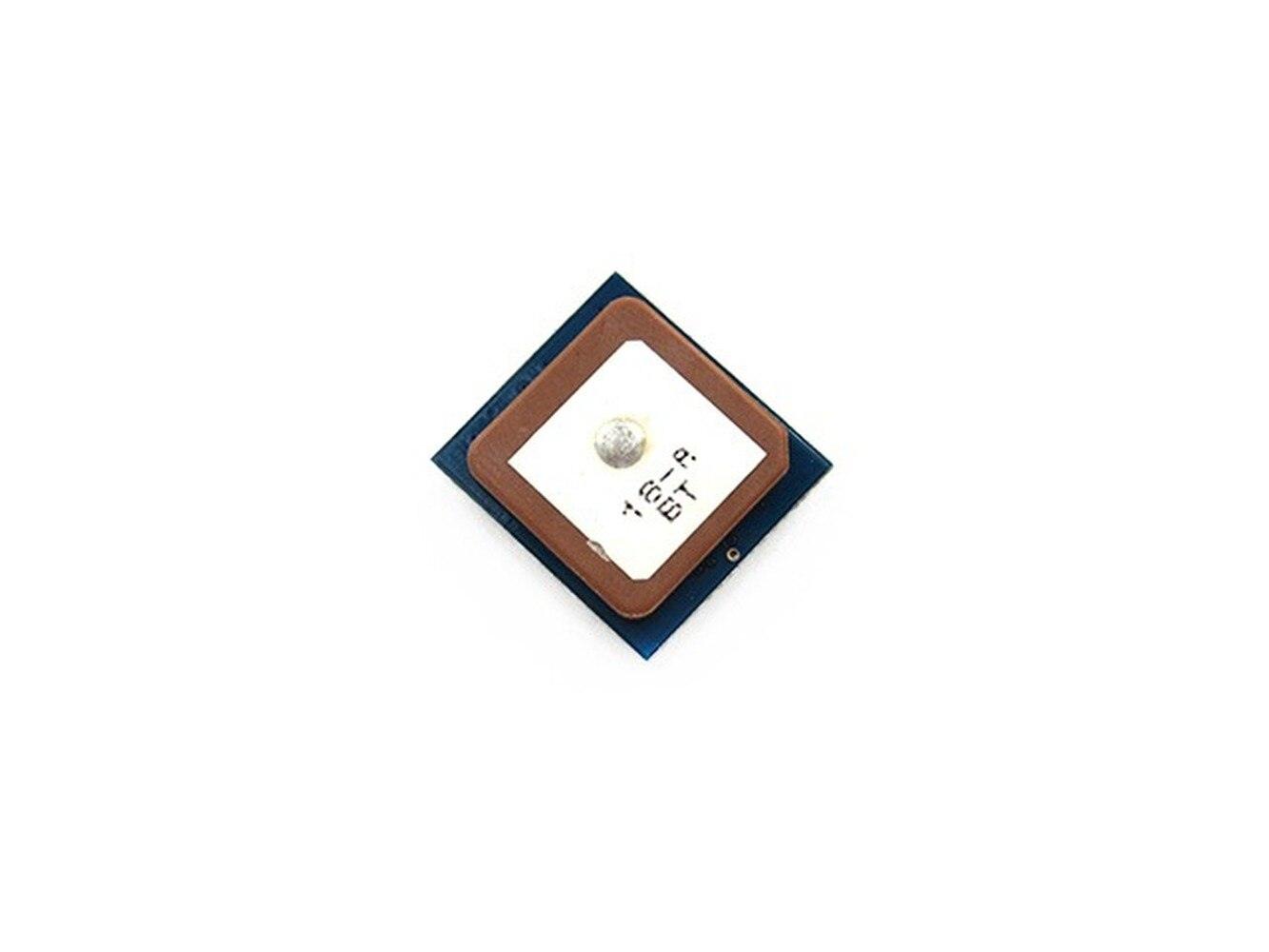

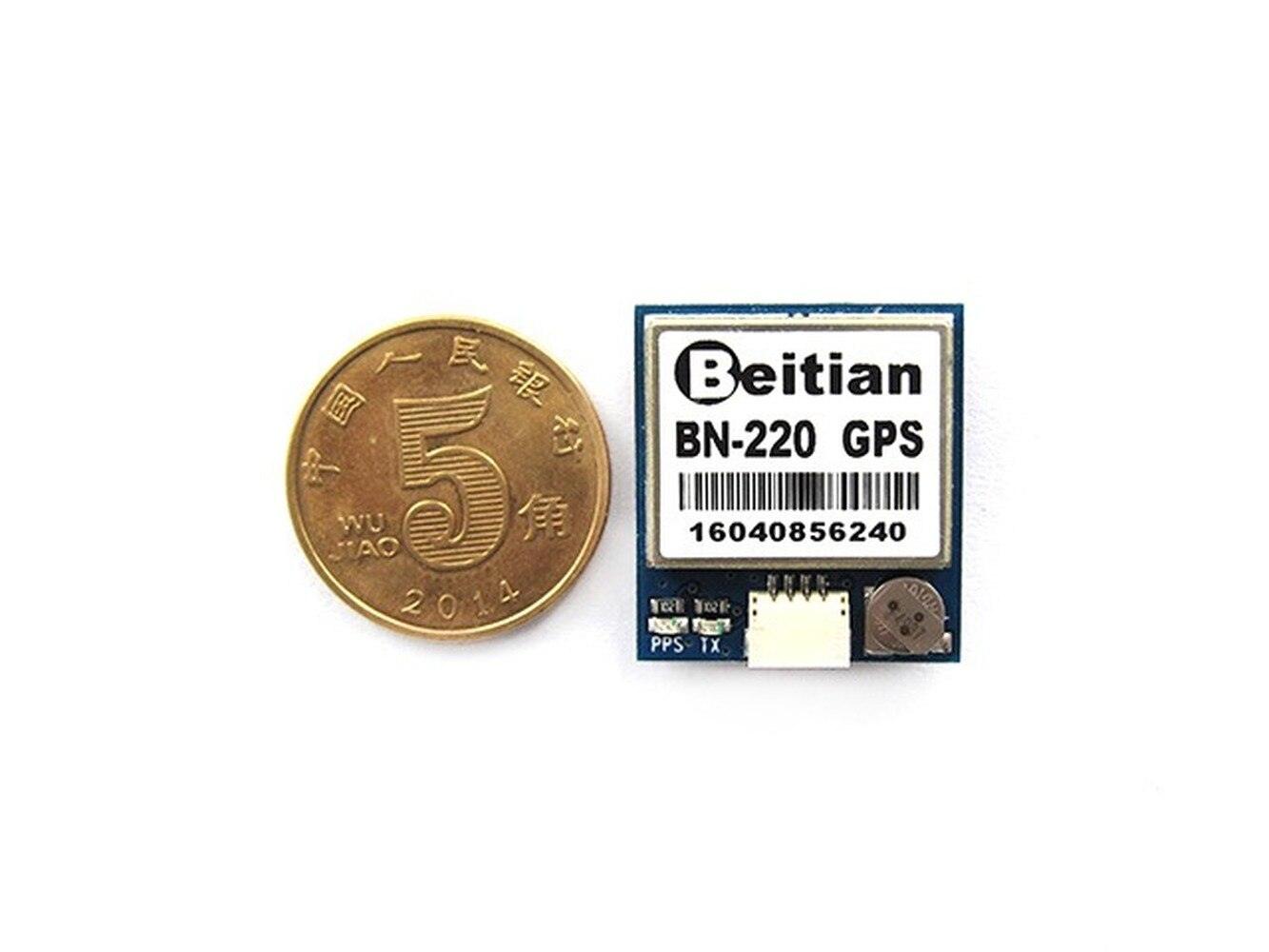

BN-220 GPS integrated module size 22mm*20mm*6mm:

Beitian BN-220 GPS, Beidou GLONASS SMALL SIZE F3 CC3D Beitian BN-220 GPS, Beidou GLONASS SMALL SIZE F3 CC3D Beitian BN-220 GPS, gnsa,a,1,1,00*79 $GLGSV,1,Beitian BN-220 GPS, Beidou GLONASS SMALL SIZE F3 CC3D Beitian BN-220 GPS, Beidou GLONASS SMALL SIZE F3 CC3D

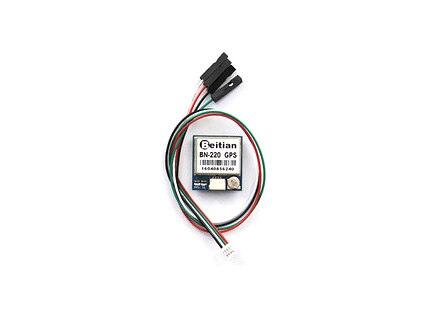

Buy BN-220 GPS, free 1 connection cable, 1 double-sided tape. The pins of the module are:

Beitian BN-220 GPS, GPS+GLONASS dual mode, built-in FLASH, TTL level,Beitian BN-220 GPS, Beidou GLONASS SMALL SIZE F3 CC3D

1. GND, ground.
2. TX, the data output of the module.
3. RX, the data input of the module.
4. VCC, 3.0V--5.5V.

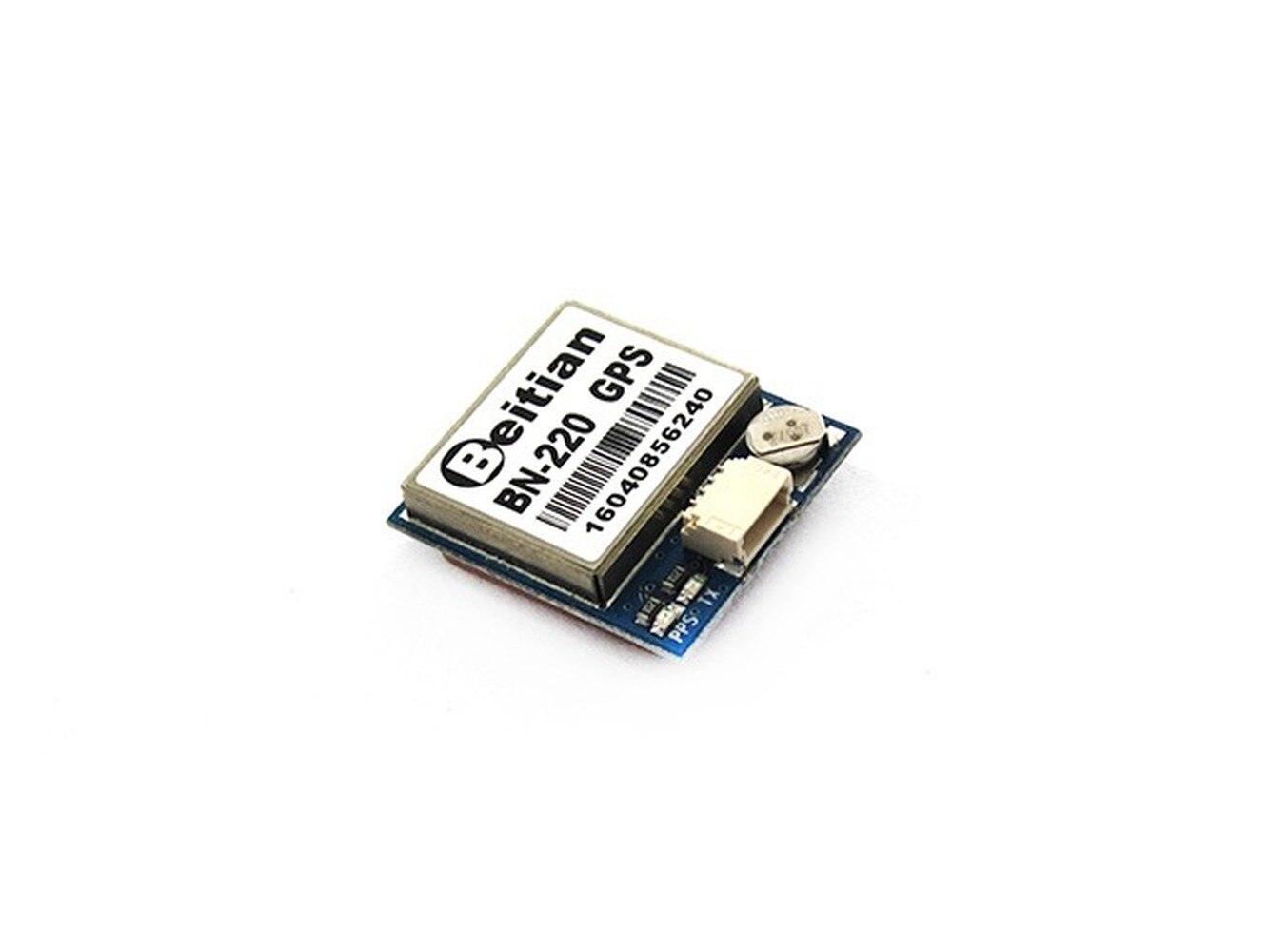

Indicator light:

1. TX light, blue light, blue light flashes when power on, indicating that there is data output.
2. PPS light, red light, the light does not turn on when it is not positioned; after 3D positioning, it starts to flash.



Parameters Table:

Examples of output information:
Unlocated output
$GNRMC,,V,,,,,,,,,,,N*4D
$GNVTG,,,,,,,,,N*2E
$GNGGA,,,,,,0,00,99.99,,,,,,*56
$GNGSA,A,1,,,,,,,,,,,,,,99.99,99.99,99.99*2E
$GNGSA,A,1,,,,,,,,,,,,,,99.99,99.99,99.99*2E
$GPGSV,1,1,00*79
$GLGSV,1,1,00*65
$GNGLL,,,,,,V,N*7A



Output after positioning

$GNRMC,015411.00,A,2240.85230,N,11402.70692,E,0.004,,150618,,,A*65
$GNVTG,,T,,M,0.004,N,0.007,K,A*3E
$GNGGA,015411.00,2240.85230,N,11402.70692,E,1,10,0.78,72.3,M,-2.5,M,,*64
$GNGSA,A,3,08,27,23,09,16,11,18,26,07,31,,,1.43,0.78,1.20*1C
$GNGSA,A,3,,,,,,,,,,,,,1.43,0.78,1.20*16
$GPGSV,4,1,14,04,04,067,23,07,12,318,45,08,70,230,50,09,36,294,49*73
$GPGSV,4,2,14,11,22,193,43,16,34,036,45,18,19,172,44,21,03,044,34*70
$GPGSV,4,3,14,23,52,246,47,26,17,061,38,27,67,030,49,31,11,122,42*7F
$GPGSV,4,4,14,42,46,123,42,50,46,123,41*7C
$GLGSV,2,1,07,73,,,46,74,,,47,75,,,41,83,,,38*60
$GLGSV,2,2,07,84,,,44,85,,,49,,,,49*63
$GNGLL,2240.85230,N,11402.70692,E,015411.00,A,A*73
