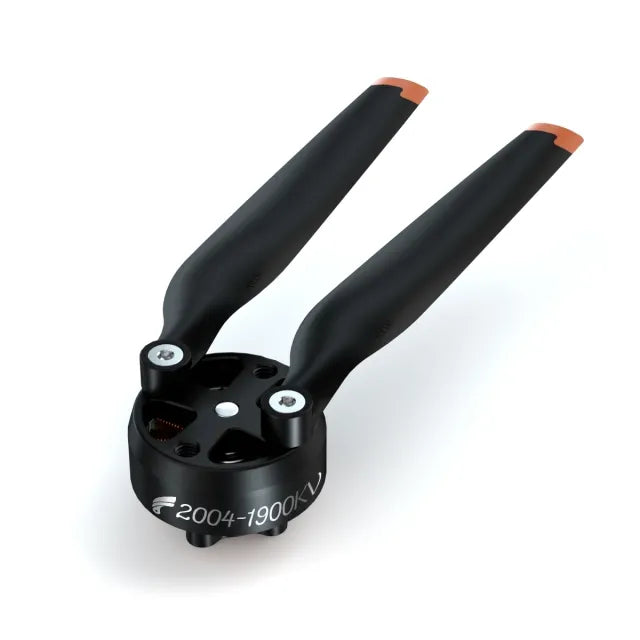

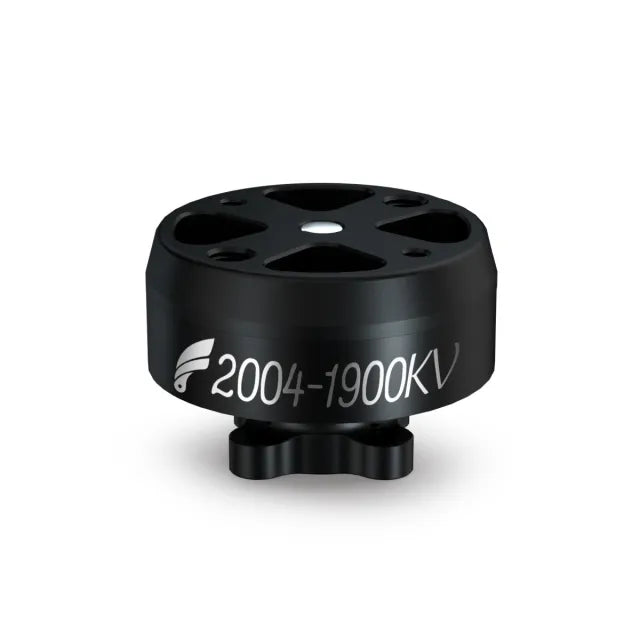

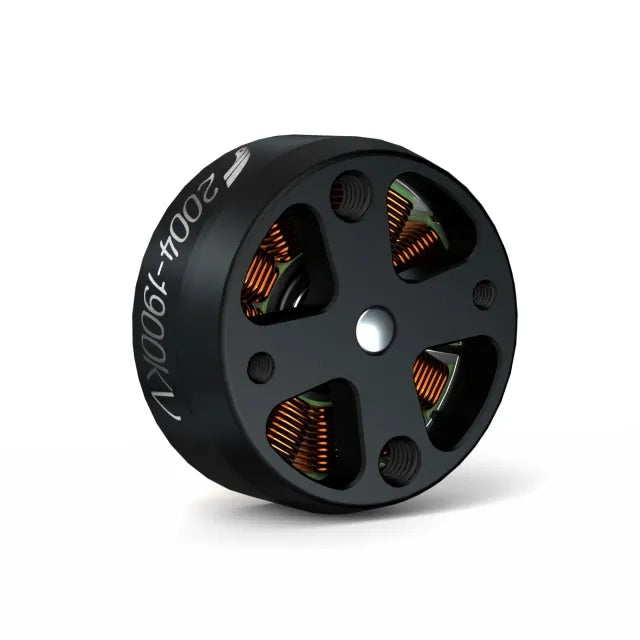

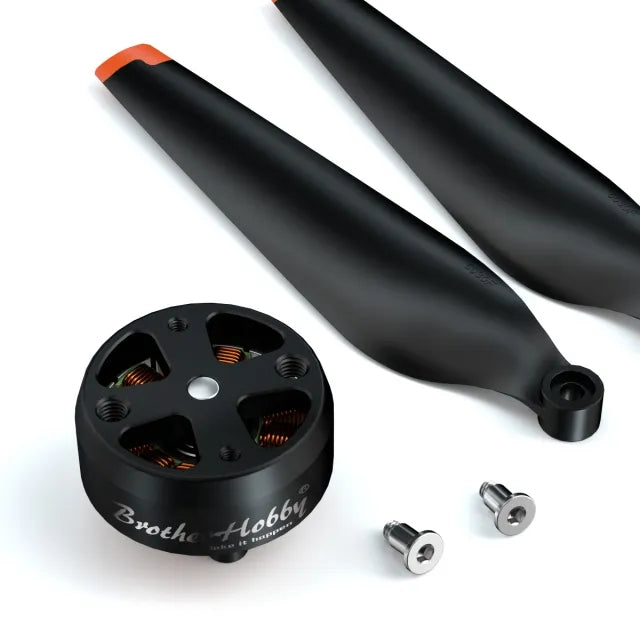

• BrotherHobby F2004 Camera Drone Motor 1900KV 3S Motor Come With Free folding propeller
  • BrotherHobby F2004 Camera Drone Motor 1900KV 3S Motor Come With Free folding propeller
  • BrotherHobby F2004 Camera Drone Motor 1900KV 3S Motor Come With Free folding propeller
  • BrotherHobby F2004 Camera Drone Motor 1900KV 3S Motor Come With Free folding propeller
  • BrotherHobby F2004 Camera Drone Motor 1900KV 3S Motor Come With Free folding propeller
1 5

BrotherHobby F2004 Camera Drone Motor 1900KV 3S Motor Come With Free folding propeller

BrotherHobby F2004 Camera Drone Motor 1900KV 3S Motor Come With Free folding propeller

Brotherhobby

$29.90 USD
$29.90 USD
Sale Sold out
Taxes included. Shipping calculated at checkout.

199 orders in last 90 days
  • PayPal
  • Visa
  • Mastercard
  • American Express

Warehouse: China/USA/Europe, can delivery to all countries;

Free Shipping: 9-15 days;

Express Shipping: 5-8 days;

Return&Refund: 30 Days.

View full details
Specifications
KV: 1900KV
No.of Cells(Lipo): 3S
Stator: 0.2mm Kawasaki silicon steel
Bearings: NSK 8X3X4
Bell cap: Al 7075
Weight: 19.27g
Configuration: 12N14P
Rotor: N52H arc magnets
Wire AWG: 20AWG 160mm
Base casing: Al 7075
Bolt Pattern: M2 12X12

2004 NEW PRODUCT 190 F2004 22004 Can store folding propellers suitable forMOTOR PARAMETERS Motor Kv: 1900KV Configuration: 12NI4

MOTOR PARAMETERS Motor Kv: 1900KV Configuration: 12NI4P Motor Weight: 19, ESC: 35 20A No. of Cells(Lipo): 35 propellers: 6.0*3.0 inch Installation size: 023.8*15.9

aviation grade 7075 Al caps hard anodized caps, Scraping slightly without trace

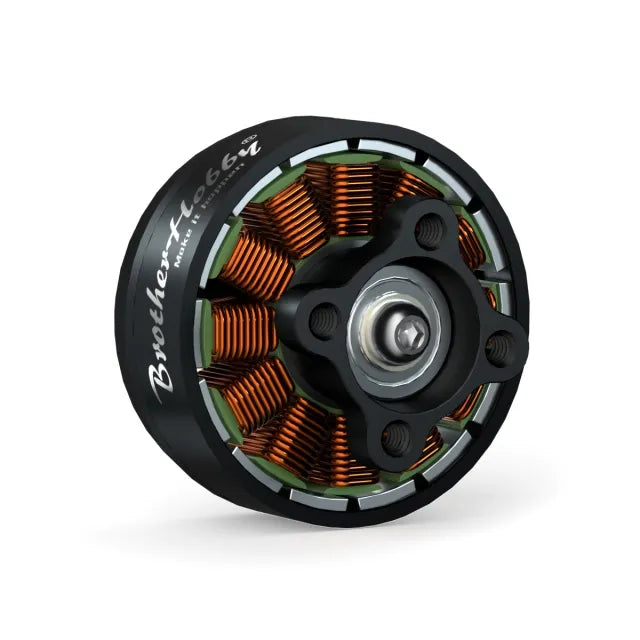

Features aviation-grade 7075 aluminum capped with hard-anodized finishes, boasting a hollow-carved design that reduces weight while promoting effective heat dissipation.

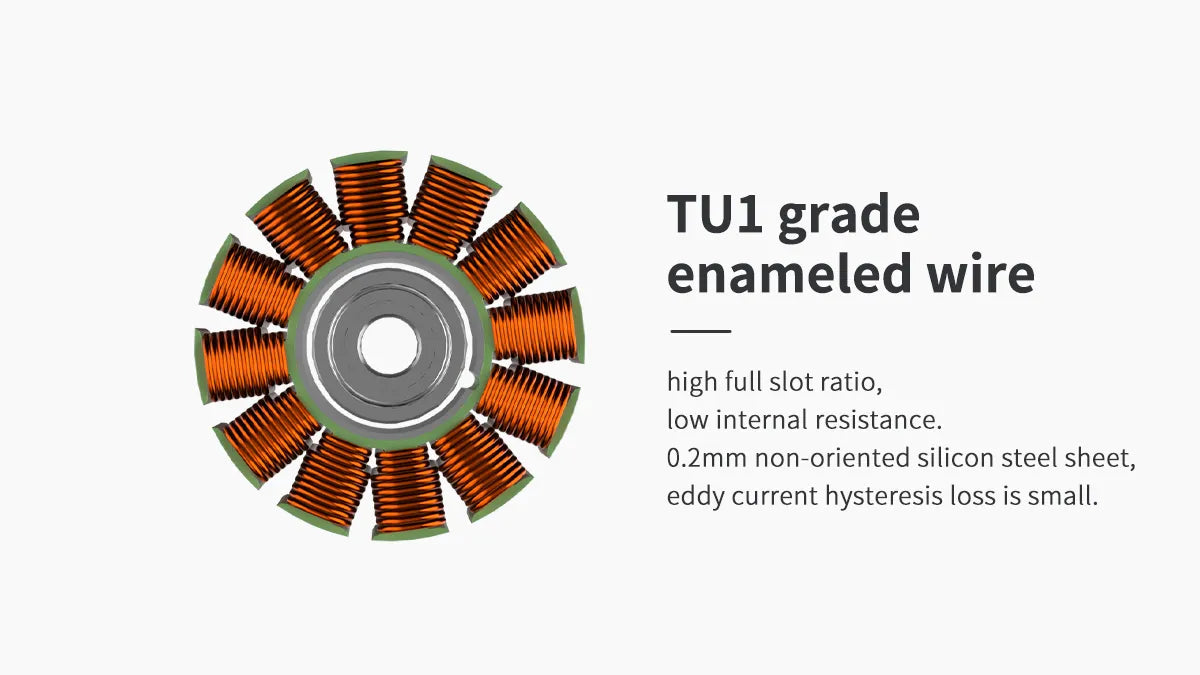

Premium NMB bearings, can withstand greater axial load.enameled wire high full slot ratio, low internal resistance . eddy current

Equipped with enameled wire insulation and a high full-slot ratio design, this motor also features a low internal resistance, resulting in minimal eddy current hysteresis losses.

4 WHOLE SET OF MATCHING Byothes-Hobby Fur

4 WHOLE SET OF MATCHING Byothes-Hobby Fur

BvothevtLobby F2004-1900KV-3S-12.6

Test Report: F2004-1900KV-3S-12.6V-2OA-6030 Prop. Includes data from testing the F2004 motor with copper wire temperature readings taken after running at 100% throttle for 10 minutes, showing temperatures inside the motor up to 18.75°C (65.5°F) at peak.
